舵机动态响应下导弹阻尼回路稳定性

doi:10.12305/j.issn.1001-506X.2022.10.24

摘要/Abstract

摘要：

针对导弹控制参数稳定区域的研究大多忽略了舵机的动态响应过程对参数稳定区域的影响, 首先建立了阻尼驾驶仪控制的导弹动力学方程以及舵机的动力学方程, 然后考虑舵机的稳态响应和动态响应, 应用劳斯判据给出了非旋转弹阻尼反馈增益与舵机控制参数的动态关系。为推导旋转弹阻尼反馈增益的稳定区域, 分析了舵机在准弹体坐标系下的表达式, 然后采用复姿态角方法和Lyapunov稳定性判据, 给出了旋转弹动态稳定性条件。最后以某一导弹飞行参数为例进行了仿真, 验证了本文所得出的稳定性条件的有效性。

关键词: 导弹, 阻尼回路, 复姿态角方法, Lyapunov稳定性判据, 舵机动态响应

Abstract:

Most of the researches on the stability region of missile control parameters ignore the influence of the dynamic response process of the actuator. In this paper, the dynamic equations of the missile and the actuator are established firstly. Considering the steady-state response and dynamic response of the actuator, applying the Routh criterion, the dynamic relationship between the damping feedback gain of the non-spinning missile and the control parameters of the actuator is given. In order to deduce the stability region of the damping feedback gain of the spinning missile, the expression of the actuator in the quasi-body coordinate system is analyzed, then the dynamic stability condition of the spinning missile is given by using the complex attitude angle method and Lyapunov stability criterion. Finally, a missile flight parameter is taken as an example to verify the effectiveness of the stability conditions.

Key words: missile, damping pilot, complex attitude angle method, Lyapunov stability criterion, actuator dynamic response

中图分类号:

V249

周志明, 刘振, 易建强, 姚晓先. 舵机动态响应下导弹阻尼回路稳定性[J]. 系统工程与电子技术, 2022, 44(10): 3200-3206.

Zhiming ZHOU, Zhen LIU, Jianqiang YI, Xiaoxian YAO. Stability of missile damping loop under actuator dynamic response[J]. Systems Engineering and Electronics, 2022, 44(10): 3200-3206.

图/表 10

表1

图1

图2

图3

表2

表3

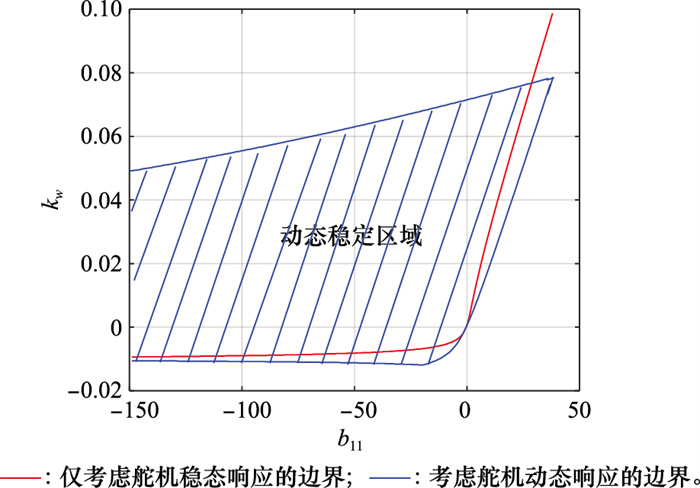

图4

图5

图6

图7

参考文献 32

1	ZIPFEL P H. Modeling and simulation of aerospace vehicle dynamics[M]. 2nd ed. AIAA Education Series, 2000: 55-481.
2	林德福, 王辉, 王江, 等. 战术导弹自动驾驶仪设计与制导律分析[M]. 北京: 北京理工大学出版社, 2012: 64- 71.
	LIN D F , WANG H , WANG J , et al. Autopilot design and guidance law analysis for tactical missiles[M]. Beijing: Beijing Institute of Technology Press, 2012: 64- 71.
3	石忠佼, 谢浩怡, 林蔚, 等. 单通道控制的旋转弹锥形运动稳定性研究[J]. 固体火箭技术, 2015, 38 (2): 156- 165.
	SHI Z J , XIE H Y , LIN W , et al. Research on coning motionstability of a spinning missilewith one pair of canards[J]. Journal of Solid Rocket Technology, 2015, 38 (2): 156- 165.
4	ZARCHAN P . Tactical and strategic missile guidance[M]. 5th ed Reston: AIAA, 2007: 510- 527.
5	MAO X R , YANG S X , XU Y . Coning motion stability of wrap around fin rockets[J]. Science in China Series E: Technological Sciences, 2007, 50 (3): 343- 350. doi: 10.1007/s11431-007-0026-0
6	PLATUS D H . Missile and spacecraft coning instability[J]. Journal of Guidance, Control and Dynamics, 1994, 17 (5): 1011- 1018. doi: 10.2514/3.21303
7	ZHU D L , CHEN R , TANG S J , et al. Flight stability of a dual-spin projectile with canards[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2015, 229 (4): 703- 716. doi: 10.1177/0954410014539293
8	PHILIPPE W. Stability analysis for canard guided dual-spin stabilized projectiles[C]//Proc. of the AIAA Atmospheric Flight Mechanics Conference, 2009.
9	李克勇, 赵良玉, 周伟. 一类旋转弹在高空中的锥形运动稳定性[J]. 动力学与控制学报, 2012, 10 (3): 239- 243.
	LI K Y , ZHAO L Y , ZHOU W . Stability of coning motion of spinning rocket projectiles at high altitude[J]. Journal of Dynamics and Control, 2012, 10 (3): 239- 243.
10	COOPER G , FRESCONI F , CESTELLO M . Flight stability of an asymmetric projectilewith activating canards[J]. Journal of Spacecraft and Rockets, 2012, 49 (1): 130- 135. doi: 10.2514/1.A32022
11	YAN X Y , YANG S X , ZHANG C . Coning motion of spinning missiles induced by the rate loop[J]. Journal of Guidance, Control and Dynamics, 2010, 33 (5): 1490- 1499. doi: 10.2514/1.48041
12	YAN X Y , YANG S X , XIONG F F . Stability limits of spinning missiles with attitude autopilot[J]. Journal of Guidance, Control and Dynamics, 2011, 34 (1): 278- 283. doi: 10.2514/1.51627
13	LI K Y , YANG S X , ZHAO L Y . Stability of spinning missiles with an acceleration autopilot[J]. Journal of Guidance, Control and Dynamics, 2012, 35 (3): 774- 786. doi: 10.2514/1.56122
14	LI K Y , YANG S X , ZHAO L Y . Three loop autopilot of spinning missiles[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2013, 228 (7): 1195- 1201.
15	李克勇. 旋转弹动态稳定性与鲁棒变增益控制[D]. 北京: 北京理工大学, 2014: 35-64.
	LI K Y. Guidance, control and stability of spinning missiles[D]. Beijing: Beijing Institute of Technology, 2014: 35-64.
16	ZHOU W , YANG S , DONG J L . Coning motion instability of spinning missiles induced by hinge moment[J]. Aerospace Science and Technology, 2013, 30 (1): 239- 245. doi: 10.1016/j.ast.2013.08.008
17	ZHOU W , YANG S X , ZHAO L Y . Limit cycle of low spinning projectiles induced by the backlash of actuators[J]. Aerospace Science and Technology, 2017, 69, 595- 601. doi: 10.1016/j.ast.2017.07.030
18	周伟. 旋转导弹制导控制与稳定性问题研究[D]. 北京: 北京理工大学, 2016: 27-31.
	ZHOU W. Dynamic stability and robust gain-scheduling controlof spinning missiles[D]. Beijing: Beijing Institute of Technology, 2016, 27-31.
19	赵春明, 吴昭辉, 方海红, 等. 寻的制导回路建模与稳定性分析[J]. 航天控制, 2014, 32 (1): 3- 10.
	ZHAO C M , WU Z H , FANG H H , et al. The modeling and stability analysis of the homing guidance Loop[J]. Aerospace Control, 2014, 32 (1): 3- 10.
20	杨广慧, 孙友, 巩庆海. 某类比例导引飞行器的制导回路稳定性分析方法[J]. 航天控制, 2013, 31 (1): 11- 14.
	YANG G H , SUN Y , GONG Q H . Research on the stability of guidance loop for some proportional guidance vehicle[J]. Aerospace Control, 2013, 31 (1): 11- 14.
21	刘鹏云, 孙瑞胜, 李伟明, 等. 基于锥形运动的制导火箭速度控制导引律设计[J]. 航空学报, 2014, 35 (4): 933- 941.
	LIU P Y , SUN R S , LI W M , et al. A coning motion-based guidance law for guided rocket with velocity control[J]. Acta Aeronautica et Astronantica Sinica, 2014, 35 (4): 933- 941.
22	HE S , LIN D , WANG J . Coning motion stability of spinning missiles with strapdown seekers[J]. The Aeronautical Journal, 2016, 120, 1566- 1577. doi: 10.1017/aer.2016.75
23	ZHENG D , LIN D F , XU X H , et al. Dynamic stability of rolling missile with proportional navigation & PI autopilot considering parasitic radome loop[J]. Aerospace Science and Technology, 2017, 67, 41- 48. doi: 10.1016/j.ast.2017.03.036
24	HU X , YANG S X , XIONG F F , et al. Stability of spinning missile with homing proportional guidance law[J]. Aerospace Science and Technology, 2017, 71, 546- 555. doi: 10.1016/j.ast.2017.10.007
25	ZHENG D , LIN D F , WANG J , et al. Dynamic stability of rolling missiles employing a two-loop autopilot with consideration for the radome aberration parasitic feedback loop[J]. Aero-space Science and Technology, 2017, 61, 1- 10. doi: 10.1016/j.ast.2016.11.016
26	TIAN S , LIN D F , WANG J , et al. Dynamic stability of rolling missiles with angle-of-attack feedback three-loop autopilot considering parasitic effect[J]. Aerospace Science and Techno-logy, 2017, 71, 592- 602. doi: 10.1016/j.ast.2017.10.023
27	HU X , YANG S X . Coning motion instability of spinning missiles induced by the delay of strap-down seeker[J]. Chinese Journal of Aeronautics, 2020, 33 (12): 3360- 3368.
28	YOUSOF K , MOHAMMAD R A , AHMAD R V , et al. Dynamic stability conditions for a rolling flight vehicle applying continuous actuator[J]. Aerospace Science and Technology, 2015, 42, 451- 458.
29	FAN S P , SONG T , WANG J , et al. Coupling analysis and dynamic stability boundary of spinning missiles considering actuator dynamics and autopilot[J]. Aerospace Science and Technology, 2021,
30	范军芳. 静不稳定导弹自动驾驶仪设计研究[D]. 北京: 北京理工大学, 2008.
	FAN J F. Research on autopilot design for static unstable missiles[D]. Beijing: Beijing Institute of Technology, 2008.
31	钱杏芳, 林瑞雄, 赵亚男. 导弹飞行力学[M]. 北京: 北京理工大学出版社, 2003.
	QIAN X F , LIN R X , ZHAO Y N . Flight mechanics[M]. Beijing: Beijing Institute of Technology Press, 2003.
32	FRANK E . On the zeros of polynomials with complex coefficients[J]. Bulletin of the American Mathematical Society, 1946, 52, 144- 157.

符号	意义
α, β	准弹体坐标系下攻角与侧滑角
ϑ, ψ	准弹体坐标系下俯仰角与偏航角
δ_y, δ_z	等效舵偏角
C_D	阻力系数
C′_L	升力系数导数
C′_M	马格努斯力系数导数
C′_δ	舵偏升力系数导数
C′_S	静力矩系数导数
C′_μ	马格努斯力矩系数导数
C′_q	俯仰偏航阻尼系数
C_mq	控制力矩系数
I_x, I_t	赤道转动惯量与极转动惯量
$\dot{\gamma}$	弹体转速

参数名称	值
电机转动惯量J_m/(kg·m²)	1.667e-6
舵片转动惯量J_l/(kg·m²)	0.016 6
电阻R/Ω	7.8
反电动势系数K_e/(V·s·rad^-1)	0.04
电磁力矩系数K_m/(N·m·A^-1)	0.017 3
减速比N	600

参数	取值	参数	取值
V/(m·s^-1)	1 200	$\dot{\gamma} /\left(\operatorname{rad} \cdot \mathrm{s}^{-1}\right)$	20π
a₁	1.106	a₂	－2.07×10^－4
a₃	6.23×10^－4	b₃	251.1
b₁₁	-265.4	b₁₂	-3.326
b₂₁	0.552	b₂₂	1.297
