基于UNB的高精度测距通信复合信号设计

doi:10.12305/j.issn.1001-506X.2026.06.32

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (6): 2113-2121.doi: 10.12305/j.issn.1001-506X.2026.06.32

基于UNB的高精度测距通信复合信号设计

马若凡(), 贺成艳, 张兆林, 孙延栋, 陶明亮, 王伶

西北工业大学电子信息学院，陕西西安 710129

收稿日期:2025-04-02 修回日期:2025-06-15 出版日期:2026-06-25 发布日期:2025-11-07
通讯作者: 贺成艳 E-mail:maruofan02@mail.nwpu.edu.cn
作者简介:马若凡（2002—），女，硕士研究生，主要研究方向为通导一体化信号设计
张兆林（1978—），男，副教授，博士，主要研究方向为通信抗干扰、阵列信号处理以及多媒体通信
孙延栋（1993—），男，博士，主要研究方向为卫星导航抗干扰、阵列信号处理、阵列重构优化
陶明亮（1989—），男，教授，博士，主要研究方向为智能探测与侦察、智能抗干扰信号处理
王　伶（1978—），男，教授，博士，主要研究方向为卫星通信与卫星导航、可靠通信传输与组网、智能探测与侦察、阵列天线与电磁计算
基金资助:
国家自然科学基金（12273046，62271412）资助课题

Design of high-precision ranging and communication composite signal based on UNB

Ruofan MA(), Chengyan HE, Zhaolin ZHANG, Yandong SUN, Mingliang TAO, Ling WANG

School of Electronics and Information，Northwestern Polytechnical University，Xi’an 710129，China

Received:2025-04-02 Revised:2025-06-15 Online:2026-06-25 Published:2025-11-07
Contact: Chengyan HE E-mail:maruofan02@mail.nwpu.edu.cn

摘要/Abstract

摘要：

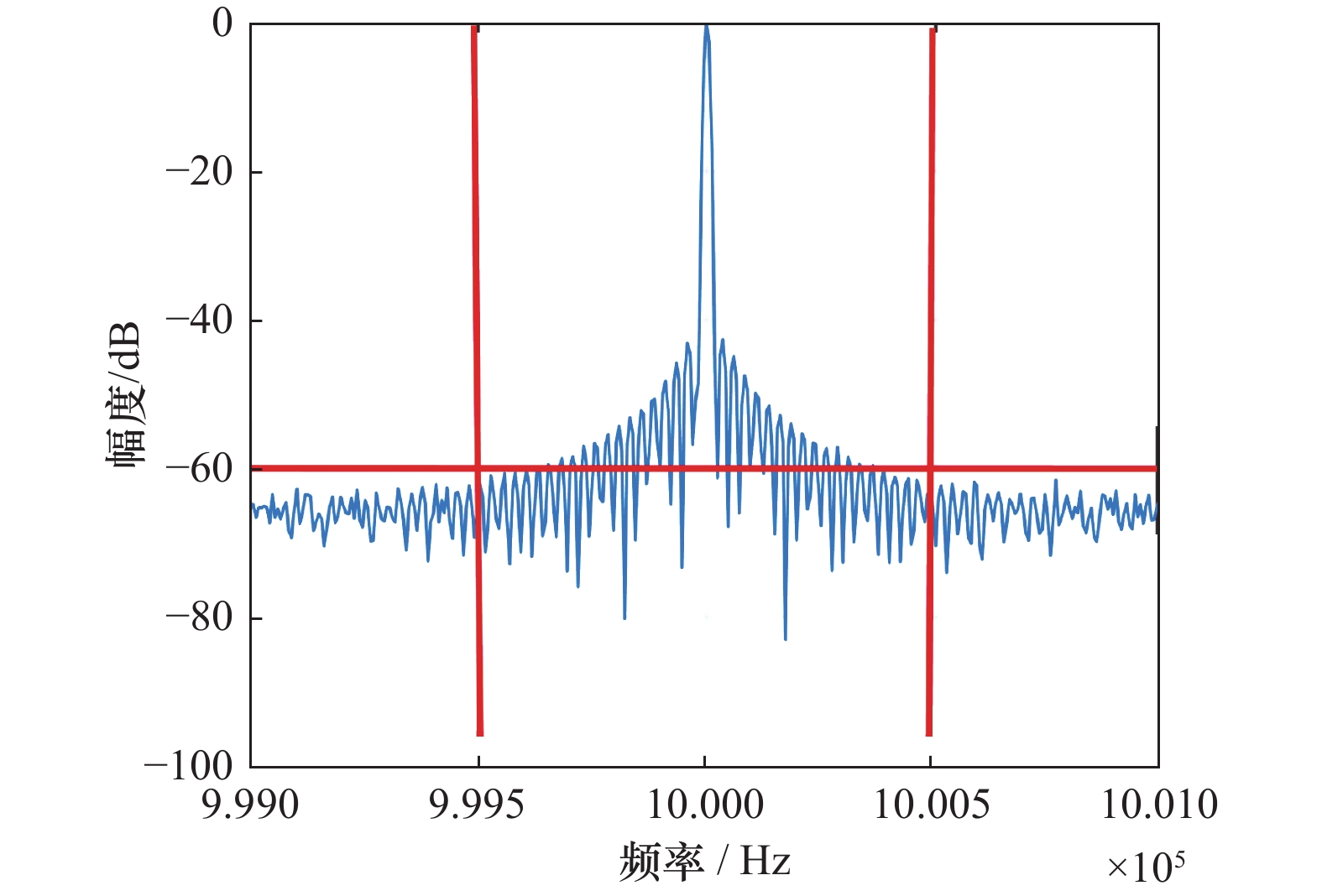

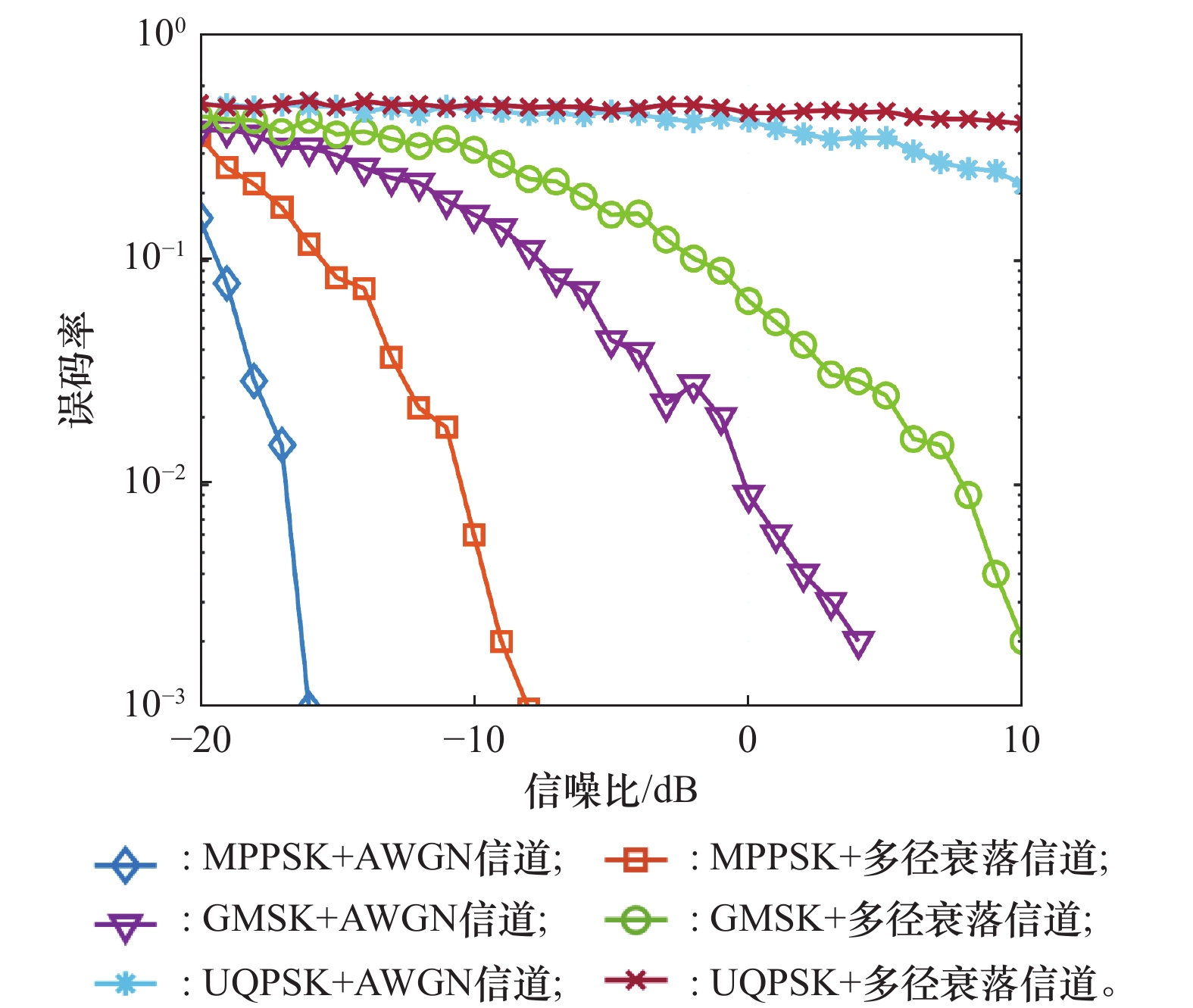

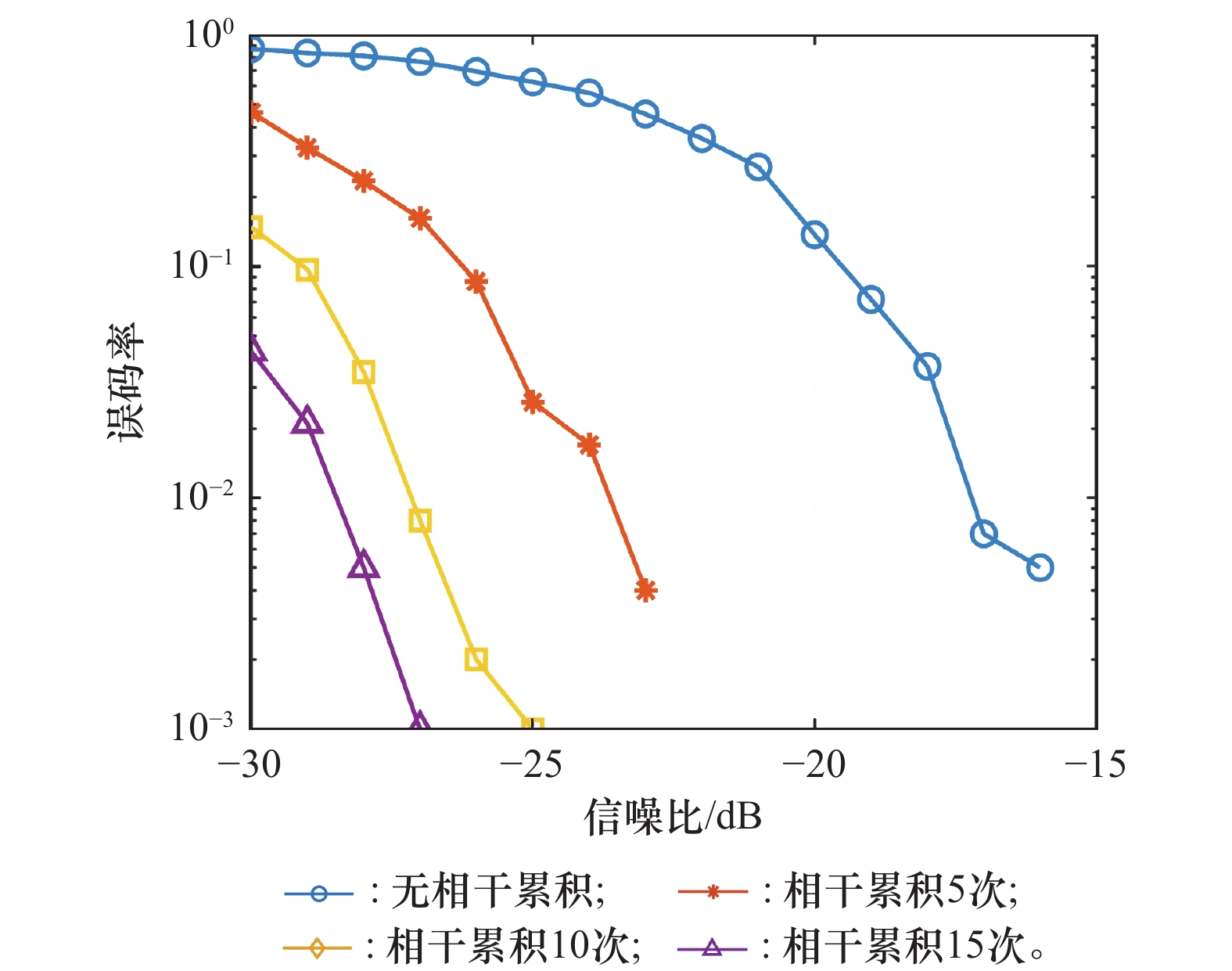

频谱资源日益紧张，测距通信复合系统对高频谱利用率和高精度定位需求愈发迫切。针对传统系统频谱利用率低、复杂环境下易被干扰等问题，提出基于全跳变多元位置相移键控（m-ary position phase shift keying，MPPSK）调制的测距通信复合信号设计，与传统调制相比，该信号带宽极窄且在低信噪比下的时延估计和相干解调有明显优势。仿真结果表明，信号?60 dB带宽约为1 kHz，频带利用率为31.25 bit/s/Hz，低信噪比下时延估计均方根误差和相干解调误码率分别可达到${10^{ - 9}}$ s和${10^{ - {\text{3}}}}$。外场实测结果表明，待测点距离3个发送台分别为53 km、77 km、96 km，定位均方根误差为48.523 m。研究成果可用于完成远距离高精度测距通信功能，此外信号包络恒定，可寄生在公开的调频、调幅信号中，不影响宿主信号的同时实现隐蔽传输。

关键词: 测距通信复合系统, 超窄带调制, 全跳变多元位置相移键控, 广义互相关时延估计

Abstract:

With the increasing shortage of spectrum resources, the demand for high spectrum utilization and high-precision positioning in ranging and communication composite systems is becoming more and more urgent. Aiming at the problems of low spectral efficiency and easy interference in complex environment of traditional system, a design of ranging and communication composite signal based on full-hopping m-ary position phase shift keying （MPPSK） modulation is proposed. Compared with the traditional modulations, the bandwidth of the signal is very narrow and it has obvious advantages in time delay estimation and coherent demodulation at low signal-to-noise ratio. The simulation results show that the signal bandwidth of ?60 dB is approximately 1 kHz and the spectral efficiency is 31.25 bit/s/Hz. Under the low signal-to-noise ratio, the root mean square error of delay estimation and the bit error rate of coherent demodulation can reach ${10^{ - 9}}$ s and ${10^{ - 3}}$, respectively. The field measurement results show that the distances from the test point to the three transmitting stations are 53 km, 77 km, and 96 km, respectively, and the positioning root mean square error is 48.523 m. The research results can be used to achieve long-distance high-precision ranging and communication functions. The signal envelope is constant and can be parasitically carried in public frequency modulation and amplitude modulation signals, realizing covert transmission without affecting the host signal.

Key words: ranging and communication composite system, ultranarrow band modulation, full-hopping m-ary position phase shift keying（MPPSK）, generalized cross-correlation time delay estimation

中图分类号:

TN 914

马若凡, 贺成艳, 张兆林, 孙延栋, 陶明亮, 王伶. 基于UNB的高精度测距通信复合信号设计[J]. 系统工程与电子技术, 2026, 48(6): 2113-2121.

Ruofan MA, Chengyan HE, Zhaolin ZHANG, Yandong SUN, Mingliang TAO, Ling WANG. Design of high-precision ranging and communication composite signal based on UNB[J]. Systems Engineering and Electronics, 2026, 48(6): 2113-2121.

图/表 18

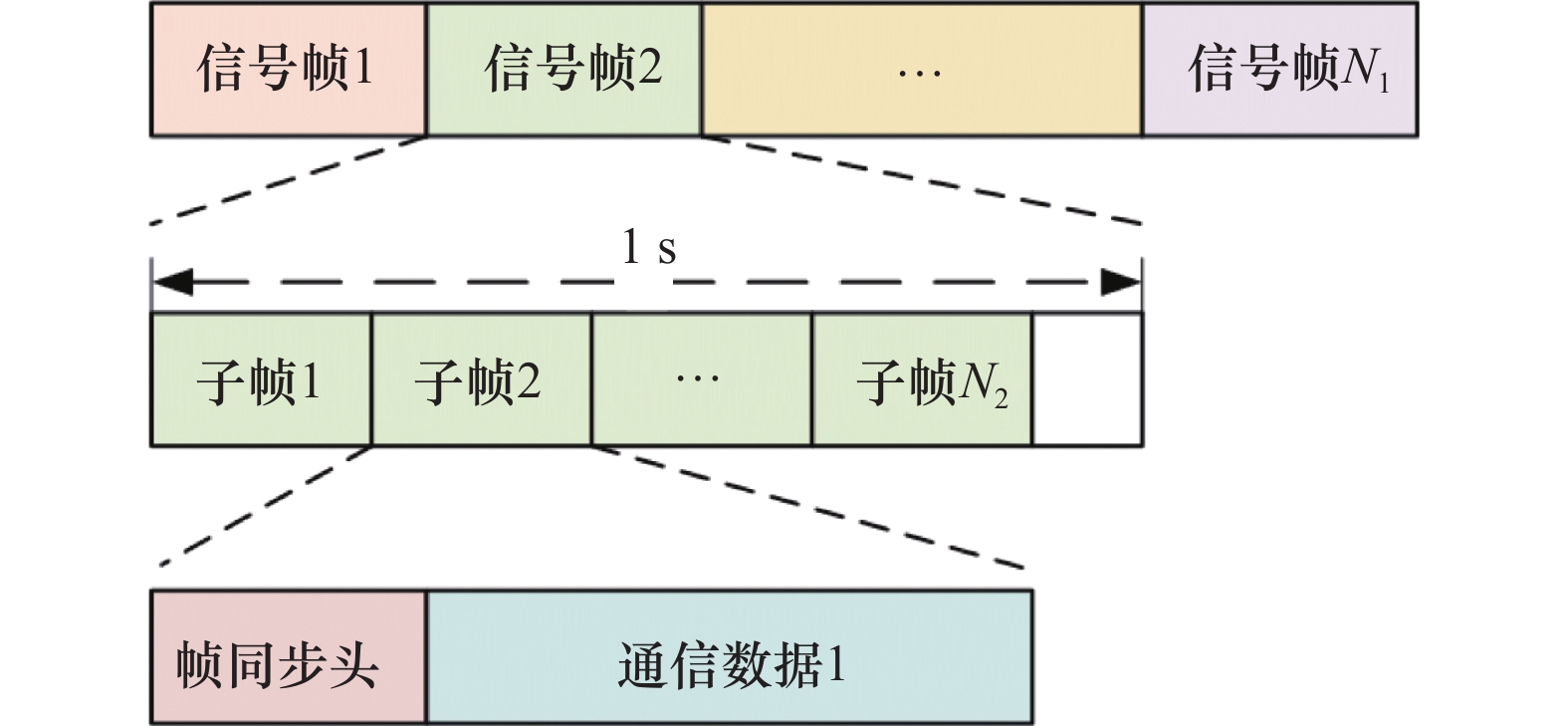

图1

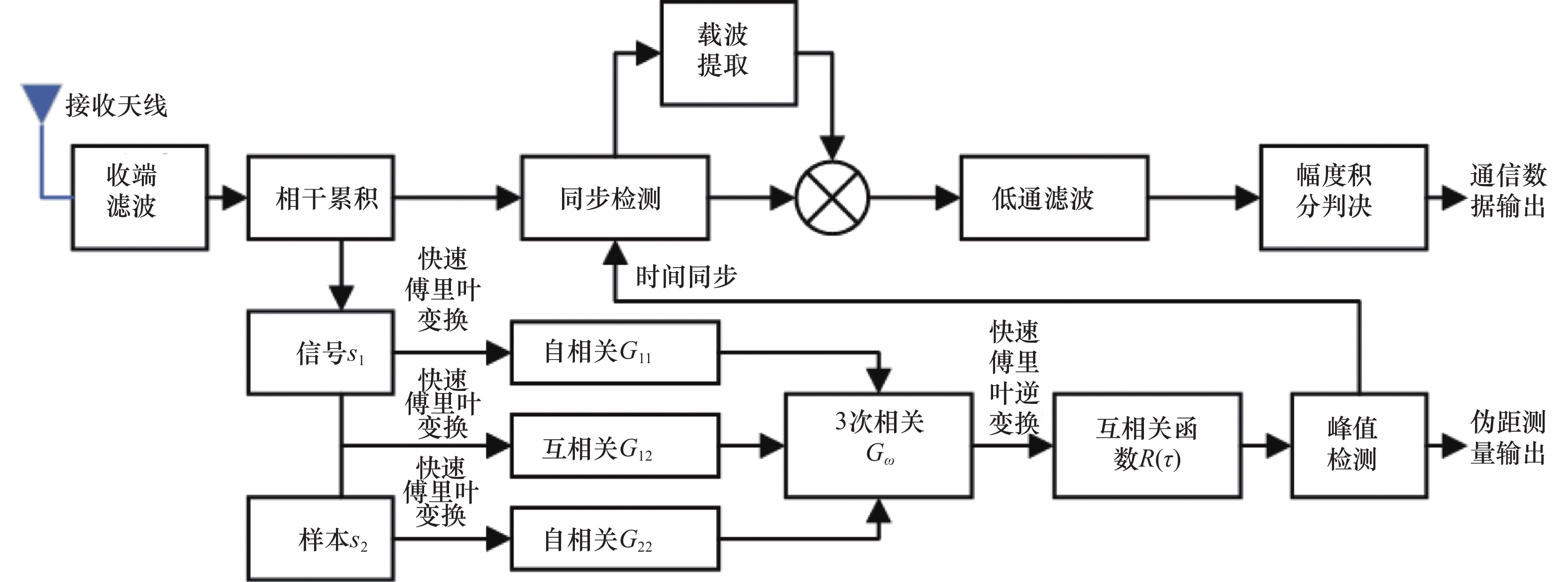

图2

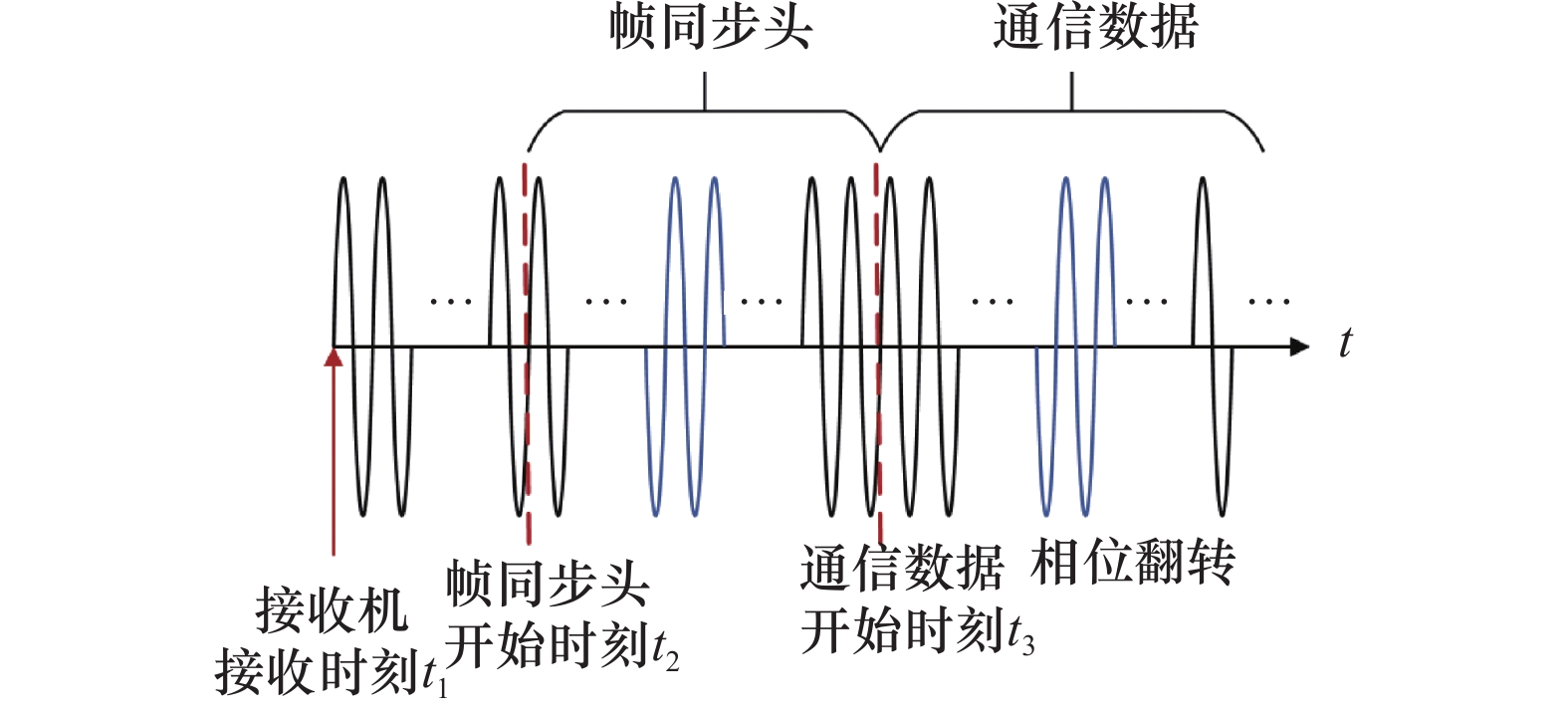

图3

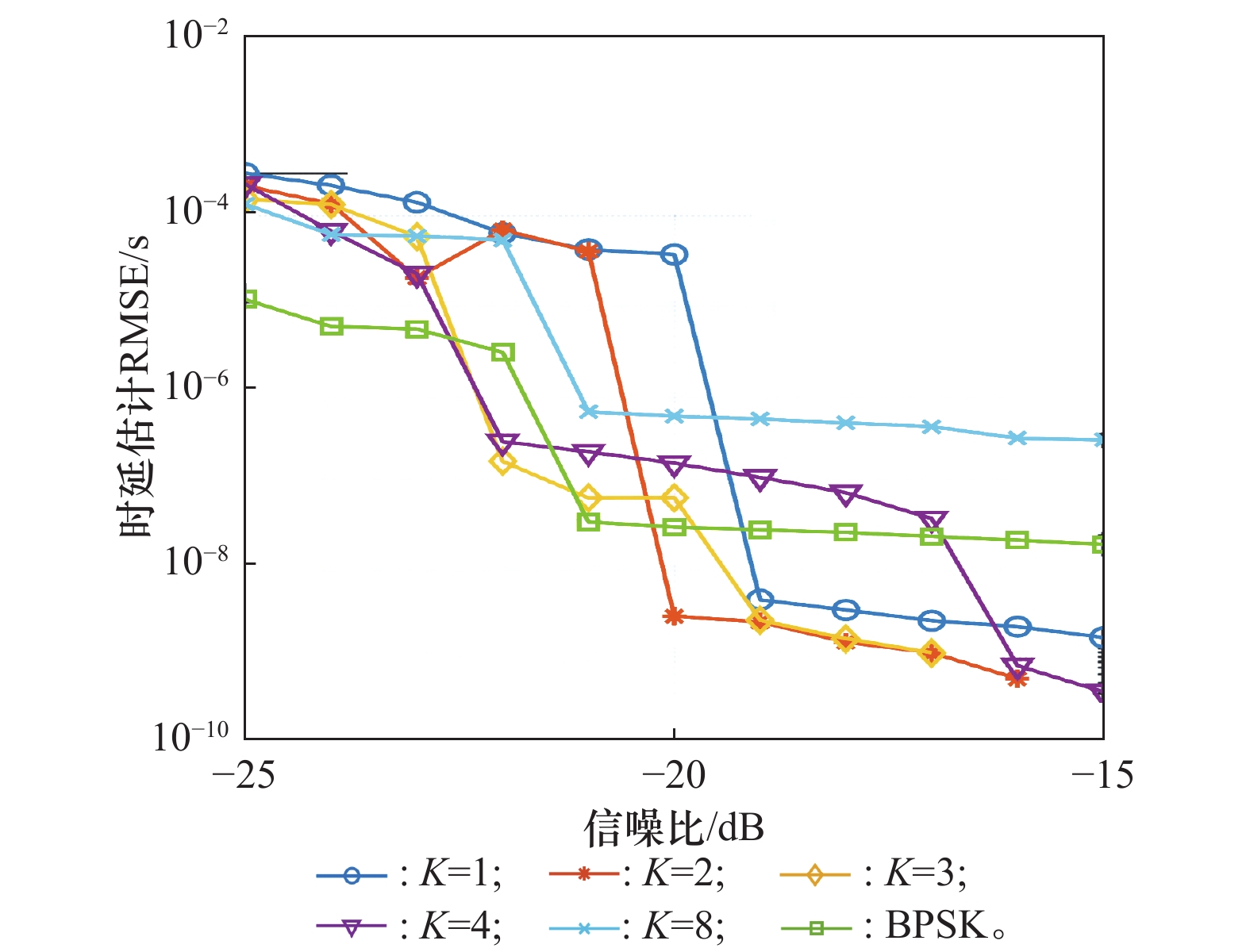

图4

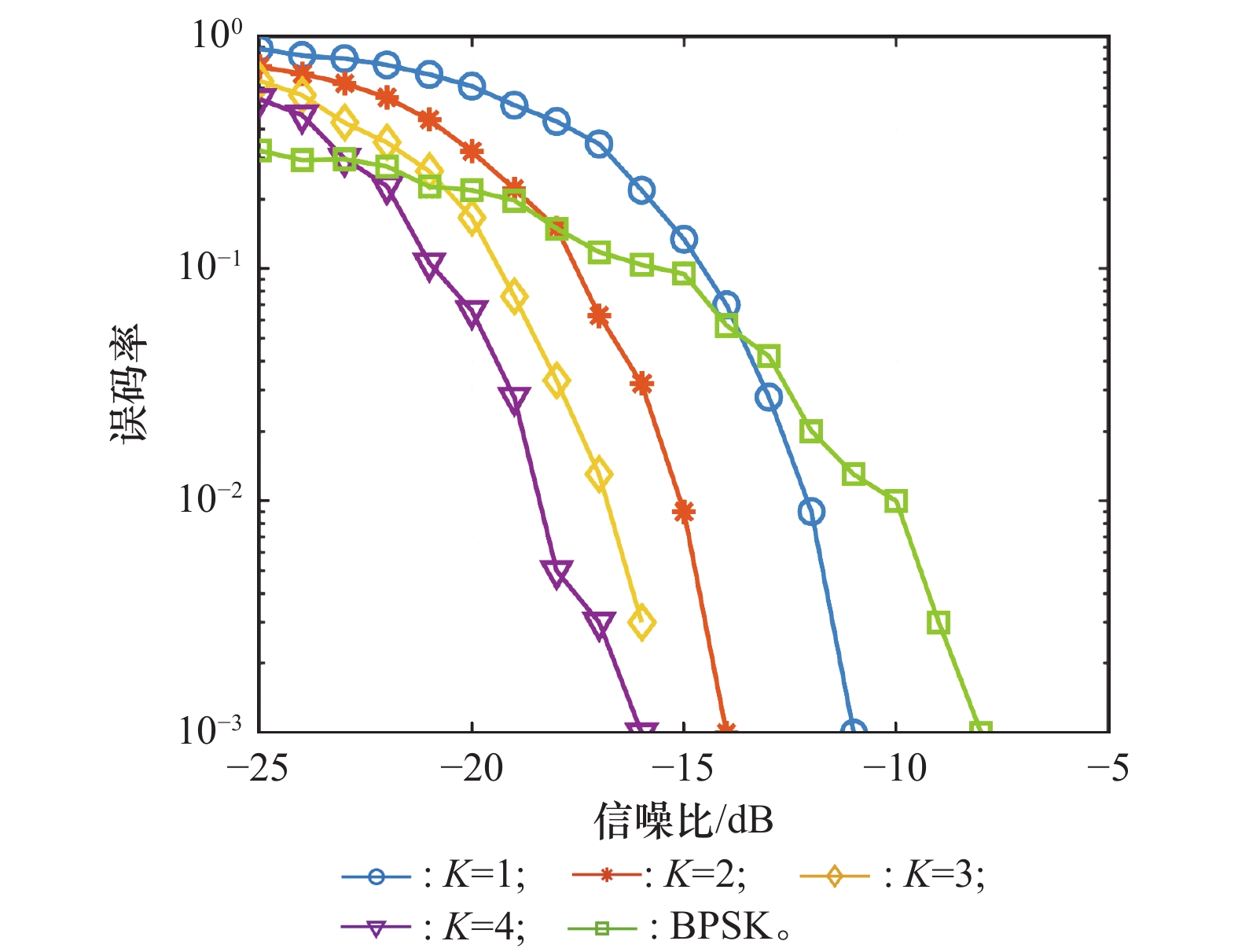

图5

图6

图7

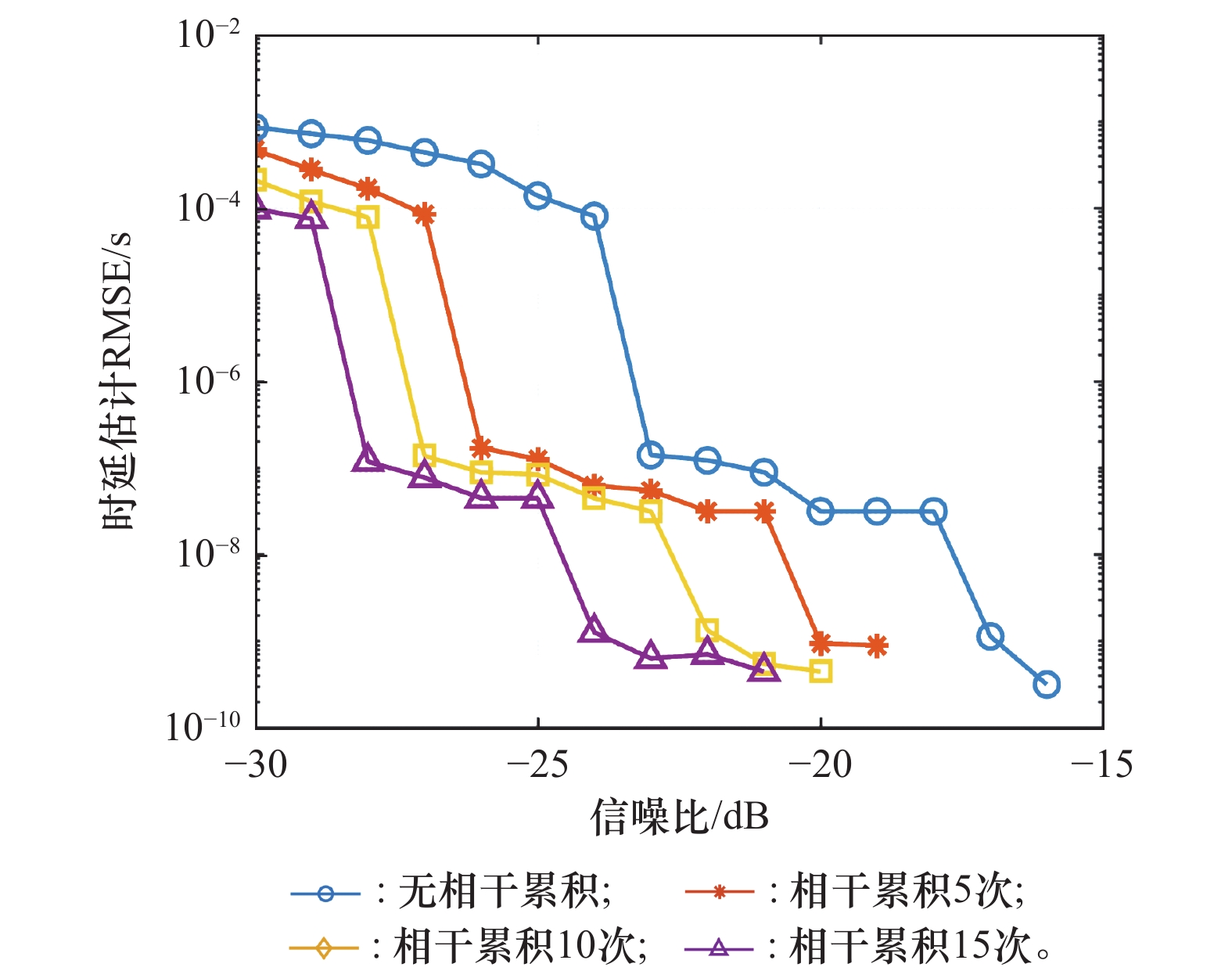

图8

图9

图10

表1

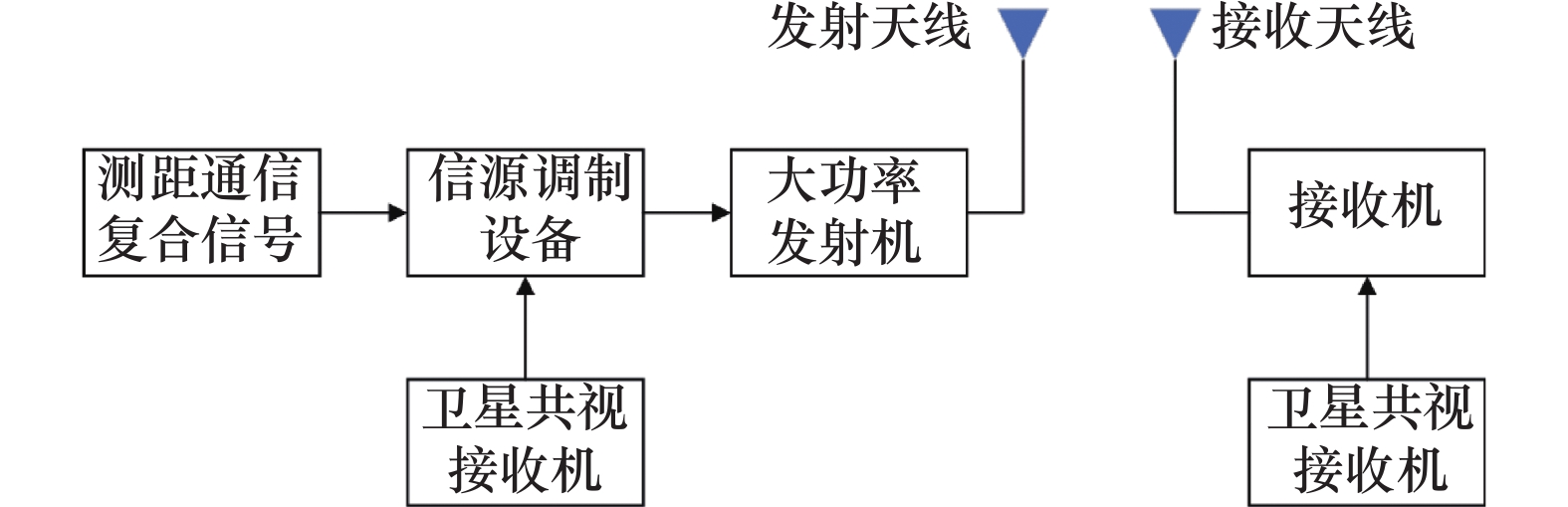

图11

图12

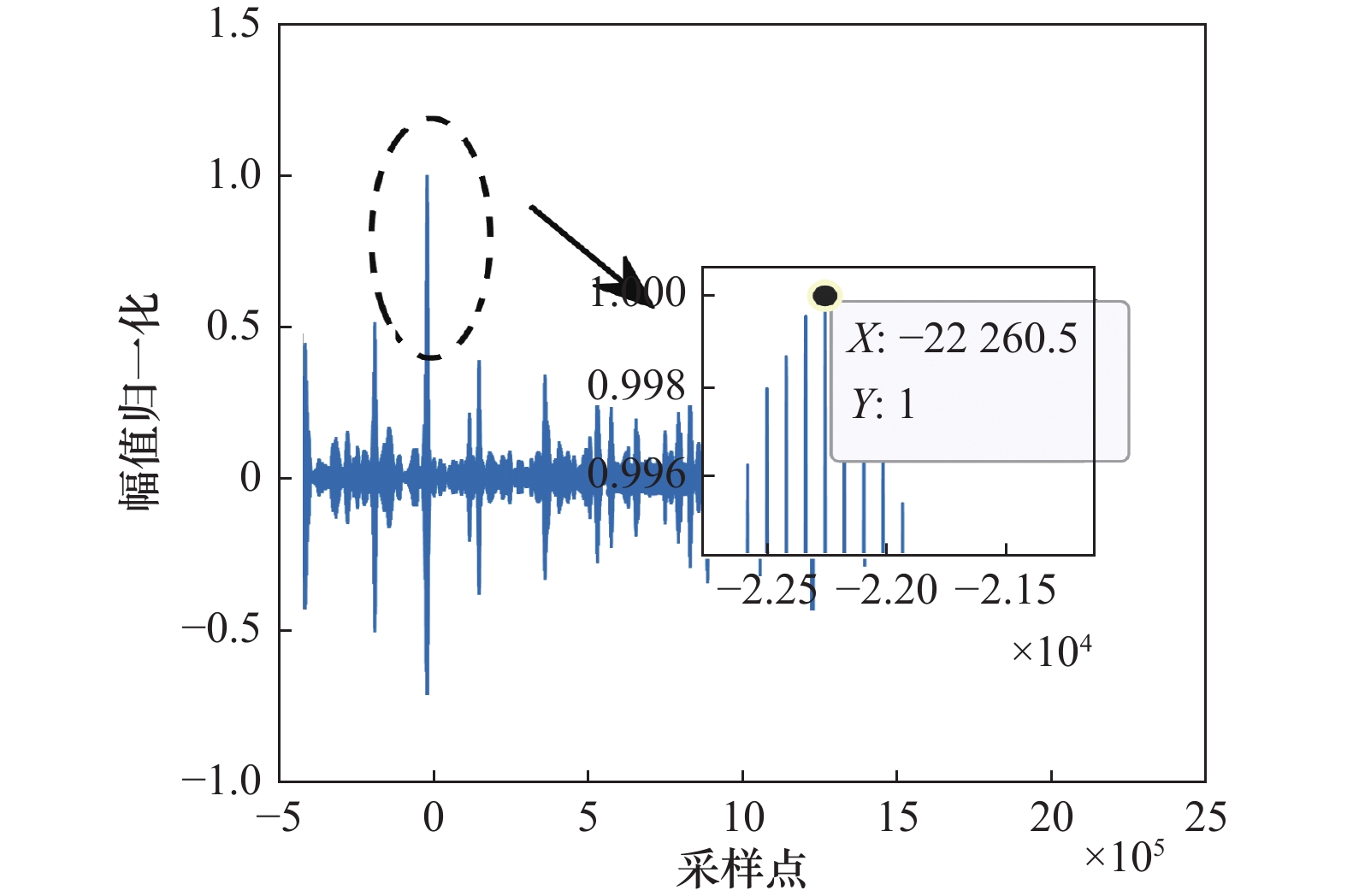

图13

图14

表2

图15

表3

参考文献 31

1	JONNABHATLA P, VIMALA T. Bayesian reinforcement learning for beam forming in millimetre-wave networks for multi-target detection in 5G radio resource allocation[J]. SSRG International Journal of Electronics and Communication Engineering, 2025, 12 (1): 174- 192. doi: 10.14445/23488549/IJECE-V12I1P114
2	何亚龙. 基于伪随机序列的测距通信复合信号设计与处理研究[D]. 天津: 天津大学, 2021.
	HE Y L. Research on ranging communication composite signal design and processing based on pseudo-noise codes[D]. Tianjin: Tianjin University, 2021.
3	TIAN Z, CHEN Z C, WANG M, et al. Reconfigurable intelligent surface empowered optimization for spectrum sharing scenarios and methods[J]. IEEE Vehicular Technology Magazine, 2022, 17 (2): 74- 82. doi: 10.1109/MVT.2022.3157070
4	SANGDEH P K, PIRAYESH H, QUADRI A, et al. A practical spectrum sharing scheme for cognitive radio networks: design and experiments[J]. IEEE/ACM Trans. on Networking, 2020, 28 (4): 1818- 1831. doi: 10.1109/TNET.2020.2994134
5	ZOU D Y, GAO S Y, LI X Y, et al. A novel integrated signal structure of satellite navigation and communication system with plug-and-play capability[J]. Digital Signal Processing, 2024, 144, 104285. doi: 10.1016/j.dsp.2023.104285
6	CHENG P, YANG F, CAO Y, et al. Optimal waveform design for dual-functional communication-navigation system[C]//Proc. of the 25th Asia-Pacific Conference on Communications, 2019: 271−275.
7	WANG X Y, FEI Z S, ZHANG J A, et al. Constrained utility maximization in dual-functional radar-communication multi-UAV networks[J]. IEEE Trans. on Communications, 2021, 69 (4): 2660- 2672. doi: 10.1109/TCOMM.2020.3044616
8	LONG H Y, YU T, XUE K, et al. Design of ranging communication coding and noise suppression methods in space gravitational wave detection[J]. Symmetry-Basel, 2025, 17 (1): 40.
9	ZHANG Y Q, JIANG H L, DONG K Y, et al. Research on dual-terminal synchronization and ranging for laser communication link[J]. Optics Communications, 2022, 524, 128812. doi: 10.1016/j.optcom.2022.128812
10	LI X B, YANG Z X, WANG K, et al. Integrated signal dynamic power distribution method for inter-satellite ranging and communication links in navigation constellation[J]. Advances in Space Research, 2022, 70 (10): 2953- 2960. doi: 10.1016/j.asr.2022.08.019
11	XUE R, WANG T. Adaptive parameter selection in the simultaneous transmission of CPM communication and PN ranging[J]. IEEE Trans. on Aerospace and Electronic systems, 2023, 59 (2): 1590- 1597.
12	LI W G, XU Y Q, ZHANG C M, et al. Multi-frequency-ranging positioning algorithm for 5G OFDM communication systems[J]. Chinese Journal of Electronics, 2023, 32 (4): 773- 784. doi: 10.23919/cje.2021.00.124
13	SONG S B, XU L P, ZHANG H, et al. X-ray communication based simultaneous communication and ranging[J]. Chinese Physics B, 2015, 24 (9): 289- 298.
14	DENG Z L, MO J, JIA B Y, et al. An acquisition scheme based on a matched filter for novel communication and navigation fusion signals[J]. Sensors, 2017, 17 (8): 1766. doi: 10.3390/s17081766
15	XU Y, CHANG Q, YU Z J. On new measurement and communication techniques of GNSS inter-satellite links[J]. Science China Technological Sciences, 2012, 55 (1): 285- 294. doi: 10.1007/s11431-011-4586-7
16	胡超然. 基于GMSK+PN的星间通信测距一体化技术及其在集群中的应用[D]. 哈尔滨: 哈尔滨工业大学, 2018.
	HU C R. Inter-satellite communication and ranging system based on GMSK+PN and its applications in satellite cluster[D]. Harbin: Harbin Institute of Technology, 2018.
17	ORR R S, DIVSALAR D. CPM/PN modulation and ranging for bandwidth-limited multiple access links [C]//Proc. of the IEEE Aerospace Conference, 2011.
18	LYU B Y, HUA Y, YUAN J, et al. Application of ultra narrow band modulation in enhanced loran system[J]. Sensors, 2021, 21 (13): 4347. doi: 10.3390/s21134347
19	WALKER H R. The advantages of VPSK modulation for data transmission: 10 bits/Hz data compression without loss of signal power[C]// Proc. of the Western Electronics Show and Convention, 1995: 454−462.
20	TOMAZIC S. Comments on spectral efficiency of VMSK[J]. IEEE Trans. on Broadcasting, 2002, 48 (1): 61- 62. doi: 10.1109/11.992858
21	WALKER H R, STRYZAK B. MSB modulation doubles cable TV and FM-SCA capacity[C]//Proc. of the IEEE Consumer Communications & Networking Conference, 2004: 642−644.
22	ZHENG G X, FENG J Z, JIA M H. Very minimum chirp keying as a novel ultra narrow band communication scheme[C]// Proc. of the 6th International Conference on Information, Communications & Signal Processing, 2007.
23	LI B, ZHOU Z, ZOU W X. RPPK modulation with high data rates[J]. Science China （Information Sciences）, 2010, 53 (2): 344- 354. doi: 10.1007/s11432-010-0012-1
24	MIAO P, WU L N, CHEN Z M. An anti-noise modem for visible light communication systems using the improved m-ary position phase shift keying[J]. AEUE-International Journal of Electronics and Communications, 2018, 85, 126- 133.
25	NAIK N. LPWAN technologies for IoT systems: choice between ultra narrow band and spread spectrum[C]//Proc. of the 4th IEEE International Symposium on Systems Engineering, 2018.
26	WEI Z Q, JIA J Z, NIU Y Y, et al. Integrated sensing and communication channel modeling: a survey[J]. IEEE Internet of Things Journal, 2025, 12 (12): 18850- 18864. doi: 10.1109/JIOT.2024.3449377
27	WU N, LI H Y, HE D X, et al. Integrated sensing and communication receiver design for OTFS-based MIMO system: a unified variational inference framework[J]. IEEE Journal on Selected Areas in Communications, 2025, 43 (4): 1339- 1353. doi: 10.1109/JSAC.2025.3531574
28	CUI Y, DING H C, KE S, et al. Integrated sensing and communication in mmWave wireless backhaul networks[J]. IEEE Trans. on Vehicular Technology, 2024, 73 (5): 6455- 6469. doi: 10.1109/TVT.2023.3323563
29	ZHANG H J, ZHANG Z Y, LIU X G, et al. Integrated sensing and communication for 6G holographic digital twins[J]. IEEE Wireless Communications, 2025, 32, (2): 104−112.
30	盛旭嫣. MPPSK/AM复合调制广播系统的设计与优化[D]. 南京: 东南大学, 2016.
	SHENG X Y. System design and optimization of MPPSK/AM broadcasting[D]. Nanjing: School of Information Science and Engineering Southeast University, 2016.
31	李大华, 孔凌风, 高强, 等. 基于三次相关改进的广义互相关时延估计法在局部放电超声波定位中的研究[J]. 声学技术, 2022, 41 (5): 774- 781. doi: 10.3969/j.issn.1000-3630.2022.5.sxjs202205021
	LI D H, KONG L F, GAO Q, et al. Study on cubic correlation improvement based generalized cross correlation time delay estimation method of supersonic waves detection method for location partial discharge[J]. Technical Acoustics, 2022, 41 (5): 774- 781. doi: 10.3969/j.issn.1000-3630.2022.5.sxjs202205021

参数符号	参数名称	数值
$N$	一个符号周期所含的载波周期数量	192
$M$	一个符号周期内相位跳变的次数	64
$K$	相位跳变持续的载波周期数量	3
${f_{{\mathrm{c}}1}}$/ kHz	发射台1发射频点	1500
${f_{{\mathrm{c}}2}}$/ kHz	发射台2发射频点	900
${f_{{\mathrm{c}}3}}$/ kHz	发射台3发射频点	800
${f}$/ MHz	接收机采样率	125

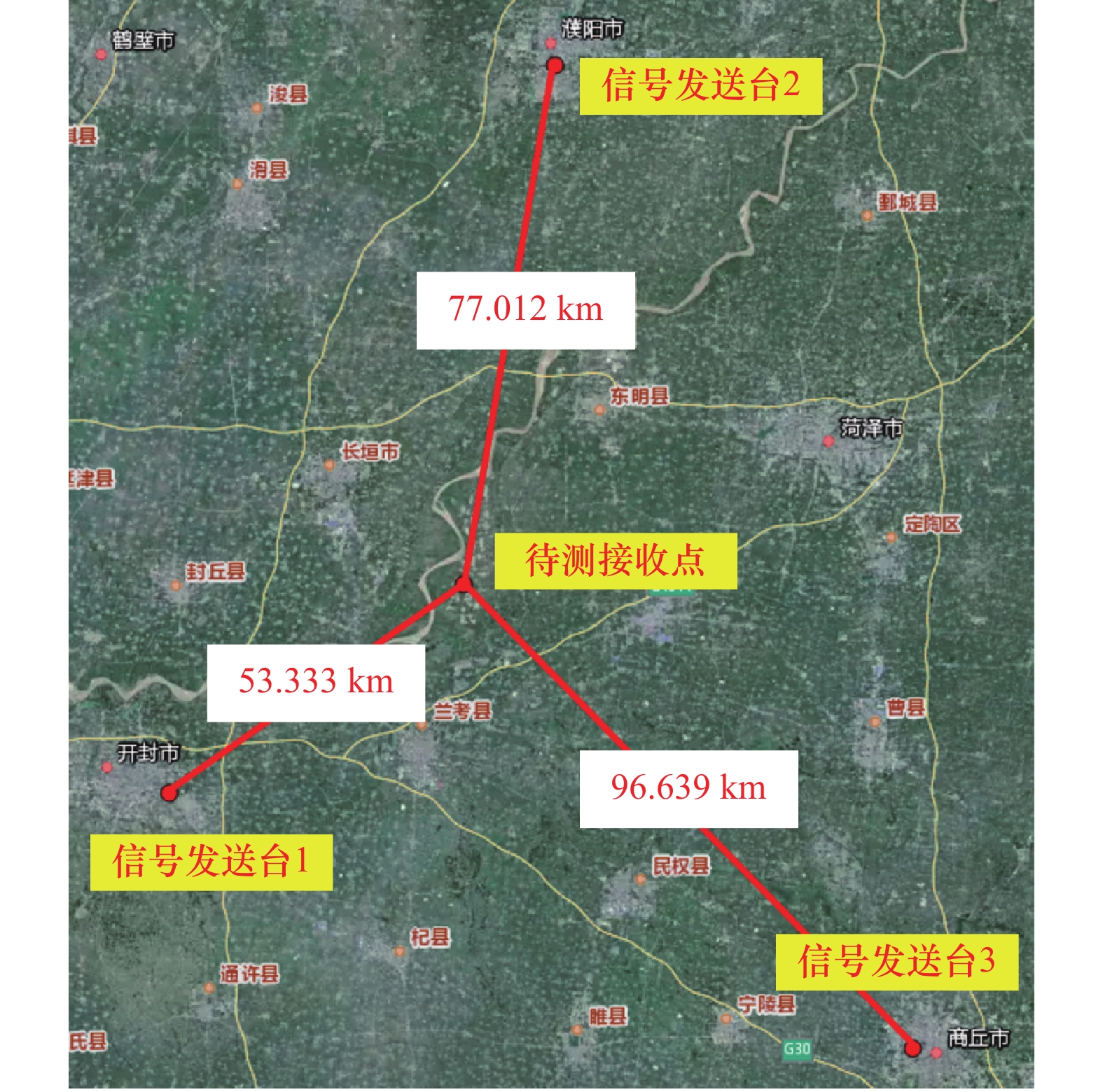

${L_1}$/ km	待测点距离发射台1	53.333
${L_2}$/ km	待测点距离发射台2	77.012
${L_3}$/ km	待测点距离发射台3	96.639

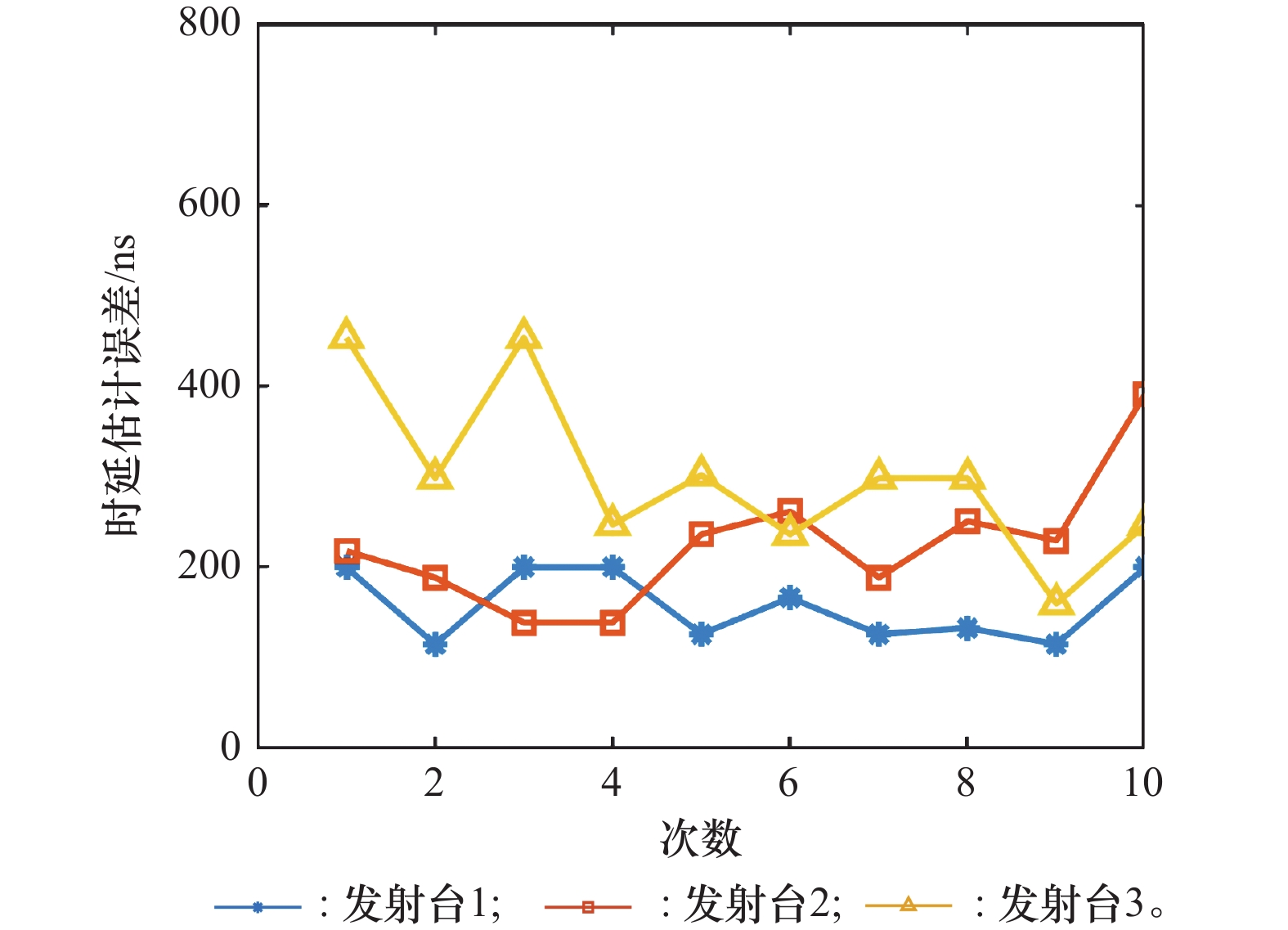

发送台	时延估计RMSE/ns
1	129.051
2	236.880
3	278.105

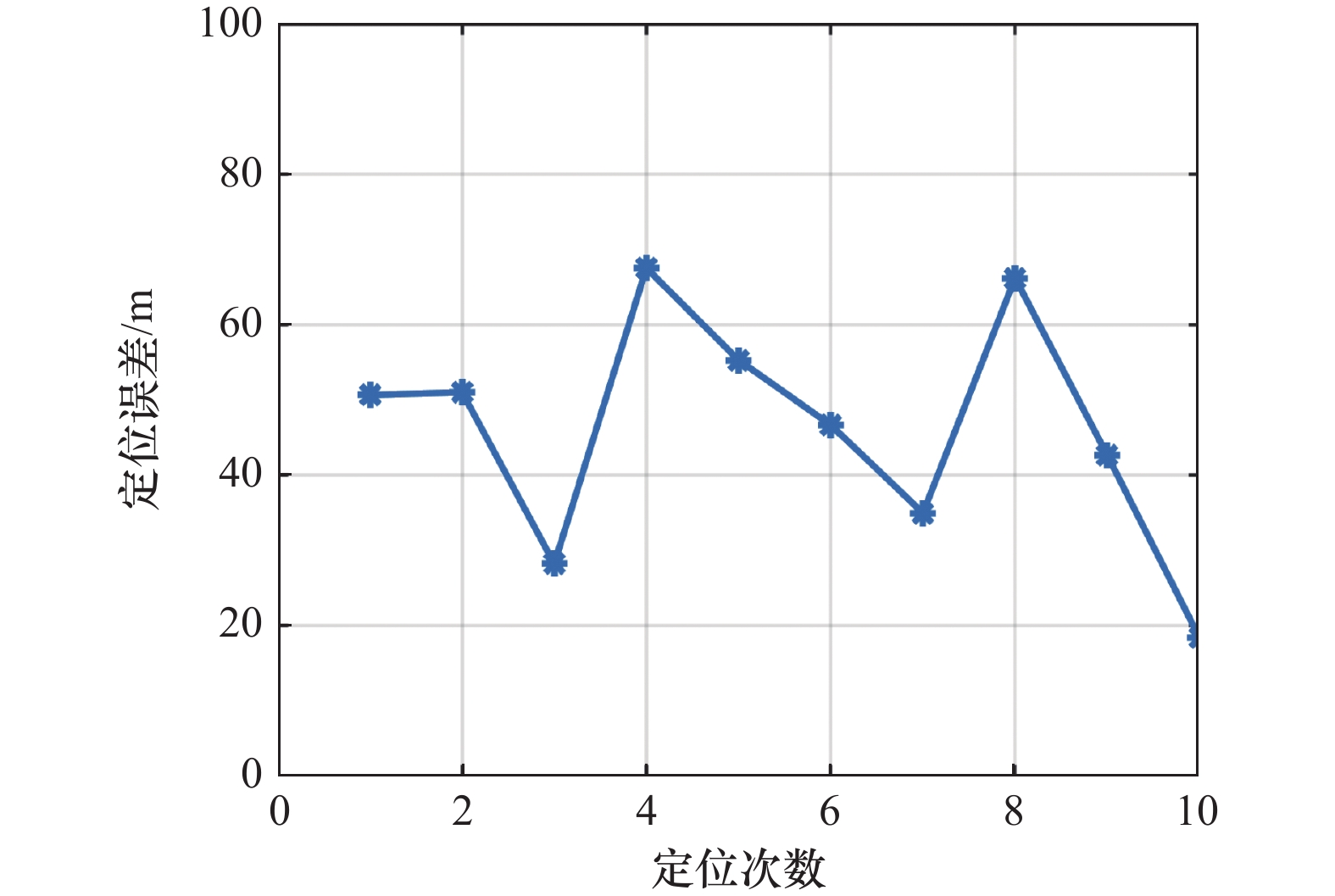

参数	试验结果
定位误差平均值/m	46.189
定位误差RMSE/m	48.523
通信数据解码	均能正确解调
