TTNT数据链分层式网络体系及其关键技术分析

doi:10.12305/j.issn.1001-506X.2025.10.30

摘要/Abstract

摘要：

针对一体化联合作战环境下的协同作战需求，分析美军新一代数据链战术瞄准网络技术（tactical targeting network technology, TTNT）的关键技术体系及发展应用方向。对照传输控制协议/网际协议五层协议，将TTNT数据链细化分为分层式网络体系架构，分析其在消息格式、信息传输、通信安全等层面的关键技术，归纳各技术的发展现状。将TTNT数据链与其他数据链进行性能与优缺点对比，总结TTNT与其他数据链的协同关系及未来发展趋势，可对TTNT数据链关键技术融合提供设计指导。

关键词: 武器协同, 作战能力, 战术瞄准网络技术, 分层式网络体系, 基于统计优先级的多址接入

Abstract:

Aiming at the collaborative combat requirements in the environment of integrated joint operations, this paper analyzes the key technical system and development and application directions of the U.S. military's new-generation data link tactical targeting network technology （TTNT）. By referring to the five-layer transmission control protocol/internet protocol （TCP/IP）, the TTNT data link is deconstructed into a hierarchical network architecture. The key technologies in aspects such as message format, information transmission and communication security are analyzed, and the development status of each technology is summarized. A performance comparison is conducted between TTNT and other data links, including their advantages and disadvantages. The collaborative relationship between TTNT and other data links, as well as future development trends, are summarized, which provides design guidance for the integration of key technologies in the TTNT data link.

Key words: weapon collaboration, operational capability, tactical targeting network technology（TTNT）, layered network system, statistical priority-based multiple access（SPMA）

中图分类号:

王瑞琳, 何锋, 李二帅. TTNT数据链分层式网络体系及其关键技术分析[J]. 系统工程与电子技术, 2025, 47(10): 3464-3481.

Ruilin WANG, Feng HE, Ershuai LI. TTNT data link layered network system and its key technology analysis[J]. Systems Engineering and Electronics, 2025, 47(10): 3464-3481.

图/表 22

图1

表1

TTNT主要技术指标"

名称	技术指标	指标分析
网络规模	网络可容纳200个节点，可扩展到1000个节点，理论无上限	大规模打击过程中支持管理庞大数量的飞机
入网/离网时间	$ \leqslant $5 s	Ad hoc组网，预先加载密匙，可实现快速网络授权
总传输速率（网络吞吐量）	$ \geqslant $10 Mbps	可在网络利用率极高的情况下实现可靠的消息传输
单平台传输速率（单用户吞吐量）	100 nautical miles（185 km） 2 Mbps　200 nautical miles（370 km） 500 kbps 300 nautical miles（555 km） 220 kbps	速率/编码自适应且吞吐量高，是传统战术数据链的50倍
时延特性	100 nautical miles（185 km） 2 ms　200 nautical miles（370 km）6 ms 300 nautical miles（555 km） 30 ms	高速实时传输，毫秒级时延

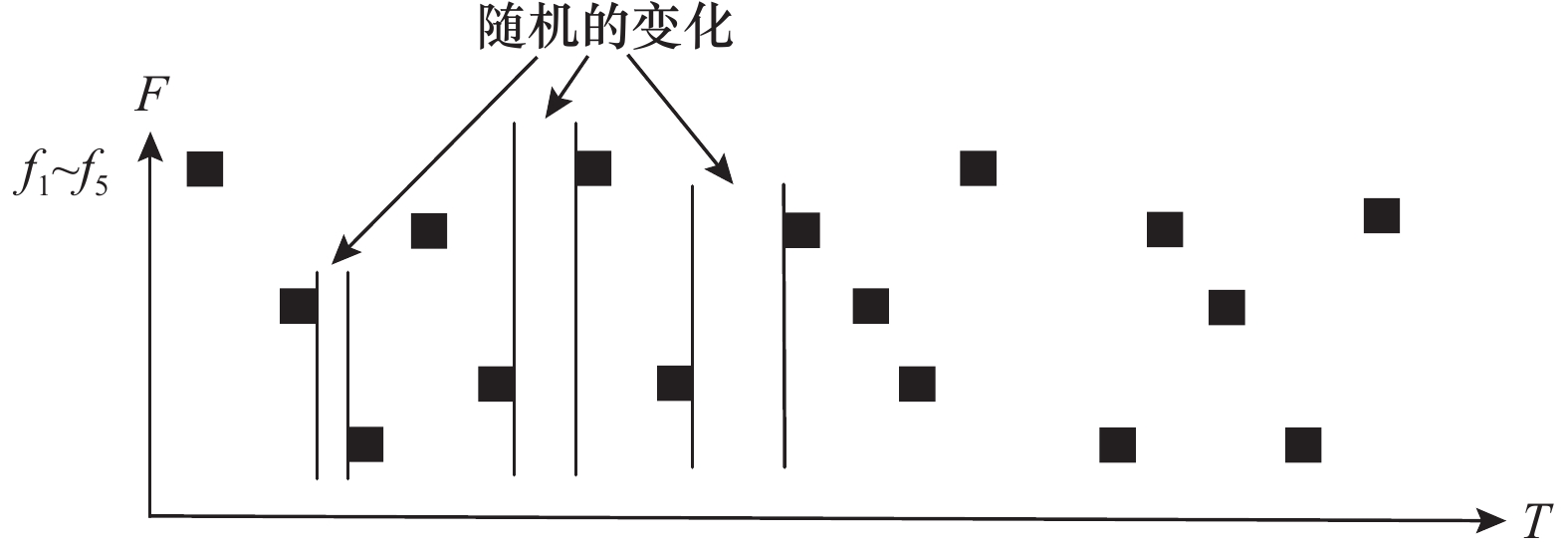

工作频段	1755~1850 MHz　1435~1518 MHz　1350~1390 MHz	16个信号跳频点分布在射频L波段内的3个不同频段
双工模式	全双工	适应5G通信的灵活全双工
业务类型	提供服务质量保证机制，分为8个优先级^[14]	加入服务质量（quality of service, QoS）机制来实现差别服务，支持单播、组播、广播服务

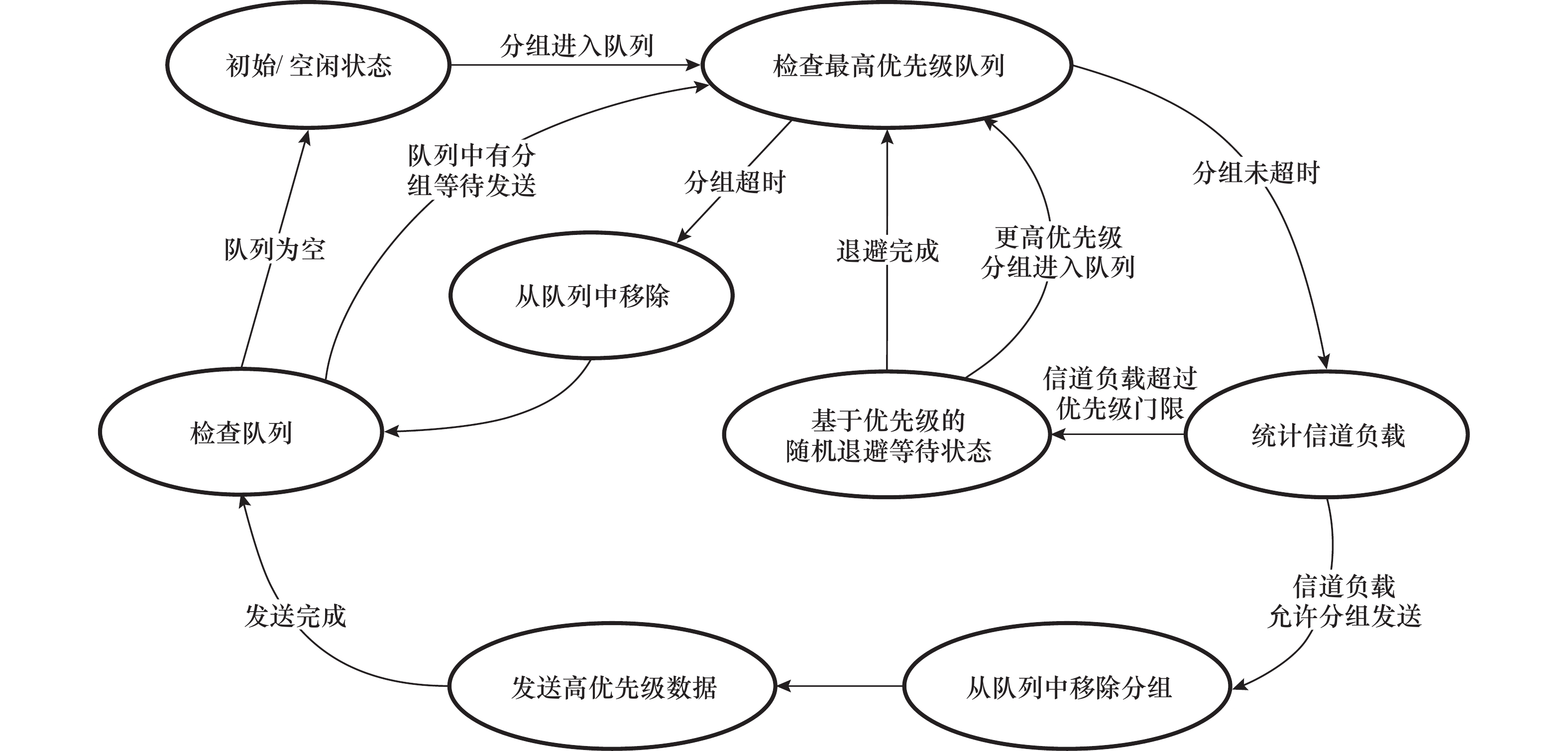

接入方式	基于统计优先级的多址接入^[15]	动态环境^[16]下提供持续稳定的网络性能

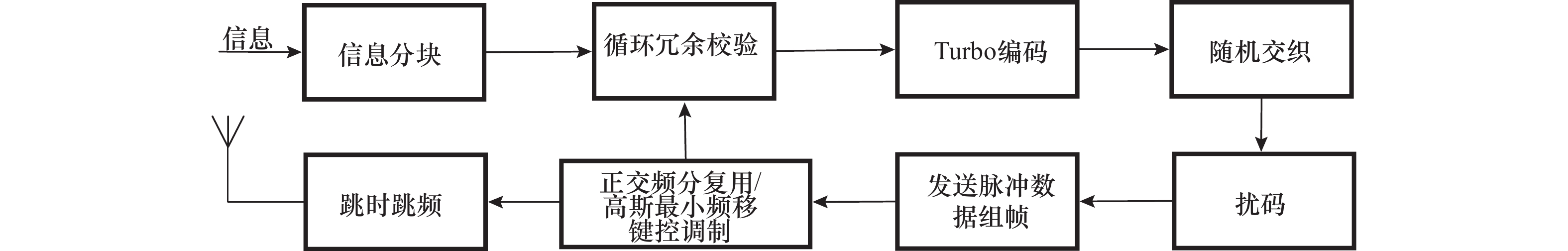

传输方式	改进的高速切换的全向加定向天线^[17]，跳频跳时波形，脉冲控制，调制编码	空口无线密匙传输，无需物理接触即可更新密匙
管理方式	分布式，实时，无单点故障，扁平网络	各节点之间完全对等，无中心和集中控制单元，不存在层次化关系，节点移动性强
安全性	多级独立安全，抗干扰，低截获概率/低可探测性	抗干扰抗截获能力强，减少自由空间信号特征，支持“静默节点”工作模式
兼容性	与传统的Link16等数据链共存	支持C⁴ISR系统多种战术应用
灵活性	高动态，自组织，可扩展，易操作	超视距Ad hoc路由，高速运动平台（支持4800节上仍可实现数据传输）

表1

图2

图3

表2

图4

表3

表4

图5

图6

表5

表6

图7

图8

图9

图10

图11

图12

图13

表7

表8

表9

参考文献 80

1	王博, 仲维彬. 外军数据链发展趋势[J]. 现代导航, 2022, 13 (2): 134- 137，142. doi: 10.3969/j.issn.1674-7976.2022.02.013
	WAMG B, ZHONG W B. Overview for data link of foreign army[J]. Modern Navigation, 2022, 13 (2): 134- 137，142. doi: 10.3969/j.issn.1674-7976.2022.02.013
2	余福荣, 张艳, 蒋雪, 等. 武器协同数据链发展趋势及关键技术[J]. 火力与指挥控制, 2021, 46 (3): 179- 185. doi: 10.3969/j.issn.1002-0640.2021.03.030
	YU F R, ZHANG Y, JIANG X, et al. Development trend and key technologies of weapon cooperative data link[J]. Fire Control & Command Control, 2021, 46 (3): 179- 185. doi: 10.3969/j.issn.1002-0640.2021.03.030
3	黄振, 周永将. 美军网络中心战的重要元素—协同数据链[J]. 现代导航, 2017, 8 (1): 70- 73.
	HUANG Z, ZHOU Y J. Element of US army network centric warfare–cooperative data link[J]. Modern Navigation, 2017, 8 (1): 70- 73.
4	吕娜, 张岳彤. 数据链理论与系统[M]. 北京: 电子工业出版社, 2018: 303−345.
	LYU N, ZHANG Y T. Theory and system of data link[M]. 2rd ed. Beijing: Publishing House of Electronics Industry, 2018: 303−345.
5	张沛, 王志国, 王震. 美国空军数据链体系发展现状及建设方向[J]. 指挥信息系统与技术, 2023, 14 (1): 8- 14.
	ZHANG P, WANG Z G, WANG Z. Development status and construction direction of United States Air Force data link system[J]. Command Information System and Technology, 2023, 14 (1): 8- 14.
6	金荣, 张衡阳. 美军TTNT数据链发展应用现状[J]. 现代导航, 2014, 5 (2): 80- 82.
	JIN R, ZHANG H Y. Development situation of tactical targeting networks for US force[J]. Modern Navigation, 2014, 5 (2): 80- 82.
7	周虎. 数据链集成设计与应用研究[J]. 现代导航, 2020, 11 (1): 36- 40. doi: 10.3969/j.issn.1674-7976.2020.01.008
	ZHOU H. Research on design and application of data link integration[J]. Modern Navigation, 2020, 11 (1): 36- 40. doi: 10.3969/j.issn.1674-7976.2020.01.008
8	YANG G X, WEBER S. Uisce: characteristic-based routing in mobile Ad Hoc networks[C]//Proc. of the 10th IFIP Annual Mediterranean Ad Hoc Networking Workshop, 2011: 119−122.
9	CAI Y G, YU F, LI J, et al. Medium access control for unmanned aerial vehicle （UAV） Ad Hoc networks with full-duplex radios and multipacket reception capability[J]. Journal Wireless Networks, 2013, 19 (6): 1469- 1484. doi: 10.1007/s11276-013-0545-5
10	郑爱民. Link-16原理与应用[M]. 北京: 国防工业出版社, 2016: 24−27.
	ZHENG A M. Link-16 principles and applications[M]. Beijing: National Defense Industry Press, 2016: 24−27.
11	刘轶凡. 针对TTNT的非协作式跳频GMSK信号检测[D]. 长沙: 国防科技大学, 2017.
	LIU Y F. Non-cooperative frequency hopping GMSK signal detection for TTNT[D]. Changsha: National University of Defense Technology, 2017.
12	ZHENG W Q, HU J, LIU Y F, et al. Analysis and research on TTNT data link[C]//Proc. of the International Conference on Frontiers of Manufacturing Science & Measuring Technology, 2017: 684−689.
13	李海涛. 美军战术目标瞄准组网技术分析及对抗策略探究[J]. 长江信息通信, 2021, 34 (1): 113- 115. doi: 10.3969/j.issn.1673-1131.2021.01.037
	LI H T. Technical analysis and countermeasure strategy research of US military tactical target targeting network[J]. Changjiang Information & Communications, 2021, 34 (1): 113- 115. doi: 10.3969/j.issn.1673-1131.2021.01.037
14	WANG Y, BENSAOU B. Priority based multiple access for service differentiation in wireless ad-hoc networks[C]//Proc. of the IFIP International Conference on Mobile and Wireless Communication Networks, 2000: 14−30.
15	LIU X D, LI H G, YANG J, et al. Time-sensitive network simulation for multi marine-air platforms basing on SPMA protocol[C]//Proc. of the 10th International Conference on Communication Software and Networks, 2018: 195−199.
16	ZHENG W Q, JIN H, GUO J P, et al. Research on a new data link MAC protocol and its channel occupancy[J]. Computer Simulation, 2019, 36 (7): 148- 152.
17	何小利, 宋钰, 曾薇. 网格资源调度的研究[J]. 计算机与数字工程, 2010, 38 (6): 57- 59. doi: 10.3969/j.issn.1672-9722.2010.06.018
	HE X L, SONG Y, ZENG W. Research on grid resource scheduling[J]. Computer & Digital Engineering, 2010, 38 (6): 57- 59. doi: 10.3969/j.issn.1672-9722.2010.06.018
18	张绍芳, 关文卿. 全球一体化作战—未来美军发展重点[J]. 飞航导弹, 2014, (12): 1- 4.
	ZHANG S F, GUAN H Q. Global integrated operations-future development focus of the US army[J]. Aerospace Technology, 2014, (12): 1- 4.
19	计宏亮, 赵楠. 解读美军联合信息环境计划[J]. 国防科技, 2015, 36 (5): 89- 95.
	JI H L, ZHAO N. A Study of joint information environment of US army[J]. National Defense Science & Technology, 2015, 36 (5): 89- 95.
20	姚晓白, 王武民. 海战场网电空间作战能力建设问题研究[J]. 军事运筹与系统工程, 2014, 28 (3): 39- 42.
	YAO X B, WANG W M. Research on the construction of cyberspace warfare capability in marine battlefields[J]. Military Operations Research and Systems Engineering, 2014, 28 (3): 39- 42.
21	穆军林, 朱国阳. 美军“舒特”系统攻击方式及应对措施[J]. 装备制造技术, 2012, （9）, 131- 133. doi: 10.3969/j.issn.1672-545X.2012.08.047
	MU J L, ZHU G Y. US Military “Suter” system attacks and counter measures[J]. Equipment Manufacturing Technology, 2012, （9）, 131- 133. doi: 10.3969/j.issn.1672-545X.2012.08.047
22	牛轶峰, 肖湘江, 柯冠岩. 无人机集群作战概念及关键技术分析[J]. 国防科技, 2013, 34 (5): 37- 43. doi: 10.3969/j.issn.1671-4547.2013.05.007
	NIU Y F, XIAO X J, KE G Y. Operation concept and key techniques of unmanned aerial vehicle swarms[J]. National Defense Science & Technology, 2013, 34 (5): 37- 43. doi: 10.3969/j.issn.1671-4547.2013.05.007
23	BROWM T X, ARGROW B, DIXON C, et al. Ad Hoc UAV ground network[C]//Proc. of the USENIX Technical Conference, 2004: 67−76.
24	WANG J, HE C L, WU W, at al. Track quality evaluation method research on tactical data link[C]//Proc. of the 6th International Conference on Advanced Cloud and Big Data, 2018: 89−92.
25	LIU Y F, JIN H, YU Q M, et al. Research on transmission waveform structure and rate scaled of new generation data link[C]//Proc. of the International Conference on Information Science and Control Engineering, 2017: 1686−1689.
26	赵志勇, 毛忠阳, 张嵩, 等. 数据链系统与技术第2版[M]. 北京: 电子工业出版社, 2022.
	ZHAO Z Y, MAO Z Y, ZHANG S, et al. Data link system and technology, second edition[M]. Beijing: Publishing House of Electronics Industry, 2022.
27	李桂花. 外军无人机数据链的发展现状与趋势[J]. 电讯技术, 2014, 54 (6): 851- 856. doi: 10.3969/j.issn.1001-893x.2014.06.029
	LI G H. Status and trend of foreign military data link for unmanned aerial vehicles[J]. Telecommunication Engineering, 2014, 54 (6): 851- 856. doi: 10.3969/j.issn.1001-893x.2014.06.029
28	叶礼邦, 付海波. 美军战术目标瞄准网络技术分析与启示[J]. 飞航导弹, 2014, (8): 30- 34，45.
	YE L B, FU H B. Analysis and inspiration of US tactical target aiming network technology[J]. Aerospace Technology, 2014, (8): 30- 34，45.
29	陈会林, 教富龙, 袁泮江, 等. 一种智能抗干扰无人机测控系统设计[J]. 电讯技术, 2021, 61 (6): 703- 709. doi: 10.3969/j.issn.1001-893x.2021.06.007
	CHEN H L, JIAO F L, YUAN B J, et al. Design of an intelligent anti-jamming TT&C system for UAV[J]. Telecommunication Engineering, 2021, 61 (6): 703- 709. doi: 10.3969/j.issn.1001-893x.2021.06.007
30	陈赤联, 唐政, 胡军锋, 等. 数据链2.0: 智能化战争的制胜利器[J]. 指挥与控制学报, 2020, 6 (1): 5- 12. doi: 10.3969/j.issn.2096-0204.2020.01.0005
	CHEN C L, TANG Z, HU J F, et al. Data link 2.0: the victory maker of intelligent war[J]. Journal of Command and Control, 2020, 6 (1): 5- 12. doi: 10.3969/j.issn.2096-0204.2020.01.0005
31	张平安. 战术数据链的跨层拥塞控制技术研究[D]. 重庆: 重庆邮电大学, 2021: 18−20.
	ZHANG P A. Research on cross-layer congestion control technology of tactical data link[D]. Chongqing: Chongqing University of Posts and Telecommunications, 2021: 18−20.
32	徐晓玲. Ad hoc网络的TCP性能分析与改进[D]. 兰州: 兰州大学, 2009: 17−33.
	XU X L. Analysis and improvement of TCP performance of Ad Hoc networks[D]. Lanzhou: Lanzhou University, 2009: 17−33.
33	程宇, 闫鑫欣. 无线Ad hoc网络路由技术研究与应用分析[J]. 舰船电子工程, 2023, 43 (7): 119- 122. doi: 10.3969/j.issn.1672-9730.2023.07.027
	CHENG Y, YAN X X. Research and application of routing protocols in wireless Ad Hoc networks[J]. Ship Electronic Engineering, 2023, 43 (7): 119- 122. doi: 10.3969/j.issn.1672-9730.2023.07.027
34	张云徽. 通信与计算协同的Ad Hoc网络端到端传输技术研究[D]. 西安: 西安电子科技大学, 2023.
	ZHANG Y H. Study on end-to-end transmission in Ad Hoc networks with communication and computing collaboration[D]. Xi’an: Xidian University, 2023.
35	DESHPANDE A, KAUSHAL A. Feedback-based adaptive speedy transmission (FAST) control protocol to improve the performance of TCP over Ad-Hoc networks[C]// Proc. of the International Conference on Advances in Computing, Communications and Informatics, 2016: 2034−2041.
36	CHEN Y K, JI F, GUAN Q S, et al. Adaptive RTO for handshaking-based MAC protocols in underwater acoustic networks[J]. Future Generation Computer Systems-the International Journal of Escience, 2018, 86, 1185- 1192. doi: 10.1016/j.future.2017.08.022
37	SHAHAB U I, ALI M, ISHTIAQ A, et al. Performance analysis of simple TCP and F-TCP for smooth connectivity in wireless communication[C]//Proc. of the 16th International Bhurban Conference on Applied Sciences and Technology, 2019: 913−918.
38	KIM B H, CALIN D. On the split-TCP performance over real 4G LTE and 3G wireless networks[J]. IEEE Communications Magazine, 2017, 55 (4): 124- 131. doi: 10.1109/MCOM.2017.1600369
39	CHANG W, NI C, KIN G, et al. Early contention notification for TCP performance in mobile Ad Hoc networks[C]//Proc. of the Agents and Multi-Agent Systems: Technologies and Applications, 2010.
40	HUSSAIN M I, AHMED N, AHMED M Z L, et al. QoS provisioning in wireless mesh networks: a survey[J]. Wireless Personal Communications, 2022, 122, 157- 195. doi: 10.1007/s11277-021-08893-3
41	CHANG B J, LI Y H, CHEN S P, et al. Cross-layer-based adaptive TCP algorithm for cloud computing services in 4G LTE-a relaying communication[J]. Wireless Networks, 2016, 22 (8): 2579- 2595. doi: 10.1007/s11276-015-1117-7
42	MISHRA T K, SAHOO K S, BILAL M, et al. Adaptive congestion control mechanism to enhance TCP performance in cooperative IoV[J]. IEEE Access, 2023, 11, 9000- 9013. doi: 10.1109/ACCESS.2023.3239302
43	BHARDWAJ A, El-OCLA H. Multipath routing protocol using genetic algorithm in mobile ad hoc networks[J]. IEEE Access, 2020, 8, 177534- 177548. doi: 10.1109/ACCESS.2020.3027043
44	OGURI S, URATA M, ENDO M. Data model for registered tangible cultural properties using linked data[C]//Proc. of the IEEE 9th Global Conference on Consumer Electronics, 2020: 651−654.
45	胡君, 叶俊杰. 基于链路时间预测的移动Ad Hoc网路由[J]. 传感技术学报, 2019, 32 (6): 945- 949. doi: 10.3969/j.issn.1004-1699.2019.06.021
	HU J, YE J J. Link duration-prediction-based routing protocol in mobile Ad Hoc networks[J]. Chinese Journal of Sensors and Actuators, 2019, 32 (6): 945- 949. doi: 10.3969/j.issn.1004-1699.2019.06.021
46	鲁小晶. 基于数据链的组网路由技术研究[D]. 哈尔滨: 哈尔滨工程大学, 2019.
	LU X J. Research on network routing technology based on data link[D]. Harbin: Harbin Engineering University, 2019.
47	范祥瑞. 协同制导数据链认知抗干扰组网技术研究[D]. 北京: 中国航天科技集团公司第一研究院, 2018.
	FAN X R. The research of cognitive anti-jamming networking technology for collaborative guidance data link[D]. Beijing: The First Academy of China Aerospace Science and Technology Corporation, 2018.
48	李繁, 张晓宇, 刘继. 基于信号方差的Ad-Hoc网络路由算法[J]. 计算机工程与设计, 2023, 44 (10): 2902- 2908.
	LI F, ZHANG X Y, LIU J. Signal variance based Ad-Hoc network routing algorithm[J]. Computer Engineering and Design, 2023, 44 (10): 2902- 2908.
49	LI X L, BIAN X, LI M Q. Routing selection algorithm for mobile Ad Hoc networks based on neighbor node density[J]. Sensors, 2024, 24 (2): 325. doi: 10.3390/s24020325
50	MALBAR M, JEVTIC N. An improvement of AODV protocol for the overhead reduction in scalable dynamic wireless ad hoc networks[J]. Wireless Network, 2022, 28 (3): 1039- 1051. doi: 10.1007/s11276-022-02890-5
51	SHARMA D K, PATRA A N, KUMAR C. P-AODV: a priority based route mainte-nance process in mobile ad hoc networks[J]. Wireless Personal Communications, 2017, 95 (4): 4381- 4402. doi: 10.1007/s11277-017-4085-7
52	PATEL J, EL-OCLA H. Energy efficient routing protocol in sensor networks using genetic algorithm[J]. Sensors, 2021, 21 (21): 7060. doi: 10.3390/s21217060
53	SUO L, LIU L, SU Z Y, et al. A reliable low-latency multipath routing algorithm for urban rail transit Ad Hoc networks[J]. Sensors, 2023, 23, 5576. doi: 10.3390/s23125576
54	SARKAR D, CHOUDHURY S, MAJUMDER A. Enhanced-ant-AODV for optimal route selection in mobile ad-hoc network[J]. Journal of King Saud University-Computer and Information Sciences, 2021, 33 (10): 1186- 1201. doi: 10.1016/j.jksuci.2018.08.013
55	MOHSENI M, AMIRGHAFOURI F, POURGHEBLEH B. CEDAR: a cluster-based energy-aware data aggregation routing protocol in the internet of things using capuchin search algorithm and fuzzy logic[J]. Peer-to-Peer Networking and Applications, 2023, 16 (1): 189- 209. doi: 10.1007/s12083-022-01388-3
56	张现伟, 杨济安, 张高峰. 分级组织无线多跳网络路由协议HSR研究[J]. 电信建设, 2004, (6): 35- 39.
	ZHANG X W, YANG J A, ZHANG G F. Research on hierarchical organization wireless multi hop network routing protocol HSR[J]. Telecommunication Construction, 2004, (6): 35- 39.
57	杜传报, 全厚德, 李召瑞, 等. 无线双通道Ad Hoc网络分层路由协议设计与分析[J]. 指挥与控制学报, 2015, 1 (4): 458- 464.
	DU C B, QUAN H D, LI Z R, et al. Design and analysis of hierarchical routing protocol for wireless dual-channel Ad Hoc networks[J]. Journal of Command and Control, 2015, 1 (4): 458- 464.
58	蔡鑫, 赵霞, 谢冬云. 数据链网络规划技术[J]. 指挥信息系统与技术, 2017, 8 (6): 46- 49.
	CAI X, ZHAO X, XIE D Y. Data link network planning technology[J]. Command Information System and Technology, 2017, 8 (6): 46- 49.
59	易凯, 陈妍. 协同作战下数据链联合应用与发展[J]. 科技视界, 2016, 31 (13): 300- 301. doi: 10.3969/j.issn.2095-2457.2016.13.222
	YI K, CHEN Y. Joint application and development of data link under the cooperative engagement[J]. Science & Technology Vision, 2016, 31 (13): 300- 301. doi: 10.3969/j.issn.2095-2457.2016.13.222
60	岳丽军, 蔡姝, 胡兵. 美海军陆战队指挥信息系统装备体系及特点分析[J]. 舰船科学技术, 2022, 44 (16): 185- 189. doi: 10.3404/j.issn.1672-7649.2022.16.040
	YUE L J, CAI S, HU B. Analysis on equipment system and characteristics of US marine corps command information system[J]. Ship Science and Technology, 2022, 44 (16): 185- 189. doi: 10.3404/j.issn.1672-7649.2022.16.040
61	梁青, 张文飞, 上官艺伟. 无人机自组网中AODV路由协议的改进[J]. 西安邮电大学学报, 2018, 23 (6): 48- 53.
	LIANG Q, ZHANG W F, SHANGGUAN Y W. Improvement of AODV routing protocol in unmanned aerial vehicle ad hoc network[J]. Journal of Xi’an University of Posts and Telecommunications, 2018, 23 (6): 48- 53.
62	STEPHEN M C, KELLI A H, SCOTT J F Z. Statistical priority-based multiple access. System and Method[P]. US: 7680077 B1, 2010.
63	GAO S Y, YANG M, YU H. Modeling and parameter optimization of statistical priority-based multiple access protocol[J]. China Communications, 2019, 16 (9): 45- 61. doi: 10.23919/JCC.2019.09.004
64	GE Z B, ZHANG W B, HAO Y, et al. Window adaptive backoff algorithm basing on statistical priority-based multiple access protocol[C]//Proc. of the 2nd International Conference on Intelligent Computing and Human-Computer Interaction, 2021: 171−174.
65	LI Z, ZHAO J. Design and verification of improved SPMA algorithm in multi-hop environment[C]//Proc. of the IEEE 10th International Conference on Information, Communication and Networks, 2022: 81−85.
66	WANG L M, LI H, LIU Z F. Research and pragmatic-improvement of statistical priority-based multiple access protocol[C]//Proc. of the 2nd IEEE International Conference on Computer and Communications, 2016: 2057−2063.
67	LIU J, PENG T, QUAN Q Y, et al. Performance analysis of the statistical priority based multiple access[C]//Proc. of the 3rd IEEE International Conference on Computer and Communications, 2017: 30−35.
68	YANG M Y, ZHANG Q, YU H, et al. Modeling and performance analysis of statistical priority-based multiple access protocol[C]//Proc. of the International Conference on Innovative Computing and Cloud Computing, 2018: 399−404.
69	ZHANG Y, HE Y, WANG X J, et al. Modeling and performance analysis of statistical priority-based multiple access: a stochastic geometry approach[J]. IEEE Internet Of Things Journal, 2022, 9 (15): 13942- 13954. doi: 10.1109/JIOT.2022.3144272
70	ZHANG Y, SUN H G, HE Y, et al. A spatio-temporal analytical model for statistical priority-based multiple access network[J]. IEEE Wireless Communications Letters, 2023, 12 (1): 153- 157. doi: 10.1109/LWC.2022.3219641
71	朱德富. 战术数据链MAC层机制研究[D]. 重庆: 重庆邮电大学, 2021.
	ZHU D F. Research on MAC layer mechanism of tactical data link[D]. Chongqing: Chongqing University of Posts and Telecommunications, 2021.
72	周赛. TTNT数据链的多址接入协议研究[D]. 西安: 西安电子科技大学, 2015.
	ZHOU S. On the MAC protocol of TTNT[D]. Xian: Xidian University, 2015.
73	徐达峰, 杨建波, 刘鹏. 战术目标瞄准网络技术的物理层研究[J]. 科技视界, 2015, 14, 135- 137. doi: 10.3969/j.issn.2095-2457.2015.33.102
	XU D F, YANG J B, LIU P. Research on physical layer of tactical target aiming network technology[J]. Science & Technology Vision, 2015, 14, 135- 137. doi: 10.3969/j.issn.2095-2457.2015.33.102
74	彭军伟, 柳林, 韩志韧. 基于多维特征联合捷变的数据链抗干扰技术[J]. 指挥信息系统与技术, 2017, 8 (6): 94- 98.
	PENG J W, LIU L, HAN Z R. Antijamming technology for data link based on joint agility of multi-dimensional features[J]. Command Information System and Technology, 2017, 8 (6): 94- 98.
75	翟东, 达新宇, 张喆, 等. 多层WFRFT-MIMO卫星通信系统抗截获性能研究[J]. 弹箭与制导学报, 2021, 41 (1): 70- 75.
	ZHAI D, DA X Y, ZHANG Z, et al. Research on anti-intercept performance of multi-layer WFRFT-MIMO satellite communication system[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2021, 41 (1): 70- 75.
76	PIETRO R, OLIGERI G. Jamming mitigation in cognitive radio networks[J]. IEEE Network, 2013, 27 (3): 10- 15. doi: 10.1109/MNET.2013.6523802
77	WU Y L, WANG B B, LIU K J Y, et al. Anti-jamming games in multi-channel cognitive radio networks[J]. IEEE Journal on Selected Areas in Communications, 2012, 30 (1): 4- 15. doi: 10.1109/JSAC.2012.120101
78	冉雨, 陈大勇, 程郁凡, 等. 基于改进人工蜂群算法的认知抗干扰智能决策技术研究[J]. 信号处理, 2019, 35 (2): 240- 249.
	RAN Y, CHEN D Y, CHENG Y F, et al. Cognitive anti-jamming intelligent decision based on improved artificial bee colony algorithm[J]. Journal of Signal Processing, 2019, 35 (2): 240- 249.
79	ZOGG S J, CLARK S M, HAENDEL R S, et al. Wave-form for virtually simultaneous transmission and mul-tiple receptions system and method: US 7830781 B2[P]. 2010−11−09.
80	徐鹏政, 于启月, 林泓池, 等. 基于毫米波通信的新型机间数据链系统[J]. 通信学报, 2023, 44 (4): 27- 37.
	XU P Z, YU Q Y, LIN H C, et al. Novel air-to-air data link system based on millimeter wave communication[J]. Journal on Communications, 2023, 44 (4): 27- 37.

名称	消息类别	消息标准
陆军战术数据链-1	B系列	MIL-STD-6013
战术数字信息链路-1	S系列	STANAG5501
TADIL-C（Link-4A/4C）	V系列、R系列	MIL-STD-6004（STANAG5504）
TADIL-A（Link-11）	M系列	MIL-STD-6011B（STANAG5511）
TADIL-B（Link-11B）	M系列	MIL-STD-6011B（STANAG5511）
TADIL-J（Link-16）	J系列	MIL-STD-6016B（STANAG5516）
Link-22	FJ系列、F系列	STANAG5522

改进方法	设计思路	简单说明	涉及层次
文献[35]	区分路由失败与拥塞丢包	将失序事件认作发生了路由故障，避免进入拥塞控制过程	传输层
文献[36]	区分路由失败与拥塞丢包	将连续出现的超时重传事件认作发生了路由故障，固定超时重传计时器并避免进入拥塞控制	传输层
文献[37]	区分路由失败与拥塞丢包	发送端在Normal、Freeze和Probing 3种状态之间转移，避免进入拥塞控制	传输层

改进方法	设计思路	简单说明	涉及层次
Split-TCP^[38]	减少路由失败	将长TCP连接通过路由代理节点划分为若干局部段，通过局部确认提高端到端传输交付率	传输层、网络层
TCP-显式链路失效通知^[39]	区分路由失败与拥塞丢包	在路由协议的路由失败消息中携带显式链路失败通告消息，反馈给源节点	传输层、网络层
ATCP^[40]	区分路由失败与拥塞丢包	在传输层和网络层间增加Ad hoc TCP层，监听网际控制报文协议报文和ECN报文来获取网络状态	传输层、网络层
TCP-F^[41]	区分路由失败与拥塞丢包	在路由协议中引入路由失败通知和路由重建通知两种路由状态，解决拥塞窗口减小的问题	传输层、网络层
TCP-Bus^[42]	区分路由失败与拥塞丢包	在路由协议中引入路由故障通知和路由重建通知两种路由维护消息，改善TCP的传输质量	传输层、网络层
TCP网络编码^[43]	区分路由失败与拥塞丢包	在传输层和网络层间增加网络编码层，对原始数据包进行编译码，避免进入拥塞控制	传输层、网络层

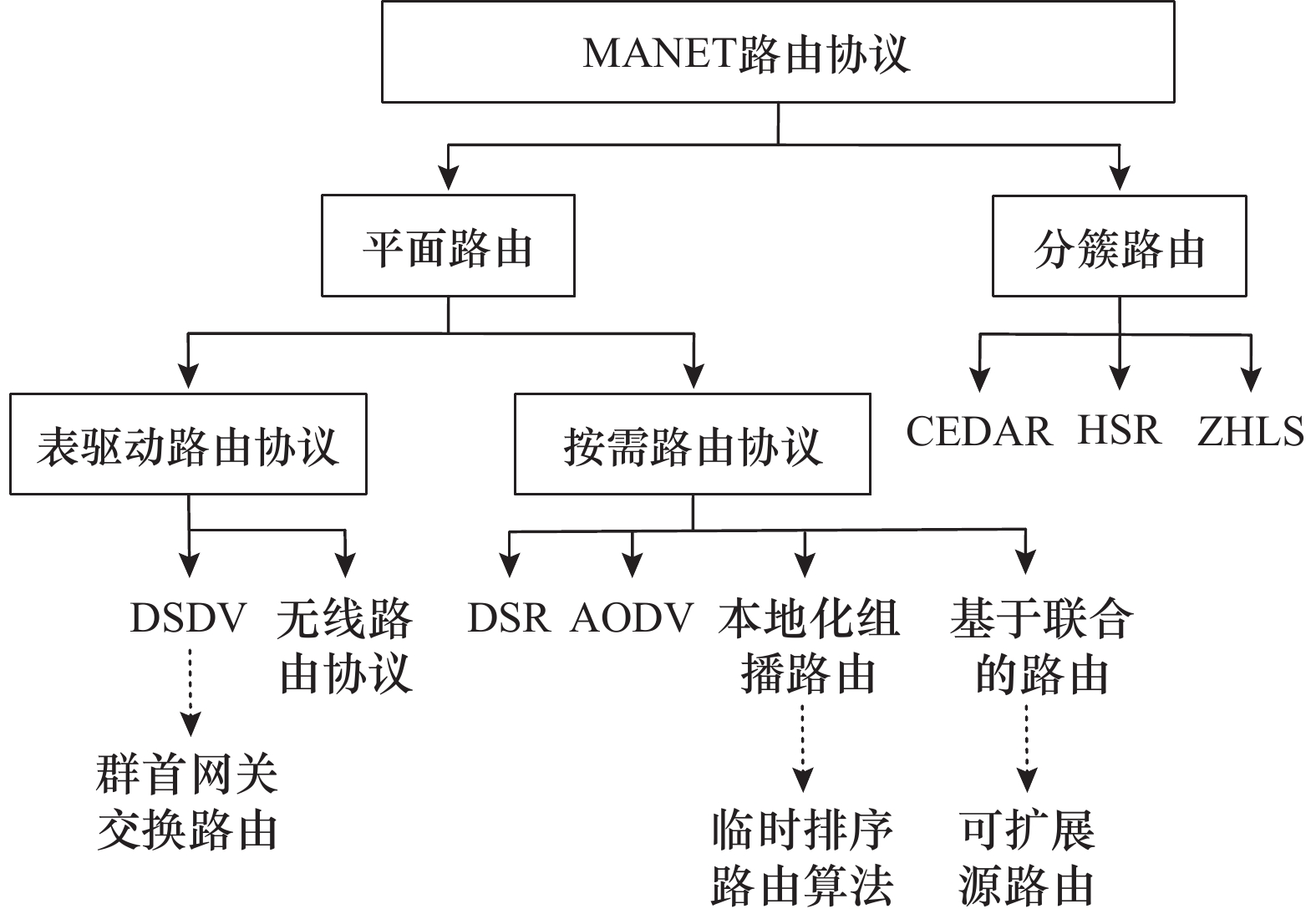

按需路由协议	路由度量	整体复杂性	开销	多径支持	路由重置方法	存放位置
AODV	最短路径	中	低	否	删除路由通知源端	路由表
DSR	最短路径	中	中	是	删除路由通知源端	路由缓存
TORA	最短路径	高	中	是	链路反向路由修复	路由表
ABR	相关度和最短路径	高	高	否	局部广播查询	路由表

工具名称	功能说明
MCS	机动控制系统，形成OPORD
RBECS	产生网络标识、跳频参数、密匙等网络参数
系统配置（版本）	分配IP子网地址、自治域号、电台标识等参数
战术作战中心	指控和态势信息交互中心，生成指挥所路由器和交换机的配置文件
21世纪旅及旅以下战斗指挥系统	SINCGARS规划管理工具，提供实时和近实时作战信息
战术互联网配置/战术互联网设计	基于21世纪旅及旅以下战斗指挥系统的战术互联网配置/设计工具
网络控制站-EPLRS	EPLRS规划管理工具，依据系统配置（版本）和战术互联网配置/战术互联网设计形成管理信息库参数
增强型网络管理器	除不能管理EPLRS原导航和定位功能，可替代原有网络控制站-EPLRS，提高规划效率
