海面雷达散射及其杂波幅度统计特性的空间遍历性数值仿真研究

doi:10.12305/j.issn.1001-506X.2023.12.10

系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (12): 3806-3818.doi: 10.12305/j.issn.1001-506X.2023.12.10

• 传感器与信号处理 • 上一篇

海面雷达散射及其杂波幅度统计特性的空间遍历性数值仿真研究

杜延磊¹, 杨晓峰¹^,*, 汪胜¹, 殷君君², 杨会章³, 杨健³

1. 中国科学院空天信息创新研究院, 北京 100101
2. 北京科技大学计算机与通信工程学院, 北京 100083
3. 清华大学电子工程系, 北京 100084

收稿日期:2022-04-09 出版日期:2023-11-25 发布日期:2023-12-05
通讯作者: 杨晓峰
作者简介:杜延磊(1991—), 男, 副研究员, 博士, 主要研究方向为计算电磁学、海洋微波遥感、极化合成孔径雷达成像与应用
杨晓峰(1982—), 男, 研究员, 博士, 主要研究方向为海洋微波遥感
汪胜(1994—), 男, 博士研究生, 主要研究方向为海洋微波遥感
殷君君(1983—), 女, 教授, 博士, 主要研究方向为雷达极化应用的基础理论、极化合成孔径雷达图像解译与目标检测
杨会章(1991—), 男, 助理研究员, 博士, 主要研究方向为极化合成孔径雷达成像与应用
杨健(1965—), 男, 教授, 博士, 主要研究方向为极化雷达理论与应用、数学建模与模糊集理论
基金资助:
国家自然科学基金(42206180);国家自然科学基金(62171023);国家自然科学基金(62222102);遥感科学国家重点实验室开放基金(OFSLRSS202009)

Numerical investigation on the spatial ergodicity of ocean radar scattering and sea clutter amplitude statistical characteristics

Yanlei DU¹, Xiaofeng YANG¹^,*, Sheng WANG¹, Junjun YIN², Huizhang YANG³, Jian YANG³

1. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100101, China
2. School of Computer and Communication Engineering, University of Science and Technology Beijing, Beijing 100083, China
3. Department of Electronic Engineering, Tsinghua University, Beijing 100084, China

Received:2022-04-09 Online:2023-11-25 Published:2023-12-05
Contact: Xiaofeng YANG

摘要/Abstract

摘要：

海面雷达散射的空间遍历性是开展海面散射数值仿真以及分析不同体制雷达系统在海洋遥感应用中算法适用性的重要基础之一。针对随机粗糙海面雷达散射及其杂波幅度统计特性的空间遍历性问题，基于Monte Carlo方法构建包含全部大尺度波浪的粗糙海面模型，利用高精度的全波数值(multilevel steepest decent-sparse matrix canonical grid, MLSD-SMCG)方法以及二阶小斜率近似(2nd-order small slope approximation, SSA-2)模型, 分别对不同雷达照射尺寸的一维和二维粗糙海面L波段归一化雷达散射系数及海杂波进行仿真，并对海面雷达散射和海杂波幅度分布的空间遍历性进行分析。仿真结果表明：在无海面遮挡效应的雷达入射和散射角度范围内，雷达照射尺寸大于16λ(入射波波长)粗糙海面的同极化归一化雷达散射系数, 具有良好的空间遍历性；当雷达照射海面尺寸不小于对应海况下最大风浪尺度的25%时，海面交叉极化的归一化雷达后向散射系数也表现出空间遍历性。相比海面散射的归一化雷达散射系数，单站海杂波幅度分布在高海况条件下空间遍历性减弱。同极化海杂波幅度分布随着入射角增大, 表现出更显著的空间遍历性，而交叉极化情况则相反。

关键词: 海面雷达散射, 空间遍历性, 海杂波, Mellin类统计量, 全波数值仿真

Abstract:

The spatial ergodicity of sea surface radar scattering is one of the important foundations for conducting numerical simulations of sea surface scattering and analyzing the applicability of algorithms for different radar systems in ocean remote sensing applications. This paper numerically investigates the spatial ergodicity of radar scattering from randomly rough ocean surface and its clutter amplitude statistical characteristics. The rough sea surface models including all large-scale waves are firstly generated using the Monte Carlo method. Then, based on the accurate full-wave multilevel steepest decent-sparse matrix canonical grid (MLSD-SMCG) method and 2nd-order small slope approximation model (SSA-2), we simulate the L-band normalized radar scattering coefficients and sea clutters from one-dimensional and two-dimensional rough ocean surfaces with different radar illumination sizes. According to the simulation results, it is found that for radar incidence and scattering angle beyond the range of shading effect, the normalized and polarization radar scattering coefficient from rough ocean surface with radar illumination size larger than 16λ (incident wavelength) has good spatial ergodicity. Also, the normalized radar backscattering coefficient for cross polarization of sea surface shows spatial ergodicity when the sea surface size illuminated by radar is not less than one fourth of the largest wind wave length under the corresponding sea conditions. Comparing to the normalized radar scattering coefficient, the spatial ergodicity of monostatic sea clutter amplitude distribution is relatively weaker under the high sea states. With the incident angle increasing, the amplitude distribution of co-polarized sea clutter shows more significant spatial ergodicity, while the cross polarization case is on the opposite.

Key words: ocean radar scattering, spatial ergodicity, sea clutter, Mellin-kind statistics, full-wave numerical simulation

中图分类号:

TN959.74

杜延磊, 杨晓峰, 汪胜, 殷君君, 杨会章, 杨健. 海面雷达散射及其杂波幅度统计特性的空间遍历性数值仿真研究[J]. 系统工程与电子技术, 2023, 45(12): 3806-3818.

Yanlei DU, Xiaofeng YANG, Sheng WANG, Junjun YIN, Huizhang YANG, Jian YANG. Numerical investigation on the spatial ergodicity of ocean radar scattering and sea clutter amplitude statistical characteristics[J]. Systems Engineering and Electronics, 2023, 45(12): 3806-3818.

图/表 16

图1

图2

图3

图4

表1

图5

图6

表2

图7

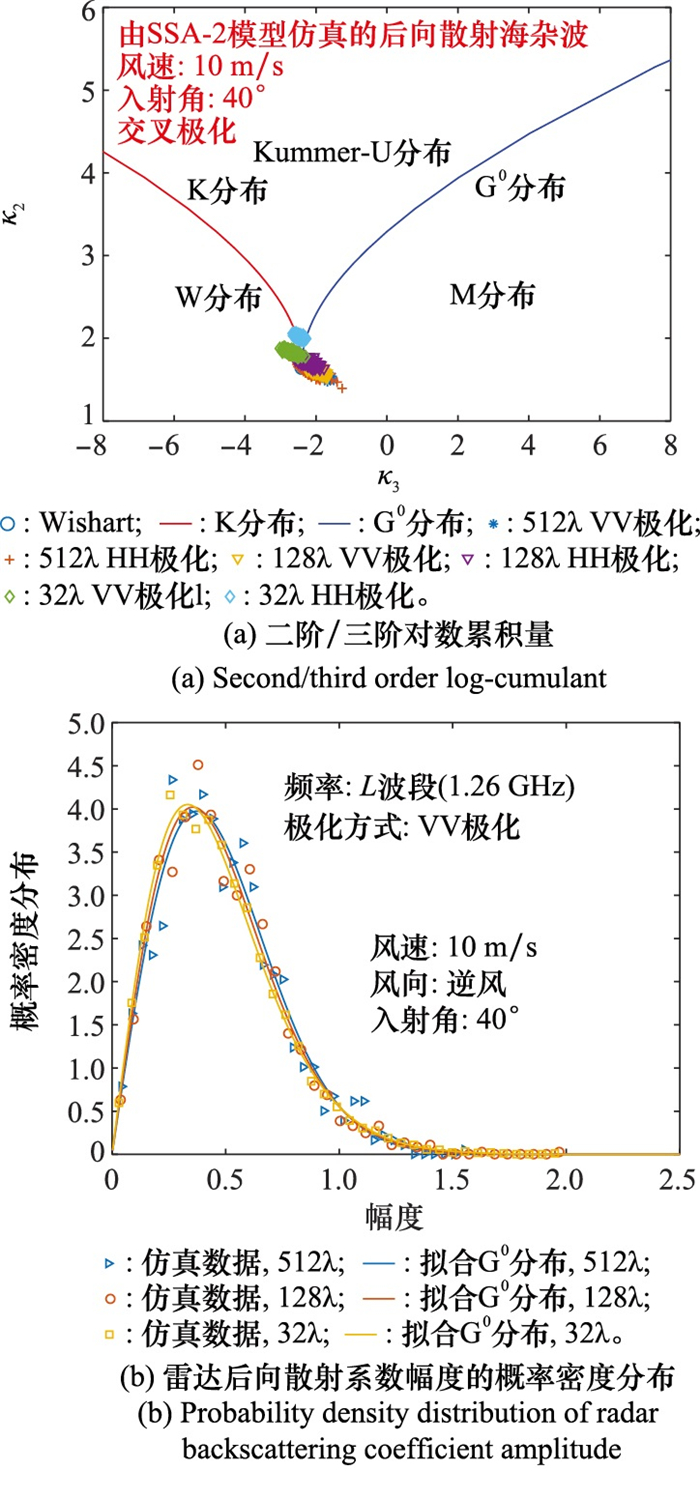

图8

图9

图10

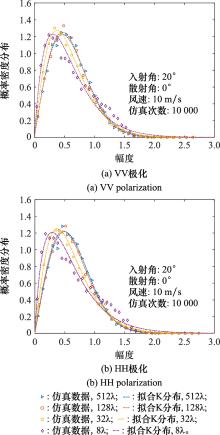

图11

图12

图13

图14

参考文献 39

1	ULABY F T , LONG D G . Microwave radar and radiometric remote sensing[M]. Ann Arbor: University of Michigan Press, 2015.
2	TSANG L , KONG J , SHIN R T . Theory of microwave remote Sening[M]. New York: Wiley, 1985.
3	杨健, 殷君君. 极化雷达理论与遥感应用[M]. 北京: 科学出版社, 2020.
	YANG J , YIN J J . Polarimetric radar theory and remote sensing application[M]. Beijing: Science Press, 2020.
4	许述文, 白晓惠, 郭子薰, 等. 海杂波背景下雷达目标特征检测方法的现状与展望[J]. 雷达学报, 2020, 9 (4): 684- 714.
	XU S W , BAI X H , GUO Z X , et al. Status and prospects of feature-based detection methods for floating targets on the sea surface[J]. Journal of Radars, 2020, 9 (4): 684- 714.
5	DE OLIVEIRA R , DUSSEAUX R , AFIFI S . Analytical derivation of the stationarity and the ergodicity of a field scattered by a slightly rough random surface[J]. Wave Random Complex, 2010, 20 (3): 396- 418. doi: 10.1080/17455031003628392
6	TSANG L , KONG J A , SHIN R T . Scattering of electroma-gnetic waves: numerical simulations[M]. New York: Wiley, 2000.
7	丁昊, 刘宁波, 董云龙, 等. 雷达海杂波测量试验回顾与展望[J]. 雷达学报, 2019, 8 (3): 281- 302.
	DING H , LIU N B , DONG Y L , et al. Overview and prospects of radar sea clutter measurement experiments[J]. Journal of Radars, 2019, 8 (3): 281- 302.
8	OZGUN O , KUZUOGLU M . Physics-based modeling of sea clutter phenomenon by a full-wave numerical solver[J]. Wave Motion, 2022, 109, 102872. doi: 10.1016/j.wavemoti.2021.102872
9	BERRY M V . The statistical properties of echoes diffracted from rough surfaces[J]. Philosophical Transactions on Royal Society A, 1973, 273 (1237): 611- 654.
10	DUSSEAUX R , DE OLIVEIRA R . Effect of the illumination length on the statistical distribution of the field scattered from one-dimensional random rough surfaces: analytical formulae derived from the small perturbation method[J]. Wave Random Complex, 2007, 17 (3): 305- 320. doi: 10.1080/17455030701197056
11	LAM K W , LI Q , TSANG L , et al. On the analysis of statistical distributions of UWB signal scattering by random rough surfaces based on Monte Carlo simulations of Maxwell equations[J]. IEEE Trans.on Antennas and Propagation, 2004, 52 (12): 3200- 3206. doi: 10.1109/TAP.2004.836414
12	AFIFI S , DUSSEAUX R , DE OLIVEIRA R . Statistical distribution of the field scattered by rough layered interfaces: formula derived from the small perturbation method[J]. Wave Random Complex, 2010, 20 (1): 1- 22. doi: 10.1080/17455030903329374
13	FRANCESCHETTI G , MIGLIACCIO M , RICCIO D . An electromagnetic fractal-based model for the study of fading[J]. Radio Science, 1996, 31 (6): 1749- 1759. doi: 10.1029/96RS02811
14	EL-BAH S , DUSSÉAUX R , AFIFI S . Some statistical and spatial properties of signal scattering by 2D slightly rough random surfaces[J]. IEEE Trans on Antennas and Propagation, 2016, 64 (2): 721- 729. doi: 10.1109/TAP.2015.2511803
15	YANG X F , LI X F , PICHEL W G , et al. Comparison of ocean surface winds from ENVISAT ASAR, MetOp ASCAT scatterometer, buoy measurements, and NOGAPS model[J]. IEEE Trans.on Geoscience and Remote Sensing, 2011, 49 (12): 4743- 4750. doi: 10.1109/TGRS.2011.2159802
16	DU Y L , YIN J J , TAN S R , et al. A numerical study of roughness scale effects on ocean radar scattering using the second-order SSA and the moment method[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (10): 6874- 6887. doi: 10.1109/TGRS.2020.2977368
17	杜延磊. 随机粗糙海面微波散射/辐射的仿真与分析: 解析近似模型和数值方法[D]. 北京: 中国科学院遥感与数字地球研究所, 2019.
	DU Y L. Simulations and analysis of microwave scattering and emission from randomly rough ocean surfaces: analytic approximate models and numerical methods[D]. Beijing: Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, 2019.
18	杜延磊, 高帆, 刘涛, 等. 基于数值仿真的X波段极化SAR海杂波统计建模与特性分析[J]. 系统工程与电子技术, 2021, 43 (10): 2742- 2755.
	DU Y L , GAO F , LIU T , et al. Statistical modeling and cha-racteristic analysis of polarimetric SAR sea clutter at X-band based on numerical simulations[J]. Systems Engineering and Electronics, 2021, 43 (10): 2742- 2755.
19	KUDRYAVTSEV V , HAUSER D , CAUDAL G , et al. A semi-empirical model of the normalized radar cross-section of the sea surface-1. Background model[J]. Journal of Geophys Res-Oceans, 2003, (3): 1- 24.
20	DU Y L , YANG J , YANG X F , et al. Electromagnetic scattering and emission from large rough surfaces with multiple elevations using the MLSD-SMCG method[J]. IEEE Trans.on Geoscience and Remote Sensing, 2021, 59 (7): 5393- 5406. doi: 10.1109/TGRS.2020.3016997
21	DU Y L , TSANG L . Accurate calculations of emissivities of polar ocean surfaces between 0.5 and 2 GHz using an NIBC/Nystrom/SMCG method[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (4): 2732- 2744. doi: 10.1109/TGRS.2019.2954886
22	VORONOVICH A G , ZAVOROTNY V U . Full-polarization modeling of monostatic and bistatic radar scattering from a rough sea surface[J]. IEEE Trans.on Antennas and Propagation, 2014, 62 (3): 1362- 1371. doi: 10.1109/TAP.2013.2295235
23	LI J X , ZHANG M , ZHAO Y , et al. Efficient numerical full-polarized facet-based model for EM scattering from rough sea surface within a wide frequency range[J]. Remote Sensing, 2019, 11 (1): 1- 18.
24	JOHNSON J T . A study of ocean-like surface thermal emission and reflection using Voronovich's small slope approximation[J]. IEEE Trans.on Geoscience and Remote Sensing, 2005, 43 (2): 306- 314. doi: 10.1109/TGRS.2004.841480
25	VORONOVICH A . Small-slope approximation for electromagnetic-wave scattering at a rough interface of dielectric half-spaces[J]. Wave Random Media, 1994, 4 (3): 337- 367. doi: 10.1088/0959-7174/4/3/008
26	LIU T , YANG Z Y , MARINO A , et al. Robust CFAR detector based on truncated statistics for polarimetric synthetic aperture radar[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (9): 6731- 6747. doi: 10.1109/TGRS.2020.2979252
27	郭立新, 王蕊, 吴振森. 随机粗糙面散射的基本理论与方法[M]. 北京: 科学出版社, 2010.
	GUO L X , WANG R , WU Z S . Basic theory and method of random rough surface scattering[M]. Beijing: Science Press, 2010.
28	丁昊, 董云龙, 刘宁波, 等. 海杂波特性认知研究进展与展望[J]. 雷达学报, 2016, 5 (5): 499- 516.
	DING H , DONG Y L , LIU N B , et al. Overview and prospects of research on sea clutter property cognition[J]. Journal of Radars, 2016, 5 (5): 499- 516.
29	LIU T , HUANG G M , WANG X S , et al. Statistics of the polarimetric Weibull-distributed electromagnetic wave[J]. IEEE Trans.on Antennas and Propagation, 2009, 57 (10): 3232- 3248. doi: 10.1109/TAP.2009.2028597
30	刘涛, 黄高明, 王雪松, 等. Weibull分布随机波的瞬态极化统计分析——相同形状参数情形[J]. 物理学报, 2009, 58 (5): 3140- 3153.
	LIU T , HUANG G M , WANG X S , et al. Statistics of the instantaneous polarization in Weibull-distributed fields-the same shape parameter case[J]. Acta Physica Sinica, 2009, 58 (5): 3140- 3153.
31	DENG X P , LOPEZ-MARTINEZ C , CHEN J S , et al. Statistical modeling of polarimetric SAR data: a survey and challenges[J]. Remote Sens-Basel, 2017, 9 (4): 348. doi: 10.3390/rs9040348
32	DENG X P , LOPEZ-MARTINEZ C , VARONA E M . A Physical analysis of polarimetric SAR data statistical models[J]. IEEE Trans.on Geoscience and Remote Sensing, 2016, 54 (5): 3035- 3048. doi: 10.1109/TGRS.2015.2510399
33	ANFINSEN S N , ELTOFT T . Application of the matrix-variate Mellin transform to analysis of polarimetric radar images[J]. IEEE Trans.on Geoscience and Remote Sensing, 2011, 49 (6): 2281- 2295. doi: 10.1109/TGRS.2010.2103945
34	NICOLAS J M . Introduction to second kind statistics: application of log-moments and Log-cumulants to SAR image law analysis[J]. Traitement du Signal, 2002, 3 (3): 139- 167.
35	BOMBRUN L, ANFINSEN S N, HARANT O. A complete coverage of log-cumulant space in terms of distributions for polarimetric SAR data[C]//Proc. of the International Workshop on Science & Applications of SAR Polarimetry & Polarimetric Interferometry, 2011: 1-8.
36	LIU T , CUI H G , MAO T , et al. Modeling multilook polarimetric SAR images with heavy-tailed Rayleigh distribution and novel estimation based on matrix log-cumulants[J]. Science China-information Sciences, 2013, 56 (6): 1- 14.
37	LIU T , ZHANG J F , GAO G , et al. CFAR ship detection in polarimetric synthetic aperture radar images based on whitening filter[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (1): 58- 81. doi: 10.1109/TGRS.2019.2931353
38	刘宁波, 董云龙, 王国庆, 等. X波段雷达对海探测试验与数据获取[J]. 雷达学报, 2019, 8 (5): 656- 667.
	LIU N B , DONG Y L , WANG G Q , et al. Sea-detecting X-band radar and data acquisition program[J]. Journal of Radars, 2019, 8 (5): 656- 667.
39	刘宁波, 丁昊, 黄勇, 等. X波段雷达对海探测试验与数据获取年度进展[J]. 雷达学报, 2021, 10 (1): 173- 182.
	LIU N B , DING H , HUANG Y , et al. Annual progress of the sea-detecting X-band radar and data acquisition program[J]. Journal of Radars, 2021, 10 (1): 173- 182.

海面尺寸/λ	风速5 m/s, θ_i=40°/dB				风速10 m/s, θ_i=20°/dB
	θ_s∈[-60°, 60°]		θ_s∈[-90°, 90°]		θ_s∈[-60°, 60°]		θ_s∈[-90°, 90°]
	VV极化	HH极化	VV极化	HH极化	VV极化	HH极化	VV极化	HH极化
512	-	-	-	-	-	-	-	-
256	0.141	0.144	0.185	0.214	0.150	0.154	0.207	0.265
128	0.146	0.150	0.241	0.299	0.168	0.180	0.254	0.357
64	0.156	0.160	0.326	0.397	0.178	0.195	0.352	0.474
32	0.171	0.193	0.430	0.589	0.186	0.205	0.400	0.474
16	0.183	0.217	0.462	0.776	0.185	0.207	0.450	0.617
8	0.462	0.664	0.803	1.448	0.293	0.325	0.548	0.767

风速/(m/s)	极化方式	海面尺寸/λ
风速/(m/s)	极化方式	128	64	32
5	VV极化	0.143	0.123	0.119
	HH极化	0.140	0.135	0.132
	HV极化	0.161	0.262	0.862
10	VV极化	0.153	0.151	0.217
	HH极化	0.165	0.253	0.345^*
	HV极化	0.312	0.852	1.673
