基于MBSE的异构探测器系统架构设计方法

doi:10.12305/j.issn.1001-506X.2025.06.21

摘要/Abstract

摘要：

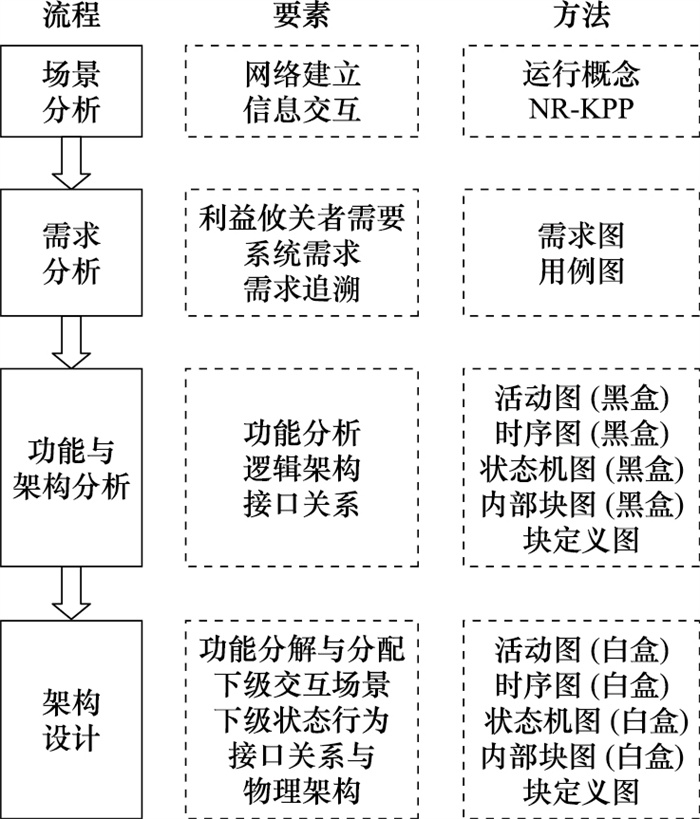

针对未来月球探测任务中探测器系统使用需求和综合设计难点, 为有效解决各型探测器使用兼容、网络通联、维护保障等问题, 以基于模型的系统工程(model-based systems engineering, MBSE)正向设计为指导, 结合互操作性设计思想, 提出基于“场景分析-需求分析-功能与架构分析-架构设计”的系统架构开发流程。以典型任务场景下探测器系统互操作能力需求为输入, 构建关键功能约束下的系统用例、活动、时序、状态等视图模型, 通过权衡分析, 形成探测器最小单元物理架构, 为多种构型探测器架构和功能配置设计提供可行性方法, 提升系统开发和验证效率。

关键词: 基于模型的系统工程, 异构探测器系统, 互操作性, 架构设计方法

Abstract:

Aiming at the application requirements and comprehensive design difficulties of probe systems in the future lunar exploration mission, in order to effectively solve the problems of using compatibility, network communication, maintenance supporting for each type of probes, it is guided by the forward design of model-based systems engineering (MBSE), and incorporated interoperability design ideas, the system architecture development process based on "scenario analysis, requirement analysis, function and architecture analysis, architecture design" is proposed. The requirements for interoperability of probe systems in typical mission scenario are taken as input, the view models of system use case, activity, sequence, state and so on are constructed under the constraint of key functions, the minimum unit physical architecture of the probe is formed through trade-off analysis, it provides a feasible method for architecture and functional configuration design in various configurational probes, and improve the efficiency of system development and verification.

Key words: model-based systems engineering (MBSE), heterogeneous probe systems, interoperability, architecture design method

中图分类号:

李特, 郭强, 战鹏. 基于MBSE的异构探测器系统架构设计方法[J]. 系统工程与电子技术, 2025, 47(6): 1930-1940.

Te LI, Qiang GUO, Peng ZHAN. Architecture design method of heterogeneous probe systems based on MBSE[J]. Systems Engineering and Electronics, 2025, 47(6): 1930-1940.

图/表 17

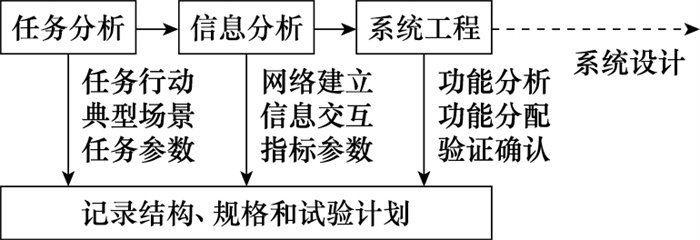

图1

图2

表1

图3

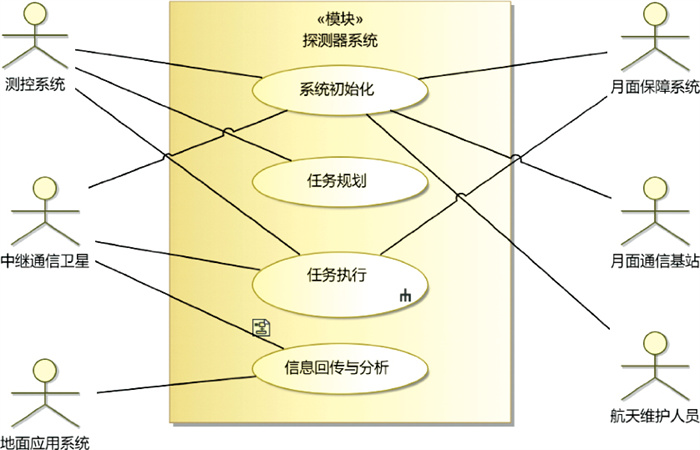

图4

表2

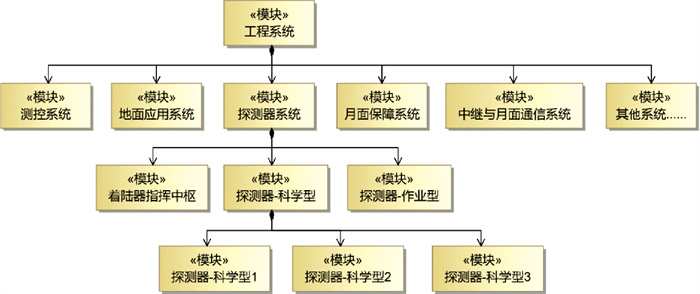

图5

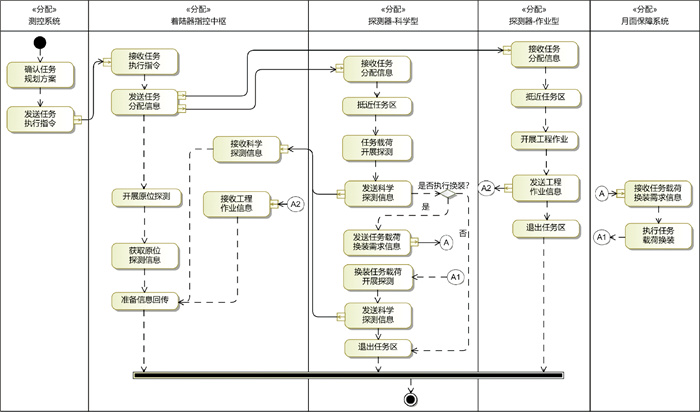

图6

图7

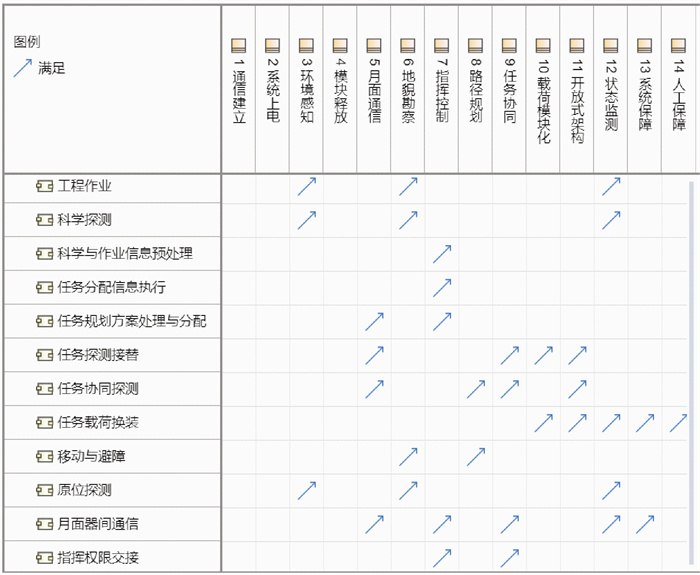

图8

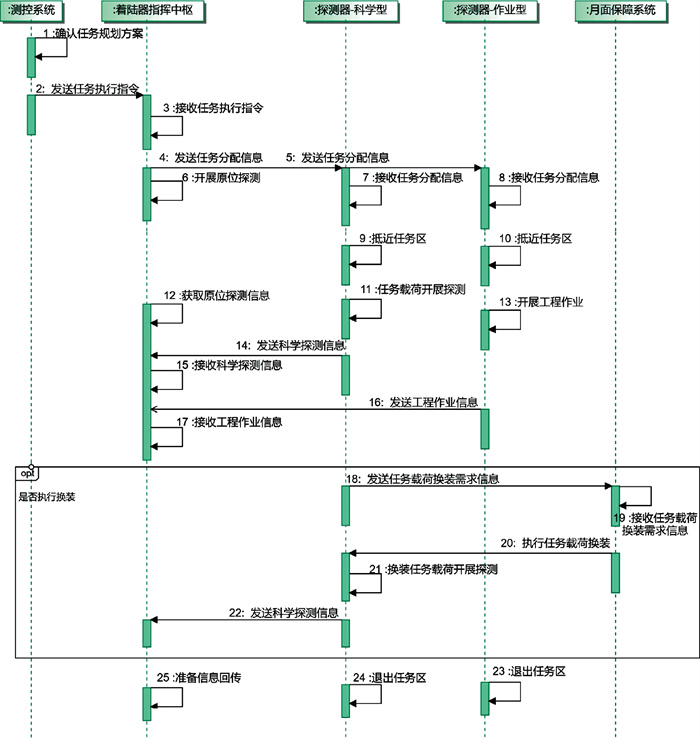

图9

图10

图11

表3

图12

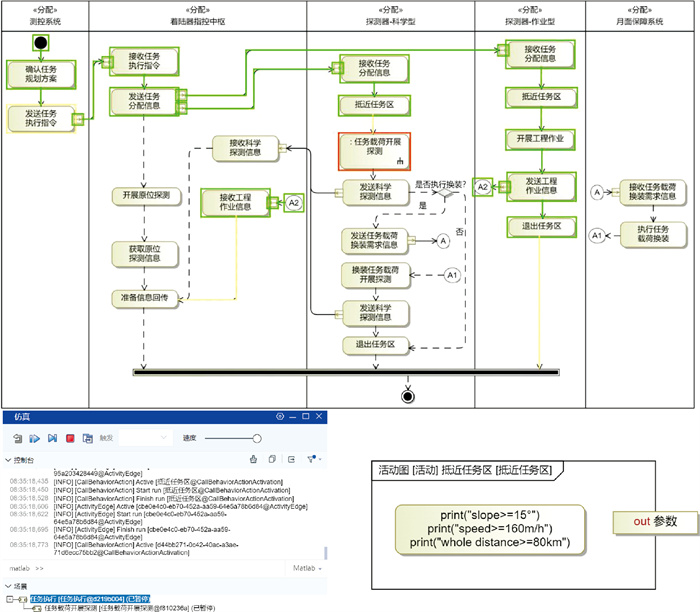

图13

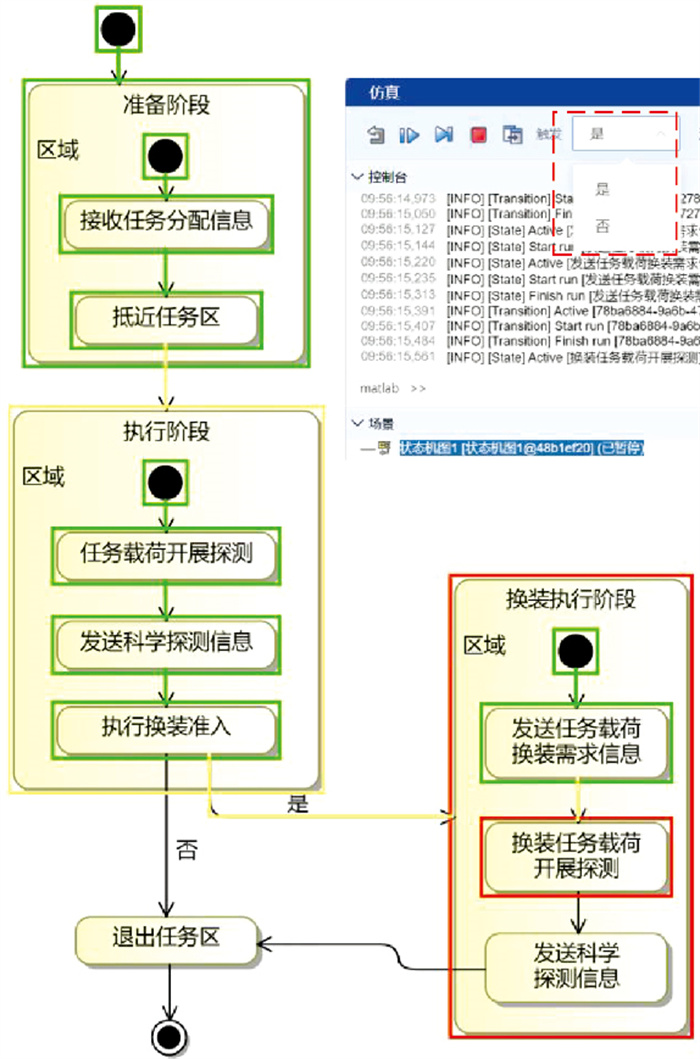

图14

参考文献 30

1	关锋,葛平,周国栋,等.MBSE发展趋势与中国探月工程并行协同论证[J].空间科学学报,2022,42(2):183-190.
	GUANF,GEP,ZHOUG D,et al.Development trend of MBSE and investigation of concurrent collaborative demonstration for Chinese Lunar Exploration program[J].Chinese Journal of Space Science,2022,42(2):183-190.
2	裴照宇,刘继忠,王倩,等.月球探测进展与国际月球科研站[J].科学通报,2020,65(24):2577-2586.
	PEIZ Y,LIUJ Z,WANGQ,et al.Overview of lunar exploration and International Lunar Research Station[J].Chinese Science Bulletin,2020,65(24):2577-2586.
3	裴照宇,康炎,马继楠,等.基于模型的国际月球科研站协同论证方法[J].航空学报,2022,43(12):319-333.
	PEIZ Y,KANGY,MAJ N,et al.Model-based collaborative demonstration method for International Lunar Research Station[J].Acta Aeronautica et Astronautica Sinica,2022,43(12):319-333.
4	关锋,葛平,邵艳利,等.基于MBSE的月球科研站任务分析[J].航空工程进展,2023,14(3):84-99.
	GUANF,GEP,SHAOY L,et al.Mission analysis of lunar scientific research station based on MBSE[J].Advances in Aeronautical Science and Engineering,2023,14(3):84-99.
5	彭祺擘,张海联.基于模型的载人航天工程需求分析方法[J].系统工程与电子技术,2023,45(11):3532-3543. doi: 10.12305/j.issn.1001-506X.2023.11.20
	PENGQ B,ZHANGH L.Model-based requirements analysis method for manned space engineering[J].Systems Engineering and Electronics,2023,45(11):3532-3543. doi: 10.12305/j.issn.1001-506X.2023.11.20
6	张柏楠,戚发轫,邢涛,等.基于模型的载人航天器研制方法研究与实践[J].航空学报,2020,41(7):72-80.
	ZHANGB N,QIF R,XINGT,et al.Model-based development method of manned spacecraft: research and practice[J].Acta Aeronautica et Astronautica Sinica,2020,41(7):72-80.
7	于国斌.深空探测任务协同的系统工程方法应用及趋势[J].深空探测学报,2021,8(4):407-413.
	YUG B.Application and trend of model-based systems engineering methods for deep space exploration mission[J].Journal of Deep Space Exploration,2021,8(4):407-413.
8	焦洪臣,雷勇,张宏宇,等.基于MBSE的航天器系统建模分析与设计研制方法探索[J].系统工程与电子技术,2021,43(9):2515-2525.
	JIAOH C,LEIY,ZHANGH Y,et al.Research on modeling and design method of spacecraft system based on MBSE[J].Systems Engineering and Electronics,2021,43(9):2515-2525.
9	彭坤,袁文强,黄震,等.基于模型的载人登月飞船系统设计应用探讨[J].载人航天,2022,28(1):1-9.
	PENYK,YUANW Q,HUANGZ,et al.Discussion on model based design and application of manned lunar spacecraft system[J].Manned Spaceflight,2022,28(1):1-9.
10	刘继忠,裴照宇,于国斌.航天工程多态全息模型及应用[J].宇航学报,2019,40(5):535-542.
	LIUJ Z,PEIZ Y,YUG B.Space engineering multi-state holo-graphic model and its applications[J].Journal of Astronautics,2019,40(5):535-542.
11	梅芊,黄丹,卢艺.基于MBSE的民用飞机功能架构设计方法[J].北京航空航天大学学报,2019,45(5):1042-1051.
	MEIQ,HUANGD,LUY.Design method of civil aircraft functional architecture based on MBSE[J].Journal of Beijing University of Aeronautics and Astronautics,2019,45(5):1042-1051.
12	FUSARO R, FERRETTO D, VIOLA N. MBSE approach to support and formalize mission alternatives generation and selection processes for hypersonic and suborbital transportation systems[C]//Proc. of the IEEE International Systems Engineering Symposium, 2017.
13	MORDECAIY,ORHOFO,DORID.Model-based interoperability engineering in systems-of-systems and civil aviation[J].IEEE Trans. on Systems Man and Cybernetics Systems,2018,48(4):637-648.
14	BRUELJ,EBERSOLDS,GALINIERF,et al.The role of formalism in system requirements (full version)[J].ACM Computing Surveys,2021,54(5):1-36.
15	EVINE ULUDAGY.Bioanalytical device design with model-based systems engineering tools[J].IEEE Systems Journal,2020,14(3):3139-3149.
16	FOUSTJ.Gateway or bust: NASA's plan for a 2024 lunar landing depends on a much-criticized orbital outpost[J].IEEE Spectrum,2019,56(7):32-37.
17	WATSON-MORGAN L, HAWJINS L, JACOBS B, et al. NASA's artemis human landing systems[C]//Proc. of the IEEE Aerospace Conference, 2022.
18	BROWER E W, DELP C, KARBAN R, et al. OpenCAE case study: Europa lander concept: model-based systems engineering products in the OpenCAE model-based engineering environment with Europa lander as a case study[C]//Proc. of the Annual INCOSE International Workshop, 2019.
19	ODITA T, LOUISE-CABALLES M, CHEN G. Implementation of MBSE approach for developing reliability model to ensure robustness of sounding rocket program using MADE modeling tool[C]//Proc. of the 9th Annual World Conference of the Society for Industrial and Systems Engineering, 2020.
20	FAKIHM,KLEMPO,PUCHS,et al.A modeling method-ology for collaborative evaluation of future automotive innova tions[J].Software and Systems Modeling,2021,20(5):1587-1608.
21	KHARRATM,PENASO,PLATEAUXR,et al.Integration of electromagnetic constrains as of the conceptual design through an MBSE approach[J].IEEE Systems Journal,2021,15(1):747-758.
22	ERIC W B. OpenCAE case study: Europa lander concept[C]//Proc. of the Annual INCOSE International Workshop, 2019.
23	MAHMOOD N, CIMTALAY S, MAVRIS D N. Model-based systems engineering (MBSE) applied to fault detection analysis of vehicle subsystems[C]//Proc. of the IEEE Aerospace Conference, 2022.
24	BOGGERO L, CIAMPA P D, NAGEL B. An MBSE architectural framework for the agile definition of complex system architectures[C]//Proc. of the American Institute of Aeronautics and Astronautics Aviation Forum, 2022.
25	GRANDE M L, PATEL A S, DURBIN L D, et al. Modeling architectures and parameterization for spacecraft[C]//Proc. of the American Institute of Aeronautics and Astronautics Scitech Forum and Exposition, 2020.
26	WANGY,STEINBACHT,KLEINJ,et al.Integration of model-based system engineering into the digital twin concept[J].Procedia International Academy for Production Engineering,2021,100,19-24.
27	吴立珍,牛轶峰.无人系统互操作性发展现状与关键问题[J].国防科技,2021,42(3):50-56.
	WUL Z,NIUY F.Development status and key issues of unmanned system interoperability[J].Defense Technology Revi ew,2021,42(3):50-56.
28	郑超,张冰.美军装备互操作性试验鉴定机制与流程分析[J].中国电子科学研究院学报,2021,16(8):828-833.
	ZHENGC,ZHANGB.The mechanism and process analysis of the US military equipment interoperability test and evaluation[J].Journal of China Academy of Electronics and Information Technology,2021,16(8):828-833.
29	王文峰,余雪梅,徐冬梅.无人系统互操作性标准化综述[J].中国标准化,2020,12,100-104.
	WANGW F,YUX M,XUD M.Overview of unmanned systems interoperability standardization[J].China Standardization,2020,12,100-104.
30	杜国红,陆树林,郑启.基于MBSE的作战概念建模框架研究[J].指挥控制与仿真,2020,42(3):14-20.
	DUG H,LUS L,ZHENGQ.Research on operation concept modeling framework based on MBSE[J].Command Control and Simulation,2020,42(3):14-20.

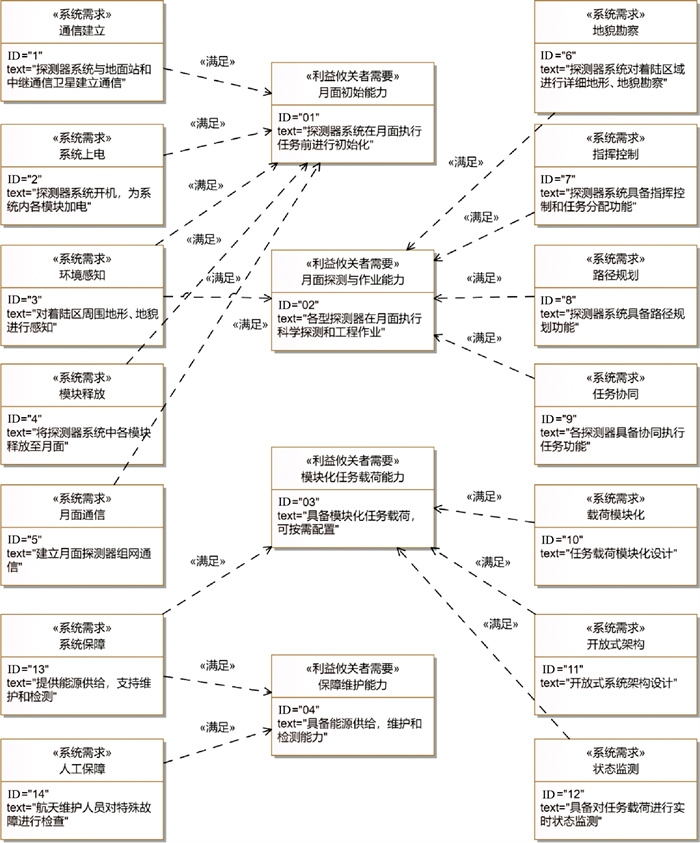

系统层级	交互对象	互操作内容	互操作能力需求
体系支持层	探测器系统与测控系统、地面应用系统	遥测信息, 遥控指令, 下行数传	1.探测器系统与地面站建立通信; 2.探测器系统通过中继通信卫星与地面站建立通信; 3.月面通信基站为探测器系统提供多模通信支持; 4.月面保障系统支持能源供给, 支持维护和检测; 5.月面保障系统支持任务载荷换装; 6.航天维护人员支持对特殊故障进行检查。
	探测器系统与中继通信卫星	中继通信
	探测器系统与月面通信基站	月面组网互联
	探测器系统与月面保障系统、航天维护人员	能源供给, 维护和检测, 人工检查
异构系统层	着陆器指控中枢与各型探测器	异构系统指控交互(指控命令、任务分配信息、指控权限交接)	1.依据测控系统上行遥控指令, 着陆器指控中枢结合环境信息, 生成行动方案, 并对各型探测器进行任务分配; 2.与指定探测器完成指控权限交接; 3.着陆器指控中枢向各探测器发送环境信息、任务目标信息; 4.各探测器向着陆器指控中枢回传科学探测信息、工程作业信息、任务载荷状态信息。
异构系统层	着陆器指控中枢与各型探测器	异构系统信息交互(环境信息、任务目标信息、科学探测信息、工程作业信息、任务载荷状态信息)

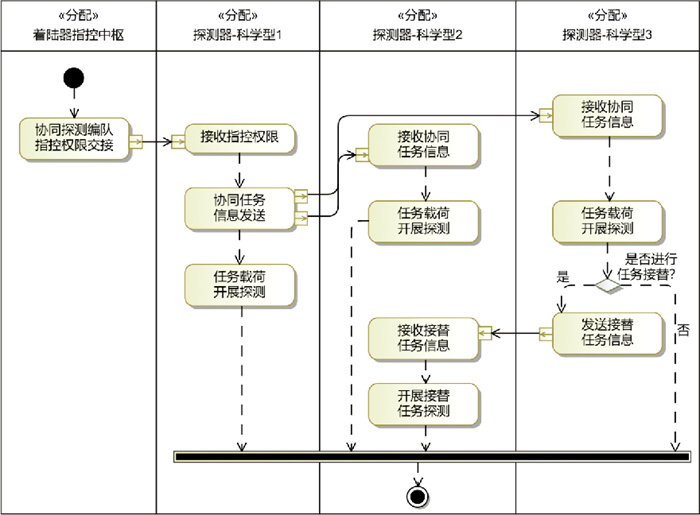

同型系统层	同型探测器之间	同型系统指控交互(指控命令)	1.指定探测器完成编队内其他探测器指控; 2.同型探测器之间发送协同任务信息; 3.同型探测器之间发送接替任务信息。
	同型探测器之间	协同任务信息交互(协同任务信息)
	同型探测器之间	接替任务信息交互(接替任务信息)

要素	内容
参与者	测控系统、中继通信卫星、月面保障系统
前置条件	任务规划

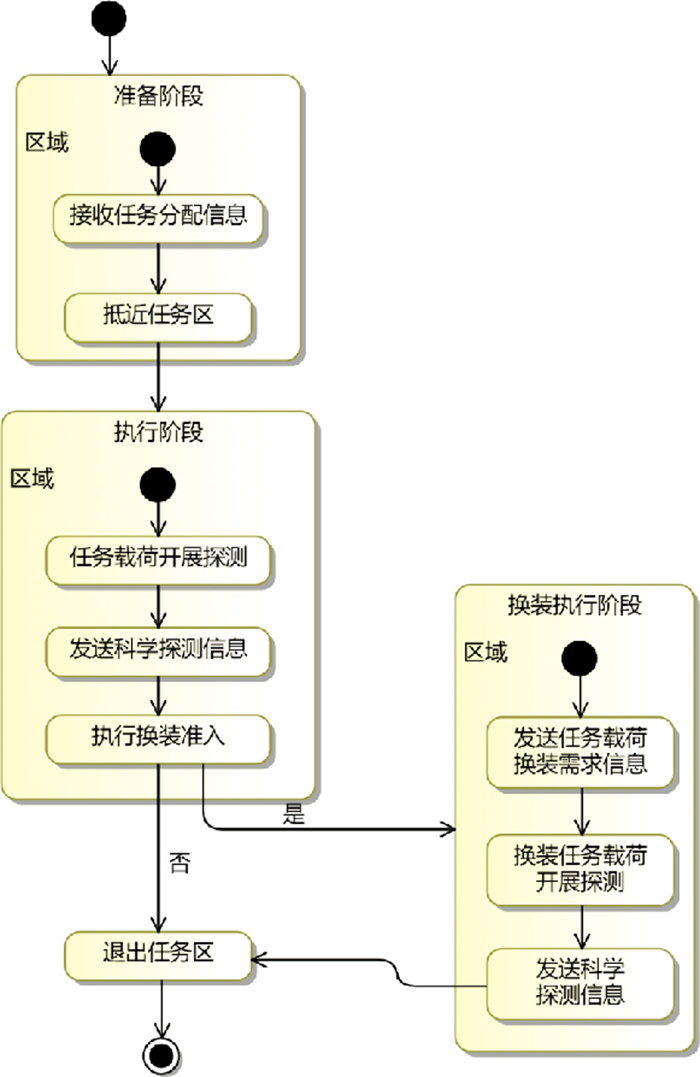

运行流程(概要)	1.任务准备: 接收任务分配信息、抵近任务区 2.目标探测和工程作业: 任务载荷开展探测、发送科学探测信息, 开展工程作业、发送工程作业信息 3.任务载荷换装: 换装任务载荷开展探测、发送科学探测信息 4.任务退出: 退出任务区
成功条件	完成科学探测, 科学信息回传接收
数据要求	任务分配信息, 科学探测信息, 工程作业信息

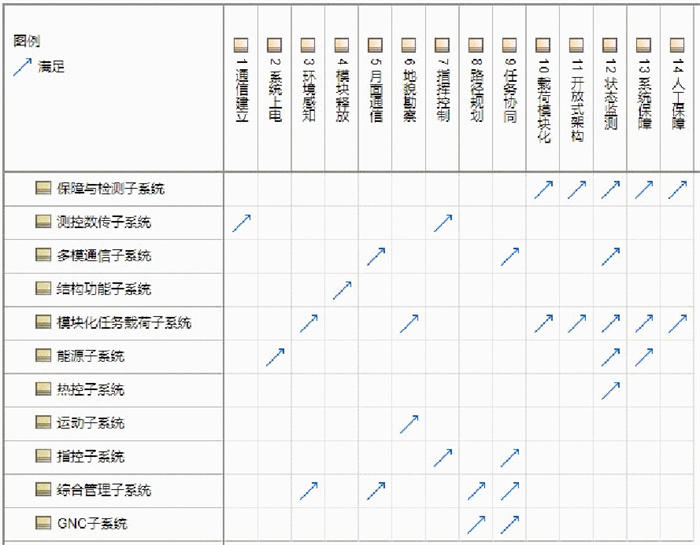

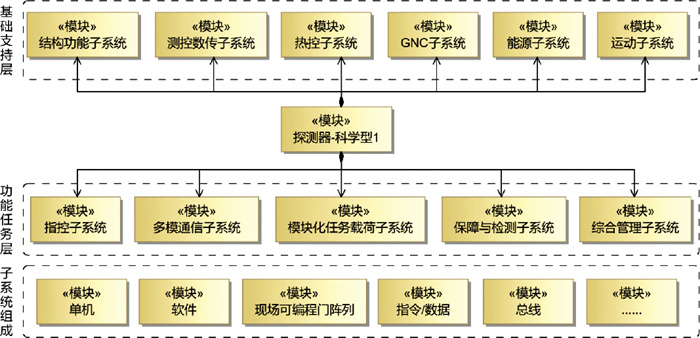

序号	子系统名称	主要执行功能
1	指控子系统	接收指挥权限, 完成同型探测器指控
2	多模通信子系统	月面各探测器间多模组网通联, 信息交互
3	模块化任务载荷子系统	任务载荷按需配置, 可支持换装要求
4	保障与检测子系统	具备载荷换装、能源补给、故障维修统一接口, 具备自检测功能
5	综合管理子系统	具备综合处理、数据管理功能
6	结构功能子系统	具备支撑功能, 机构运动与分离功能
7	测控数传子系统	具备中继、地面应急通信接口
8	热控子系统	具备热交换、隔热功能
9	GNC子系统	具备导航与控制功能, 环境感知和路径规划功能
10	能源子系统	具备能源产生、存储和管理功能
11	运动子系统	具备地形自适应巡视功能
