MBSE在载人航天在轨物资补给任务中的应用

doi:10.12305/j.issn.1001-506X.2025.05.17

摘要/Abstract

摘要：

为进一步提高载人航天器在轨物资补给任务的设计效率，同时更好地应对任务变更与调整，通过基于模型的系统工程(model based systems engineering, MBSE)方法，建立顶层任务、物资补给需求、航天器型谱运输能力、运输成本等多维度元素之间的关联，开展在轨物资补给任务设计的方法研究，引入运输成本指标进行多目标权衡，可快速得到既满足任务需求又经济的在轨物资补给任务安排方案。通过应用MBSE方法进行总体分析与设计，验证了基于模型的方式易于进行关联性和影响域分析，有效提升设计效率，为深空探测、航空等领域运输任务安排提供参考，为后续探索载人航天总体任务数字化设计奠定基础。

关键词: 基于模型的系统工程, 载人航天, 需求分析

Abstract:

To further enhance the design efficiency of in-orbit material supply mission for manned spacecraft and better cope with mission changes and adjustments, through the model based systems engineering (MBSE) approach, the correlations among multiple-dimensional elements such as top-level mission, material supply requirements, transportation capabilities of spacecraft types, and transportation costs are established. Research on the design methods of in-orbit material supply mission is carried out, and the transportation cost index is introduced for multi-objective trade-offs, enabling the rapid acquisition of in-orbit material supply mission arrangements that both meet mission requirements and are economically viable. Through the application of MBSE approach for overall analysis and design, it verifies that the model-based approach is easy to conduct correlation and influence domain analysis, effectively enhancing design efficiency. The approach provides a reference for transportation mission arrangement in fields such as deep space exploration and aviation, and lays a foundation for the subsequent exploration of digital design for overall manned spaceflight missions.

Key words: model-based systems engineering (MBSE), manned space, requirement analysis

中图分类号:

崔馨方, 陈祥文. MBSE在载人航天在轨物资补给任务中的应用[J]. 系统工程与电子技术, 2025, 47(5): 1551-1560.

Xinfang CUI, Xiangwen CHEN. Application of MBSE in manned space in-orbit material supply mission[J]. Systems Engineering and Electronics, 2025, 47(5): 1551-1560.

图/表 13

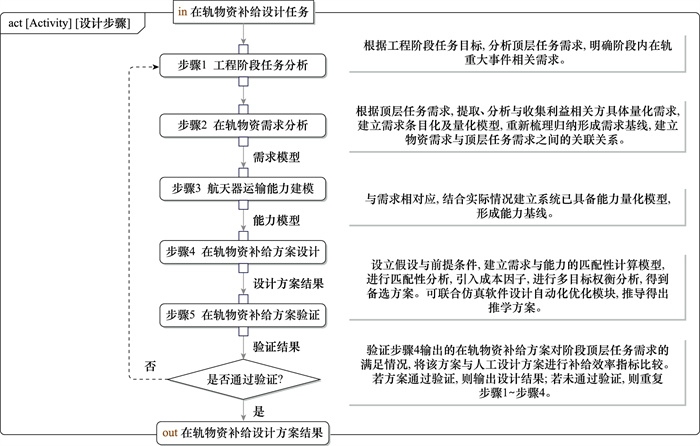

图1

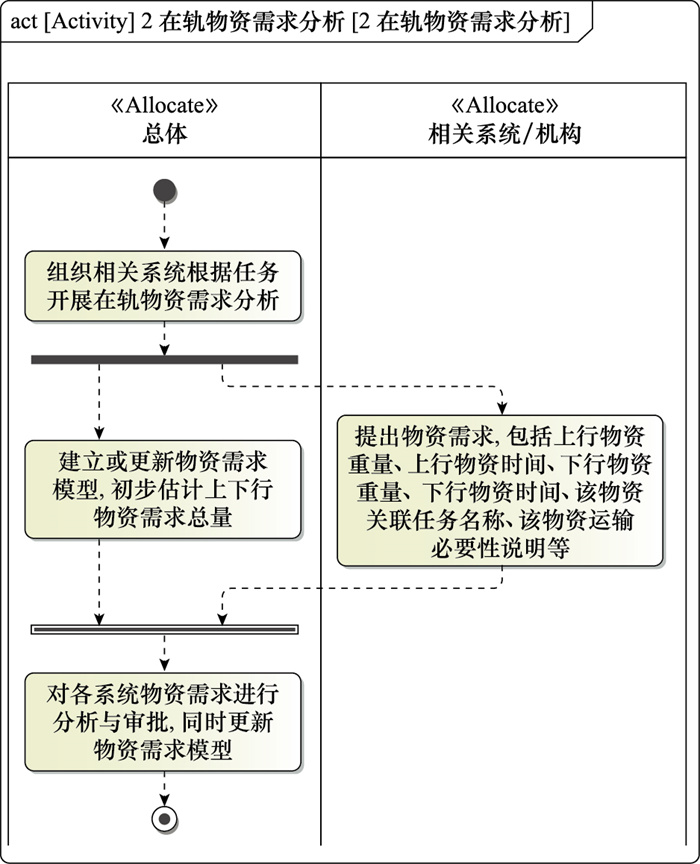

图2

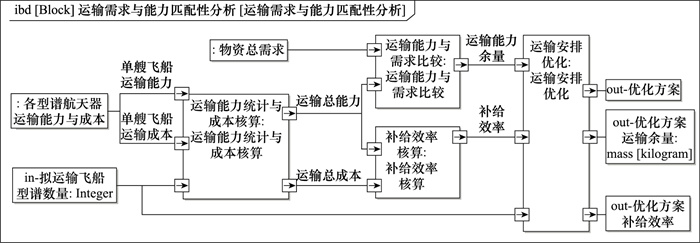

图3

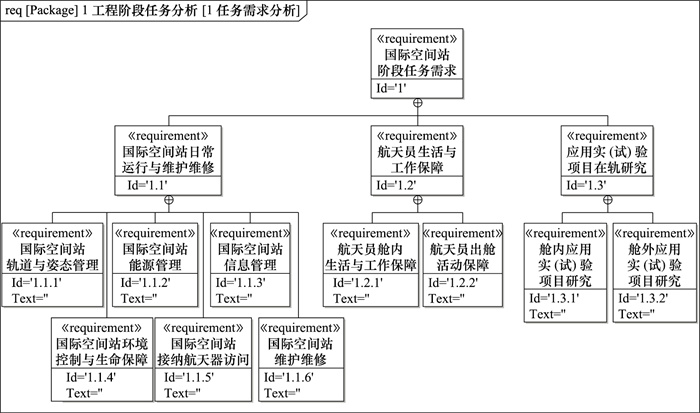

图4

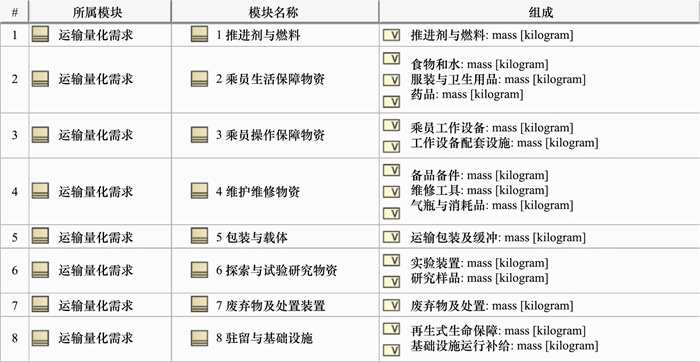

图5

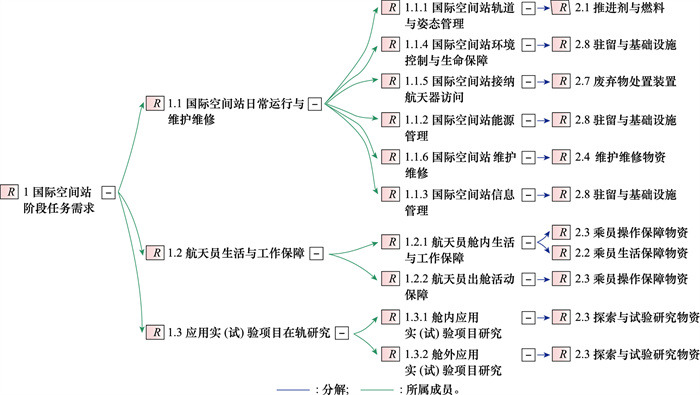

图6

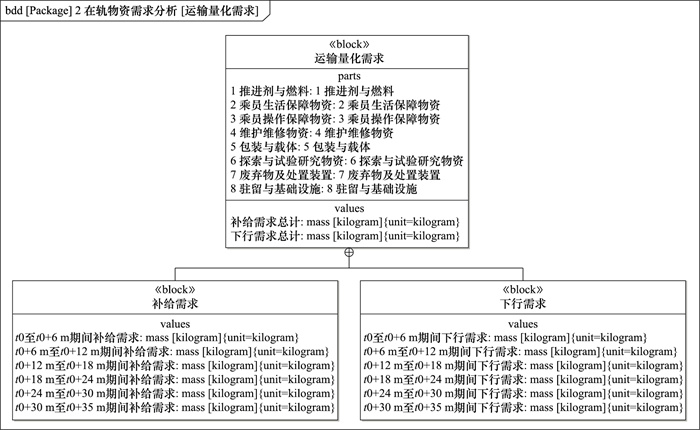

图7

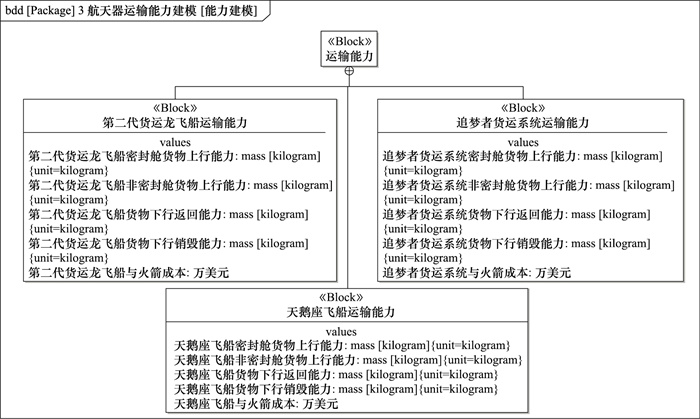

图8

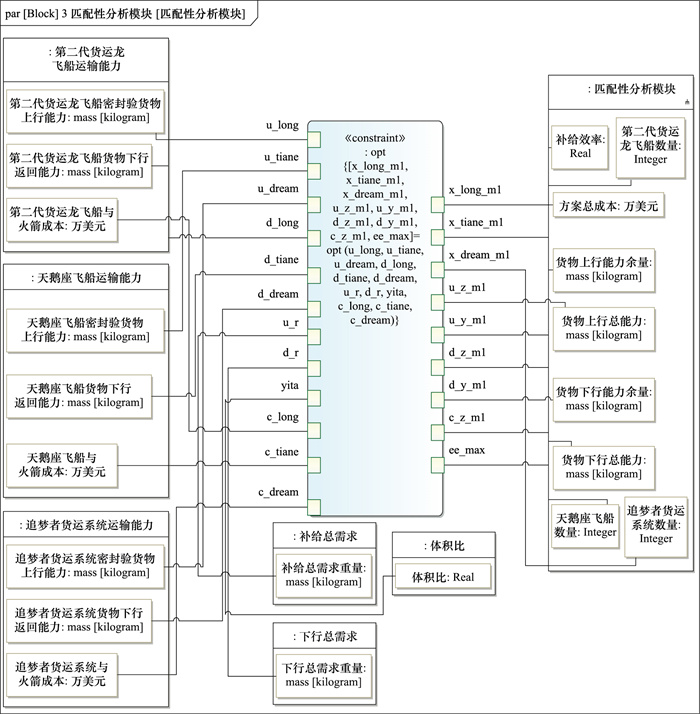

图9

表1

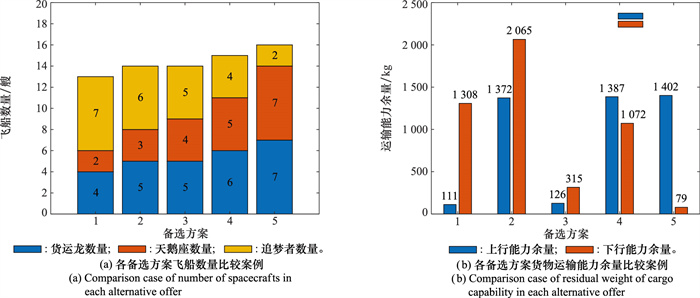

图10

图11

图12

参考文献 32

1	ALESSANDROR,ENRICOM B,LUCAC,et al.Foundations of radiological protection in space: the integrated multidisciplinary approach for next manned missions in deep space[J].The European Physical Journal Plus,2023,138,1001. doi: 10.1140/epjp/s13360-023-04572-3
2	FAVALORON,SACCONEG,PISCITELLIF,et al.Enabling technologies for space exploration missions: the CIRA-TEDS program roadmap perspectives[J].Aerotecnica Missili & Spazio,2023,102(3):187-197.
3	KOSTELNIK M C, HEDIN D L. The international space station: challenge and opportunity[C]//Proc. of the AIAA/ICAS International Air and Space Symposium and Exposition, 2003.
4	SARAH A S, ERICA L G, NⅡ A. An integrated modeling tool for sustainable space exploration[C]//Proc. of the 57th International Astronautical Congress, 2006.
5	JEFFREY A, DAVID E H. The international space station as a free flyer servicing node[C]//Proc. of the Space Technology and Applications International Forum, 1999.
6	LEUTTGENS R, VOLPP J. Operations planning for the international space station[R]. Darmstadt: European Space Agency, 1998.
7	GROGAN P T, YUE H K, WECK O. Space logistics modeling and simulation analysis using spacenet: four application cases[C]// Proc. of the American Institute of Aeronautics and Astronautics Space Conference and Exposition, 2011.
8	HOK,GREENJ,WECKO.Concurrent design of scientific crewed space habitats and their supporting logistics system[J].Journal of Spacecraft and Rockets,2014,51(1):76-85. doi: 10.2514/1.A32528
9	HO K, GREEN J, WECK O. Improved concurrent optimization formulation of crewed space habitats and their supporting logistics systems[C]//Proc. of the American Institute of Aeronautics and Astronautics Space Conference and Exposition, 2013.
10	CHEL S, CHASE L, JASON C, et al. Assessment of crew time for maintenance and repair activities for lunar surface missions[C]//Proc. of the IEEE Aerospace Conference, 2022: 4700-4709.
11	罗亚中, 朱阅訸, 杨泽坤, 等. 突发情况下空间站运营短期方案调整策略仿真方法及装置[P]. 中国: 202310139951.6, 2023-03-21.
	LUO Y Z, ZHU Y H, YANG Z K, et al. Simulation method and device for adjusting strategy of short-term plan of space station operation under sudden situation[P]. China: 202310139951.6, 2023-03-21.
12	LUJ Z,MAJ D,ZHENGX C,et al.Design ontology supporting model-based systems engineering formalisms[J].IEEE Systems Journal,2022,16(4):5465-5476. doi: 10.1109/JSYST.2021.3106195
13	JEROME K, NICOLAE C, MARTIN B, et al. Guidelines for systematic functional decomposition in model-based systems engineering[C]//Proc. of the IEEE International Symposium on Systems Engineering, 2022.
14	LUJ Z,YANGZ R,ZHENGX C,et al.Exploring the concept of cognitive digital twin from model-based systems engineering perspective[J].The International Journal of Advanced Manufacturing Technology,2022,121,5835-5854. doi: 10.1007/s00170-022-09610-5
15	BENJAMINW S,THOMASA.A model based systems engi neering approach for developing modular system architectures[J].Journal of Engineering Design,2022,33(2):95-119. doi: 10.1080/09544828.2021.1980203
16	李胜忠,梁川,赵锋.基于MBSE的船型与水动力性能研究设计模式探讨[J].舰船科学技术,2021,43(15):1-5.
	LIS Z,LIANGC,ZHAOF.Discussion on the design pattern of hullform and hydrodynamic performance based on MBSE[J].Ship Science and Technology,2021,43(15):1-5.
17	FISHERJ.Model-based systems engineering: a new paradigm[J].INCOSE Insight,1998,1(3):3-4.
18	DICKERSONC E,MAVRISD.A brief history of models and model-based systems engineering and the case for relational orientation[J].IEEE Systems Journal,2013,7(4):581-592. doi: 10.1109/JSYST.2013.2253034
19	International Council on Systems Engineering.System engineering handbook-a guide for system life cycle processes and activities[M].New Jersey:Wiley,2015.
20	KONSTANTINK,STEFANF,BIRGITV H.A model-based framework for increasing the interdisciplinary design of mechatronic production systems[J].Journal of Engineering Design,2018,29(11):617-643. doi: 10.1080/09544828.2018.1520205
21	WASEEMM,SADIQM.Application of model-based systems engineering in small conceptual design-a SysML approach[J].IEEE Aerospace and Electronic Systems Magazine,2018,33(4):24-34. doi: 10.1109/MAES.2017.180230
22	YANGH G,XIAZ,CHENY Q,et al.Research on visual simulation for complex weapon equipment interoperability based on MBSE[J].Multimedia Tools and Applications,2024,83(5):13463-13482.
23	DONGX X,WANGM,LIUY Q,et al.An efficient spatial high-utility occupancy frequent item mining algorithm for mission system integration architecture design using the MBSE method[J].Aerospace Systems,2022,5(3):377-392. doi: 10.1007/s42401-021-00126-6
24	JOSH B, NAN W, CLARA C, et al. Agile model-based systems engineering of passenger train operational design[C]//Proc. of the American Society of Mechanical Engineers Joint Rail Conference, 2022.
25	YOUNSEP,CAMERONJ,BRADLEYT H.Comparative analysis of model-based and traditional systems engineering approaches for simulating a robotic space system architecture through automatic knowledge processing[J].Systems Engineering,2022,25(4):360-386. doi: 10.1002/sys.21619
26	任炳轩,卢艺,傅山,等.基于MBSE的民机功能需求辨识与确认[J].系统工程与电子技术,2019,41(9):2016-2024. doi: 10.3969/j.issn.1001-506X.2019.09.14
	RENB X,LUY,FUS,et al.Identification and verification of civil aircraft functional requirements through MBSE[J].Systems Engineering and Electronics,2019,41(9):2016-2024. doi: 10.3969/j.issn.1001-506X.2019.09.14
27	焦洪臣,雷勇,张宏宇,等.基于MBSE的航天器系统建模分析与设计研制方法探索[J].系统工程与电子技术,2021,43(9):2516-2525. doi: 10.12305/j.issn.1001-506X.2021.09.19
	JIAOH C,LEIY,ZHANGH Y,et al.Research on modeling and design method of spacecraft system based on MBSE[J].Systems Engineering and Electronics,2021,43(9):2516-2525. doi: 10.12305/j.issn.1001-506X.2021.09.19
28	National Aeronautics and Space Administration. Commercial resupply services overview[EB/OL]. [2024-03-27]. http://www.nasa.gov/commercial-resupply-services-overview.
29	郭继峰,崔乃刚,程兴.空间后勤技术发展综述[J].宇航学报,2009,30(5):1745-1751.
	GUOJ F,CUIN G,CHENGX.Review of space logistics[J].Journal of Astronautics,2009,30(5):1745-1751.
30	GRALLA E L, SHULL S, WECK O D. A modeling framework for interplanetary supply chains[C]//Proc. of the American Institute of Aeronautics and Astronautics Space, 2006.
31	National Aeronautics and Space Administration Office of Inspector General. Audit of commercial resupply services to the International Space Station[R]. Washington D.C. : National Aeronautics and Space Administration, 2018.
32	National Aeronautics and Space Administration. NASA orders additional cargo flights to space station[EB/OL]. [2024-03-27]. http://www.nasa.gov/humans-in-space/nasa-orders-addtional-cargo-flights-to-space-station.

备选方案	货运龙飞船数量/艘	天鹅座飞船数量/艘	追梦者系统数量/艘	货物上行总能力/kg	货物上行余量/kg	货物下行总能力/kg	货物下行余量/kg	总成本/万美元	补给效率
备选方案1	4	4	6	55 044	2 619	20 528	-442	435 880	0.173
备选方案2	6	5	4	53 812	1 387	22 042	1 072	402 560	0.188
备选方案3	6	6	3	52 566	141	20 292	-678	383 820	0.189
备选方案4	7	5	3	51 319	-1 106	22 799	1 829	372 770	0.198
备选方案5	5	6	5	60 059	7 634	21 285	315	458 610	0.177
备选方案6	7	7	2	53 827	1 402	21 049	79	380 290	0.197
