考虑多种故障模式和多阶段故障过程的装备预防性维修策略优化模型

doi:10.12305/j.issn.1001-506X.2026.03.17

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (3): 908-917.doi: 10.12305/j.issn.1001-506X.2026.03.17

• 系统工程 • 上一篇

考虑多种故障模式和多阶段故障过程的装备预防性维修策略优化模型

谭诗翰¹^,², 石全¹^,³^,*, 胡起伟¹, 白永生¹, 朱敦祥¹^,⁴, 张芳⁵, 柯鹏²

1. 陆军工程大学石家庄校区装备指挥与管理系，河北石家庄 050003
2. 中国人民解放军 32146部队，河南焦作 454000
3. 上海中侨职业技术大学，上海 200000
4. 中国人民解放军 32706部队，河南郑州 450000
5. 中国人民解放军 32178部队，北京 100012

收稿日期:2024-08-29 出版日期:2026-03-25 发布日期:2026-04-13
通讯作者: 石全
作者简介:谭诗翰（1994—），男，助理工程师，博士，主要研究方向为维修工程、备件供应
胡起伟（1979—），男，副教授，博士，主要研究方向为维修决策、备件管理
白永生（1982—），男，讲师，博士，主要研究方向为装备保障原理与应用
朱敦祥（1993—），男，工程师，博士，主要研究方向为装备保障原理与应用
张　芳（1985—），男，高级工程师，博士，主要研究方向为可靠性评估与维修决策
柯　鹏（1990—），男，工程师，硕士，主要研究方向为装备维修保障

Preventive maintenance policy optimization model of equipment considering multiple failure modes and multi-stage failure process

Shihan TAN¹^,², Quan SHI¹^,³^,*, Qiwei HU¹, Yongsheng BAI¹, Dunxiang ZHU¹^,⁴, Fang ZHANG⁵, Peng KE²

1. Equipment Command and Management Department，Shijiazhuang Campus，Army Engineering University of PLA，Shijiazhuang 050003，China
2. Unit 32146 of the PLA，Jiaozuo 454000，China
3. Shanghai Zhongqiao Vocational and Technical University，Shanghai 200000
4. Unit 32706 of the PLA，Zhengzhou 450000，China
5. Unit 32178 of the PLA，Beijing 100012，China

Received:2024-08-29 Online:2026-03-25 Published:2026-04-13
Contact: Quan SHI

摘要/Abstract

摘要：

针对当前高强度训练环境下，武器装备受到自然损伤和多种外部冲击影响下的复杂故障过程，构建一种考虑多种故障模式和多阶段故障过程的单部件装备系统可靠性模型。采用一种基于检测的预防性维修策略，通过对装备的定期检测，发现并更换出现潜在故障的部件。根据装备可靠性分析和更换报酬理论，给出了期望可用度和期望费用率的显性表达式，并由此构建了一个装备使用效能模型。结合数据分析和优化算法，确定了装备使用效能最优的检测间隔。最后，通过实例验证了所提模型和优化方法相较于传统模型能有效提升装备的使用效能，可为现阶段武器装备的故障预测和预防性维修策略优化提供一定的参考。

关键词: 预防性维修, 外部冲击, 竞争失效, 随机环境, 可靠性模型

Abstract:

A reliability model for single-component equipment systems is constructed to address the complex fault processes of weapon equipment under natural damage and various external shocks in the current high-intensity training environment, taking into account multiple fault modes and multi-stage fault processes. A detection-based preventive maintenance strategy is adopted, which involves regularly inspecting equipment to identify and replace components with potential faults. Based on equipment reliability analysis and replacement reward theory, explicit expressions for expected availability and expected cost rate are derived, and an equipment utilization efficiency model is subsequently constructed. By combining data analysis and optimization algorithms, the optimal detection interval for equipment utilization efficiency is determined. Finally, the proposed model and optimization method are validated through examples to effectively improve the operational efficiency of equipment compared to traditional models. This can provide some reference for fault prediction and preventive maintenance strategy optimization of current weapon equipment.

Key words: preventive maintenance, external shock, competing failure, random environment, reliability mode

中图分类号:

谭诗翰, 石全, 胡起伟, 白永生, 朱敦祥, 张芳, 柯鹏. 考虑多种故障模式和多阶段故障过程的装备预防性维修策略优化模型[J]. 系统工程与电子技术, 2026, 48(3): 908-917.

Shihan TAN, Quan SHI, Qiwei HU, Yongsheng BAI, Dunxiang ZHU, Fang ZHANG, Peng KE. Preventive maintenance policy optimization model of equipment considering multiple failure modes and multi-stage failure process[J]. Systems Engineering and Electronics, 2026, 48(3): 908-917.

图/表 12

图1

表1

图2

表2

图3

图4

图5

图6

图7

表3

图8

图9

参考文献 19

1	董恩志, 程中华, 王荣财, 等. 考虑故障相关性的复杂二维保修装备机会维修策略[J]. 兵工学报, 2023, 44 (6): 1688- 1703. doi: 10.12382/bgxb.2022.0101
	DONG E Z, CHENG Z H, WANG R C, et al. Opportunistic maintenance strategy for complex two-dimensional warranty equipment considering failure correlation[J]. Acta Armamentarii, 2023, 44 (6): 1688- 1703. doi: 10.12382/bgxb.2022.0101
2	吴巍屹, 贾云献, 史宪铭, 等. 基于任务演化重要度的合成部队维修器材两级配置优化方法[J]. 兵工学报, 2023, 44 (2): 591- 604. doi: 10.12382/bgxb.2021.0701
	WU W Y, JIA Y X, SHI X M, et al. Optimization of two-echelon configuration of maintenance supply for synthetic forces based on task evolution importance[J]. Acta Armamentarii, 2023, 44 (2): 591- 604. doi: 10.12382/bgxb.2021.0701
3	HU Q W, BAI Y S, ZHAO J M, et al. Modeling spare parts demands forecast under two-dimensional preventive maintenance policy[J]. Mathematical Problems in Engineering, 2015, 728241.
4	WANG Y P, PHAM H. A multi-objective optimization of imperfect preventive maintenance policy for dependent competing risk systems with hidden failure[J]. IEEE Trans. on Reliability, 2011, 60 (4): 770- 781. doi: 10.1109/TR.2011.2167779
5	QIU Q G, CUI L R. Reliability evaluation based on a dependent two-stage failure process with competing failures[J]. Applied Mathematical Modelling, 2018, 64, 699- 712. doi: 10.1016/j.apm.2018.07.039
6	黎新龙, 冉琰, 张根保, 等. 考虑维修效果差异性的顺序预防性维修策略[J]. 上海交通大学学报, 2023, 57 (11): 1522- 1530. doi: 10.16183/j.cnki.jsjtu.2022.023
	LI X L, RAN Y, ZHANG G B, et al. Sequential preventive maintenance strategy considering difference of maintenance effect[J]. Journal of Shanghai Jiaotong University, 2023, 57 (11): 1522- 1530. doi: 10.16183/j.cnki.jsjtu.2022.023
7	CHRISTER A H. Innovative decision making[C]//Proc. of the NATO Conference on the Role and Effectiveness of Theories of Decision in Practice, 1976: 368-377.
8	李冀晖, 黄锦敬, 崔春强. 基于延迟时间模型的船舶预防性机会维修策略[J]. 广东工业大学学报, 2023, 40 (1): 92- 99，136. doi: 10.12052/gdutxb.220118
	LI J H, HUANG J J, CUI C Q. Ship preventive opportunistic maintenance strategy based on delay time model[J]. Journal of Guangdong University of Technology, 2023, 40 (1): 92- 99，136. doi: 10.12052/gdutxb.220118
9	刘葛辉, 陈绍宽, 金华, 等. 基于延迟时间模型的不完全检修计划优化模型[J]. 浙江大学学报（工学版）, 2020, 54 (7): 1298- 1307. doi: 10.3785/j.issn.1008-973X.2020.07.007
	LIU G H, CHEN S K, JIN H, et al. Optimum imperfect inspection and maintenance scheduling model considering delay time theory[J]. Journal of Zhejiang University （Engineering Science）, 2020, 54 (7): 1298- 1307. doi: 10.3785/j.issn.1008-973X.2020.07.007
10	LI Y, YE Z S, LEE C G, et al. A two-phase preventive maintenance policy considering imperfect repair and postponed replacement[J]. European Journal of Operational Research, 2019, 274, 966- 977. doi: 10.1016/j.ejor.2018.10.049
11	LIU G H, CHEN S K, JIN H, et al. Optimum opportunistic maintenance schedule incorporating delay time theory with imperfect maintenance[J]. Reliability Engineering & System Safety, 2021, 231, 107668. doi: 10.1016/j.ress.2021.107668
12	LV X L, LIU Q M, LI Z N, et al. A new maintenance optimization model based on three-stage time delay for series[J]. Shock and Vibration, 2021, 2021, 6694896.
13	WANG W B. A joint spare part and maintenance inspection optimisation model using the delay-time concept[J]. Reliability Engineering & System Safety, 2011, 96, 151541. doi: 10.1016/j.ress.2011.07.004
14	WANG Y K, LIU Y L, CHEN J Y, et al. Reliability and condition-based maintenance modeling for systems operating under performance-based contracting[J]. Computers & Industrial Engineering, 2020, 142, 106344. doi: 10.1016/j.cie.2020.106344
15	CHA J H, MI J. On a stochastic survival model for a system under randomly variable environment[J]. Methodology and Computing in Applied Probability, 2011, 13, 549- 561. doi: 10.1007/s11009-010-9171-1
16	王强, 贾希胜, 程中华, 等. 战时基于竞争失效的装备系统可靠性建模与预防性维修策略[J]. 系统工程与电子技术, 2019, 41 (10): 2392- 2400. doi: 10.3969/j.issn.1001-506X.2019.10.32
	WANG Q, JIA X S, CHENG Z H, et al. Reliability modeling and preventive maintenance strategy for equipment system based on competing failure processes in war[J]. Systems Engineering and Electronics, 2019, 41 (10): 2392- 2400. doi: 10.3969/j.issn.1001-506X.2019.10.32
17	YANG L, MA X B, ZHAO Y. A condition-based maintenance model for a three-state system subject to degradation and environmental shocks[J]. Computers & Industrial Engineering, 2017, 105, 210- 222. doi: 10.1016/j.cie.2017.01.012
18	JIANG L, FENG Q, COIT D W. Reliability and maintenance modeling for dependent competing failure processes with shiiring failure thresholds[J]. IEEE Trans. on Reliability, 2012, 61 (4): 932- 948. doi: 10.1109/TR.2012.2221016
19	王强, 贾希胜, 程中华, 等. 随机共因失效条件下战时合成部队携行备件配置优化研究[J]. 兵工学报, 2019, 40 (5): 1083- 1092. doi: 10.3969/j.issn.1000-1093.2019.05.022
	WANG Q, JIA X S, CHENG Z H, et al. Allocation optimization of carrying spare parts for combined arms unit based on random common cause failure in wartime[J]. Acta Armamentarii, 2019, 40 (5): 1083- 1092. doi: 10.3969/j.issn.1000-1093.2019.05.022

参数	取值	参数	取值
$ {v}_{X},{v}_{Y} $	0.05，0.10	$ {T}_{i},{T}_{p},{T}_{f} $	1，4，10
$ {\varphi }_{X},{\varphi }_{Y} $	0.01，0.02	$ {C}_{i},{C}_{p},{C}_{f},{C}_{n} $	5，20，80，1
$ {\gamma }_{X},{\gamma }_{Y} $	$ 5\times {10}^{-4},1\times {10}^{-3} $	$ {{\mathrm{EA}}}_{\min } $	0.88
$ {\mu }_{X},{\mu }_{Y} $	0.005，0.01	$ {{\mathrm{EC}}}_{\max } $	0.93
$ {\sigma }_{X}{}^{2},{\sigma }_{Y}{}^{2} $	$ {0.001}^{2},{0.001}^{2} $	$ {T}_{\max } $	60

$ {a}_{1},{a}_{2} $	$ {T}^{\ast } $	$ Z\left({T}^{\ast }\right) $	$ {\mathrm{EA}}\left({T}^{\ast }\right) $	$ {\mathrm{EC}}\left({T}^{\ast }\right) $
1, 0	31	0.895 5	0.895 5	0.766 5
0, −1	22	0.736 7	0.892 3	0.736 7
1, −1	23	0.155 9	0.893 1	0.737 2
1, −4	22	−2.054 4	0.892 3	0.736 7
4, −1	24	2.836 3	0.893 7	0.738 7
1, −8	22	−5.001 0	0.892 3	0.736 7
8, −1	26	6.413 5	0.894 7	0.744 0

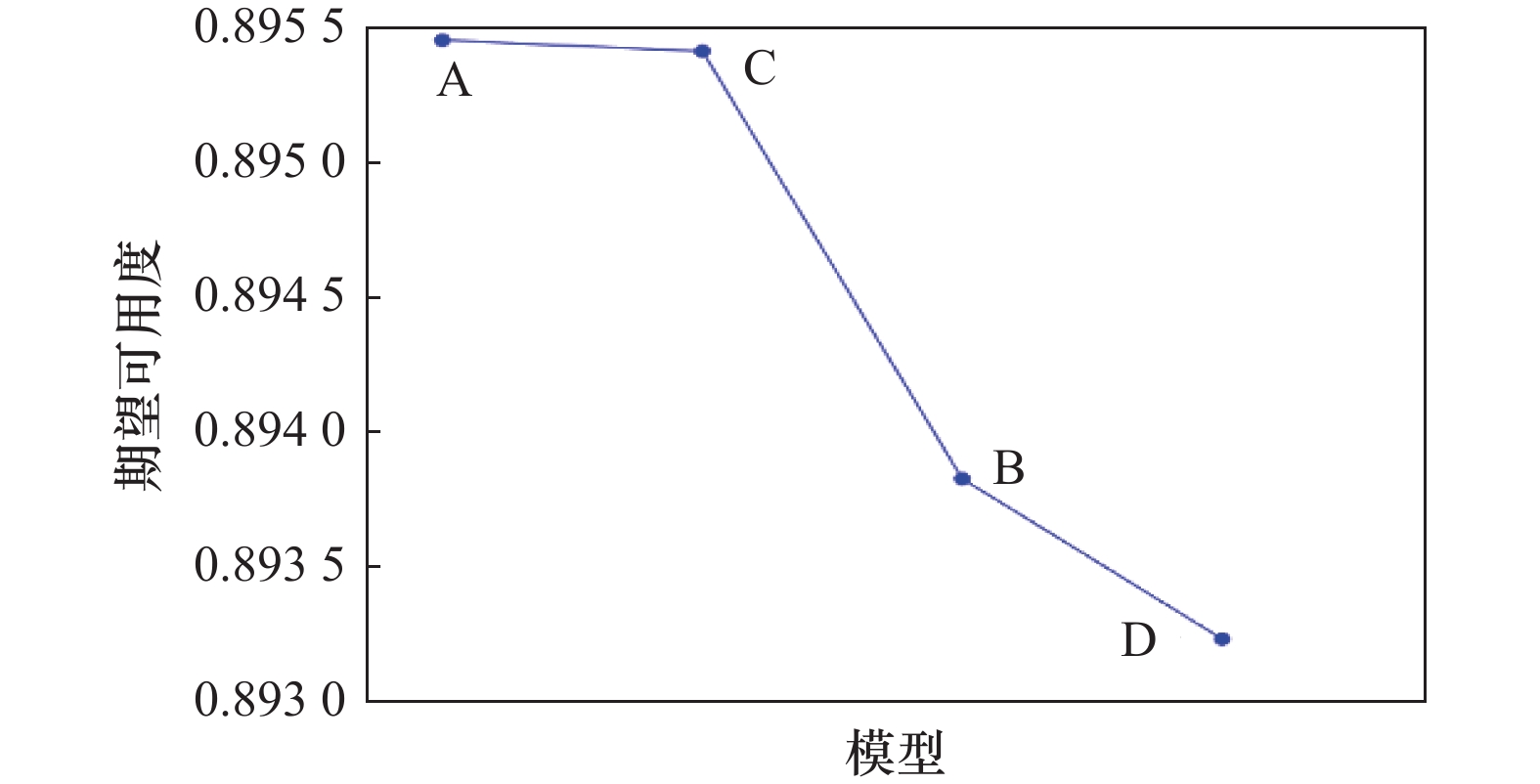

模型	场景1		场景2
模型	$ {T}^{\ast } $	$ {\mathrm{EA}}\left({T}^{\ast }\right) $	$ {T}^{\ast } $	$ {\mathrm{EC}}\left({T}^{\ast }\right) $
A	31	0.895 5	22	0.736 7
B	32	0.895 4	24	0.738 7
C	40	0.892 2	31	0.766 5
D	42	0.893 2	33	0.777 8
