基于动态规划的阵地伪装方案优化方法

doi:10.12305/j.issn.1001-506X.2025.11.20

摘要/Abstract

摘要：

针对遂行阵地工事构筑时面临对手全方位、多谱段侦察与综合毁伤威胁，导致暴露征候显著、作战意图易被察觉等问题，提出一种基于动态规划构建数学模型进行伪装方案优化的解决方法。通过多谱伪装网遮障、植被铺设等方案形成的伪装体系，量化评估人力、物力、时间、经费等资源的消耗，构建动态规划模型，在可利用资源有限的约束条件下，经过多阶段决策优化，实现阵地工事伪装可靠度的最大化。对比分析显示，该方法在资源利用效率与伪装效果的平衡上优于传统经验决策。研究结果表明，将动态规划方法应用于阵地工事伪装方案优化，能够有效解决有限资源约束下伪装效能最大化的问题，可为复杂环境下的阵地工事伪装决策提供参考依据。

关键词: 阵地伪装, 动态规划, 归一化, 伪装效果

Abstract:

To address the problems of significant exposure symptoms and easy detection of combat intentions caused by the threat of all-round and multi spectral reconnaissance and comprehensive damage from opponents during the construction of position fortifications, a solution based on dynamic programming to optimize camouflage schemes is proposed. A camouflage system is formed through multi spectral camouflage nets, vegetation laying, and other schemes to quantitatively evaluate the consumption of resources such as manpower, material resources, time, and funds. A dynamic programming model is constructed to maximize the reliability of position fortifications camouflage through multi-stage decision-making optimization in the constraint of limited available resources. Comparative analysis shows that this method outperforms traditional empirical decision-making in balancing resource utilization efficiency and camouflage effect. The research results indicate that applying dynamic programming methods to optimize camouflage schemes for position fortifications can effectively solve the problem of maximizing camouflage effectiveness in limited resource constraints, and provide reference for position fortifications camouflage decision-making in complex environments.

Key words: position camouflage, dynamic programming, normalization, camouflage effect

中图分类号:

E 95

于海宝, 许卫东, 谢雨谋, 魏洪, 叶雨佳, 郑龙华. 基于动态规划的阵地伪装方案优化方法[J]. 系统工程与电子技术, 2025, 47(11): 3721-3728.

Haibao YU, Weidong XU, Yumou XIE, Hong WEI, Yujia YE, Longhua ZHENG. Optimization method of position camouflage scheme based on dynamic programming[J]. Systems Engineering and Electronics, 2025, 47(11): 3721-3728.

图/表 13

图1

图2

图3

图4

图5

图6

图7

图8

表1

表2

表3

表4

表5

参考文献 32

1	冯海潮, 张健, 赵志勇, 等. 伪装遮障及其技术发展综述[J]. 科技与创新, 2022, (23): 159- 161.
	FENG H C, ZHANG J, ZHAO Z Y, et al. Anoverview of camouflage masking and itste-chnological development[J]. Science, Technology and Innovation, 2022, (23): 159- 161.
2	MIKKELSEN A, SELJ K G. Spectral reflectance and transmission properties of a multi-layered camouflage net: comparison with natural birch leaves and mathematical models[C]//Proc. of the Conference on Target and Background Signatures, 2020: 1153609.
3	MIKKELSEN A, SELJ K G. Spectral properties of multilayered oak leaves and a camouflage net: experimental measurements and mathematical modelling[C]//Proc. of the International Society for Optics and Photonics, 2021: 1186505.
4	DENNING R J. SAAB to provide camouflage net systems to U.S. Defense Department[J]. Defense Daily International, 2009, 11 (22): 33- 34.
5	SINGH J, SINGH D. An analytical approach to design camouflage net for microwave absorption[J]. Defence Science Journal, 2019, 69 (5): 469- 473. doi: 10.14429/dsj.69.14953
6	LYNCH J. Reliability, maintainability and supportability: a probabilistic approach[J]. Technometrics, 2012, 37 (1): 122.
7	CHEN L, SHU P Z, FENG J H, et al. Reliability and maintainability model of support object system for equipment combat unit[J]. Key Engineering Materials, 2011, 1244 (474/476): 816- 821.
8	PECHT M. Product reliability, maintainability, and supportability handbook[M]. Maryland: CRC Press, 2009.
9	OUBOTI D B, RAUL O. Discrete-time, normalized recursive least squares based concurrent learning for online function approximation[J]. Automatica, 2025, 177, 112273. doi: 10.1016/j.automatica.2025.112273
10	NICHOLAS G, GOME Z, JULIA A, et al. The effect of amplitude normalization technique, walking speed, and reporting metric on whole-body angular momentum and its interpretation during normal gait[J]. Journal of Biomechanics, 2024, 168, 112075. doi: 10.1016/j.jbiomech.2024.112075
11	HONG J C, LIANG F W, CHEN Y J, et al. A novel battery abnormality diagnosis method using multi-scale normalized coefficient of variation in real-world vehicles[J]. Energy, 2024, 299, 131475. doi: 10.1016/j.energy.2024.131475
12	LIMA F T. A large comparison of normalization methods on time series[J]. Big Data Research, 2023, 34, 232- 235.
13	ZHANG B B, SUI W X, HUANG Z W, et al. Normalizing flow based uncertainty estimation for deep regression analysis[J]. Neurocomputing, 2024, 585, 127645. doi: 10.1016/j.neucom.2024.127645
14	王新志, 陈伟, 祝明坤. 样本数据归一化方式对GPS高程转换的影响[J]. 测绘科学, 2013, 38 (6): 162- 165.
	WANG X Z, CHEN W, ZHU M K. Effect of sample data normalization method on GPS elevation conversion[J]. Surveying and Mapping Science, 2013, 38 (6): 162- 165.
15	胡江华, 贾其, 李凌, 等. 伪装技术[M]. 北京: 兵器工业出版社, 2020.
	HU J G, JIA Q, LI L, et al. Camouflage technology[M]. Beijing: Ordnance Industry Press, 2020.
16	SELLAMI R, SIVIGNON M. QoL data in CAR-T cost-effectiveness analysis （CEA） in France: what to use?[J]. Value in Health, 2024, 27 (12): S2.
17	MELANIE D, JOSHUA T, COHEN P J, et al. Campbell, identifying the influential dynamic inputs in cost-effectiveness analyses[J]. Value in Health, 2025, 28 (7): 1062- 1070. doi: 10.1016/j.jval.2025.03.016
18	BUTER R, SCHUPPEN V H, STIEGLIS R, et al. Increasing cost-effectiveness of AEDs using algorithms to optimise location[J]. Resuscitation, 2024, 201, 110300. doi: 10.1016/j.resuscitation.2024.110300
19	SU B C, MIN Y J, SUN J K. Integrated topology and power distribution optimization for the shipboard hybrid energy storage system via genetic algorithms and dynamic programming[J]. Ocean Engineering, 2025, 339 (1): 33- 55.
20	FENG X H, CHEN Y, ZHANG D D. A dynamic programming-based computational intelligence method for optimal pickup and delivery in inter-terminal logistics[J]. Computers & Industrial Engineering, 2025, 206, 11150.
21	MA L Y, WEN X J, ZHANG J, et al. Multi-stage decision-making and optimisation model based on dynamic programming[J]. Procedia Computer Science, 2025, 262, 523- 532. doi: 10.1016/j.procs.2025.05.082
22	LAHMAR H, DAHANE M, MOUSS K N, et al. Multi-objective sustainable production planning for a hybrid multi-stage manufacturing remanufacturing system with grade-based classification of recovered and remanufactured products[J]. Journal of Intelligent Manufacturing, 2024, 36 (2): 21- 23.
23	ZHANG H Q, ZHAO J, WANG W, et al. Multi-stage dynamic optimisation method for long-term planning of the concentrate ingredient in copper industry[J]. Information Sciences, 2022, 605, 333- 350. doi: 10.1016/j.ins.2022.05.013
24	TRZASKALIK T. Multiobjective dynamic programming in bipolar multistage method[J]. Annals of Operations Research, 2022, 311 (2): 1259- 1279. doi: 10.1007/s10479-020-03911-2
25	李新其, 叶喜发. 阵地伪装改造方案的动态规划优化方法[J]. 装备理论与装备技术, 2018, 39 (9): 26- 28.
	LI X Q, YE X F. A dynamic planning optimisation method for position camouflage modification scheme[J]. Equipment Theory and Equipment Technology, 2018, 39 (9): 26- 28.
26	LI Y Z, JIA C Y, LV J N, et al. Evaluation method of camouflage effect based on image feature similarity/fusion degree[J]. Optics & Laser Technology, 2025, 189, 113152.
27	TOET A, HOGERVORST M A. Review of camouflage assessment techniques[C]//Proc. of the Conference on Target and Background Signatures, 2020: 1153604.
28	LI N, LI L, JIAO J C, et al. Research status and development trend of image camouflage effect evaluation[J]. Multimedia Tools and Applications, 2022, 81 (21): 29939- 29953. doi: 10.1007/s11042-022-12287-3
29	LU J Y. A method for detection and evaluation on pattern painting camouflage effect[J]. China Meas-Test, 2007, 33 (2): 67- 69.
30	AHMAD Z, HAMID D, JABAR A R. Evaluation of camouflage effectiveness using hyper spectral images[J]. Journal of Applied Remote Sensing, 2017, 11 (4): 045008.
31	CHENG X P, ZHAO D P, YU Z J. Effectiveness evaluation of infrared camouflage using image saliency[J]. Infrared Physics and Technology, 2018, 95, 213- 221. doi: 10.1016/j.infrared.2018.11.001
32	汪克亮, 刘志刚, 王艺婷, 等. 基于图像显著性的伪装效果评估[M]//国家安全地球物理丛书(十七)——生态环境与地球物理. 北京: 科学出版社, 2021.
	WANG K L, LIU Z G, WANG Y T, et al. Evaluation of camouflage effect based on image saliency[M]//National Security Geophysics Series (XVII)—Ecological Environment and Geophysics. Beijing: Science Press, 2021.

符号	意义
p	伪装可靠度
i	阵地工事伪装工程第i个设施
n	阵地工事伪装工程设施的个数
x_i	第i个设施采用伪装等级x进行伪装
P（i,x_i）	第i个设施采用伪装等级x伪装后伪装可靠度
S_i	第1至第i个工程伪装所用费效比之和
f_i	第i个阶段伪装后的伪装可靠度
c	伪装设施使用费用
C	整体伪装方案所需经费
P	整体阵地工事伪装方案伪装可靠度
P*	伪装方案优化后的伪装可靠度
A	战斗行动前需达到最低伪装可靠度
F	伪装方案优化费效比控制值
H	采用光学伪装网
I	采用多谱伪装网
J	采用植被铺设在光学伪装网
K	采用植被铺设在多谱伪装网
B	采用就便材料进行伪装
Z	采用植被与就便材料结合的方式进行伪装
T	伪装设施耗费时间
T^*	对T进行归一化后数值
W	伪装设施消耗人力
W^*	对W进行归一化后数值
D	伪装设施消耗经费
D^*	对D进行归一化后数值
E	伪装设施消耗物力
E^*	对E进行归一化后数值

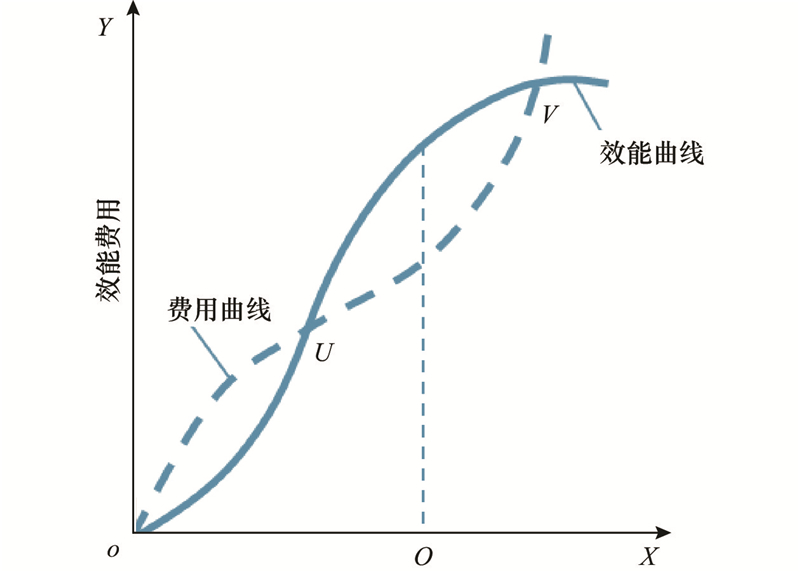

U	该点效能与费用相等
V	该点效能与费用相等
O	Max（P-C）时对应的最优方案
g	伪装设施费效比
G	整体阵地工事伪装方案费效比
G*	整体阵地工事伪装方案优化后费效比

项目名称	伪装方案	伪装可靠度	费效比
掩蔽（盖）部	H	0.82	0.22
	I	0.96	0.32
	J	0.89	0.33
	K	0.99	0.42
交通（堑）壕	B	0.79	0.23
交通（堑）壕	Z	0.96	0.45
单人掩体	H	0.81	0.21
	I	0.96	0.32
	J	0.89	0.35
	K	0.99	0.40
火箭筒掩体	H	0.80	0.23
	I	0.95	0.36
	J	0.88	0.37
	K	0.97	0.48
机枪掩体	H	0.80	0.24
	I	0.95	0.34
	J	0.88	0.37
	K	0.98	0.40
火炮掩体	H	0.78	0.21
	I	0.92	0.32
	J	0.84	0.35
	K	0.95	0.46
道路	B	0.77	0.24
道路	Z	0.89	0.48

$ X_1 $	H	I	J	K
$ f_1 $	0.82	0.96	0.89	0.99
$ S_1 $	0.22	0.32	0.33	0.42

$ {X_2} $		$ {X_1} $
		H	I	J	K
		0.82	0.96	0.89	0.99
B	0.79	0.65	0.76	0.70	0.78
Z	0.96	0.79	0.92	0.85	0.95

$ {X_{{3}}} $		$ {f_{2}^*} $
$ {X_{{3}}} $		0.76	0.78	0.79	0.92	0.85	0.95
H	0.81	0.61	0.63	0.64	0.75	0.69	0.77
I	0.96	0.73	0.75	0.76	0.88	0.81	0.91
J	0.89	0.67	0.69	0.70	0.82	0.75	0.85
K	0.99	0.75	0.77	0.72	0.91	0.84	0.94
