主动声呐实时信号处理算法的MPSoC优化实现

doi:10.12305/j.issn.1001-506X.2025.10.02

摘要/Abstract

摘要：

针对水下无人航行器（underwater unmanned vehicle，UUV）主动声呐系统对信号处理实时性、能效比及集成度的需求，采用模块化设计以及软硬件协同设计思想，提出一种基于异构多处理器片上系统（multi-processor system on chip，MPSoC）的主动声呐实时信号处理算法的加速方案。首先研究适合边缘端部署的声呐信号处理算法；然后设计基于MPSoC的加速计算结构，将数字下变频、逆/快速傅里叶变换、波束形成等具有高计算复杂性的处理步骤移植到可编程逻辑端，实现显著加速；最后将目标检测等复杂度较低的步骤部署在处理器系统端，实现更高的灵活性。仿真及湖上试验结果表明，提出的方案可在数据更新周期的41%时间内完成1帧回波数据的实时处理，并可在复杂水下环境下实时有效探测运动目标。该方案在水下UUV主动声呐探测领域具有广阔的应用前景。

关键词: 水下无人航行器, 主动声呐, 多处理器片上系统, 实时信号处理, 硬件加速

Abstract:

Addressing the real-time, energy-efficient, and integrated processing demands of underwater unmanned vehicle （UUV） active sonar systems, an acceleration scheme for an active sonar real-time signal processing algorithm is proposed, based on heterogeneous a multi-processor system on chip （MPSoC） with a modular design and hardware-software co-design concepts. Firstly, sonar signal processing algorithms suitable for edge deployment are studied. Secondly, an accelerated computing architecture based on MPSoC is designed, transferring computationally intensive processing steps such as digital down conversion, inverse/fast Fourier transform （IFFT/FFT）, and beamforming to the programmable logic terminal, achieving significant acceleration. Finally, deploy low-complexity steps such as target detection on the processor system side, achieving higher flexibility. Simulation and lake test indicate that the proposed scheme can complete real-time processing of one echo data frame within 41% of the data update cycle. It can effectively detect moving targets in complex underwater environment in real-time. This scheme holding great potential for applications in UUV active sonar detection scenarios.

Key words: underwater unmanned vehicle （UUV）, active sonar, multi-processor system on chip （MPSoC）, real-time signal processing, hardware acceleration

中图分类号:

邹佳运, 师英杰, 吴永清, 郝程鹏, 王东辉. 主动声呐实时信号处理算法的MPSoC优化实现[J]. 系统工程与电子技术, 2025, 47(10): 3137-3147.

Jiayun ZOU, Yingjie SHI, Yongqing WU, Chengpeng HAO, Donghui WANG. MPSoC optimization implementation of active sonar real-time signal processing algorithm[J]. Systems Engineering and Electronics, 2025, 47(10): 3137-3147.

图/表 22

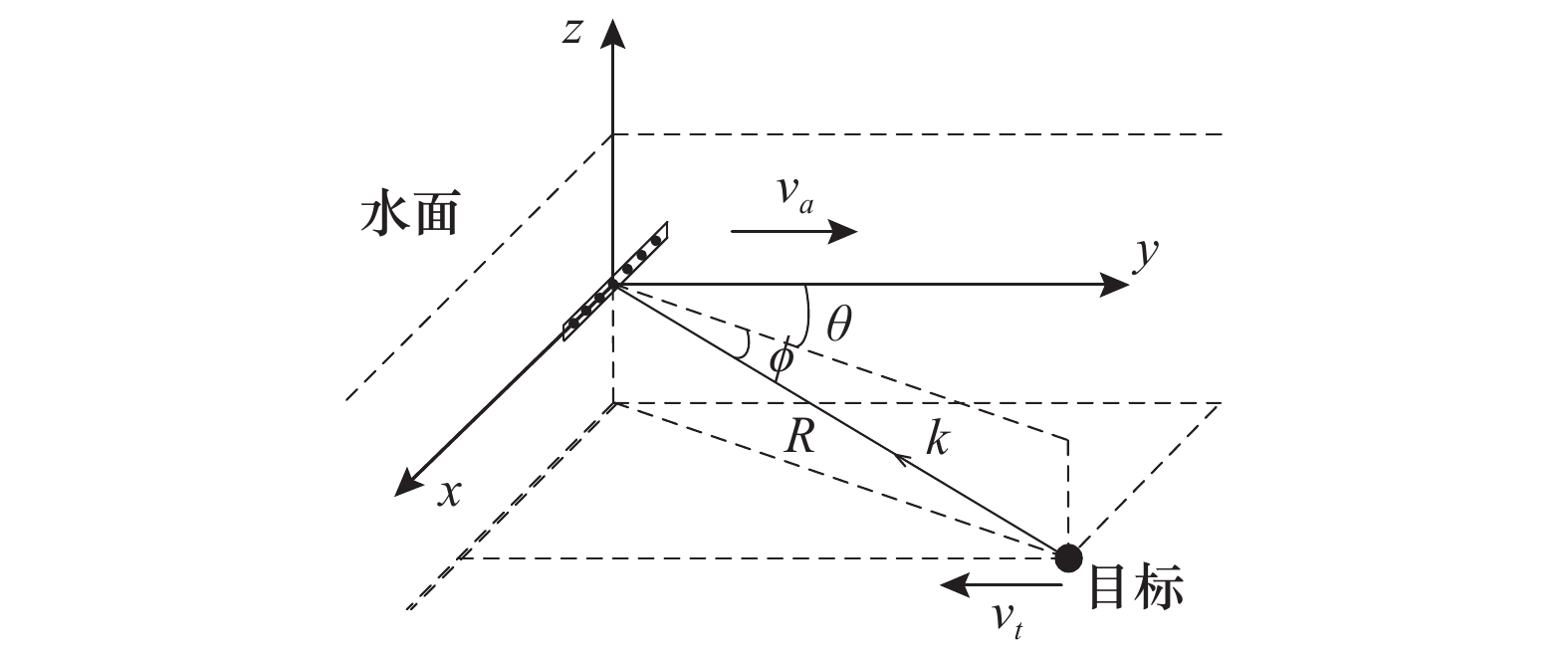

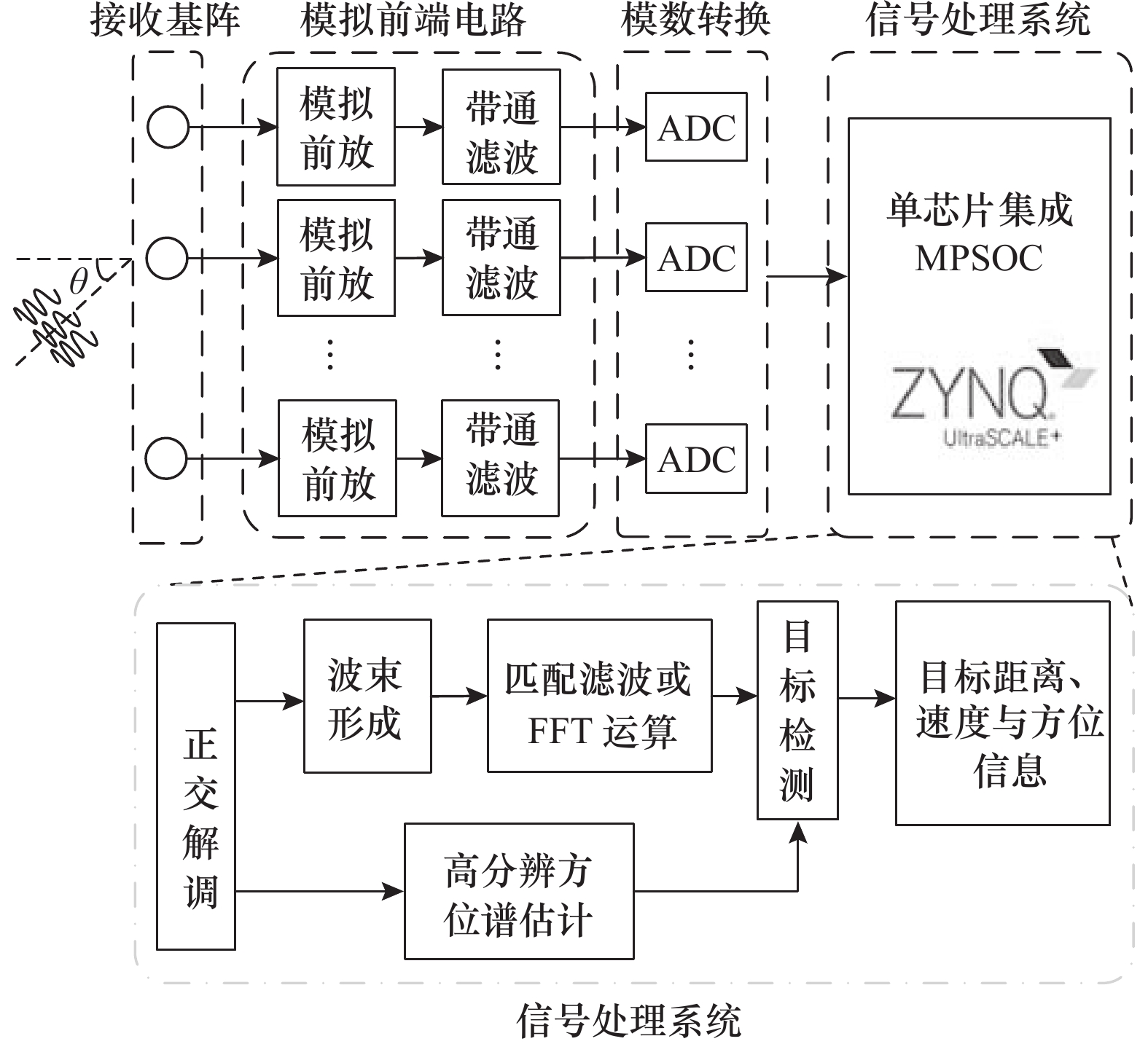

图1

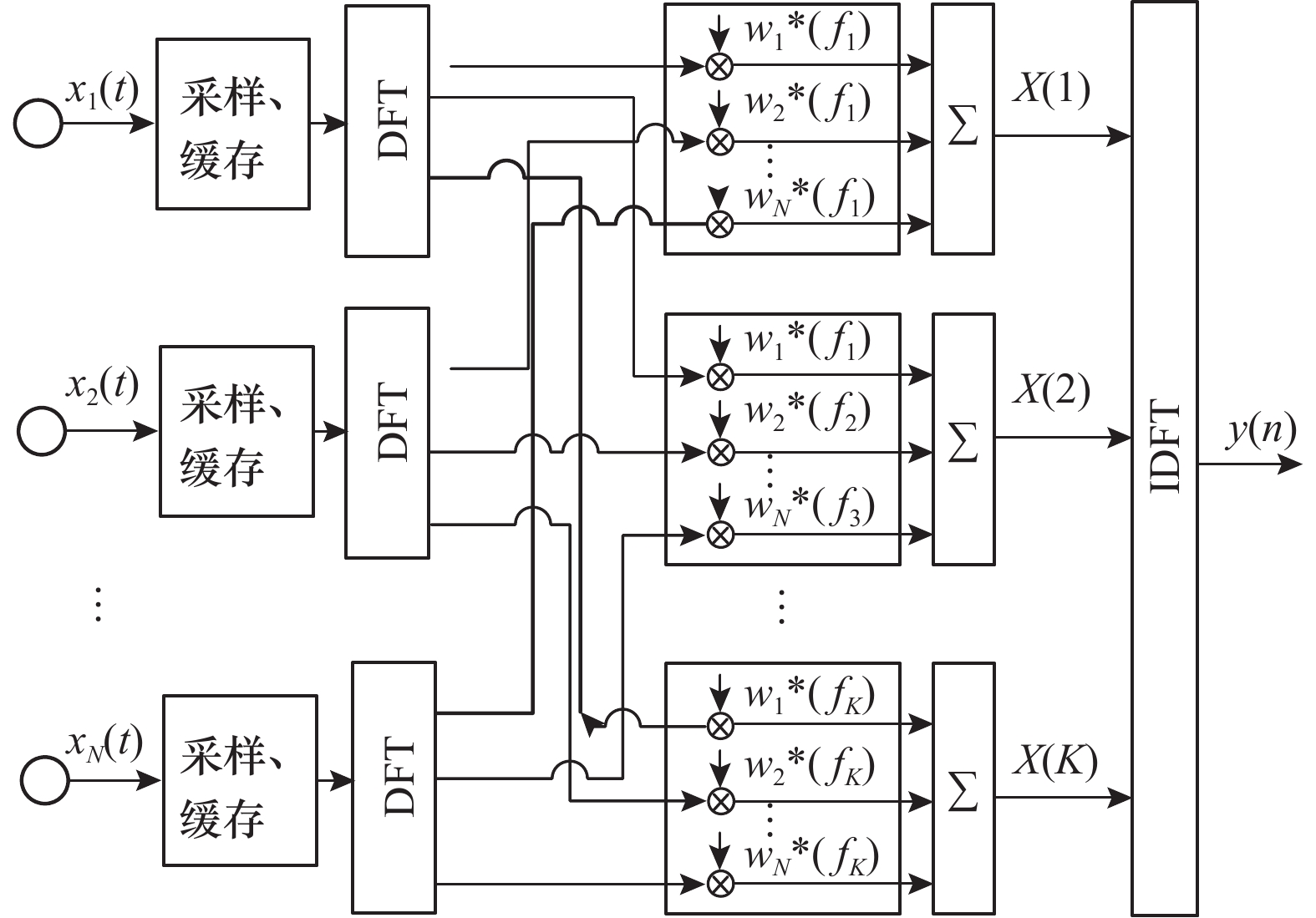

图2

图3

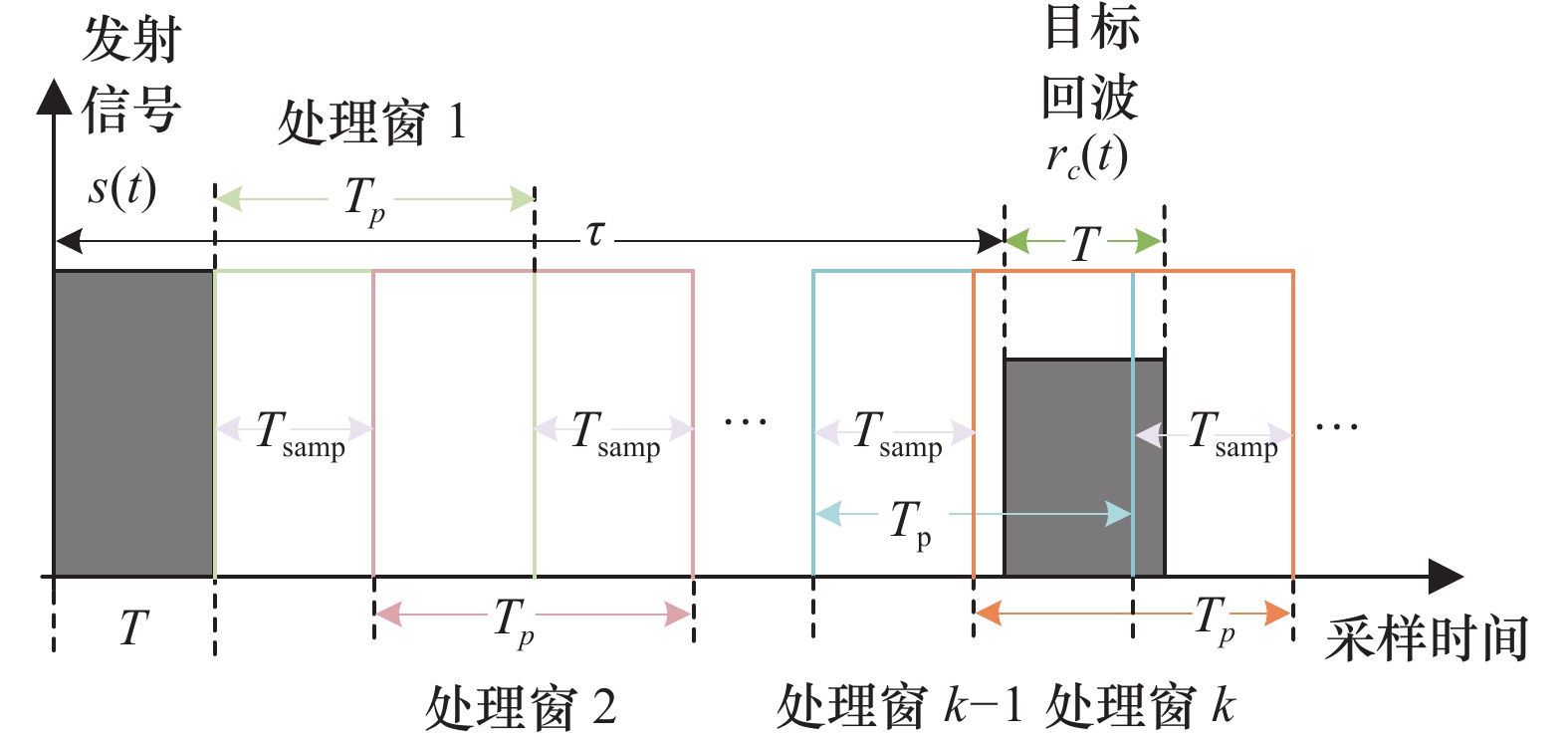

图4

图5

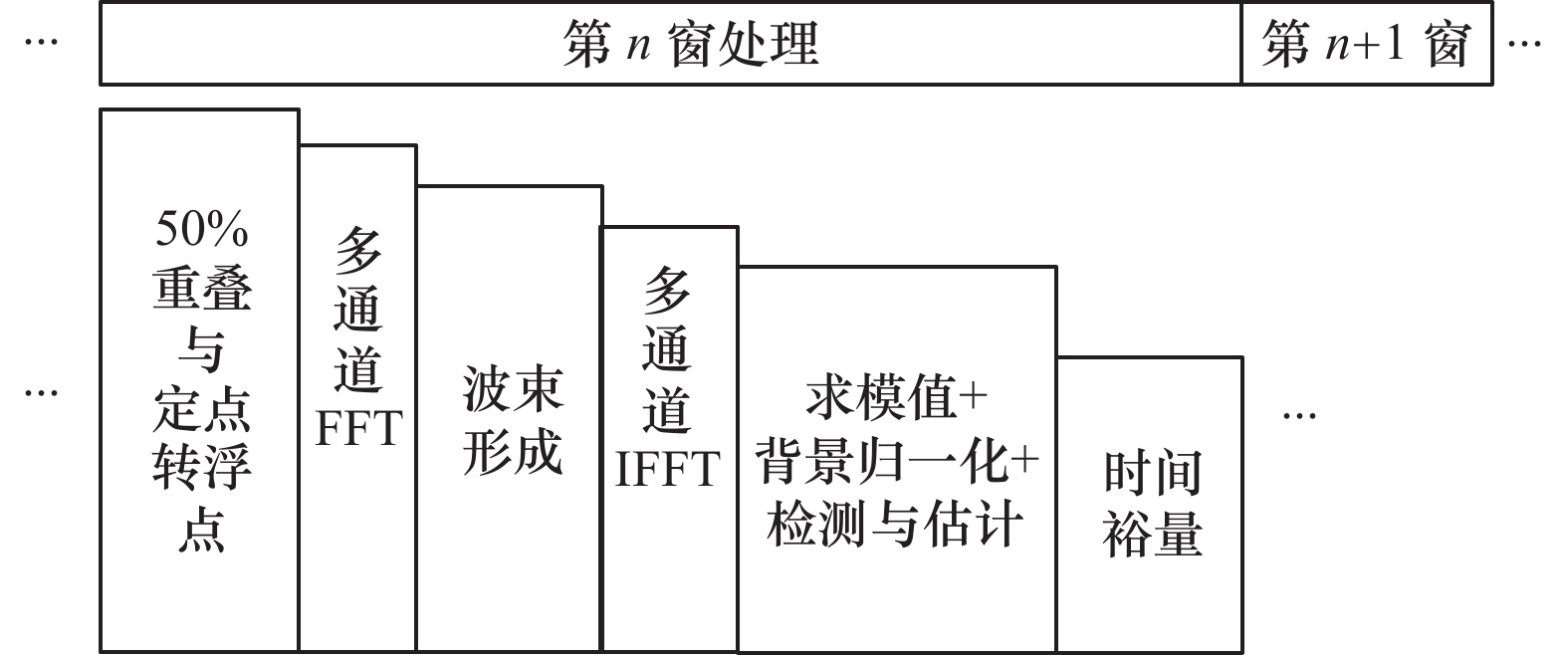

图6

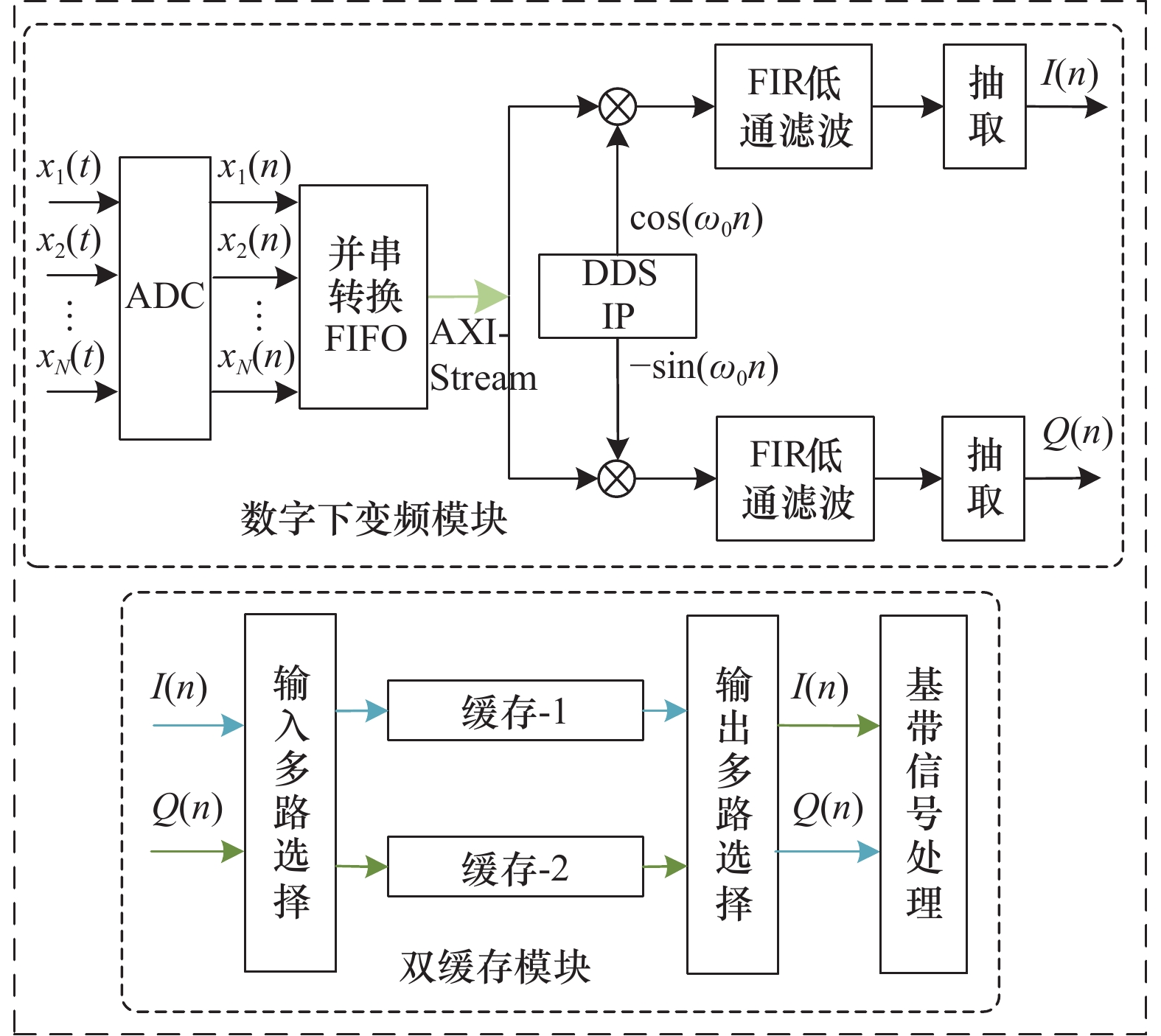

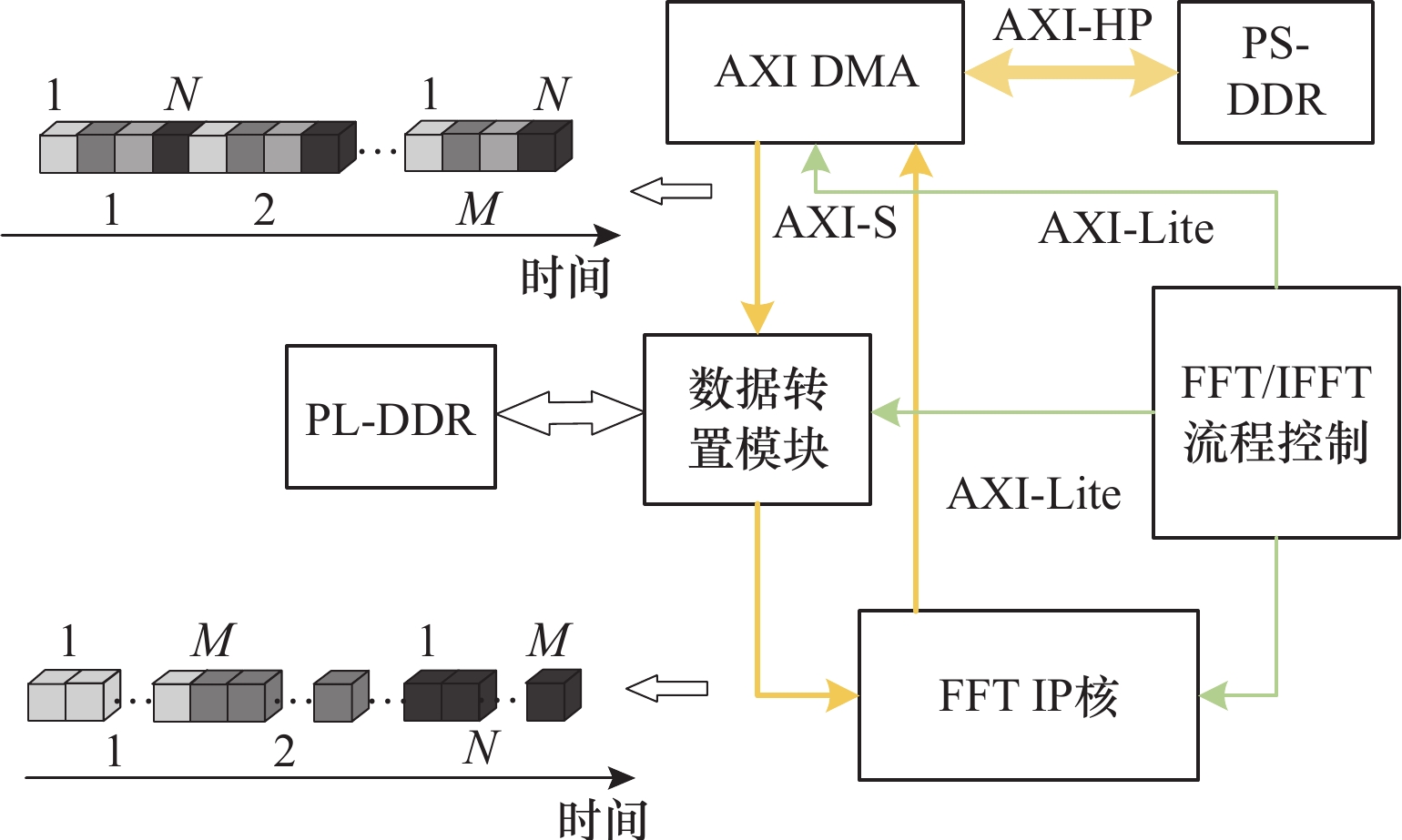

图7

图8

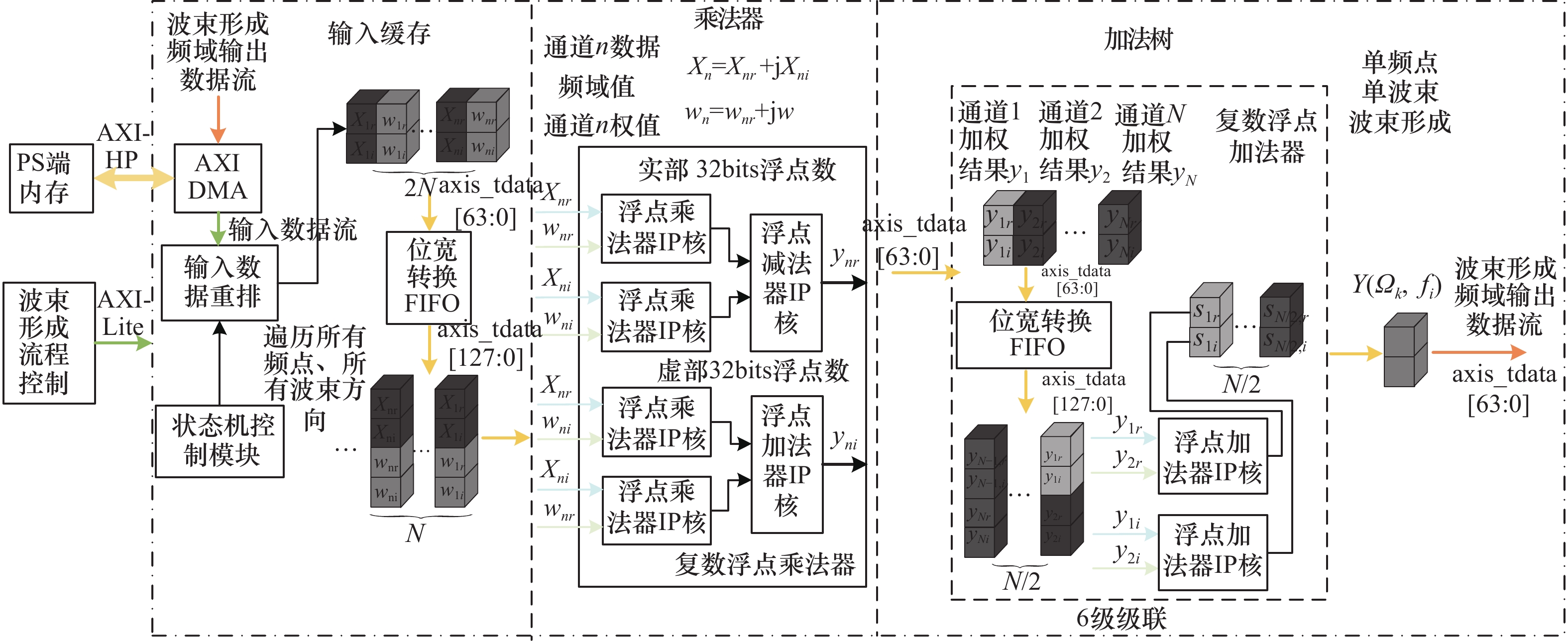

图9

表1

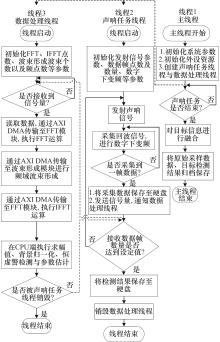

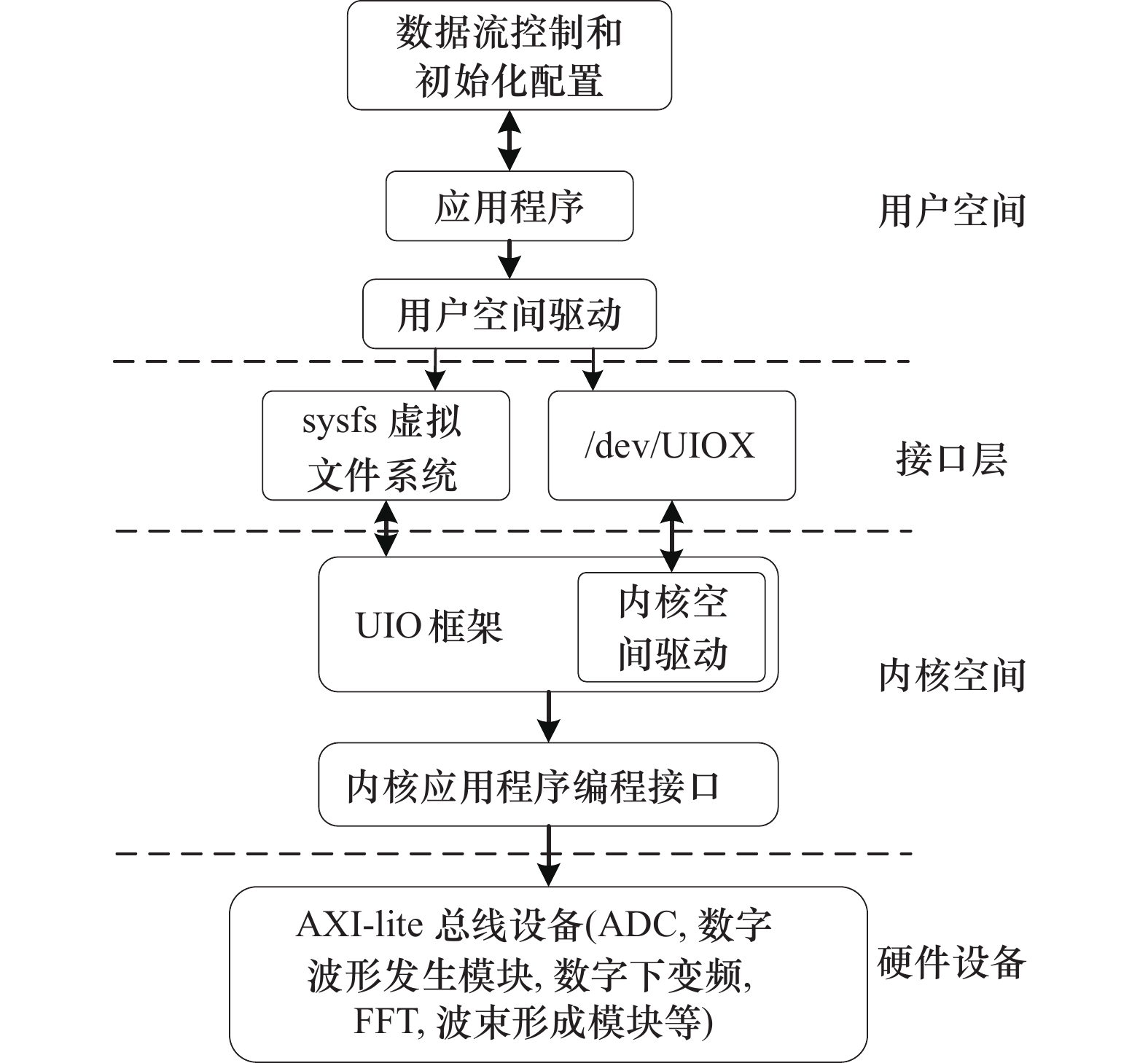

图10

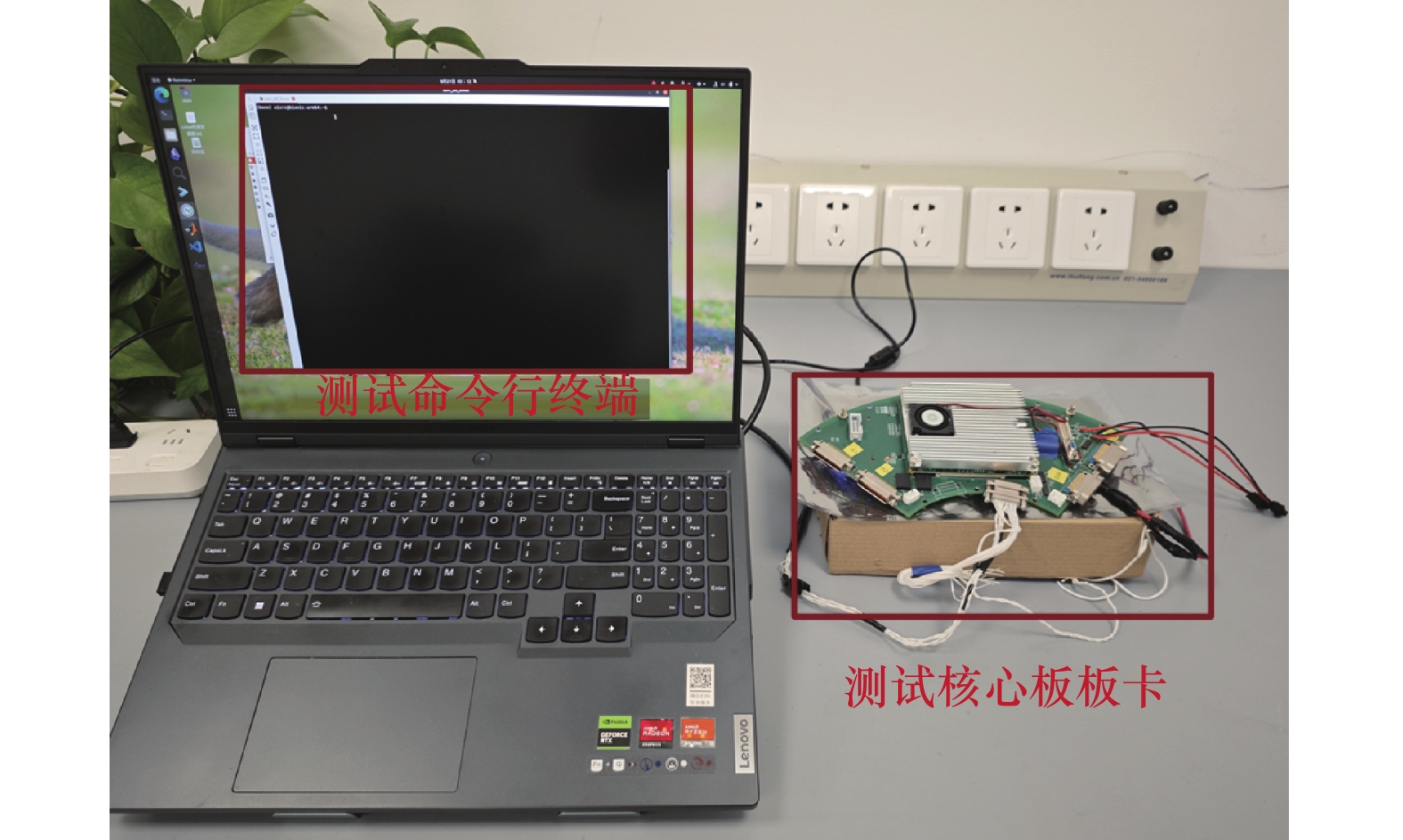

图11

图12

表2

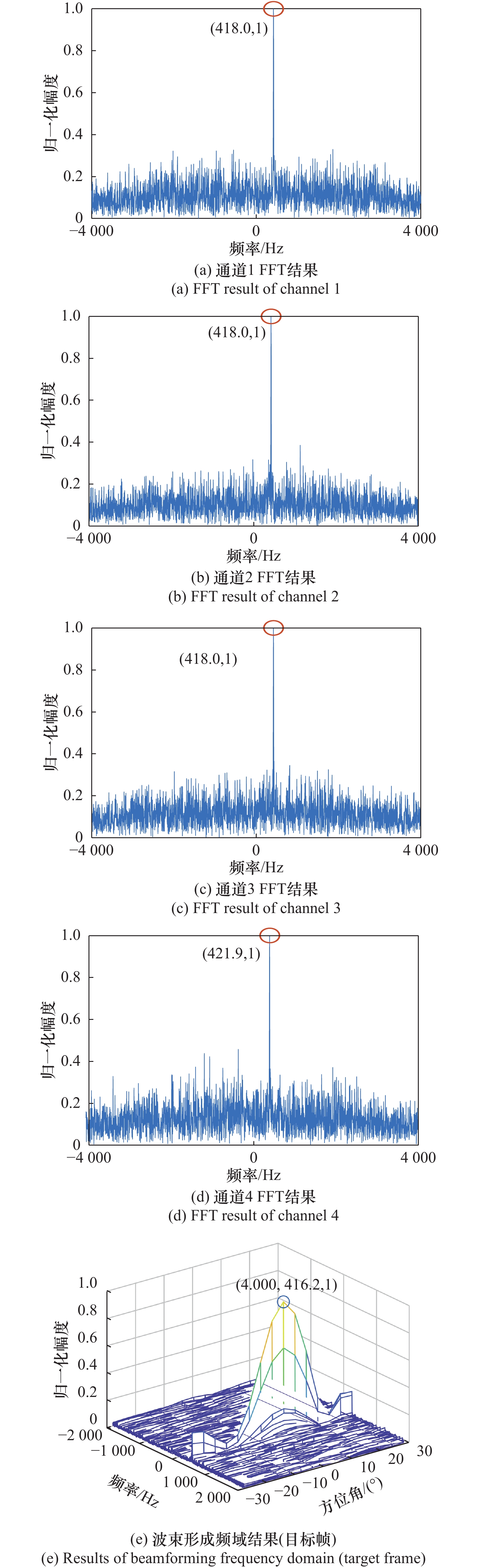

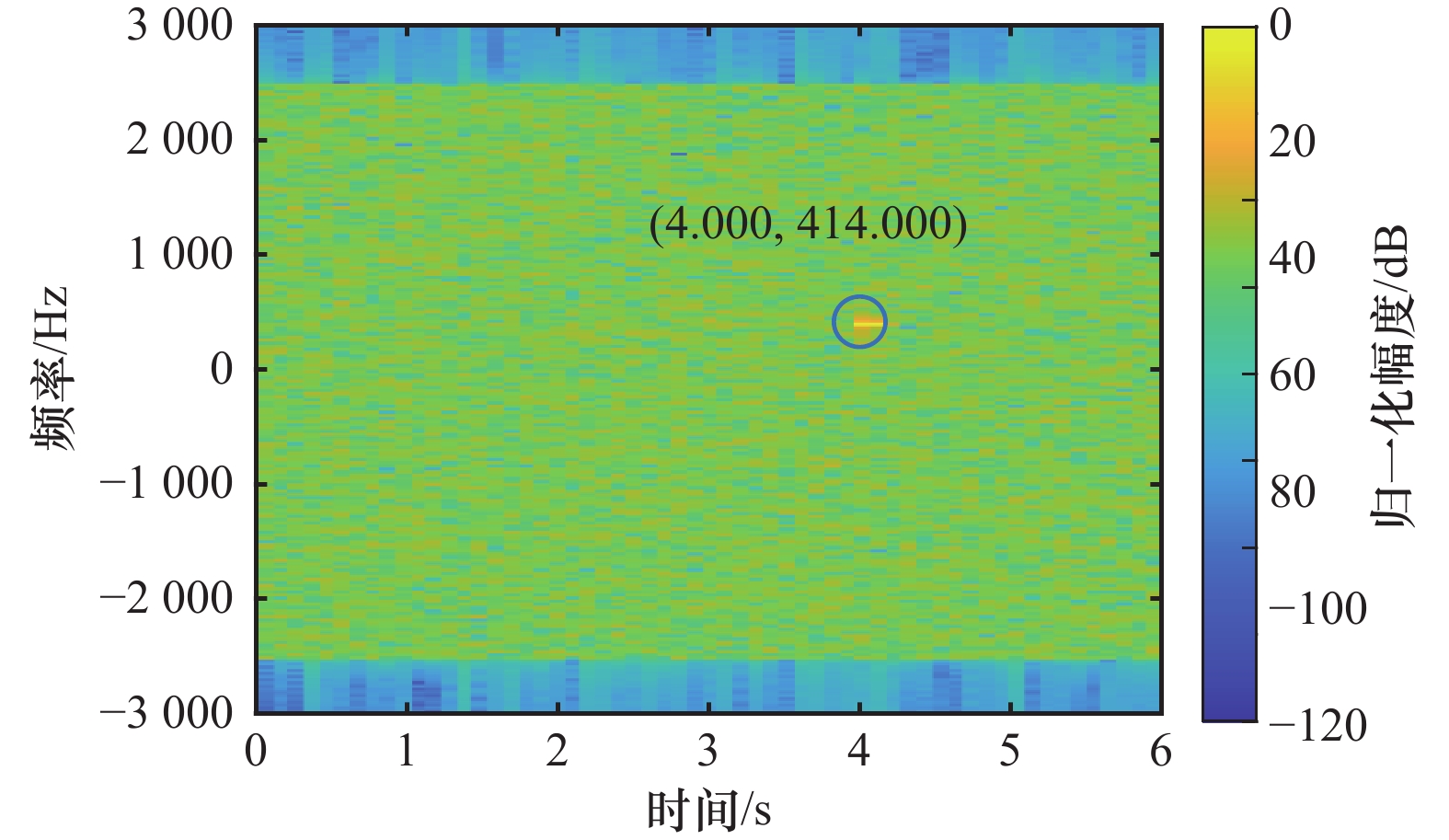

图13

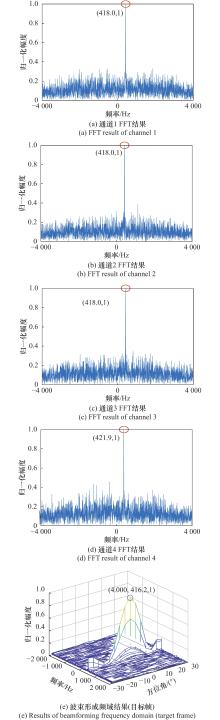

图14

表3

表4

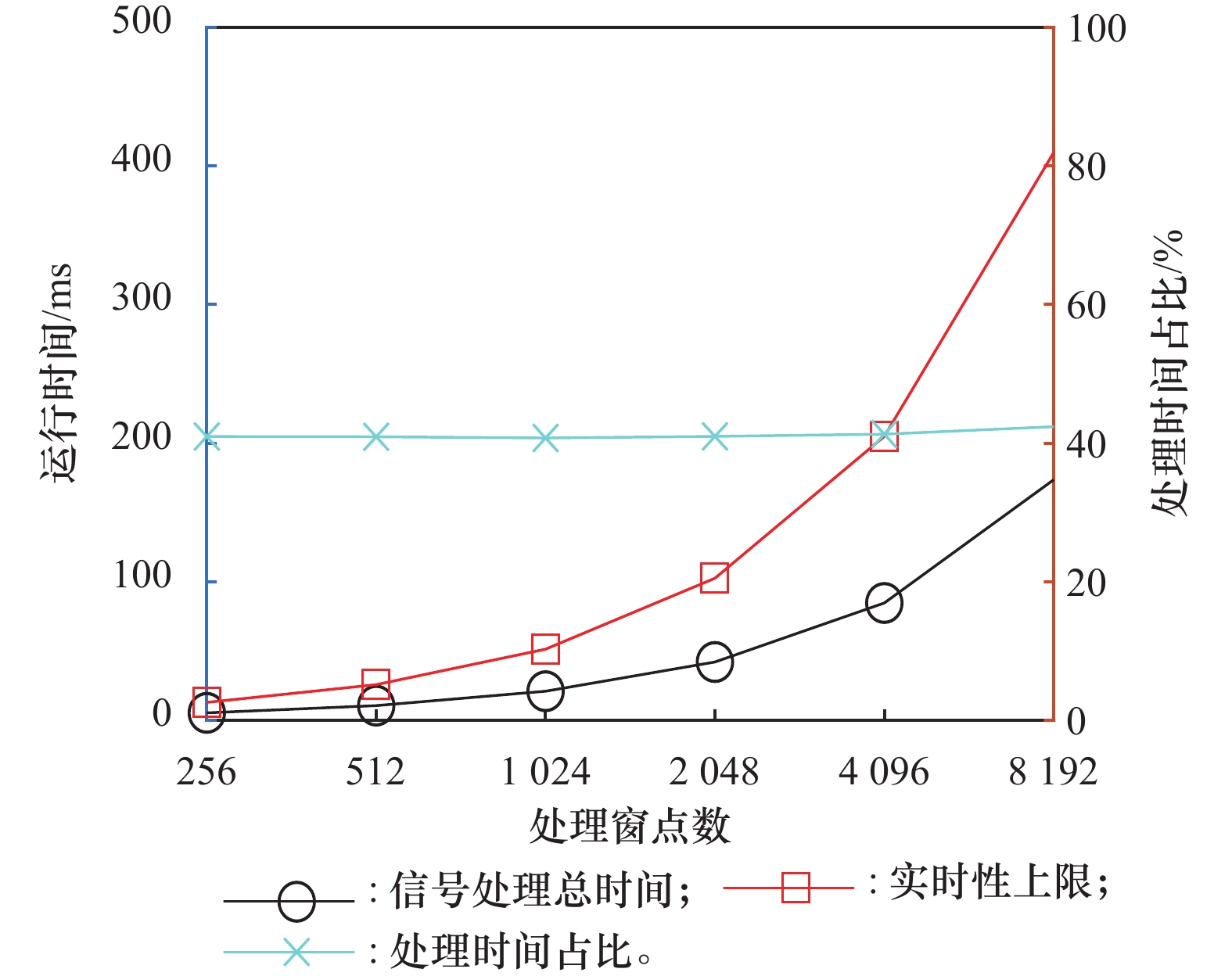

图15

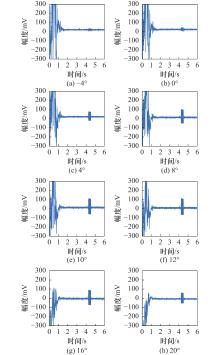

图16

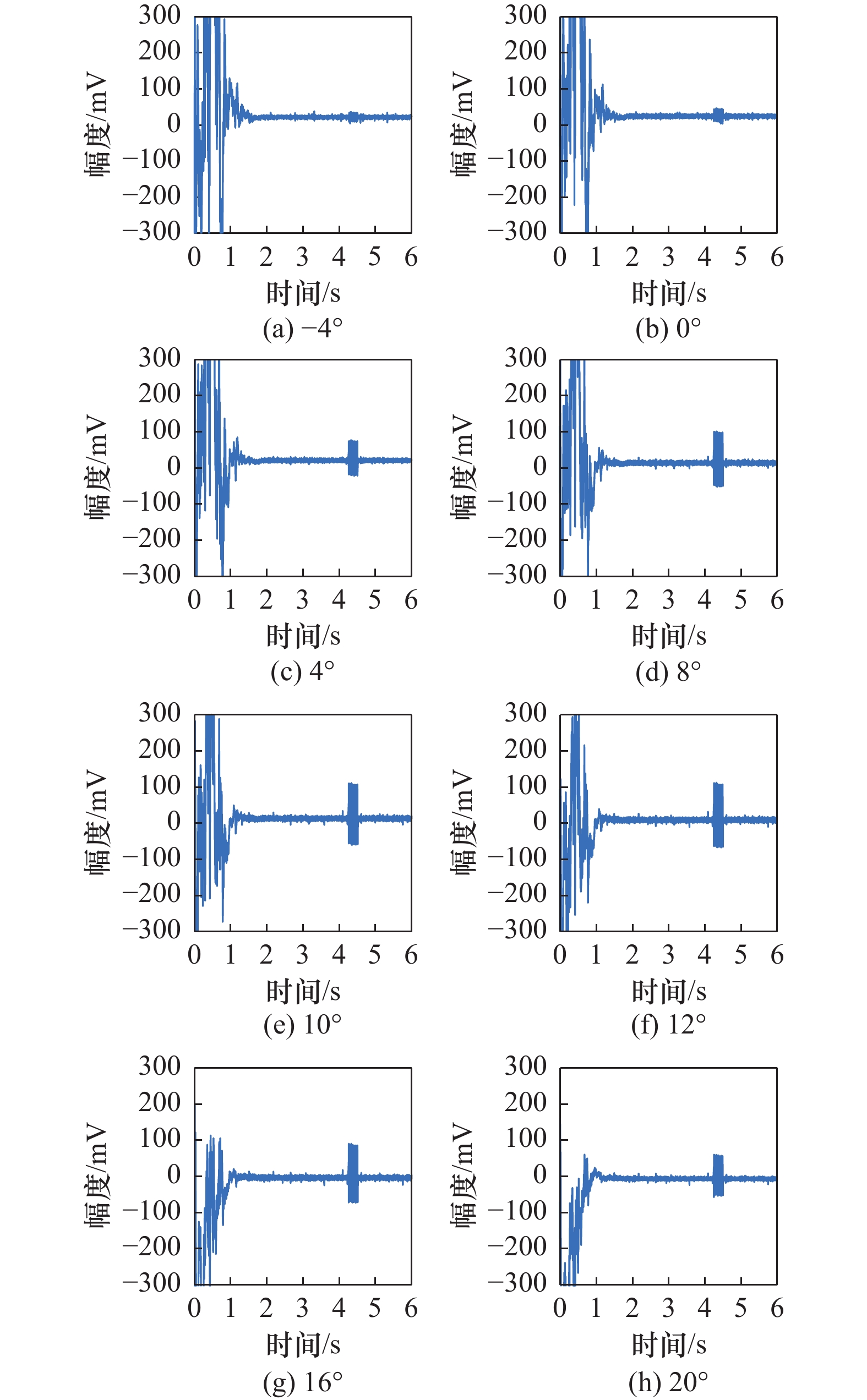

图17

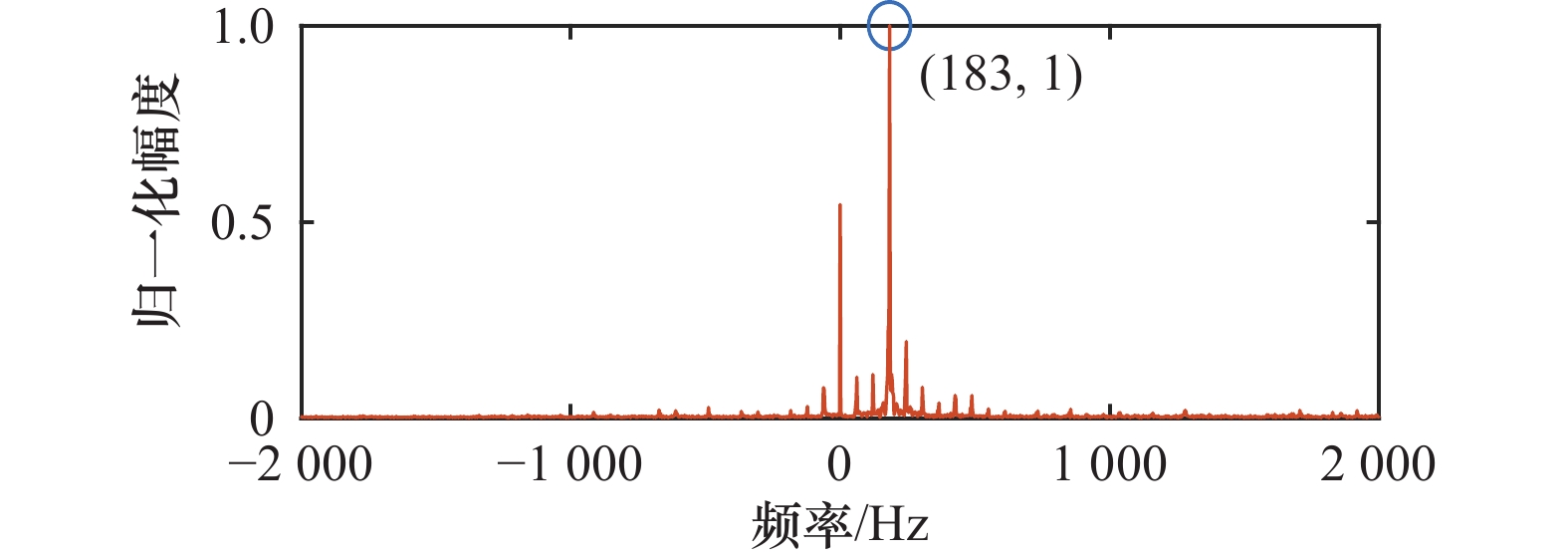

图18

参考文献 35
