基于动态模态分解的弹道目标平动补偿与微动特征提取方法

doi:10.12305/j.issn.1001-506X.2025.02.12

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (2): 451-462.doi: 10.12305/j.issn.1001-506X.2025.02.12

• 传感器与信号处理 • 上一篇

基于动态模态分解的弹道目标平动补偿与微动特征提取方法

李开明¹^,²^,*, 代肖楠¹^,³, 张袁鹏⁴, 姚佳文⁵, 罗迎¹^,²

1. 空军工程大学信息与导航学院, 陕西西安 710077
2. 空军工程大学信息感知技术协同创新中心, 陕西西安 710077
3. 中国人民解放军95806部队, 北京 100076
4. 空军预警学院一系, 湖北武汉 430019
5. 北京遥测技术研究所, 北京 100094

收稿日期:2023-12-06 出版日期:2025-02-25 发布日期:2025-03-18
通讯作者: 李开明
作者简介:李开明 (1982—), 男, 副教授, 硕士研究生导师, 博士, 主要研究方向为雷达成像与目标识别
代肖楠 (1991—), 男, 助理工程师, 硕士, 主要研究方向为雷达成像与目标识别
张袁鹏 (1984—), 男, 讲师, 博士, 主要研究方向为雷达信号处理、雷达目标识别
姚佳文 (1995—), 女, 助理工程师, 硕士, 主要研究方向为雷达信号处理
罗迎 (1984—), 男, 教授, 博士研究生导师, 博士, 主要研究方向为雷达成像与目标识别
基金资助:
国家自然科学基金面上项目(62371468);国家自然科学基金面上项目(62131020);国家自然科学基金面上项目(62301599);国家自然科学基金面上项目(62271500)

Translational compensation and micro-motion feature extraction method of ballistic targets based on dynamic mode decomposition

Kaiming LI¹^,²^,*, Xiaonan DAI¹^,³, Yuanpeng ZHANG⁴, Jiawen YAO⁵, Ying LUO¹^,²

1. College of Information and Navigation, Air Force Engineering University, Xi'an 710077, China
2. Collaborative Innovation Center of Information Sensing and Understanding, Air Force Engineering University, Xi'an 710077, China
3. Unit 95806 of the PLA, Beijing 100076, China
4. The First Department, Air Force Early Warning Academy, Wuhan 430019, China
5. Beijing Research Institute of Telemetry, Beijing 100094, China

Received:2023-12-06 Online:2025-02-25 Published:2025-03-18
Contact: Kaiming LI

摘要/Abstract

摘要：

针对弹道目标平动导致微动特征难以准确提取的问题, 提出一种基于动态模态分解(dynamic mode decomposition, DMD)的弹道目标平动补偿与微动特征提取方法。首先, 在弹道目标微动回波建模的基础上, 对目标的慢时间-距离像序列进行微多普勒(micro-Doppler, m-D)特征曲线分离; 其次, 将分离后的数据向量移位堆叠构建为增广数据矩阵, 并对其进行DMD; 然后, 利用分解后的模态幅值对各模态进行排序, 结合损失函数等信息选取主要模态; 同时, 利用主要模态中的零频率模态完成弹道目标的平动补偿, 从其他主要模态中提取出自旋频率和锥旋频率等微动特征信息; 最后, 对基于DMD的弹道目标平动补偿与微动特征提取方法进行性能分析与对比实验, 验证了所提方法的可行性和稳健性。

关键词: 动态模态分解, 弹道目标, 微多普勒, 平动补偿, 特征提取

Abstract:

To address the problem of difficulty in accurately extracting micro-motion features caused by ballistic target translational motion, a ballistic target translational motion compensation and micro-motion feature extraction method based on dynamic mode decomposition (DMD) is proposed. Firstly, based on the modeling of micro-motion echoes of ballistic targets, the slow-time range profile sequence of the target is subjected to micro Doppler (m-D) feature curve separation. Secondly, the separated data vectors are shifted and stacked to construct an augmented data matrix, and DMD is performed. Then, the decomposed mode amplitudes are used to rank each mode, and the main mode is selected combined with information such as the loss function. The zero frequency mode in the main modes is utilized to achieve translational compensation of ballistic targets, and micro-motion feature information such as spin frequency and cone rotation frequency from other main modes are extracted. Finally, performance analysis and comparative experiments are conducted on the DMD-based ballistic target translational compensation and micro-motion feature extraction methods, verifying the feasibility and robustness of the proposed methods.

Key words: dynamic mode decomposition (DMD), ballistic target, micro-Doppler (m-D), translational compensation, feature extraction

中图分类号:

TN95

李开明, 代肖楠, 张袁鹏, 姚佳文, 罗迎. 基于动态模态分解的弹道目标平动补偿与微动特征提取方法[J]. 系统工程与电子技术, 2025, 47(2): 451-462.

Kaiming LI, Xiaonan DAI, Yuanpeng ZHANG, Jiawen YAO, Ying LUO. Translational compensation and micro-motion feature extraction method of ballistic targets based on dynamic mode decomposition[J]. Systems Engineering and Electronics, 2025, 47(2): 451-462.

图/表 20

图1

图2

表1

图3

图4

图5

图6

图7

图8

表2

表3

图9

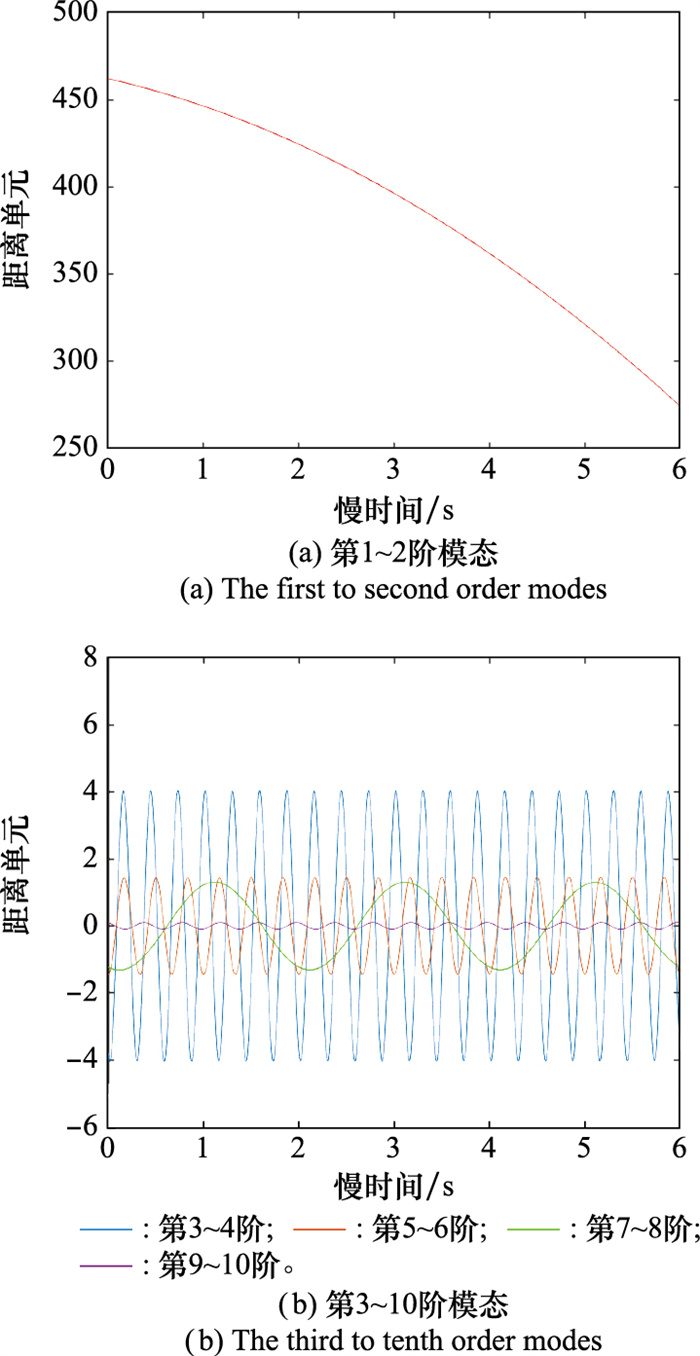

图10

图11

图12

图13

图14

图15

图16

表4

参考文献 31

1	CHEN V C , LI F Y , HO S S , et al. Analysis of micro-Doppler signatures[J]. IEE Proceedings-Radar Sonar and Navigation, 2003, 150 (4): 271- 276. doi: 10.1049/ip-rsn:20030743
2	CHEN V C , LI F Y , HO S S , et al. Micro-Doppler effect in radar phenomenon, model and simulation study[J]. IEEE Trans.on Aerospace and Electronic Systems, 2006, 42 (1): 2- 21.
3	CHEN V C . Doppler signatures of radar backscattering from objects with micro-motions[J]. IET Signal Processing, 2008, 2 (3): 291- 300. doi: 10.1049/iet-spr:20070137
4	ZHANG Q , LUO Y , CHEN Y A . Micro-Doppler characteristics of radar targets[M]. London: Elsevier Press, 2016.
5	ZHANG Y P , ZHANG Q , KANG L , et al. End-to-end recognition of similar space cone-cylinder targets based on complex-va-lued coordinate attention networks[J]. IEEE Trans.on Geoscience and Remote Sensing, 2022, 60, 5106214.
6	ZHANG Y P , ZHANG L , KANG L , et al. Space target classification with corrupted HRRP sequences based on temporal-spatial feature aggregation network[J]. IEEE Trans.on Geoscience and Remote Sensing, 2023, 61, 5100618.
7	ZHANG Y P , XIE Y , KANG L , et al. Feature-level fusion recognition of space targets with composite micromotion[J]. IEEE Trans.on Aerospace and Electronic Systems, 2024, 60 (1): 934- 951. doi: 10.1109/TAES.2023.3331339
8	LEE J I , KIM N , MIN S , et al. Space target classification improvement by generating micro-Doppler signatures considering incident angle[J]. Sensors, 2022, 22 (4): 1653. doi: 10.3390/s22041653
9	HANIF A , MUAZ M , HASAN A , et al. Micro-Doppler based target recognition with radars: a review[J]. IEEE Sensors Journal, 2022, 22 (4): 2948- 2961. doi: 10.1109/JSEN.2022.3141213
10	WANG Z H , LUO Y , LI K M , et al. Micro-Doppler parameters extraction of precession cone-shaped targets based on rotating antenna[J]. Remote Sensing, 2022, 14 (11): 2549. doi: 10.3390/rs14112549
11	TIAN X D , BAI X R , XUE R H , et al. Fusion recognition of space targets with micro-motion[J]. IEEE Trans.on Aerospace and Electronic Systems, 2022, 58 (4): 3116- 3125. doi: 10.1109/TAES.2022.3145303
12	罗迎, 柏又青, 张群, 等. 弹道目标平动补偿与微多普勒特征提取方法[J]. 电子与信息学报, 2012, 34 (3): 602- 608.
	LUO Y , BAI Y Q , ZHANG Q , et al. Translational motion compensation and micro-Doppler feature extraction of ballistic targets[J]. Journal of Electronics & Information Technology, 2012, 34 (3): 602- 608.
13	GU F F , FU M H , LIANG B S , et al. Translational motion compensation and micro-Doppler feature extraction of space spinning targets[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15 (10): 1550- 1554.
14	LI J Q , HE S S , FENG C Q , et al. Method for compensating translational motion of rotationally symmetric target based on local symmetry cancellation[J]. Journal of Systems Engineering and Electronics, 2017, 28 (1): 36- 39. doi: 10.21629/JSEE.2017.01.05
15	ZHUO Z Y , DU L , LU X F , et al. Ambiguity function based high-order translational motion compensation[J]. IEEE Trans.on Aerospace and Electronic Systems, 2023, 59 (2): 2013- 2019.
16	冯存前, 李江, 黄大荣, 等. 弹道中段不同平动多目标的平动参数估计方法[J]. 电子与信息学报, 2021, 43 (3): 564- 571.
	FENG C Q , LI J , HUANG D R , et al. Estimation method of translational parameters for different translational of ballistic targets in midcourse[J]. Journal of Electronics & Information Technology, 2021, 43 (3): 564- 571.
17	SCHMID P J . Dynamic mode decomposition of numerical and experimental data[J]. Journal of Fluid Mechanics, 2010, 656, 5- 28. doi: 10.1017/S0022112010001217
18	寇家庆, 张伟伟, 高传强. 基于POD和DMD方法的跨声速抖振模态分析[J]. 航空学报, 2016, 37 (9): 2679- 2689.
	KOU J Q , ZHANG W W , GAO C Q . Modal analysis of transonic buffet based on POD and DMD method[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37 (9): 2679- 2689.
19	SCHMID P J . Dynamic mode decomposition and its variants[J]. Annual Review of Fluid Mechanics, 2022, 54, 225- 254. doi: 10.1146/annurev-fluid-030121-015835
20	ROWLEY C W , DAWSON S T M . Model reduction for flow analysis and control[J]. Annual Review of Fluid Mechanics, 2017, 49, 387- 417. doi: 10.1146/annurev-fluid-010816-060042
21	BERGER E , SASTUBA M , VOGT D , et al. Estimation of perturbations in robotic behavior using dynamic mode decomposition[J]. Advanced Robotics: the International Journal of the Robotics Society of Japan, 2015, 29 (5/6): 331- 343.
22	郑建拥, 魏光辉. 基于多分辨率动态模态分解的电磁信号时频-能量分析[J]. 系统工程与电子技术, 2022, 44 (5): 1468- 1474.
	ZHENG J Y , WEI G H . Time-frequency-energy analysis of electromagnetic signals based on multi-resolution dynamic modal decomposition[J]. Systems Engineering and Electronics, 2022, 44 (5): 1468- 1474.
23	BRUNTON B W , JOHNSON L A , OJEMANN J G , et al. Extracting spatial-temporal coherent patterns in large-scale neural recordings using dynamic mode decomposition[J]. Journal of Neuroscience Methods, 2016, 258, 1- 15. doi: 10.1016/j.jneumeth.2015.10.010
24	PROCTOR J L , ECKHOFF P A . Discovering dynamic patterns from infectious disease data using dynamic mode decomposition[J]. International Health, 2015, 7 (2): 139- 145. doi: 10.1093/inthealth/ihv009
25	ROWLEY C W , MEZIC I , BAGHERI S , et al. Spectral analysis of nonlinear flows[J]. Journal of Fluid Mechanics, 2009, 641, 115- 127. doi: 10.1017/S0022112009992059
26	寇家庆, 张伟伟. 动力学模态分解及其在流体力学中的应用[J]. 空气动力学报, 2018, 36 (2): 163- 179.
	KOU J Q , ZHANG W W . Dynamic mode decomposition and its applications in fluid dynamics[J]. Acta Aerodynamica Sinica, 2018, 36 (2): 163- 179.
27	DRAGOMIRETSKIY K , ZOSSO D . Variational mode decomposition[J]. IEEE Trans.on Signal Processing, 2013, 62 (3): 531- 544.
28	WU Z H , HUANG N E . Ensemble empirical mode decomposition: a noise-assisted data analysis method[J]. Advances in Adaptive Data Analysis, 2009, 1 (1): 1- 41. doi: 10.1142/S1793536909000047
29	KUTZ J N , BRUNTON S L , BRUNTON B W , et al. Dynamic mode decomposition: data-driven modeling of complex systems[M]. Philadelphia: Society for Industrial and Applied Mathematics, 2016.
30	TU J H , ROWLEY C W , LUCHTENBERG D M , et al. On dynamic mode decomposition: theory and applications[J]. Journal of Computational Dynamics, 2014, 1 (2): 391- 421. doi: 10.3934/jcd.2014.1.391
31	JOVANOVIC M R , SCHMID P J , NICHOLS J W . Sparsity-promoting dynamic mode decomposition[J]. Physics of Fluids, 2014, 26 (2): 024103. doi: 10.1063/1.4863670

参数	参考值
载频/GHz	10
带宽/GHz	1
脉宽/μs	0.5
脉冲重复频率/Hz	600
初始距离R₀/m	593 160
初始速度v/(m/s)	6 050
初始加速度a/(m/s²)	0.5
初始距离估计值R′₀/m	593 159
初始速度估计值v′/(m/s)	6 049
初始欧拉角/rad	(π/3, π/4, π/5)
导弹弹长/m	2
导弹底面半径/m	0.5
自旋频率/Hz	3
锥旋频率/Hz	0.5
仿真回波时长/s	6

前i阶	占比/%
2	81.01
4	91.51
6	99.93
8	99.99

算法	运算时间
EEMD	3.27
VMD	18.05
DMD	6.57
