改进YOLOv5的合成孔径雷达图像舰船目标检测方法

doi:10.12305/j.issn.1001-506X.2023.12.04

摘要/Abstract

摘要：

针对合成孔径雷达图像目标检测易受噪声和背景干扰影响, 以及多尺度条件下检测性能下降的问题, 在兼顾网络规模和检测精度的基础上, 提出了一种改进的合成孔径雷达舰船目标检测算法。使用坐标注意力机制, 在确保轻量化的同时抑制了噪声与干扰, 以提高网络的特征提取能力; 融入加权双向特征金字塔结构以实现多尺度特征融合, 设计了一种新的预测框损失函数以改善检测精度, 同时加快算法收敛, 从而实现了对合成孔径雷达图像舰船目标的快速准确识别。实验验证表明, 所提算法在合成孔径雷达舰船检测数据集(synthetic aperture radar ship detection dataset, SSDD)上的平均精度均值达到96.7%, 相比于YOLOv5s提高1.9%, 训练时收敛速度更快, 且保持了网络轻量化的特点, 在实际应用中具有良好前景。

关键词: 合成孔径雷达, 目标检测, YOLOv5, 注意力机制, 多尺度融合

Abstract:

Aiming at the problem that target detection in synthetic aperture radar (SAR) images is easily affected by noise and background interference, and the performance of ship target detection is degraded under multi-scale conditions, an improved YOLOv5 algorithm is proposed on the basis of considering the network scale and detection accuracy. In this algorithm, coordinate attention mechanism is used to suppress noise and interference to improve the feature extraction ability of the network while ensuring its lightweight advantage. The bi-directional feature pyramid is integrated to achieve multi-scale feature fusion. A new prediction box loss function is designed to improve the detection accuracy and accelerate the convergence of the algorithm. Thus, the ship target can be recognized quickly and accurately in SAR images. Experimental verification shows that the mean average presicion (mAP) of the proposed algorithm on SSDD dataset reaches 96.7%, which is 1.9% higher than that of YOLOv5s. The convergence speed is faster during training, and the network is lightweight, which has a good prospect in practical application.

Key words: synthetic aperture radar, target detection, YOLOv5, attention mechanism, multi-scale fusion

中图分类号:

TP391

贺翥祯, 李敏, 苟瑶, 杨爱涛. 改进YOLOv5的合成孔径雷达图像舰船目标检测方法[J]. 系统工程与电子技术, 2023, 45(12): 3743-3753.

Zhuzhen HE, Min LI, Yao GOU, Aitao YANG. Ship target detection method for synthetic aperture radar images based on improved YOLOv5[J]. Systems Engineering and Electronics, 2023, 45(12): 3743-3753.

图/表 20

图1

图2

图3

图4

图5

图6

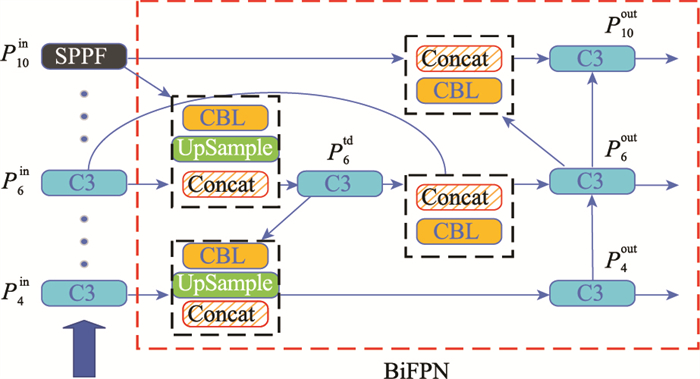

图7

图8

图9

表1

表2

表3

图10

图11

图12

表4

表5

表6

图13

图14

参考文献 31
