基于DOA估计的前视多通道SAR成像方法

doi:10.12305/j.issn.1001-506X.2023.08.21

摘要/Abstract

摘要：

针对前视合成孔径雷达(synthetic aperture radar, SAR)方位分辨受限以及左右多普勒模糊问题, 提出一种基于波达方向估计的前视多通道合成孔径雷达(forward-looking multi-channel SAR, FLMC-SAR)成像方法。算法综合利用系统空时资源, 采用空时级联的处理流程。首先通过合成孔径对前视区域进行初步成像, 在二维图像域实现逐个成像单元目标信号的分离。然后利用目标空域导向的差异, 建立分离信号的空时模型, 通过阵列多通道对每个成像单元内的信号进行波达方向估计, 实现目标信号重定位, 增强前视成像分辨率。同时, 空时模型考虑了模糊目标具备不同的导向矢量, 可在分辨增强的同时实现左右多普勒解模糊。最后通过仿真以及实测的FLMC-SAR数据验证了所提算法的有效性。

关键词: 合成孔径雷达, 前视成像, 左右多普勒模糊, 分辨增强, 波达方向估计

Abstract:

Aiming at the limited azimuth resolution and left-right Doppler ambiguity of forward-looking synthetic aperture radar (SAR), this paper proposes a direction of arrival (DOA) estimation based imaging algorithm for forward-looking multi-channel SAR (FLMC-SAR). The proposed algorithm comprehensively utilizes the system space-time resources and adopts the processing flow of space-time cascade. Firstly, the forward-looking area is preliminarily imaged through SAR, therefore the target signal of each imaging unit is separated in the two-dimensional image domain. Secondly, the space-time model of the separated signal is established by using the different spatial steering vector. The DOA estimation is performed on the signals in each imaging unit through the array multi-channel to realize the target signal relocation and enhance the forward-looking imaging resolution. Meanwhile, the space-time model takes into account the different steering vectors of the ambiguous target, which can realize the left-right Doppler ambiguity resolving and resolution enhancement. Finally, the simulation and real-data demonstrate the effectiveness of the proposed algorithm.

Key words: synthetic aperture radar (SAR), forward-looking imaging, left-right Doppler ambiguity, resolution enhancement, direction of arrival (DOA) estimation

中图分类号:

TN95

王宁, 贺鹏超, 卢景月, 刘曦. 基于DOA估计的前视多通道SAR成像方法[J]. 系统工程与电子技术, 2023, 45(8): 2471-2478.

Ning WANG, Pengchao HE, Jingyue LU, Xi LIU. DOA estimation based imaging method for multi-channel forward-looking SAR[J]. Systems Engineering and Electronics, 2023, 45(8): 2471-2478.

图/表 9

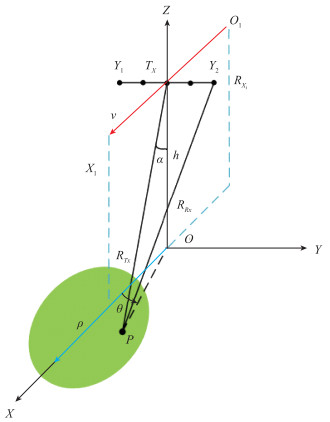

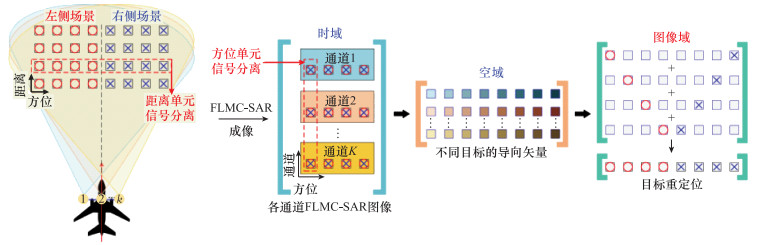

图1

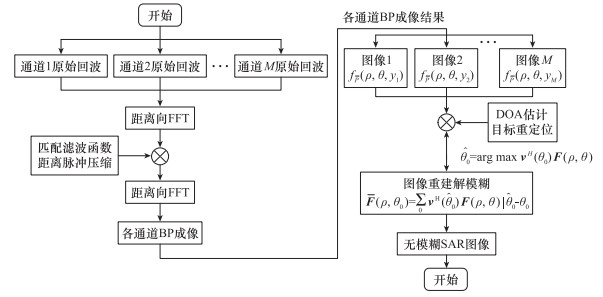

图2

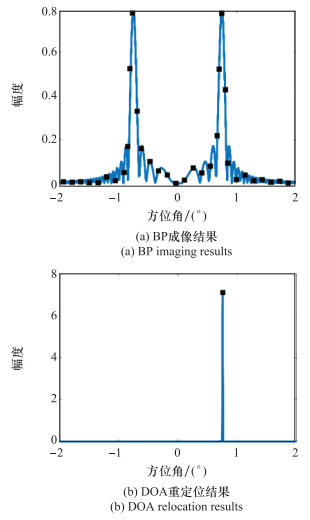

图3

表1

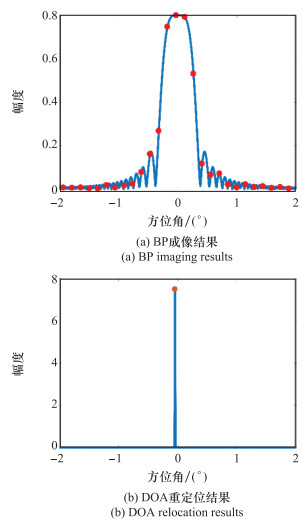

图4

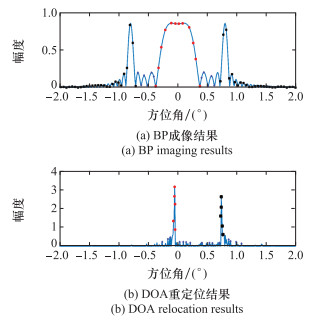

图5

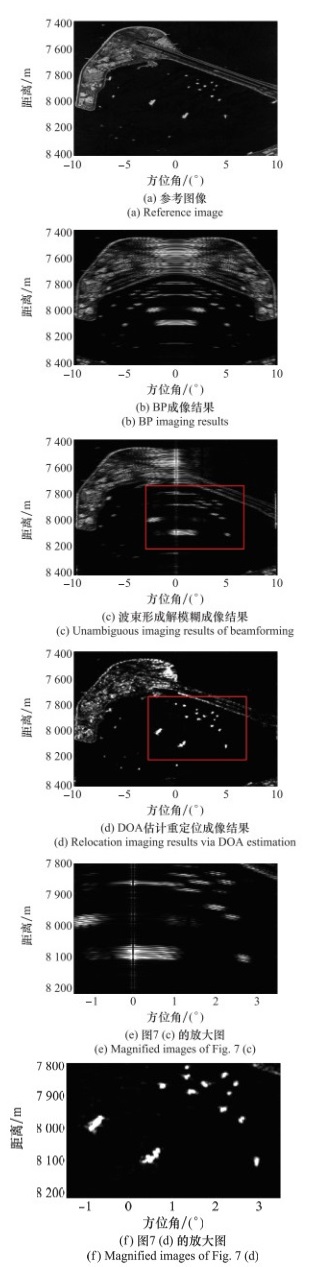

图6

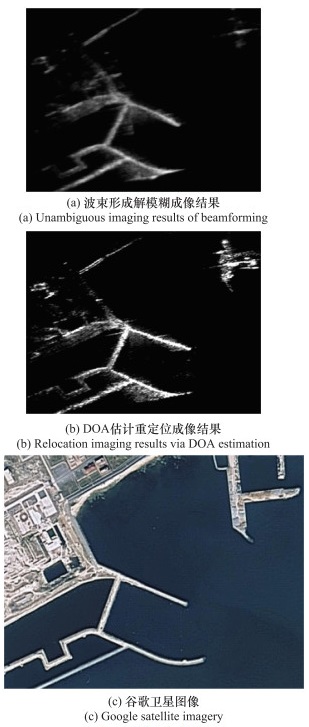

图7

图8

参考文献 30

1	杨建宇. 雷达对地成像技术多向演化趋势与规律分析[J]. 雷达学报, 2019, 8 (6): 669- 692.
	YANG J Y . Multi-directional evolution trend and law analysis of radar ground imaging technology[J]. Journal of Radars, 2019, 8 (6): 669- 692.
2	吴一戎, 朱敏慧. 合成孔径雷达技术的发展现状与趋势[J]. 遥感技术与应用, 2000, 15 (2): 121- 123.
	WU Y R , ZHU M H . The developing status and trends of synthetic aperture radar[J]. Remote Sensing Technology and Application, 2000, 15 (2): 121- 123.
3	MOREIRA A , PRATS-IRAOLA P , YOUNIS M , et al. A tutorial on synthetic aperture radar[J]. IEEE Geoscience and Remote Sensing Magazine, 2013, 1 (1): 6- 43. doi: 10.1109/MGRS.2013.2248301
4	杨建宇. 雷达技术发展规律和宏观趋势分析[J]. 雷达学报, 2012, 1 (1): 19- 27.
	YANG J Y . Development laws and macro trends analysis of radar technology[J]. Journal of Radars, 2012, 1 (1): 19- 27.
5	魏钟铨. 合成孔径雷达卫星[M]. 北京: 科学出版社, 2001.
	WEI Z Q . Synthetic aperture radar satellite[M]. Beijing: Science Press, 2001.
6	SUTOR T, BUCKREUSS S, KRIEGER G, et al. Sector imaging radar for enhanced vision: theory and applications[C]//Proc. of the European Conference on Synthetic Aperture Radar. Munich: VDE Association For Electrical Electronic & Information Technologies, 2000: 357-359.
7	KRIEGER G , MITTERMAYER J , WENDLER M , et al. SIREV-sector imaging radar for enhanced vision[J]. Proc.of the 2nd International Symposium on Image and Signal Processing and Analysis, 2003, 7 (2): 147- 158.
8	KRIEGER G, MITTERMAYER J, WENDLER M, et al. SIREV-sector imaging radar for enhanced vision[C]//Proc. of the International Symposium on Image and Signal Processing and Analysis, 2002: 377-382.
9	YARMAN C E , YAZICI B , CHENEY M . Bistatic synthetic aperture radar imaging for arbitrary flight trajectories[J]. IEEE Trans.on Image Processing, 2008, 17 (1): 84- 93. doi: 10.1109/TIP.2007.911812
10	WANG L , YAZICI B . Bistatic synthetic aperture radar imaging using ultra-narrowband continuous waveforms[J]. IEEE Trans.on Image Processing, 2012, 21 (8): 3673- 3686. doi: 10.1109/TIP.2012.2193134
11	PU W , WU J , HUANG Y , et al. Joint sparsity-based imaging and motion error estimation for BFSAR[J]. Trans.on Geoscience and Remote Sensing, 2019, 57 (3): 1393- 1408. doi: 10.1109/TGRS.2018.2866437
12	QIU X L , HU D H , DING C B . Some reflections on bistatic SAR of forward-looking configuration[J]. IEEE Geoscience and Remote Sensing Letters, 2008, 5 (4): 735- 739. doi: 10.1109/LGRS.2008.2004506
13	PU W , LI W , WU J , et al. An azimuth variant autofocus scheme of Bistatic forward-looking synthetic aperture radar[J]. IEEE Geoscience and Remote Sensing Letters, 2017, 14 (5): 689- 693. doi: 10.1109/LGRS.2017.2671879
14	包敏, 周鹏, 史林, 等. 双天线前视弹载SAR解模糊算法研究[J]. 电子与信息学报, 2013, 35 (12): 2857- 2862.
	BAO M , ZHOU P , SHI L , et al. Study on de-ambiguity algorithm for double antenna forward looking missile borne SAR[J]. Journal of Electronics & Information Technology, 2013, 35 (12): 2857- 2862.
15	李悦丽, 马萌恩, 赵崇辉, 等. 基于单脉冲雷达和差通道多普勒估计的前视成像[J]. 雷达学报, 2021, 10 (1): 131- 142.
	LI Y L , MA M E , ZHAO C H , et al. Forward-looking imaging via Doppler estimates of sum-difference measurements in scanning monopulse radar[J]. Journal of Radars, 2021, 10 (1): 131- 142.
16	曾操, 陈昊, 何学辉, 等. 相控阵子阵级和差多波束测角方法[J]. 西安电子科技大学学报, 2013, 40 (1): 19- 25.
	ZENG C , CHEN H , HE X H , et al. Monpulse angle estimation using sun-difference multi-beamforming based on the phase array at the sub-array level[J]. Journal of Xidian University, 2013, 40 (1): 19- 25.
17	赵珊珊, 张林让, 刘楠, 等. 利用幅度比特征进行有源假目标鉴别[J]. 西安电子科技大学学报, 2017, 44 (5): 51- 57.
	ZHAO S S , ZHANG L R , LIU N , et al. Active false-target discrimination method based on the amplitude ratio feature[J]. Journal of Xidian University, 2017, 44 (5): 51- 57.
18	马晓峰, 沈爱松, 盛卫星, 等. 可控测角精度和范围的数字阵列单脉冲和差波束优化[J]. 电子与信息学报, 2016, 38 (12): 3107- 3113.
	MA X F , SHEN A S , SHENG W X , et al. Sum and difference patterns optimization for digital array with controllable accuracy and range of angle estimation[J]. Journal of Electronics & Information Technology, 2016, 38 (12): 3107- 3113.
19	卢景月, 张磊, 王冠勇. 前视多通道合成孔径雷达解模糊成像方法[J]. 电子与信息学报, 2018, 40 (12): 29- 34.
	LU J Y , ZHANG L , WANG G Y . Ambiguity resolving and imaging algorithm for multi-channel forward-looking synthetic aperture radar[J]. Journal of Electronics & Information Technology, 2018, 40 (12): 29- 34.
20	马喜乐. 方位多相位中心SAR高分辨率宽测绘带成像技术研究[D]. 长沙: 国防科技大学, 2014.
	MA X L. Research on high-resolution wide-swath imaging technologies of azimuth multiple phase center SAR[D]. Changsha: National University of Defense Technology, 2014.
21	DAI S L, LIU M, SUN Y J, et al. The latest development of high resolution imaging for forward looking SAR with multiple receiving antennas[C]//Proc. of the IEEE International and Remote Sensing Symposium, 2001: 1433-1435.
22	DAI S L, WIESBECK W. High resolution imaging for forward looking SAR with multiple receiving antennas[C]//Proc. of the International and Remote Sensing Symposium, 2000: 2254-2256.
23	WANG W Q. Forward-looking SAR imaging with frequency diverse array antenna[C]//Proc. of the IEEE International and Remote Sensing Symposium, 2016: 4191-4194.
24	FRANCESCHETTI G , IODICE A , RICCIO D . Forward-looking synthetic aperture radar (FLoSAR): the array approach[J]. IEEE Geoscience and Remote Sensing Letters, 2014, 11 (1): 303- 307.
25	FRANCESCHETTI G, RICCIO A, RICCIO D. FLoSAR: a new concept for synthetic aperture radar[C]//Proc. of the Radar Conference, 2008.
26	MAHAFZA B R, KNIGHT D L, AUDEH N F. Forward-looking SAR imaging using a linear array with transverse motion[C]//Proc of IEEE Southeastcon, 1993: 1-4.
27	LU J Y , ZHANG L , HUANG Y , et al. High-resolution forward-looking multi-channel SAR imagery with array deviation angle calibration[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (10): 6914- 6928.
28	LU J Y , ZHANG L , XIE P F , et al. High-resolution imaging of multi-channel forward-looking synthetic aperture radar under curve trajectory[J]. IEEE Access, 2019, 7, 51211- 51221.
29	LU J Y , ZHANG L , QUAN Y H , et al. Parametric azimuth-variant motion compensation for forward-looking multichannel SAR imagery[J]. IEEE Trans.on Geoscience and Remote Sensing, 2021, 59 (10): 8521- 8537.
30	LU J Y , WANG X H , MA Y , et al. 2-D spatial variation bistatic forward-looking SAR imagery[J]. IEEE Geoscience and Remote Sensing Letters, 2022, 19, 4507505.

参数	数值	参数	数值
载频/GHz	28	脉冲重复频率/kHz	7
信号带宽/MHz	50	波束方位宽度/(°)	20
脉冲宽度/μs	1.4	场景中心斜距/m	8 000
采样带宽/MHz	60	阵列实孔径长度/m	0.4
