HPRF和差天线雷达导引头杂波抑制方法

doi:10.12305/j.issn.1001-506X.2023.08.19

系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (8): 2455-2462.doi: 10.12305/j.issn.1001-506X.2023.08.19

HPRF和差天线雷达导引头杂波抑制方法

牛亚丽¹, 许京伟¹^,*, 廖桂生¹, 阚庆云¹, 刘广君²

1. 西安电子科技大学雷达信号处理国家重点实验室, 陕西西安 710071
2. 中国空空导弹研究院航空制导武器航空科技重点实验室, 河南洛阳 471009

收稿日期:2021-12-06 出版日期:2023-07-25 发布日期:2023-08-03
通讯作者: 许京伟
作者简介:牛亚丽(1997—), 女, 硕士研究生, 主要研究方向为阵列信号处理、空时自适应处理
许京伟(1987—), 男, 副教授, 博士, 主要研究方向为稳健自适应波束形成、频率分集阵列雷达系统、空时自适应处理和MIMO雷达信号处理
廖桂生(1963—), 男, 教授, 博士研究生导师, 博士, 主要研究方向为阵列信号处理、空时自适应处理、雷达波形设计和天基预警雷达系统
阚庆云(1997—), 女, 博士研究生, 主要研究方向为多通道阵列信号处理、空时自适应处理、雷达杂波建模与仿真
刘广君(1985—), 男, 高级工程师, 博士, 主要研究方向为雷达总体设计, 抗干扰技术
基金资助:
国家自然科学基金(61931016);国家自然科学基金(62071344);陕西省青年科技新星(202161904023);装备预研重点实验室基金(6142206200210)

Clutter suppression approach for missile-borne HPRF radar with sum-difference antenna

Yali NIU¹, Jingwei XU¹^,*, Guisheng LIAO¹, Qingyun KAN¹, Guangjun LIU²

1. National Laboratory of Radar Signal Processing, Xidian University, Xi'an 710071, China
2. Aviation Key Laboratory of Science and Technology on Airborne Guided Weapons, China Airborne Missle Academy, Luoyang 471009, China

Received:2021-12-06 Online:2023-07-25 Published:2023-08-03
Contact: Jingwei XU

摘要/Abstract

摘要：

高脉冲重复频率(high pulse repetition frequency, HPRF)和差天线雷达在导引头中具有重要应用, 其在超低空运动目标检测时, 面临多重距离模糊的地海面杂波抑制问题。针对上述问题, 提出一种和差通道时域对消的杂波抑制方法。该方法基于和差通道间杂波功率谱相关度较高的特征, 联合利用差-差-双差通道数据估计杂波协方差矩阵, 拟合和通道的杂波协方差矩阵，并基于最小方差准则实现和通道杂波对消, 提升了雷达导引头的杂波抑制性能。仿真实验验证了该方法的有效性。

关键词: 高脉冲重复频率, 和差天线, 雷达导引头, 时域对消, 杂波抑制

Abstract:

High pulse repetition frequency (HPRF) sum difference antenna radar has important applications in missile-borne. It faces the problem of ground and sea clutter suppression with multiple range ambiguity in ultra-low altitude moving target detection. In view of the above problem, a clutter suppression approach of sum-difference channel time-domain cancellation is proposed. Based on the high correlation of clutter power spectrum between sum and difference channels, this approach uses difference-difference-double difference channels data to estimate clutter covariance matrix, and fits the clutter covariance matrix of sum channel, and achieves clutter cancellation of sum channel based on minimum variance criterion, which improves the clutter suppression performance of missile-borne radar. Simulation results verify the effectiveness of the proposed approach.

Key words: high pulse repetition frequency (HPRF), sum-difference antenna, missile-borne radar, time-domain cancellation, clutter suppression

中图分类号:

TN957.51

牛亚丽, 许京伟, 廖桂生, 阚庆云, 刘广君. HPRF和差天线雷达导引头杂波抑制方法[J]. 系统工程与电子技术, 2023, 45(8): 2455-2462.

Yali NIU, Jingwei XU, Guisheng LIAO, Qingyun KAN, Guangjun LIU. Clutter suppression approach for missile-borne HPRF radar with sum-difference antenna[J]. Systems Engineering and Electronics, 2023, 45(8): 2455-2462.

图/表 10

图1

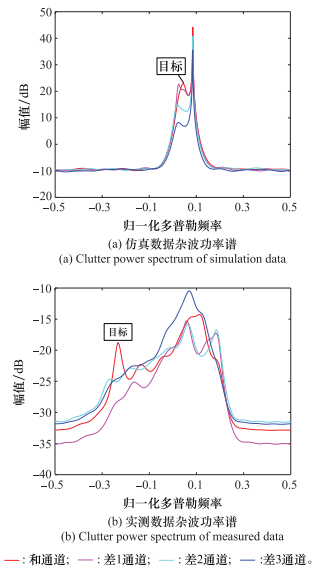

图2

图3

图4

表1

图5

图6

图7

图8

图9

参考文献 29

1	YUN E , JIN Y S , LEE J H . A pedestrian detection scheme using a coherent phase difference method based on 2D range-Doppler FMCW radar[J]. Sensors, 2016, 16 (1): 124- 137. doi: 10.3390/s16010124
2	TAKAHASHI R, HIRATA K, HARA T, et al. Coherent integration with null constraint on clutter spectrum for pulse Doppler radar[C]//Proc. of the IEEE Radar Conference, 2012: 68-73.
3	YANG H, HUANG P H, SUN Y Y, et al. Approach for range-ambiguous clutter suppression in an AEW radar system[C]//Proc. of the Asia-Pacific Conference on Synthetic Aperture Radar, 2021: 1-6.
4	HE X P , LIAO G S , ZHU S Q , et al. Range-ambiguous clutter suppression for the SAR-GMTI system based on extended azimuth phase coding[J]. IEEE Trans. on Geoscience and Remote Sensing, 2020, 58 (11): 8147- 8162. doi: 10.1109/TGRS.2020.2987630
5	DUAN K Q , XU H , YUAN H , et al. Reduced-DOF three-dimensional STAP via subarray synthesis for nonsidelooking planar array airborne radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2020, 56 (4): 3311- 3325. doi: 10.1109/TAES.2019.2958174
6	LI X P, WANG W J, YANG B, et al. Distance estimation based on phase detection with robust Chinese remainder theorem[C]//Proc. of the IEEE International Conference on Acoustics, Speech and Signal Processing, 2014: 4204-4208.
7	JIANG Z B, WANG J, SONG Q, et al. A closed-form robust Chinese remainder theorem based multibaseline phase unwrapping[C]//Proc. of the International Conference on Circuits, Devices and Systems, 2017: 115-119.
8	LI X P , WANG W J , ZHANG W L , et al. Phase-detection-based range estimation with robust chinese remainder theorem[J]. IEEE Trans. on Vehicular Technology, 2016, 65 (12): 10132- 10137. doi: 10.1109/TVT.2016.2550083
9	TRUNK G, BROCKETT S. Range and velocity ambiguity resolution[C]//Proc. of the IEEE National Radar Conference, 1993: 146-149.
10	王佳苗, 杨菊, 吴顺君. 一种脉冲多普勒雷达解距离模糊的新算法[J]. 雷达与对抗, 2005, (3): 38- 41.
	WANG J M , YANG J , WU S J . A new algorithm of range ambiguity resolution for pulse Doppler radar[J]. RADAR & ECM, 2005, (3): 38- 41.
11	姚国国, 周业军, 刘小鲲. 脉冲多普勒雷达高重频测距技术设计与仿真[J]. 舰船电子工程, 2020, 40 (1): 71- 74.
	YAO G G , ZHOU Y J , LIU X K . Design and simulation of HPRF range measurement technique for pulse Doppler radar[J]. Ship Electronic Engineering, 2020, 40 (1): 71- 74.
12	AYOUB T F , HAIMOVICH A M , PUGH M L . Reduced-rank STAP for high PRF radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 1999, 35 (3): 953- 962. doi: 10.1109/7.784065
13	WANG Y, ZHOU L, WEN J X, et al. Range ambiguity clutter suppression method for space-air based bistatic radar[C]//Proc. of the International Conference on Mechanical, Control and Computer Engineering, 2018: 355-360.
14	MELVIN W L . A STAP overview[J]. IEEE Aerospace and Electronic Systems Magazine, 2004, 19 (1): 19- 35. doi: 10.1109/MAES.2004.1263229
15	WARD J. Space-time adaptive processing for airborne radar[R]. London: MIT Linclon Laboratory, 1994, 1015.
16	HE X P , LIAO G S , ZHU S Q , et al. Range ambiguous clutter suppression approach with elevation time diverse array[J]. IEEE Trans. on Aerospace and Electronic Systems, 2022, 58 (1): 359- 373. doi: 10.1109/TAES.2021.3101786
17	XU J W , ZHU S Q , LIAO G S . Range ambiguous clutter suppression for airborne FDA-STAP radar[J]. IEEE Journal of Selected Topics in Signal Processing, 2015, 9 (8): 1620- 1631. doi: 10.1109/JSTSP.2015.2465353
18	XU J W , LIAO G S , So H C . Space-time adaptive processing with vertical frequency diverse array for range-ambiguous clutter suppression[J]. IEEE Trans. on Geoscience and Remote Sensing, 2016, 54 (9): 5352- 5364. doi: 10.1109/TGRS.2016.2561308
19	MENG X D , WANG T , WU J X , et al. Short-range clutter suppression for airborne radar by utilizing prefiltering in elevation[J]. IEEE Geoscience and Remote Sensing Letters, 2009, 6 (2): 268- 272. doi: 10.1109/LGRS.2008.2012126
20	HALE T B, TEMPLE M A, RAQUET J F, et al. Localized three-dimensional adaptive spatial-temporal processing for airborne radar[C]//Proc. of the International Radar Conference, 2002: 191-195.
21	CORBELL P M, TEMPLE M A, HALE T B. Forward-look-ing planar array 3D-STAP using space time illumination patterns (STIP)[C]//Proc. of the IEEE Workshop on Sensor Array and Multichannel Processing, 2006: 12-14.
22	CORBELL P M, PEREZ J J. RANGASWAM-Y M. Enhancing GMTI performance in non-stationary clutter using 3D STAP[C]//Proc. of the IEEE Radar Conference, 2007: 647-652.
23	王飞行, 汤广富, 贺思三, 等. 高重频频率步进雷达强杂波抑制[J]. 国防科技大学学报, 2009, 31 (4): 52- 57.
	WANG F X , TANG G F , HE S S , et al. Severe clutter suppression in high PRF stepped-frequency radar[J]. Journal of National University of Defense Technology, 2009, 31 (4): 52- 57.
24	王飞行, 陈建军, 付强. 高重频频率步进雷达抑制折叠杂波方法[J]. 信号处理, 2010, 26 (3): 388- 393. doi: 10.3969/j.issn.1003-0530.2010.03.011
	WANG F X , CHEN J J , FU Q . A method of supppressing folded clutter in high PRF stepped frequency radar[J]. Signal Processing, 2010, 26 (3): 388- 393. doi: 10.3969/j.issn.1003-0530.2010.03.011
25	BAO Y X, REN L X, HE P K, et al. A novel approach for clutter cancellation in HPRF stepped-frequency radar[C]// Proc. of the International Conference on Signal Processing, 2008: 2384-2387.
26	包云霞, 毛二可, 何佩琨, 等. 高重频频率步进雷达的杂波抑制和高分辨处理[J]. 现代雷达, 2009, 31 (1): 58- 61.
	BAO Y X , MAO E K , HE P K , et al. Clutter cancellation and high resolution processing in HPRF stepped-frequency radar[J]. Modern Radar, 2009, 31 (1): 58- 61.
27	朱伟, 贺芃, 王凤艳, 等. 一种基于高重频波形的慢速目标检测新方法[J]. 雷达与对抗, 2019, 39 (2): 20- 23.
	ZHU W , HE P , WANG F Y , et al. A novel method for slow-moving target detection based on high PRF waveform[J]. Radar & ECM, 2019, 39 (2): 20- 23.
28	XU J W , WANG C H , LIAO G S , et al. Sum and difference beamforming for angle-doppler estimation with STAP-based radars[J]. IEEE Trans. on Aerospace and Electronic Systems, 2016, 52 (6): 2825- 2837.
29	SARKAR T K , WANG H , PARK S , et al. A deterministic least-squares approach to space-time adaptive processing (STAP)[J]. IEEE Trans. on Antennas and Propagation, 2001, 49 (1): 91- 103.

参数	数值	参数	数值
载频/GHz	16	占空比	0.2
平台速度/(m/s)	400	脉冲数	256
平台高度/m	1 000	杂噪比/dB	45
脉冲重复频率/kHz	500	信噪比/dB	10
采样率/MHz	4	距离门个数	8
方位波束宽度/(°)	6	目标速度/(m/s)	-50
俯仰波束宽度/(°)	6	目标距离/km	10
