基于语义匹配的作战体系仿真想定生成方法

doi:10.12305/j.issn.1001-506X.2021.08.17

摘要/Abstract

摘要：

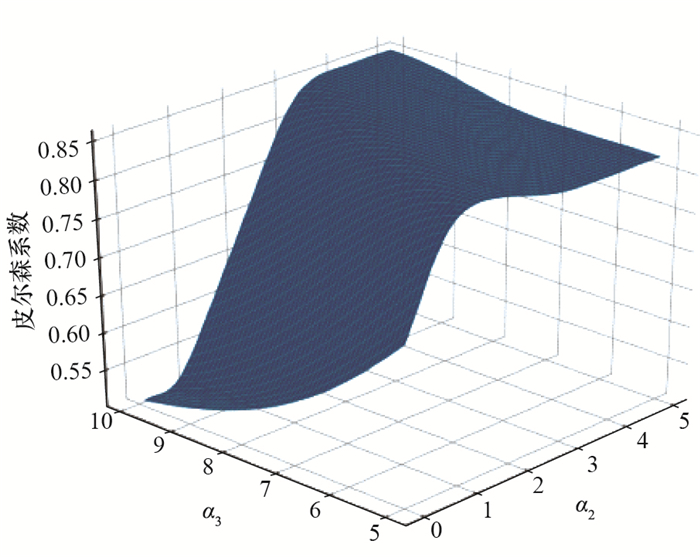

针对传统的想定建模方法耗时长、成本高的问题，为了实现作战体系概念模型数据到仿真想定的数据映射重用, 提出一种基于语义匹配的作战体系仿真想定生成方法。首先，基于网络爬虫技术获取武器装备的参数信息, 构建了作战领域知识库。在此基础上, 提出了新型的混合式语义匹配方法以提供仿真想定的数据来源, 根据自然语言数据库WordNet开展调参实验确定算法参数, 通过对比人工打分结果有效提高了算法的可信性。在确定了概念模型与仿真想定的数据映射关系后, 给出了仿真想定的生成方法。最后, 通过编队突防仿真应用案例, 验证了该方法的可行性。

关键词: 语义匹配, 作战体系仿真想定, 网络爬虫, 作战领域知识库

Abstract:

The combat system-of-systems simulation scenario is the basic basis and data source for combat simulation. But the traditional scenario generating method have the problem of time-consuming and costly. In order to achieve the data mapping and reuse of the conceptual model data of the combat system-of-systems to the simulation scenario, a method for generating combat system-of-systems simulation scenario based on semantic matching is proposed. Firstly, information of weapons and equipment were obtained based on the web crawler technology, and a knowledge base in the combat domain was constructed. Then, a new hybrid semantic matching method is proposed to provide data sources for simulation scenario, and the algorithm parameters are determined by parameter tuning experiments based on the natural language database WordNet, and the credibility of the algorithm is effectively improved by comparing the results of manual scoring. After determining the data mapping relationship between the conceptual model and the simulation scenario, the method of generating the simulation scenario is given. Finally, the feasibility of the method is certified by using the application case of the formation raid defense system-of-systems.

Key words: semantic matching, combat system-of-systems simulation scenario, web crawler, combat domain knowledge base

中图分类号:

TP391.9

曾广迅, 龚光红, 李妮. 基于语义匹配的作战体系仿真想定生成方法[J]. 系统工程与电子技术, 2021, 43(8): 2154-2162.

Guangxun ZENG, Guanghong GONG, Ni LI. Combat system-of-systems simulation scenario generation approach based on semantic matching[J]. Systems Engineering and Electronics, 2021, 43(8): 2154-2162.

图/表 12

图1

图2

图3

表1

图4

表2

图5

图6

图7

表3

图8

图9

参考文献 33

1	THACKER S , PANT R , HALL J W . System-of-systems formulation and disruption analysis for multi-scale critical national infrastructures[J]. Reliability Engineering & System Safety, 2017, 167, 30- 41.
2	YANG W J, YUAN C X, ZHAO J, et al. Research on weapon and equipment requirement analysis method based on DODAF[C]//Proc. of the International Conference on Virtual Reality and Intelligent Systems, 2019.
3	Chen Z W, ZHAO T D, JIAO J, et al. System of systems architecture modeling and mission reliability analysis based on DoDAF and petri net[C]//Proc. of the Annual Reliability and Maintainability Symposium, 2019.
4	MA X Y, WANG T, GUAN X, et al. Design of Optical mea-surement simulation training system in shooting range based on DoDAF[C]//Proc. of the International conference on Big Data Analytics for Cyber-Physical-Systems, 2020.
5	戴伟, 丁禹. 国防科技创新体系架构框架初探[J]. 科学管理研究, 2020, 38 (4): 24- 30.
	DAI W , DING Y , et al. The initial exploration of national defense science and technology innovation architecture framework[J]. Scientific Management Research, 2020, 38 (4): 24- 30.
6	HAUSE M. The unified profile for DoDAF/MODAF (UPDM) enabling systems of systems on many levels[C]//Proc. of the IEEE International Systems Conference, 2010.
7	BAILEY I. Brief introduction to MODAF with v1.2 updates[C]//Proc. of the IET Seminar on Enterprise Architecture Frameworks, 2008.
8	WANG J , ZHAO X Z , XU B P , et al. Immune multi-agent model using vaccine for cooperative air-defense system of systems for surface warship formation based on danger theory[J]. Journal of Systems Engineering and Electronics, 2013, 24 (6): 946- 953. doi: 10.1109/JSEE.2013.00111
9	WANG T , ZHOU X , WANG W P , et al. An optimal searching algorithm for the equipment system-of-systems architecture space with uncertain capabilities[J]. IEEE Access, 2020, 8, 125130- 125139. doi: 10.1109/ACCESS.2020.3007542
10	WANG Y Q, GAO J, FANG L, et al. Research on distributed collaborative fire distribution technology based on multi-agent[C]//Proc. of the 3rd International Conference on Unmanned Systems, 2020.
11	LI F, LIAO L J, LI C Y, et al. Efficient and density adaptive edge weight model for measuring semantic similarity[C]//Proc. of the 4th International Conference on Communication and Information Processing, 2018.
12	JIANG W M, LIN Y M, LI Y. Concept alignment of product taxonomies based on semantic similarity[C]//Proc. of the IEEE 3rd International Conference on Cloud Computing and Big Data Analysis, 2018.
13	朱新华, 马润聪, 孙柳, 等. 基于知网与词林的词语语义相似度计算[J]. 中文信息学报, 2016, 30 (4): 29- 36.
	ZHU X H , MA R C , SUN L , et al. Word semantic similarity computation based on hownet and cilin[J]. Journal of Chinese Information Processing, 2016, 30 (4): 29- 36.
14	方文婷. 通信领域本体的语义检索系统研究[D]. 南昌: 江西师范大学, 2015.
	FANG W T. Research on semantic retrieval for communication ontology[D]. Nanchang: Jiangxi Normal University, 2015.
15	CAI Y Y , ZHANG Q C , LU W , et al. A hybrid approach for measuring semantic similarity based on IC-weighted path distance in WordNet[J]. Journal of Intelligent Information Systems, 2018, 51 (1): 23- 47. doi: 10.1007/s10844-017-0479-y
16	SECO N, VEALE T, HAYES J. An intrinsic information content metric for semantic similarity in wordNet[C]//Proc. of the European Artificial Intelligence, 2004.
17	MENG L L , GU J Z , ZHOU Z L . A new model of information content based on concept's topology for measuring semantic similarity in WordNet[J]. International Journal of Grid and Distributed Computing, 2012, 5 (3): 81- 94.
18	BATET M , HARISPE S , RANWEZ S , et al. An information theoretic approach to improve semantic similarity assessments across multiple ontologies[J]. Information Sciences, 2014, 283, 197- 210. doi: 10.1016/j.ins.2014.06.039
19	SÁNCHEZ D , BATET M , ISERN D , et al. Ontology-based semantic similarity: a new feature-based approach[J]. Expert Systems with Applications, 2012, 39 (9): 7718- 7728. doi: 10.1016/j.eswa.2012.01.082
20	JIANG Y C , ZHANG X P , TANG Y , et al. Feature-based approaches to semantic similarity assessment of concepts using Wikipedia[J]. Information Processing & Management, 2015, 51 (3): 215- 234.
21	SAIF A , ZAINODIN U Z , OMAR N , et al. Weighting-based semantic similarity measure based on topological parameters in semantic taxonomy[J]. Natural Language Engineering, 2018, 24 (6): 861- 886. doi: 10.1017/S1351324918000190
22	LIKAVEC S , LOMBARDI I , CENA F . Sigmoid similarity-a new feature-based similarity measure[J]. Information Sciences, 2019, 481, 203- 218. doi: 10.1016/j.ins.2018.12.018
23	YANG C Q, ZHU Y Y, ZHONG M, et al. Semantic similarity computation in knowledge graphs: comparisons and improvements[C]//Proc. of the IEEE 35th International Conference on Data Engineering Workshops, 2019.
24	BARROS M, MOITINHO A, COUTO F M. Hybrid semantic recommender system for chemical compounds[C]//Proc. of the European Conference on Information Retrieval, 2020.
25	李蕾, 杨丽花. 基于知网的词语语义相似度改进算法[J]. 计算机技术与发展, 2019, 29 (4): 42- 46. doi: 10.3969/j.issn.1673-629X.2019.04.009
	LI L , YANG L H . Improved algorithm of word semantic simailarity based on howNet[J]. Computer Technology and Development, 2019, 29 (4): 42- 46. doi: 10.3969/j.issn.1673-629X.2019.04.009
26	PRIYA M , CH A K . A novel method for merging academic social network ontologies using formal concept analysis and hybrid semantic similarity measure[J]. Library Hi Tech, 2020, 38 (2): 399- 419.
27	LEACOCK C , CHODOROW M . Combining local context and WordNet similarity for word sense identification[J]. WordNet: an Electronic Lexical Database, 1998, 49 (2): 265- 283.
28	WU Z B, PALMER M. Verbs semantics and lexical selection[C]//Proc. of the 32nd Annual Meeting on Association for Computational Linguistics, 1994.
29	RADA R , MILI H , BICKNELL E , et al. Development and application of a metric on semantic nets[J]. IEEE Trans.on Systems, Man, and Cybernetics, 1989, 19 (1): 17- 30. doi: 10.1109/21.24528
30	LI Y , BANDAR Z A , MCLEAN D . An approach for measuring semantic similarity between words using multiple information sources[J]. IEEE Trans.on Knowledge and Data Engineering, 2003, 15 (4): 871- 882. doi: 10.1109/TKDE.2003.1209005
31	GAO J B , ZHANG B W , CHEN X H . A WordNet-based semantic similarity measurement combining edge-counting and information content theory[J]. Engineering Applications of Artificial Intelligence, 2015, 39, 80- 88.
32	WITTMAN J R L. Defining a standard: the military scenario definition language version 1.0 standard[C]//Proc. of the Spring Simulation Multiconference, 2009.
33	ZHAO X Y, XING Z, YANG M, et al. Structure and content enhancement to military scenario definition language[C]//Proc. of the IEEE Symposium on Robotics and Applications, 2012.

方法	Type	M&C	R&G
Rada^[28]	Path	0.644	0.734
Leacock & Chodorow^[29]	Path	0.777	0.836
Wu & Palmer^[27]	Path	0.745	0.786
Li^[30]	Path	0.816	0.854
Gao^[31] (Strategy2)	Path	0.826	0.866
本文方法	Path & Feature	0.855	0.857

序号	概念模型数据	仿真想定内容模块
1	作战单元间的层次关系	Organizations-Unit
2	武器装备模型	Organizations-Equipment
3	武器装备的模型参数	Organizations-EquipmentItem
4	作战单元的阵营关系	ForceSides-ForceSideColor
5	执行的活动	Plan-UnitActivities
6	活动模型参数(除路径)	Plan-Parameters
7	活动执行路径	TacticalGraphics-AnchorPoint

源武器装备	目标武器装备	相似度	阵营
001舰	Carrier	1.000	红方
052B	052C	0.869	红方
052C	052C	1.000	红方
J-20	J-10	0.839	红方
KJ-2000	KJ-2000	1.000	红方
红方机场指挥所	红方机场指挥所	1.000	红方
空军机场	空军机场	1.000	红方
JH-7C	JH-7G	0.800	红方
J-15	Su-30	0.867	红方
F-16	F-16	1.000	蓝方
F-22	F-16	0.829	蓝方
伯克级驱逐舰	基隆级驱逐舰	0.866	蓝方
高波级驱逐舰	基隆级驱逐舰	0.834	蓝方
蓝方机场指挥所	蓝方机场指挥所	1.000	蓝方
空军机场	空军机场	1.000	蓝方
E-2T	E-2T	1.000	蓝方
