基于一维堆叠池化融合卷积自编码器的HRRP目标识别方法

doi:10.12305/j.issn.1001-506X.2021.12.15

Abstract

Abstract:

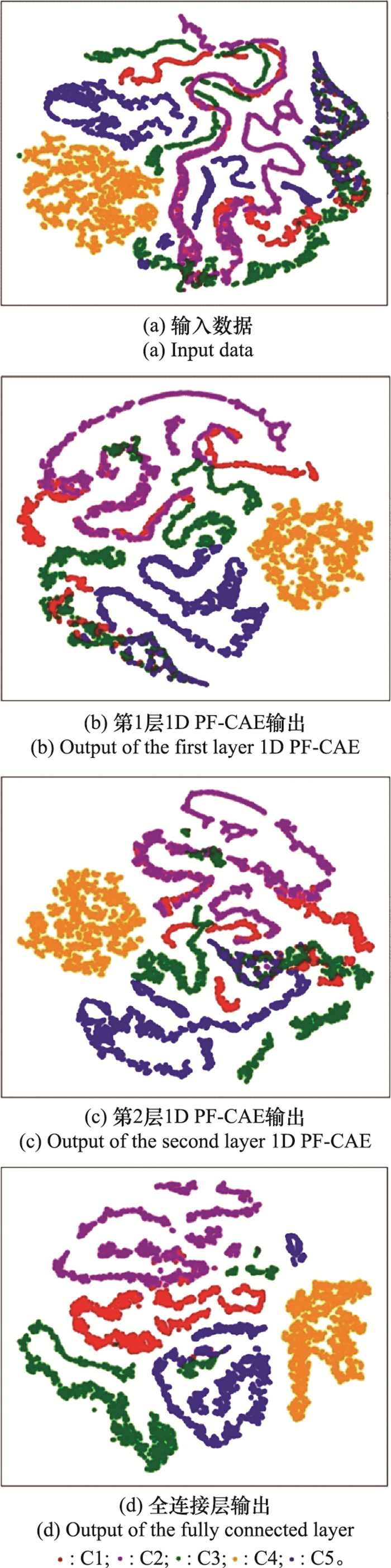

Aiming at the problem of feature extraction and recognition in high resolution range profile (HRRP) target recognition, a recognition method based on one-dimensional stacked pooling fusion convolutional autoencoder (1D SPF-CAE) is proposed in this paper. Firstly, a one-dimensional pooling fusion convolutional autoencoder (1D PF-CAE) is constructed. In the encoding stage, the maximum pooling and average pooling are used to extract different encoding features and fuse them to extract the structural features of HRRP. Then, multiple 1D PF-CAEs are stacked to form 1D SPF-CAE. Finally, the network is fine-tuned using label data to realize HRRP target recognition. And the AdaBound algorithm is used to optimize network training for improving the recognition performance. The experimental results based on the simulated data of the target in the middle part of the trajectory show that the method has strong feature extraction capability, and has high accuracy and robustness for HRRP target recognition.

Key words: radar automatic target recognition, high resolution range profile, convolution autoencoder, feature extraction, pooling fusion

CLC Number:

TP183

Guoling ZHANG, Chongming WU, Rui LI, Jie LAI, Qian XIANG. HRRP target recognition method based on one-dimensional stacked pooling fusion convolutional autoencoder[J]. Systems Engineering and Electronics, 2021, 43(12): 3533-3541.
