基于神经网络的高并行大规模MIMO信号检测算法

doi:10.12305/j.issn.1001-506X.2022.12.30

Abstract

Abstract:

Massive multiple input multiple output (MIMO) is one of the key technologies, as 5G and future mobile wireless networks continue to evolve. With the increasing number of antennas, the design of receivers has brought a huge challenge, and detection algorithms with too much complexity are difficult to be applied in practice. In this paper, a high-parallelism (HP) detection algorithm is developed into a neural network, the single-layer neural network is based on each iteration of this algorithm, which is combined with trainable weighted parameters and nonlinear neural units, and the network structure HP-Net is proposed. Optimal trainable parameters are obtained by training the HP-Net, which in turn improves the detection performance. The experimental results show that the paper method is less complex and can obtain lower bit error rate (BER) than the traditional minimum mean square error (MMSE) algorithm, and has better BER performance than the HP detection algorithm.

Key words: massive multiple input multiple output (MIMO), deep neural network (DNN), signal detection

CLC Number:

TN929.53

Yaohua XU, Chenglong ZHU, Yi WANG, Fang JANG, Mengqin DING, Huiping WANG. Neural network-based algorithm for high-parallelism massive MIMO signal detection[J]. Systems Engineering and Electronics, 2022, 44(12): 3843-3849.

Figures/Tables 12

Fig.1

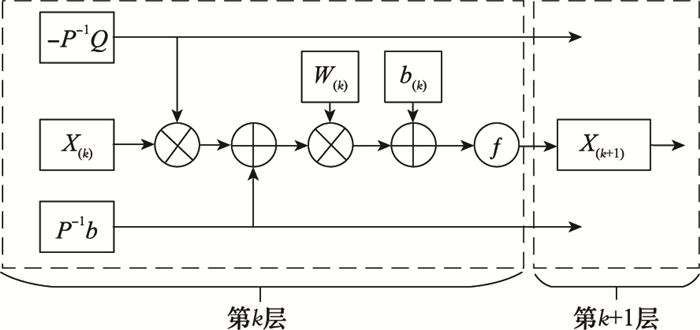

Fig.2

Fig.3

Table 1

Table 2

Table 3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

References 17

1	张平, 陶运铮, 张治. 5G若干关键技术评述[J]. 通信学报, 2016, 37 (7): 15- 29.
	ZHANG P , TAO Y Z , ZHANG Z . Survey of several key technologies for 5G[J]. Journal of Communication, 2016, 37 (7): 15- 29.
2	张军阳, 王慧丽, 郭阳, 等. 深度学习相关研究综述[J]. 计算机应用研究, 2018, 35 (7): 1921- 1928.1921-1928, 1936 doi: 10.3969/j.issn.1001-3695.2018.07.001
	ZHANG J Y , WANG H L , GUO Y , et al. Review of deep learning[J]. Application Research of Computers, 2018, 35 (7): 1921- 1928.1921-1928, 1936 doi: 10.3969/j.issn.1001-3695.2018.07.001
3	LARSSON E G . MIMO detection methods: how they work[J]. IEEE Signal Processing Magazine, 2009, 26 (3): 91- 95.
4	BOUKHAROUBA A , DEHEMCHI M , BOUHAFER A . Low-complexity signal detection and precoding algorithms for multiuser massive MIMO systems[J]. SN Applied Sciences, 2021, 3 (2): 1- 7.
5	ZHAO S F , SHEN B , HUA Q . A comparative study of low-complexity MMSE signal detection for massive MIMO systems[J]. KSⅡ Trans.on Internet & Information Systems, 2018, 12 (4): 1504- 1526.
6	TANG C , LIU C , YUAN L C , et al. High precision low complexity matrix inversion based on newton iteration for data detection in the massive MIMO[J]. IEEE Communications Letters, 2016, 20 (3): 490- 493. doi: 10.1109/LCOMM.2015.2514281
7	LI H, ZHAO X Y, GUO C, et al. A high-parallelism detection algorithm for massive MIMO systems[C]//Proc. of the IEEE 7th International Conference on Electronics Information and Emergency Communication, 2017.
8	LI H, ZHAO X Y, GUO C, et al. A low-complexity detection method based on iteration for massive MIMO systems[C]//Proc. of the 9th IEEE International Conference on Communication Software and Networks, 2017.
9	O'SHEA T , HOYDIS J . An introduction to deep learning for the physical layer[J]. IEEE Trans.on Cognitive Communications and Networking, 2017, 3 (4): 563. doi: 10.1109/TCCN.2017.2758370
10	朱啸豪, 孙超, 姜述超. 基于深度学习和AMP的MIMO检测算法[J]. 微型电脑应用, 2020, 36 (5): 96- 98.
	ZHU X H , SUN C , JIANG S C . MIMO detection algorithm based on deep learning and AMP[J]. Microcomputer Applications, 2020, 36 (5): 96- 98.
11	LI Q, ZHANG A H, LI J J, et al. Soft decision signal detection of MIMO system based on deep neural network[C]//Proc. of the 5th International Conference on Computer and Communication Systems, 2020: 665-669.
12	SAMUEL N, DISKIN T, WIESEL A. Deep MIMO detection[EB/OL]. [2021-09-01]. https://arxiv.org/abs/1706.01151.
13	SAMUEL N , DISKIN T , WIESEL A . Learning to detect[J]. IEEE Trans.on Signal Processing, 2019, 67 (10): 2554- 2564.
14	张晓羽, 贺光辉. 基于深度学习的大规模MIMO检测算法研究[J]. 信息技术, 2020, 44 (6): 10- 14.
	ZHANG X Y , HE G H . Deep learning for massive MIMO detection algorithm[J]. Information Technology, 2020, 44 (6): 10- 14.
15	胡钟秀, 王鸿, 宋荣方. 基于SAMP-Net的MIMO信号检测算法[J]. 南京邮电大学学报(自然科学版), 2020, 40 (6): 36- 41.
	HU Z X , WANG H , SONG R F . Signal detection based on SAMP-Net method for MIMO systems[J]. Journal of Nanjing University of Posts and Telecommunications(Natural Science Edition), 2020, 40 (6): 36- 41.
16	WU M , YIN B , WANG G H , et al. Large-scale MIMO detection for 3GPP LTE: algorithms and FPGA implementations[J]. IEEE Journal of Selected Topics in Signal Processing, 2017, 8 (5): 916- 929.
17	KINGMA D, BA J. Adam: a method for stochastic optimization[C]//Proc. of the 3rd International Conference on Learning Representations, 2015.

迭代次数		算法
迭代次数		HP	HP-Net	NSA
乘法	iter=3	2K²+5K	5K²+7K	K³
	iter=4	3K²+5K	7K²+7K	2K³－K²
	iter= n(n > 3)	(n－1)·K²+5K	(2n-1)·K²+7K	(n－2)·K³－(n－3)·K²
除法		K/2	K/2	K
并行性		K	K	K

HP	HP-Net	MMSE	NSA
O(K²)	O(K²)	O(K³)	O(K³)

算法	层数	参数个数
HP-Net	L	2L
DET-Net	L	6L
