注意力机制CNN的毫米波大规模MIMO系统信道估计算法

doi:10.12305/j.issn.1001-506X.2022.01.38

Abstract

Abstract:

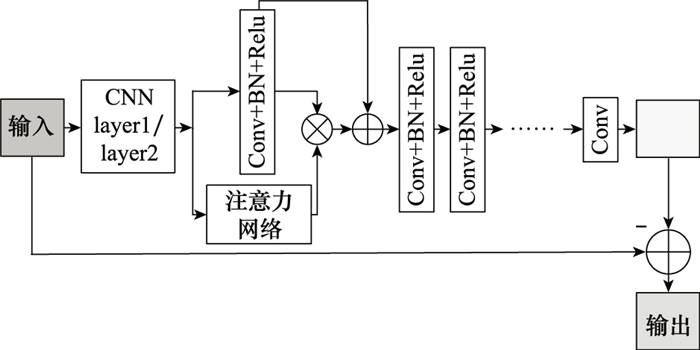

In outdoor ray tracing communication scenarios, aiming at the problems of low channel estimation accuracy defected by its sparse characteristics and noise factors in millimeter-wave massive multiple input multiple output (MIMO), an image denoising attention mechanism based convolutional neural network channel estimation algorithm is proposed. Firstly, after constructing the data set for simulating the real environment by setting the parameters, generate channel matrix is regarded as a two-dimensional image. Then, the attention mechanism network is constructed to enhance the saliency of the noise features in the image, and the attention mechanism network is embedded in the convolutional neural network (CNN) for feature fusion. Finally, the noise extracted by the network model achieves the denoising effect and the denoised image, the estimated channel matrix is obtained. The simulation results demonstrate that the proposed attention mechanism based CNN (Attention-CNN) algorithm achieves better performance of higher channel estimation accuracy, which improved by about 1.86 dB on average, compared with least square (LS), minimum mean square error (MMSE), CNN and denoising convolutional neural network (DnCNN).

Key words: millimeter-wave massive multiple input multiple output (MIMO), channel estimation, convolutional neural network (CNN), attention mechanism, denoising

CLC Number:

TP391.9

Ziyan LIU, Shanshan MA, Jing LIANG, Mingcheng ZHU, Lei YUAN. Attention mechanism based CNN channel estimation algorithm in millimeter-wave massive MIMO system[J]. Systems Engineering and Electronics, 2022, 44(1): 307-312.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Table 1

Table 2

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

References 30

1	MUMTAZ S , RODRIQUEZ J , DAI L L . mmWave massive MIMO: a paradigm for 5G[M]. New York: Academic, 2016.
2	BOCCARDI F , HEATH R , LOZANO A , et al. Five disruptive technology directions for 5G[J]. IEEE Communications Magazine, 2014, 52 (2): 74- 80. doi: 10.1109/MCOM.2014.6736746
3	康国良. 毫米波大规模MIMO系统信道估计算法研究[D]. 南昌: 江西理工大学, 2018.
	KANG G L. Research on channel estimation algorithm for millimeter wave massive MIMO system[D]. Nanchang: Jiangxi University of Science and Technology, 2018.
4	SWINDLEHURST A L , AYANOGLU E , HEYDARI P , et al. Millimeter-wave massive MIMO: the next wireless revolution?[J]. IEEE Communication Magazine, 2014, 52 (9): 56- 62. doi: 10.1109/MCOM.2014.6894453
5	SUN Z H, ZHAO Z, FU X M, et al. Limited feedback double directional massive MIMO channel estimation: from low-rank modeling to deep learning[C]//Proc. of the IEEE 19th International Workshop on Signal Processing Advances in Wireless Communications, 2018.
6	HUANG X, LIU S M. Massive MIMO channel estimation for vehicular communications: a deep learning based approach[C]//Proc. of the IEEE International Conference on Communications Workshops, 2020.
7	DEMIR O T , BJORNSON E . Channel estimation in massive MIMO under hardware non-linearities: Bayesian methods versus deep learning[J]. IEEE Open Journal of the Communications Society, 2020, 32 (8): 109- 124.
8	YE H , LI G Y , JUAN G B . Power of deep learning for channel estimation and signal detection in OFDM systems[J]. IEEE Wireless Communications Letters, 2018, 7 (1): 114- 117. doi: 10.1109/LWC.2017.2757490
9	ANG H J , SONG Y , YANG J H , et al. Deep-learning-based millimeter-wave massive MIMO for hybrid precoding[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (3): 3027- 3032. doi: 10.1109/TVT.2019.2893928
10	MA J J , PING L . Data-aided channel estimation in large antenna systems[J]. IEEE Trans.on Signal Processing, 2014, 62 (12): 3111- 3124. doi: 10.1109/TSP.2014.2321120
11	CHEN X Y , JIANG M F . Adaptive statistical Bayesian MMSE channel estimation for visible light communication[J]. IEEE Trans.on Signal Processing, 2017, 65 (5): 1287- 1299. doi: 10.1109/TSP.2016.2630036
12	GAO Z , DAI L L , WANG Z , et al. Spatially common sparsity based adaptive channel estimation and feedback for FDD massive MIMO[J]. IEEE Trans.on Signal Processing, 2015, 63 (23): 6169- 6183. doi: 10.1109/TSP.2015.2463260
13	邵凯, 陈连成, 刘胤. 高移动性Jakes信道的学习与估计[J]. 系统工程与电子技术, 2020, 43 (4): 1119- 1125.
	SHAO K , CHEN L C , LIU Y . Learning and estimation of high mobility Jakes channel[J]. Systems Engineering and Electro-nics, 2020, 43 (4): 1119- 1125.
14	LUO C Z , JI J , WANG Q Y , et al. Channel state information prediction for 5G wireless communications: a deep learning approach[J]. IEEE Trans.on Network Science and Engineering, 2020, 7 (1): 227- 236. doi: 10.1109/TNSE.2018.2848960
15	SABETI P, FARHANG A, MACALUSO I, et al. Blind channel estimation for massive MIMO: a deep learning assisted approach[C]//Proc. of the IEEE International Conference on Communications, 2020.
16	GAO Z F , WANG Y , LIU X F , et al. FFDNet-based channel estimation for massive MIMO visible light communication systems[J]. IEEE Wireless Communications Letters, 2020, 9 (3): 340- 343. doi: 10.1109/LWC.2019.2954511
17	GU J W, SHAN C, CHEN X L, et al. A novel pilot-aided channel estimation scheme based on RNN for FDD-LTE systems[C]//Proc. of the 10th International Conference on Wireless Communications and Signal Processing, 2018.
18	JIN J , ZHANG J M , JIN S W , et al. Channel estimation for cell-free mmWave massive MIMO through deep learning[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (10): 10325- 10329. doi: 10.1109/TVT.2019.2937543
19	ZHANG K , ZUO W L , CHEN Y Q , et al. Beyond a Gaussian denoiser: residual learning of deep CNN for image denoising[J]. IEEE Trans.on Image Processing, 2017, 26 (7): 3142- 3155. doi: 10.1109/TIP.2017.2662206
20	罗仁泽, 王瑞杰, 张可, 等. 残差卷积自编码网络图像去噪方法[J]. 计算机仿真, 2021, 38 (5): 455- 461. doi: 10.3969/j.issn.1006-9348.2021.05.093
	LUO R Z , WANG R J , ZHANG K , et al. Residual convolution self-encoding network image denoising method[J]. Computer Simulation, 2021, 38 (5): 455- 461. doi: 10.3969/j.issn.1006-9348.2021.05.093
21	杜渺勇, 于祥雨, 周浩, 等. 基于自编码卷积神经网络的图像去噪算法[J]. 杭州师范大学学报(自然科学版), 2021, 20 (1): 95- 101.
	DU M Y , YU X Y , ZHOU H , et al. Image denoising algorithm based on self-encoding convolutional neural network[J]. Journal of Hangzhou Normal University (Natural Science Edition), 2021, 20 (1): 95- 101.
22	卢文侣. 毫米波大规模MIMO系统信道估计研究[D]. 北京: 北京邮电大学, 2017.
	LU W L. Channel estimation study of millimeter wave large-scale MIMO system[D]. Beijing: Beijing University of Posts and Telecommunications, 2017.
23	HE H , WEN C K , JIN S , et al. Deep learning-based channel estimation for beamspace mmWave massive MIMO systems[J]. IEEE Wireless Communication Letters, 2018, 7 (5): 852- 855. doi: 10.1109/LWC.2018.2832128
24	LIN Z, FENG M, SANTOS C N, et al. A structured self-attentive sentence embedding[EB/OL]. [2021-06-22]. ar Xiv preprint ar Xiv: 1703.03130, 2017.
25	ZHANG K, ZUO W Y, GU S, et al. Learning deep CNN denoiser prior for image restoration[C]//Proc. of the IEEE Conference on Computer Vision and Pattern Recognition, 2017: 3929-3938.
26	WANG J K , ZHENG Y , WANG M H , et al. Object-scale adaptive convolutional neural networks for high-spatial resolution remote sensing image classification[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2021, 14, 283- 299. doi: 10.1109/JSTARS.2020.3041859
27	TAMURA H, YANGAGISAWA K, SHIRANE A, et al. Wireless devices identification with light-weight convolutional neural network operating on quadrant IQ transition image[C]//Proc. of the 18th IEEE International New Circuits and Systems Conference, 2020: 106-109.
28	GUO S, YAN Z, ZHANG K P, et al. Toward convolutional blind denoising of real photographs[C]//Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2019: 1712-1722.
29	周飞燕, 金林鹏, 董军. 卷积神经网络研究综述[J]. 计算机学报, 2017, 40 (6): 1229- 1251.
	ZHOU F Y , JIN L P , DONG J . A review of research on convolutional neural networks[J]. Acta computerica sinica, 2017, 40 (6): 1229- 1251.
30	ALKHATEEB A. DeepMIMO: a generic deep learning dataset for millimeter wave and massive MIMO applications[C]//Proc. of the Information Theory and Applications Workshop, 2019.

算法	乘法运算次数	复杂度
LS	U²+N	O(U²)
MMSE	4U³+N	O(U³)
CNN	102U³B+36L	O(U³B)
DnCNN	128U²B+24L	O(U²B)
Attention-CNN	176U²B+32L	O(U²B)

参数	数值
基站数	5, 6, 7, 8
用户数	1 200~1 800
基站天线数	M_x=1, M_y=16, M_z=8
天线间距	0.5
系统带宽/GHz	0.5
OFDM子载波数	1 024
路径数	5
学习率γ	0.001
激活函数	Relu
SNR范围/dB	30
bach_size	32
epoch	300
