基于机群关系特征的多机协同作战任务分配

doi:10.12305/j.issn.1001-506X.2022.06.16

Abstract

Abstract:

This paper studies the task allocation problem of multiple aerial vehicles cooperative operation. Firstly, according to the characteristics of different aerial vehicle types, the concept of task adaptability is proposed to describe the relative pros and cons of different aerial vehicle types in different mission scenarios. Secondly, based on the relation of aerial vehicles between the same fleets or different fleets, a characteristic relation function is proposed to describe the impact of other aerial vehicles on their own performance when performing the same task. Thirdly, in response to the task requirements which multiple aerial vehicles complete together, a global profit index considering the task adaptability and the characteristic relation of aerial fleets is designed, and by solving the optimization problem, the multiple aerial vehicles cooperative operation benefit is maximized. Finally, for the typical aerial vehicles cooperative combat scenarios, by solving the above optimization problem, the task assignment result is obtained. The results show that the proposed global profit model is reasonable and can make full use of the advantages of multiple aerial vehicles and the relation between members inside and outside the fleet to increase the overall revenue. It has important significance for the assignment of aerial vehicles cooperative operation tasks.

Key words: multiple aerial vehicle types, cooperative operation, task allocation, task adaptability, characteristic relation of aerial fleets

CLC Number:

Chengfei YUE, Zhenghua XUE, Weiran YAO, Xibin CAO. Cooperative combat task allocation of multiple aerial vehicles based on the characteristic relation[J]. Systems Engineering and Electronics, 2022, 44(6): 1897-1906.

Figures/Tables 14

Fig.1

Fig.2

Fig.3

Table 1

Table 2

Fig.4

Fig.5

Table 3

Table 4

Table 5

Table 6

Table 7

Fig.6

Fig.7

References 23

1	SHU Z , WANG W P , WANG R .Design of an optimized architecture for manned and unmanned combat system-of-systems: formulation and coevolutionary optimization[J].IEEE Access,2018,6,52725-52740. doi: 10.1109/ACCESS.2018.2870969
2	李文, 陈建.有人机/无人机混合编队协同作战研究综述与展望[J].航天控制,2017,35(3):90-96.
	LI W , CHEN J .Review and prospect of cooperative combat of manned/unmanned aerial vehicle hybrid formation[J].Aerospace Control,2017,35(3):90-96.
3	贾高伟, 王建峰.无人机集群任务规划方法研究综述[J].系统工程与电子技术,2020,43(1):99-111.
	JIA G W , WANG J F .Research review of UAV swarm mission planning method[J].Systems Engineering and Electronics,2020,43(1):99-111.
4	YAO W R , QI N M , WAN N , et al.An iterative strategy for task assignment and path planning of distributed multiple unmanned aerial vehicles[J].Aerospace Science and Technology,2019,86,455-464. doi: 10.1016/j.ast.2019.01.061
5	唐嘉钰, 李相民, 代进进, 等.复杂约束条件下异构多智能体联盟任务分配[J].控制理论与应用,2020,37(11):144-153.
	TANG J Y , LI X M , DAI J J , et al.Coalition task allocation of heterogeneous multiple agents with complex constraints[J].Control Theory & Applications,2020,37(11):144-153.
6	MIAO Y F , ZHONG L , YIN Y F , et al.Research on dynamic task allocation for multiple unmanned aerial vehicles[J].Transactions of the Institute of Measurement and Control,2017,39(4):466-474. doi: 10.1177/0142331217693077
7	李夏苗, 廖文昆, 伍国华, 等.基于两阶段迭代优化的空天观测资源协同任务规划方法[J].控制与决策,2021,36(5):1147-1156.
	LI X M , LIAO W K , WU G H , et al.A two-stage iterative optimazation method for the coordinated task planning of space and air observation resources[J].Control and Decision,2021,36(5):1147-1156.
8	FU Z J , MAO Y H , HE D J , et al.Secure multi-UAV collaborative task allocation[J].IEEE Access,2019,7,35579-35587. doi: 10.1109/ACCESS.2019.2902221
9	KURDI H A , ALOBOUD E , ALALWAN M , et al.Autonomous task allocation for multi-UAV systems based on the locust elastic behavior[J].Applied Soft Computing,2018,71,110-126. doi: 10.1016/j.asoc.2018.06.006
10	周晶, 赵晓哲, 许震, 等.基于D-NSGA-Ⅲ算法的无人机群高维多目标任务分配方法[J].系统工程与电子技术,2021,43(5):1240-1247.
	ZHOU J , ZHAO X J , XU Z , et al.Task allocation method based on D-NSGA-Ⅲ algorithm for multi-UAVs[J].Systems Engineering and Electronics,2021,43(5):1240-1247.
11	ZHAO X Y , ZONG Q , TIAN B L , et al.Fast task allocation for heterogeneous unmanned aerial vehicles through reinforcement learning[J].Aerospace Science and Technology,2019,92,588-594. doi: 10.1016/j.ast.2019.06.024
12	ZHONG Y, YAO P Y, SUN Y, et al. Research on command and control of MAV/UAV engagement from the cooperative perspective[C]//Proc. of the IEEE International Conference on Information System and Artificial Intelligence, 2016: 38-44.
13	ZHONG Y , YAO P Y , ZHANG J Y , et al.Formation and adjustment of manned/unmanned combat aerial vehicle cooperative engagement system[J].Journal of Systems Engineering and Electronics,2018,29(4):756-767. doi: 10.21629/JSEE.2018.04.10
14	ZHONG Y , YAO P Y , WAN L J , et al.Intervention decision-making in MAV/UAV cooperative engagement based on human factors engineering[J].Journal of Systems Engineering and Electronics,2018,29(3):530-538. doi: 10.21629/JSEE.2018.03.10
15	韩博文, 姚佩阳.基于Holon组织的有人/无人机作战联盟形成[J].系统工程与电子技术,2018,40(1):91-97.
	HAN B W , YAO P Y .Coalition formation of manned/unmanned aerial vehicle cluster based on Holon organization[J].Systems Engineering and Electronics,2018,40(1):91-97.
16	JIAO Z Q , YAO P Y , ZHANG J Y , et al.MAV/UAV task coalition phased-formation method[J].Journal of Systems Engineering and Electronics,2019,30(2):402-414. doi: 10.21629/JSEE.2019.02.18
17	姜禹呈, 郭基联.有人机/无人机协同效果评估模型设计[J].军事运筹与系统工程,2016,30(3):28-31.
	JIANG Y C , GUO J L .Evaluation model design of manned/unmanned aerial vehicle for synergy effect[J].Military Operations Research and Systems Engineering,2016,30(3):28-31.
18	FAN J R, LI D G, LI R P. Research on mission planning for MAV/UAV cooperative combat[C]//Proc. of the IEEE International Conference on Unmanned Systems, 2019: 548-553.
19	史国庆, 武凡, 张林, 等.基于组合赋权法的有人/无人机协同作战能力分析[J].火力与指挥控制,2019,44(4):87-91.
	SHI G Q , WU F , ZHANG L , et al.Analysis of MAV/UAV cooperative engagement capability based on combination weight method[J].Fire Control & Command Control,2019,44(4):87-91.
20	邓雪, 李家铭, 曾浩健, 等.层次分析法权重计算方法分析及其应用研究[J].数学的实践与认识,2012,42(7):93-100.
	DENG X , LI J M , ZENG H J , et al.Research on computation methods of AHP wight vector and its applications[J].Journal of Mathematics in Practice and Theory,2012,42(7):93-100.
21	董彦非, 张旺, 崔巍.有人机/无人机协同空地攻击效能评估的综合指数模型[J].火力与指挥控制,2015,40(2):58-62.
	DONG Y F , ZHANG W , CUI W .Synthesized index model for cooperation of manned/unmanned fighters in air-to-ground attacking effectiveness assessment[J].Fire Control & Command Control,2015,40(2):58-62.
22	李炜, 张伟.基于粒子群算法的多无人机任务分配方法[J].控制与决策,2010,25(9):1359-1363.
	LI W , ZHANG W .Method of tasks allocation of multi-UAV based on particles swarm optimization[J].Control and Decision,2010,25(9):1359-1363.
23	XIAO J M , LI J J , WANG X H .A modified particle swarm optimization for traveling salesman problems[J].Computer Engineering and Applications,2004,40(35):50-52.

标度	含义
1	A_i与A_j同样重要
3	A_i比A_j稍为重要
5	A_i比A_j重要
7	A_i比A_j重要很多
9	A_i比A_j绝对重要
2, 4, 6, 8	上述两相邻判断的中值

指标	n
指标	1	2	3	4	5	6	7	8
RI	0	0	0.52	0.89	1.12	1.24	1.36	1.41

机群A参数	A_M1	A_M2	A_M3	A_U4	A_U5	A_U6
折损惩罚值	15	15	15	1.5	1.5	1.5

机群B参数	B_M1	B _M2	B _M3	B _U4	B _U5	B _U6
折损惩罚值	15	15	15	1.5	1.5	1.5

参数	任务1	任务2	任务3	任务4
λ₁	0.4	0.1	1.4	1.4
λ₂	1.1	2.4	0.4	0.2

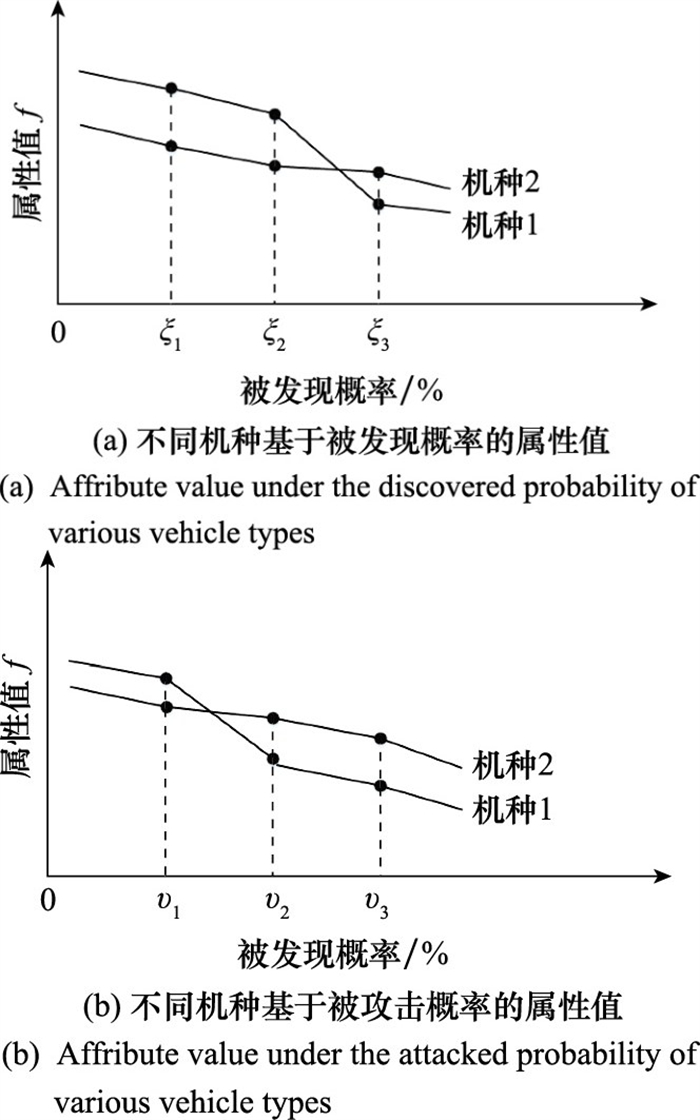

p₁/%	ξ₁=25	ξ₂=50	ξ₃=75	ξ₃=75
p₂/%	u₃=75	u₃=75	u₂=50	u₁=25
f₁	f₁¹(M, p₁¹)=0.7	f₁²(M, p₁²)=0.6	f₁³(M, p₁³)=0.3	f₁⁴(M, p₁⁴)=0.3
f₁	f₁¹(U, p₁¹)=0.9	f₁²(U, p₁²)=0.8	f₁³(U, p₁³)=0.1	f₁⁴(U, p₁⁴)=0.1
f₂	f₂¹(M, p₂¹)=0.1	f₂²(M, p₂²)=0.1	f₂³(M, p₂³)=0.2	f₂⁴(M, p₂⁴)=0.9
f₂	f₂¹(U, p₂¹)=0.3	f₂²(U, p₂²)=0.3	f₂³(U, p₂³)=0.6	f₂⁴(U, p₂⁴)=0.8

机种	任务1	任务2	任务3	任务4
机种1	F(M)=0.4	F(M)=0.3	F(M)=0.5	F(M)=0.6
机种2	F(U)=0.7	F(U)=0.8	F(U)=0.4	F(U)=0.3

Cooperative combat task allocation of multiple aerial vehicles based on the characteristic relation

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 14

References 23

Related Articles 10

Recommended Articles

Metrics

Comments

关系	A1	A2	A3	A4	A5	A6	B1	B2	B3	B4	B5	B6
A1	0	0	1	0	1	0	-1	-1	0	0	0	0
A2	0	0	0	1	1	1	-1	0	-1	0	-1	-1
A3	0	0	0	1	1	1	-1	-1	-1	0	0	0
A4	0	0	0	0	0	0	0	-1	-1	0	-1	0
A5	0	0	0	0	0	1	-1	0	-1	0	-1	0
A6	0	0	0	0	0	0	-1	0	0	0	0	-1
B1	-1	-1	-1	0	-1	-1	0	0	1	0	1	0
B2	-1	0	-1	-1	0	0	0	0	0	0	0	0
B3	0	-1	-1	-1	-1	0	0	0	0	0	1	0
B4	0	0	0	0	0	0	0	0	0	0	1	1
B5	0	-1	0	-1	-1	0	0	0	0	0	0	0
B6	0	-1	0	0	0	-1	0	0	0	0	0	0

关系考虑	任务1	任务2	任务3	任务4	分配结果关系数目
不考虑竞合	A_U4 A_U5 B_U4	A_U6 B_U5 B_U6	A_M1 B_M2 B_M3	A_M2 A_M3 B_M1	合作: 0 竞争: 0
只考虑合作	A_U4 B_U4 B_U6	A_U5 A_U6 B_U5	A_M1 A_M2 A_M3	B_M1 B_M2 B_M3	合作: 4 竞争: 0
只考虑竞争	A_U4 A_U5 A_U6	B_U4 B_U5 B_U6	A_M1 A_M3 B_M1	A_M2 B_M2 B_M3	合作: 0 竞争: 3
考虑竞争合作	A_U4 A_U6 A_M2	A_U5 B_U4 B_U6	B_U5 A_M1 A_M3	B_M1 B_M2 B_M3	合作: 5 竞争: 0
