Dongtao WEI, Xiaodong LIU, Peng LI, Yujin CHEN. Research on effectiveness evaluation method of equipment system based on node importance and improved information entropy[J]. Systems Engineering and Electronics, 2021, 43(12): 3614-3623.

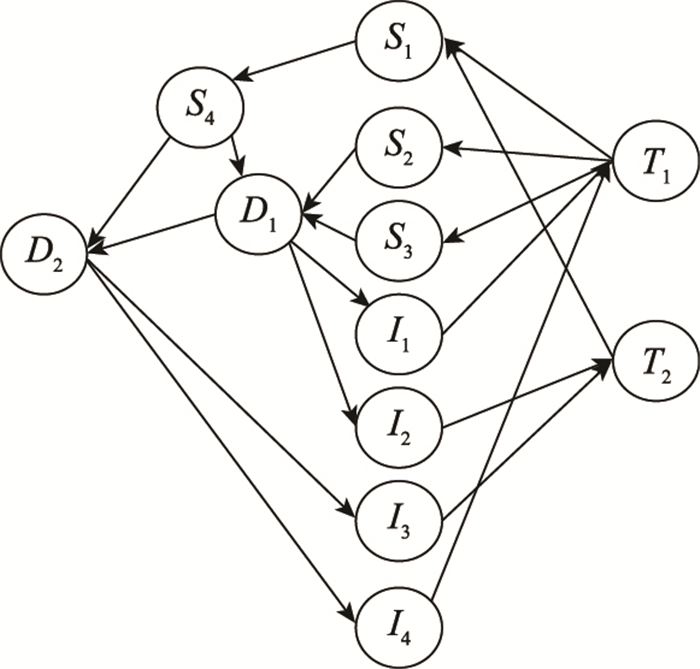

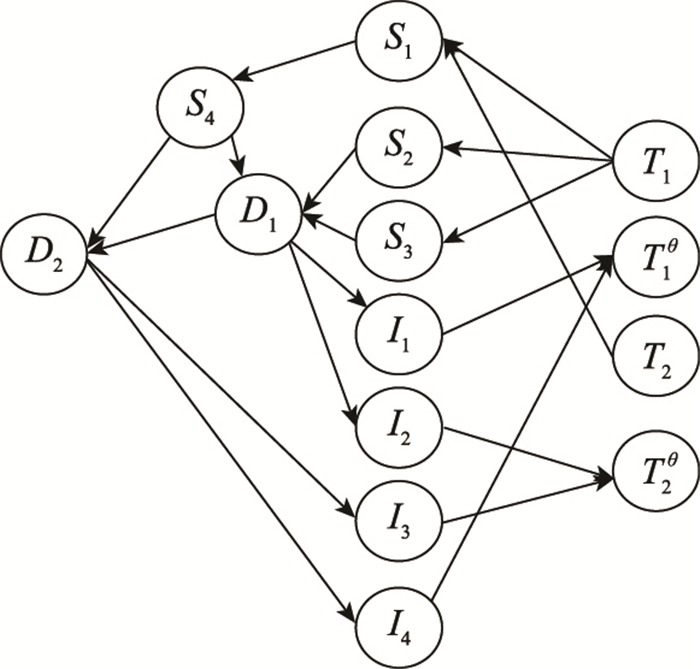

Table 2
The first-level decomposition results"
节点vi | 可达集R(vi) | 先行集B(vi) | R(vi)∩B(vi) |
S1 | S1, S4, D1, D2, I1, I2, I3, I4, T1θ, T2θ | S1, T1ϑ, T2ϑ | S1 |
S2 | S2, D1, D2, I1, I2, I3, I4, T1θ, T2θ | S2, T1ϑ | S2 |
S3 | S3, D1, D2, I1, I2, I3, I4, T1θ, T2θ | S3, T1ϑ | S3 |
S4 | S4, D1, D2, I1, I2, I3, I4, T1θ, T2θ | S1, S4, T1ϑ, T2ϑ | S4 |
D1 | D1, D2, I1, I2, I3, I4, T1θ, T2θ | S1, S2, S3, S4, D1, T1ϑ, T2ϑ | D1 |
D2 | D2, I3, I4, T1θ, T2θ | S1, S2, S3, S4, D1, D2, T1ϑ, T2ϑ | D2 |
I1 | I1, T1θ | S1, S2, S3, S4, D1, I1, T1ϑ, T2ϑ | I1 |
I2 | I2, T2θ | S1, S2, S3, S4, D1, I2, T1ϑ, T2ϑ | I2 |
I3 | I3, T2θ | S1, S2, S3, S4, D1, D2, I3, T1ϑ, T2ϑ | I3 |
I4 | I4, T1θ | S1, S2, S3, S4, D1, D2, I4, T1ϑ, T2ϑ | I4 |
T1ϑ | S1, S2, S3, S4, D1, D2, I1, I2, I3, I4, T1ϑ, T1θ, T2θ | T1ϑ | T1ϑ |
T1θ | T1θ | S1, S2, S3, S4, D1, D2, I1, I4, T1ϑ, T1θ, T2ϑ | T1θ |
T2ϑ | S1, S4, D1, D2, I1, I2, I3, T1θ, T2ϑ, T2θ | T2ϑ | T2ϑ |
T2θ | T2θ | S1, S2, S3, S4, D1, D2, I2, I3, T1ϑ, T2ϑ, T2θ | T2θ |
Table 3
Various weights of nodes"
节点 | 网络全局权重 | 节点强度 | 节点效率 | 网络局部权重 | 节点重要度 | 节点网络权重 |
S1 | 0.091 8 | 1.6 | 0.294 9 | 0.947 4 | 0.087 0 | 0.087 0 |
S2 | 0.071 6 | 1.0 | 0.294 9 | 0.647 4 | 0.046 4 | 0.046 4 |
S3 | 0.071 6 | 1.0 | 0.294 9 | 0.647 4 | 0.046 4 | 0.046 4 |
S4 | 0.128 6 | 1.4 | 0.359 0 | 0.879 5 | 0.113 1 | 0.113 1 |
D1 | 0.344 5 | 3.0 | 0.384 6 | 1.692 3 | 0.583 0 | 0.583 0 |
D2 | 0.258 4 | 2.0 | 0.230 8 | 1.115 4 | 0.288 2 | 0.288 2 |
I1 | 0.212 1 | 1.0 | 0.076 9 | 0.538 5 | 0.114 2 | 0.114 2 |
I2 | 0.212 1 | 1.0 | 0.076 9 | 0.538 5 | 0.114 2 | 0.114 2 |
I3 | 0.231 4 | 1.0 | 0.076 9 | 0.538 5 | 0.124 6 | 0.124 6 |
I4 | 0.231 4 | 1.0 | 0.076 9 | 0.538 5 | 0.124 6 | 0.124 6 |
T1ϑ | 0.087 4 | 1.2 | 0.488 7 | 0.824 4 | 0.072 1 | 0.210 9 |
T1θ | 0.231 4 | 1.2 | 0 | 0.6 | 0.138 8 | - |
T2ϑ | 0.025 7 | 0.4 | 0 | 0.2 | 0.005 1 | 0.180 1 |
T2θ | 0.231 4 | 1.2 | 0.312 8 | 0.756 4 | 0.175 0 | - |
Table 4
Equipment integrity and node weight"
节点 | 节点生存力 | 节点可靠性 | 装备完好度 | 节点权重 |
S1 | 0.923 6 | 1.00 | 0.923 6 | 0.080 3 |
S2 | 0.741 4 | 0.91 | 0.674 7 | 0.031 3 |
S3 | 0.816 7 | 0.82 | 0.669 7 | 0.031 0 |
S4 | 0.566 0 | 1.00 | 0.566 0 | 0.064 0 |
D1 | 0.741 4 | 0.91 | 0.674 7 | 0.393 3 |
D2 | 0.619 4 | 1.00 | 0.619 4 | 0.178 5 |
I1 | 0.816 7 | 0.96 | 0.784 0 | 0.089 5 |
I2 | 0.659 4 | 0.97 | 0.639 6 | 0.073 0 |
I3 | 0.616 0 | 0.98 | 0.603 7 | 0.075 2 |
I4 | 0.749 9 | 0.95 | 0.712 4 | 0.088 7 |
T1 | 0.800 0 | 1.00 | 0.800 0 | 0.168 7 |
T2 | 0.800 0 | 1.00 | 0.800 0 | 0.144 0 |
Table 5
Amount of self-information on the network side of operation loop"
名称 | T1-S1 | T1-S2 | T1-S3 | T2-S1 |
E=f(vT, vS) | 0.638 3 | 0.756 7 | 0.517 3 | 0.496 2 |
自信息量 | 0.448 9 | 0.278 8 | 0.659 1 | 0.700 8 |
综合自信息量 | 0.006 1 | 0.001 5 | 0.003 4 | 0.008 1 |
名称 | S2-D1 | S3-D1 | S4-D1 | S4-D2 |
E=f(vS, vD) | 0.856 1 | 0.661 9 | 0.768 5 | 0.801 2 |
自信息量 | 0.155 4 | 0.412 6 | 0.263 3 | 0.221 6 |
综合自信息量 | 0.001 9 | 0.005 | 0.006 6 | 0.002 5 |
名称 | D1-I1 | D1-I2 | D2-I3 | D2-I4 |
E=f(vD, vI) | 0.782 1 | 0.654 1 | 0.785 6 | 0.831 4 |
自信息量 | 0.245 8 | 0.424 5 | 0.241 3 | 0.184 6 |
综合自信息量 | 0.008 7 | 0.012 2 | 0.003 2 | 0.002 9 |
名称 | I1-T1 | I2-T2 | I3-T2 | I4-T1 |
E=f(vI, vT) | 0.645 2 | 0.774 9 | 0.599 8 | 0.810 6 |
自信息量 | 0.438 2 | 0.255 0 | 0.511 2 | 0.210 0 |
综合自信息量 | 0.006 6 | 0.002 7 | 0.005 5 | 0.003 1 |
名称 | S1-S4 | D1-D2 | - | - |
E=f(vI, vI)/E=f(vD, vD) | 0.786 3 | 0.858 2 | - | - |
自信息量 | 0.240 4 | 0.152 9 | - | - |
综合自信息量 | 0.001 2 | 0.010 7 | - | - |
Table 6
Target node operation loop and its uncertain self-information amount"
目标 | 编号 | 作战环 | 不确定性自信息量 |
T1 | 1 | T1-S1-S4-D2-I4-T1 | 0.015 8 |
2 | T1-S1-S4-D1-D2-I4-T1 | 0.030 6 | |
3 | T1-S1-S4-D1-I1-T1 | 0.029 2 | |
4 | T1-S2-D1-I1-T1 | 0.018 7 | |
5 | T1-S2-D1-D2-I4-T1 | 0.020 1 | |
6 | T1-S3-D1-I1-T1 | 0.025 3 | |
7 | T1-S3-D1-D2-I4-T1 | 0.025 1 | |
T2 | 1 | T2-S1-S4-D2-I3-T2 | 0.020 5 |
2 | T2-S1-S4-D1-I2-T2 | 0.030 8 | |
3 | T2-S1-S4-D1-D2-I3-T2 | 0.035 3 |
