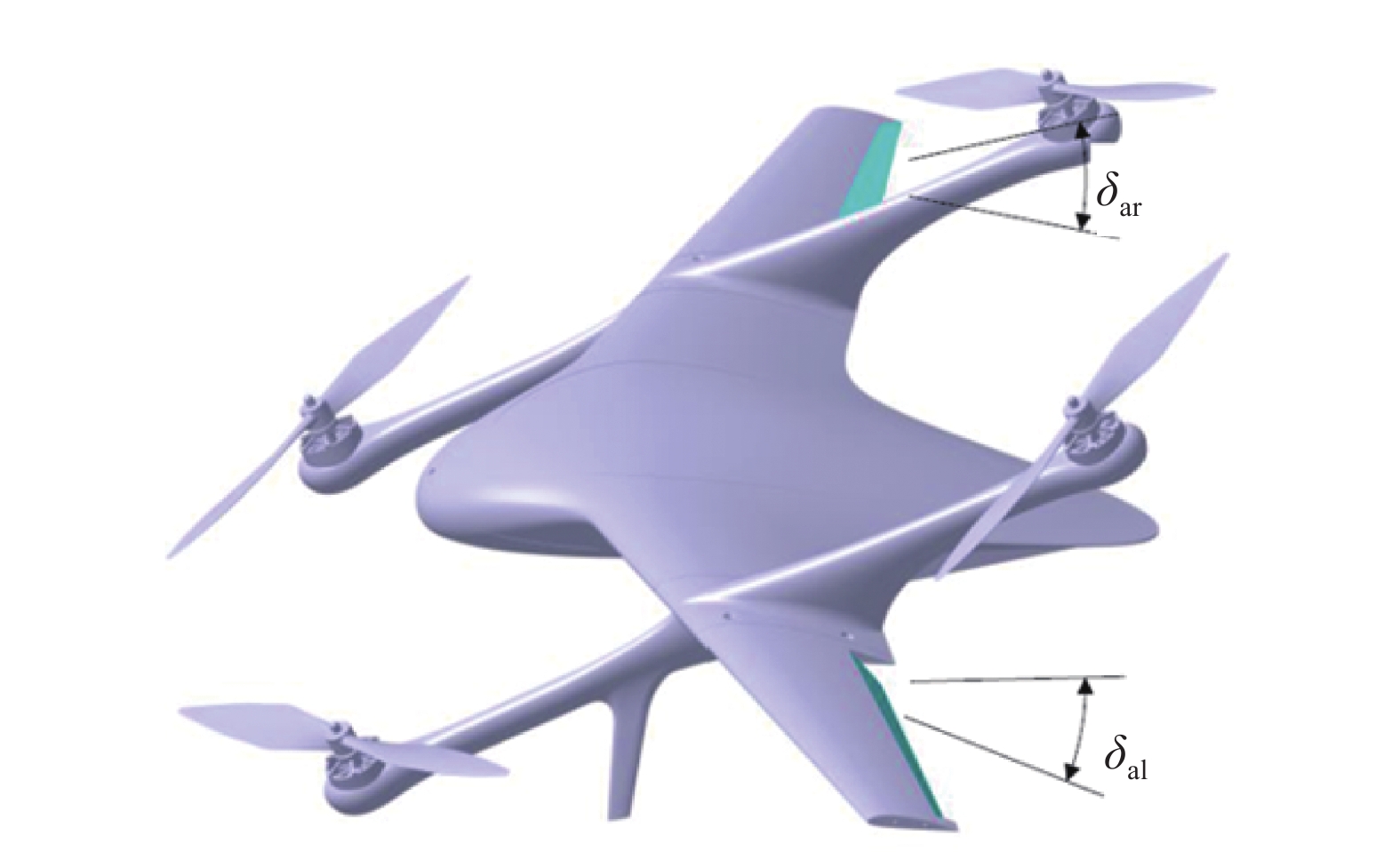

升力翼多旋翼飞行器的操控品质指标及评估

doi:10.12305/j.issn.1001-506X.2026.04.24

摘要/Abstract

摘要：

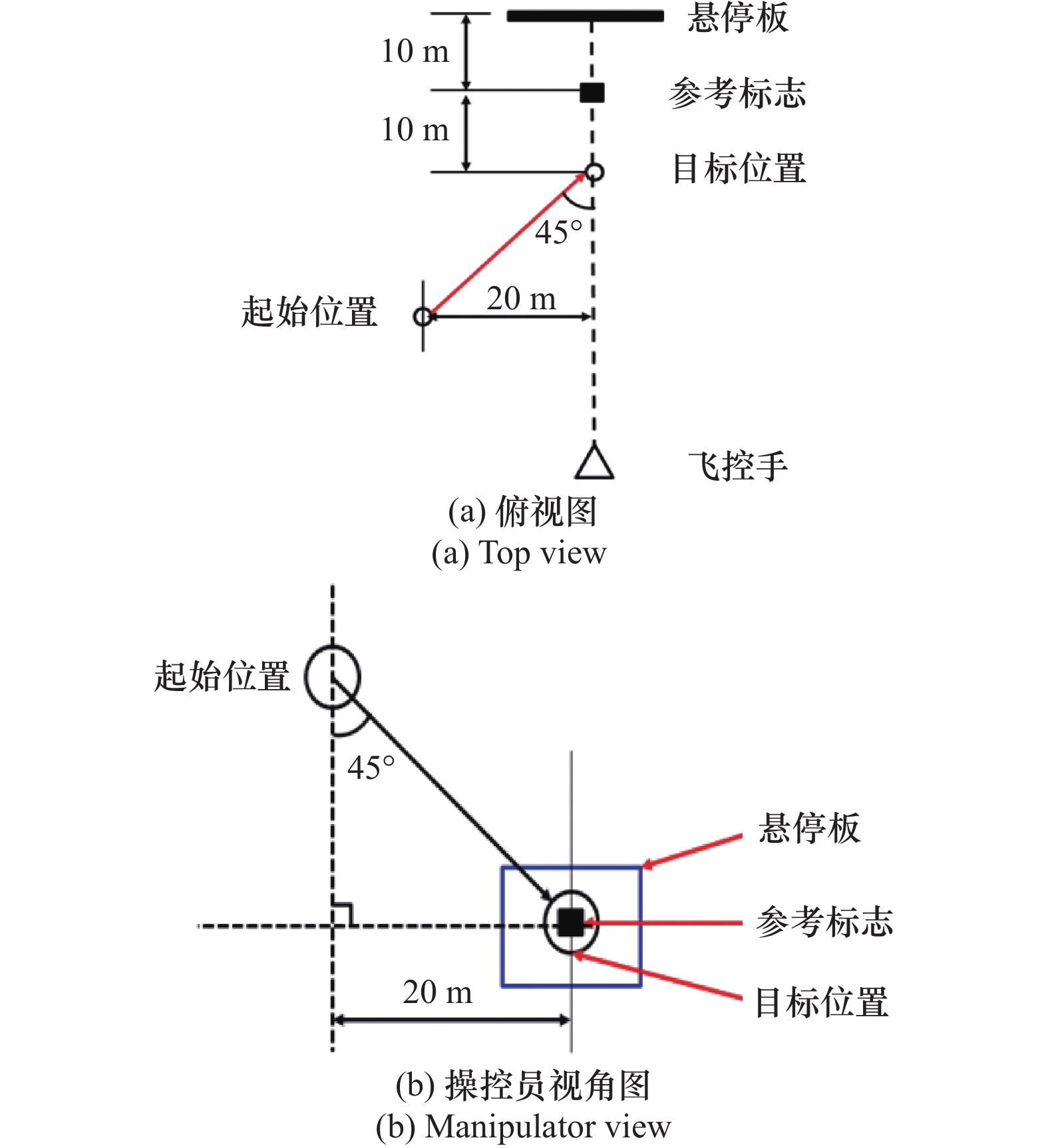

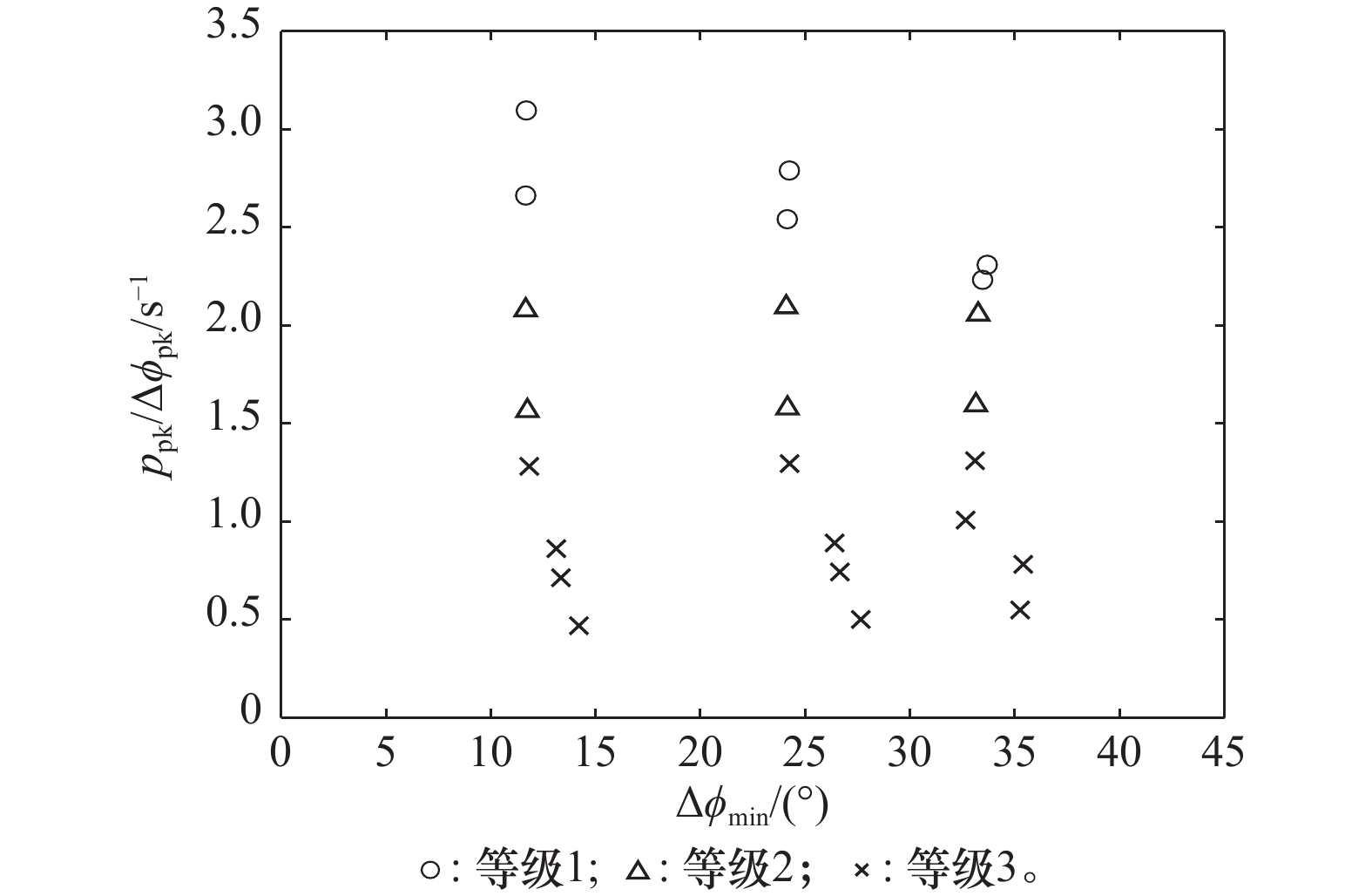

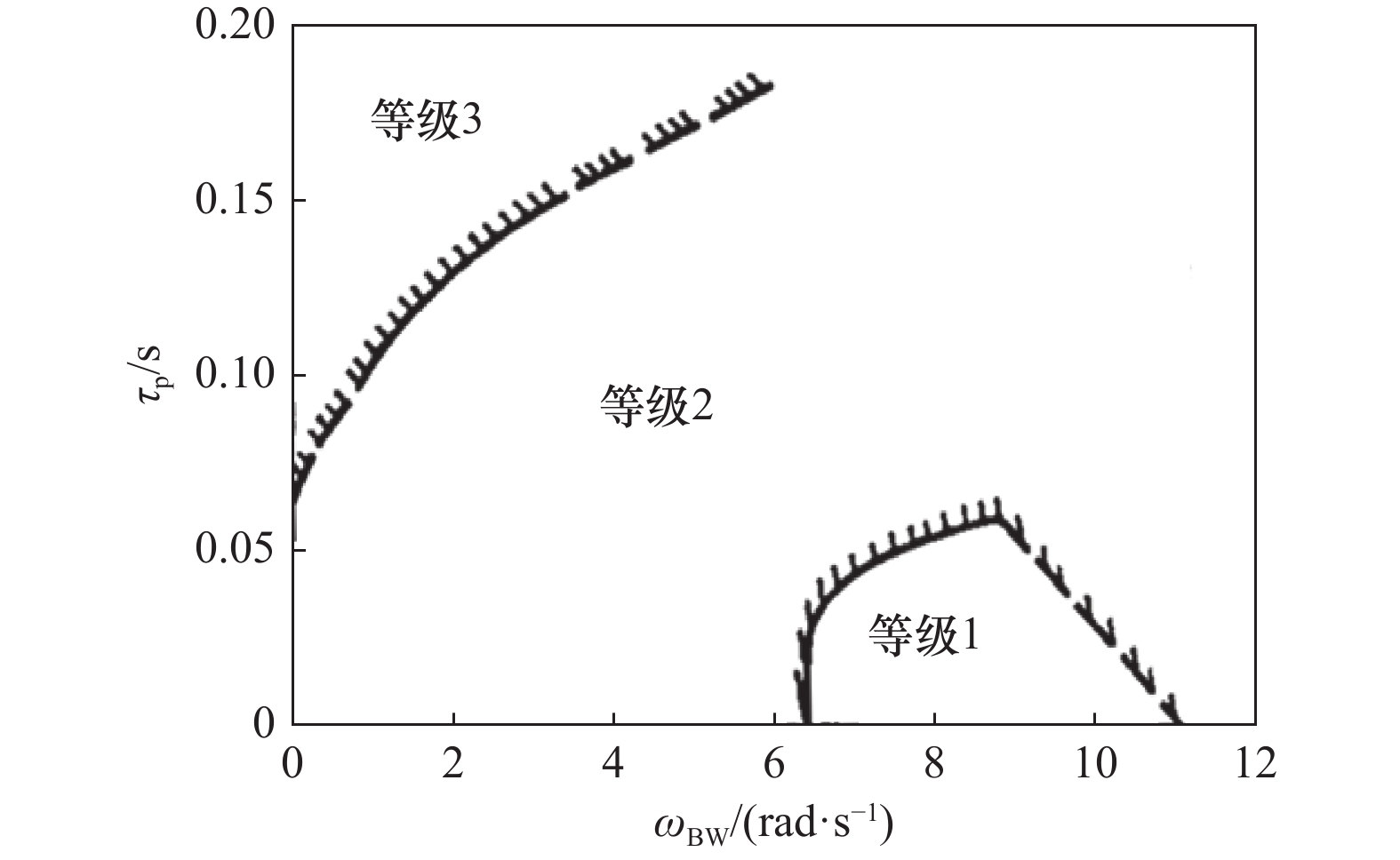

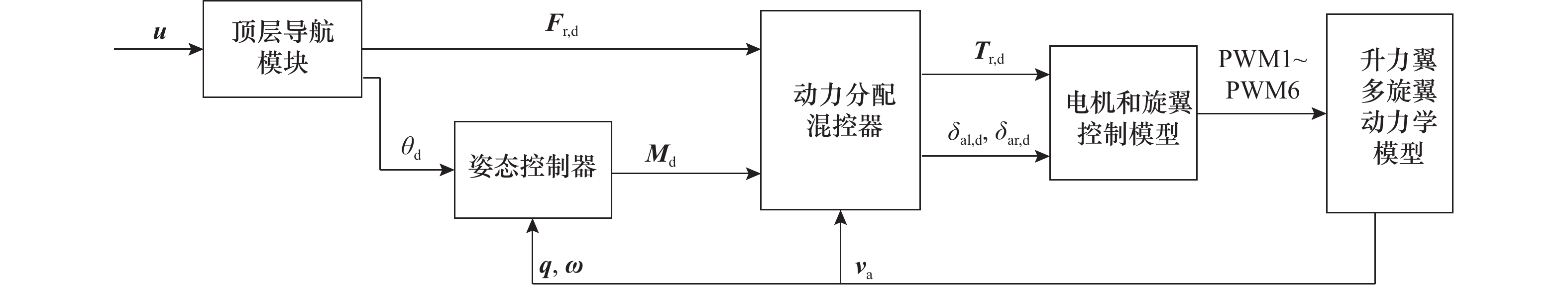

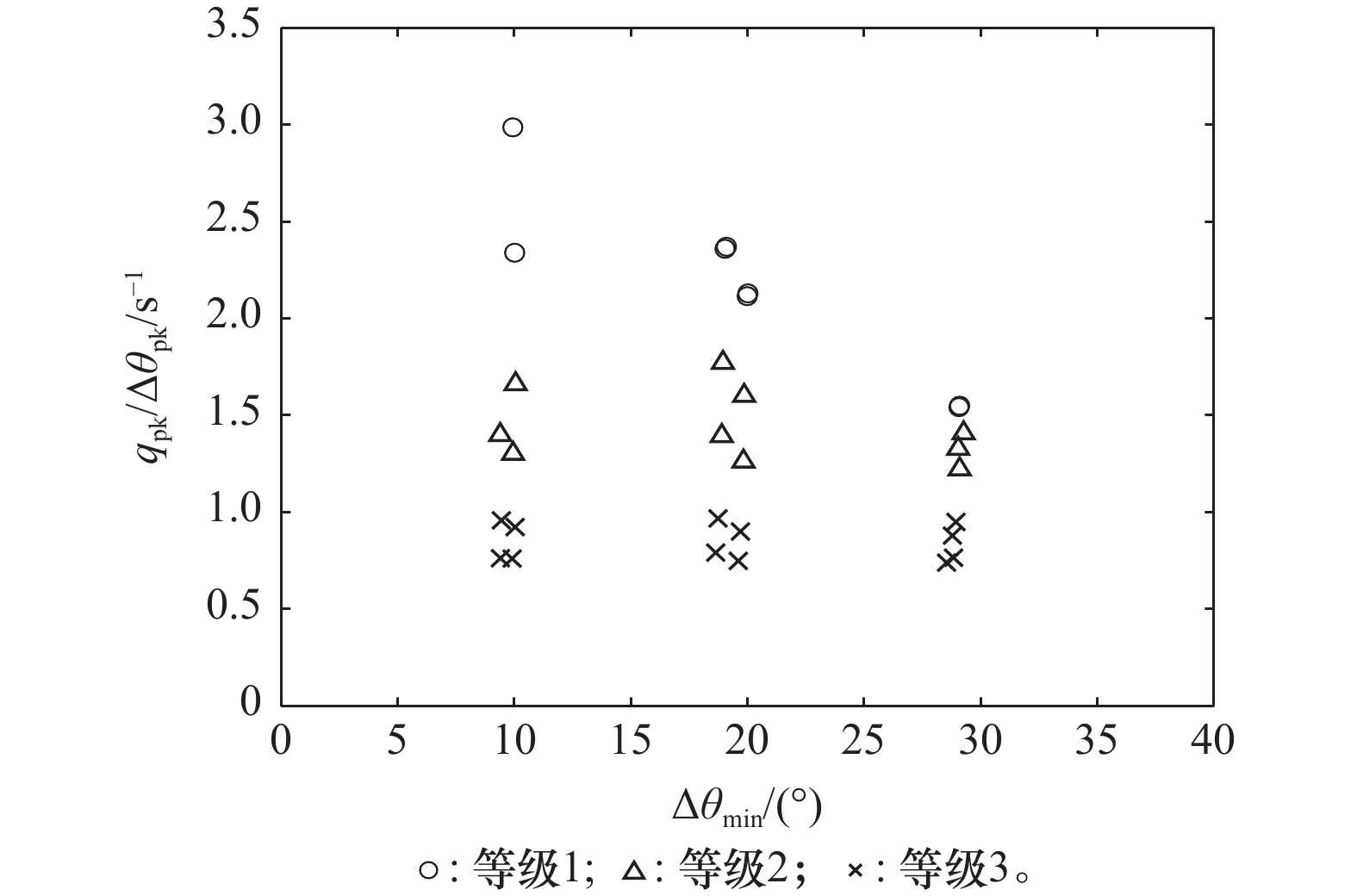

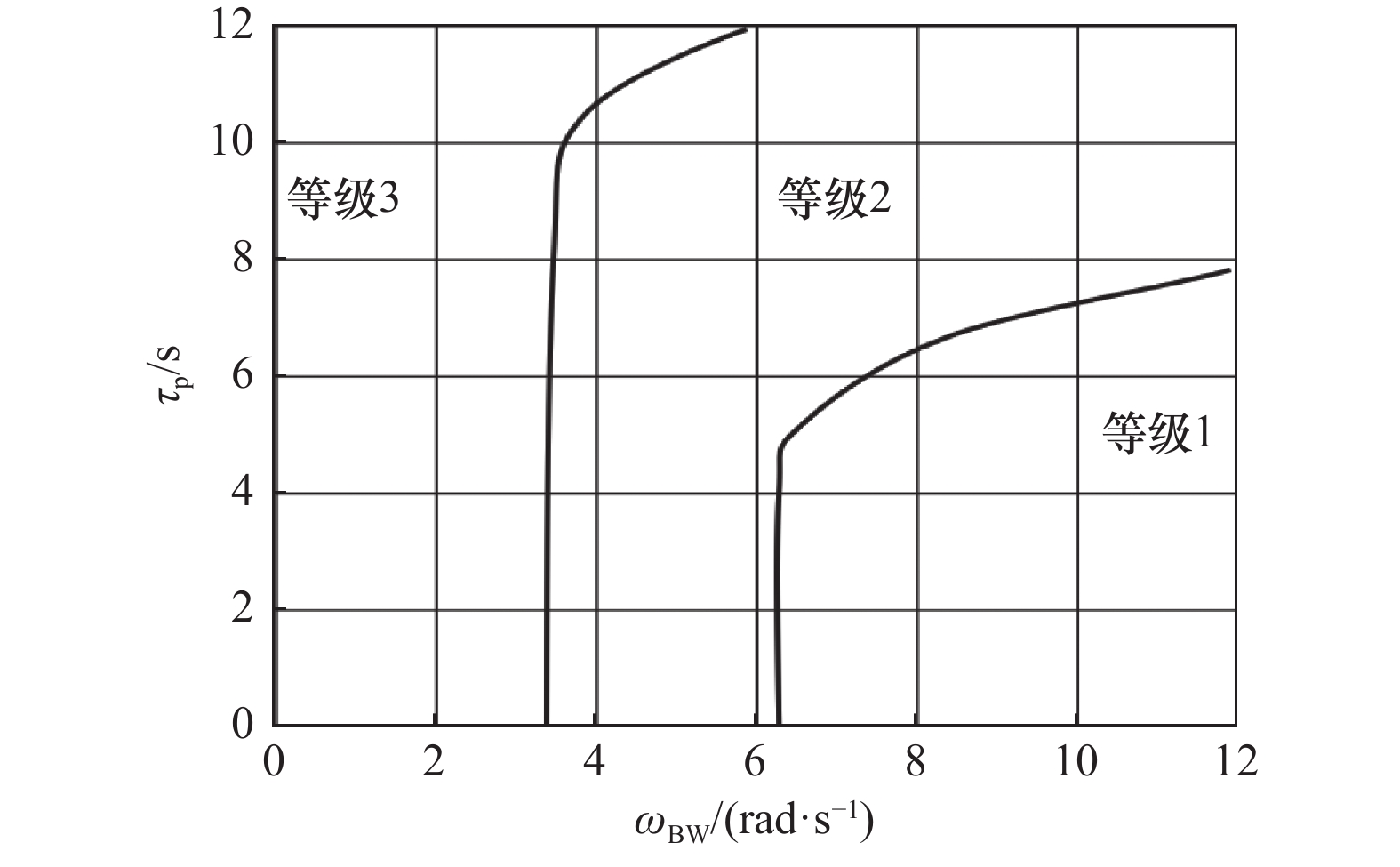

针对电动垂直起降复合翼飞行器在全飞行阶段的操控品质评估问题，以升力翼多旋翼这一典型的复合翼飞行器为研究对象，分析各个飞行阶段的操控特性和适用的指标内容，通过仿真飞行测试对过渡阶段指标进行等级划分，为全面客观地评估升力翼多旋翼提供了定量参考依据。此外，基于针对升力翼多旋翼改进了任务科目基元（mission task element，MTE）飞行试验方法，并提出了操控品质评估的具体工作流程。通过半实物仿真飞行测试，初步验证了过渡阶段指标等级到试验要求的可转化性。

关键词: 升力翼多旋翼, 操控品质, 飞行阶段, 任务科目基元

Abstract:

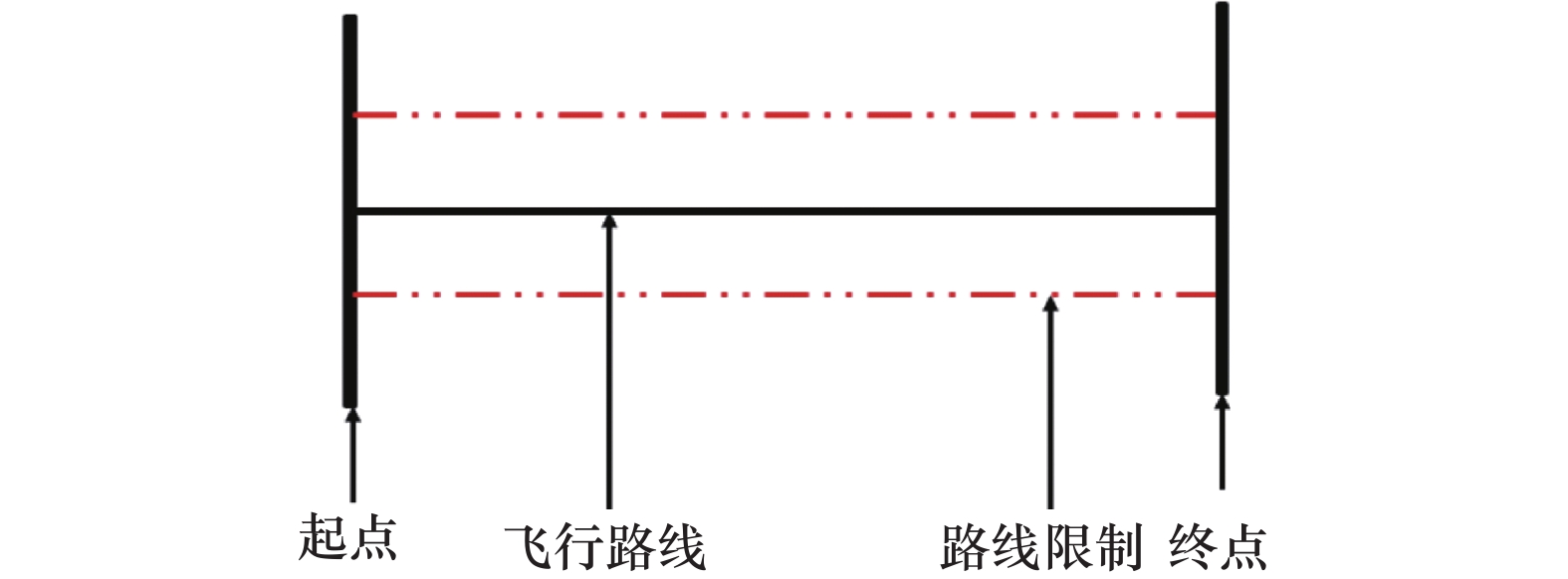

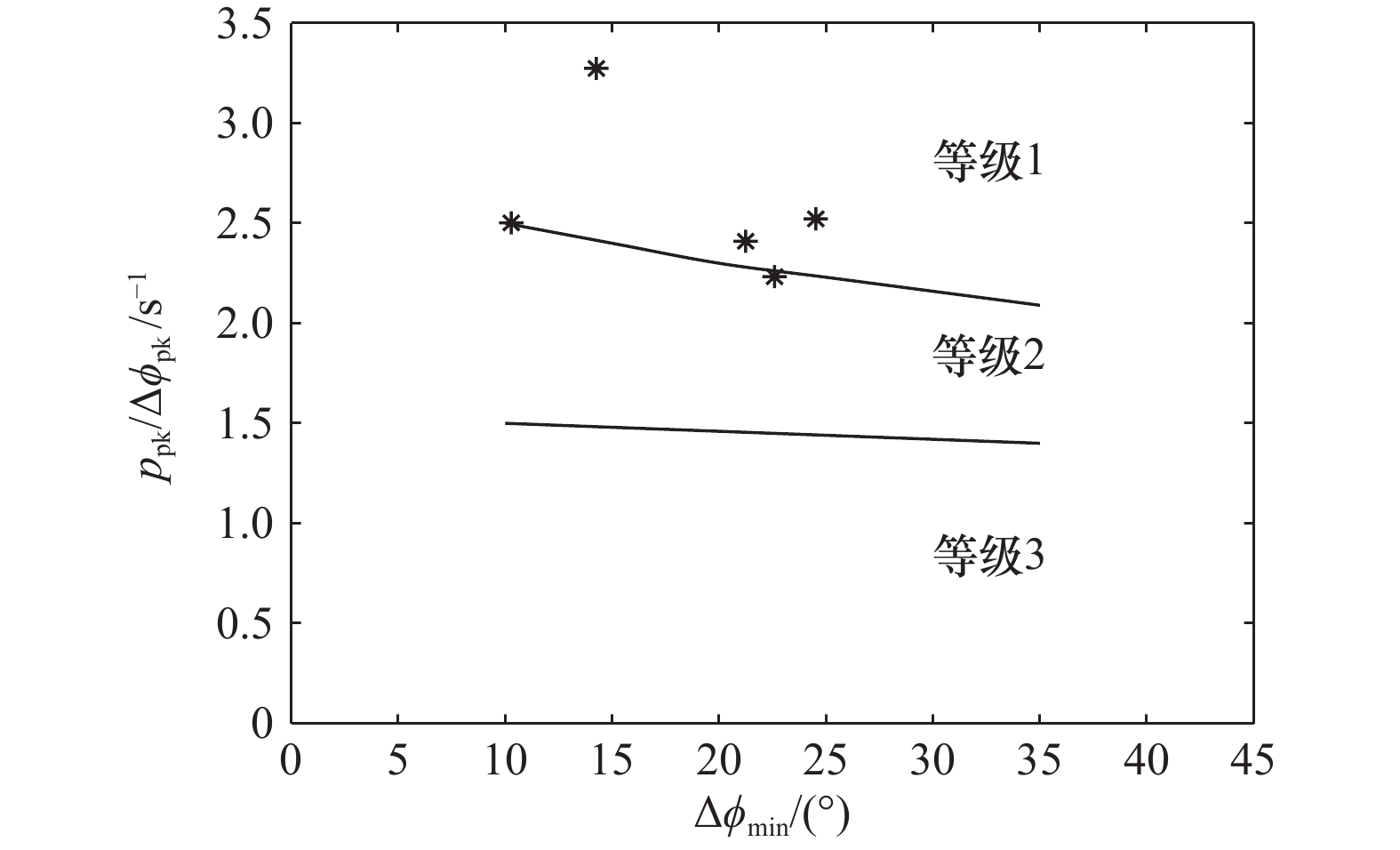

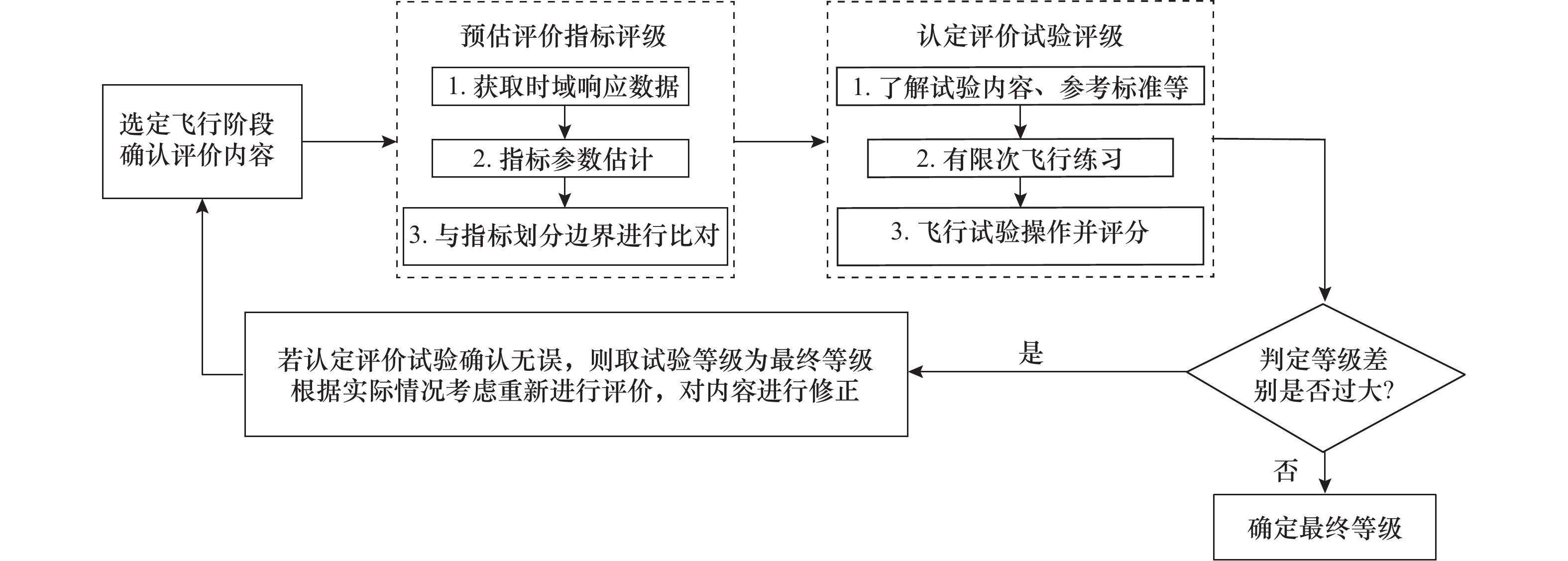

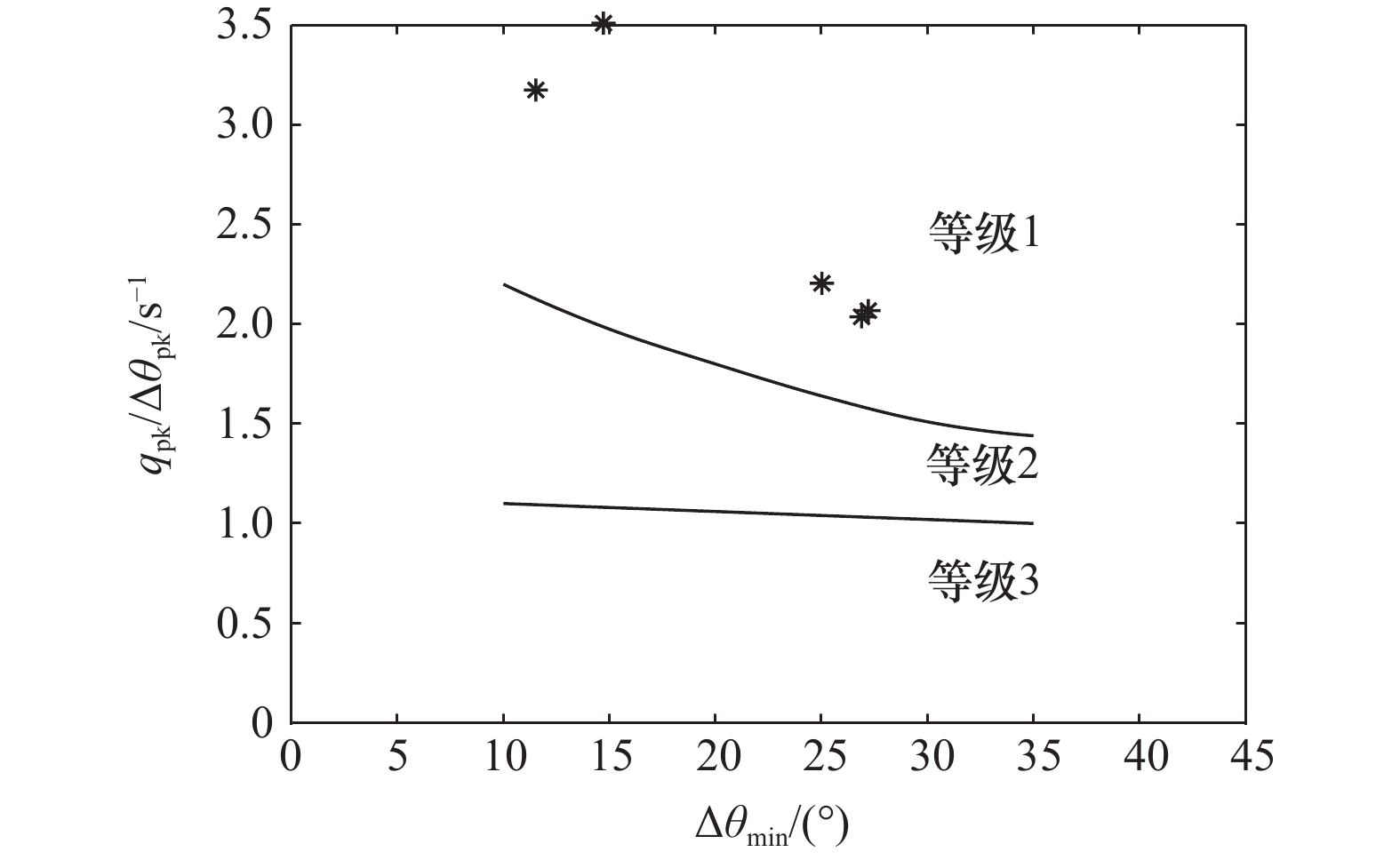

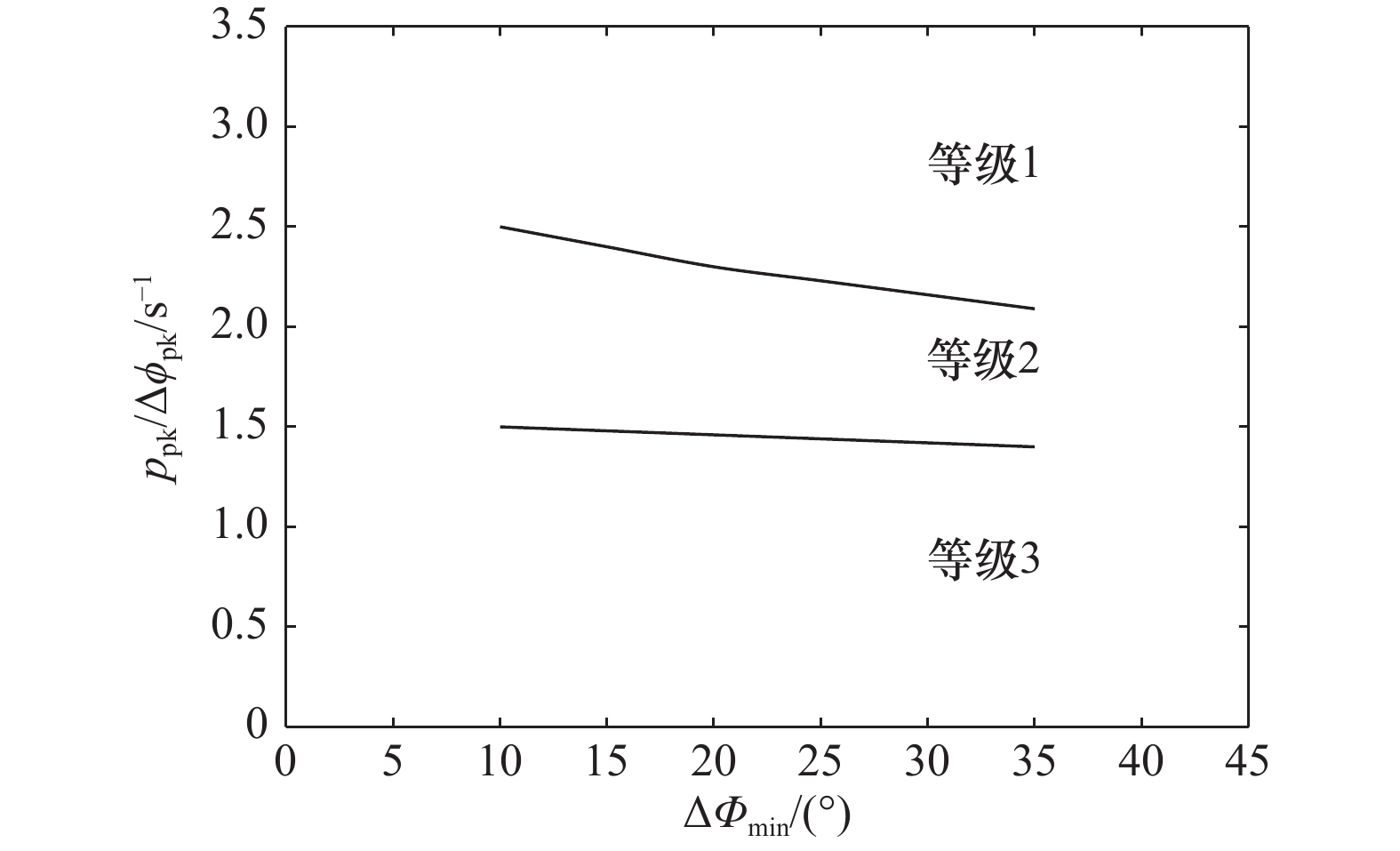

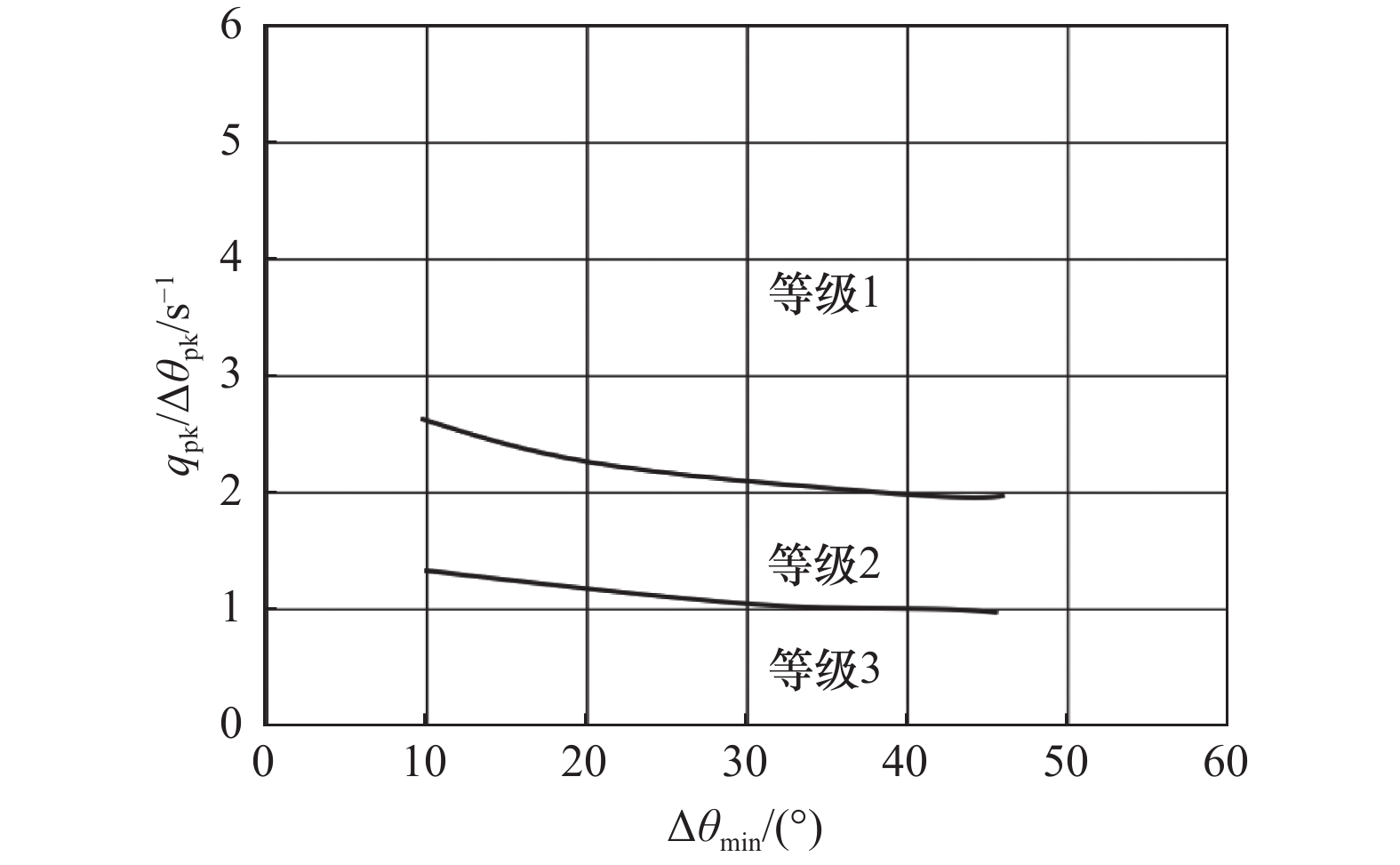

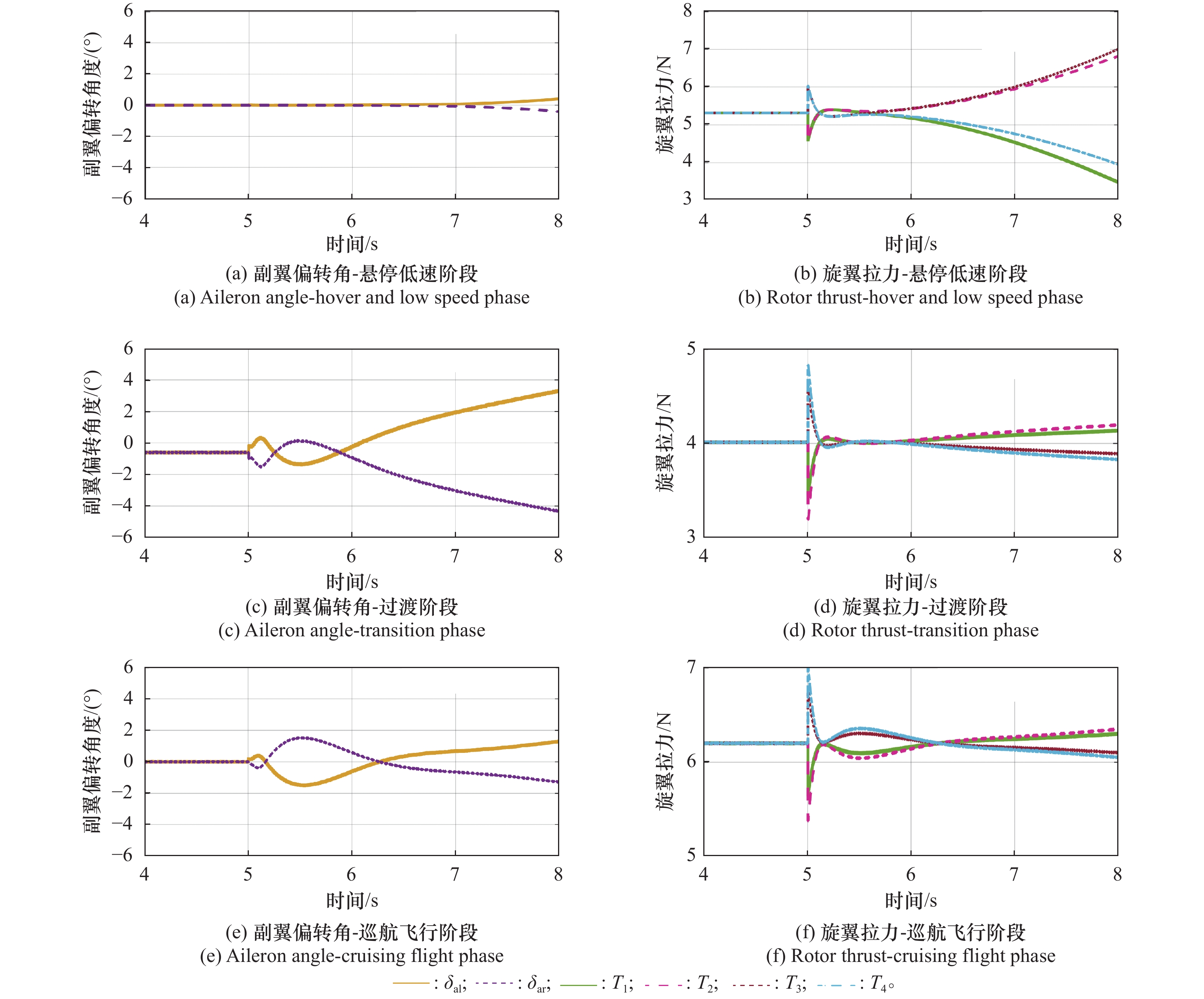

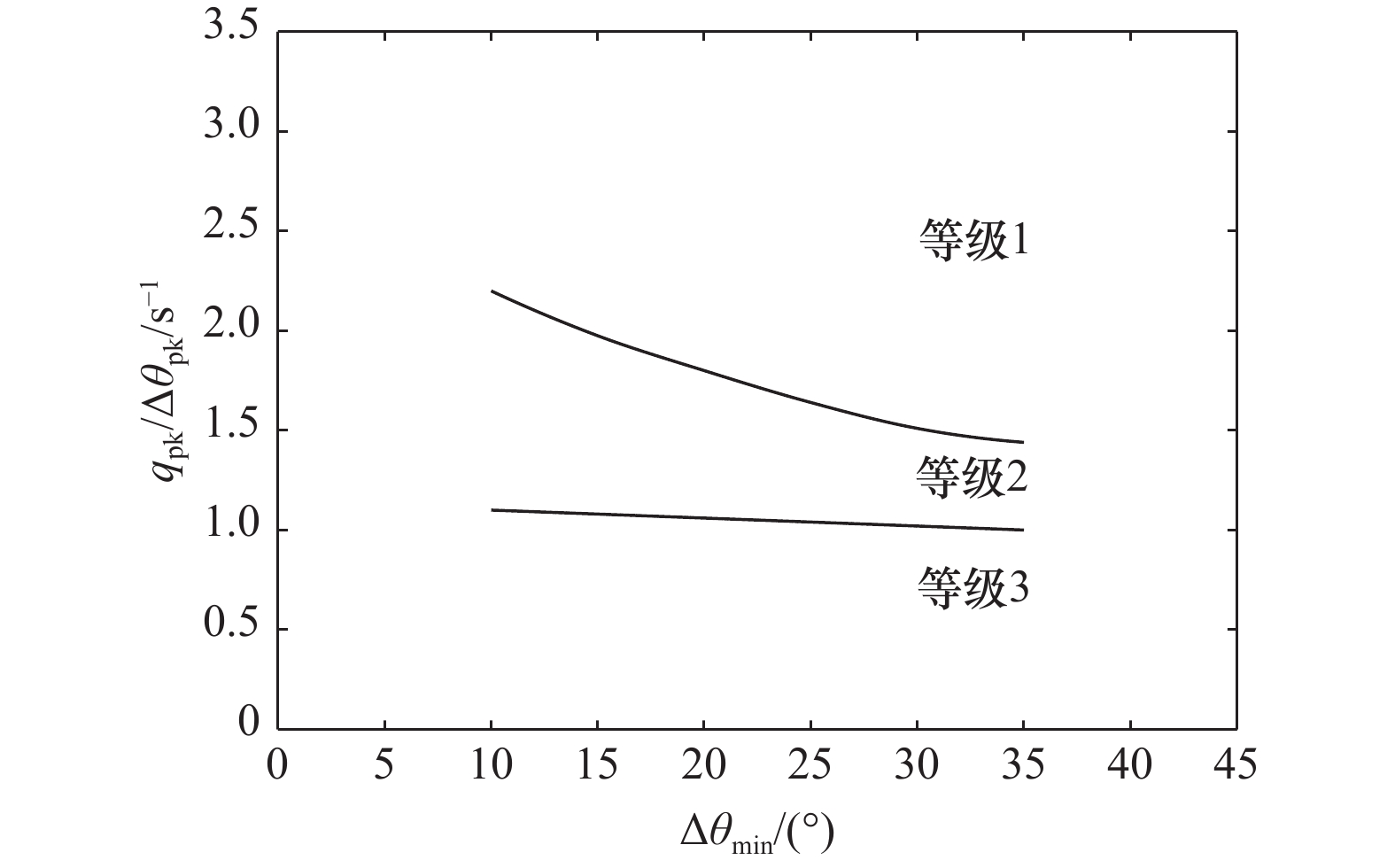

Considering the challenges associated with handling quality （HQ） evaluation of electric vertical take-off and landing （eVTOL） hybrid vehicles throughout their full flight envelope, this paper focuses on a representative hybrid configuration, namely the lifting-wing quadcopter. The handling characteristics and relevant quality metrics applicable to each distinct flight phase are systematically analysed. Indicators specific to transition flight are quantitatively graded through simulated flight tests, providing a reliable basis for objective and comprehensive evaluation. Furthermore, modifications to the standard mission task element （MTE） flight test methodology are proposed to accommodate the unique operational attributes of lifting-wing quadcopters, along with a structured workflow for assessing HQs. Semi-physical simulation tests preliminarily validate the feasibility of translating graded indicator levels into practical test criteria during transition phases.

Key words: lifting-wing quadcopter, handling quality （HQ）, flight phase, mission task element （MTE）

中图分类号:

TP 391.9

王思怡, 王帅, 邹晗, 刘林锴, 闵晨, 曾煜昊, 全权. 升力翼多旋翼飞行器的操控品质指标及评估[J]. 系统工程与电子技术, 2026, 48(4): 1360-1369.

Siyi WANG, Shuai WANG, Han ZOU, Linkai LIU, Chen MIN, Yuhao ZENG, Quan QUAN. Handling quality indicators and evaluation of a lifting-wing quadcopter[J]. Systems Engineering and Electronics, 2026, 48(4): 1360-1369.
