基于半分析法的改进SOLEM模型与空间碎片长期演化分析

doi:10.12305/j.issn.1001-506X.2025.09.24

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (9): 3031-3040.doi: 10.12305/j.issn.1001-506X.2025.09.24

• 制导、导航与控制 • 上一篇

基于半分析法的改进SOLEM模型与空间碎片长期演化分析

郑峰椿¹, 张耀¹^,²^,*, 刘静¹^,², 甘庆波¹^,², 程昊文¹^,², 汤靖师³

1. 中国科学院国家天文台，北京 100101
2. 中国科学院大学天文与空间科学学院，北京 100101
3. 南京大学天文与空间科学学院，江苏南京 210023

收稿日期:2024-08-08 出版日期:2025-09-25 发布日期:2025-09-16
通讯作者: 张耀
作者简介:郑峰椿（1998—），男，助理工程师，硕士，主要研究方向为空间碎片环境长期演化、空间碎片轨道预报
刘　静（1970—），女，研究员，博士，主要研究方向为空间碎片监测和预警
甘庆波（1982—），男，研究员，博士，主要研究方向为天体测量与天体力学
程昊文（1984—），男，高级工程师，博士，主要研究方向为天体测量与天体力学
汤靖师（1983—），男，副教授，博士，主要研究方向为航天器轨道动力学理论及应用
基金资助:
空间碎片与近地小行星防御专项科研（KJSP2020020205）资助课题

Modified SOLEM model based on semi-analytical method and long-term evolution analysis of space debris

Fengchun ZHENG¹, Yao ZHANG¹^,²^,*, Jing LIU¹^,², Qingbo GAN¹^,², Haowen CHENG¹^,², Jingshi TANG³

1. National Astronomical Observatories，Chinese Academy of Sciences，Beijing 100101，China
2. School of Astronomy and Space Science，University of Chinese Academy of Sciences，Beijing 100101，China
3. School of Astronomy and Space Science，Nanjing University，Nanjing 210023，China

Received:2024-08-08 Online:2025-09-25 Published:2025-09-16
Contact: Yao ZHANG

摘要/Abstract

摘要：

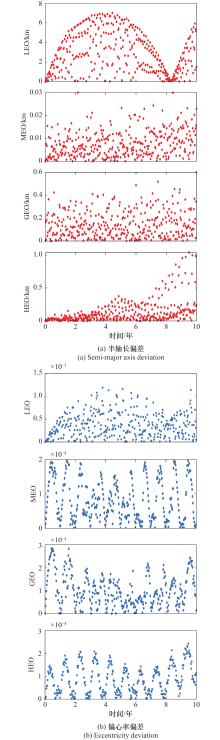

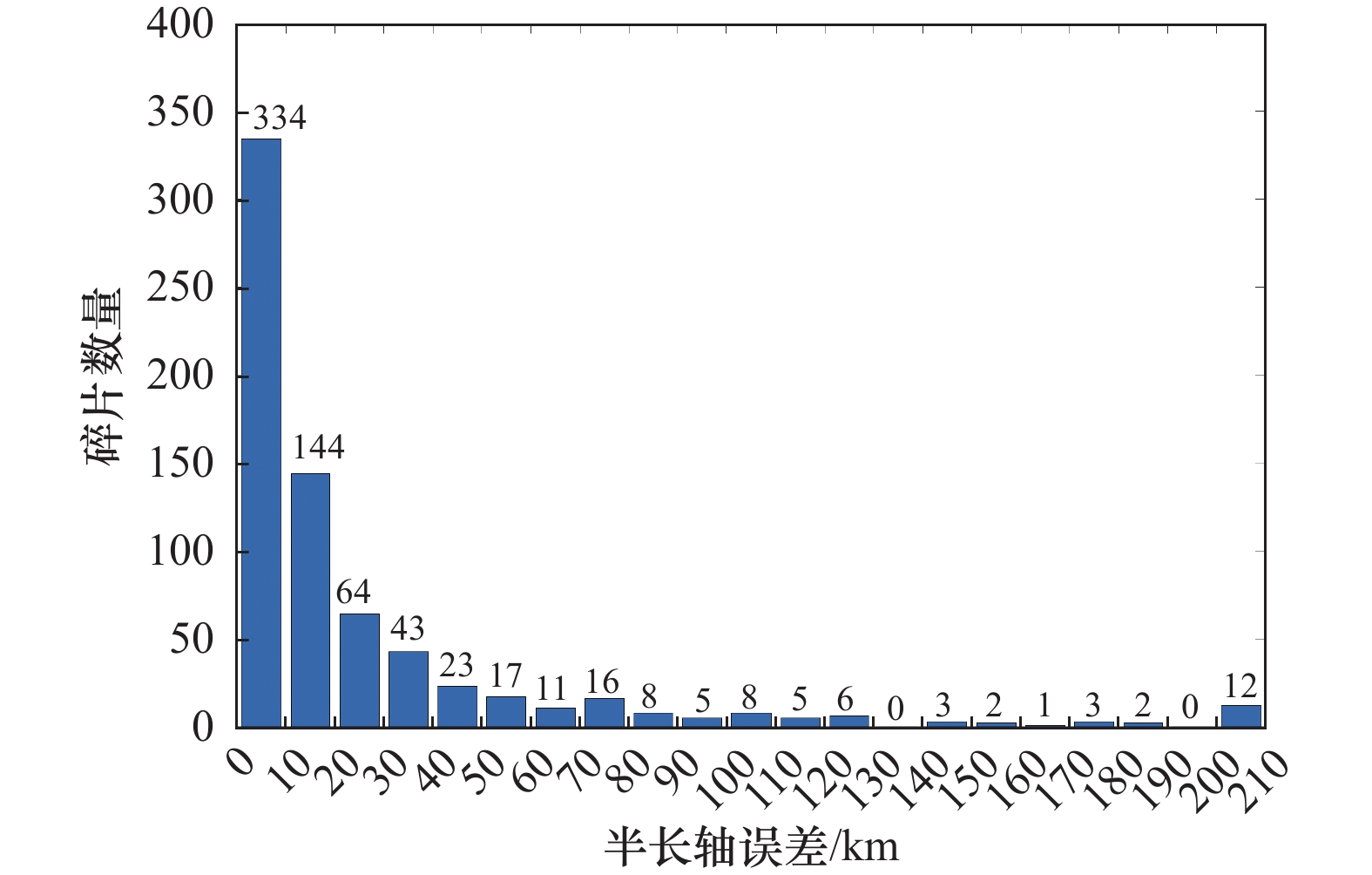

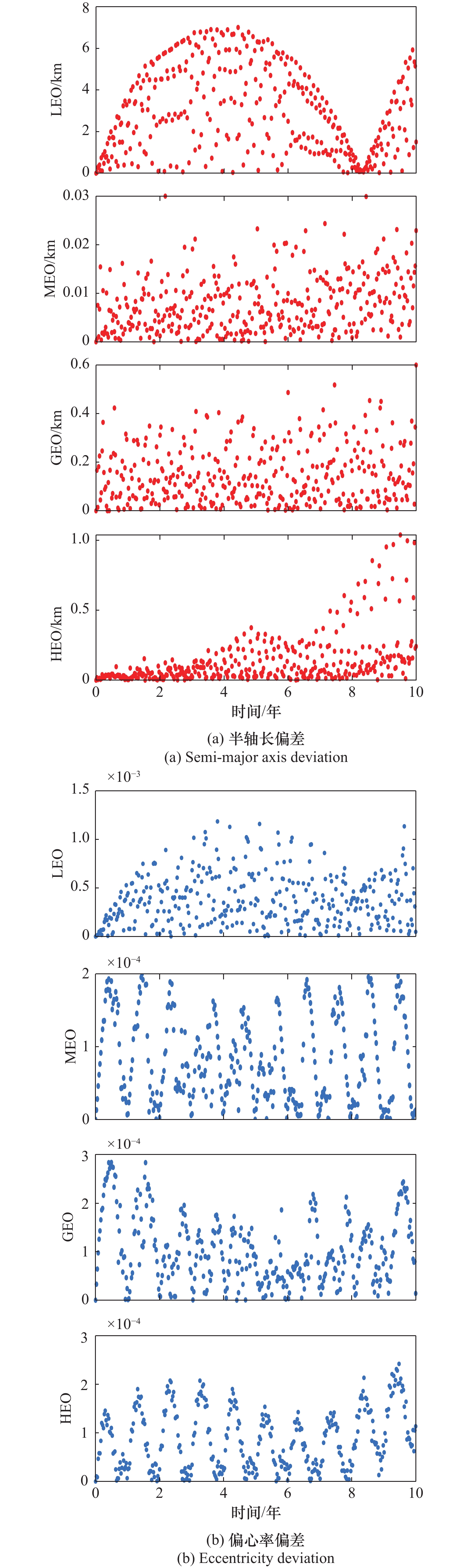

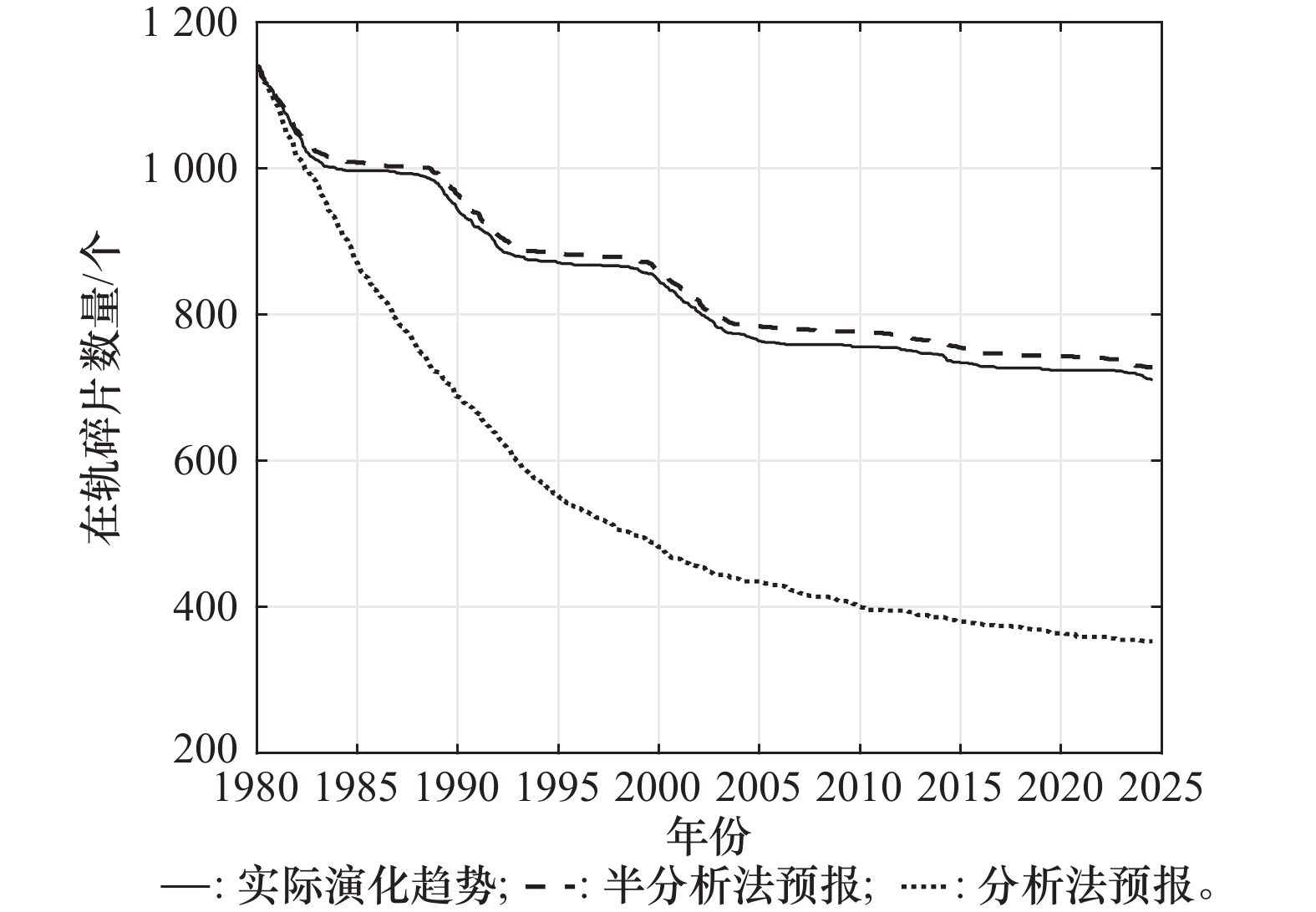

针对空间碎片环境长期演化计算中速度和精度难以兼容的问题，提出使用一种半分析方法进行长期轨道预报。对半分析法预报精度和速度进行测试，与数值法相比，10年内低轨半长轴偏差小于7 km，预报耗时小于0.11%。为评估半分析法轨道预报的适用性，对有45年轨道数据的千余碎片进行预报，分析在轨碎片数量演化趋势。结果表明，截至2024年7月的碎片数量误差为2.4%。基于半分析法轨道预报，对空间物件长期演化模型（space object long-term evolution model, SOLEM）进行改进，并与国际典型模型进行对比，验证了改进模型的可信度较高。

关键词: 半分析法轨道预报, 空间碎片, 长期演化, 空间物件长期演化模型

Abstract:

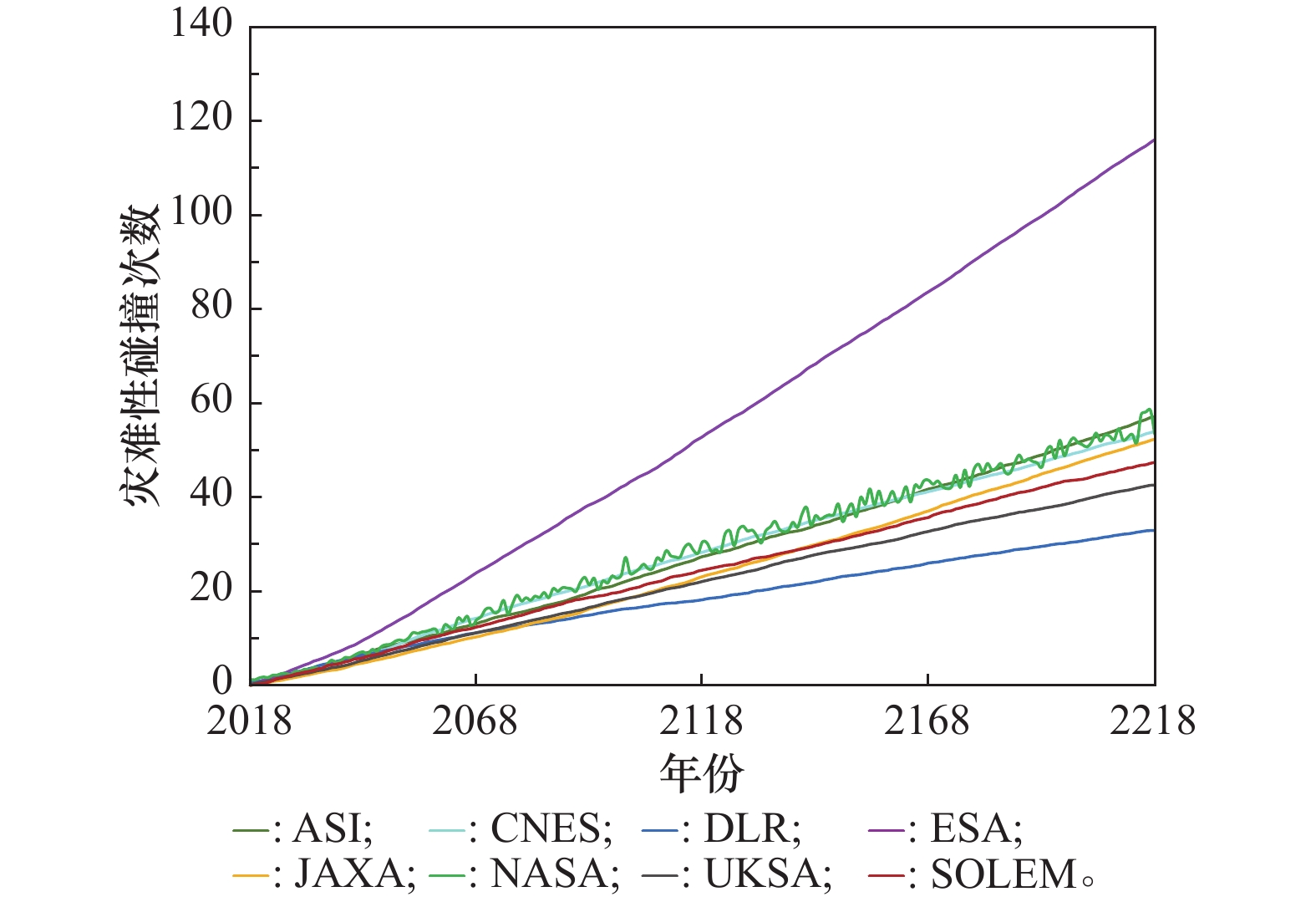

In order to solve the problem of compatibility between calculation speed and accuracy of space debris environmental long-term evolution, a semi-analytical method is proposed for long-term orbital prediction. The prediction accuracy and speed of the semi-analytical method are tested. Compared with the numerical method, the semi-major axis deviation of the low Earth orbit in 10 years is less than 7 km, and the consumed time of prediction is less than 0.11%. To evaluate the applicability of the semi-analytical method, orbital prediction is carried out for more than 1000 space debris with 45 years of orbital data, and the evolutionary trend of the number of debris in orbit is analyzed. The result indicates that the error of the debris number as of July 2024 is 2.4%. Based on the semi-analytical orbital prediction, the space object long-term evolution model （SOLEM） is improved, and comparison with representative international models verifies the higher reliability of the improved model.

Key words: semi-analytical orbital prediction, space debris, long-term evolution, space object long-term evolution model （SOLEM）

中图分类号:

P 139

郑峰椿, 张耀, 刘静, 甘庆波, 程昊文, 汤靖师. 基于半分析法的改进SOLEM模型与空间碎片长期演化分析[J]. 系统工程与电子技术, 2025, 47(9): 3031-3040.

Fengchun ZHENG, Yao ZHANG, Jing LIU, Qingbo GAN, Haowen CHENG, Jingshi TANG. Modified SOLEM model based on semi-analytical method and long-term evolution analysis of space debris[J]. Systems Engineering and Electronics, 2025, 47(9): 3031-3040.

图/表 16

表1

表2

图1

表3

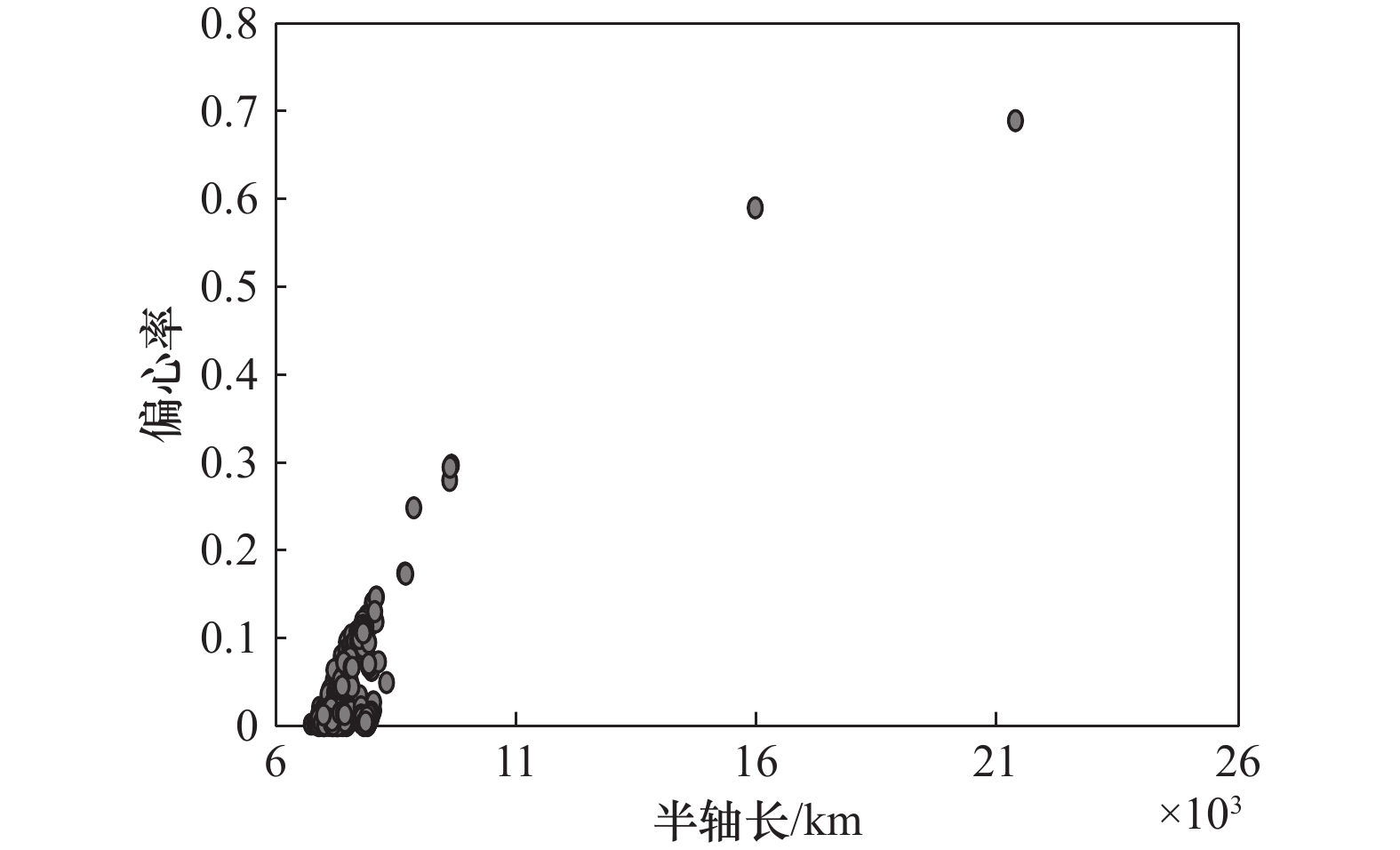

图2

图3

图4

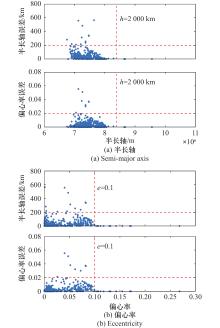

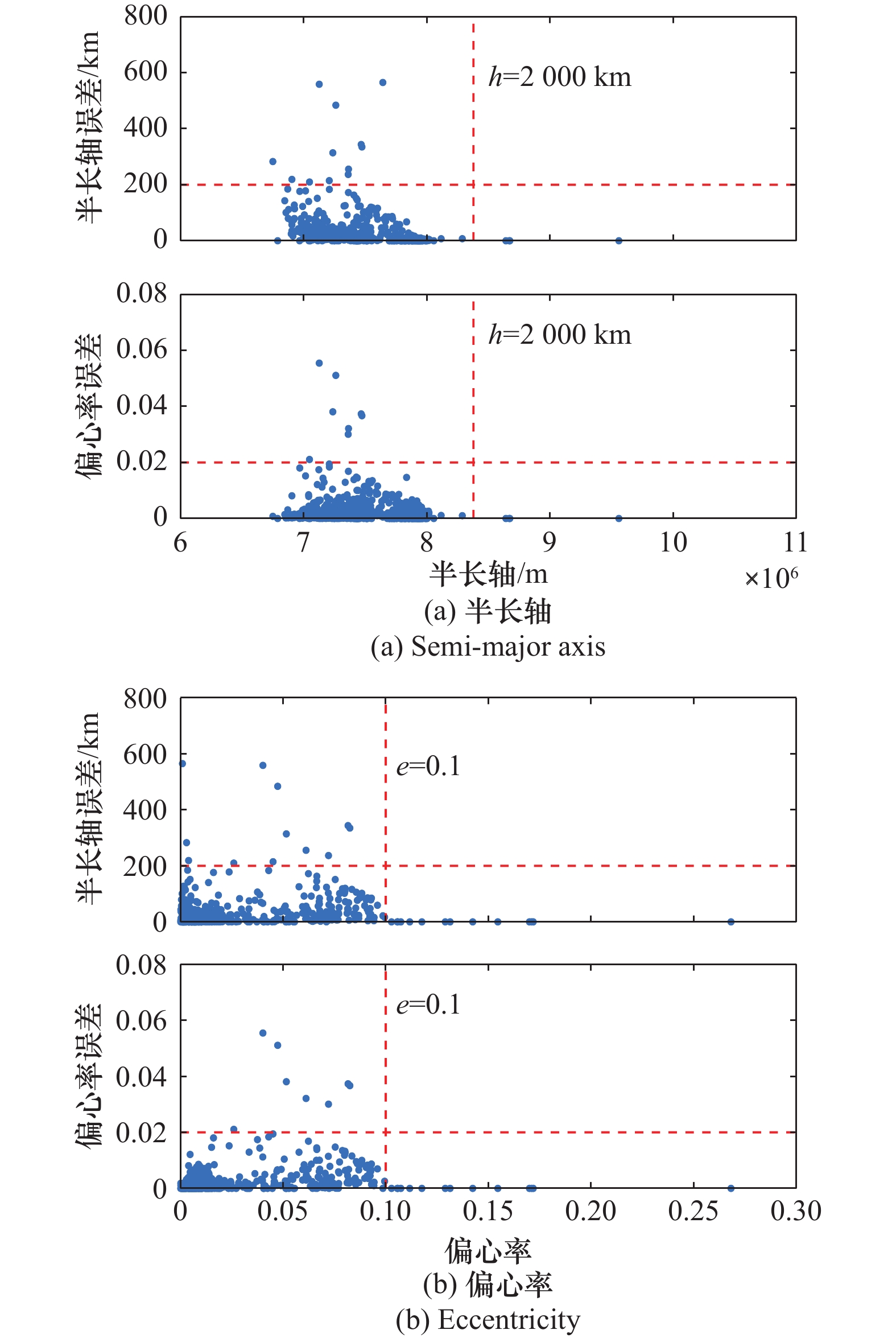

图5

表4

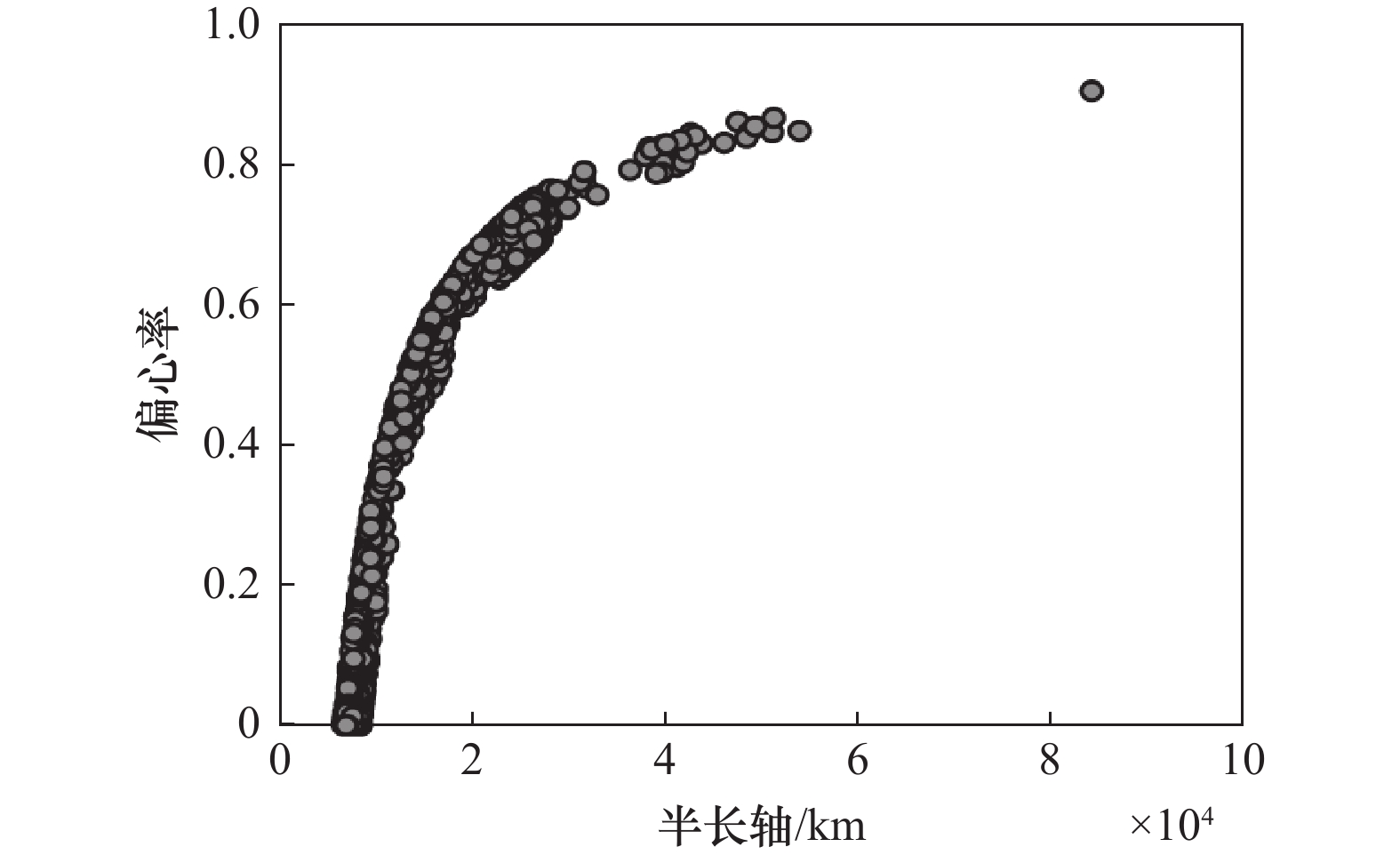

图6

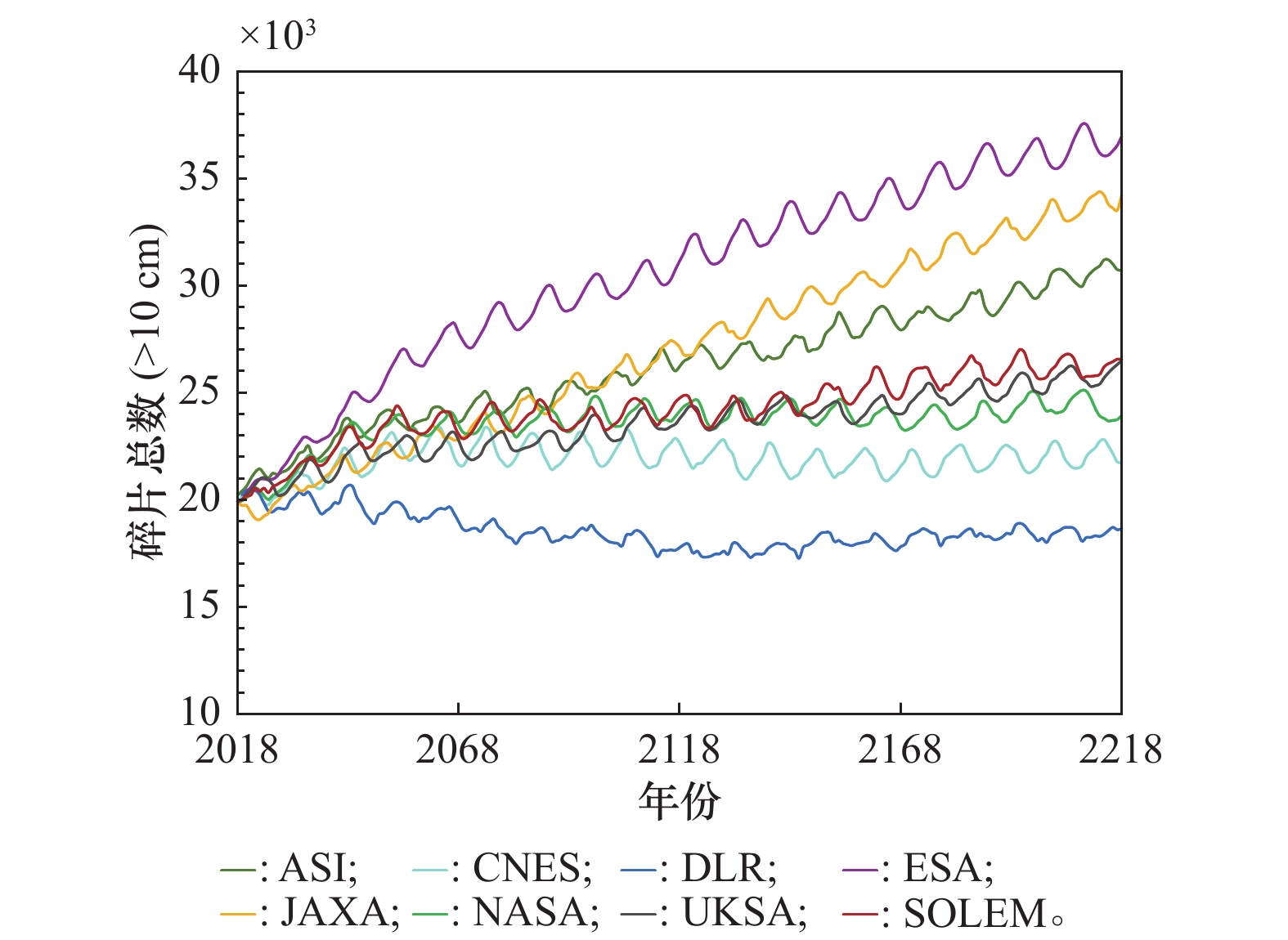

图7

图8

表5

图9

图10

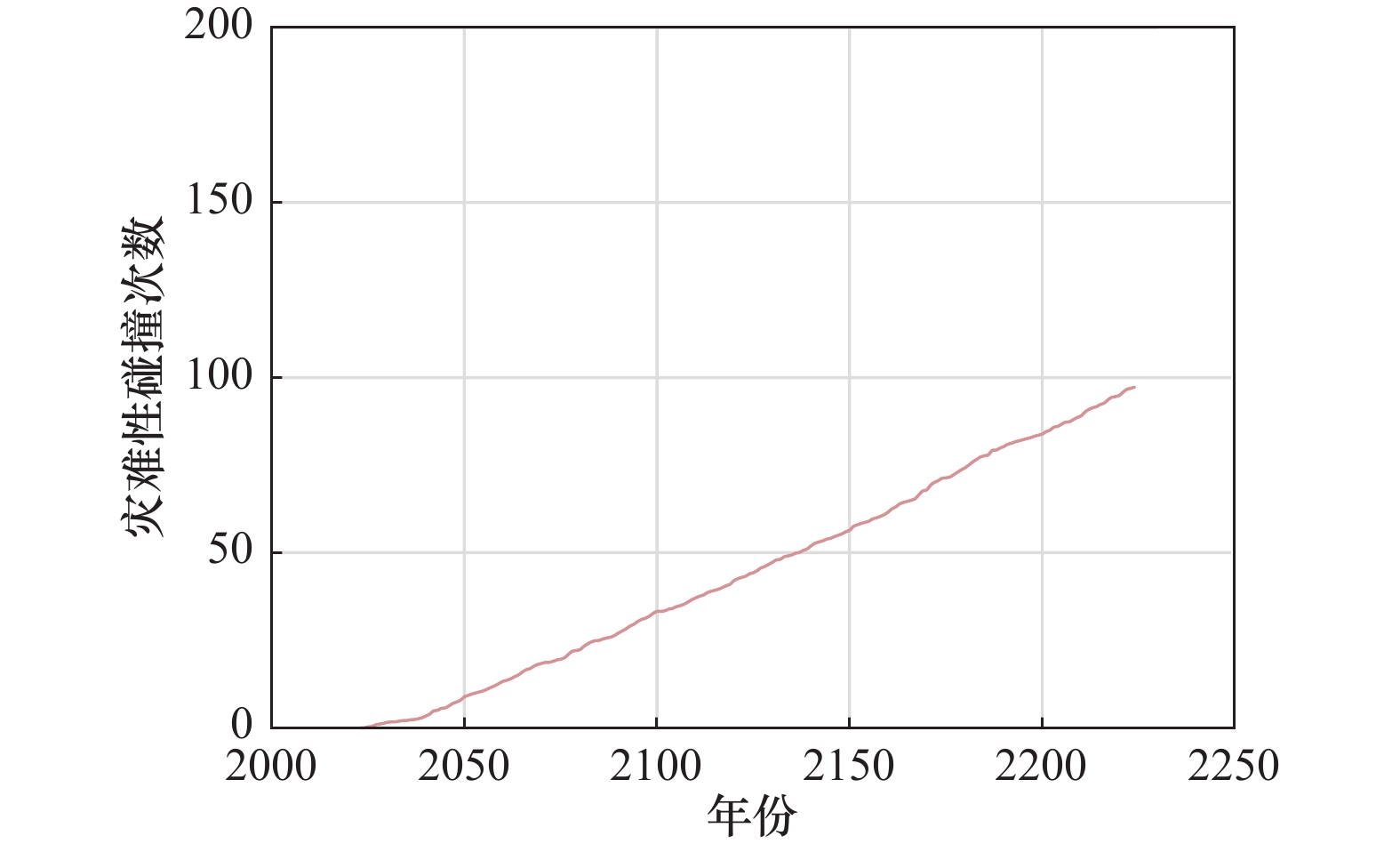

图11

参考文献 31

1	European Space Agency Space Debris Office. ESA’s annual space environment report[R]. Darmstadt: European Space Agency, 2024.
2	Space Forces-Space. The satellite situation report[EB/OL]. [2024-08-01]. https: //www.space-track.org/#ssr.
3	ROSSI A, ANSELMO L, PARDINI C, et al. The new space debris mitigation (SDM 4.0) long term evolution code[C]//Proc. of the 5th European Conference on Space Debris, 2009.
4	DOLADO-PEREZ J C, DI-COSTANZO R, REVELIN B. Introducing MEDEE-a new orbital debris evolutionary model[C]//Proc. of the 6th European Conference on Space Debris, 2013.
5	BENDISCH J, WEGENER P, REX D. The long-term evolution of debris orbits in view of spatial object accumulation[C]//Proc. of the 2nd European Conference on Space Debris, 1997.
6	WALKER R, MARTIN C E, STOKES P H, et al. Analysis of the effectiveness of space debris mitigation measures using the DELTA model[J]. Advances in Space Research, 2001, 28 (9): 1437- 1445. doi: 10.1016/S0273-1177(01)00445-8
7	HARADA R, KAWAMOTO S, HANADA T. Assessments of the impacts of orbital fragmentations using the near-earth orbital debris environment evolutionary model （NEODEEM）[J]. Journal of Space Safety Engineering, 2024, 11 (3): 395- 402. doi: 10.1016/j.jsse.2024.07.008
8	LIOU J C, HALL D T, KRISKO P H, et al. LEGEND-a three-dimensional LEO-to-GEO debris evolutionary model[J]. Advances in Space Research, 2004, 34 (5): 981- 986. doi: 10.1016/j.asr.2003.02.027
9	LEWIS H G, SWINERD G, WILLIAMS N, et al. DAMAGE: a dedicated GEO debris model framework[C]//Proc. of the 3rd European Conference on Space Debris, 2001.
10	王大为, 汤靖师, 刘林, 等. 半分析方法在地球卫星100 yr尺度长期预报中的性能评估[J]. 天文学报, 2017, 58 (1): 20- 45.
	WANG D W, TANG J S, LIU L, et al. The assessment of the semi-analytical method in the 100-year orbit prediction of earth satellites[J]. Acta Astronomica Sinica, 2017, 58 (1): 20- 45.
11	KOZAI Y. The motion of a close earth satellite[J]. The Astronomical Journal, 1959, 64 (8): 367- 377.
12	刘林. 卫星轨道力学算法[M]. 南京: 南京大学出版社, 2019.
	LIU L. Algorithms for satellite orbital dynamics[M]. Nanjing: Nanjing University Press, 2019.
13	吴连大, 王昌彬, 童傅. 人造卫星二阶摄动理论的半分析、半数值方法[J]. 天文学报, 1978, 19 (2): 131- 151.
	WU L D, WANG C B, TONG F. A new semi-analytical and semi-numerical method for computation of the second order perturbation of artificial Earth satellites[J]. Acta Astronomica Sinica, 1978, 19 (2): 131- 151.
14	CEFOLA P J. Equinoctial orbit elements-application to artificial satellite orbits[C]//Proc. of the Astrodynamics Conference, 1972.
15	CEFOLA P J, FOLCIK Z, DI-COSTANZO R, et al. Revisiting the DSST standalone orbit propagator[C]//Proc. of the Space Flight Mechanics Meeting, 2014.
16	OBRIEN R T, SANG J Z. Semi-analytic satellite theory using the method of multiple scales[C]//Proc. of the Astrodynamics Specialist Conference and Exhibit, 2004.
17	WANG Y, LUO X H, XU X J. Long-term evolution and lifetime analysis of geostationary transfer orbits with solar radiation pressure[J]. Acta Astronautica, 2020, 175, 405- 420. doi: 10.1016/j.actaastro.2020.06.007
18	LUO X H, WANG Y. Long-term orbital lifetime prediction of highly eccentric orbits: a statistical approach[J]. Journal of Spacecraft and Rockets, 2023, 60 (6): 1712- 1723.
19	CAZABONNE B, CEFOLA P J. Towards accurate orbit determination using semi-analytical satellite theory[C]//Proc. of the 31st AAS/AIAA Space Flight Mechanics Meeting, 2021.
20	SUN P, COLOMBO C, TRISOLINI M, et al. Comparison of continuity equation and Gaussian mixture model for long-term density propagation using semi-analytical methods[J]. Celestial Mechanics and Dynamical Astronomy, 2022, 134, 22. doi: 10.1007/s10569-022-10066-8
21	KHATRI Y, SCHEERES D J. Near-earth semi-analytical uncertainty propagation toolkit for conjunction analysis[C]//Proc. of the Advanced Maui Optical and Space Surveillance Technologies Conference, 2023.
22	DUTT P, ANILKUMAR A K. Orbit propagation using semi-analytical theory and its applications in space debris field[J]. Astrophysics and Space Science, 2017, 362 (2): 35. doi: 10.1007/s10509-017-3008-0
23	LIOU J C, ANILKUMAR A K, VIRGILI B B, et al. Stability of the future LEO environment-an IADC comparison study[C]//Proc. of the 6th European Conference on Space Debris, 2013.
24	VAN-DER-HA J C. Long-term evolution of near-geostationary orbits[J]. Journal of Guidance, 1986, 9 (3): 363- 370. doi: 10.2514/3.20115
25	MORAND V, DOLADO-PEREZ J C, FRAYSSE H, et al. Semi-analytical computation of partial derivatives and transition matrix using STELA software[C]//Proc. of the 6th European Conference on Space Debris, 2013.
26	XAVIER J R, RAM K S. Prediction of satellite orbits contraction due to diurnally varying oblate atmosphere and altitude-dependent scale height using KS canonical elements[J]. Planetary and Space Science, 2009, 57 (11): 1312- 1320. doi: 10.1016/j.pss.2009.05.007
27	WANG X W, LIU J. An introduction to a new space debris evolution model: SOLEM[J]. Advances in Astronomy, 2019, 2019, 2738276.
28	沈丹. 空间碎片碰撞预警置信度和长期演化建模影响因素研究[D]. 北京: 中国科学院大学, 2020.
	SHEN D. Research on confidence level of space debris collision warning and factors in long-term evolution model[D]. Beijing: University of Chinese Academy of Sciences, 2020.
29	王晓伟. 空间碎片环境长期演化模型与减缓清除策略分析研究[D]. 北京: 中国科学院大学, 2019.
	WANG X W. Space debris environment long-term evolution model and mitigation and remediation strategies analysis[D]. Beijing: University of Chinese Academy of Sciences, 2019.
30	JOHNSON N L, KRISKO P H, LIOU J C, et al. NASA’s new breakup model of EVOLVE 4.0[J]. Advances in Space Research, 2001, 28 (9): 1377- 1384. doi: 10.1016/S0273-1177(01)00423-9
31	Inter-Agency Space Debris Coordination Committee. IADC report on the status of the space debris environment[EB/OL]. [2024-08-01]. https://www.iadc-home.org/documents_public.

摄动力	低轨	中轨	地球同步轨道	大偏心率轨道
地球非球形引力	${J_2},{J_3},{J_4},{J_{2,2}}$	${J_2},{J_3},{J_4},{J_{2,2}}$	${J_2},{J_3},{J_4},{J_{2,2}}$	${J_2},{J_3},{J_4},{J_{2,2}}$
日、月引力	√	√	√	√
大气阻力	√	×	×	√
太阳光压	√	√	√	√

轨道类型	初始轨道
LEO	[7 500 km, 0.0001, 50°, 50°, 50°, 50°]
MEO	[26 500 km, 0.0001, 50°, 50°, 50°, 50°]
GEO	[42 378 km, 0.0001, 0°, 50°, 50°, 50°]
HEO	[26 500 km, 0.2, 50°, 50°, 50°, 50°]

轨道类型	分析法/s	半分析法/s	数值法/s	耗时比例/%
LEO	0.53	2.48	2 310.90	0.11
MEO	0.44	1.57	2 281.40	0.07
GEO	0.32	0.27	2 290.26	0.01
HEO	0.46	2.58	2 376.85	0.11

模型参数	说明
演化时长/年	200
初始空间碎片环境数据	2018年2月1日的空间碎片环境，包括LEO和穿过 LEO轨道的尺寸大于10 cm的物体，总计26 317个
卫星发射模型	2010年1月1日至2017年12月31日的卫星发射信息，在演化期间每隔8年循环发射
卫星在轨任务期/年	8
任务后处置成功率/%	90
空间环境参数	F10.7具有11年周期，且每月更新1次；Ap=9
蒙特卡罗仿真次数	50

模型	说明
初始空间碎片环境数据	2023年1月1日的空间碎片环境，包括LEO和穿过 LEO轨道的尺寸大于10 cm的物体，总计25 980个
卫星发射模型	2017年1月1日至2022年12月31日的卫星发射信息，在演化期间循环发射
星座发射模型	2023—2223年总计发射244 708颗
星座中卫星任务期/年	5
星座碰撞规避	任务期间考虑人工碰撞规避，与其他碎片不产生碰撞
蒙特卡罗仿真次数	50
