无人机数据链带内电磁干扰效应预测模型与验证

doi:10.12305/j.issn.1001-506X.2025.08.34

摘要/Abstract

摘要：

针对目前无人机数据链带内电磁干扰效应预测模型难以开展复杂电磁环境下多干扰源干扰效应预测的问题，基于直扩型数据链的干扰效应指数，建立了一种无人机数据链带内电磁干扰效应预测模型。以直扩型无人机数据链为试验对象，由单音干扰和部分频带噪声干扰组合形成多类型干扰信号组合以模拟复杂电磁环境，采用电磁干扰注入方法分别开展带内干扰失锁阈值试验和效应指数试验。结果表明，效应指数的试验值与理论值误差小于0.627 dB，验证了该模型的有效性，同时该模型还适用于部分周期信号干扰效应预测。

关键词: 无人机数据链, 电磁干扰, 干扰效应, 预测模型

Abstract:

Aiming at the problem that current in-band electromagnetic interference effect prediction models of unmanned aerial vehicle data link are difficult to predict the effect of multiple interference source interferences in a complex electromagnetic environment, a prediction model of in-band electromagnetic interference effect for unmanned aerial vehicle data link is established based on interference effect index of direct sequence spread spectrum data link. Taking the unmanned aerial vehicle data link of a direct sequence spread spectrum as test object, the multi-type interference signal combination is formed by the combination of single-tone interference and partial-band noise interference to simulate the complex electromagnetic environment. The electromagnetic interference injection method is used to carry out the in-band interference loss-of-lock threshold test and the effect index test respectively. The results show that the error between the experimental value and the theoretical value of the effect index is less than 0.627 dB, which illustrates the effectiveness of the model. Meanwhile, the model is also suitable for the prediction of periodic signal interference effect.

Key words: unmanned aerial vehicle data link, electromagnetic interference, interference effect, prediction model

中图分类号:

TN 972

张晓璐, 陈亚洲, 赵敏. 无人机数据链带内电磁干扰效应预测模型与验证[J]. 系统工程与电子技术, 2025, 47(8): 2763-2773.

Xiaolu ZHANG, Yazhou CHEN, Min ZHAO. Prediction method and verification of in-band electromagnetic interference effect for unmanned aerial vehicle data link[J]. Systems Engineering and Electronics, 2025, 47(8): 2763-2773.

图/表 13

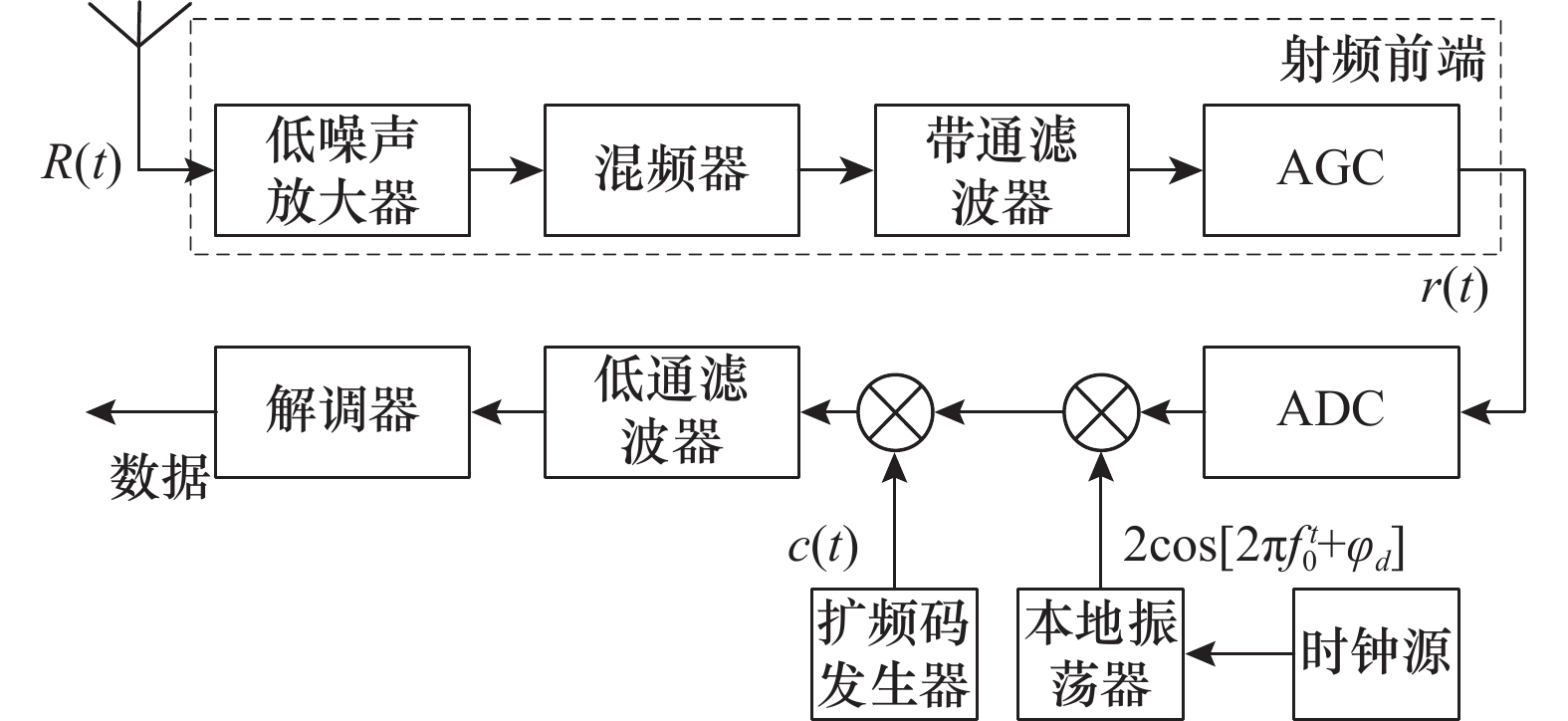

图1

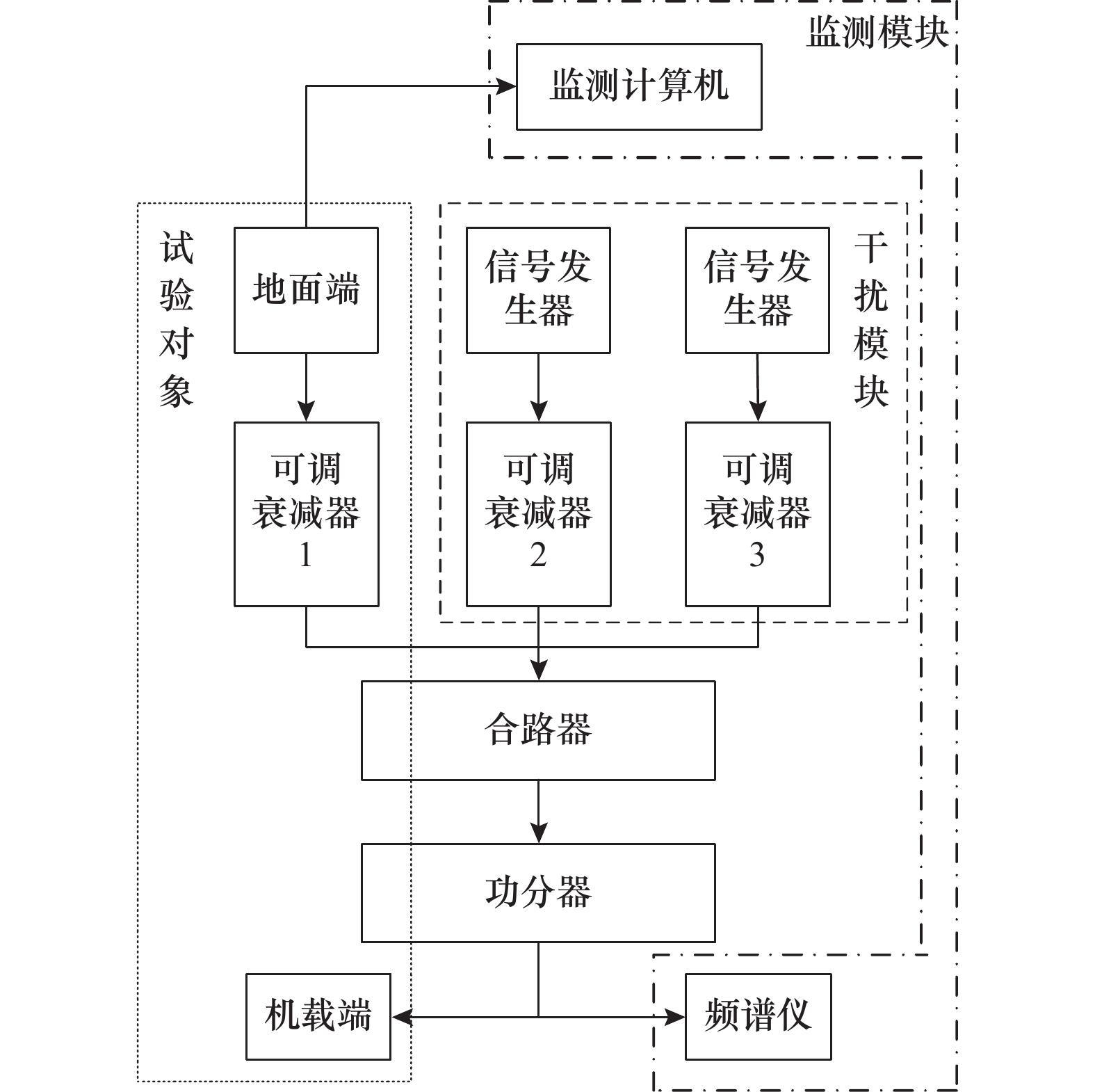

图2

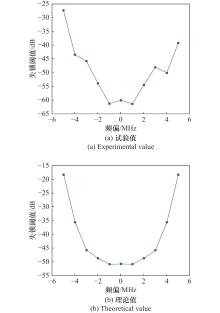

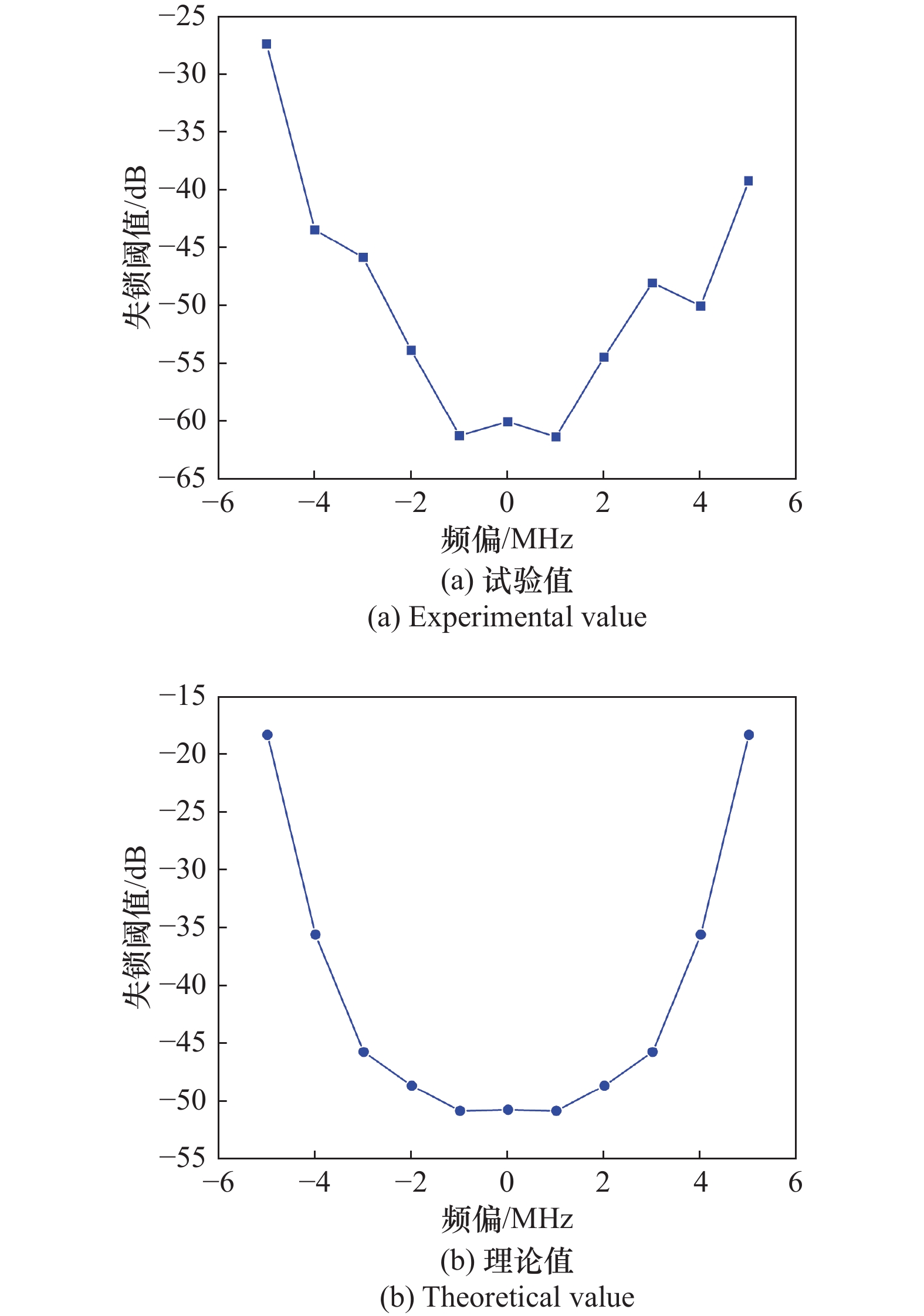

图3

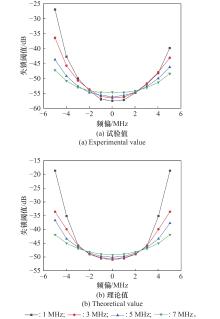

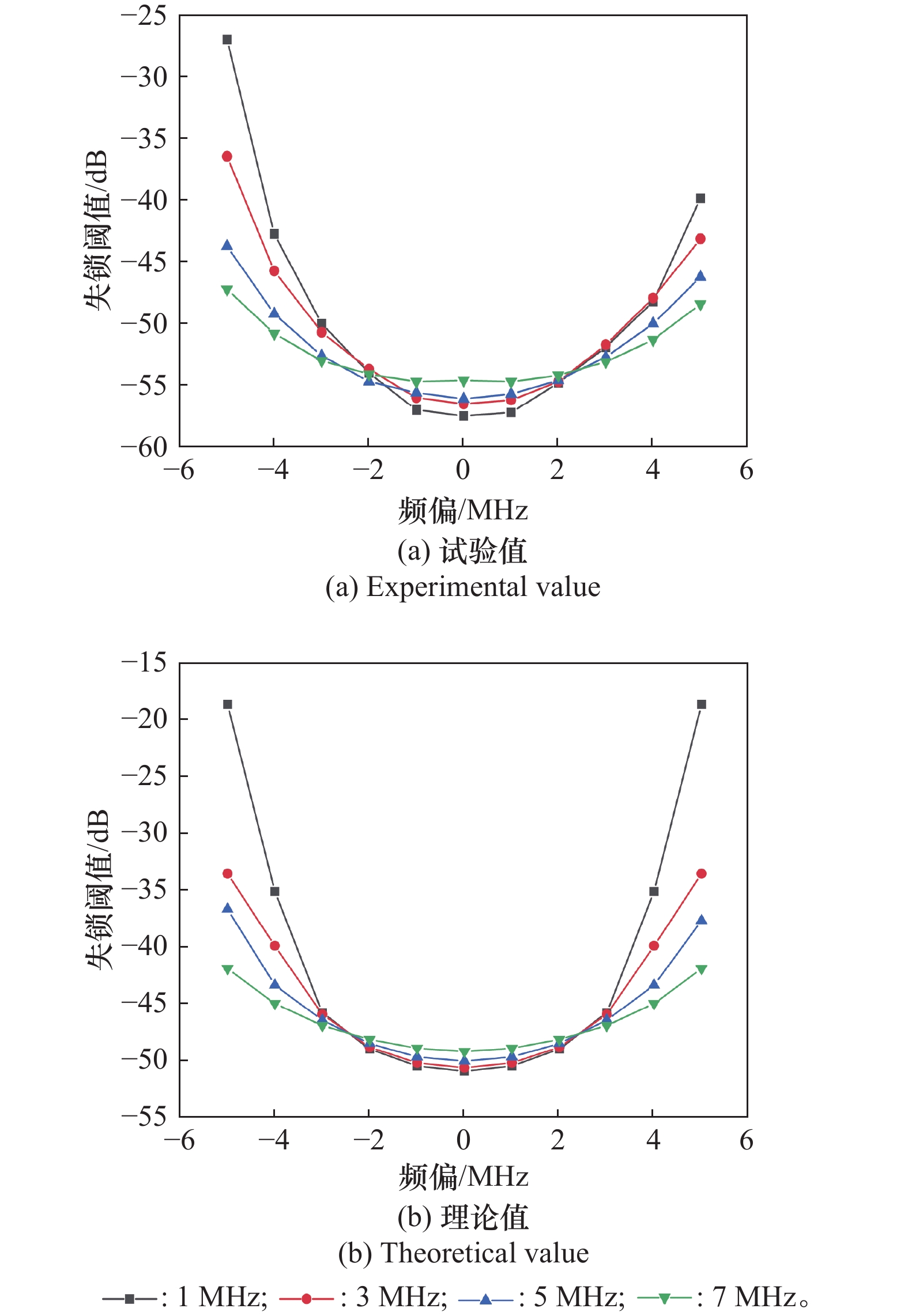

图4

图5

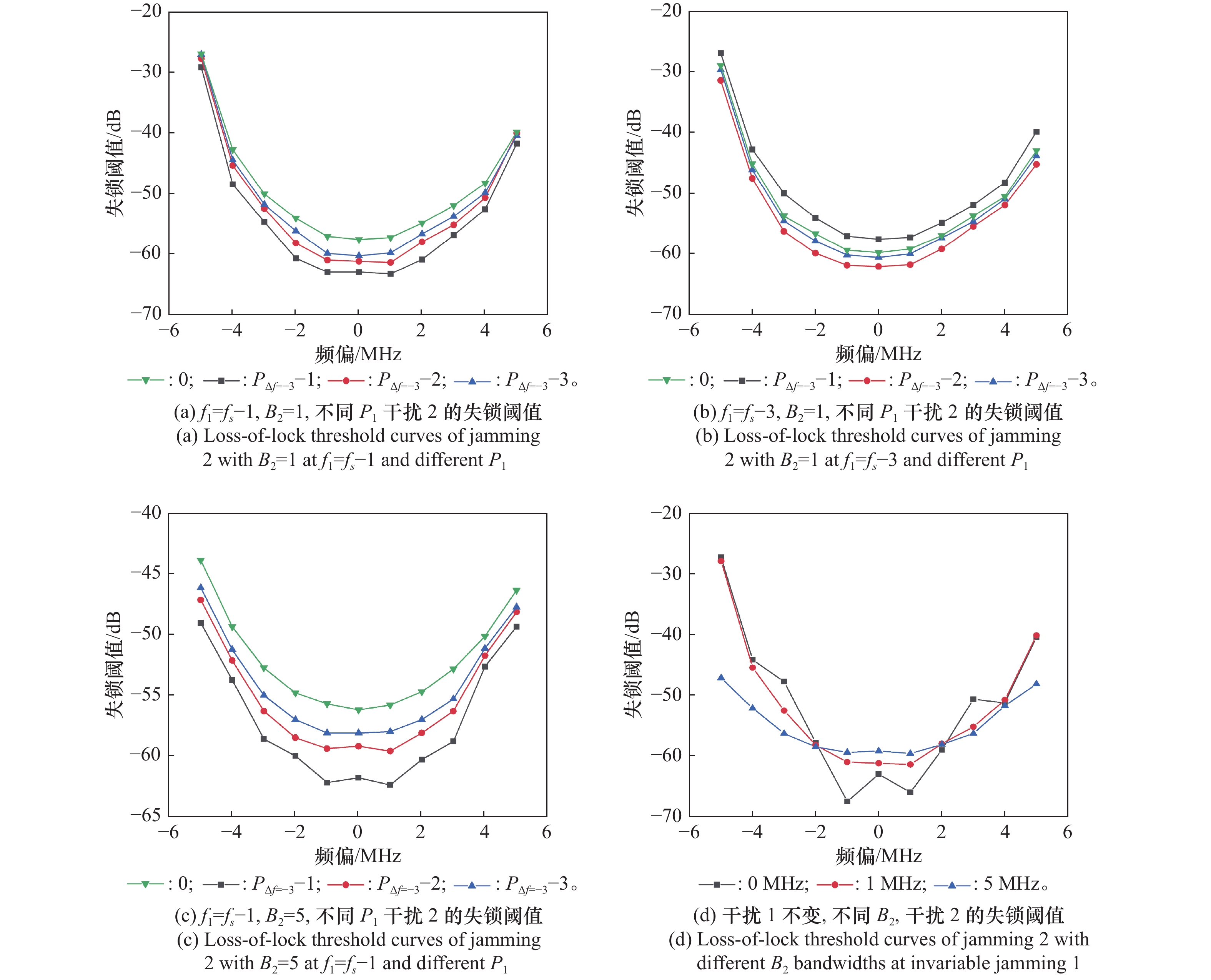

图6

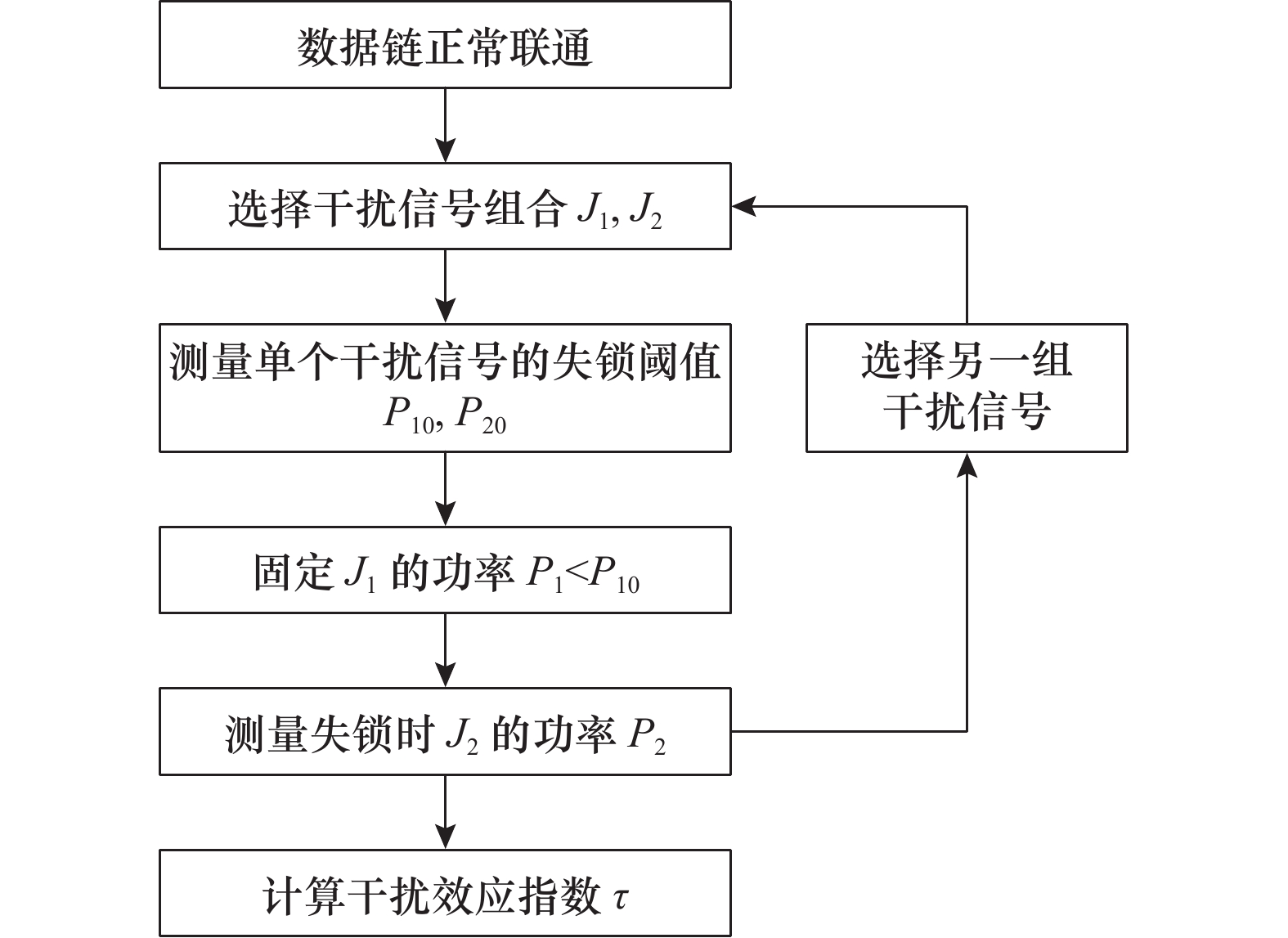

图7

表1

表2

表3

表4

表5

表6

参考文献 34

1	ZHANG C Y, ZHANG W Z, WANG W, et al. Research challenges and opportunities of UAV millimeter-wave communications[J]. IEEE Wireless Communications, 2019, 26 (1): 58- 62. doi: 10.1109/MWC.2018.1800214
2	XU T, CHEN Y Z, ZHAO M, et al. Adaptive EMS test design method on UAV data link based on Bayesian optimization[J]. IEEE Trans. on Electromagnetic Compatibility, 2023, 65 (3): 716- 724. doi: 10.1109/TEMC.2023.3261879
3	WANG X H, GUO H Z, WANG J B, et al. Predicting the health status of an unmanned aerial vehicles data-link system based on a Bayesian network[J]. Sensors, 2018, 18 (11): 3916.
4	GU H Q, LIU X X, XU L, et al. DSSS signal detection based on CNN[J]. Sensors, 2023, 23 (15): 6691. doi: 10.3390/s23156691
5	CAI S X, LI Y Y, ZHU H, et al. A novel electromagnetic compatibility evaluation method for receivers working under pulsed signal interference environment[J]. Applied Sciences, 2021, 11 (20): 9454.
6	LIU F, LIU J, FENG Y X. Incremental-data stealth-transmission method in DSSS[J]. Wireless Networks, 2021, 27 (4): 2441- 2449. doi: 10.1007/s11276-021-02590-6
7	BAEK H, LIM J. Design of future UAV-relay tactical data link for reliable UAV control and situational awareness[J]. IEEE Communications Magazine, 2018, 56 (10): 144- 150. doi: 10.1109/MCOM.2018.1700259
8	QU X, LI W J. Simulation and analysis of DS-SS anti-jamming performance based on VHDL[C]//Proc. of the International Conference on Industrial Control and Electronics Engineering, 2012.
9	李振东, 谭维凤, 康成斌, 等. 直接序列扩频系统抗干扰能力研究[J]. 电子与信息学报, 2021, 43 (1): 116- 123. doi: 10.11999/JEIT191007
	LI Z D, TAN W F, KANG C B, et al. Research on anti-interference ability of direct sequence spread spectrum system[J]. Journal of Electronics & Information Technology, 2021, 43 (1): 116- 123. doi: 10.11999/JEIT191007
10	LAKSHMI M L S N S, ANUDEEPSAGAR K, NIRANJANPRASAD. Analysis of DSSS performance under communication-jamming environment[C]//Proc. of the International Conference on Electronics and Communication Systems, 2014.
11	许彤, 陈亚洲, 王玉明, 等. 无人机数据链带内连续波电磁干扰效应研究[J]. 北京理工大学学报, 2021, 41 (10): 1084- 1094.
	XU T, CHEN Y Z, WANG Y M, et al. Research on in-band continuous wave electromagnetic interference effect of unmanned aerial vehicle data link[J]. Transactions of Beijing Institute of Technology, 2021, 41 (10): 1084- 1094.
12	许彤, 陈亚洲, 王玉明, 等. 无人机数据链宽带白噪声电磁干扰效应研究[J]. 系统工程与电子技术, 2023, 45 (7): 1965- 1973.
	XU T, CHEN Y Z, WANG Y M, et al. Research on wideband white noise electromagnetic interference effect of UAV data link[J]. Systems Engineering and Electronics, 2023, 45 (7): 1965- 1973.
13	CHEN Y Z, ZHANG D X, CHENG E W, et al. Investigation on susceptibility of UAV to radiated IEMI[C]//Proc. of the IEEE International Symposium on Electromagnetic Compatibility and IEEE Asia-Pacific Symposium on Electromagnetic Compatibility, 2018.
14	张冬晓, 陈亚洲, 程二威, 等. 无人机信息链路电磁干扰效应规律研究[J]. 北京理工大学学报, 2019, 39 (7): 756- 762.
	ZHANG D X, CHEN Y Z, CHENG E W, et al. Effects of electromagnetic interference （EMI） on information link of UAV[J]. Transactions of Beijing Institute of Technology, 2019, 39 (7): 756- 762.
15	XIN M R, CAI Z R. A feature fusion-based communication jamming recognition method[J]. Wireless Networks, 2023, 29 (7): 2993- 3004. doi: 10.1007/s11276-023-03272-1
16	ZHAO H Z, WEI G H, PAN X D. Evaluation method of noise electromagnetic radiation interference effect[J]. IEEE Trans. on Electromagnetic Compatibility, 2023, 65 (1): 69- 78. doi: 10.1109/TEMC.2022.3224791
17	XU H, CHENG Y F, WANG P Y. Jamming detection in broadband frequency hopping systems based on multi-segment signals spectrum clustering[J]. IEEE Access, 2021, 9, 29980- 29992. doi: 10.1109/ACCESS.2021.3059733
18	WANG P Y, CHENG Y F, PENG Q H, et al. Low-bitwidth convolutional neural networks for wireless interference identification[J]. IEEE Trans. on Cognitive Communications and Networking, 2022, 8 (2): 557- 569. doi: 10.1109/TCCN.2022.3149092
19	王鹏宇. 基于深度学习的无线通信干扰识别技术研究[D]. 成都: 电子科技大学, 2023.
	WANG P Y. Research on wireless communication interference identification technology based on deep learning[D]. Chengdu: University of Electronic Science and Technology of China, 2023.
20	周胜文, 沙明辉, 胡小春. 基于梳状谱调制和间歇采样重复转发的复合干扰[J]. 系统工程与电子技术, 2021, 43 (12): 3495- 3501. doi: 10.12305/j.issn.1001-506X.2021.12.10
	ZHOU S W, SHA M H, HU X C. Composite jamming based on comb spectrum modulation and interrupted sampling repetitive repeater[J]. Systems Engineering and Electronics, 2021, 43 (12): 3495- 3501. doi: 10.12305/j.issn.1001-506X.2021.12.10
21	MEN Y, WEN A J, WANG Y H, et al. Photonic-assisted wideband radar jamming signal generator with flexible tunability[J]. Journal of Lightwave Technology, 2024, 42 (19): 6808- 6815.
22	HAN H, LI W, FENG Z B, et al. Proceed from known to unknown: jamming pattern recognition under open-set setting[J]. IEEE Wireless Communications Letters, 2022, 11 (4): 693- 697. doi: 10.1109/LWC.2021.3140145
23	陈齐乐, 杨瑾, 乔彩霞, 等. 基于复迭代滤波的连续波调频雷达同频非相参调频干扰抑制方法[J]. 兵工学报, 2024, 45 (12): 4589- 4596.
	CHEN Q L, YANG J, QIAO C X, et al. Interference mitigation approach for FMCW radar based on complex iterative filtering[J]. Acta Armamentarii, 2024, 45 (12): 4589- 4596.
24	樊昌信, 曹丽娜. 通信原理[M]. 第7版. 北京: 国防工业出版社, 2012.
	FAN C X, CAO L N. Principles of communications[M]. 7th ed. Beijing: National Defense Industry Press, 2012.
25	OPPENHEIM A, WILLSKY A, NAWAB S. Signals and systems[M]. 2nd ed. Upper Saddle River, N. J: Pearson, 1996.
26	XU H, CHENG Y F, LIANG J D, et al. A jamming recognition algorithm based on deep neural network in satellite navigation system[C]//Proc. of the China Satellite Navigation Conference, 2020: 701–711.
27	ZHANG D X, ZHAO M, CHENG E W, et al. GPR-based EMI prediction for UAV’s dynamic datalink[J]. IEEE Trans. on Electromagnetic Compatibility, 2021, 63 (1): 19- 29. doi: 10.1109/TEMC.2020.3000919
28	XU T, CHEN Y Z, WANG Y M, et al. EMI threat assessment of UAV data link based on multi-task CNN[J]. Electronics, 2023, 12 (7): 1631- 1642. doi: 10.3390/electronics12071631
29	许彤. 无人机数据链多源电磁干扰实验与态势认知方法研究[D]. 石家庄: 陆军工程大学, 2023.
	XU T. Research on multi-source EMI experiment and situation cognition method of UAV data link[D]. Shijiazhuang: Army Engineering University, 2023.
30	闫云斌, 崔雪炜, 王永川, 等. 无人机数据链系统抗干扰性能评估方法研究[J]. 海军工程大学学报, 2017, 29 (5): 92- 96.
	YAN Y B, CUI X W, WANG Y C, et al. Research on anti-jamming evaluation method for unmanned aerial vehicle data link[J]. Journal of Naval University of Engineering, 2017, 29 (5): 92- 96.
31	孙志国, 肖硕, 吴毅杰, 等. 面向认知通信防护的穿透式干扰效能评估方法[J]. 通信学报, 2023, 44 (11): 161- 172. doi: 10.11959/j.issn.1000-436x.2023195
	SUN Z G, XIAO S, WU Y J, et al. Evaluation method of penetrating jamming effectiveness for cognitive communication protection[J]. Journal on Communication, 2023, 44 (11): 161- 172. doi: 10.11959/j.issn.1000-436x.2023195
32	李梦园. Link-16波形同步技术研究[D]. 成都: 电子科技大学, 2023.
	LI M Y. Research on Link-16 waveform synchronization technology[D]. Chengdu: University of Electronic Science and Technology of China, 2023.
33	SUN J N, PAN X D, LU X F, et al. Test method of bulk current injection for high field intensity electromagnetic radiated susceptibility into shielded wire[J]. IEEE Trans. on Electromagnetic Compatibility, 2022, 64 (2): 275- 285. doi: 10.1109/TEMC.2021.3120018
34	SPADACINI G, GRASSI F, PIGNARI S A, et al. Bulk current injection as an alternative radiated susceptibility test enforcing a statistically quantified overtesting margin[J]. IEEE Trans. on Electromagnetic Compatibility, 2018, 60 (5): 1270- 1278. doi: 10.1109/TEMC.2018.2810074

组号		P₁/dBm	P₂/dBm	P₁₀/dBm	P₂₀/dBm	$\tau $	$10\lg \tau /{\text{dB}}$	状态
1	1-1	−59.6	−58.0	−58.8	−53.1	1.155	0.627	失锁
	1-2	−60.2	−57.0	−58.8	−53.1	1.132	0.538
	1-3	−60.9	−56.1	−58.8	−53.1	1.118	0.484
	1-4	−62.1	−55.5	−58.8	−53.1	1.043	0.184
	1-5	−62.9	−54.8	−58.8	−53.1	1.065	0.274
	1-6	−63.9	−54.3	−58.8	−53.1	1.068	0.284
2	2-1	−62.2	−49.3	−60.7	−44.9	1.071	0.298	失锁
	2-2	−62.9	−48.8	−60.7	−44.9	1.010	0.043
	2-3	−63.9	−47.5	−60.7	−44.9	1.028	0.121
	2-4	−64.9	−46.9	−60.7	−44.9	1.011	0.048
	2-5	−65.9	−46.3	−60.7	−44.9	1.026	0.113
	2-6	−66.9	−45.9	−60.7	−44.9	1.034	0.146
3	3-1	−54.1	−56.5	−53.4	−48.3	1.002	0.011	失锁
	3-2	−54.9	−52.3	−53.4	−48.3	1.106	0.438
	3-3	−55.6	−51.6	−53.4	−48.3	1.070	0.295
	3-4	−56.6	−50.7	−53.4	−48.3	1.054	0.229
	3-5	−57.2	−50.1	−53.4	−48.3	1.078	0.324
	3-6	−57.9	−49.5	−53.4	−48.3	1.113	0.466
4	4-1	−46.3	−60.5	−45.4	−53.4	1.008	0.034	失锁
	4-2	−47.1	−58.2	−45.4	−53.4	1.015	0.031
	4-3	−47.8	−55.9	−45.4	−53.4	1.138	0.561
	4-4	−48.7	−55.2	−45.4	−53.4	1.128	0.525
	4-5	−49.7	−54.8	−45.4	−53.4	1.096	0.398
	4-6	−50.4	−54.4	−45.4	−53.4	1.111	0.455

组号	P₁/dBm	P₂/dBm	$\tau $	$10\lg \tau /{\text{dB}}$	状态
1-1−1	−59.6	−59.0	1.089	0.369	未失锁
2-1−1	−62.2	−50.3	0.996	−0.016
3-1−1	−54.1	−57.5	0.971	−0.126
4-1−1	−46.3	−61.5	0.968	−0.143
1-1+1	−59.6	−57.0	1.239	0.931	失锁
2-1+1	−62.2	−48.3	1.165	0.663
3-1+1	−54.1	−55.5	1.042	0.177
4-1+1	−46.3	−59.5	1.058	0.246

组号		P₁/dBm	P₂/dBm	P₃/dBm	P₁₀/dBm	P₂₀/dBm	P₃₀/dBm	$\tau $	$10\lg \tau /{\text{dB}}$	状态
1	1-1	−48	−67.2	−62.2	−47	−54.3	−54.1	1.000	0.002	失锁
	1-2	−48.7	−69.1	−58.7	−47	−54.3	−54.1	1.056	0.236
	1-3	−49.7	−68.1	−56.9	−47	−54.3	−54.1	1.104	0.428
	1-4	−49.4	−68.6	−57.3	−47	−54.3	−54.1	1.091	0.379
	1-5	−51.2	−66.6	−56.1	−47	−54.3	−54.1	1.070	0.294
	1-6	−51.7	−60	−58.1	−47	−54.3	−54.1	1.006	0.026
2	2-1	−53.3	−65.6	−59.8	−52.4	−55.6	−52	1.079	0.329	失锁
	2-2	−54.5	−65.9	−56.1	−52.4	−55.6	−52	1.099	0.410
	2-3	−55.3	−64.9	−55.7	−52.4	−55.6	−52	1.057	0.240
	2-4	−57.3	−64.5	−54.6	−52.4	−55.6	−52	1.002	0.009
	2-5	−57.6	−64.3	−54	−52.4	−55.6	−52	1.068	0.285
	2-6	−58.6	−66.8	−53.6	−52.4	−55.6	−52	1.008	0.033
3	3-1	−61	−63.6	−62	−60.1	−52.6	−52.8	1.012	0.054	失锁
	3-2	−61.7	−63.2	−59.2	−60.1	−52.6	−52.8	1.008	0.035
	3-3	−62.6	−64.2	−57.1	−60.1	−52.6	−52.8	1.003	0.013
	3-4	−63.8	−64.8	−55.6	−60.1	−52.6	−52.8	1.012	0.050
	3-5	−64.5	−63.5	−55.3	−60.1	−52.6	−52.8	1.007	0.029
	3-6	−65.1	−64.6	−54.8	−60.1	−52.6	−52.8	1.010	0.044

组号	P₁/dBm	P₂/dBm	P₃/dBm	$\tau $	$10\lg \tau /{\text{dB}}$	状态
1-1−1	−48	−67.2	−63.2	0.969	−0.138	未失锁
2-1−1	−53.3	−65.6	−60.8	1.045	0.190
3-1−1	−61	−63.6	−63.0	0.988	−0.053
1-1+1	−48	−67.2	−61.2	1.239	1.041	失锁
2-1+1	−53.3	−65.6	−58.8	1.165	1.122
3-1+1	−61	−63.6	−61	1.042	1.044

参数	组号	干扰1	干扰2					τ	10lgτ/dB	状态
频率	/	f_s+2	f_s+1	f_s+1.5	f_s+0.5	f_s+2.5	f_s−0.5	/	/	/
P_i0/dBm	/	−54.0	−61.3	−58.3	−55.0	−53.8	−54.3	/	/	/
P_i /dBm	1	−60.2	−62.7	−72.6	−72.3	−81.5	−81.9	1.024	0.101	失锁
	2	−59.3	−63.0	−73.2	−72.9	−81.8	−82.1	1.023	0.099	失锁
	3	−57.2	−64.3	−74.3	−74.1	−83.1	−82.9	1.020	0.085	失锁
	4	−55.8	−66.0	−76.1	−76.5	−83.8	−83.8	1.025	0.109	失锁
	5	−54.7	−69.9	−79.3	−79.5	−86.1	−86.3	1.002	0.008	失锁
