空间微小载荷在轨发射动力学特性及影响因素

doi:10.12305/j.issn.1001-506X.2025.08.27

摘要/Abstract

摘要：

针对一种基于固体推力器的空间微小载荷在轨发射动力学特性问题，基于多刚体理论建立考虑惯性主轴偏移和附加扰动力矩的载荷在轨发射系统动力学模型，提出利用边界条件计算载荷与卫星平台间接触内力进而求解动力学参数的方法。通过数值仿真并与辅助软件仿真结果对比，验证动力学模型及求解方法的准确性。同时，针对载荷与平台间运动耦合效应，基于所建立的动力学模型研究载荷安装位置、推力偏心和摩擦系数对初始扰动的影响，提出对载荷发射系统设计参数的相关要求，为空间微小载荷在轨发射的工程实践提供一定的理论指导。

关键词: 空间微小载荷, 固体推力器, 在轨发射, 发射动力学, 初始扰动

Abstract:

Aiming at the dynamic characteristics of in-orbit launch of space micro-load based on solid thrusters, a dynamic model of a in-orbit launch system considering the inertia spindle shift and additional disturbance torque is established based on the multi-rigidbody theory. A method of calculating the contact internal force between the load and the satellite platform using the boundary conditions is proposed to solve the dynamic parameters. The accuracy of the dynamic model and solution method is verified through numerical simulations and comparisons with auxiliary software simulation results. Meanwhile, focusing on the motion coupling effect between the payload and the platform, the analysis considers the impact of payload installation position, thrust eccentricity, and friction coefficient on the initial disturbance during launch, using the established dynamic model. Relevant requirements for the design parameters of the payload launch system are proposed, providing theoretical guidance for the engineering practice of in-orbit launching of space micro payloads.

Key words: space micro-load, solid thruster, in-orbit launch, launch dynamics, initial disturbance

中图分类号:

V 412.4

谈曾巧, 杨海波, 廖文和, 陆正亮, 陶晓宇. 空间微小载荷在轨发射动力学特性及影响因素[J]. 系统工程与电子技术, 2025, 47(8): 2696-2705.

Zengqiao TAN, Haibo YANG, Wenhe LIAO, Zhengliang LU, Xiaoyu TAO. Dynamic characteristics and influence factors of in-orbit launch for space micro-load[J]. Systems Engineering and Electronics, 2025, 47(8): 2696-2705.

图/表 12

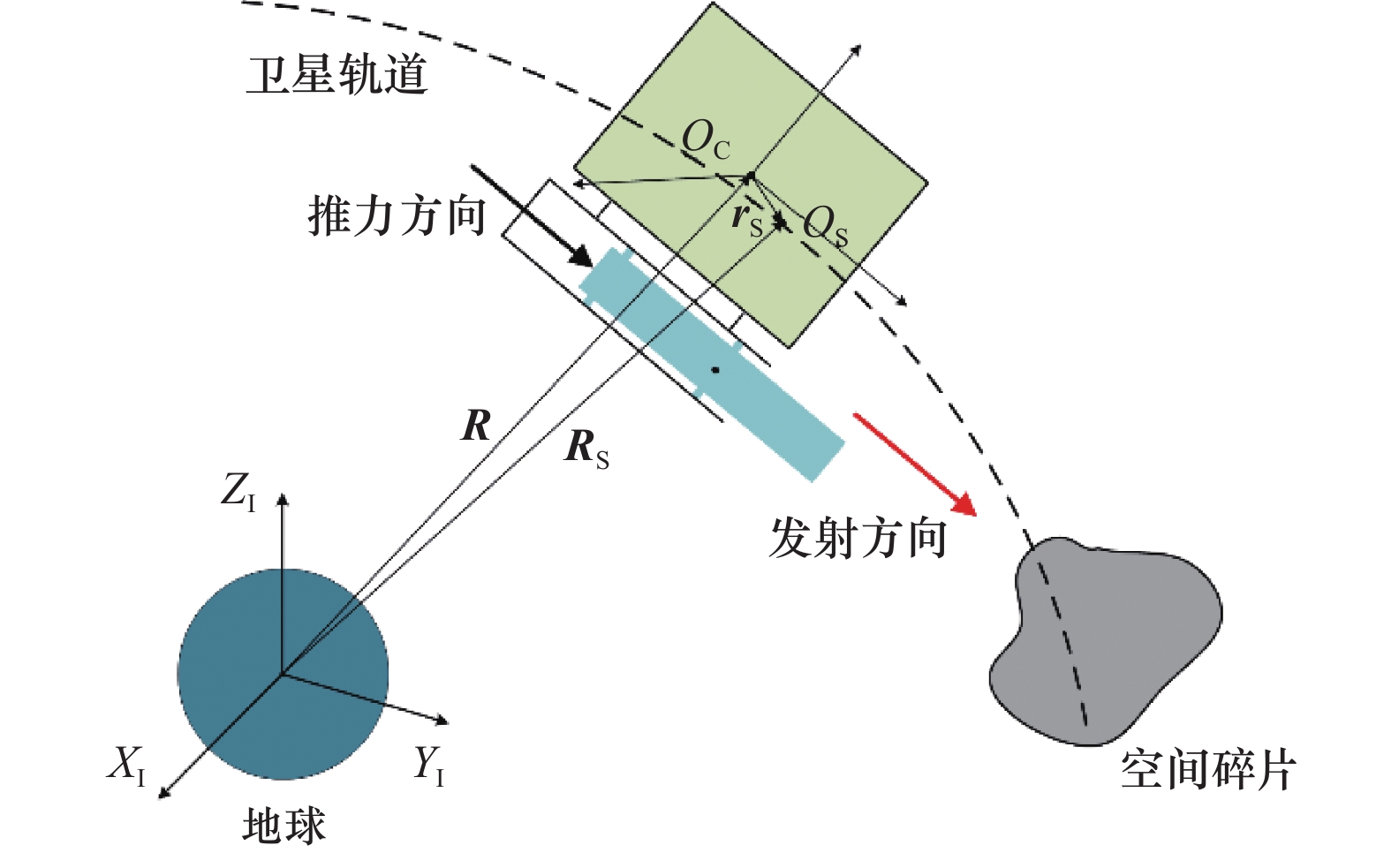

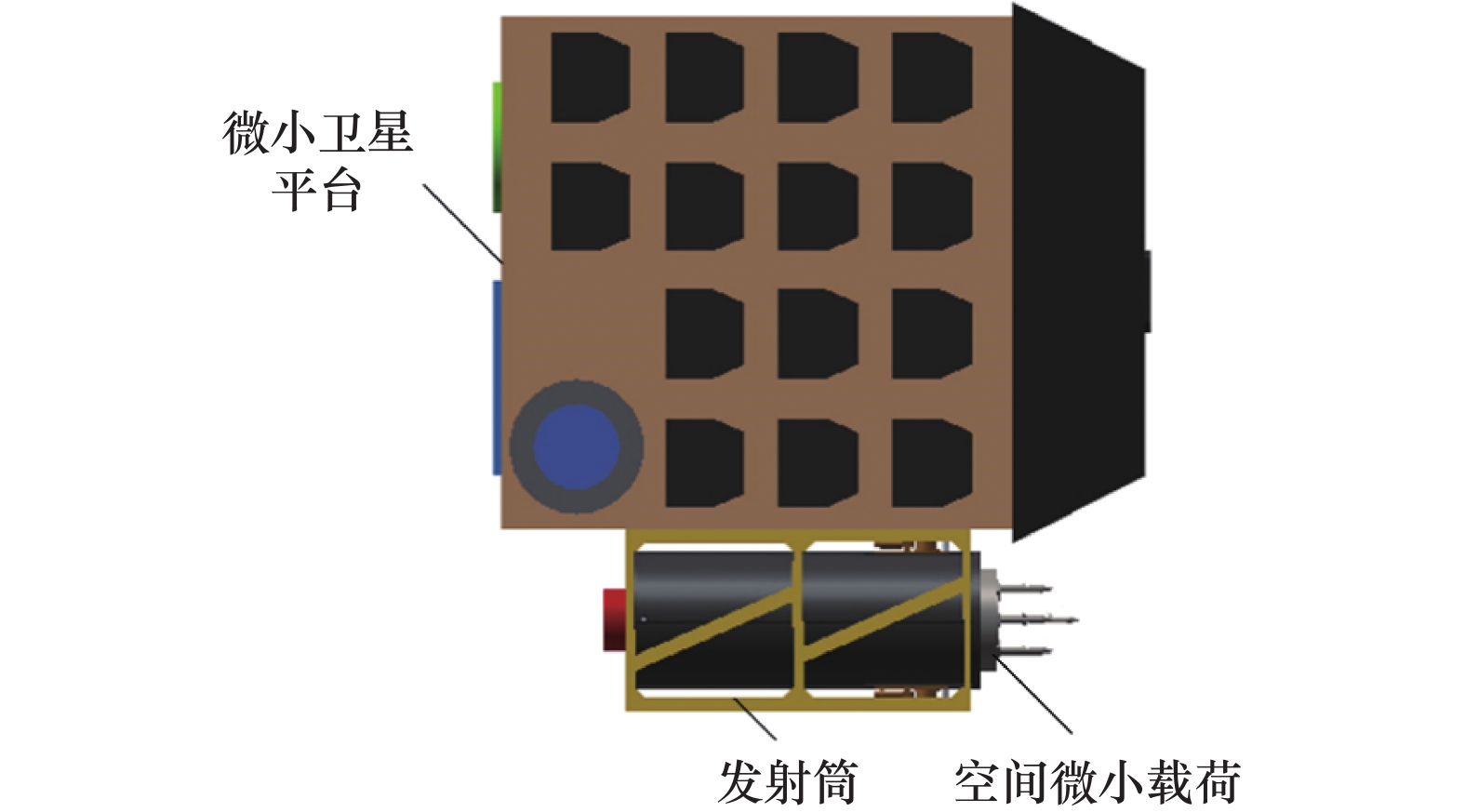

图1

图2

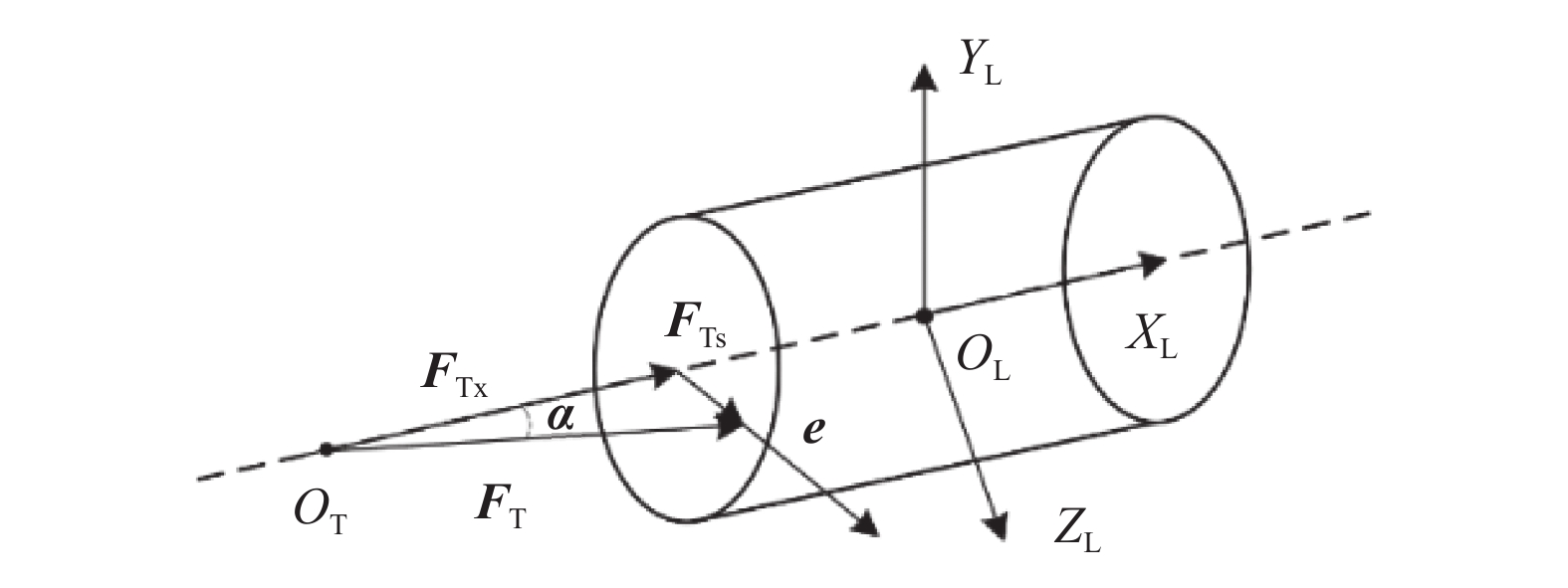

图3

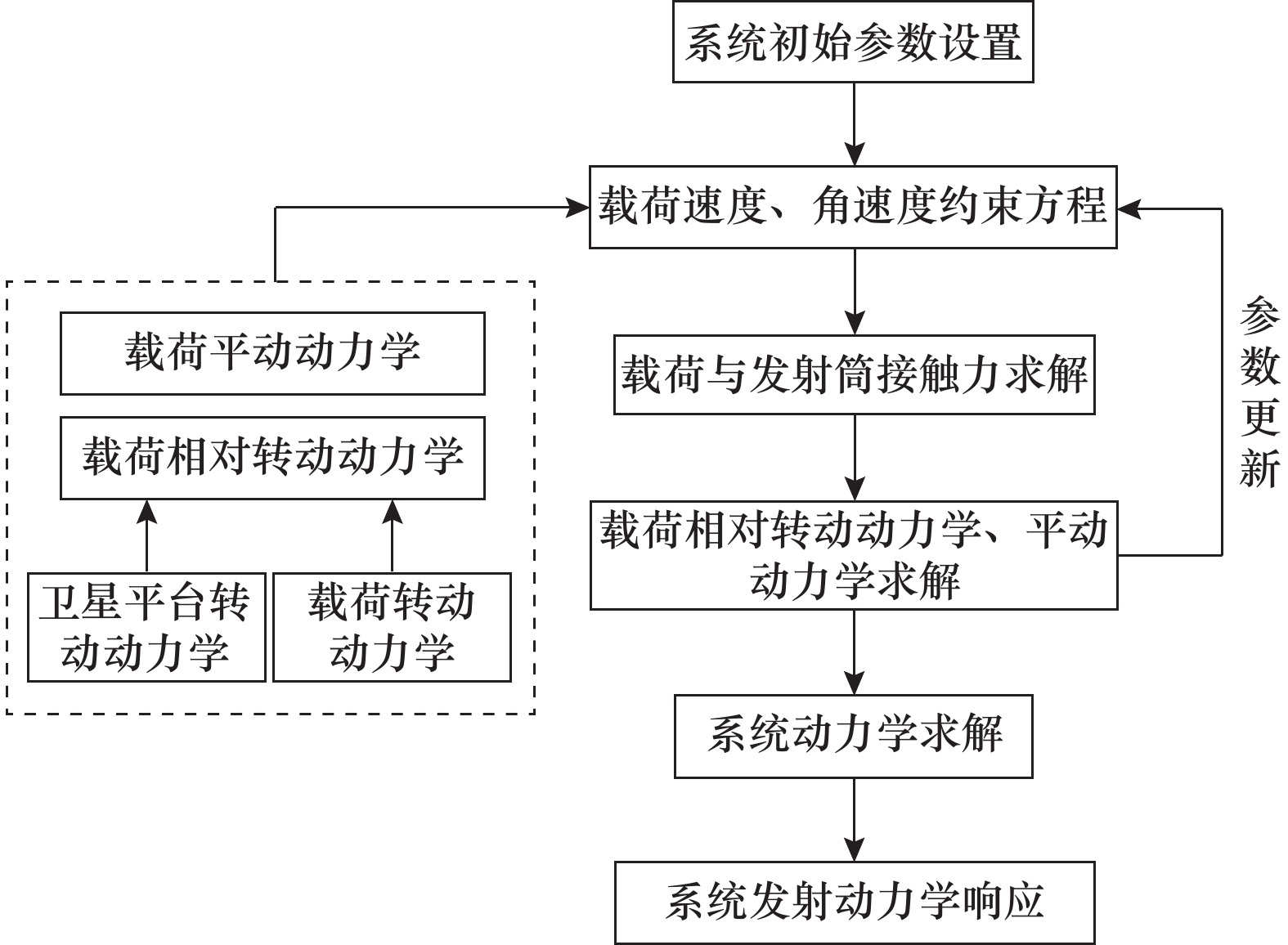

图4

表1

图5

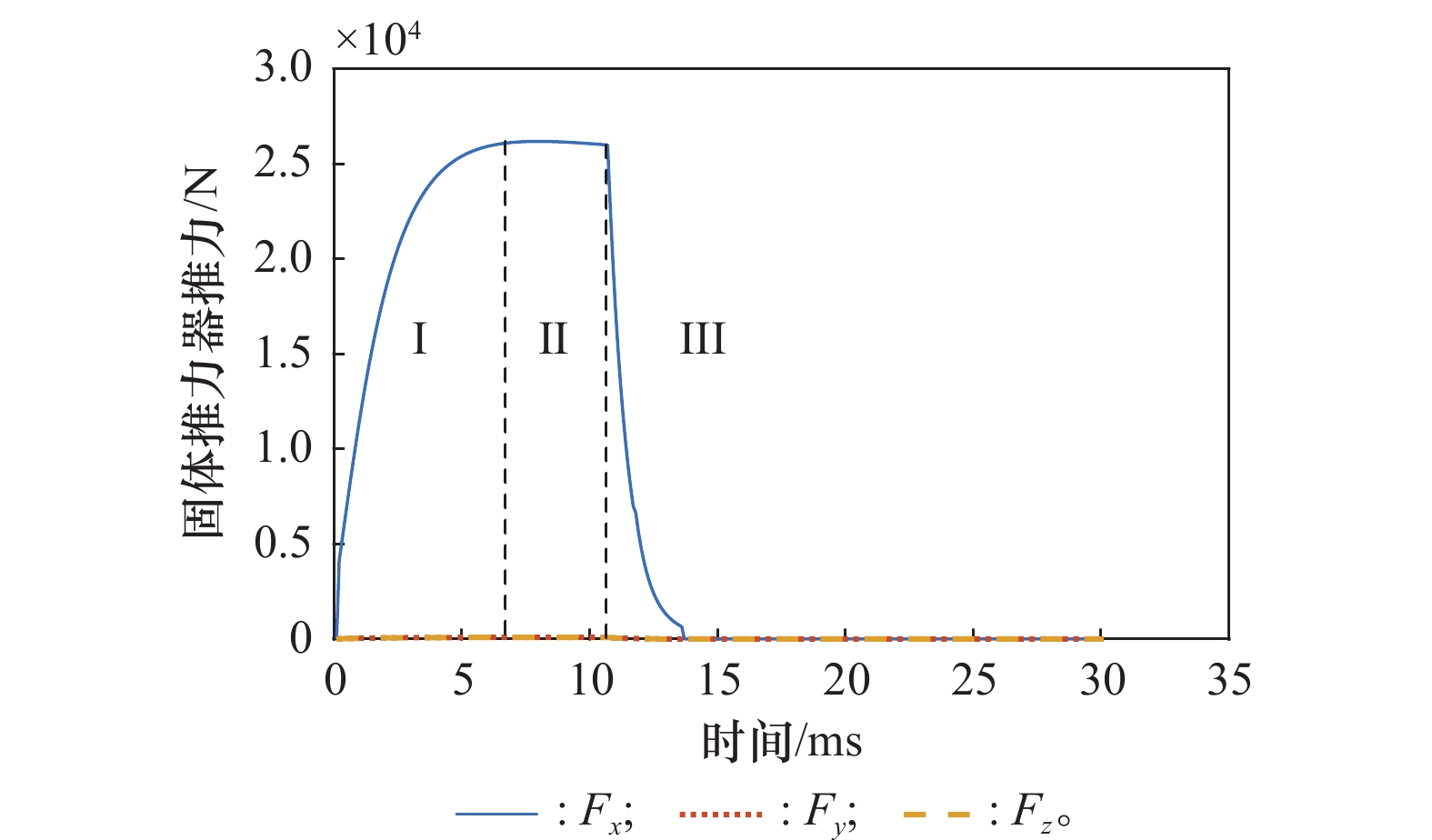

图6

图7

表2

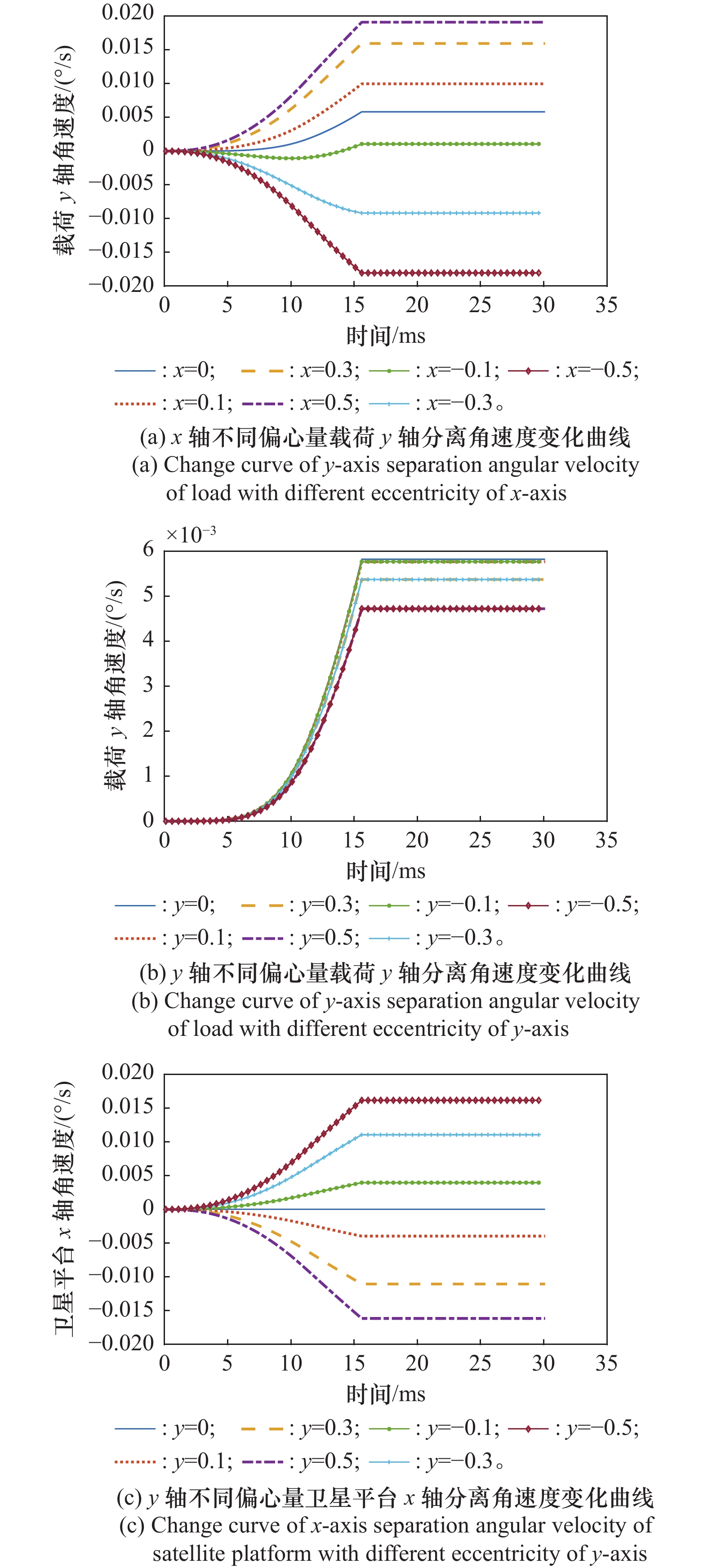

图8

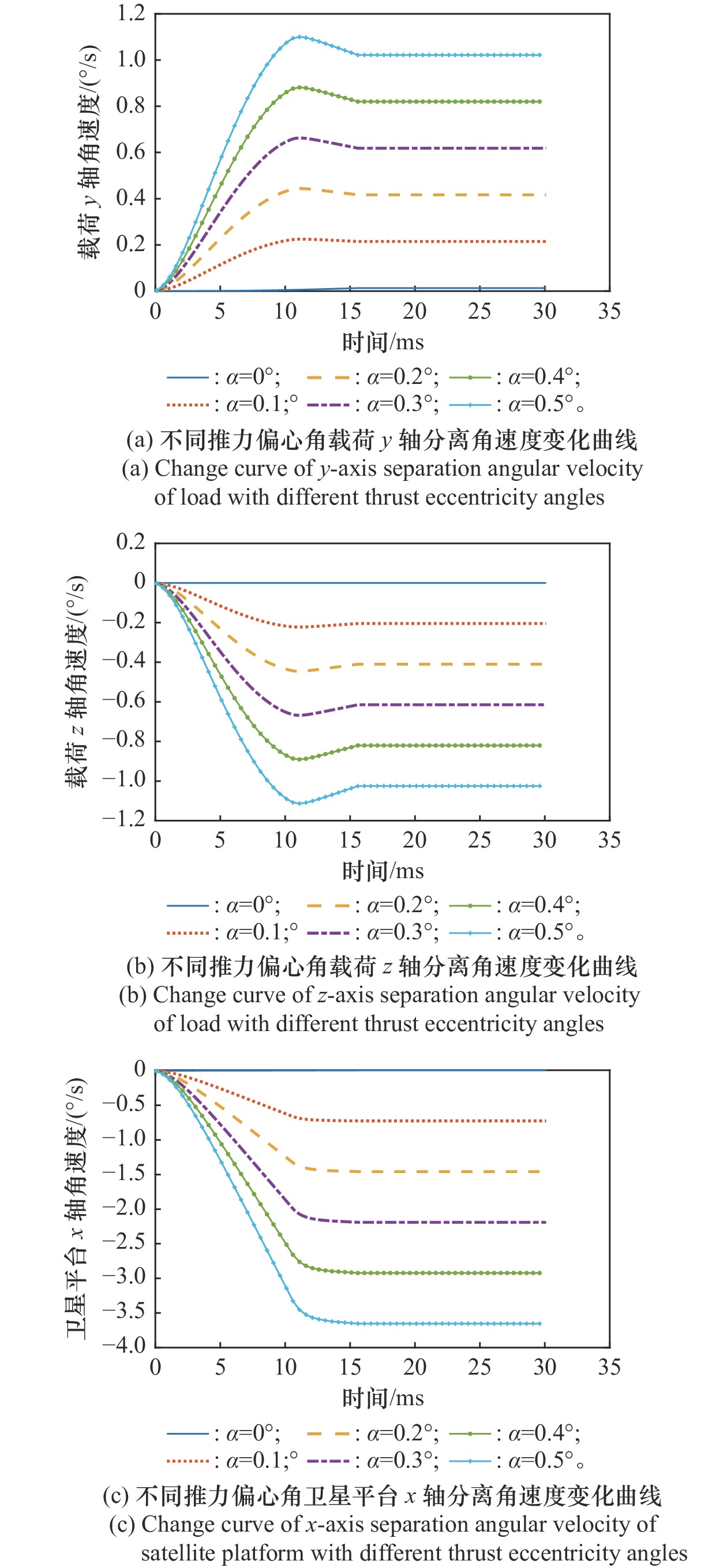

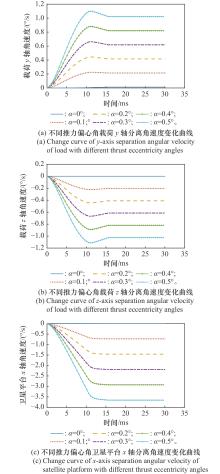

图9

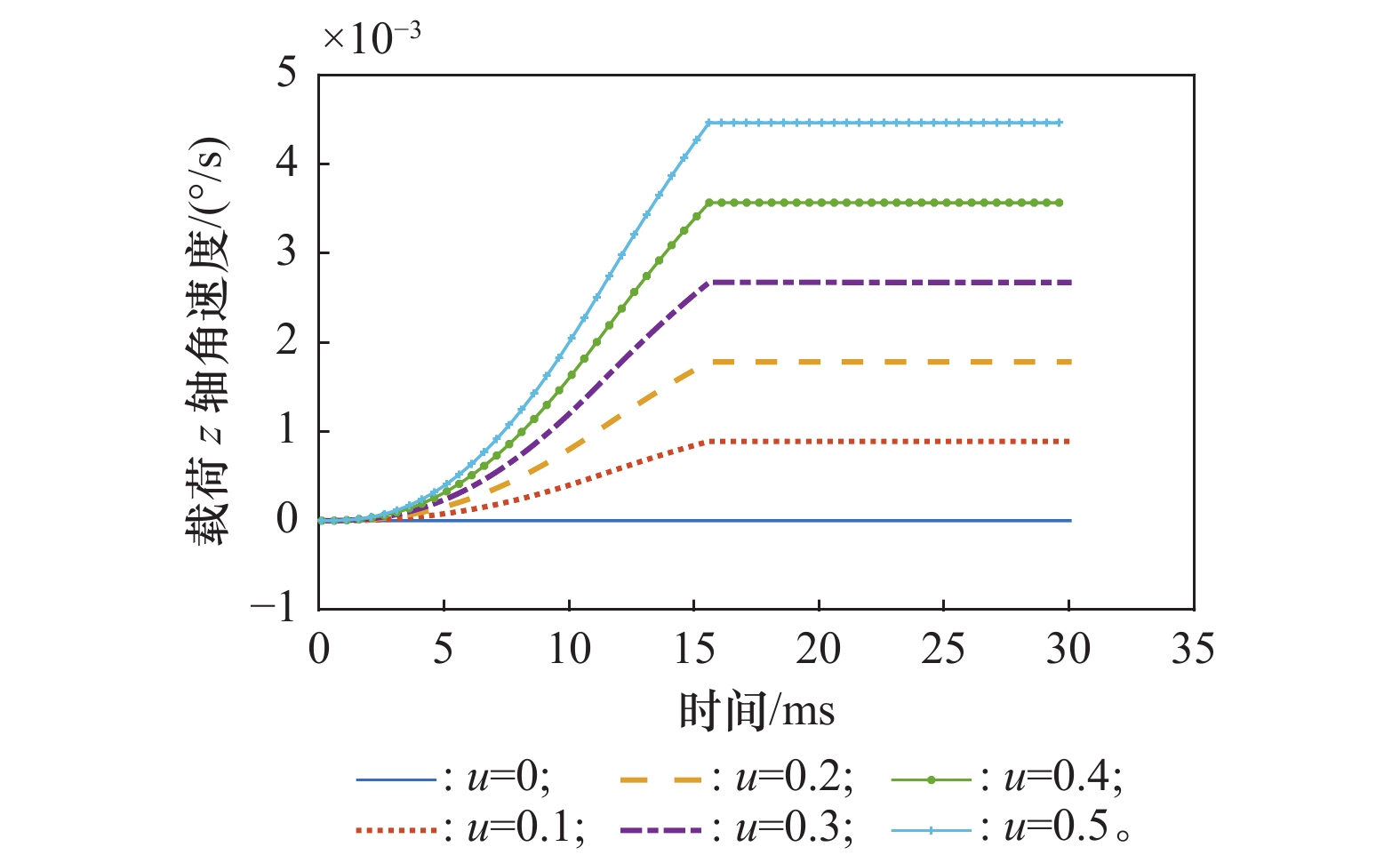

图10

参考文献 30

1	GONZALO J L, COLOMBO C, LIZIA D P. Analytical framework for space debris collision avoidance maneuver design[J]. Journal of Guidance, Control, and Dynamics, 2021, 44 (3): 469- 487.
2	HU W P, DU F, ZHAI Z, et al. Symplectic analysis on dynamic behaviors of tethered tug-debris system[J]. Acta Astronautica, 2022, 192, 182- 189. doi: 10.1016/j.actaastro.2021.12.028
3	SHAN M H, SHI L L. Post-capture control of a tumbling space debris via tether tension[J]. Acta Astronautica, 2021, 180, 317- 327. doi: 10.1016/j.actaastro.2020.12.049
4	VIAVATTENE G, DEVEREUX E, SNELLING D, et al. Design of multiple space debris removal missions using machine learning[J]. Acta Astronautica, 2022, 193, 277- 286. doi: 10.1016/j.actaastro.2021.12.051
5	SVOTINA V V, CHERKASOVA М V. Space debris removal-review of technologies and techniques. flexible or virtual connection between space debris and service spacecraft[J]. Acta Astronautica, 2023, 204, 840- 853. doi: 10.1016/j.actaastro.2022.09.027
6	HAN D, DONG G Q, HUANG P F, et al. Capture and detumbling control for active debris removal by a dual-arm space robot[J]. Chinese Journal of Aeronautics, 2022, 35 (9): 342- 353. doi: 10.1016/j.cja.2021.10.008
7	ZENG C, HECHT G R, CHOWDHURY S, et al. Concurrent design optimization of tether-net system and actions for reliable space-debris capture[J]. Journal of Spacecraft and Rockets, 2024, 61 (3): 773- 783. doi: 10.2514/1.A35812
8	ZHAO W, PANG Z J, WANG M X, et al. Experimental and numerical investigations of damage and ballistic limit velocity of CFRP laminates subject to harpoon impact[J]. Thin-Walled Structures, 2024, 198, 111732. doi: 10.1016/j.tws.2024.111732
9	LEDKOV A S, ASLANOV V S. Active space debris removal by ion multi-beam shepherd spacecraft[J]. Acta Astronautica, 2023, 205, 247- 257. doi: 10.1016/j.actaastro.2023.02.003
10	LEDKOV A S, ASLANOV V S. Review of contact and contactless active space debris removal approaches[J]. Progress in Aerospace Sciences, 2022, 134, 100858. doi: 10.1016/j.paerosci.2022.100858
11	LIU Y Q, LIU X F, CAI G P, et al. Detumbling a non-cooperative tumbling target using a low-thrust device[J]. AIAA Journal, 2022, 60 (5): 2718- 2729. doi: 10.2514/1.J060982
12	周秦渤. 多管火箭发射动力学多体系统传递矩阵法研究[D]. 南京: 南京理工大学, 2020.
	ZHOU Q B. Study on launch dynamics of a multiple launch rocket system based on the transfer matrix method for multibody system[D]. Nanjing: Nanjing University of Science and Technology, 2020.
13	缪云飞. 多管火箭射击精度动力学仿真与试验设计方法研究[D]. 南京: 南京理工大学, 2024.
	MIU Y F. Study on dynamics simulation and test design method of firing precision for multiple launch rocket system[D]. Nanjing: Nanjing University of Science and Technology, 2024.
14	GU L L, RUI X T, WANG G P, et al. A novel launch dynamics measurement system for multiple launch rocket system and comparative analysis with numerical simulations[J]. Defence Technology, 2021, 17 (2): 671- 681. doi: 10.1016/j.dt.2020.11.007
15	LIU J, WANG C D, HU B B, et al. Modeling and dynamic analysis of artillery barrel-cradle structure with clearance[J]. Journal of Mechanical Science and Technology, 2021, 35 (11): 1357- 1368.
16	WANG M M, QIAN L F, CHEN G S, et al. High-dimensional uncertainty quantification of projectile motion in the barrel of a truck-mounted howitzer based on probability density evolution method[J]. Defence Technology, 2024, 32 (2): 209- 221.
17	MA J, CHEN G S, JI L, et al. A general methodology to establish the contact force model for complex contacting surfaces[J]. Mechanical Systems and Signal Processing, 2020, 140, 106678. doi: 10.1016/j.ymssp.2020.106678
18	魏昕林. 机载导弹水平向后发射动力学研究[D]. 北京: 北京理工大学, 2021.
	WEI X L. Research on the horizontal backward launch dynamics of airborne missiles[D]. Beijing: Beijing Institute of Technology, 2021.
19	CUI S H, LI J X, ZHANG S F, et al. Overall parameters design of air-launched rockets using surrogate based optimization method[J]. Aerospace, 2021, 9 (1): 15. doi: 10.3390/aerospace9010015
20	JEYAKUMAR D, NAGESWARA R B. Dynamics of satellite separation system[J]. Journal of Sound and Vibration, 2006, 29 (7): 444- 455.
21	赵刚练, 姜毅, 陈余军, 等. 考虑导轨间隙的在轨分离动力学计算方法[J]. 力学学报, 2013, 45 (6): 948- 956. doi: 10.6052/0459-1879-13-193
	ZHAO G L, JIANG Y, CHEN Y J, et al. Computational method for dynamics simulation of payload separation from satellite with rail clearance[J]. Theoretical and Applied Mechanics, 2013, 45 (6): 948- 956. doi: 10.6052/0459-1879-13-193
22	HU X Z, CHEN X Q, TUO Z H, et al. Dynamics and transient perturbation analysis of satellite separation systems[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2013, 227 (12): 1968- 1976. doi: 10.1177/0954410012466780
23	HU X Z, CHEN X Q, ZHAO Y, et al. Active subspace approach to reliability and safety assessments of small satellite separation[J]. Acta Astronautica, 2017, 131, 159- 165. doi: 10.1016/j.actaastro.2016.10.042
24	刘汉武, 张华, 王金童, 等. 考虑柔性多体特征的复杂航天器分离动力学仿真分析[J]. 宇航学报, 2017, 38 (4): 352- 358. doi: 10.3873/j.issn.1000-1328.2017.04.004
	LIU H W, ZHANG H, WANG J T, et al. Simulation analysis of complex spacecraft separation dynamics considering characteristics of flexible multi-body[J]. Journal of Astronautics, 2017, 38 (4): 352- 358. doi: 10.3873/j.issn.1000-1328.2017.04.004
25	GUO J S, ZHANG J Y, YUE C F, et al. Modeling of the CubeSat deployment and initial separation angular velocity estimation[J]. Aerospace Science and Technology, 2019, 95, 105477. doi: 10.1016/j.ast.2019.105477
26	谢长雄, 邓小雷, 王建臣, 等. 皮卫星星箭分离动力学模拟及其灵敏度分析[J]. 宇航学报, 2019, 40 (12): 1403- 1411. doi: 10.3873/j.issn.1000-1328.2019.12.003
	XIE C X, DENG X L, WANG J C, et al. Dynamic simulation and sensitivity analysis of picosatellite separation system[J]. Journal of Astronautics, 2019, 40 (12): 1403- 1411. doi: 10.3873/j.issn.1000-1328.2019.12.003
27	朱佳林, 殷新喆, 朱汪, 等. 深空探测采样返回起旋分离动力学仿真分析研究[J]. 宇航学报, 2021, 42 (12): 1515- 1524. doi: 10.3873/j.issn.1000-1328.2021.12.004
	ZHU J L, YIN X Z, ZHU W, et al. Simulation analysis of spin separation dynamics of deep space exploration sampling return[J]. Journal of Astronautics, 2021, 42 (12): 1515- 1524. doi: 10.3873/j.issn.1000-1328.2021.12.004
28	TAO X Y, YANG H B, DENG H Y, et al. Numerical analysis of separation dynamics for space debris removal payload based on solid thruster[C]//Proc. of the 13th Asia Conference on Mechanical and Aerospace Engineering, 2023, 2472: 012035.
29	ZHAO X Y, ZHAO C J, LI J L, et al. Research on design, simulation, and experiment of separation mechanism for micro-nano satellites[J]. Applied Sciences, 2022, 12 (12): 5997. doi: 10.3390/app12125997
30	LI J Q, CHEN S, LI C Y, et al. Adaptive control of underactuated flight vehicles with moving mass[J]. Aerospace Science and Technology, 2019, 85, 75- 84. doi: 10.1016/j.ast.2018.12.003

参数名称	符号	参数值
卫星平台质量/kg	$ {m_{\text{B}}} $	81.2
卫星平台转动惯量/（$ \text{kg}\cdot{\text{m}}^{2} $）	$ {{\boldsymbol{J}}_{\text{B}}} $	$ \left[ {\begin{array}{*{20}{c}} {8.86}&0&0 \\ 0&{6.93}&0 \\ 0&0&{6.79} \end{array}} \right]\; $
空间微小载荷质量/kg	$ {m_{\text{L}}} $	9.9
空间微小载荷转动惯量/（$ \text{kg}\cdot{\text{m}}^{2} $）	$ {{\boldsymbol{I}}_{\text{L}}} $	$ \left[ {\begin{array}{*{20}{c}} {0.032}&0&0 \\ 0&{0.276}&0 \\ 0&0&{0.276} \end{array}} \right] $
载荷质心位置矢径/m	$ {{\boldsymbol{r}}_{\text{L}}} $	$ {[0,\;\; - 0.2,\;\;0]^{\text{T}}} $
推力作用点位置矢径/m	$ {{\boldsymbol{r}}_{{\text{LT}}}} $	$ {[ - 0.3,\;\;0,\;\;0]^{\text{T}}} $
前定心部位置矢量/m	$ {{\boldsymbol{r}}_{{\text{LN1}}}} $	$ {[0.015,\;\;0,\;\;0]^{\text{T}}} $
后定心部位置矢量/m	$ {{\boldsymbol{r}}_{{\text{LN2}}}} $	$ {[ - 0.225,\;\;0,\;\;0]^{\text{T}}} $
轨道角速度/（rad/s）	$ {{\boldsymbol{\omega }}_{{\text{oi}}}} $	$ {[0,\;\; - 0.001\;5,\;\;0]^{\text{T}}} $
推力器侧向力矢量	$ {\boldsymbol{e}} $	$ {{{[0}},\;\;{{1}},\;\;{{1]}}^{{{\mathrm{T}}}}} $
推力偏心角/（°）	$ \alpha $	0.25
仿真时长/ms	$ t $	30
步长/ms	$ i $	0.1
摩擦系数	$ \mu $	0.2

参数	设计变量	数值仿真	ADAMS仿真
载荷分离速度/（m·s⁻¹）	$ x $	26.042 7	26.044 5
	$ y $	0	−0.000 2
	$ z $	0	−0.000 1
载荷分离角速度/（°/s）	$ x $	0	0.007 6
	$ y $	1.553 9	1.436 9
	$ z $	−1.000 5	−1.036 8
平台分离角速度/（°/s）	$ x $	−1.011 8	−0.992 2
	$ y $	1.553 9	1.437 1
	$ z $	−1.000 5	−1.036 5
