基于迭代原子范数最小化的均匀圆阵方位估计

doi:10.12305/j.issn.1001-506X.2025.06.03

摘要/Abstract

摘要：

针对水下阵列波达方位(direction of arrival, DOA)估计在少快拍情况下对相邻声源分辨能力差的问题，提出了基于迭代原子范数最小化的均匀圆环阵DOA快速估计方法。所提方法利用模态域处理方法对阵列流形进行预处理，将均匀圆环阵转换为虚拟直线阵，然后通过对角重构估计无噪接收信号协方差矩阵，消除模态域处理引入的非均匀噪声的影响。为了充分利用接收信号稀疏性，同时避免字典网格搜索带来的误差，在模态域引入迭代原子范数最小化稀疏恢复方法，提出均匀圆环阵迭代原子范数最小化(uniform circular array-iterative atomic norm minimization, UCA-IANM)方位估计方法。原子范数最小化稀疏恢复问题一般采用内点法求解，该方法随接收信号快拍数增加，计算量急剧上升，不适用于水下计算资源受限的场景。在交替方向乘子法(alternating direction multiplier method, ADMM)的基础上，针对正则化参数难以选择的问题，提出了基于参数优化ADMM的UCA-IANM(UCA-IANM assisted by ADMM with parameter optimization, UCA-IANM-APO)DOA快速估计算法。仿真实验与实测数据分析表明，UCA-IANM-APO DOA快速估计方法的角度分辨能力和估计精度均优于传统DOA估计方法，求解速度较内点法提升了两个数量级。

关键词: 均匀圆环阵, 虚拟成阵, 对角重构, 原子范数最小化, 交替方向乘子法

Abstract:

To address the challenge of underwater array direction of arrival (DOA) estimation of poor discrimination between adjacent sound sources when only a few snapshots are available, a fast estimation method based on iterative atomic norm minimization (IANM) is proposed for estimating the DOA for uniform circular arrays. To reduce the impact of non-uniform noise caused by modal domain processing, the proposed method preprocesses the array manifolds using the modal domain processing technique. This technique transforms the uniform circular array (UCA) into a virtual linear array and then estimates the covariance matrix of the received signal in the absence of noise through diagonal reconstruction. In order to make full use of the sparsity of the received signal and avoid the error caused by dictionary grid search, an IANM sparse recovery method is introduced in the modal domain, and the UCA-IANM direction estimation method is proposed. The sparse recovery problem of atomic norm minimization (ANM) is typically addressed using the interior point method, which leads to a sharp increase in workload as the number of received signal snapshots grows, making it unsuitable for scenarios with limited underwater computational resources. In this paper, based on the alternating direction multiplier method (ADMM), the UCA-IANM assisted by ADMM with parameter optimization (UCA-IANM-APO) DOA fast estimation method is proposed to address the challenge in selecting the regularization parameter. Simulation experiments and measured data demonstrate that the UCA-IANM-APO method has better angular resolution and estimation accuracy compared to the traditional DOA estimation methods, and the solution speed is improved by two orders of magnitude compared to the interior point method.

Key words: uniform circular array (UCA), virtual array, diagonal reconstruction, atomic norm minimization (ANM), alternating direction multiplier method

中图分类号:

江首德, 鄢社锋, 毛琳琳, 江春瑾. 基于迭代原子范数最小化的均匀圆阵方位估计[J]. 系统工程与电子技术, 2025, 47(6): 1746-1756.

Shoude JIANG, Shefeng YAN, Linlin MAO, Chunjin JIANG. Uniform circular array direction-of-arrival estimation based on iterative atomic norm minimization[J]. Systems Engineering and Electronics, 2025, 47(6): 1746-1756.

图/表 14

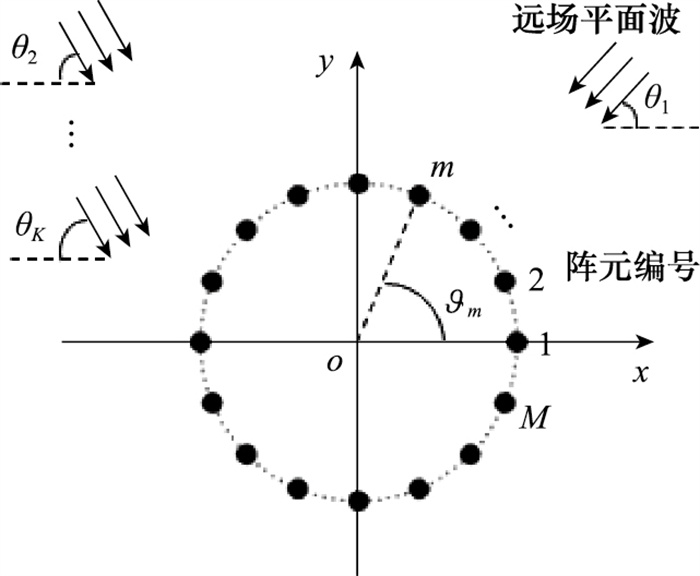

图1

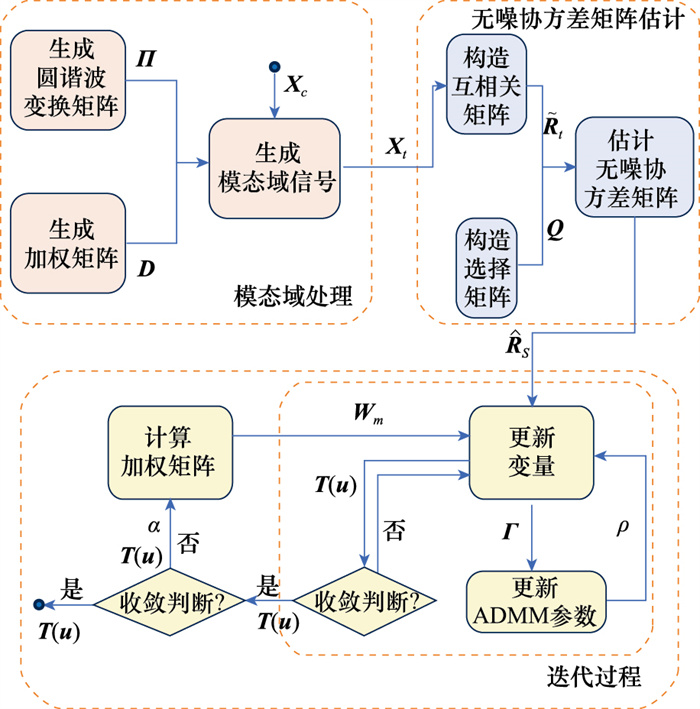

图2

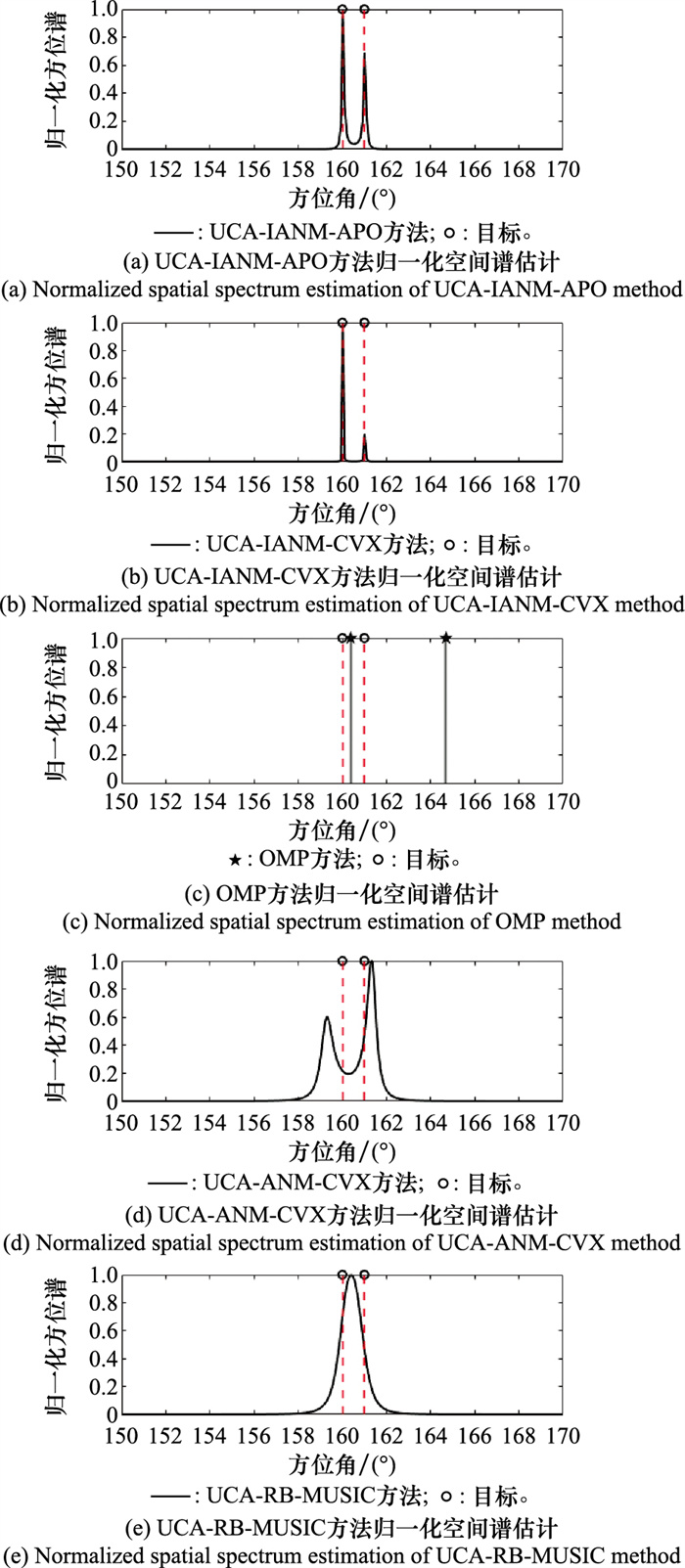

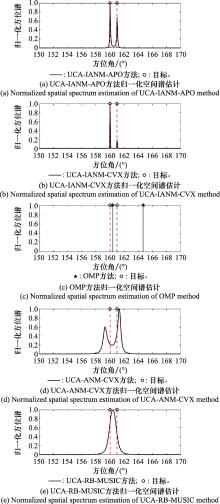

图3

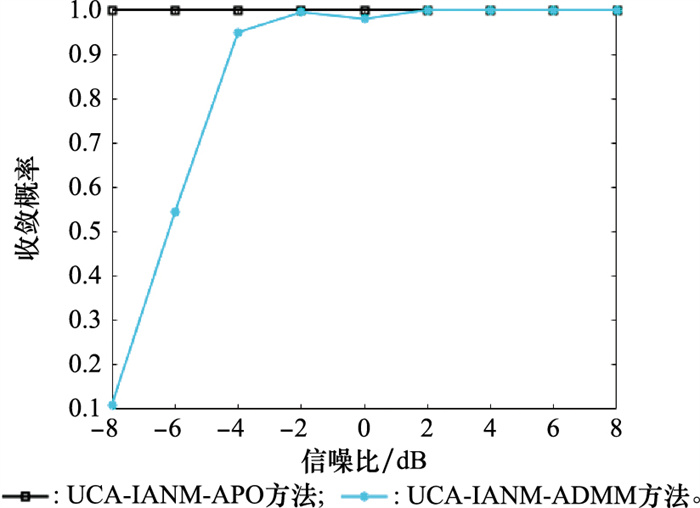

图4

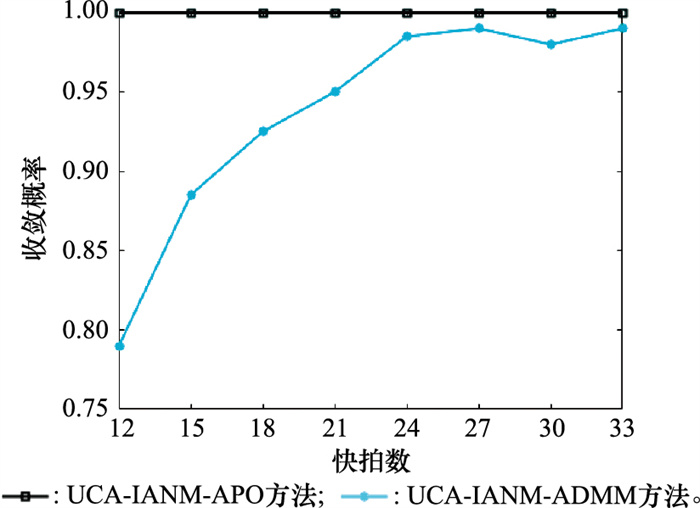

图5

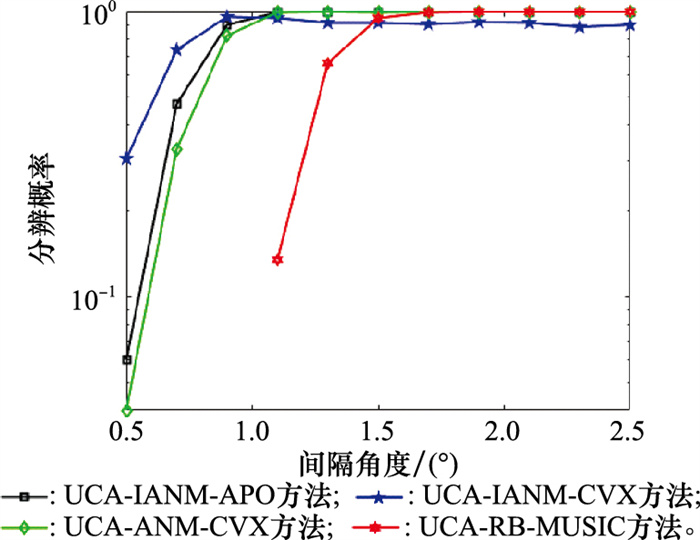

图6

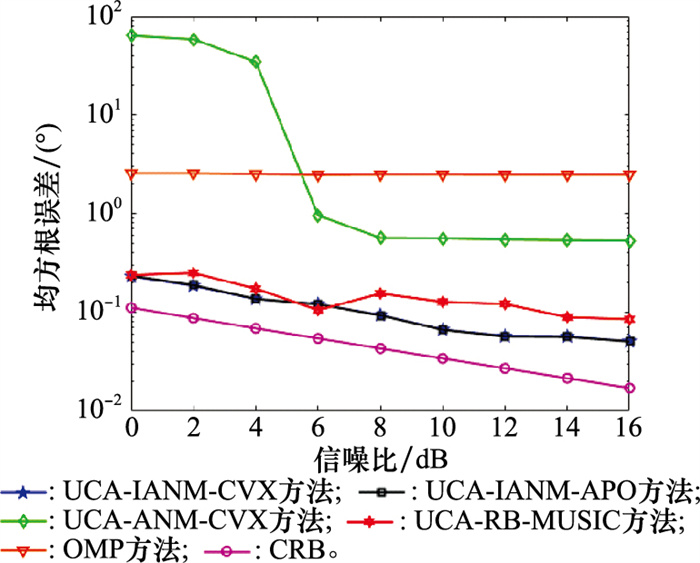

图7

表1

表2

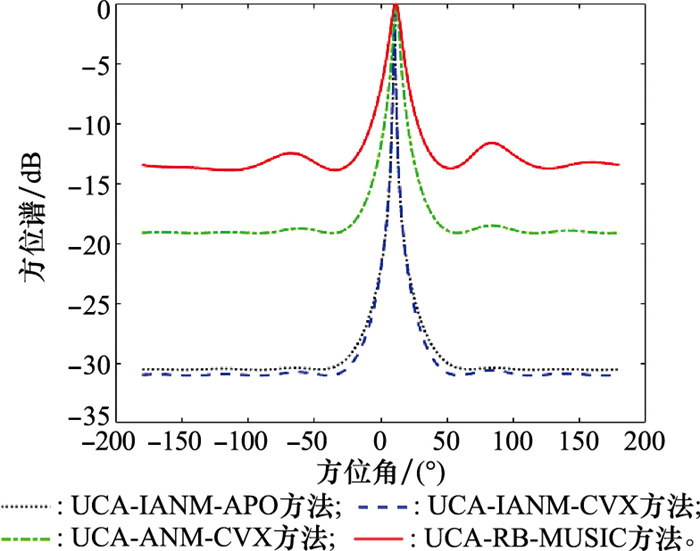

图8

表3

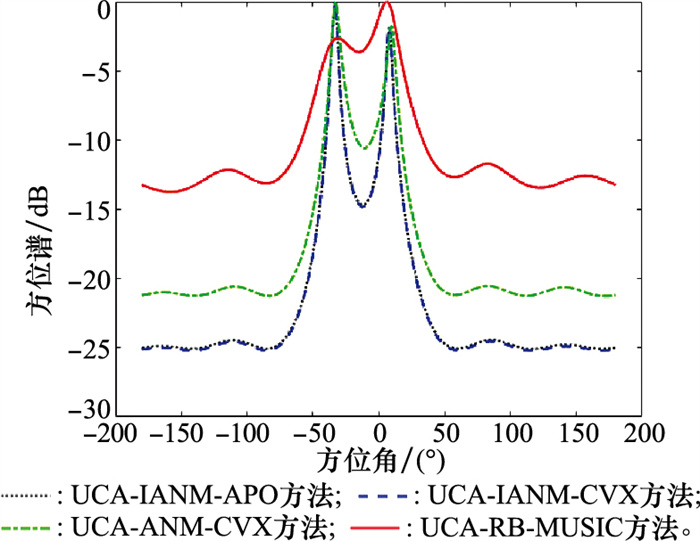

图9

表4

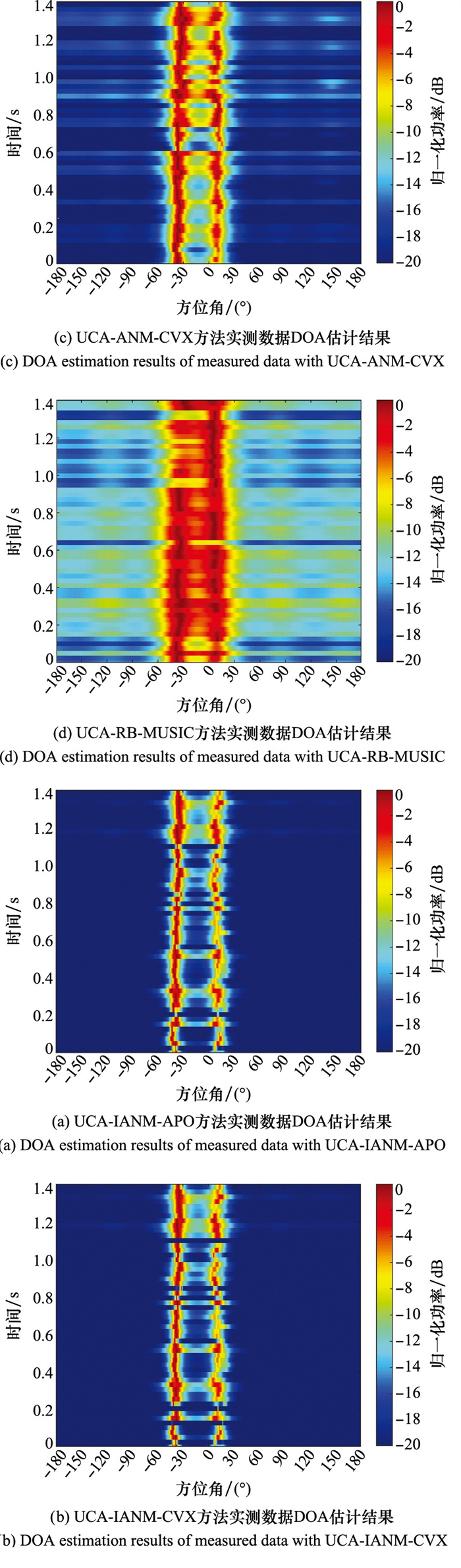

图10

参考文献 32

1	刘国鹏, 鄢社锋, 毛琳琳, 等. 多异构阵列归一化数据融合被动定位方法[J]. 信号处理, 2022, 38 (8): 1642- 1655.
	LIU G P , YAN S F , MAO L L , et al. Passive source locali- zation based on normalized data fusion of multiple heterogeneous arrays[J]. Journal of Signal Processing, 2022, 38 (8): 1642- 1655.
2	黄海宁, 李宇. 水声目标探测技术研究现状与展望[J]. 中国科学院院刊, 2019, 34 (3): 264- 271.
	HUANG H N , LI Y . Underwater acoustic detection: current status and future trends[J]. Bulletin of Chinese Academy of Sciences, 2019, 34 (3): 264- 271.
3	CAPON J . High-resolution frequency-wavenumber spectrum analysis[J]. Proceedings of the IEEE, 1969, 57 (8): 1408- 1418. doi: 10.1109/PROC.1969.7278
4	SCHMIDT R . Multiple emitter location and signal parameter estimation[J]. IEEE Trans.on Antennas Propagation, 1986, 34 (3): 276- 280. doi: 10.1109/TAP.1986.1143830
5	ROY R , KAILATH T . ESPRIT-estimation of signal parameters via rotational invariance techniques[J]. IEEE Trans.on Acoustics, Speech, Signal Processing, 1989, 37 (7): 984- 995. doi: 10.1109/29.32276
6	MALIOUTOV D , CETIN M , WILLSKY A S . A sparse signal reconstruction perspective for source localization with sensor arrays[J]. IEEE Trans.on Signal Processing, 2005, 53 (8): 3010- 3022. doi: 10.1109/TSP.2005.850882
7	NARAYANAN S, SAHOO S K, MAKUR A. Greedy pursuits assisted basis pursuit for compressive sensing[C]//Proc. of the 23rd European Signal Processing Conference, 2015: 694-698.
8	TIBSHIRANI R . Regression shrinkage and selection via the LASSO[J]. Journal of the Royal Statistical Society Series B: Statistical Methodology, 1996, 58 (1): 267- 288. doi: 10.1111/j.2517-6161.1996.tb02080.x
9	GORODNITSKY I F , RAO B D . Sparse signal reconstruction from limited data using FOCUSS: a re-weighted minimum norm algorithm[J]. IEEE Trans.on Signal Processing, 1997, 45 (3): 600- 616. doi: 10.1109/78.558475
10	LIU Z M , HUANG Z T , ZHOU Y Y . An efficient maximum likelihood method for direction-of-arrival estimation via sparse Bayesian learning[J]. IEEE Trans.on Wireless Communications, 2012, 11 (10): 1- 11. doi: 10.1109/TWC.2012.090312.111912
11	CHEN M Q , MAO X P , ZHAO C L . Direct localization of emitters based on sparse Bayesian learning[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (6): 5769- 5781. doi: 10.1109/TVT.2019.2910831
12	YANG Z , XIE L H , ZHANG C S . Off-grid direction of arrival estimation using sparse Bayesian inference[J]. IEEE Trans.on Signal Processing, 2012, 61 (1): 38- 43.
13	DAI J S , BAO X , XU W C , et al. Root sparse Bayesian learning for off-grid DOA estimation[J]. IEEE Signal Processing Letters, 2016, 24 (1): 46- 50.
14	TANG G G , BHASKAR B N , SHAH P , et al. Compressed sensing off the grid[J]. IEEE Trans.on Information Theory, 2013, 59 (11): 7465- 7490. doi: 10.1109/TIT.2013.2277451
15	STEINWANDT J, ROEMER F, STEFFENS C, et al. Gridless super-resolution direction finding for strictly non-circular sources based on atomic norm minimization[C]//Proc. of the 50th Asilomar Conference on Signals, Systems and Computers, 2016: 1518-1522.
16	TENG L P , WANG Q , CHEN H . 1-Bit DOA estimation algorithm for strictly non-circular sources[J]. IEEE Communications Letters, 2021, 25 (7): 2216- 2220. doi: 10.1109/LCOMM.2021.3072490
17	MATHEWS C P , ZOLTOWSKI M D . Eigenstructure techniques for 2-D angle estimation with uniform circular arrays[J]. IEEE Trans.on Signal Processing, 1994, 42 (9): 2395- 2407. doi: 10.1109/78.317861
18	ZHANG Z , WANG Y , TIAN Z . Efficient two-dimensional line spectrum estimation based on decoupled atomic norm minimization[J]. Signal Processing, 2019, 163, 95- 106. doi: 10.1016/j.sigpro.2019.04.024
19	YANG Y , CHU Z G , PING G L . Two-dimensional multiple-snapshot grid-free compressive beamforming[J]. Mechanical Systems Signal Processing, 2019, 124, 524- 540. doi: 10.1016/j.ymssp.2019.02.011
20	WU X H , ZHU W P , YAN J . A high-resolution DOA estimation method with a family of nonconvex penalties[J]. IEEE Trans.on Vehicular Technology, 2018, 67 (6): 4925- 4938. doi: 10.1109/TVT.2018.2817638
21	YANG Z , XIE L H . Enhancing sparsity and resolution via reweighted atomic norm minimization[J]. IEEE Trans.on Signal Processing, 2015, 64 (4): 995- 1006.
22	张胜楠, 刘峥, 谢荣, 等. 基于ANM的非均匀圆阵二维DOA估计[J]. 雷达科学与技术, 2023, 21 (6): 630- 636. doi: 10.3969/j.issn.1672-2337.2023.06.006
	ZHANG S N , LIU Z , XIE R , et al. Two-dimensional DOA estimation of non-uniform circular array based on ANM[J]. Radar Science and Technology, 2023, 21 (6): 630- 636. doi: 10.3969/j.issn.1672-2337.2023.06.006
23	鄢社锋, 侯朝焕, 马晓川. 从阵元域到模态域阵列信号处理[J]. 声学学报, 2011, 36 (5): 461- 468.
	YAN S F , HOU C H , MA X C . From element-space to modal array signal processing[J]. Acta Acustica, 2011, 36 (5): 461- 468.
24	任笑莹, 王英民, 张立琛, 等. 均匀双圆环阵虚拟成阵方法研究[J]. 水下无人系统学报, 2023, 31 (5): 735- 745.
	REN X Y , WANG Y M , ZHANG L C , et al. Research on virtual array transform method of uniform bicircular array[J]. Journal of Unmanned Undersea Systems, 2023, 31 (5): 735- 745.
25	FANG Y F , ZHU S Q , ZENG C , et al. DOA estimations with limited snapshots based on improved rank-one correlation model in unknown nonuniform noise[J]. IEEE Trans.on Vehicular Technology, 2021, 70 (10): 10308- 10319. doi: 10.1109/TVT.2021.3105673
26	姚震, 杨闯, 纪晓东. 低快拍下混合信号DOA快速估计算法[J]. 系统工程与电子技术, 2024, 46 (2): 722- 728. doi: 10.12305/j.issn.1001-506X.2024.02.36
	YAO Z , YANG C , JI X D . Fast estimation algorithm for DOA of mixed signal in low snapshots[J]. Systems Engineering and Electronics, 2024, 46 (2): 722- 728. doi: 10.12305/j.issn.1001-506X.2024.02.36
27	唐文根. 复杂背景下双基地MIMO雷达目标角度估计方法研究[D]. 吉林: 吉林大学, 2023.
	TANG W G. Research on target angle estimation methods for bistatic MIMO radar in complex background[D]. Jilin: Jilin University, 2023.
28	揭允康, 张雯, 李想, 等. 一种基于迭代自适应的离网格DOA估计方法[J]. 电子与信息学报, 2023, 45 (10): 3805- 3811. doi: 10.11999/JEIT221061
	JIE Y K , ZHANG W , LI X , et al. An off-grid DOA estimation based on iterative adaptive approach[J]. Journal of Electronics & Information Technology, 2023, 45 (10): 3805- 3811. doi: 10.11999/JEIT221061
29	任明健, 胡国平, 周豪, 等. 基于耦合张量分解的稀疏阵列二维DOA估计算法[J]. 系统工程与电子技术, 2023, 45 (4): 958- 964. doi: 10.12305/j.issn.1001-506X.2023.04.03
	REN M J , HU G P , ZHOU H , et al. DOA estimation algorithm with two-dimensional sparse array based on coupling tensor decomposition[J]. Systems Engineering and Electronics, 2023, 45 (4): 958- 964. doi: 10.12305/j.issn.1001-506X.2023.04.03
30	BOYD S , PARIKH N , CHU E , et al. Distributed optimization and statistical learning via the alternating direction method of multipliers[J]. Foundations Trends in Machine Learning, 2011, 3 (1): 1- 122.
31	STOICA P , LARSSON E G , GERSHMAN A B . The stochastic CRB for array processing: a textbook derivation[J]. IEEE Signal Processing Letters, 2001, 8 (5): 148- 150. doi: 10.1109/97.917699
32	屈嵩岳, 郭良浩, 董阁. 联合通道随机关闭和反卷积的水平阵波达方位估计[J]. 声学学报, 2024, 49 (1): 1- 15.
	QU S Y , GUO L H , DONG G . Direction of arrival estimation method jointing channel randomly shielding and deconvolution for a horizontal array[J]. Acta Acustica, 2024, 49 (1): 1- 15.

算法名称	算法复杂度
UCA-IANM-CVX	$ O\left\{\varOmega_w \varOmega_{\mathrm{ANM}}\left(M_t^3+M_t^2+1\right)\right\}$
UCA-ANM-CVX	$ O\left\{\varOmega_{\mathrm{ANM}}\left[\left(M_t+K\right)^3+\left(M_t+K\right)^2+1\right]\right.$
UCA-IANM-APO	$ O\left\{\varOmega_w \varOmega_{\mathrm{ADMM}} M_t^3\right\}$

算法名称	耗时/s
UCA-IANM-CVX	25.160 2
UCA-ANM-CVX	2.645 1
UCA-IANM-APO	0.017 2

算法名称	主瓣宽度/(°)	旁瓣级/dB
UCA-RB-MUSIC	9	-13
UCA-IANM-CVX	1	-31
UCA-ANM-CVX	5	-19
UCA-IANM-APO	1	-31

算法名称	主瓣宽度/(°)	旁瓣级/dB
UCA-RB-MUSIC	18	-13
UCA-IANM-CVX	4	-25
UCA-ANM-CVX	7	-21
UCA-IANM-APO	4	-25
