采用势函数的三自由度气浮模拟器追逃策略

doi:10.12305/j.issn.1001-506X.2025.05.27

摘要/Abstract

摘要：

针对航天器近距离操作控制算法地面验证和空间近距离追逃问题, 开发三自由度(three degrees-of-freedom, 3-DOF)零重力气浮模拟器, 提出引入虚拟边界障碍物的势函数追踪策略和逃逸策略, 有效利用势函数的特性, 在追踪星抵近逃逸星的同时, 可实现对环境中障碍物的规避, 并且在有限的地面空间范围内约束双星的运动。实验结果表明，追踪星可实现对逃逸星的追踪, 与仿真结果一致, 证明了该实验台可用于航天器近距离机动控制算法的地面验证, 也证明了提出的追逃策略的有效性。

关键词: 气浮模拟器, 势函数, 追逃策略, 虚拟障碍物

Abstract:

Aiming at the problem of ground verification of spacecraft proximity operation algorithms and pursuit-evasion in close range, a three degrees-of-freedom (3-DOF) microgravity floating simulator is developed, and the pursuit strategy and evasion strategy based on potential function introducing virtual boundary obstacles are proposed. The proposed method makes use of the properties of potential function effectively to avoid obstacles in the environment while pursuing evader and constrains the motion in the limited ground space. The experimental results show that the pursuer can pursue the evader, and is consistent with the simulation results, and proves that the experimental platform can be used to test the maneuver control algorithm and also verifies the effectiveness of the proposed pursuit and evasion strategy based on potential function.

Key words: floating simulator, potential function, pursuit-evasion strategy, virtual obstacle

中图分类号:

V416.8

王创歌, 陈丹鹤, 廖文和. 采用势函数的三自由度气浮模拟器追逃策略[J]. 系统工程与电子技术, 2025, 47(5): 1655-1662.

Chuangge WANG, Danhe CHEN, Wenhe LIAO. Pursuit-evasion strategy of three degrees-of-freedom floating simulator using potential function[J]. Systems Engineering and Electronics, 2025, 47(5): 1655-1662.

图/表 9

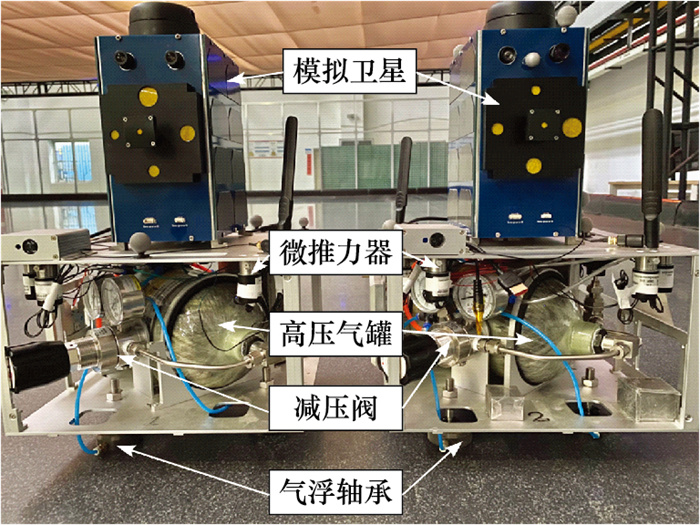

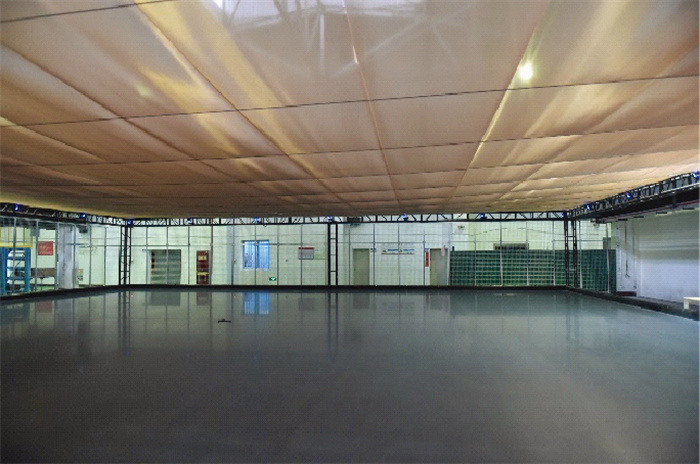

图1

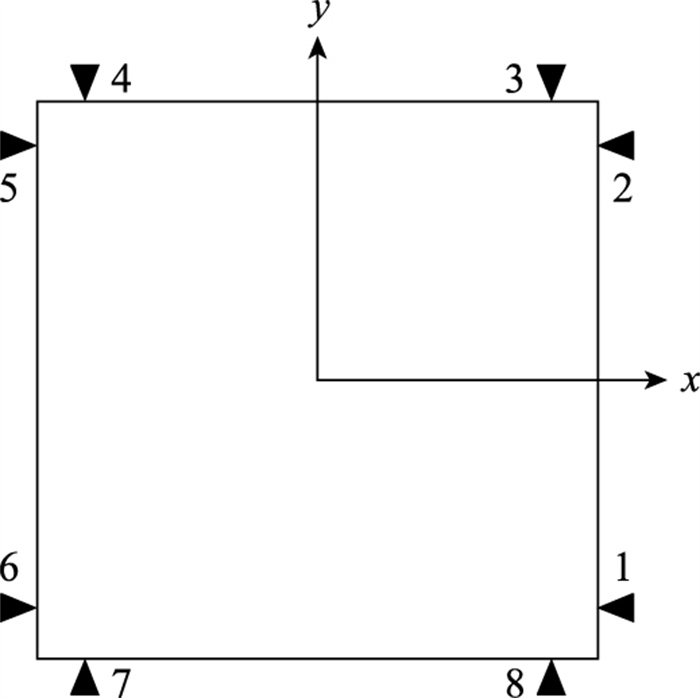

图2

图3

表1

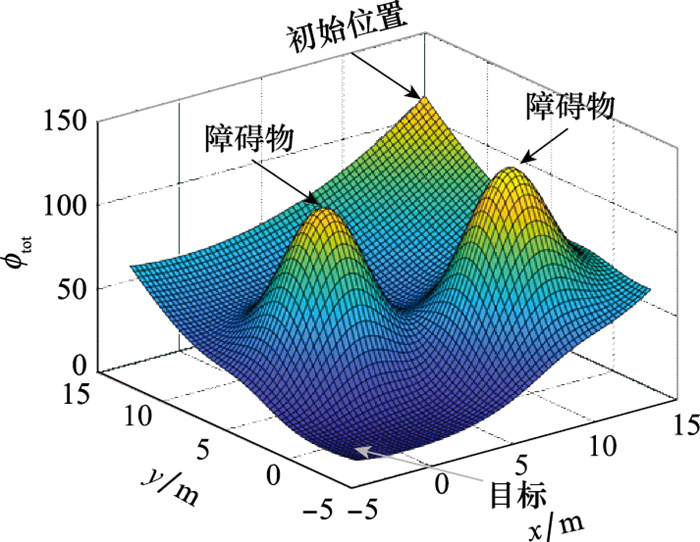

图4

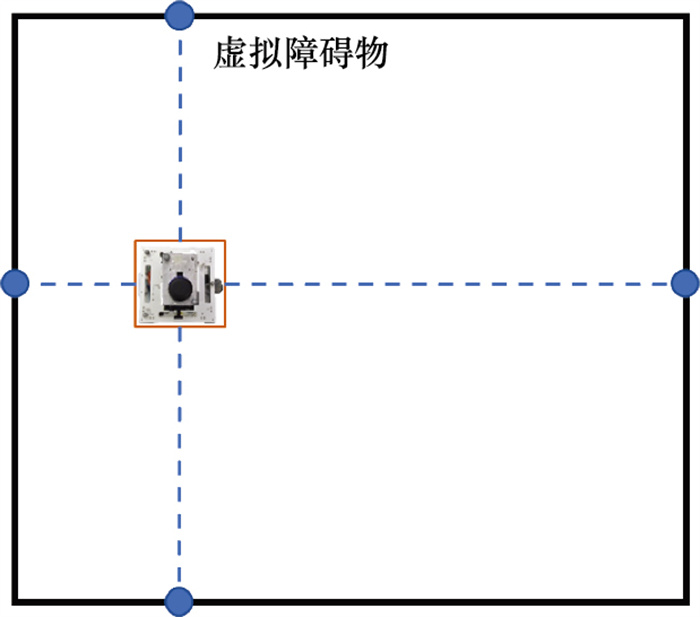

图5

表2

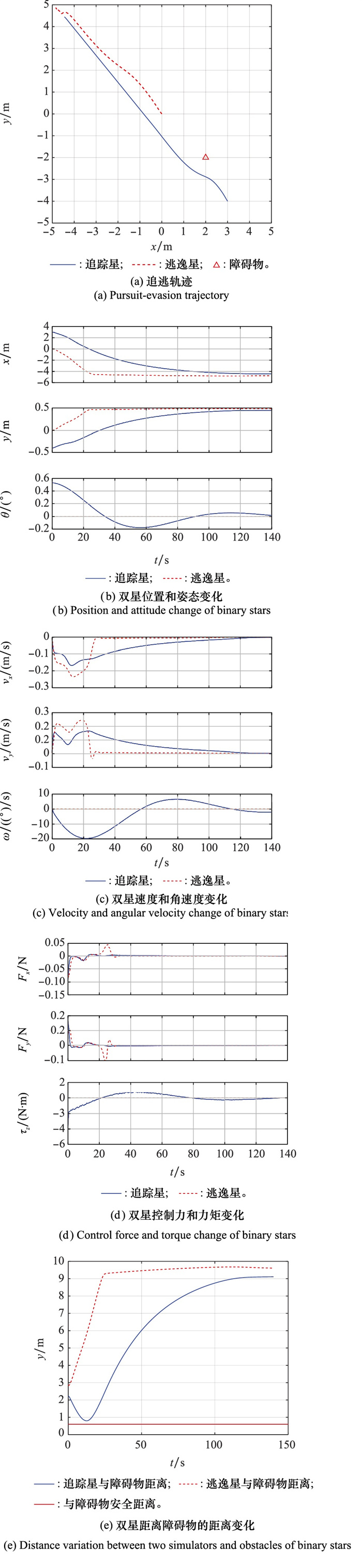

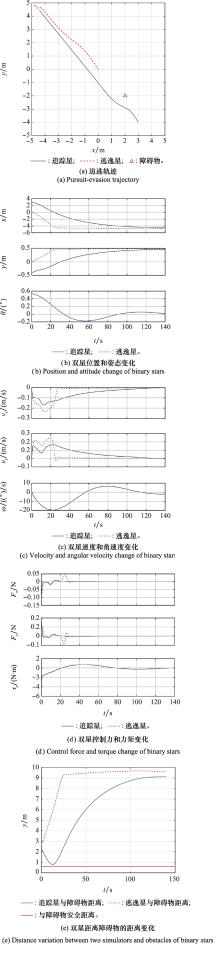

图6

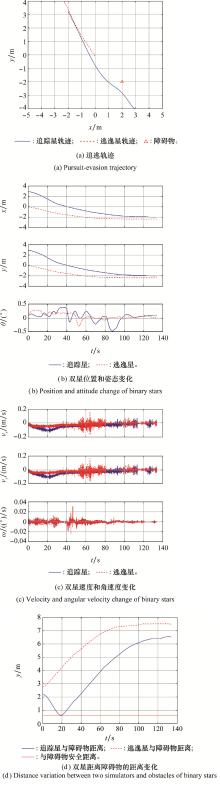

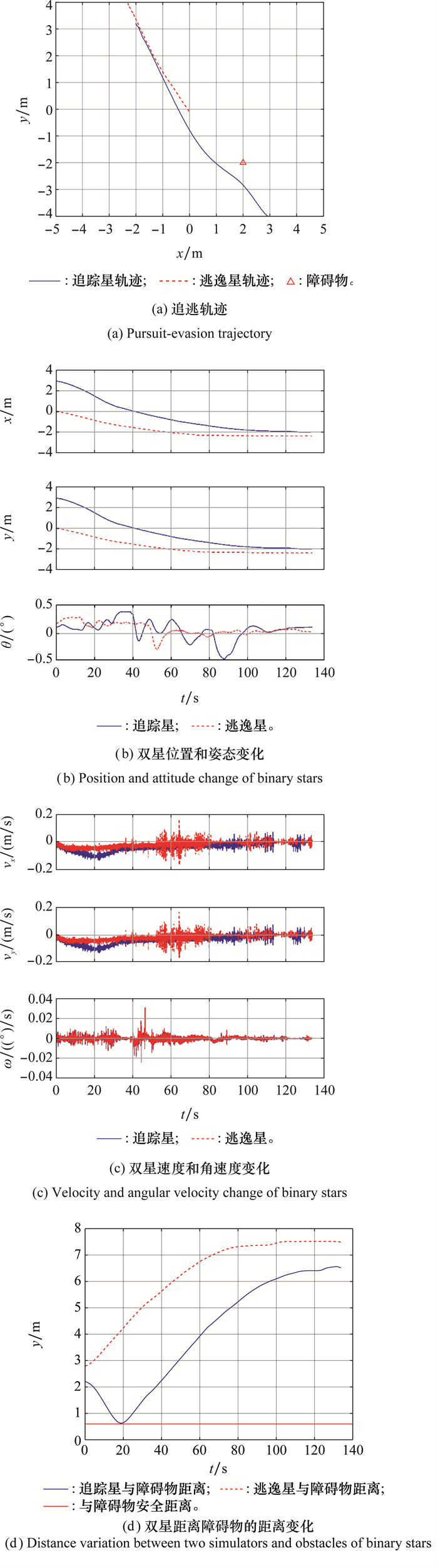

图7

参考文献 29

30	HWANGJ,LEEJ,PARKC.Collision avoidance control for formation flying of multiple spacecraft using artificial potential field[J].Advances in Space Research,2022,69(5):2197-2209. doi: 10.1016/j.asr.2021.12.015
1	ZAPPULLAR,VIRGILI-LLOPJ,ZAGARISC,et al.Dynamic air-bearing hardware-in-the-loop testbed to experimentally evaluate autonomous spacecraft proximity maneuvers[J].Journal of Spacecraft and Rockets,2017,54(4):825-839. doi: 10.2514/1.A33769
2	SHAOX Y,YAOW R,LIX L,et al.Direct trajectory optimization of free-floating space manipulator for reducing spacecraft variation[J].IEEE Robotics and Automation Letters,2022,7(2):2795-2802. doi: 10.1109/LRA.2022.3143586
3	RYBUST,WOJTUNIKM,BASMADJIF L.Optimal collision-free path planning of a free-floating space robot using spline-based trajectories[J].Acta Astronautica,2022,190,395-408. doi: 10.1016/j.actaastro.2021.10.012
4	WEIZ T,CHENT,WENH,et al.Experimental study on autonomous assembly of multiple spacecraft simulators in a spinning scenario[J].Acta Astronautica,2023,207,106-117. doi: 10.1016/j.actaastro.2023.03.009
5	SANTAGUIDAL,ZHUZ H.Development of air-bearing microgravity testbed for autonomous spacecraft rendezvous and robotic capture control of a free-floating target[J].Acta Astronautica,2023,203,319-328. doi: 10.1016/j.actaastro.2022.11.056
6	RYBUST,ALEKSIEJUKK,BASMADJIF L,et al.Application of the obstacle vector field method for trajectory planning of a planar manipulator in simulated microgravity[J].Artificial Satellites,2023,58(S1):171-187. doi: 10.2478/arsa-2023-0021
7	FERNANDEZB R,HERRERAL,HUDSONJ,et al.Deve-lopment of a tip-tilt air-bearing testbed for physically emulating proximity-flight orbital mechanics[J].Advances in Space Research,2023,71(10):4332-4339. doi: 10.1016/j.asr.2023.01.005
8	BASHNICKC,ULRICHS.Fast model predictive control for spacecraft rendezvous and docking with obstacle avoidance[J].Journal of Guidance, Control, and Dynamics,2023,46(5):998-1007. doi: 10.2514/1.G007314
9	SHENH X,CASALINOL.Revisit of the three-dimensional orbital pursuit-evasion game[J].Journal of Guidance, Control, and Dynamics,2018,41(8):1823-1831. doi: 10.2514/1.G003127
10	PONTANIM,CONWAYB A.Numerical solution of the three-dimensional orbital pursuit-evasion game[J].Journal of Guidance, Control, and Dynamics,2009,32(2):474-487. doi: 10.2514/1.37962
11	VENIGALLAC,SCHEERESD J.Delta-V-based analysis of spacecraft pursuit-evasion games[J].Journal of Guidance, Control, and Dynamics,2021,44(11):1961-1971. doi: 10.2514/1.G005901
12	SHIM M,YED,SUNZ W,et al.Spacecraft orbital pursuit-evasion games with J2 perturbations and direction-constrained thrust[J].Acta Astronautica,2023,202,139-150. doi: 10.1016/j.actaastro.2022.10.004
13	STUPIK J, PONTANI M, CONWAY B. Optimal pursuit/evasion spacecraft trajectories in the hill reference frame[C]//Proc. of the AIAA/AAS Astrodynamics Specialist Conference, 2012: 4882-4896.
14	LIZ Y,ZHUH,YANGZ,et al.Saddle point of orbital pursuit-evasion game under J2-perturbed dynamics[J].Journal of Guidance, Control, and Dynamics,2020,43(9):1733-1739. doi: 10.2514/1.G004459
15	YED,SHIM M,SUNZ W.Satellite proximate pursuit-evasion game with different thrust configurations[J].Aerospace Science and Technology,2020,99,105715. doi: 10.1016/j.ast.2020.105715
16	SELVAKUMAR J, BAKOLAS E. A pursuit-evasion game in the orbital plane[C]//Proc. of the 27th AAS/AIAA Space Flight Mechanics Meeting, 2017: 474-485.
17	ZHAOL R,ZHANGY L,DANGZ H.PRD-MADDPG: an efficient learning-based algorithm for orbital pursuit-evasion game with impulsive maneuvers[J].Advances in Space Research,2023,72(2):211-230. doi: 10.1016/j.asr.2023.03.014
18	赵力冉,党朝辉,张育林.空间轨道博弈: 概念、原理与方法[J].指挥与控制学报,2021,7(3):215-224.
	ZHAOL R,DANGZ H,ZHANGY L.Orbital game: concepts, principles and methods[J].Journal of Command and Control,2021,7(3):215-224.
19	HUAB,HEJ,ZHANGH,et al.Spacecraft attitude reorientation control method based on potential function under complex constraints[J].Aerospace Science and Technology,2024,144,108738. doi: 10.1016/j.ast.2023.108738
20	PALACIOSL,CERIOTTIM,RADICEG.Close proximity formation flying via linear quadratic tracking controller and artificial potential function[J].Advances in Space Research,2015,56(10):2167-2176. doi: 10.1016/j.asr.2015.09.005
21	ROGERA B,MCINNESC R.Safety constrained free-flyer path planning at the international space station[J].Journal of Guidance, Control, and Dynamics,2000,23(6):971-979. doi: 10.2514/2.4656
22	WANGC G,CHEND H,LIAOW H,et al.Autonomous obstacle avoidance strategies in the mission of large space debris removal using potential function[J].Advances in Space Research,2023,72(7):2860-2873. doi: 10.1016/j.asr.2022.04.013
23	BADAWYA,MCINNESC R.On-orbit assembly using superquadric potential fields[J].Journal of Guidance, Control, and Dynamics,2008,31(1):30-43. doi: 10.2514/1.28865
24	CAOL,QIAOD,XUJ W.Suboptimal artificial potential function sliding mode control for spacecraft rendezvous with obstacle avoidance[J].Acta Astronautica,2018,143,133-146. doi: 10.1016/j.actaastro.2017.11.022
25	ZHOUH,DANGZ H,ZHANGY L,et al.Collision-free control of a nano satellite in the vicinity of China Space Station using Lorentz augmented composite artificial potential field[J].Acta Astronautica,2023,203,88-102. doi: 10.1016/j.actaastro.2022.11.030
26	FRIUDENBERGP,KOZIOLS.Mobile robot rendezvous using potential fields combined with parallel navigation[J].IEEE Access,2018,6,16948-16957. doi: 10.1109/ACCESS.2018.2802468
27	CURTIF,ROMANOM,BEVILACQUAR.Lyapunov-based thrusters'selection for spacecraft control: analysis and experimentation[J].Journal of Guidance, Control, and Dynamics,2010,33(4):1143-1160. doi: 10.2514/1.47296
28	HOVELLK,ULRICHS.Deep reinforcement learning for spacecraft proximity operations guidance[J].Journal of Spacecraft and Rockets,2021,58(2):254-264. doi: 10.2514/1.A34838
29	PARK H, ZAGARIS C, VIRGILI LLOP J, et al. Analysis and experimentation of model predictive control for spacecraft rendezvous and proximity operations with multiple obstacle avoi-dance[C]//Proc. of the AIAA/AAS Astrodynamics Specialist Conference, 2016: 5273-5289.

参数	值
包络尺寸(L×W×H)/m	0.3×0.3×0.5
质量/kg	11.2
转动惯量/(kg·m²)	0.11
推力大小/N	0.1
推力器力臂/m	0.1

参数	取值
k_a	1
k_r	1
Q_u	diag([0.028, 0.028])
Q_o	diag([0.01, 0.01])
P_o	diag(^{[5, 5]})
k_p	0.03
k_d	0.35
