基于结构化数据的区域保障调度模型研究

doi:10.12305/j.issn.1001-506X.2025.02.21

摘要/Abstract

摘要：

在区域任务中, 装备保障调度实质是装备体系和保障体系在保障资源上的匹配。因此, 体系资源的精确匹配成为提升区域保障能力的关键。以体系的模块化分层结构为基础, 融合体系节点的特征和结构信息, 构建基于结构化数据的区域保障调度最优传输(optimal transmission, OT)的资源匹配模型。考虑决策层级, 将其拓展为多分辨率模型, 基于结构化OT算法, 将保障调度概率方案转换为多分辨率模型的保障调度方案求解算法。所提基于结构化数据的区域保障调度模型, 解决区域保障资源体系匹配中的层级结构一致性问题。案例分析结果表明, 在树形结构和复杂规模下, 所提保障调度方案具有鲁棒性。

关键词: 装备保障, 结构化数据, 保障调度, 最优传输

Abstract:

In regional tasks, equipment guarantee scheduling is essentially the matching of equipment systems and guarantee systems in terms of guarantee resources. Therefore, precise matching of system resources becomes the key to enhancing regional guarantee capabilities. Based on the modular hierarchical structure of the system, the characteristics and structural information of system nodes are integrated to construct an optimal transmission (OT) resource matching model for regional guarantee scheduling based on structured data. The decision level is considered to expand the proposed model into a multi-resolution model. Then, based on the structured OT algorithm, the guarantee scheduling probability scheme is transformed into a solution algorithm for the multi-resolution model's guarantee scheduling scheme. The regional guarantee scheduling model based on structured data proposed in this paper solves the problem of hierarchical consistency in the matching of regional guarantee resource systems. Case analysis result shows that under the conditions of tree-shape structure and complex scale, the guarantee scheduling scheme has robustness.

Key words: equipment guarantee, structured data, guarantee scheduling, optimal transmission (OT)

中图分类号:

TJ02

胡志刚, 楼京俊, 史跃东, 胡俊波. 基于结构化数据的区域保障调度模型研究[J]. 系统工程与电子技术, 2025, 47(2): 544-554.

Zhigang HU, Jingjun LOU, Yuedong SHI, Junbo HU. Regional guarantee scheduling model research based on structured data[J]. Systems Engineering and Electronics, 2025, 47(2): 544-554.

图/表 20

图1

图2

图3

图4

图5

图6

表1

表2

表3

图7

图8

图9

表4

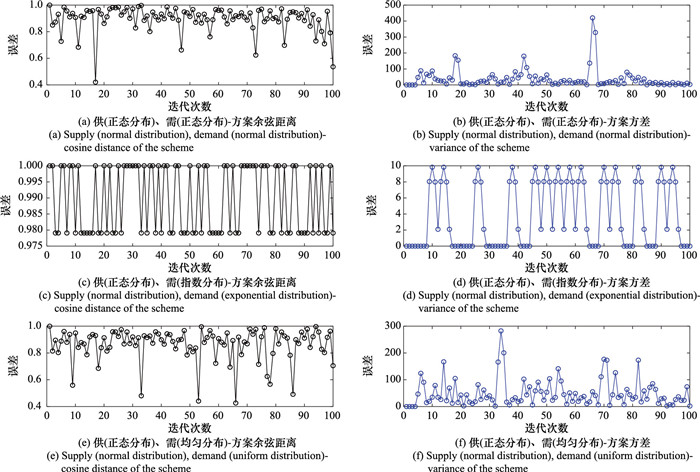

图10

图11

图12

图13

图14

表5

图15

参考文献 31

1	胡志刚, 楼京俊, 史跃东. 资源分布视角下区域保障调度模型研究[J]. 系统工程与电子技术, 2024, 46 (9): 3093- 3102.
	HU Z G , LOU J J , SHI Y D . Research on regional guarantee schedu-ling model from the perspective of resource distribution[J]. Systems Engineering and Electronics, 2024, 46 (9): 3093- 3102.
2	齐小刚, 王亚洲, 班利明, 等. 求解动态维修资源优化调度的多目标进化算法[J]. 智能系统学报, 2023, 18 (2): 305- 313.
	QI X G , WANG Y Z , BAN L M , et al. Multi-objective evolutionary algorithm for optimal scheduling of dynamic maintenance resources[J]. CAAI Transactions on Intelligent Systems, 2023, 18 (2): 305- 313.
3	李飞飞, 徐哲, 刘东宁, 等. 分布式资源受限多项目调度问题研究综述[J]. 工业工程与管理, 2023, 28 (5): 199- 210.
	LI F F , XU Z , LIU D N , et al. A literature review of distributed resource-constrained multi-project scheduling problem[J]. Industrial Engineering and Management, 2023, 28 (5): 199- 210.
4	王琮, 沈会良, 夏永祥, 等. 装备保障体系关键节点分析[J]. 系统工程与电子技术, 2022, 44 (10): 3134- 3142.
	WANG C , SHEN H L , XIA Y X , et al. Analysis of critical nodes in equipment support system[J]. Systems Engineering and Electronics, 2022, 44 (10): 3134- 3142.
5	徐耀耀, 吕亚娜, 邱少明, 等. 基于属性匹配的装备保障体系建模方法研究[J]. 火力与指挥控制, 2021, 46 (1): 44- 49.
	XU Y Y , LYU Y N , QIU S M , et al. Research on modeling method of equipment support system based on attribute matching[J]. Fire Control & Command Control, 2021, 46 (1): 44- 49.
6	DAN J , JIN T , CHI H , et al. Homda: high-order moment-based domain alignment for unsupervised domain adaptation[J]. Knowledge-Based Systems, 2023, 261 (12): 110205.
7	GU X , YANG Y C , ZENG W , et al. Keypoint-guided optimal transport with applications in heterogeneous domain adaptation[J]. Advances in Neural Information Processing Systems, 2022, 35 (3): 14972- 14985.
8	XU R J, LIU P L, ZHANG Y, et al. Joint partial optimal transport for open set domain adaptation[C]//Proc. of the 29th International Joint Conference on Artificial Intelligence, 2021: 2540-2546.
9	CHANG W X , SHI Y , TUAN H , et al. Unified optimal transport framework for universal domain adaptation[J]. Advances in Neural Information Processing Systems, 2022, 35 (10): 29512- 29524.
10	HUANG P D , XU M D , ZHU J C , et al. Curriculum reinforcement learning using optimal transport via gradual domain adaptation[J]. Advances in Neural Information Processing Systems, 2022, 35 (10): 10656- 10670.
11	NGUYEN T, LE T, ZHAO H, et al. Most: multi-source domain adaptation via optimal transport for student-teacher learning[C]//Proc. of the Uncertainty in Artificial Intelligence, 2021: 225-235.
12	徐宗本. 人工智能的10个重大数理基础问题[J]. 中国科学: 信息科学, 2021, 51 (12): 1967- 1978.
	XU Z B . Ten fundamental problems for artificial intelligence: mathematical and physical aspects[J]. SCIENTIA SINICA Informationis, 2021, 51 (12): 1967- 1978.
13	BAKIR G , HOFMANN T , SCHOLKOPF B , et al. Predicting structured data (neural information processing)[M]. Massachusetts: The MIT Press Cambridge, 2007.
14	BATTAGLIA P W, HAMRICK J B, BAPST V, et al. Relational inductive biases, deep learning, and graph networks[EB/OL]. [2024-01-09]. http://arxiv.org/pdf/1806.01261.pdf.
15	TITOUAN V, LAETITIA C, REMI F, et al. Optimal transport for structured data with application on graphs[EB/OL]. [2024-01-09]. https://doi.org/10.48550/arXiv.1805.09114.
16	WANG Y C , WU M , LI X L , et al. Multivariate time-series representation learning via hierarchical correlation pooling boosted graph neural network[J]. on Artificial Intelligence, 2024, 5 (1): 321- 333.
17	JIN M , HUAN Y K , WEN Q S , et al. A survey on graph neural networks for time series: forecasting, classification, imputation, and anomaly detection[J]. IEEE Trans.on Pattern Analysis and Machine Intelligence, 2024, 46 (2): 10466- 10485.
18	LI J Y , MA S S , LE T D , et al. Causal decision trees[J]. IEEE Trans.on Knowledge and Data Engineering, 2017, 29 (2): 257- 271. doi: 10.1109/TKDE.2016.2619350
19	MANTAS C J , CASTELLANO J G , SERAFIN M G , et al. A comparison of random forest based algorithms: random credal random forest versus oblique random forest[J]. Soft Computing, 2019, 23 (5): 10739- 10754.
20	WU Z H , PAN S R , CHEN F W , et al. A comprehensive survey on graph neural networks[J]. IEEE Trans.on Neural Networks and Learning Systems, 2021, 32 (1): 4- 24. doi: 10.1109/TNNLS.2020.2978386
21	WU S W , SUN F , ZHANG W T , et al. Graph neural networks in recommender systems: a survey[J]. ACM Computing Surveys, 2023, 55 (5): 97.
22	XU B B, SHEN H W, CAO Q, et al. Graph wavelet neural network[C]//Proc. of the 7th International Conference on Learning Representations, 2019.
23	PEYRE G, CUTURI M, SOLOMON J. Gromov-Wasserstein averaging of Kernel and distance matrices[C]//Proc. of the 33rd International Conference on Machine Learning, 2016.
24	ALVAREZ M D, JAAKKOLA T S, JEGELKA S. Structured optimal transport[EB/OL]. [2024-01-09]. http://arxiv.org/pdf/1712.06199.pdf.
25	COURTY N , FLAMARY R , TUIA D , et al. An optimal transport for domain adaptation[J]. IEEE Trans.on Pattern Analysis and Machine Intelligence, 2017, 39 (9): 1853- 1865. doi: 10.1109/TPAMI.2016.2615921
26	WANG X M , WANG S T , HUANG Z X , et al. Structure regu-larized sparse coding for data representation[J]. Knowledge-Based Systems, 2019, 174, 87- 102.
27	WANG Y , SONG X , CHEN K , et al. A novel singular value decomposition-based similarity measure method for non-local means denoising[J]. Signal, Image and Video Processing, 2022, 16 (9): 403- 410.
28	KHAN G A , HU J , LI T R , et al. Multi-view data clustering via non-negative matrix factorization with manifold regularization[J]. International Journal of Machine Learning and Cybernetics, 2022, 13 (3): 677- 689.
29	THORPE M , PARK S , KOLOURI S , et al. A transportation LP distance for signal analysis[J]. Journal of Mathematical Imaging and Vision, 2017, 59 (2): 187- 210.
30	NIKOLENTZOS G, MELADIANOS P, VAZIRGIANNIS M. Matching node embeddings for graph similarity[C]//Proc. of the 31th AAAI Conference on Artificial Intelligence, 2017.
31	REDKO I, VAYER T V, FLAMARY R, et al. CO-optimal transport[EB/OL]. [2024-01-09]. https://doi.org/10.48550/arXiv.2002.03731.

保障机构	u_i	保障单元	x_ik, h_ik
X₁	[30, 30]	X₁₁	[8, 22, 12, 11]
		X₁₂	[16, 18, 11, 8]
		X₁₃	[18, 13, 7, 11]
X₂	[30, 30]	X₂₁	[58, 22, 11, 12]
		X₂₂	[55, 19, 11, 11]
		X₂₃	[50, 15, 8, 7]
X₃	[20, 42]	X₃₁	[25, 8, 10, 25]
X₃	[20, 42]	X₃₂	[48, 9, 10, 17]
X₄	[46, 20]	X₄₁	[28, 23, 25, 10]
X₄	[46, 20]	X₄₂	[39, 22, 21, 10]
X₅	[34, 38]	X₅₁	[36, 19, 17, 21]
X₅	[34, 38]	X₅₂	[37, 18, 17, 17]

装备编组	v_j	保障单元	y_jl, H_jl
Y₁	[22, 38]	Y₁₁	[18, 18, 6, 10]
		Y₁₂	[30, 19, 5, 8]
		Y₁₃	[40, 18, 4, 9]
		Y₁₄	[50, 19, 7, 11]
Y₂	[75, 25]	Y₂₁	[8, 26, 12, 10]
		Y₂₂	[18, 28, 13, 3]
		Y₂₃	[28, 27, 15, 2]
		Y₂₄	[38, 26, 11, 3]
		Y₂₅	[48, 28, 10, 2]
		Y₂₆	[58, 27, 14, 5]
Y₃	[48, 34]	Y₃₁	[12, 22, 10, 6]
		Y₃₂	[22, 21, 8, 5]
		Y₃₃	[35, 21, 9, 4]
		Y₃₄	[44, 22, 11, 7]
		Y₃₅	[55, 22, 10, 12]
Y₄	[15, 63]	Y₄₁	[26, 13, 3, 13]
		Y₄₂	[38, 13, 2, 15]
		Y₄₃	[48, 13, 3, 11]
		Y₄₄	[32, 8, 2, 10]
		Y₄₅	[45, 8, 5, 14]

θ_ij	Y₁	Y₂	Y₃	Y₄
X₁	1e-3	1	1	1e3
X₂	1e3	1e-3	1	1
X₃	1	1e3	1e-3	1
X₄	1	1	1e3	1e-3
X₅	1	1	1	1

名称	供应分布	需求分布
资源A	normrnd(38, 2, 5, 1)	normrnd(30, 2, 1, 4)
	normrnd(40, 2, 5, 1)	exprnd(40, [1, 4])
	normrnd(50, 2, 5, 1)	unifrnd(30, 40, 1, 4)
资源B	normrnd(40, 2, 5, 1)	normrnd(33, 2, 1, 4)
	normrnd(38, 2, 5, 1)	exprnd(38, [1, 4])
	normrnd(52, 2, 5, 1)	unifrnd(33, 40, 1, 4)

	条件	类型	A	B	类型	A	B
中规模	normmd(38, 2, 50, 1) normmd(30, 2, 1, 40)	X11	0.993 4	0.044 9	X21	0.992 4	0.048 9
	normmd(40, 2, 50, 1) expmd(40, [1, 40])		0.995 4	0.048 9		0.993 7	0.081 3
	normmd(50, 2, 50, 1) unifmd(30, 40, 1, 40)		0.992 6	0.064 7		0.993 0	0.068 5
	normmd(38, 2, 50, 1) normmd(30, 2, 1, 40)	X12	0.992 6	0.047 0	X22	0.992 5	0.050 0
	normmd(40, 2, 50, 1) expmd(40, [1, 40])		0.993 7	0.069 2		0.990 6	0.124 7
	normmd(50, 2, 50, 1) unifmd(30, 40, 1, 40)		0.993 6	0.056 9		0.992 5	0.068 9
小规模	normmd(38, 2, 50, 1) normmd(30, 2, 1, 40)	Y11	0.885 2	39.363 2	Y21	0.619 2	133.531 5
	normmd(40, 2, 50, 1) expmd(40, [1, 40])		0.989 8	3.399 8		0.988 7	3.800 9
	normmd(50, 2, 50, 1) unifmd(30, 40, 1, 40)		0.595 6	141.504 7		0.659 9	116.608 9
	normmd(38, 2, 50, 1) normmd(30, 2, 1, 40)	Y12	0.965 4	11.461 0	Y22	0.958 4	13.805 3
	normmd(40, 2, 50, 1) expmd(40, [1, 40])		0.988 0	4.052 8		0.988 4	3.808 7
	normmd(50, 2, 50, 1) unifmd(30, 40, 1, 40)		0.865 1	54.091 9		0.849 5	52.613 0
