地形跟随飞行能量协调在线轨迹规划与跟踪

doi:10.12305/j.issn.1001-506X.2024.12.28

系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (12): 4192-4202.doi: 10.12305/j.issn.1001-506X.2024.12.28

• 制导、导航与控制 • 上一篇

地形跟随飞行能量协调在线轨迹规划与跟踪

朱日楠¹, 王彪¹^,²^,*, 张瀚文¹, 唐超颖¹, 徐锦法³

1. 南京航空航天大学自动化学院, 江苏南京 211106
2. 鹏城实验室, 广东深圳 518000
3. 南京航空航天大学直升机旋翼动力学国家级重点实验室, 江苏南京 210016

收稿日期:2023-10-12 出版日期:2024-11-25 发布日期:2024-12-30
通讯作者: 王彪
作者简介:朱日楠 (1999—), 男, 硕士研究生, 主要研究方向为地形跟随飞行控制
王彪 (1975—), 男, 副教授, 博士, 主要研究方向为导航、制导与控制
张瀚文 (2000—), 男, 硕士研究生, 主要研究方向为飞行器航迹规划
唐超颖 (1979—), 女, 副教授, 博士, 主要研究方向为导航、制导与控制
徐锦法 (1963—), 男, 教授, 博士, 主要研究方向为直升机飞行力学及控制
基金资助:
重庆市自然科学基金(CSTB2022NSCQ-LZX0068);南京航空航天大学研究生科研与实践创新计划(xcxjh20230315)

Energy coordinated online trajectory planning and tracking for terrain following flight

Rinan ZHU¹, Biao WANG¹^,²^,*, Hanwen ZHANG¹, Chaoying TANG¹, Jinfa XU³

1. College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2. Peng Cheng Laboratory, Shenzhen 518000, China
3. National Key Laboratory of Rotorcraft Aeromechanics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Received:2023-10-12 Online:2024-11-25 Published:2024-12-30
Contact: Biao WANG

摘要/Abstract

摘要：

针对定速地形跟随飞行全局离线规划方案数据存储量大、机动飞行油耗大等问题, 提出基于级联模型预测控制(cascaded model predictive control, CMPC)的能量协调在线轨迹规划与跟踪方案。首先, 利用飞行器纵向质点运动学模型设计模型预测控制(model predictive control, MPC)在线轨迹规划器。从能量分配原理出发确定速度变化规律, 对于飞行时总能量不变而导致能量分配不合理的情况, 引入虚拟控制量实现总能量动态调节, 完成能量协调策略设计。其次, 引入地形粗糙度概念描述地形起伏程度, 基于此提出规划器自适应时域方案, 对于不同地形实现预测时域动态调节。结合MPC轨迹跟踪控制器, 并利用真实地形数据进行仿真实验。实验结果表明, 所提方案可在与全局离线规划方案航迹差异不大的前提下, 实现在线轨迹规划, 显著降低油耗，提高航程极限, 完成复杂地形的机动飞行任务。

关键词: 地形跟随, 能量协调, 轨迹规划, 模型预测控制, 自适应预测时域

Abstract:

Aiming at the problems such as large data storage volume and high flight fuel consumption in the global offline planning scheme for terrain following flight with invariant speed, an energy coordinated online trajectory planning and tracking scheme based on cascaded model predictive control (CMPC) is proposed. Firstly, the model predictive control (MPC) online trajectory planner is designed using the longitudinal kinematic model of the aircraft. Based on the principle of energy distribution, the velocity variation law is determined. For the situation where the total energy is unchanged during flight and the energy distribution is unreasonable, virtual control volume is introduced to realize the dynamic adjustment of total energy and the design of energy coordination strategy is completed. Secondly, the concept of terrain roughness is introduced to describe the topographic relief, based on this, the adaptive time-domain scheme of the planner is proposed to realize the dynamic adjustment of predictive time-domain for different terrain. Simulation test is conducted by MPC trajectory tracking controller and real terrain data. The simulation results show that the proposed scheme can realize online trajectory planning, significantly reduce fuel consumption, improve voyage range, and realize maneuvering flight missions in complex terrain under the premise of little difference in flight trajectory from the global offline planning scheme.

Key words: terrain following, energy coordination, trajectory planning, model predictive control (MPC), adaptive predictive time-domain

中图分类号:

V249.1

朱日楠, 王彪, 张瀚文, 唐超颖, 徐锦法. 地形跟随飞行能量协调在线轨迹规划与跟踪[J]. 系统工程与电子技术, 2024, 46(12): 4192-4202.

Rinan ZHU, Biao WANG, Hanwen ZHANG, Chaoying TANG, Jinfa XU. Energy coordinated online trajectory planning and tracking for terrain following flight[J]. Systems Engineering and Electronics, 2024, 46(12): 4192-4202.

图/表 18

图1

图2

图3

表1

表2

图4

图5

图6

图7

图8

图9

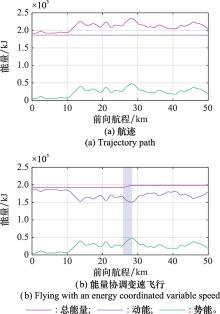

图10

图11

图12

表3

图13

图14

图15

参考文献 31

1	KAZEMIFAR O , BABAEI A R , MORTAZAVI M . Online aircraft velocity and normal acceleration planning for rough terrain following[J]. Aeronautical Journal, 2017, 121 (1244): 1561- 1577. doi: 10.1017/aer.2017.27
2	郑衍杲. 超低空突防中地形跟随/回避技术[J]. 航空学报, 1985, 6 (4): 313- 320.
	ZHENG Y G . Terrain following/avoidance technique of very low altitude penetration[J]. Acta Aeronautica et Astronautica Sinica, 1985, 6 (4): 313- 320.
3	王建平, 沈春林. 地形跟随适应角控制方法[J]. 航空学报, 1992, 13 (12): 670- 677.
	WANG J P , SHEN C L . The adaptive angle control method of terrain following[J]. Acta Aeronautica et Astronautica Sinica, 1992, 13 (12): 670- 677.
4	CHENG Y Q , WU H , YANG Z , et al. Underwater target detection by measuring water-surface vibration with millimeter-wave radar[J]. IEEE Antennas and Wireless Propagation Letters, 2023, 22 (9): 2260- 2264. doi: 10.1109/LAWP.2023.3283309
5	CHEN Y , LIU H L . Overview of landmarks for autonomous, vision-based landing of unmanned helicopters[J]. IEEE Aerospace & Electronic Systems Magazine, 2016, 31 (5): 14- 27.
6	HO H W , DE-CROON G , VAN-KAMPEN E , et al. Adaptive gain control strategy for constant optical flow divergence landing[J]. IEEE Trans. on Robotics, 2018, 34 (2): 508- 516. doi: 10.1109/TRO.2018.2817418
7	黄鹏程, 王彪, 唐超颖, 等. 地形跟随飞行中光轴搜索策略[J]. 探测与控制学报, 2022, 44 (3): 79- 83.
	HUANG P C , WANG B , TANG C Y , et al. Optical axis search strategies in terrain following flight[J]. Journal of Detection & Control, 2022, 44 (3): 79- 83.
8	DE-FILIPPIS L , GUGLIERI G , QUAGLIOTTI F . Path planning strategies for UAVS in 3D environments[J]. Journal of Intelligent and Robotic Systems: Theory and Applications, 2012, 65 (1/4): 247- 264.
9	HU C F , ZHAO L X , QU G . Event-triggered model predictive adaptive dynamic programming for road intersection path planning of unmanned ground vehicle[J]. IEEE Trans. on Vehicular Technology, 2021, 70 (11): 11228- 11243. doi: 10.1109/TVT.2021.3111692
10	WANG P Y , LIU Y L , YAO W M , et al. Improved A-star algorithm based on multivariate fusion heuristic function for autonomous driving path planning[J]. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 2023, 237 (7): 1527- 1542. doi: 10.1177/09544070221100677
11	WANG J K , LIU J B , CHEN W N , et al. Robot path planning via neural-network-driven prediction[J]. IEEE Trans. on Artificial Intelligence, 2022, 3 (3): 451- 460. doi: 10.1109/TAI.2021.3119890
12	JAMSHIDI V , NEKOUKAR V , HOSSEIN R M . Implementation of UAV smooth path planning by improved parallel genetic algorithm on controller area network[J]. Journal of Aerospace Engineering, 2022, 35 (2): 04021136. doi: 10.1061/(ASCE)AS.1943-5525.0001395
13	王彪, 董超, 黄毅, 等. 地形跟随中的航迹规划与跟踪[J]. 电光与控制, 2021, 28 (3): 31- 35.
	WANG B , DONG C , HUANG Y , et al. Path planning and tracking in terrain following[J]. Electronics Optics & Control, 2021, 28 (3): 31- 35.
14	GAPEYENKO M , MOLTCHANOV D , ANDREEV S , et al. Line-of-sight probability for mmwave-based UAV communications in 3D urban grid deployments[J]. IEEE Trans. on Wireless Communications, 2021, 20 (10): 6566- 6579. doi: 10.1109/TWC.2021.3075099
15	NELSON D R , BARBER D B , MCLAIN T W , et al. Vector field path following for miniature air vehicles[J]. IEEE Trans. on Robotics, 2007, 23 (3): 519- 529. doi: 10.1109/TRO.2007.898976
16	GONCALVES V M , PIMENTA L C , MAIA C A , et al. Vector fields for robot navigation along time-varying curves in n-dimensions[J]. IEEE Trans. on Robotics, 2010, 26 (4): 647- 659. doi: 10.1109/TRO.2010.2053077
17	WANG X M , ROY S , FARI S , et al. Adaptive vector field guidance without a priori knowledge of course dynamics and wind[J]. IEEE/ASME Trans. on Mechatronics, 2022, 27 (6): 4597- 4607. doi: 10.1109/TMECH.2022.3160480
18	YU H X , ZHAO C X , LI S , et al. Pre-work for the birth of driver-less scraper(LHD)in the underground mine: the path tracking control based on an LQR controller and algorithms comparison[J]. Sensors, 2021, 21 (23): 7839. doi: 10.3390/s21237839
19	LUO S Z , SUN Q L , WU W N , et al. Accurate flight path tracking control for powered parafoil aerial vehicle using ADRC-based wind feedforward compensation[J]. Aerospace Science and Technology, 2019, 84, 904- 915. doi: 10.1016/j.ast.2018.11.022
20	WESTENBERGER J , DE-WAGTER C , DE-CROON G . Efficient Bang-Bang model predictive control for quadcopters[J]. Unmanned Systems, 2022, 10 (4): 395- 405. doi: 10.1142/S2301385022410060
21	WANG Z L , GAO F , ZHAO Y , et al. Improved A* algorithm and model predictive control-based path planning and tracking framework for hexapod robots[J]. Industrial Robot, 2023, 50 (1): 135- 144. doi: 10.1108/IR-01-2022-0028
22	WANG X W , YAO X L , ZHANG L . Path planning under constraints and path following control of autonomous underwater vehicle with dynamical uncertainties and wave disturbance[J]. Journal of Intelligent and Robotic System: Theory and Application, 2020, 99 (3/4): 891- 908.
23	XING X T , ZHAO B L , HAN C , et al. Vehicle motion planning with joint Cartesian-Frenet MPC[J]. IEEE Robotics and Automation Letters, 2022, 7 (4): 10738- 10745. doi: 10.1109/LRA.2022.3194330
24	ZHANG M , HAO S , WU D F , et al. Time-optimal obstacle avoidance of autonomous ship based on nonlinear model predictive control[J]. Ocean Engineering, 2022, 266, 112591. doi: 10.1016/j.oceaneng.2022.112591
25	NIU Z J , JIA X H , YAO W . Communication-free MPC-based neighbors trajectory prediction for distributed multi-UAV motion planning[J]. IEEE Access, 2022, 10, 13481- 13489. doi: 10.1109/ACCESS.2022.3148145
26	LIN X , YU Y J , CHEN S Z , et al. An improved APF method for complex and dynamic obstacles' avoidance[J]. Unmanned System, 2023, 11 (2): 175- 189. doi: 10.1142/S2301385023410054
27	LIN P F , TSUKADA M . Model predictive path-planning controller with potential function for emergency collision avoidance on highway driving[J]. IEEE Robotics and Automation Letters, 2022, 7 (2): 4662- 4669. doi: 10.1109/LRA.2022.3152693
28	MIAO B R , HAN C . Intelligent vehicle obstacle avoidance path-tracking control based on adaptive model predictive control[J]. Mechanical Sciences, 2023, 14 (1): 247- 258. doi: 10.5194/ms-14-247-2023
29	LIU J , QIN X L , QI B L , et al. 3D online path planning of UAV based on improved differential evolution and model predictive control[J]. International Journal of Innovative Computing, Information and Control, 2020, 16 (1): 315- 329.
30	LI Y H , FAN J K , LIU Y , et al. Path planning and path tracking for autonomous vehicle based on MPC with adaptive dual-horizon-parameters[J]. International Journal of Automotive Technology, 2022, 23 (5): 1239- 1253. doi: 10.1007/s12239-022-0109-8
31	卜瑞宇. 基于模型预测控制的地形跟随飞行研究[D]. 南京: 南京航空航天大学, 2023.
	BU R Y. Research on terrain following flight based on model predictive control[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2023.

参数	数值
规划器执行周期T_c/s	2
预测模型采样时间T_s/s	0.5
误差权重q_e	0.03
控制权重r_u, r_v	1, 1
时域限制N_min, N_max	15, 50
自适应时域比例系数k	10
航迹角约束/(°)	[-20, 20]
地速约束/(m/s)	[180, 220]
法向加速度约束/g	[-2, 2]
安全离地高度H₀/m	50

参数	数值
跟踪器采样时间T_c/s	0.1
预测模型采样时间T_s/s	0.1
误差权重矩阵Q_e	diag[0.001, 0.003, 0.05]
控制权重矩阵R_Δu	diag[2 000, 15]
控制时域N_c	5
预测时域N_p	25
油门开度约束	[0, 1]
升降舵偏角约束/(°)	[-30, 30]
升降舵偏角变化率约束/(°/s)	[-60, 60]

飞行方案	油耗(无量纲)	航程损失/%
定速平飞(基准)	60.60	-
CMPC定速	64.65	6.68
CMPC能量协调	58.73	-3.09
