自由度可调模块单元系统运动学并行建模

doi:10.12305/j.issn.1001-506X.2024.09.27

摘要/Abstract

摘要：

针对多个自由度可调模块单元组成的系统, 提出含标准化流程的模块化机器人拓扑结构数学描述及运动学并行建模方法。首先, 建立模块单元运动传递库, 并提出含标准化流程的四元组矩阵模块化机器人拓扑结构数学描述。接着, 以模块单元运动学模型为基础, 考虑多分支模块化机器人各分支间耦合影响, 建立适用于链式模块化机器人的位置级与速度级运动学模型。随后, 提出模块化机器人运动学并行建模方法, 理论分析和仿真结果均表明该算法能够适应各类型拓扑结构模块化机器人的快速建模。拓扑结构数学描述与并行计算的引入降低了模块化机器人建模难度, 提升了建模效率。

关键词: 模块化机器人, 拓扑结构, 分支空间雅可比矩阵, 并行建模

Abstract:

For the system containing multiple adjustable degree-of-freedom modular units, a mathematical description of the modular robot topology including a standardized process and a kinematics parallel modelling method are proposed. Firstly, a library of the modular unit motion transfer is established, and a mathematical description of the modular robot topology based on the quadruple matrix with the standardized process is proposed. Then, based on the kinematics model of one modular unit, considering the coupling effect between the branches of the modular robot with multiple motion branches, a position-level and speed-level kinematics model is established, which is suitable for chain modular robots. Subsequently, a kinematics parallel modeling method of modular robots is proposed. Both theoretical analysis and simulation results show that this method can be adapted to the rapid modeling of modular robots with various types of topologies. The introduction of topology mathematical description and parallel computing reduces the difficulty of modular robot modeling and improves modeling efficiency.

Key words: modular robot, topology, branch space Jacobian matrix, parallel modelling

中图分类号:

TP242

费军廷, 贾庆轩, 陈钢. 自由度可调模块单元系统运动学并行建模[J]. 系统工程与电子技术, 2024, 46(9): 3150-3165.

Junting FEI, Qingxuan JIA, Gang CHEN. Kinematics parallel modelling of systems consisting of adjustable degree-of-freedom modular units[J]. Systems Engineering and Electronics, 2024, 46(9): 3150-3165.

图/表 20

图1

图2

图3

图4

图5

图6

表1

图7

图8

图9

图10

图11

图12

图13

表2

图14

图15

表3

图16

图17

参考文献 38

1	NEUMANNV J,BURKSA W.Theory of self-reproducing automata[J].IEEE Trans.on Neural Networks,1966,5(1):3-14.
2	GILPINK,RUSD.Modular robot systems[J].IEEE Robotics & Automation Magazine,2010,17(3):38-55.
3	FUKUDAT,NAKAGAWAS.Approach to the dynamically reconfigurable robotic system[J].Journal of Intelligent and Robotic Systems,1988,1(1):55-72. doi: 10.1007/BF00437320
4	ALATTASR J,PATELS,SOBHT M.Evolutionary modular robotics: survey and analysis[J].Journal of Intelligent & Robotic Systems,2019,95(3):815-828.
5	SEOJ,PAIKJ,YIMM.Modular reconfigurable robotics[J].Annual Review of Control, Robotics, and Autonomous Systems,2019,2,63-88. doi: 10.1146/annurev-control-053018-023834
6	JIANGZ H,CAOX L,HUANGX,et al.Progress and development trend of space intelligent robot technology[J].Space: Science and Technology,2022,2022,9832053.
7	LID,ZHONGL,ZHUW,et al.A survey of space robotic technologies for on-orbit assembly[J].Space: Science & Technology,2022,2022,9849170.
8	赵航,赵阳,田浩,等.空间细胞机器人系统关键技术及其应用[J].宇航学报,2018,39(10):1071-1080. doi: 10.3873/j.issn.1000-1328.2018.10.002
	ZHAOH,ZHAOY,TIANH,et al.Key techniques and applications of space cellular robotic system[J].Journal of Astronautics,2018,39(10):1071-1080. doi: 10.3873/j.issn.1000-1328.2018.10.002
9	ZAWIDZKIM,SZKLARSKIJ.Transformations of arm-z modular manipulator with particle swarm optimization[J].Advances in Engineering Software,2018,126,147-160. doi: 10.1016/j.advengsoft.2018.05.003
10	LIU S B, ALTHOFF M. Optimizing performance in automation through modular robots[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2020: 4044-4050.
11	黄攀峰,常海涛,鹿振宇,等.面向在轨服务的可重构细胞卫星关键技术与展望[J].宇航学报,2016,37(1):1-10.
	HUANGP F,CHANGH T,LUZ M,et al.Key techniques of on-orbit service-oriented reconfigurable cellularized satellite and lts prospects[J].Journal of Astronautics,2016,37(1):1-10.
12	CHENL,MAY,ZHANGY,et al.Obstacle avoidance and multitarget tracking of a super redundant modular manipulator based on Bezier curve and particle swarm optimization[J].Chinese Journal of Mechanical Engineering,2020,33(1):1-19. doi: 10.1186/s10033-019-0427-6
13	HAUSERS,MUTLUM,LEZIARTP A,et al.Roombots extended: challenges in the next generation of self-reconfigurable modular robots and their application in adaptive and assistive furniture[J].Robotics and Autonomous Systems,2020,127,103467. doi: 10.1016/j.robot.2020.103467
14	SHEELAK G,MENONP J,SWETHAS,et al.Review on bio-inspired modular robotic system[J].Materials Today: Proceedings,2020,24,1918-1923. doi: 10.1016/j.matpr.2020.03.618
15	DOKUYUCUH I,OZMENN G.Achievements and future directions in self-reconfigurable modular robotic systems[J].Journal of Field Robotics,2023,40(3):701-746. doi: 10.1002/rob.22139
16	WEIR P,LIUY B,DONGH J,et al.A graph-based hybrid reconfiguration deformation planning for modular robots[J].Sensors,2023,23(18):7892. doi: 10.3390/s23187892
17	DANG H T, LAPIERRE L, ZAPATA R, et al. Dynamic configuration for an autonomous underwater robot[C]//Proc. of the IEEE 28th Mediterranean Conference on Control and Automation, 2020: 520-525.
18	STOY K, BRANDT D, CHRISTENSEN D J. Self-reconfigurable robots: an introduction[D]. Massachusetts: MIT Press, 2010.
19	AKITAYAH A,ARKINE M,DAMIANM,et al.Universal reconfiguration of facet-connected modular robots by pivots: the O(1) musketeers[J].Algorithmica,2021,83(5):1316-1351. doi: 10.1007/s00453-020-00784-6
20	李宪华,盛蕊,张雷刚,等.六自由度模块化机器人手臂奇异构型分析[J].农业机械学报,2017,48(7):376-382.
	LIX H,SHENGR,ZHANGL G,et al.Singular configuration analysis of 6-DOF modular manipulator[J].Transactions of the Chinese Society for Agricultural Machinery,2017,48(7):376-382.
21	WANGF,QIANZ Q,YANZ G,et al.A novel resilient robot: kinematic analysis and experimentation[J].IEEE Access,2019,8,2885-2892.
22	YUNA,MOOND,HAJ,et al.Modman: an advanced reconfigurable manipulator system with genderless connector and automatic kinematic modeling algorithm[J].IEEE Robotics and Automation Letters,2020,5(3):4225-4232. doi: 10.1109/LRA.2020.2994486
23	STRAVOPODISN A,MOULIANITISV C.Rectilinear tasks optimization of a modular serial metamorphic manipulator[J].Journal of Mechanisms and Robotics,2021,13(1):1-15.
24	FEDERM,GIUSTIA,VIDONIR.An approach for automatic generation of the URDF file of modular robots from modules designed using SolidWorks[J].Procedia Computer Science,2022,200,858-864. doi: 10.1016/j.procs.2022.01.283
25	NAINER C, FEDER M, GIUSTI A. Automatic generation of kinematics and dynamics model descriptions for modular reconfigurable robot manipulators[C]//Proc. of the IEEE 17th International Conference on Automation Science and Engineering, 2021: 45-52.
26	ZHANGZ Y,WANGX Q,WANGS T,et al.Design and modeling of a parallel-pipe-crawling pneumatic soft robot[J].IEEE Access,2019,7,134301-134317. doi: 10.1109/ACCESS.2019.2941502
27	YANGH D,ASBECKA T.Design and characterization of a modular hybrid continuum robotic manipulator[J].IEEE/ASME Trans.on Mechatronics,2020,25(6):2812-2823. doi: 10.1109/TMECH.2020.2993543
28	AIMEDEEF,GOGUG,DAIJ S,et al.Systematization of morphing in reconfigurable mechanisms[J].Mechanism and Machine Theory,2016,96,215-224. doi: 10.1016/j.mechmachtheory.2015.07.009
29	王宏旭,柳子然,岳程斐,等.变拓扑多臂航天器高效统一动力学建模[J].宇航学报,2022,43(12):1606-1617. doi: 10.3873/j.issn.1000-1328.2022.12.003
	WANGH X,LIUZ R,YUEC F,et al.Unified high-efficient dynamic modeling of multi-arm spacecraft with variable topology[J].Journal of Astronautics,2022,43(12):1606-1617. doi: 10.3873/j.issn.1000-1328.2022.12.003
30	HUAX,WANGZ,YAOH J,et al.Research on many-to-many target assignment for unmanned aerial vehicle swarm in three-dimensional scenarios[J].Computers & Electrical Engineering,2021,91,107067.
31	周杨,畅博彦,金国光,等.面向变胞机构动力学建模的变拓扑构型数学描述方法[J].机械工程学报,2022,58(9):49-61.
	ZHOUY,CHANGB Y,JING G,et al.Mathematic description method of variable topology configuration for dynamic modeling of metamorphic mechanism[J].Journal of Mechanical Engineering,2022,58(9):49-61.
32	LIUC,WHITZERM,YIMM.A distributed reconfiguration planning algorithm for modular robots[J].IEEE Robotics and Automation Letters,2019,4(4):4231-4238. doi: 10.1109/LRA.2019.2930432
33	ZHANG K T, DAI J S, FANG Y F, et al. String matrix based geometrical and topological representation of mechanisms[C]//Proc. of the 13th World Congress in Mechanism and Machine Science, 2011: 19-25.
34	郑浩峻,李铁民,王立平.可重构机器人树状拓扑结构[J].清华大学学报(自然科学版),2002,42(11):1480-1483. doi: 10.3321/j.issn:1000-0054.2002.11.018
	ZHENGH J,LIT M,WANGL P.Tree-like topological structure of reconfigurable robots[J].Journal of Tsinghua University (Science and Technology),2002,42(11):1480-1483. doi: 10.3321/j.issn:1000-0054.2002.11.018
35	SAABW,RACIOPPOP,BEN-TZVIP.A review of coupling mechanism designs for modular reconfigurable robots[J].Robotica,2018,37(2):378-403.
36	XUR,LIC Y.A modular agricultural robotic system (MARS) for precision farming: concept and implementation[J].Journal of Field Robotics,2022,39(4):387-409. doi: 10.1002/rob.22056
37	LIUC,LINQ,KIMH,et al.SMORES-EP, a modular robot with parallel self-assembly[J].Autonomous Robots,2023,47(2):211-228. doi: 10.1007/s10514-022-10078-1
38	AN X K, JIA Q X, CHEN G, et al. S2MBot: a spherical self-reconfigurable modular robot with high torque output capability-design and simulation[C]//Proc. of the IEEE International Conference on Service Robotics, 2023: 49-54.

运动输入端坐标系所固连接口编号	运动输出端坐标系所固连接口编号	关节轴线
运动输入端坐标系所固连接口编号	运动输出端坐标系所固连接口编号	S₁	S₂	S₃
1	2	-	1	-
	3	2	1	3
	4	2	1	-
2	1	-	1	-
	3	-	1	2
	4	-	1	-
3	1	2	3	1
	2	2	-	1
	4	-	-	1
4	1	1	2	-
	2	1	-	-
	3	-	-	1

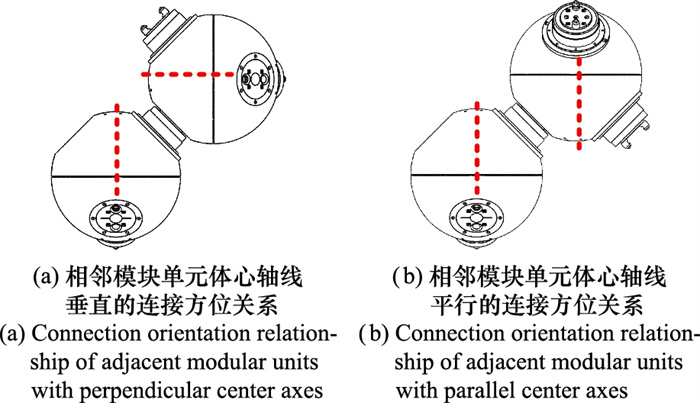

接口所处模块单元半球类型	相邻模块单元体心轴线排布	模块单元连接方位关系	位姿转换矩阵
相同 (①主动-主动; ②被动-被动)	垂直	①	$ \left[\begin{array}{cccc}-1 & 0 & 0 & 0 \\0 & 1 & 0 & 0 \\0 & 0 & -1 & 0 \\0 & 0 & 0 & 1\end{array}\right]$
相同 (①主动-主动; ②被动-被动)	平行	②	$ \left[\begin{array}{cccc}1 & 0 & 0 & 0 \\0 & -1 & 0 & 0 \\0 & 0 & -1 & 0 \\0 & 0 & 0 & 1\end{array}\right]$
相反 (①主动-被动; ②被动-主动)	垂直	②	$ \left[\begin{array}{cccc}1 & 0 & 0 & 0 \\0 & -1 & 0 & 0 \\0 & 0 & -1 & 0 \\0 & 0 & 0 & 1\end{array}\right]$
相反 (①主动-被动; ②被动-主动)	平行	①	$ \left[\begin{array}{cccc}-1 & 0 & 0 & 0 \\0 & 1 & 0 & 0 \\0 & 0 & -1 & 0 \\0 & 0 & 0 & 1\end{array}\right]$
