一种针对驻留转换雷达的信号分选算法

doi:10.12305/j.issn.1001-506X.2024.06.10

系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (6): 1925-1934.doi: 10.12305/j.issn.1001-506X.2024.06.10

• 传感器与信号处理 • 上一篇

一种针对驻留转换雷达的信号分选算法

张春杰¹^,², 青松¹^,², 邓志安¹^,²^,*, 刘俞辰³

1. 哈尔滨工程大学信息与通信工程学院, 黑龙江哈尔滨 150001
2. 先进船舶通信与信息技术工业和信息化部重点实验室, 黑龙江哈尔滨 150001
3. 国网黑龙江省电力有限公司哈尔滨供电公司, 黑龙江哈尔滨 150001

收稿日期:2022-11-15 出版日期:2024-05-25 发布日期:2024-06-04
通讯作者: 邓志安
作者简介:张春杰 (1975—), 女, 副教授, 博士, 主要研究方向为被动雷达信号处理
青松 (1995—), 男, 硕士研究生, 主要研究方向为被动雷达信号分选
邓志安 (1985—), 男, 副教授, 博士, 主要研究方向为阵列信号处理、宽带信号处理
刘俞辰 (1997—), 男, 助理工程师, 硕士, 主要研究方向为被动雷达信号分选
基金资助:
中央高校基本科研业务费基金(3072022TS0802);黑龙江省自然科学基金联合引导项目(LH2020F019)

Signal deinterleaving algorithm for dwell and switch radar

Chunjie ZHANG¹^,², Song QING¹^,², Zhian DENG¹^,²^,*, Yuchen LIU³

1. College of Information and Communication, Harbin Engineering University, Harbin 150001, China
2. Key Laboratory of Advanced Marine Communication and Information Technology, Ministry of Industry and Information Technology, Harbin 150001, China
3. Harbin Power Supply Company, State Grid Heilongjiang Electric Power Company Limited, Harbin 150001, China

Received:2022-11-15 Online:2024-05-25 Published:2024-06-04
Contact: Zhian DENG

摘要/Abstract

摘要：

复杂电磁环境下驻留转换雷达的信号分选是制约电子侦察技术发展的瓶颈, 由于其复杂多变的成形规律, 信号子周期难以被检测; 脉冲重复周期调制类型不明, 脉冲序列无法成功提取; 提取的多个子周期脉冲序列无法合并为一部雷达信号, 造成虚警。针对以上问题, 提出一种针对驻留转换雷达的信号分选算法, 利用双门限提高子周期检测概率, 通过霍夫变换结合迭代自组织聚类判断信号是否属于驻留转换雷达, 改进搜索算法以提取脉冲序列, 依据排列熵指标将多脉冲序列合并为一部驻留转换雷达信号。仿真实验结果表明, 所提算法在25%脉冲丢失率的复杂电磁环境下, 可以将三部驻留转换雷达信号成功分选。

关键词: 驻留转换, 信号分选, 霍夫变换, 脉冲序列搜索, 排列熵

Abstract:

The signal deinterleaving of dwell and switch radar in complex electromagnetic environments is a bottleneck that limits the development of electronic reconnaissance technology. The signal sub-cycles are difficult to be detected due to their complex and variable forming laws. The pulse sequences cannot be successfully extracted due to the unknown pulse repetition period modulation type, and the false alarms caused by extracted multiple sub-cycle pulse sequences that cannot be combined into one single radar signal. To address the above problems, a signal deinterleaving algorithm is proposed for the dwell and switch radar. The proposed algorithm enhances the detection probability of signal sub-cycles with double-threshold method, and the Hough transform is combined with iterative self-organizing clustering to determine whether the signal belongs to the dwell and switch radar, improving the search algorithm to extract pulse sequences, and combining multiple pulse sequences into one dwell and switch radar signal based on the permutation entropy index. Simulation experiments show that the proposed algorithm can successfully deinterleave the three dwell and switch radar signals in a complex electromagnetic environment with a pulse loss rate of 25%.

Key words: dwell and switch, signal deinterleaving, Hough transform, pulse sequence search, permutation entropy

中图分类号:

TN971.1

张春杰, 青松, 邓志安, 刘俞辰. 一种针对驻留转换雷达的信号分选算法[J]. 系统工程与电子技术, 2024, 46(6): 1925-1934.

Chunjie ZHANG, Song QING, Zhian DENG, Yuchen LIU. Signal deinterleaving algorithm for dwell and switch radar[J]. Systems Engineering and Electronics, 2024, 46(6): 1925-1934.

图/表 19

图1

图2

图3

图4

图5

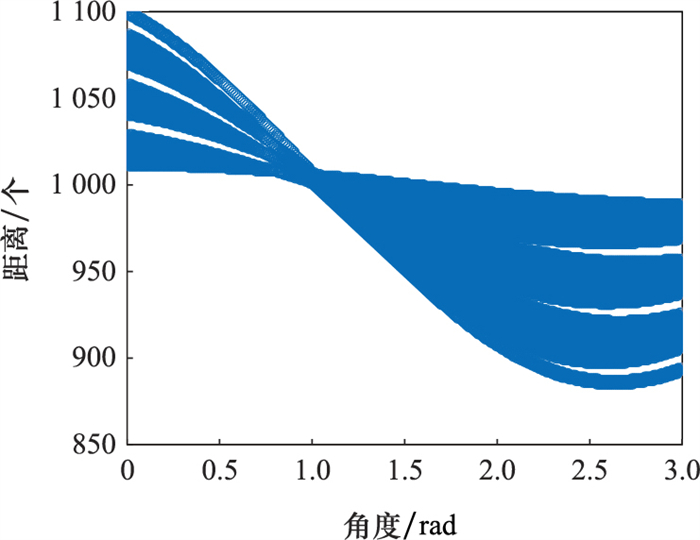

图6

图7

图8

图9

图10

图11

图12

图13

表1

表2

图14

图15

图16

图17

参考文献 32

1	CHEN C X , HE M H , XU J , et al. A new method for sorting unknown radar emitter signal[J]. Chinese Journal of Electronics, 2014, 23 (3): 499- 502.
2	JIA J W, LIU L M, HAN Z Z. Research on anti-sorting signal design technology based on precise combination of stagger signal PRI[C]//Proc. of the 4th International Conference on Power, Intelligent Computing and Systems, 2022.
3	NAN H , PENG S R , YU J A , et al. Pulse interference method against PRI sorting[J]. The Journal of Engineering, 2019, 2019 (19): 5732- 5735. doi: 10.1049/joe.2019.0398
4	AHMED M G S , TANG B . Sorting radar signal from symmetry clustering perspective[J]. Journal of Systems Engineering and Electronics, 2017, 28 (4): 690- 696. doi: 10.21629/JSEE.2017.04.08
5	JIANG W , FU X J , CHANG J Y . Improved deinterleaving algorithm of radar pulses based on dual fuzzy vigilance ART[J]. Journal of Systems Engineering and Electronics, 2020, 31 (2): 303- 311. doi: 10.23919/JSEE.2020.000008
6	LIU Y C , ZHANG Q Y . Improved method for deinterleaving radar signals and estimating PRI values[J]. IET Radar, Sonar & Navigation, 2018, 12 (5): 506- 514.
7	ZHANG C J , LIU Y C , SI W J . Synthetic algorithm for deinterleaving radar signals in a complex environment[J]. IET Radar, Sonar & Navigation, 2020, 14 (12): 1918- 1928.
8	MARDIA H K . New techniques for the deinterleaving of repetitive sequences[J]. IEE Proceedings F (Radar and Signal Processing), 1989, 136 (4): 149- 154. doi: 10.1049/ip-f-2.1989.0025
9	MILOJEVIC D J , POPOVIC B M . Improved algorithm for the deinterleaving of radar pulses[J]. IEE Proceedings F (Radar and Signal Processing), 1992, 139 (1): 98- 104. doi: 10.1049/ip-f-2.1992.0012
10	MAO Y, GUO G H, HAN J, et al. An improved algorithm of PRI transform[C]//Proc. of the Global Congress on Intelligent Systems, 2009: 145-149.
11	BAGHERI M , SEDAAGHI M H . A new approach to pulse deinterleaving based on adaptive thresholding[J]. Turkish Journal of Electrical Engineering & Computer Sciences, 2017, 25 (5): 3827- 3838.
12	ZHANG C J , LIU Y C , SI W J . Synthetic algorithm for deinterleaving radar signals in a complex environment[J]. IET Radar, Sonar & Navigation, 2020, 14 (12): 1918- 1928.
13	WANG C , SUN L T , LIU Z M , et al. A radar signal deinterleaving method based on semantic segmentation with neural network[J]. IEEE Trans.on Signal Processing, 2022, 70, 5806- 5821. doi: 10.1109/TSP.2022.3229630
14	LIU Y F, XIE J, TAO M L, et al. Stagger PRI radar signal deinterleaving based on image semantic segmentation[C]//Proc. of the 5th International Conference on Electronic Information and Communication Technology, 2022.
15	张春杰, 刘俞辰, 司伟建. 基于多级箱与深度森林的雷达信号分选算法[J]. 电子学报, 2022, 50 (6): 1351- 1358.
	ZHANG C J , LIU Y C , SI W J . The radar signal deinterlea-ving algorithm based on multi-level bin and deep forest[J]. Acta Electronica Sinica, 2022, 50 (6): 1351- 1358.
16	QU Q Z , WEI S J , WU Y , et al. ACSE networks and autocorrelation features for PRI modulation recognition[J]. IEEE Communications Letters, 2020, 24 (8): 1729- 1733. doi: 10.1109/LCOMM.2020.2992266
17	NGUYEN P, NGUYEN H Q. Classification of pulse repetition interval modulations using neural networks[C]//Proc. of the IEEE Symposium Series on Computational Intelligence, 2018.
18	AHMED U I, REHMAN T U, BAQAR S, et al. Robust pulse repetition interval (PRI) classification scheme under complex multi emitter scenario[C]//Proc. of the 22nd International Microwave and Radar Conference, 2018.
19	LI X Q , LIU Z M , HUANG Z T . Attention-based radar PRI modulation recognition with recurrent neural networks[J]. IEEE Access, 2020, 8, 57426- 57436. doi: 10.1109/ACCESS.2020.2982654
20	LIANG Y S, CHEN Y G, SHEN B Y. Heuristic approach for PRI modulation recognition based on symbolic radar pulse trains analysis[C]//Proc. of the Eurasia Conference on IOT, Communication and Engineering, 2022.
21	HAN J W , PARK C H . A unified method for deinterleaving and PRI modulation recognition of radar pulses based on deep neural networks[J]. IEEE Access, 2021, 9, 89360- 89375. doi: 10.1109/ACCESS.2021.3091309
22	陈涛, 王天航, 郭立民. 基于PRI变换的雷达脉冲序列搜索方法[J]. 系统工程与电子技术, 2017, 39 (6): 1261- 1267.
	CHEN T , WANG T H , GUO L M . Sequence searching methods of radar signal pulses based on PRI transform algorithm[J]. Systems Engineering and Electronics, 2017, 39 (6): 1261- 1267.
23	马爽, 王莹桂, 柳征, 等. 基于序列比对的多功能雷达搜索规律识别方法[J]. 电子学报, 2012, 40 (7): 1434- 1439.
	MA S , WANG Y G , LIU Z , et al. A method for search schema recognition of multifunction radars based on sequence alignment[J]. Acta Electronica Sinica, 2012, 40 (7): 1434- 1439.
24	CHENG W H , ZHANG Q Y , DONG J M , et al. An enhanced algorithm for deinterleaving mixed radar signals[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (6): 3927- 3940. doi: 10.1109/TAES.2021.3087832
25	DADGARNIA A , SADEGHI M T . A novel method of deinterleaving radar pulse sequences based on a modified DBSCAN algorithm[J]. China Communications, 2023, 20 (2): 198- 215. doi: 10.23919/JCC.2023.02.012
26	MA J T , YU J P , LIANG G , et al. Maneuvering target coherent integration and detection in PRI-staggered radar systems[J]. IEEE Geoscience and Remote Sensing Letters, 2022, 19, 3508205.
27	LONG X W , LI K , TIAN J , et al. Ambiguity function analysis of random frequency and PRI agile signals[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (1): 382- 396. doi: 10.1109/TAES.2020.3016851
28	NUHOGLU M A , ALP Y K , ULUSOY M E C , et al. Image segmentation for radar signal deinterleaving using deep learning[J]. IEEE Trans.on Aerospace and Electronic Systems, 2023, 59 (1): 541- 554. doi: 10.1109/TAES.2022.3188225
29	GUO J C , HE Q B , ZHEN D , et al. Intelligent fault detection for rotating machinery using cyclic morphological modulation spectrum and hierarchical teager permutation entropy[J]. IEEE Trans.on Industrial Informatics, 2023, 19 (4): 6196- 6207. doi: 10.1109/TII.2022.3185293
30	LIN M Y , XIE H N , SHAN M Y . A hybrid multiscale permutation entropy-based fault diagnosis and inconsistency evaluation approach for lithium battery of E-vehicles[J]. IEEE Access, 2022, 10, 104757- 104768. doi: 10.1109/ACCESS.2022.3211023
31	高浩瀚, 张利, 梁军, 等. 基于改进排列熵算法和Yamamoto算法的非侵入式用电设备状态变化检测[J]. 电力自动化设备, 2020, 40 (1): 192- 197.
	GAO H H , ZHANG L , LIANG J , et al. Non-intrusive electrical equipment state change detection based on improved permutation entropy algorithm and Yamamoto algorithm[J]. Electric Power Automation Equipment, 2020, 40 (1): 192- 197.
32	张展, 刘亚晨, 杜诗扬, 等. 基于CEEMD与排列熵相结合的谐波检测方法研究[J]. 电子测量技术, 2022, 45 (9): 92- 98.
	ZHANG Z , LIU Y C , DU S Y , et al. Harmonic detection method based on CEEMD and permutation entropy[J]. Electronic Measurement Technology, 2022, 45 (9): 92- 98.

雷达编号	实际丢失率/%	实际脉冲数	算法	提取脉冲数	真实脉冲数	准确率/%	召回率/%
1	20.39	1 351	改进算法	1 347	1 317	97.77	97.48
1	20.39	1 351	原始算法	1 433	1 072	74.81	79.35
2	21.37	1 111	改进算法	1 044	1 026	98.28	92.35
2	21.37	1 111	原始算法	959	729	76.02	65.62

雷达编号	实际丢失率/%	实际脉冲数	算法	提取脉冲数	真实脉冲数	准确率/%	召回率/%
1	23.92	1 301	改进算法	1 353	1 266	93.57	97.31
1	23.92	1 301	原始算法	1 179	582	49.36	44.73
2	23.79	1 083	改进算法	980	961	98.06	88.73
2	23.79	1 083	原始算法	654	420	64.22	38.78
3	27.32	1 357	改进算法	1 251	1 201	96.00	88.50
3	27.32	1 357	原始算法	1 229	754	61.35	55.56
