基于最大信息熵的长寿命产品可靠度置信区间Bootstrap估计方法

doi:10.12305/j.issn.1001-506X.2023.06.33

摘要/Abstract

摘要：

针对当前无失效数据可靠性评估方法估计精度低, 难以同时得到参数的点估计和置信区间估计且难以避免结果不一致的问题, 考虑无失效数据的情况, 提出了一种基于最大信息熵和模拟退火算法并结合参数Bootstrap法的可靠度点估计和置信区间估计方法。首先考虑威布尔分布的失效概率次序特性, 在Bayes理论下通过失效概率的取值范围和最大化先验分布的信息熵构建超参数优化模型; 然后，采用模拟退火算法求解优化模型避免陷入局部最优解; 再利用加权最小二乘法得到可靠度的点估计; 最后，以参数Bootstrap法实现新样本的重新抽取, 进而得到可靠度的置信区间估计。通过仿真算例与谐波减速器无失效数据实际算例, 验证了所提方法不仅能够提高可靠度点估计和区间估计的精度, 还能够提高评估结果的可信度。

关键词: 可靠性评估, 无失效数据, Bayes理论, 最大信息熵, 参数Bootstrap法

Abstract:

In the reliability assessment method of zero-failure data, the current method has low estimation accuracy and it is difficult to obtain the point estimation and the confidence interval estimation of the parameters at the same time and avoid inconsistent results. In the state of zero-failure data, a point estimation and confidence interval estimation of reliability method is proposed based on maximum information entropy and simulated annealing algorithm which are combined with the parametric Bootstrap method. Firstly, the order of failure probability of Weibull distribution is considered and a hyperparameter optimization model is constructed by using the value range of failure probability and maximizing the information entropy of prior distribution under Bayes theory. Secondly, the simulated annealing algorithm is used to solve the optimization model to avoid falling into the local optimal solution. Thirdly, the weighted least squares method is used to obtain the point estimation of reliability is obtained. Finally, the parametric Bootstrap method is used to re-extract new samples, and then the confidence interval estimation of reliability is obtained. It is verified that the proposed method can not only improve the accuracy of reliability point estimation and interval estimation, but also improve the credibility of evaluation results through simulation examples and actual examples of harmonic reducer with zero-failure data.

Key words: reliability assessment, zero-failure data, Bayes theory, maximum information entropy, parametric Bootstrap method

中图分类号:

O231.2

何燕秋, 王有元, 何俐萍. 基于最大信息熵的长寿命产品可靠度置信区间Bootstrap估计方法[J]. 系统工程与电子技术, 2023, 45(6): 1880-1892.

Yanqiu HE, Youyuan WANG, Liping HE. Bootstrap estimation method of confidence interval for long-life product reliability based on maximum information entropy[J]. Systems Engineering and Electronics, 2023, 45(6): 1880-1892.

图/表 22

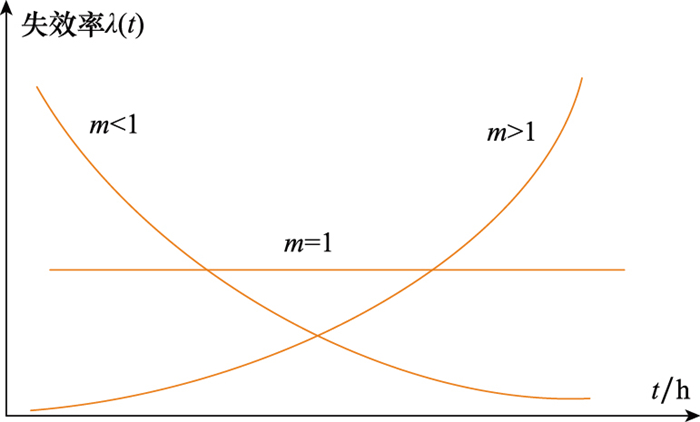

图1

图2

表1

图3

图4

图5

图6

图7

表2

表3

图8

表4

表5

图9

图10

图11

表6

图12

表7

图13

图14

图15

参考文献 37

1	李志强,汪新,陈宇奇,等.基于小样本失效数据的复杂装备可靠性评估研究进展与挑战[J].航空兵器,2021,28(3):83-90.
	LIZ Q,WANGX,CHENY Q,et al.Research advances and challenges of reliability assessment of complex equipment based on small sample failure data[J].Aero Weaponry,2021,28(3):83-90.
2	BOURINETJ M.Rare-event probability estimation with adaptive support vector regression surrogates[J].Reliability Engineering & System Safety,2016,150(6):210-221.
3	HE L P, HUANG H Z, DU L, et al. A review of possibilistic approaches to reliability analysis and optimization in engineering design[C]//Proc. of the 12th International Conference on Human Computer Interaction, 2007: 1075-1084.
4	YANGJ W,WANGJ H,HUANGQ,et al.Reliability assessment for the solenoid valve of a high-speed train braking system under small sample size[J].Chinese Journal of Mechanical Engineering,2018,31(1):47. doi: 10.1186/s10033-018-0248-z
5	陈文华,贺青川,潘骏,等.机械产品可靠性试验技术研究现状与展望[J].中国机械工程,2020,31(1):72-82. doi: 10.3969/j.issn.1004-132X.2020.01.008
	CHENW H,HEQ C,PANJ,et al.Reliability test technology of mechanical products-overview and prospect[J].China Mechanical Engineering,2020,31(1):72-82. doi: 10.3969/j.issn.1004-132X.2020.01.008
6	CHEN J D, SUN W L, LI B X. The confidence limits for reliability parameters in the case of failure data[C]//Proc. of the Asian Conference on Statistics, 1993: 17-20.
7	NIUS W,ZHANW.Analysis of confidence lower limits of reliability and hazard rate for electronic stability control systems[J].Quality and Reliability Engineering International,2013,29(5):621-629. doi: 10.1002/qre.1380
8	XUT Q,CHENY P.Two-sided M-Bayesian credible limits of reliability parameters in the case of zero-failure data for exponential distribution[J].Applied Mathematical Modelling,2014,38(9/10):2586-2600.
9	李海洋,谢里阳,李铭,等.一种新的无失效数据可靠性评估方法研究[J].兵工学报,2018,39(8):1622-1631. doi: 10.3969/j.issn.1000-1093.2018.08.020
	LIH Y,XIEL Y,LIM,et al.Research on a new reliability assessment method for zero-failure data[J].Acta Armamentarii,2018,39(8):1622-1631. doi: 10.3969/j.issn.1000-1093.2018.08.020
10	JIANGP,LIMJ H,ZUOM J,et al.Reliability estimation in a Weibull lifetime distribution with zero-failure field data[J].Quality and Reliability Engineering International,2010,26(7):691-701. doi: 10.1002/qre.1138
11	ACITASS,ALADAGC H,SENOGLUB.A new approach for estimating the parameters of Weibull distribution via particle swarm optimization: an application to the strengths of glass fibre data[J].Reliability Engineering & System Safety,2019,183(3):116-127.
12	茆诗松,罗朝斌.无失效数据的可靠性分析[J].数理统计与应用概率,1989,4(4):489-506.
	MAOS S,LUOC B.Reliability analysis for no-failure data[J].Mathematical Statistics and Applied Probability,1989,4(4):489-506.
13	LIH Y,XIEL Y,LIM,et al.Reliability assessment of high-quality and long-life products based on zero-failure data[J].Quality and Reliability Engineering International,2019,35(1):470-482. doi: 10.1002/qre.2398
14	凡根喜,熊志昂.定检数据出现"倒挂"和零失效、装备贮存可靠性的评估[J].系统工程与电子技术,1993,15(9):76-80. doi: 10.3321/j.issn:1001-506X.1993.09.012
	FANG X,XIONGZ A.The evaluation of system storage reliability when disorder and zero-failure data appear in periodic test[J].System Engineering and Electronics,1993,15(9):76-80. doi: 10.3321/j.issn:1001-506X.1993.09.012
15	罗赓,穆希辉,杨振海,等.某装备系统机电产品贮存可靠性评估方法[J].火力与指挥控制,2015,40(4):176-180. doi: 10.3969/j.issn.1002-0640.2015.04.043
	LUOG,MUX H,YANGZ H,et al.Study on estimating method for storage reliability of electromechanical products in equipment system[J].Fire Control & Command Control,2015,40(4):176-180. doi: 10.3969/j.issn.1002-0640.2015.04.043
16	JIANGP,XINGY Y,JIAX,et al.Weibull failure probability estimation based on zero-failure data[J].Mathematical Problems in Engineering,2015,2015,681232.
17	ZHANGL L,JING,YOUY.Reliability assessment for very few failure data and Weibull distribution[J].Mathematical Problems in Engineering,2019,2019,8947905.
18	赵晓东,穆希辉.无失效数据下计算装置贮存寿命评估方法[J].系统工程与电子技术,2021,43(1):272-278.
	ZHAOX D,MUX H.Evaluation method for storage life of computing devices under zero-failure data[J].System Engineering and Electronics,2021,43(1):272-278.
19	HANM.The E-Bayesian and hierarchical Bayesian estimations for the system reliability parameter[J].Communications in Statistics-Theory and Methods,2017,46(4):1606-1620. doi: 10.1080/03610926.2015.1024861
20	李东兵,胡文林.基于无失效数据的某型发动机可靠性参数Bayes估计[J].海军航空工程学院学报,2020,35(5):349-354.
	LID B,HUW L.Bayesian estimations of reliability parameters on a certain engine based on zero failure data[J].Journal of Naval Aviation University,2020,35(5):349-354.
21	贾祥,程志君,郭波.基于信息熵和Bayes理论的高可靠性产品可靠性评估[J].系统工程理论与实践,2020,40(7):1918-1926.
	JIAX,CHENGZ J,GUOB.Reliability evaluation for pro-ducts based on entropy and Bayes theory[J].Systems Engineering-Theory & Practice,2020,40(7):1918-1926.
22	JIAX.Reliability analysis for Weibull distribution with homogeneous heavily censored data based on Bayesian and least-squares methods[J].Applied Mathematical Modelling,2020,83,169-188. doi: 10.1016/j.apm.2020.02.013
23	HANM.E-Bayesian estimation and hierarchical Bayesian estimation of failure rate[J].Applied Mathematical Modelling,2009,33(4):1915-1922. doi: 10.1016/j.apm.2008.03.019
24	贾祥,王小林,郭波.极少失效数据和无失效数据的可靠性评估[J].机械工程学报,2016,52(2):182-188.
	JIAX,WANGX L,GUOB.Reliability assessment for very few failure data and zero-failure data[J].Journal of Mechanical Engineering,2016,52(2):182-188.
25	ZHANGC W.Weibull parameter estimation and reliability analysis with zero-failure data from high-quality products[J].Reliability Engineering & System Safety,2021,207(3):107321.
26	夏新涛,叶亮,李云飞,等.基于多层自助最大熵法的可靠性评估[J].兵工学报,2016,37(7):1317-1329.
	XIAX T,YEL,LIY F,et al.Reliability evaluation based on hierarchical bootstrap maximum entropy method[J].Acta Armamentarii,2016,37(7):1317-1329.
27	李海洋,谢里阳,刘杰,等.无失效数据场合智能换刀机器人中轴承的可靠性评估[J].机械工程学报,2019,55(2):186-194.
	LIH Y,XIEL Y,LIUJ,et al.Reliability evaluation of bearings in the intelligent robot for changing the hob without failure data[J].Journal of Mechanical Engineering,2019,55(2):186-194.
28	卢毅,郑建明,赵晨.低温阀门无失效数据环节可靠性建模方法研究[J].机械科学与技术, doi: 10.13433/j.cnki.1003-8728.20220119
	LUY,ZHENGJ M,ZHAOC.Study on reliability modeling method of non-failure data link of cryogenic value[J].Mechanical Science and Technology for Aerospace Engineering, doi: 10.13433/j.cnki.1003-8728.20220119
29	LINGM H,HUX W.Optimal design of simple step-stress accelerated life tests for one-shot devices under Weibull distributions[J].Reliability Engineering & System Safety,2020,193,106630.
30	ZHOUH,GENEZT,BRINTRUPA,et al.A hybrid-learning decomposition algorithm for competing risk identification within fleets of complex engineering systems[J].Reliability Engineering & System Safety,2022,217,107992.
31	HEL,YUL,ZHUS P,et al.Probabilistic fatigue life prediction of turbine disc considering model parameter uncertainty[J].International Journal of Turbo & Jet-Engines,2016,33(2):87-94.
32	KUICD.Maximum information entropy principle and the interpretation of probabilities in statistical mechanics—a short review[J].The European Physical Journal B,2016,89(5):124.
33	KIRKPATRICKS,GELATTC,VECCHIM.Optimization by simulated annealing[J].Science,1983,220(4598):671-680.
34	WANG Y, LI Z, HE L P, et al. Parameters estimation of mixed weibull distribution based on nonlinear least square method and simulated annealing algorithm[C]//Proc. of the Global Reliability and Prognostics and Health Management, 2020.
35	GANM,CHENC P,CHENG Y,et al.On some separated algorithms for separable nonlinear least squares problems[J].IEEE Trans.on Cybernetics,2017,48(10):2866-2874.
36	WANGY P,LUZ Z,XIAOS N.Parametric bootstrap confidence interval method for the power law process with applications to multiple repairable systems[J].IEEE Access,2018,6,49157-49169.
37	王有元. 基于Bayes方法及其改进的无失效数据和小子样产品可靠性评估[D]. 成都: 电子科技大学, 2022.
	WANG Y Y. Reliability evaluation of the products with zero-failure data and small sample based on Bayes method and its improvement[D]. Chengdu: University of Electronic Science and Technology of China, 2022.

序号i	截尾时间T_i	第i组样品数	未失效数s_i
1	T₁	n₁	s₁
2	T₂	n₂	s₂
⋮	⋮	⋮	⋮
k	T_k	n_k	s_k

序号	失效时间	序号	失效时间	序号	失效时间
1	611.6	11	783.8	21	812.6
2	882.0	12	1249.6	22	1295.1
3	1359.8	13	1498.6	23	1582.1
4	1595.1	14	2088.8	24	2195.7
5	2256.9	15	2320.6	25	2329.4
6	2387.5	16	2594.7	26	2949.2
7	3066.9	17	3073.9	27	3357.2
8	3494.3	18	3510.5	28	3526.7
9	3565.5	19	3826.2	29	4137.2
10	4217.1	20	4817.7	30	5126.1

序号i	截尾时间t_i	样本数量n_i	未失效样本量s_i
1	610	3	30
2	880	3	27
3	1 350	3	24
4	1 590	3	21
5	2 250	3	18
6	2 380	3	15
7	3 060	3	12
8	3 490	3	9
9	3 560	3	6
10	4 210	3	3

序号i	T_i/h	a_i	b_i	p_i
1	610	1	1	0.031 3
2	880	1.474 0	0.857 5	0.050 3
3	1 350	3.179 6	0.873 7	0.113 3
4	1 590	4.462 3	0.875 8	0.169 4
5	2 250	11.394 9	0.957 0	0.375 4
6	2 380	13.307 6	0.953 0	0.454 8
7	3 060	28.295 9	0.900 6	0.686 9
8	3 490	47.784 8	0.921 5	0.828 1
9	3 560	53.210 9	0.946 1	0.884 5
10	4 210	84.964 1	0.714 8	0.958 1

方法	$\hat{m} $	$ \hat{\eta}$	$\mathrm{MRE}_{\hat{m}} $	$ \mathrm{MRE}_{\hat{\eta}}$
文献[21]方法	1.827 5	3 834.8	0.086 3	0.278 3
E-Bayes方法	0.779 3	7 657.0	0.610 4	1.552 3
多层Bayes方法	0.744 7	9 742.0	0.627 7	2.247 3
本文方法	2.384 4	2 843.3	0.192 2	0.052 2
