基于图拉普拉斯嵌入的合成孔径雷达时变窄带干扰抑制算法

doi:10.12305/j.issn.1001-506X.2022.06.10

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (6): 1846-1853.doi: 10.12305/j.issn.1001-506X.2022.06.10

基于图拉普拉斯嵌入的合成孔径雷达时变窄带干扰抑制算法

傅东宁¹, 廖桂生¹, 黄岩^2,*, 张邦杰², 王幸¹

1. 西安电子科技大学雷达信号处理国家重点实验室, 陕西西安 710071
2. 东南大学毫米波国家重点实验室, 江苏南京 210096

收稿日期:2020-12-23 出版日期:2022-05-30 发布日期:2022-05-30
通讯作者: 黄岩
作者简介:傅东宁(1983—), 男, 博士, 主要研究方向为阵列雷达成像与动目标检测、雷达与电子对抗射频仿真|廖桂生(1963—), 男, 教授, 博士研究生导师, 博士, 主要研究方向为阵列信号处理、动目标检测、空时自适应处理|黄岩(1991—), 男, 副教授, 博士, 主要研究方向为合成孔径雷达和MIMO雷达抗干扰技术、图像处理及解译、机器学习、目标检测与识别|张邦杰(1995—), 男, 博士研究生, 主要研究方向为阵列信号处理、逆合成孔径雷达成像|王幸(1992—), 女, 硕士研究生, 主要研究方向为雷达抗干扰技术、雷达动目标检测技术

Time-varying narrow-band interference suppression algorithm for SAR based on graph Laplacian embedding

Dongning FU¹, Guisheng LIAO¹, Yan HUANG^2,*, Bangjie ZHANG², Xing WANG¹

1. National Lab of Radar Signal Processing, Xidian University, Xi'an 710071, China
2. State Key Lab of Millimeter Waves, Southeast University, Nanjing 210096, China

Received:2020-12-23 Online:2022-05-30 Published:2022-05-30
Contact: Yan HUANG

摘要/Abstract

摘要：

合成孔径雷达(synthetic aperture radar, SAR)作为一种宽带系统, 常与同频段内其他有源电磁系统发生冲突, 这些信号相较于宽带SAR系统而言, 大部分是窄带干扰(narrow-band interference, NBI), 会对高分辨SAR成像系统产生严重干扰。早期关于NBI抑制问题的研究中, 很少有人注意到NBIs在不同脉冲之间可能具有局部时变特性, 这削弱了某些经典方法在干扰抑制上的性能。因此, 本文提出了一种图拉普拉斯嵌入(graph Laplacian embedding, GLE)算法, 通过在不同脉冲信号之间构建拉普拉斯嵌入关系来抑制NBIs。这使得局部时变的干扰能够被嵌入到非线性低维流形中, 并被有效去除。对实测受NBI干扰的SAR数据进行处理, 处理后的结果证明了所提方法的有效性。

关键词: 合成孔径雷达, 窄带干扰抑制, 图拉普拉斯嵌入

Abstract:

As a wideband radar system, the synthetic aperture radar (SAR) usually conflicts with other electromagnetic systems working in the same frequency bands. These signals, most of which are narrow-band interference (NBI) for SAR systems, severely interfere SAR systems to generate a high-resolution image. Many previous research results focused on the NBI suppression problem, however, few of them noticed that the NBIs may be time-varying in a local region among different pulses, which restricts the suppression performance of some classic methods. Hence, in this paper, a graph Laplacian embedding (GLE) algorithm is proposed to suppress NBIs by constructing the Laplacian embedding connections between different pulses of signals. As a result, locally time-varying interferences are embedded in a non-linear low-dimensional manifold and can be effectively mitigated. The real SAR data measured with NBI are processed, and the results show the efficiency of the proposed algorithm.

Key words: synthetic aperture radar (SAR), narrow-band interference (NBI) suppression, graph Laplacian embedding (GLE)

中图分类号:

TN958

傅东宁, 廖桂生, 黄岩, 张邦杰, 王幸. 基于图拉普拉斯嵌入的合成孔径雷达时变窄带干扰抑制算法[J]. 系统工程与电子技术, 2022, 44(6): 1846-1853.

Dongning FU, Guisheng LIAO, Yan HUANG, Bangjie ZHANG, Xing WANG. Time-varying narrow-band interference suppression algorithm for SAR based on graph Laplacian embedding[J]. Systems Engineering and Electronics, 2022, 44(6): 1846-1853.

图/表 12

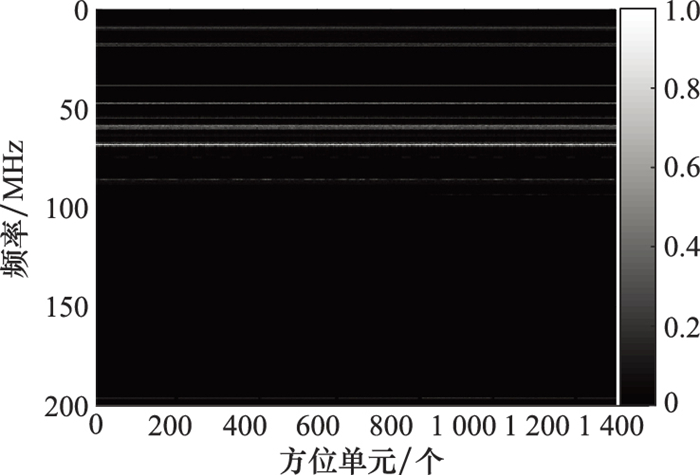

图1

图2

图3

表1

图4

图5

图6

图7

表2

表3

图8

图9

参考文献 22

1	HUANG Y , LIAO G S , XU J W , et al. GMTI and parameter estimation for MIMO SAR system via fast inter-ferometry RPCA method[J]. IEEE Trans.on Geoscience and Remote Sensing, 2018, 56 (3): 1774- 1787. doi: 10.1109/TGRS.2017.2768243
2	TAO M L , ZHOU F , ZHANG Z J . Wideband interference mitigation in high-resolution airborne synthetic aperture radar data[J]. IEEE Trans.on Geo-Science and Remote Sensing, 2016, 54 (1): 74- 87. doi: 10.1109/TGRS.2015.2450754
3	牟效乾, 陈小龙, 关键, 等. 基于INet的雷达图像杂波抑制和目标检测方法[J]. 雷达学报, 2020, 9 (4): 640- 653.
	MOU X Q , CHEN X L , GUAN J , et al. Clutter suppression and marine target detection for radar images based on INet[J]. Journal of Radars, 2020, 9 (4): 640- 653.
4	HUANG Y , LIAO G S , LI J , et al. Narrowband RFI sup-pression for SAR system via fast implementation of joint sparsity and low-rank property[J]. IEEE Trans.on Geoscience and Remote Sensing, 2018, 56 (5): 2748- 2761. doi: 10.1109/TGRS.2017.2782682
5	HUANG Y , LIAO G S , XIANG Y J , et al. Reweighted nuclear norm and reweighted frobenius norm minimiza-tions for narrowband RFI suppression on SAR system[J]. IEEE Trans.on Geoscience and Remote Sensing, 2019, 57 (8): 5949- 5962. doi: 10.1109/TGRS.2019.2903579
6	TAYLOR J D . Introduction to ultra-wideband radar systems[M]. New York: CRC Press, 1994.
7	黄岩. 复杂电磁环境下合成孔径雷达动目标检测与识别方法研究[D]. 西安: 西安电子科技大学, 2018.
	HUANG Y. Research on techniques of moving target detection and recognition for synthetic aperture radar in complex electromagnetism environment[D]. Xi'an: Xidian Univrsity, 2018.
8	CAZZANIGA G, GUARNIERI A M. Removing RF interfe-rences from P-band airplane SAR data[C]//Proc. of the IEEE International Geoscience and Remote Sensing Symposium, 1996: 1845-1847.
9	CHAP L, SCOTT H, ELAINE C. Adaptive filtering of RFI in wideband SAR signals[C]//Proc. of the 7th Annual JPL Airborne Earth Science Workshop, 1998.
10	ZHOU F , WU R , XING M D , et al. Eigensubspace-based filtering with application in narrow-band interference suppression for SAR[J]. IEEE Geo-Science and Remote Sensing Letters, 2007, 4 (1): 75- 79. doi: 10.1109/LGRS.2006.887033
11	LIU Z L , LIAO G S , YANG Z W . Time variant RFI suppression for SAR using iterative adaptive approach[J]. IEEE Geoscience and Remote Sensing Letters, 2013, 10 (6): 1424- 1428. doi: 10.1109/LGRS.2013.2259575
12	HUANG X , LIANG D . Gradual RELAX algorithm for RFI suppression in UWB-SAR[J]. Electronics Letters, 1999, 35 (22): 1916- 1917. doi: 10.1049/el:19991347
13	YU X H , CHEN X L , HUANG Y , et al. Radar moving target detection in clutter background via adaptive dual-threshold sparse Fourier transform[J]. IEEE Access, 2019, 7, 58200- 58211. doi: 10.1109/ACCESS.2019.2914232
14	HUANG Y , LIAO G S , XIANG Y J , et al. Low-rank approximation via generalized reweighted iterative nuclear and frobenius norms[J]. IEEE Trans.on Image Processing, 2020, 29 (2244): 2257.
15	SU J , TAO H H , TAO M L , et al. Time-varying SAR interference suppression based on delay-Doppler iterative decomposition algorithm[J]. Remote Sensing, 2018, 10 (9): 1491- 1509. doi: 10.3390/rs10091491
16	HUANG Y , LIAO G S , XU J W , et al. Narrowband RFI suppression for SAR system via efficient parameter-free decomposition algorithm[J]. IEEE Trans.on Geoscience and Remote Sensing, 2018, 56 (6): 3311- 3322. doi: 10.1109/TGRS.2018.2797946
17	HUANG Y , LIAO G S , ZHANG Z , et al. Fast narrow-band RFI suppression algorithms for SAR systems via matrix-factorization techniques[J]. IEEE Trans.on Geoscience and Remote Sensing, 20109, 57 (1): 250- 262.
18	HUANG Y , ZHANG L , LI J , et al. Reweighted tensor factorization method for SAR narrowband and wideband interference mitigation using smoothing multiview tensor model[J]. IEEE Trans.on Geoscience and Remote Sensing, 2020, 58 (5): 3298- 3313. doi: 10.1109/TGRS.2019.2953069
19	WEST D B. Introduction to graph theory[M]. 2nd ed. Delhi: Pearson Education Limited, 1994.
20	YANG J F , YIN W T , ZHANG Y , et al. A fast algorithm for edge-preserving variational multichannel image restoration[J]. SIAM Journal on Imaging Sciences, 2009, 2 (2): 569- 592. doi: 10.1137/080730421
21	QIN J , YANOVSKY I , YIN W T . Efficient simultaneous image deconvolution and upsampling algorithm for low-resolution microwave sounder data[J]. Journal of Applied Remote Sensing, 2015, 9 (1): 095035. doi: 10.1117/1.JRS.9.095035
22	LIU H Q , LI D , ZHOU Y , et al. Simultaneous radio frequency and wideband interference suppression in SAR signals via sparsity exploitation in time-frequency domain[J]. IEEE Trans.on Geoscience and Remote Sensing, 2018, 56 (10): 5780- 5793.

参数	数值
中心频率/GHz	10
带宽/MHz	200
采样频率/MHz	400
脉冲重复频率/Hz	1 000
平台速度/(m/s)	120

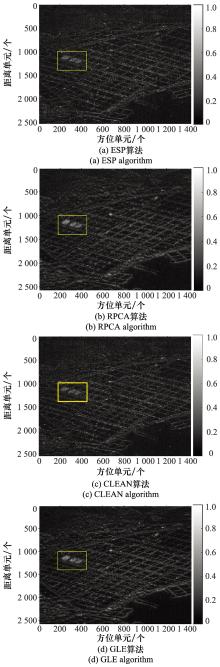

算法	RMSE
ESP	0.560
CLEAN	0.474
RPCA	0.455
GLE	0.357

信噪比/dB	算法
信噪比/dB	ESP	CLEAN	RPCA	GLE
-20	0.560	0.474	0.455	0.357
-15	0.505	0.422	0.373	0.308
-10	0.497	0.406	0.344	0.299
