分布式多AUV协同搜索方法

doi:10.12305/j.issn.1001-506X.2022.05.29

摘要/Abstract

摘要：

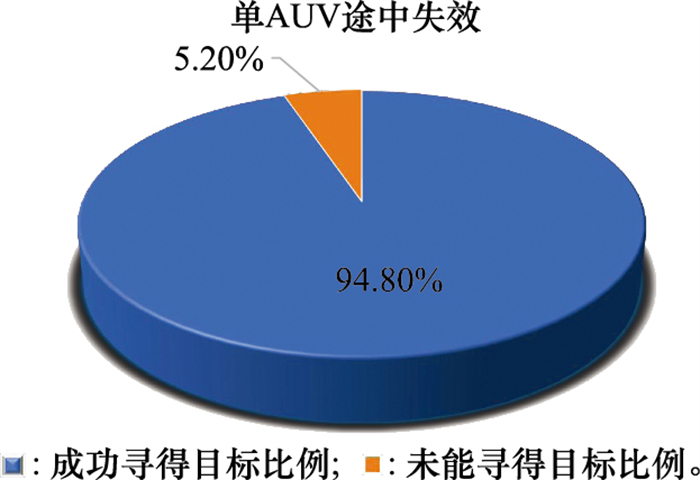

针对水下协同搜索中存在通信延时、单个自主式水下航行器(autonomous underwater vehicle, AUV)易失效的问题, 提出一种采用分布式协同结构和滚动优化策略, 利用改进型头脑风暴优化(brain storm optimization, BSO)算法优化基于目标存在概率、环境不确定度、协调信息素的目标函数的新方法。仿真结果表明, 所提方法能实现避碰, 并在通信延时情况下仍有能力搜索到所有目标。通过仿真给出了所提方法关键参数的建议取值范围, 并验证了个别AUV在搜索过程中失效对总体搜索效果影响不大, 方法具有很强的实时性和鲁棒性。

关键词: 自主式水下航行器, 协同搜索, 协调信息素, 改进型头脑风暴优化算法

Abstract:

Aiming at the problems of communication delay and easy failure of a single autonomous underwater vehicle (AUV) in underwater cooperative search, a new method using distributed cooperative structure and rolling optimization strategy is proposed, which optimizes the objective function based on target existence probability, environmental uncertainty and coordinative pheromone by using the improved brain storm optimization(BSO) algorithm. Simulation results show that the proposed method can avoid collision and still be able to search all targets in the case of communication delay. Through simulation, the recommended value range of key parameters of the proposed method is given, and it is verified that the failure of individual AUV in the search process has little impact on the overall search effect, and the method has strong real-time and robustness.

Key words: autonomous underwater vehicle (AUV), cooperative search, coordination pheromone, improved brain storm optimization (BSO) algorithm

中图分类号:

TP249

高永琪, 马威强, 张林森, 王鹏, 赵苗. 分布式多AUV协同搜索方法[J]. 系统工程与电子技术, 2022, 44(5): 1670-1676.

Yongqi GAO, Weiqiang MA, Linsen ZHANG, Peng WANG, Miao ZHAO. Distributed multi-AUVs cooperative search method[J]. Systems Engineering and Electronics, 2022, 44(5): 1670-1676.

图/表 11

图1

图2

表1

图3

图4

表2

表3

图5

图6

图7

图8

参考文献 32

1	LU J , CHEN X , LUO M X , et al. Cooperative localization for multiple AUVs based on the rough estimation of the measurements[J]. Applied Soft Computing, 2020, 91, 106197. doi: 10.1016/j.asoc.2020.106197
2	LING H F , ZHU T , HE W X , et al. Cooperative search method for multiple AUVs based on target clustering and path optimi-zation[J]. Natural Computing, 2021, 20, 3- 10. doi: 10.1007/s11047-019-09749-3
3	YAN Z P, HAO Y S, LI J. Multi-UUV collaborative search planning based on predictive control and backtracking[C]//Proc. of the IEEE 38th Chinese Control Conference, 2019: 2266-2271.
4	DING Y M, LIU C Y, LU Q, et al. Effectiveness evaluation of UUV cooperative combat based on GAPSO-BP neural network[C]//Proc. of the IEEE 31st Chinese Control and Decision Conference, 2019: 4620-4625.
5	SUN S Q , SONG B W , WANG P , et al. Real-time mission-motion planner for multi-UUVs cooperative work using tri-level programing[J]. IEEE Trans.on Intelligent Transportation Systems, 2022, 23 (2): 1260- 1273. doi: 10.1109/TITS.2020.3023819
6	ZHOU J J, ZHANG Q, WANG H J, et al. Multi-UUV formation coordination control based on virtual navigator[C]//Proc. of the IEEE 39th Chinese Control Conference, 2020: 2090-2095.
7	HU J W, JIN B, LI H P, et al. A DMPC-based approach to circular cooperative path-following control of unmanned underwater vehicles[C]//Proc. of the IEEE 28th International Symposium on Industrial Electronics, 2019: 1207-1212.
8	LIANG Q W , SUN T Y , OU J L . System reliable probability for multi-AUV cooperative systems under the influence of current[J]. The Journal of Navigation, 2019, 72 (6): 1649- 1659. doi: 10.1017/S0373463319000298
9	张伟, 王乃新, 魏世琳, 等. 水下无人潜航器集群发展现状及关键技术综述[J]. 哈尔滨工程大学学报, 2020, 41 (2): 289- 297.
	ZHANG W , WANG N X , WEI S L , et al. Overview of unmanned underwater vehicle swarm development status and key technologies[J]. Journal of Harbin Engineering University, 2020, 41 (2): 289- 297.
10	XU H X , JIANG C L . Heterogeneous oceanographic exploration system based on USV and AUV: a survey of developments and challenges[J]. Journal of University of Chinese Academy of Sciences, 2021, 38 (2): 145- 159.
11	GERMAN C R, JAKUBA M V, KINSEY J C, et al. A long term vision for long-range ship-free deep ocean operations: persistent presence through coordination of autonomous surface vehicles and autonomous underwater vehicles[C]//Proc. of the IEEE Autonomous Underwater Vehicles, 2012.
12	NAKATANI T, HYAKUDOME T, SAWA T, et al. ASV MAINAMI for AUV monitoring and its sea trial[C]//Proc. of the IEEE/OES Autonomous Underwater Vehicles, 2016: 301-306.
13	PROCTOR A, ZARAYSKAYA Y, BAZHENOVA E, et al. Unlocking the power of combined autonomous operations with underwater and surface vehicles: success with a deep-water survey AUV and USV mothership[C]//Proc. of the OCEANS-MTS/IEEE Kobe Techno-Ocean, 2018.
14	NORGREN P, LUDVIGSEN M, INGEBRETSEN T, et al. Tracking and remote monitoring of an autonomous underwater vehicle using an unmanned surface vehicle in the Trondheim fjord[C]//Proc. of the IEEE Oceans, 2015.
15	INABA S, SASANO M, KIM K, et al. Tracking experiment of multiple AUVs by a semi-submersible ASV[C]//Proc. of the IEEE Underwater Technology, 2017.
16	JI D X, REN S Z, ZHENG R, et al. A tracking control method of ASV following AUV[C]//Proc. of the IEEE Oceans, 2013.
17	RODIONOV A Y, KULIK S Y, UNRU P P. Some trial results of the hydro acoustical communication system operation for AUV and ASV group control and navigation[C]//Proc. of the MTS/IEEE OCEANS, 2016.
18	SASANO M, INABA S, OKAMOTO A, et al. Development of a semi-submersible autonomous surface vehicle for control of multiple autonomous underwater vehicles[C]//Proc. of the IEEE Techno-Ocean, 2017: 309-312.
19	NAKATANI T, HYAKUDOME T, SAWA T, et al. Deve-lopment of an autonomous surface vehicle for monitoring underwater vehicles[C]//Proc. of the MTS/IEEE OCEANS, 2015.
20	VALENTE J, BARRIENTOS A, CERRO J D, et al. Multi-robot visual coverage path planning: geometrical metamorphosis of the workspace through raster graphics based approaches[C]//Proc. of the International Conference on Computational Science and its Applications, 2011: 58-73.
21	GHOSE D , GURUPRASAD K R . Automated multi-agent search using centroidal voronoi configuration[J]. IEEE Trans. on Automation Science and Engineering, 2011, 8 (2): 420- 423. doi: 10.1109/TASE.2010.2072920
22	PEHLIVANOGLU Y V . A new vibrational genetic algorithm enhanced with a voronoi diagram for path planning of autonomous UAV[J]. Aerospace Science and Technology, 2012, 16 (1): 47- 55. doi: 10.1016/j.ast.2011.02.006
23	HU J W , XIE L H , LUM K Y , et al. Multiagent information fusion and cooperative control in target search[J]. IEEE Trans.on Control Systems Technology, 2013, 21 (4): 1223- 1235. doi: 10.1109/TCST.2012.2198650
24	SUN A K, LIU H. Cooperative UAV search for moving targets using a modified diffusion uncertainty model[C]//Proc. of the AIAA Guidance, Navigation, and Control Conference, 2009.
25	ZHEN Z J , XING D J , GAO C . Cooperative search-attack mission planning for multi-UAV based on intelligent self-organized algorithm[J]. Aerospace Science & Technology, 2018, 76 (1): 402- 411.
26	HU J W , XIE L H , XU J , et al. Multi-agent cooperative target search[J]. Sensors, 2014, 14 (6): 9408- 9428. doi: 10.3390/s140609408
27	KHAN A, YANMAZ E, RINNER B. Information merging in multi-UAV cooperative search[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2014: 3122-3129.
28	黄杰, 孙伟, 高渝. 双属性概率图优化的无人机集群协同目标搜索[J]. 系统工程与电子技术, 2020, 42 (1): 118- 127.
	HUANG J , SUN W , GAO Y . Cooperative searching for the multi-UAVs based on dual-attribute probability model optimization[J]. Systems Engineering and Electronics, 2020, 42 (1): 118- 127.
29	彭辉, 沈林成, 朱华勇. 基于分布式模型预测控制的多UAV协同区域搜索[J]. 航空学报, 2010, 31 (3): 593- 601.
	PENG H , SHEN L C , ZHU H Y . Multiple UAV cooperative area search based on distributed model predictive control[J]. Acta Aeronautica et Astronautica Sinica, 2010, 31 (3): 593- 601.
30	张哲璇, 龙腾, 徐广通, 等. 重访机制驱动的多无人机协同动目标搜索方法[J]. 航空学报, 2020, 41 (5): 220- 232.
	ZHANG Z X , LONG T , XU G T , et al. Revisit mechanism driven multi-UAV cooperative search planning method for moving targets[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41 (5): 220- 232.
31	马威强, 高永琪, 赵苗. 基于全局最优和差分变异的头脑风暴优化算法[J]. 系统工程与电子技术.https://kns.cnki.net/kcms/detail/11.2422.TN.20210531.0826.002.html.
	MA W Q, GAO Y Q, ZHAO M. Global-best difference-mutation brain storm optimization algorithm[J]. Systems Engineering and Electronics.https://kns.cnki.net/kcms/detail/11.2422.TN.20210531.0826.002.html.
32	SHI Y H. Brain storm optimization algorithm[C]//Proc. of the 2nd International Conference on Swarm Intelligence, 2011: 303-309.

参数符合	参数意义	值
p_d	传感器探测概率	0.96
p_f	传感器虚警概率	0.04
p₀	目标存在阈值	0.75
g_n	高斯分布峰值	0.324 8
σ²	高斯分布方差	0.49
τ	不确定度递减因子	0.1
M	充分大正数	1 000
H	较大协调信息素	5
L	较小协调信息素	1

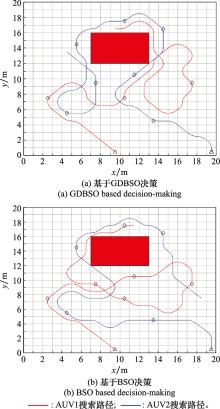

算法	寻得目标数量/个	每步决策时间/s
GDBSO	8.80	0.704 0
BSO	8.24	0.924 9

子目标函数影响系数	寻得目标数量/个
k₁=0.2、k₂=0.6、k₃=0.2	8.38
k₁=0.3、k₂=0.5、k₃=0.2	8.60
k₁=0.4、k₂=0.4、k₃=0.2	8.80
k₁=0.5、k₂=0.3、k₃=0.2	8.58
k₁=0.6、k₂=0.2、k₃=0.2	8.46
