基于多尺度光流融合特征点视觉-惯性SLAM方法

doi:10.12305/j.issn.1001-506X.2022.03.30

摘要/Abstract

摘要：

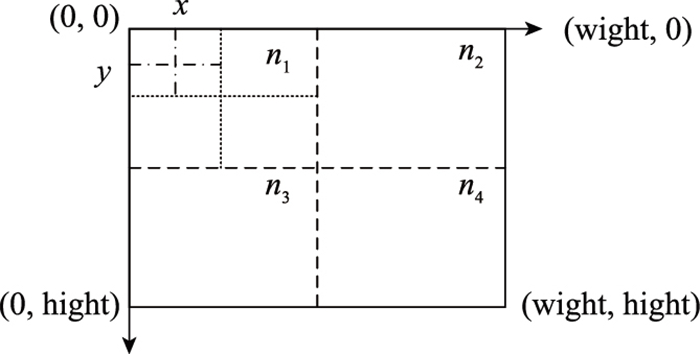

为提高视觉-惯性导航系统在弱纹理环境下的鲁棒性和精度, 结合特征点法精度高和光流法速度快的特点以及惯性信息, 提出一种多尺度均匀化光流融合特征点法的视觉-惯性同时定位与地图(simultaneous localization and mapping, SLAM)构建方法。首先, 改进快速特征点提取和描述(oriented fast and rotated brief, ORB)特征提取过程, 采用多尺度网格化的方法提取ORB特征点并利用四叉树均匀分配特征点, 提高特征分布离散性。其次, 在帧间采用LK(Lucas and Kanade)光流法追踪特征点进行帧间的数据关联, 在关键帧对特征点进行描述子的计算和匹配从而实现关键帧间的数据关联, 保证算法速度的同时提高定位精度和鲁棒性。最后, 基于光流法建立的数据关联得到的初始位姿为后端优化提供初始值, 整合ORB特征点重投影误差、惯性测量单元(inertial measurement unit, IMU)预积分误差以及滑动窗口先验误差构建最小化目标函数采用滑动窗口非线性优化进行求解。实验表明, 所提方法相比单目视觉惯性系统具有更高的定位精度和鲁棒性, 定位精度平均提升16.7%。

关键词: 视觉-惯性同时定位与地图构建, 光流法, 状态估计

Abstract:

In order to improve the robustness and accuracy of vision inertial navigation system in weak texture environment, combined with the characteristics of high accuracy of feature point method and fast speed of optical flow method and inertial information, a vision inertial simultaneous localization and mapping (SLAM) method of multi-scale homogenization optical flow fusion feature point method is proposed. Firstly, the feature extraction process of oriented fast and rotated brief (ORB) algorithm is improved, the orb feature points are extracted by multi-scale grid method, and the feature points are evenly distributed by quadtree to improve the discreteness of feature distribution. Secondly, the LK (Lucas and Kanade) optical flow method is used to track the feature points between frames for data association, and the descriptor of the feature points is calculated and matched in the key frame, so as to realize the data association between key frames, ensure the speed of the algorithm and improve the positioning accuracy and robustness. Finally, the initial pose obtained from the data association established based on the optical flow method provides the initial value for the back-end optimization, integrates the re projection error of orb feature points, the pre integration error of inertial measurement unit (IMU) and the a priori error of sliding window, constructs the minimization target function, and uses the nonlinear optimization of sliding window to solve it. Experiments show that the proposed method has higher positioning accuracy and robustness than monocular visual inertial system (VINS-Mono), and the positioning accuracy is improved by 16.7% on average.

Key words: visual inertial simultaneous localization and mapping (SLAM), optical flow method, state estimation

中图分类号:

TP391.4
TH76

王通典, 刘洁瑜, 吴宗收, 沈强, 姚二亮. 基于多尺度光流融合特征点视觉-惯性SLAM方法[J]. 系统工程与电子技术, 2022, 44(3): 977-985.

Tongdian WANG, Jieyu LIU, Zongshou WU, Qiang SHEN, Erliang YAO. Visual-inertial SLAM method based on multi-scale optical flow fusion feature point[J]. Systems Engineering and Electronics, 2022, 44(3): 977-985.

图/表 12

图1

图2

图3

图4

图5

表1

图6

表2

图7

图8

表3

表4

参考文献 30

1	张国良, 姚二亮, 林志林, 等. 融合直接法与特征法的快速双目SLAM算法[J]. 机器人, 2017, 39 (6): 879- 888.
	ZHANG G L , YAO E L , LIN Z L , et al. Fast binocular SLAM algorithm combining the direct method and the feature-based method[J]. Robot, 2017, 39 (6): 879- 888.
2	施俊屹, 查富生, 孙立宁, 等. 移动机器人视觉惯性SLAM研究进展[J]. 机器人, 2020, 42 (6): 734- 748.
	SHI J Y , ZHA F S , SUN L N , et al. A survey of visual-inertial SLAM for mobile robots[J]. Robot, 2020, 42 (6): 734- 748.
3	WANG P F, CHEN N, ZHA F S, et al. Research on adaptive Monte Carlo location algorithm aided by ultra-wideband array[C]// Proc. of the IEEE 13th World Congress on Intelligent Control and Automation, 2018: 566-571.
4	张小国, 刘启汉, 李尚哲, 等. 基于双步边缘化与关键帧筛选的改进视觉惯性SLAM方法[J]. 中国惯性技术学报, 2020, 28 (5): 608- 614.
	ZHANG X G , LIU Q H , LI S Z , et al. An approach to improve VI-SLAM based on two-step marginalization and keyframe selection method[J]. Journal of Chinese Inertial Technology, 2020, 28 (5): 608- 614.
5	GUI J J , GU D B , WANG S , et al. A review of visual inertial odometry from filtering and optimisation perspectives[J]. Advanced Robotics, 2015, 29 (20): 1289- 1301. doi: 10.1080/01691864.2015.1057616
6	SMITH R , SELF M , CHEESEMAN P . Estimating uncertain spatial relationships in robotics[J]. Machine Intelligence & Pattern Recognition, 1988, 5 (5): 435- 461.
7	JONES E S , SOATTO S . Visual-inertial navigation, mapping and localization: a scalable real-time causal approach[J]. International Journal of Robotics Research, 2011, 30 (4): 407- 430. doi: 10.1177/0278364910388963
8	KELLY J , SUKHATME G S . Visual-inertial sensor fusion: localization, mappingand sensor-to-sensor self-calibration[J]. International Journal of Robotics Research, 2011, 30 (1): 56- 79. doi: 10.1177/0278364910382802
9	MOURIKIS A I, ROUMELIOTIS S I. A multi-state constraint Kalman filter for vision-aided inertial navigation[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2007: 3565-3572.
10	BLOESCH M, OMARI S, HUTTER M, et al. Robust visual inertial odometry using a direct EKF-based approach[C]//Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2015: 298-304.
11	LEUTENEGGER S , LYENE S , BOSSE M , et al. Keyframe-based visual inertial odometry using nonlinear optimization[J]. International Journal of Robotics Research, 2014, 34 (3): 314- 334.
12	夏琳琳, 沈冉, 迟德儒, 等. 一种基于光流-线特征的单目视觉-惯性SLAM算法[J]. 中国惯性技术学报, 2020, 28 (5): 568- 575.
	XIA L L , SHEN R , CHI D R , et al. An optical flow-line feature based monocular visual-inertial SLAM algorithm[J]. Journal of Chinese Inertial Technology, 2020, 28 (5): 568- 575.
13	MUR-ARTAL R , TARDOS J D . Visual-inertial monocular SLAM with map reuse[J]. IEEE Robotics and Automation Letters, 2017, 2 (2): 796- 803. doi: 10.1109/LRA.2017.2653359
14	MUR-ARTAL R , MONTIEL J M M , TARDOS J D . ORB-SLAM: a versatile and accurate monocular SLAM system[J]. IEEE Trans.on Robotics, 2015, 31 (5): 1147- 1163. doi: 10.1109/TRO.2015.2463671
15	FORSTER C, PIZZOLI M, SCARAMUZZA D. SVO: fast semi-direct monocular visual odometry[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2014: 15-22.
16	FORSTER C , ZHANG Z , GASSNER M , et al. SVO: semidirect visual odometry for monocular and multicamera systems[J]. IEEE Trans.on Robotics, 2017, 33 (2): 249- 265. doi: 10.1109/TRO.2016.2623335
17	龚赵慧, 张霄力, 彭侠夫, 等. 基于视觉惯性融合的半直接单目视觉里程计[J]. 机器人, 2020, 42 (5): 595- 605.
	GONG Z H , ZHANG X L , PENG X F , et al. Semi-direct monocular visual odometry based on visual-inertial fusion[J]. Robot, 2020, 42 (5): 595- 605.
18	刘艳娇, 张云洲, 荣磊, 等. 基于直接法与惯性测量单元融合的视觉里程计[J]. 机器人, 2019, 41 (5): 683- 689.
	LIU Y J , ZHANG Y Z , RONG L , et al. Visual odometry based on the direct method and the inertial measurement unit[J]. Robot, 2019, 41 (5): 683- 689.
19	QIN T , LI P L , SHEN S J . VINS-Mono: a robust and versatile monocular visual-inertial state estimator[J]. IEEE Trans.on Robotics, 2018, 34 (4): 1004- 1020. doi: 10.1109/TRO.2018.2853729
20	TATENO K, TOMBARI F, LAINA I, et al. CNN-SLAM: real-time dense monocular SLAM with learned depth prediction[C]// Proc. of the IEEE Conference on Computer Vision and Pattern Recognition, 2017: 6565-6574.
21	齐乃新, 杨小冈, 李小峰, 等. 基于ORB特征和LK光流的视觉里程计算法[J]. 仪器仪表学报, 2018, 39 (12): 216- 227.
	QI N X , YANG X G , LI X F , et al. Visual odometry algorithm based on ORB features and LK optical flow[J]. Chinese Journal of Scientific Instrument, 2018, 39 (12): 216- 227.
22	刘宏伟, 余辉亮, 梁艳阳. ORB特征四叉树均匀分布算法[J]. 自动化仪表, 2018, 39 (5): 52- 54, 59.
	LIU H W , YU H L , LIANG Y Y . ORB feature quadtree uniform distribution algorithm[J]. Process Automation Instrumentation, 2018, 39 (5): 52- 54, 59.
23	FURGALE P, REHDER J, SIEGWART R. Unified temporal and spatial calibration for multi-sensor systems[C]//Proc. of the IEEE /RSJ International Conference on Intelligent Robots and Systems, 2013: 1280-1286.
24	BAY H , TUYTELAARS T , GOOL L V . SURF: speeded up robust features[J]. Computer Vision & Image Understanding, 2006, 110 (3): 404- 417.
25	姚晋晋, 张鹏超, 王彦, 等. 基于改进四叉树的ORB特征均匀分布算法[J]. 计算机工程与设计, 2020, 41 (6): 1629- 1634.
	YAO J J , ZHANG P C , WANG Y , et al. ORB feature uniform distribution algorithm based on improved quadtree[J]. Computer Engineering and Design, 2020, 41 (6): 1629- 1634.
26	郑驰, 项志宇, 刘济林. 融合光流与特征点匹配的单目视觉里程计[J]. 浙江大学学报(工学版), 2014, 48 (2): 279- 284.
	ZHENG C , XIANG Z Y , LIU J L . Monocular vision odometry based on the fusion of optical flow and feature points matching[J]. Journal of Zhejiang University(Engineering Science), 2014, 48 (2): 279- 284.
27	ZHOU J M , ZHAO X M , CHENG X , et al. Vehicle ego-localization based on streetscape image database under blind area of global positioning system[J]. Journal of Shanghai Jiaotong University (Science), 2019, 24 (1): 122- 129. doi: 10.1007/s12204-018-2008-8
28	FORSTER C , CARLONE L , DELLAERT F , et al. On-manifold preintegration for real-time visual-inertial odometry[J]. IEEE Trans.on Robotics, 2017, 33 (1): 1- 21. doi: 10.1109/TRO.2016.2597321
29	LOWRY S , SUNDERHAUF N , NEWMAN P , et al. Visual place recognition: a survey[J]. IEEE Trans.on Robotics, 2015, 32 (1): 1- 19.
30	BURRI M , NIKOLIC J , GOHL P , et al. The EuRoC micro aerial vehicle datasets[J]. International Journal of Robotics Research, 2016, 35 (10): 1157- 1163. doi: 10.1177/0278364915620033

硬件	类型
CPU	Intel i5-8265U(1.6Ghz)
内存	8GB RAM
系统	Ubuntu 16.04

算法	光照变化场景				弱光照场景				快速运动场景
算法	特征点	匹配率/%	耗时/ms	均匀度	特征点	匹配率/%	耗时/ms	均匀度	特征点	匹配率/%	耗时/ms	均匀度
ORB算法	491	81.4	24.05	0.28	495	88.0	29.52	0.24	497	78.20	23.26	0.32
Shi-Tomasi光流	136	64.7	16.89	0.68	72	89.2	14.26	0.38	366	88.25	20.39	0.78
本文ORB算法	365	68.2	21.6	0.79	295	81.1	20.56	0.75	298	91.60	21.41	0.82

序列	MH-05-difficult
序列	VINS-Mono	本文算法
Max	1.510 9	1.480 7
Mean	0.448 1	0.350 0
Median	0.409 0	0.322 9
Min	0.016 9	0.007 2
Rmse	0.486 1	0.406 9
Std	0.188 3	0.207 6

序列	V1-02-medium
序列	VINS-Mono	本文算法
Max	0.841 0	0.756 1
Mean	0.256 5	0.242 5
Median	0.210 0	0.198 8
Min	0.031 1	0.009 5
Rmse	0.308 2	0.300 6
Std	0.170 8	0.163 2

序列	V2-01-easy
序列	VINS-Mono	本文算法
Max	0.475 8	0.365 9
Mean	0.117 8	0.106 8
Median	0.101 1	0.090 1
Min	0.002 4	0.006 7
Rmse	0.137 1	0.125 6
Std	0.070 0	0.066 1

序列	VINS-Mono/m	本文算法/m	优化率/%
MH-01	0.273 4	0.182 2	33.4
MH-02	0.224 5	0.177 4	21.0
MH-03	0.409 1	0.319 8	21.8
MH-04	0.456 0	0.394 3	13.5
MH-05	0.486 1	0.406 9	16.3
V1-02	0.308 2	0.300 6	2.4
V2-01	0.137 1	0.125 6	8.4
