民用飞机多地域航材支援网络模型研究

doi:10.12305/j.issn.1001-506X.2022.05.16

Abstract

Abstract:

Spare parts support is essential to the safe and reliable operation of civil aircraft. Civil aircraft are operated in different regions, and spare parts support based on customer demand is also affected by the regional environment and transportation methods. In order to realize the agile support of civil aircraft spare parts, this paper comprehensively considers the influence of multiple factors, and proposes the nested analytic hierarchy process (NAHP) method based on the balance of the spare parts support network nodes, as well as the multi-region spare parts support network model for civil aircraft based on the genetic algorithm (GA). Combining the characteristics of civil aircraft operations in multiple regions, the factors affecting the spare parts support network are researched, and the NAHP is used to weigh and analyze the spare parts support network nodes, and the target nodes of the spare parts support network are obtained by ranking the importance of the candidate nodes. Then, taking timeliness as the optimization goal, a multi-regional spare parts support network node type positioning and multimodal transport route optimization model is constructed, which is solved by the GA that is designed to improve applicability. Finally, the effectiveness of the developed method and model is verified by comparing with the artificially planned spare parts support plans. The results show that the proposed method can reasonably determine the type and radiation range of the spare parts support network node, and at the same time complete the spare parts support task in the shortest time. It can provide feasible methods and ideas for the construction of the spare parts support network for civil aircraft operating in multiple regions.

Key words: spare parts support network, civil aircraft, analytic hierarchy process (AHP), genetic algorithm (GA), agile support

CLC Number:

V267

Yunwen FENG, Junyu CHEN, Cheng LU. Research on civil aircraft spare parts multi-region support network model[J]. Systems Engineering and Electronics, 2022, 44(5): 1553-1561.

Figures/Tables 17

Table 1

Fig.1

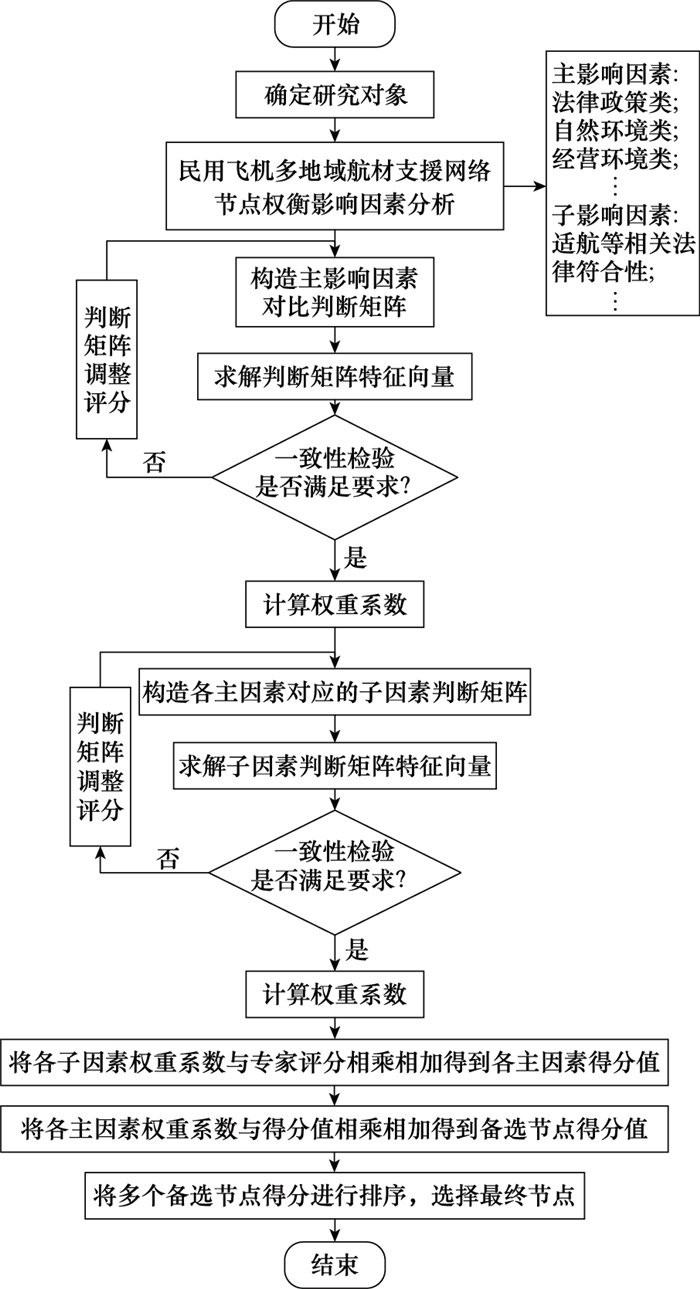

Fig.2

Table 2

Fig.3

Fig.4

Table 3

Table 4

Fig.5

Fig.6

Table 5

Table 6

Table 7

Table 8

Fig.7

Fig.8

Table 9

References 27

1	中国商飞公司. C919飞机进入局方审定试飞阶段民航上海审定中心签发大型客机首个型号检查核准书[EB/OL]. [2021-04-12]. https://www.thepaper.cn/newsDetail_forward_10167585.
	Commercial Aircraft Corporation of China. China's civil aviation authority has issued the first type inspection approval for a large passenger jet[EB/OL]. [2021-04-12]. https://www.thepaper.cn/newsDetail_forward_10167585.
2	中国商飞公司. ARJ21飞机首次在中国商飞江西生产试飞中心交付[EB/OL]. [2021-04-12] https://www.ndrc.gov.cn/fggz/cxhgjsfz/dfjz/202011/t20201130_1251673.html?code=&state=123.
	Commercial Aircraft Corporation of China. The ARJ21 aircraft was delivered for the first time at comAC's Jiangxi production and test flight center[EB/OL]. [2021-04-12] https://www.ndrc.gov.cn/fggz/cxhgjsfz/dfjz/202011/t20201130_1251673.html?code=&state=123.
3	盛永清, 王浩军, 陈素明. MA700飞机用工艺规范适航审查方法实践[J]. 中国设备工程, 2020, (1): 236- 237. doi: 10.3969/j.issn.1671-0711.2020.01.127
	SHENG Y Q , WANG H J , CHEN S M . Practice of airworthiness review method for MA700 aircraft[J]. China Plant Engineering, 2020, (1): 236- 237. doi: 10.3969/j.issn.1671-0711.2020.01.127
4	张隽. 首款国产民机"新舟"60的十年客户服务之旅[J]. 航空维修与工程, 2015, (4): 12- 14. doi: 10.3969/j.issn.1672-0989.2015.04.001
	ZHANG J . Ten-year customer services trip of MA 60 commercial aircraft[J]. Aviation Maintenance & Engineering, 2015, (4): 12- 14. doi: 10.3969/j.issn.1672-0989.2015.04.001
5	冯蕴雯, 刘雨昌, 薛小锋, 等. 基于横向供应与维修比例的民机备件配置优化技术研究[J]. 西北工业大学学报, 2018, 36 (6): 1059- 1068. doi: 10.3969/j.issn.1000-2758.2018.06.005
	FENG Y W , LIU Y C , XUE X F , et al. Research on configuration optimization of civil aircraft spare parts with lateral transshipments and maintenance ratio[J]. Journal of Northwestern Polytechnical University, 2018, 36 (6): 1059- 1068. doi: 10.3969/j.issn.1000-2758.2018.06.005
6	冯蕴雯, 路成, 薛小锋, 等. 考虑维修比例的民机备件多级库存配置研究[J]. 西北工业大学学报, 2018, 6 (3): 582- 589. doi: 10.3969/j.issn.1000-2758.2018.03.026
	FENG Y W , LU C , XUE X F , et al. Multi-echelon inventory allocation of civil aircraft spare parts considering maintenance ratio[J]. Journal of Northwestern Polytechnical University, 2018, 6 (3): 582- 589. doi: 10.3969/j.issn.1000-2758.2018.03.026
7	HONG S , ZHOU Z , ZIO E . Condition assessment for the perfor-mance degradation of bearing based on a combinatorial feature extraction method[J]. Digital Signal Processing, 2014, 27, 159- 166. doi: 10.1016/j.dsp.2013.12.010
8	刘伟, 顾喆, 王寿鹏. 战略运输机航材保障体系构建[J]. 国防科技, 2020, 41 (4): 74- 78.
	LIU W , GU Z , WANG S P . The construction of an air material support system for strategic transport aircraft[J]. National Defense Science & Technology, 2020, 41 (4): 74- 78.
9	芦冰. SC航空公司航材供应管理优化研究[D]. 济南: 山东财经大学, 2016.
	LU B. Research on the optimization of SC Airline's aviation material supply management[D]. Jinan: Shandong University of Finance and Economics, 2016.
10	李晓旭. XX航材集团公司"航材共享"平台战略的研究[D]. 成都: 西南民族大学, 2018.
	LI X X. Research on "aviation material sharing" platform stra-tegy of XX aviation materials group company[D]. Chengdu: Southwest University for Nationalities, 2018.
11	WILLEM V J , TWAN D , ROMMERT D . Improving spare parts inventory control at a repair shop[J]. Omega, 2015, 57 (2): 217- 229.
12	QIN Y , MA H L , CHAN F T S , et al. A scenario-based stochastic programming approach for aircraft expendable and rotable spare parts planning in MRO provider[J]. Industrial Management & Data Systems, 2020, (9): 1635- 1657.
13	MO D Y , TSENG M M , WANG Y . Mass customizing spare parts support services based on response time with inventory pooling strategies[J]. IEEE Trans.on Engineering Management, 2016, 63 (3): 305- 315. doi: 10.1109/TEM.2016.2571320
14	LEEA S, 蓝楠. 波音公司欲推更低价高效的航材服务[J]. 航空维修与工程, 2016, (10): 16.
	LEE A S , LAN N . Boeing's new material service leader targets reduced lead times[J]. Aviation Maintenance and Engineering, 2016, (10): 16.
15	米晓春, 顾伟, 龚贺. 空客供应商与华欧航空支援中心续签合作协议[J]. 空运商务, 2006, (31): 10.
	MI X C , GU W , GONG H . Airbus supplier renewed cooperation agreement with China-Europe aviation support center[J]. Air Freight Business, 2006, (31): 10.
16	张晟昱. 民用飞机航材库存管理应用研究[D]. 上海: 上海交通大学, 2016.
	ZHANG S Y. Research on application of aviation material inventory management for civil aircraft[D]. Shanghai: Shanghai Jiao Tong University, 2016.
17	白会芳, 董雅丽. 现代物流管理教程[M]. 北京: 经济管理出版社, 2016.
	BAI H F , DONG Y L . Modern logistics management course[M]. Beijing: Economic Management Publishing House, 2016.
18	张泽浩. 基于关税成本和运价折扣的K公司海外仓选址研究[D]. 北京: 北京交通大学, 2019.
	ZHANG Z H. Study on overseas warehouse location of K company based on tariff cost and freight discount[D]. Beijing: Beijing Jiaotong University, 2019.
19	李杨纯子. 跨境物流新模式——海外仓选址研究[D]. 杭州: 浙江大学, 2017.
	LI Y C Z. A new model of cross-border logistics——research on site selection of overseas warehouses[D]. Hangzhou: Zhejiang University, 2017.
20	辛昱, 郑金忠, 张梁, 等. 基于AHP-FMEA的航材仓库选址合理性评价研究[J]. 兵工自动化, 2016, 35 (6): 80- 84.
	XIN Y , ZHENG J Z , ZHANG L , et al. Study on rationality evaluation of air material warehouse location based on AHP-FMEA[J]. Ordnance Automation, 2016, 35 (6): 80- 84.
21	TAGARAS Q , DIMITRIOS V . Effectiveness of stock trans-shipment under various demand distributions and nonnegligible transshipment times[J]. Production and Operations Management, 2002, 11, 183- 198.
22	裘路. 要熟练掌握仓库选址的方法论[J]. 中国储运, 2019, (12): 54.
	QIU L . To master the methodology of warehouse location[J]. Storage and Transportation in China, 2019, (12): 54.
23	WONG H , CATTRYSSE D , VAN O D . Inventory pooling of repairable spare parts with non-zero lateral transshipment time and delayed lateral trans-shipments[J]. European Journal of Operational Research, 2005, 165 (1): 207- 218. doi: 10.1016/j.ejor.2003.09.031
24	LONARDO P , ANGHINOLFI D , PAOLUCCI M . A stochastic linear programming approach for service parts optimization[J]. CIRP Annals-Manufacturing Technology, 2008, 57 (1): 441- 444. doi: 10.1016/j.cirp.2008.03.015
25	舒正平, 王秀华, 李忠光. 装备保障前沿问题研究[M]. 北京: 国防工业出版社, 2016.
	SHU Z P , WANG X H , LI Z G . Research on frontier issues of equipment support[M]. Beijing: National Defense Industry Press, 2016.
26	LEANDRO G M , INMACULAD A , MARTINEZ Z , et al. Determinant of mode choice between road and shipping for freight transport, evidence for four Spanish exporting sectors[J]. Journal of Transport Economies and Policy, 2004, 38 (3): 447- 466.
27	ANNA N , DMYTRO M . Global supply chain network dynamics with multicriteria decision-making under risk and uncertainty[J]. Transportation Research Part E: Logistics and Transportation Review, 2005, 41 (6): 585- 612. doi: 10.1016/j.tre.2005.07.002

因素属性	主影响因素	子影响因素
定性因素	法律政策	适航等相关法律符合性因素
		航材进出口关税因素
		地方政府相关政策支持因素
	经营环境	航空运输市场的潜力情况
		不同运输方式接驳难易情况
		地形地貌情况
	自然	平均温度湿度情况
	自然	降雨、降霜及降雪情况
	安全	治安情况
		外部稳定性
		地质安全性
定量因素	时间	航材进口平均通关时间
	时间	航材支援平均运输时间
	成本	航材进口关税、增值税成本
		航材支援仓库建设租用成本
		普通工人的平均月工资
		用水用电费用
		各类运输方式的价格
	运输需求	各等级机场个数
		飞机运输起降架次
		各航空公司机队规模
		各航空公司保障深度与覆盖航站个数
	运输方式	各等级公路里程
		各等级铁路里程与吞吐量
		各等级港口的个数与吞吐量
		机场航线条数与货物吞吐量

标度	含义
1	表示两个元素相比, 具有同等重要性
3	表示两个元素相比, 前者比后者稍重要
5	表示两个元素相比, 前者比后者明显重要
7	表示两个元素相比, 前者比后者强烈重要
9	表示两个元素相比, 前者比后者极端重要
2, 4, 6, 8	表示上述判断的中间值
倒数	若元素i与元素j的重要性之比为a_ij, 则元素j与元素i的重要性之比为a_ij=1/a_ij

主要影响因素	一致性比例	w
法律政策	< 0.01	[0.637 0, 0.104 7, 0.258 3]
经营环境	< 0.01	[0.750 0, 0.250 0]
自然环境	< 0.01	[0.637 0, 0.258 3, 0.104 7]
安全	< 0.01	[0.258 3, 0.104 7, 0.637 0]
成本	< 0.01	[0.496 6, 0.235 3, 0.093 9, 0.087 1, 0.087 1]
时间	< 0.01	[0.750 0, 0.250 0]
运输需求	< 0.01	[0.525 8, 0.062 3, 0.205 9, 0.205 9]
运输方法	< 0.01	[0.109 0, 0.109 0, 0.296 8, 0.485 2]

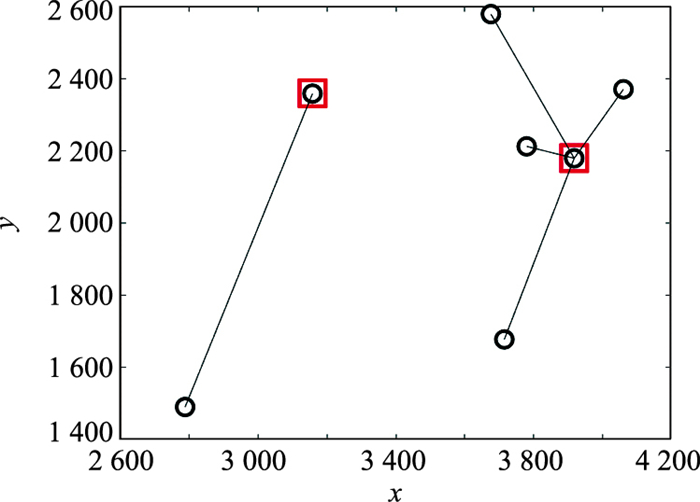

节点	x	y	需求量
A	2 788	1 491	20
B	3 158	2 358	90
D	3 918	2 179	70
F	3 715	1 678	60
G	4 061	2 370	70
J	3 780	2 212	40
L	3 676	2 578	90

节点	A	B	D	F	G	J	L
中心库	174.6	298.9	-	-	-	-	-
A	0	-	-	529.7	522.7	-	-
B	-	0	110.1	181.9	-	-	-
D	-	-	0	149.9	366.3	-	-
F	-	-	-	0	-	391.9	383.2
G	-	-	-	-	0	230.2	241.9
J	-	-	-	-	-	0	12

Research on civil aircraft spare parts multi-region support network model

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 17

References 27

Related Articles 15

Recommended Articles

Metrics

Comments

节点	A	B	D	F	G	J	L
中心库	1 500	-	-	4 000	-	-	-
A	0	-	-	-	-	-	-
B	-	0	-	-	2 500	-	-
D	-	-	0	-	-	950	-
F	-	-	-	0	-	-	-
G	-	-	-	-	0	-	-
J	-	-	-	-	-	0	1 200

方案	具体支援路线	时间/h
1	中心库(公路)-B(公路)-D(公路)-G(公路)-L	6.852
2	中心库(公路)-B(公路)-D(公路)-F(公路)-L	9.917
3	中心库(公路)-B(公路)-D(无通路)-L	-
4	中心库(公路)-B(公路)-D(公路)-G(无通路)-F-L	-
5	中心库(公路)-B(公路)-D(公路)-F(公路)-J(空运)-L	12.408
6	中心库(公路)-B(公路)-D(公路)-G(公路)-J(公路)-L	10.721
所提方法	中心库(公路)-B(公路)-D(空运)-J(公路)-L	6.332

[1]	Wenming ZHOU, Dekang CUI, Jingyi ZHOU, Mingming ZHANG, Anshi ZHU. Hybrid algorithm for evaluation of support capability of storage and supply base [J]. Systems Engineering and Electronics, 2022, 44(9): 2832-2839.
[2]	Yaohua LI, Yuan GAO. Safety analysis for civil aircraft system based on STPA-ANP model [J]. Systems Engineering and Electronics, 2022, 44(9): 2986-2994.
[3]	Tiansu LUO, Lingfeng ZHAO, Yunwen FENG, Xiaofeng XUE, Cheng LU. Super large-scale satellite constellation multi-level backup strategy based on METRIC theory [J]. Systems Engineering and Electronics, 2022, 44(7): 2181-2190.
[4]	Haobo FENG, Qiao HU, Zhenyi ZHAO. AUV swarm path planning based on elite family genetic algorithm [J]. Systems Engineering and Electronics, 2022, 44(7): 2251-2262.
[5]	Yongpan WANG, Jianxin SU, Ming GONG, Hua LIU. Combat-oriented effect evaluation model of full function operation training of radar [J]. Systems Engineering and Electronics, 2022, 44(12): 3766-3774.
[6]	Qiucen FAN, Wenhao BI, An ZHANG, Wenhao WANG. MBSE modeling method of civil aircraft altitude control system [J]. Systems Engineering and Electronics, 2022, 44(1): 164-171.
[7]	Delin LI, Wenhao BI, An ZHANG, Qiucen FAN. MBSE-based process management in the development of civil aircraft [J]. Systems Engineering and Electronics, 2021, 43(8): 2209-2220.
[8]	Yunong WANG, Wenhao BI, An ZHANG, Chao ZHAN. DoDAF-based civil aircraft MBSE development method [J]. Systems Engineering and Electronics, 2021, 43(12): 3579-3585.
[9]	Wenhao WANG, Wenhao BI, An ZHANG, Qiucen FAN. Function modeling method of civil aircraft system based on MBSE [J]. Systems Engineering and Electronics, 2021, 43(10): 2884-2892.
[10]	Zhiwei MAO, Zhanwen QU, Tong ZHANG, Yi LU, Shan FU, Dan HUANG. Design of civil aircraft certification test flight scenario based on MBSE [J]. Systems Engineering and Electronics, 2020, 42(8): 1768-1775.
[11]	Yuan GUO, Zhiyong SUO, Tingting WANG, Zhiqiang LIAO. Parameter optimization design method of missile-borne SAR system [J]. Systems Engineering and Electronics, 2020, 42(7): 1478-1483.
[12]	Chen LI, Jun'an YANG, Hui LIU. Modulation recognition algorithm based on information entropy and GA-ELM [J]. Systems Engineering and Electronics, 2020, 42(1): 223-229.
[13]	GUO Xinmin, WANG Xu, WEI Guohua. Evaluation method of shore based warning radar anti-jamming performance [J]. Systems Engineering and Electronics, 2018, 40(4): 768-775.
[14]	WANG Zhangang, WANG Daming, BA Bin, ZHANG Yankui. Direction finding algorithm of correlated interferometer based on genetic algorithm with high degree of stretching#br# [J]. Systems Engineering and Electronics, 2018, 40(1): 39-44.
[15]	WU Hua, SHI Zhongya, SHEN Wendi, WANG Jingshang, WANG Wenzhe. Radar LPI performance assessment method based on extended G-GIFSS algorithm [J]. Systems Engineering and Electronics, 2017, 39(6): 1256-1260.

节点	A	B	D	F	G	J	L
中心库	167	301	-	-	-	-	-
A	0	-	-	-	647	-	-
B	-	0	125	165	-	-	-
D	-	-	0	141	325	-	-
F	-	-	-	0	-	359	359
G	-	-	-	-	0	223	223
J	-	-	-	-	-	0	-

节点	A	B	D	F	G	J	L
中心库	-	347	-	-	-	-	-
A	0	-	-	-	647	-	-
B	-	0	96	-	-	-	-
D	-	-	0	-	350	-	-
F	-	-	-	0	-	-	-
G	-	-	-	-	0	-	250
J	-	-	-	-	-	0	-
