空地异构无人系统固定时间事件触发编队包含控制

doi:10.12305/j.issn.1001-506X.2026.02.27

摘要/Abstract

摘要：

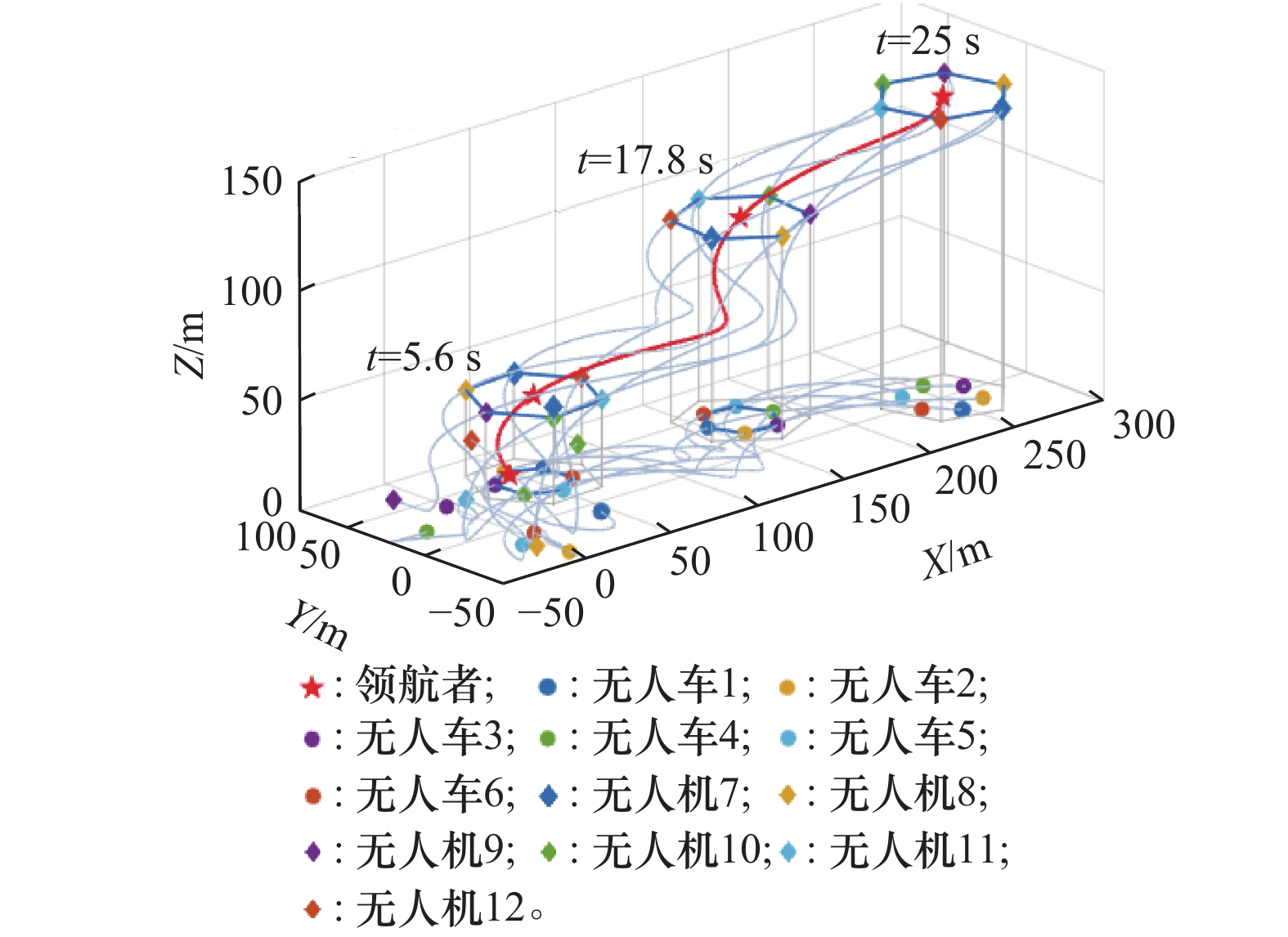

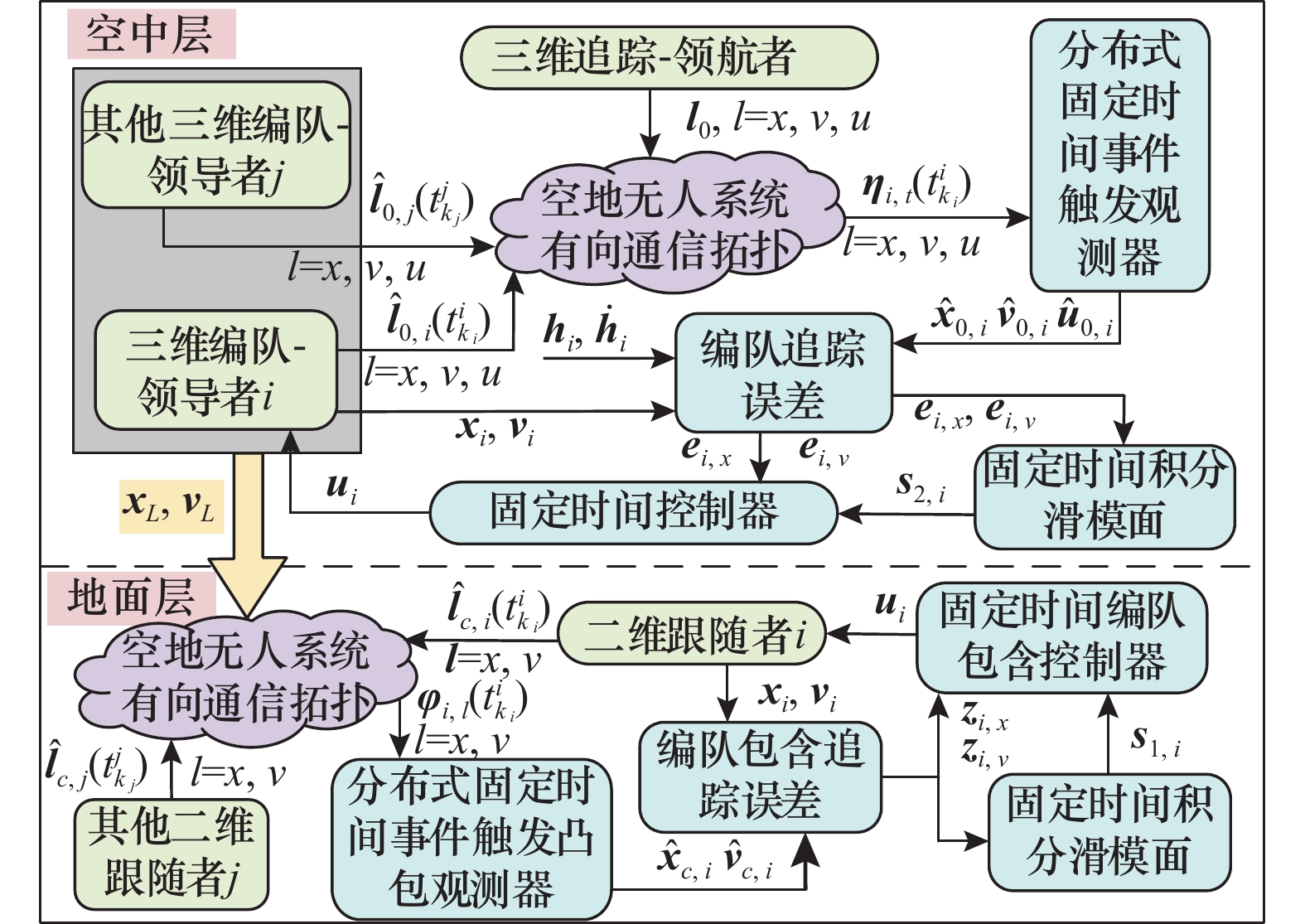

针对以多无人机和多无人车组成的空地异构无人系统协同运动控制问题，基于事件触发通信策略，提出一种扰动条件下快速收敛的固定时间时变编队包含控制算法。首先，依据空地协同任务类型，将系统期望轨迹、多无人机和多无人车分别定义为三维追踪-领航者、三维编队-领导者以及二维跟随者。然后，基于系统各对象变量维度将其进行集群分组，根据分组集群变量维度在状态空间为整个空地系统构建兼容自由度差异特性的数学模型。接着，在空中层为三维编队-领导者设计分布式固定时间事件触发观测器来观测三维追踪-领航者的信息并基于观测信息为其设计固定时间编队控制器。最后在地面层为二维跟随者设计分布式固定时间事件触发凸包观测器来估计多个三维编队-领导者张成的凸包并为其设计固定时间编队包含控制器。理论分析表明，相比于传统固定时间编队控制算法的估计收敛时间上界，本文提出的固定时间编队控制算法保守性更低，其上界更接近系统队形真实的收敛时间。最后通过设置对比仿真验证了该说法。

关键词: 无人机-无人车系统, 时变编队包含控制, 事件触发通信, 分布式协同观测, 固定时间稳定收敛

Abstract:

To address the problem of the collaborative motion control problem for air-ground heterogeneous unmanned system composed of multi-unmanned aerial vehicle （UAV） and multi-unmanned ground vehicle （UGV）, based on an event-triggered communication strategy, a fast fixed-time time-varying formation containment control algorithm with disturbances is proposed. Firstly, according to air-ground collaborative mission types, the system desired trajectory, multi-UAV, and multi-UGV are defined as three-dimensional （3-D） tracking navigator, 3-D formation leader, and two-dimensional （2-D） follower, respectively. Then, the system is divided into two subgroups based on the state variable dimensions of each individual, and a unified mathematical model that characterizes the different degrees of freedom is established in the state space for the whole system according to the subgroup variable dimensions. Next, a distributed fixed-time event-triggered observer is developed for the 3-D formation leader to observe the information of the 3-D tracking navigator and a fixed-time formation controller for them based on the observation information. Furthermore, a distributed fixed-time event-triggered convex hull observer is proposed for the 2-D follower to estimate the convex hulls spanned by the 3-D formation leader, and a fixed-time formation containment controller is designed for all 2-D follower. Theoretical analysis indicates that, compared to the upper bound of the estimated time in traditional fixed-time cooperative control algorithms, the fixed-time formation control algorithm proposed in this paper exhibits lower conservatism, with its upper bound being closer to the actual convergence time of the system formation. Finally, this claim is verified through comparative simulation experiments.

Key words: unmanned aerial vehicle(UAV)-unmanned ground vehicle(UGV) system, time-varying formation containment control, event-triggered communication, distributed collaborative observation, fixed-time stability convergence

中图分类号:

V 249.12

乔毅涛, 李爽. 空地异构无人系统固定时间事件触发编队包含控制[J]. 系统工程与电子技术, 2026, 48(2): 669-683.

Yitao QIAO, Shuang LI. Fixed-time event-triggered formation containment control for air-ground heterogeneous unmanned system[J]. Systems Engineering and Electronics, 2026, 48(2): 669-683.

图/表 11

图1

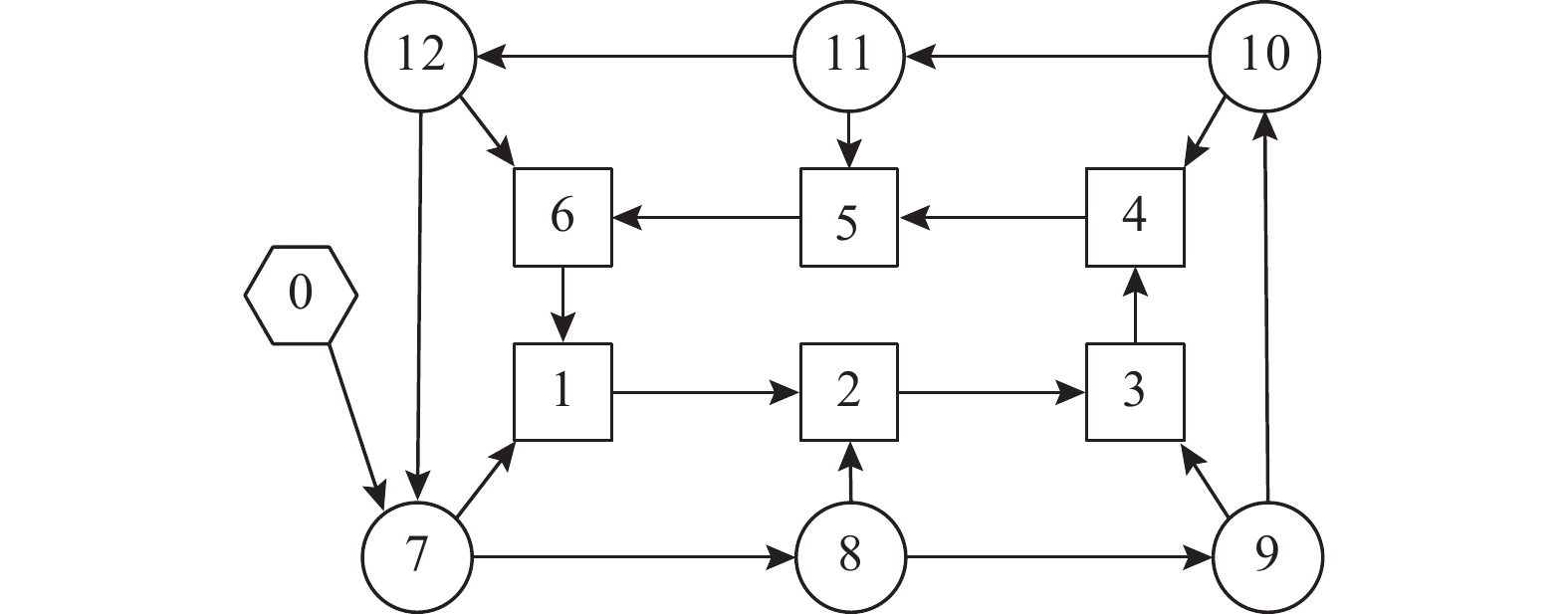

图2

表1

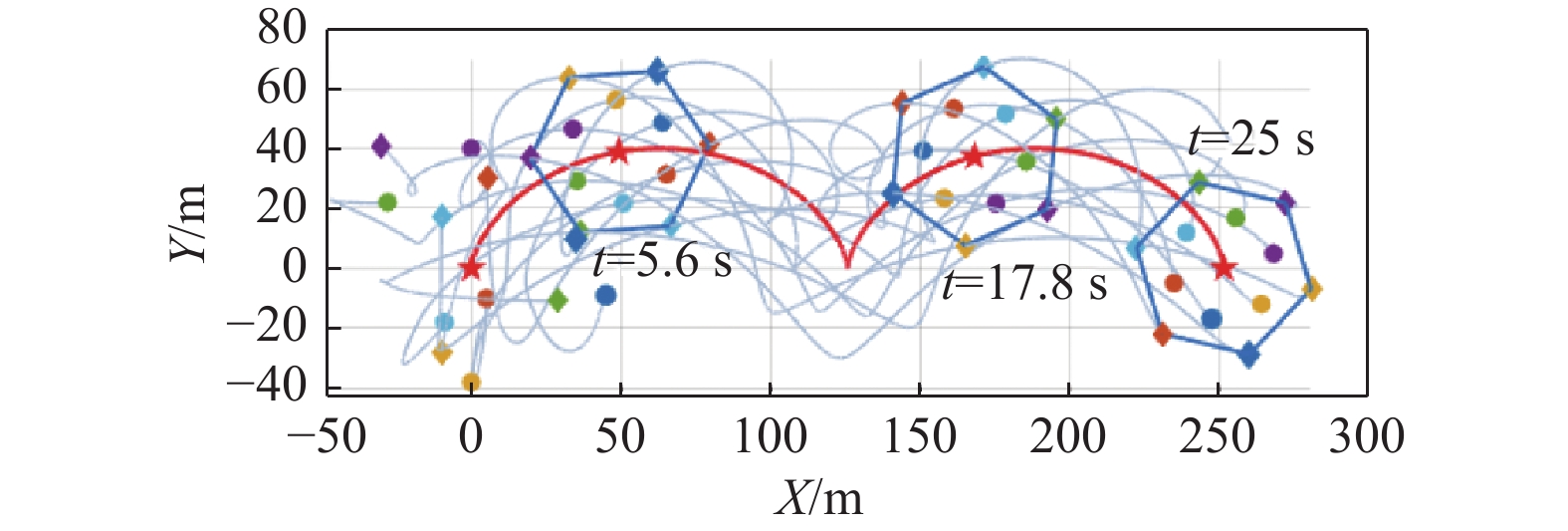

图3

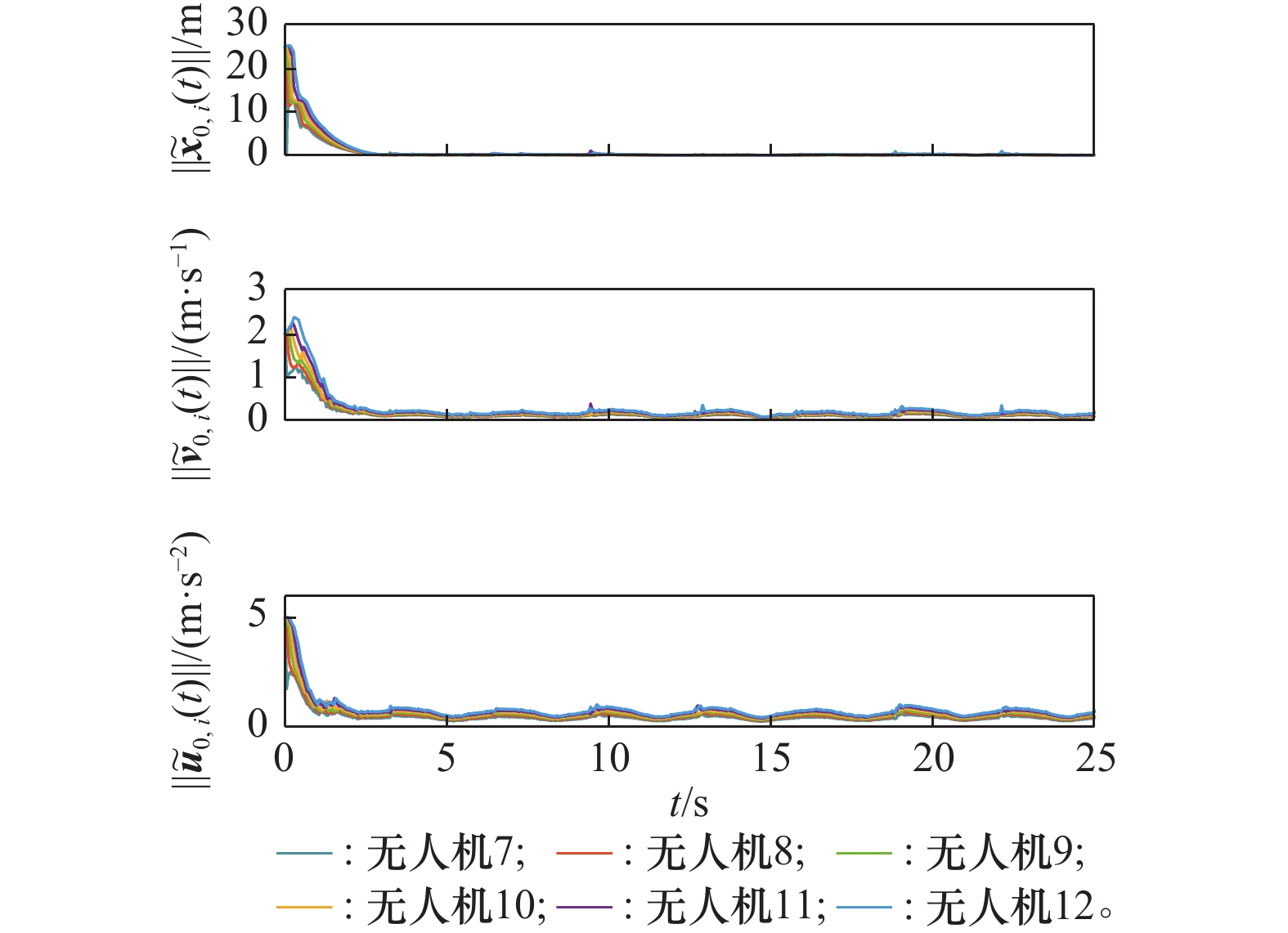

图4

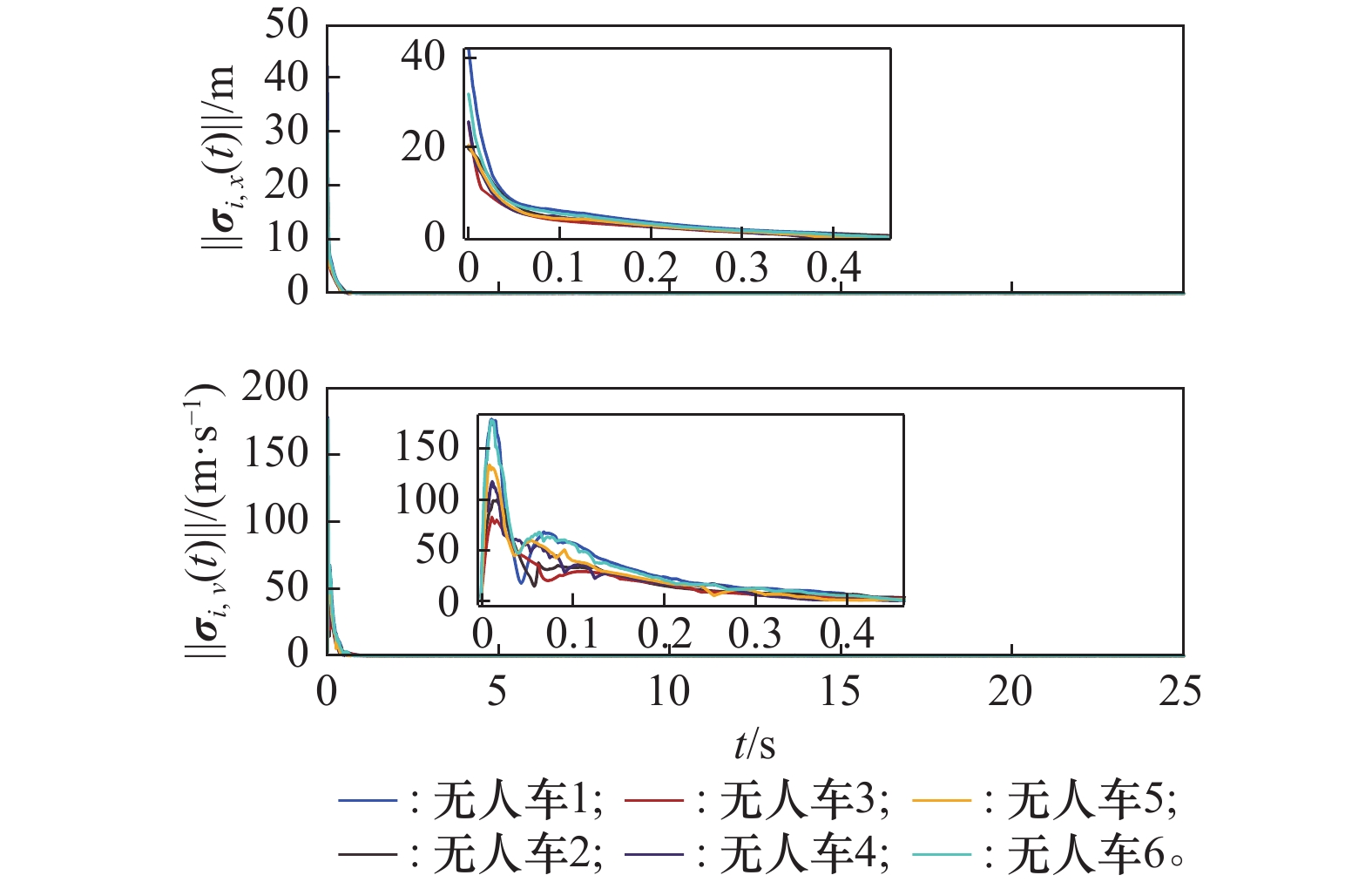

图5

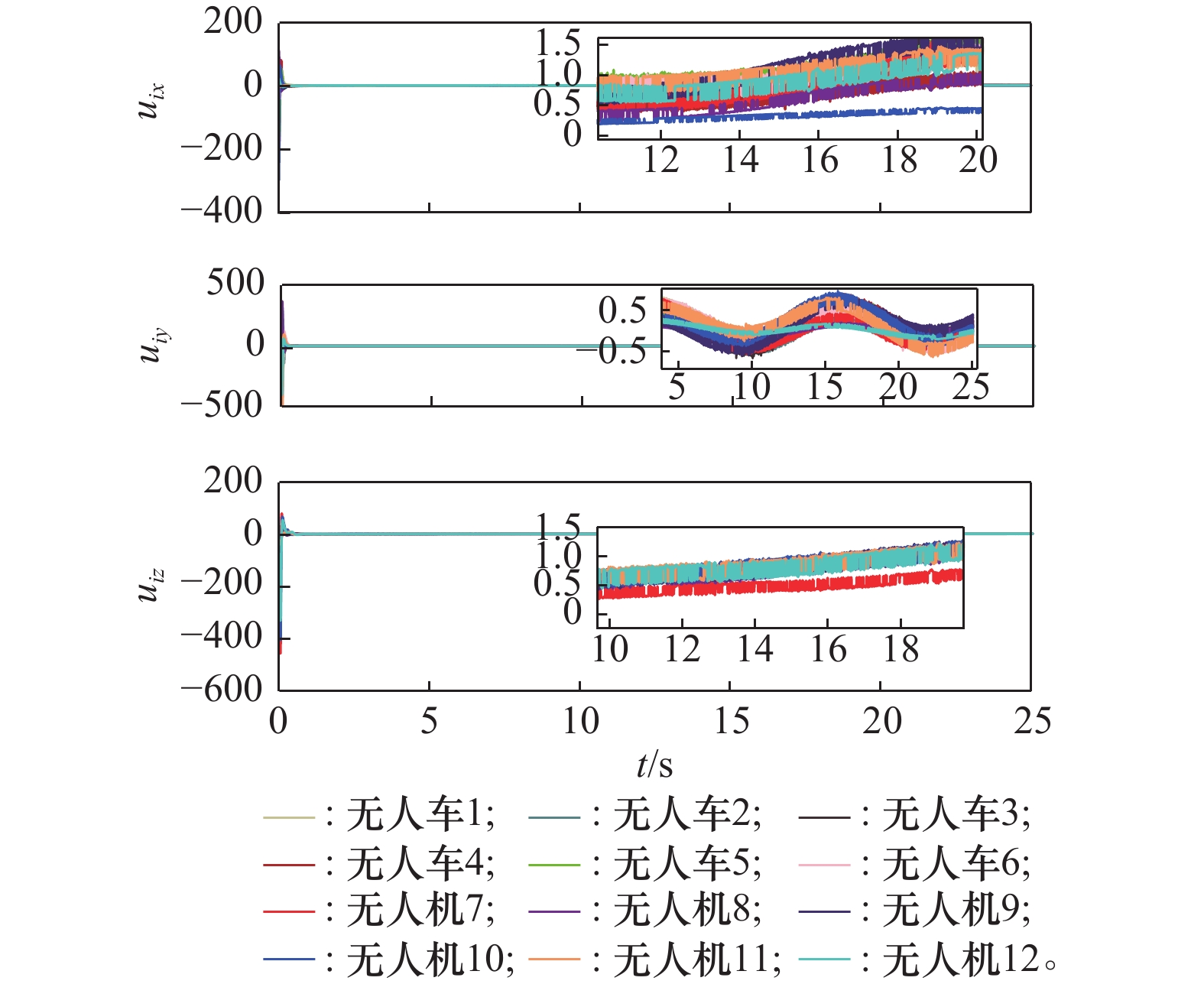

图6

图7

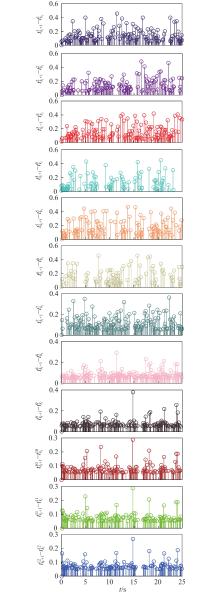

图8

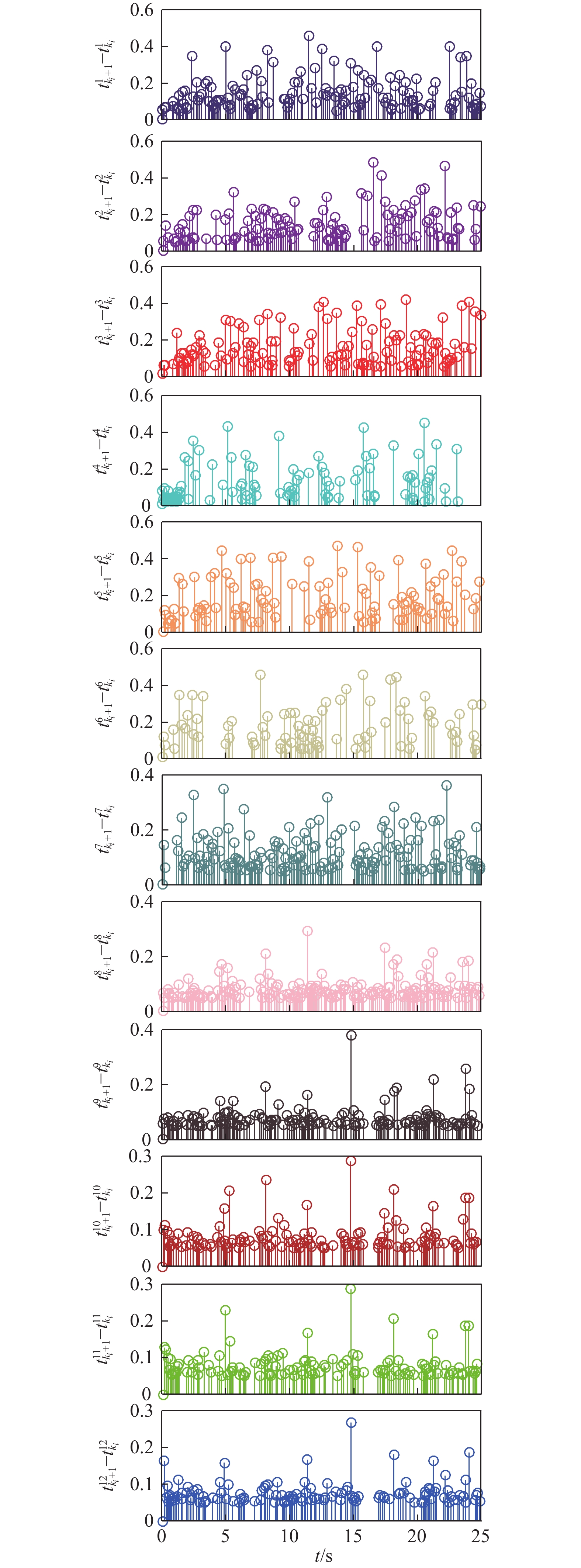

图9

表2

参考文献 30

1	OUYANG Q, WU Z X, CONG Y H, et al. Formation control of unmanned aerial vehicle swarms: a comprehensive review[J]. Asian Journal of Control, 2023, 25 (1): 570- 593.
2	CHEN J Q, SUN R S, LU Y. Cooperative game penetration guidance for multiple hypersonic vehicles under safety critical framework[J]. Chinese Journal of Aeronautics, 2024, 37 (1): 247- 255.
3	GAO H, XIA Y Q, LIU K, et al. Resilient neuroadaptive distributed fixed-time attitude coordination control for multiple spacecraft[J]. IEEE Trans. on Cybernetics, 2024, 54 (9): 4973- 4985.
4	魏志强, 翁哲鸣, 化永朝, 等. 切换拓扑下异构无人集群编队-合围跟踪控制[J]. 航空学报, 2023, 44 (2): 258- 273.
	WEI Z Q, WENG Z M, HUA Y Z, et al. Formation-containment tracking control for heterogeneous unmanned swarm systems with switching topologies[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (2): 258- 273.
5	DONG X W, HUA Y Z, ZHOU Y, et al. Theory and experiment on formation-containment control of multiple multirotor unmanned aerial vehicle systems[J]. IEEE Trans. on Automation Science and Engineering, 2018, 16 (1): 229- 240.
6	张毅, 于浩, 杨秀霞, 等. 无人机集群分组编队自适应跟踪-包含控制[J]. 北京航空航天大学学报, 2024, 50 (1): 97- 109.
	ZHANG Y, YU H, YANG X X, et al. Adaptive group formation tracking containment control for UAV swarm[J]. Journal of Beijing University of Aeronautics and Astronautic, 2024, 50 (1): 97- 109.
7	刘伯健, 李爱军, 郭永, 等. 带有输入受限的无人机精确编队合围容错控制[J]. 航空学报, 2023, 44 (9): 305- 319.
	LIU B J, LI A J, GUO Y, et al. Precise-formation fault-tolerant containment control for UAVs with input saturation[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (9): 305- 319.
8	XIAO W B, MA H, ZHOU L, et al. Adaptive fuzzy fixed-time formation containment control for Euler-Lagrange systems[J]. IEEE Trans. on Fuzzy Systems, 2023, 31 (10): 3700- 3709.
9	付梦印, 杨毅, 岳裕丰, 等. 地空协同无人系统综述[J]. 国防科技, 2021, 42 (3): 1- 8.
	FU M Y, YANG Y, YUE Y F, et al. A review of ground-air cooperative unmanned system[J]. National Defense Technology, 2021, 42 (3): 1- 8.
10	何玉庆, 秦天一, 王楠. 跨域协同: 无人系统技术发展和应用新趋势[J]. 无人系统技术, 2021, 4 (4): 1- 13.
	HE Y Q, QIN T Y, WANG N. Cross-domain collaboration: new trends in the development and application of unmanned systems technology[J]. Unmanned Systems Technology, 2021, 4 (4): 1- 13.
11	周思全, 化永朝, 董希旺, 等. 面向空地协同作战的无人机-无人车异构时变编队跟踪控制[J]. 航空兵器, 2019, 26 (4): 54- 59.
	ZHOU S Q, HUA Y Z, DONG X W, et al. Air-ground time-varying formation tracking control for heterogeneous UAV-UGV swarm system[J]. Aero Weaponry, 2019, 26 (4): 54- 59.
12	周思全, 董希旺, 李清东, 等. 无人机-无人车异构时变编队控制与扰动抑制[J]. 航空学报, 2020, 41 (S1): 128- 139.
	ZHOU S Q, DONG X W, LI Q D, et al. Time-varying formation control and disturbance rejection for UAV-UGV heterogeneous swarm system[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41 (S1): 128- 139.
13	张毅, 于浩, 杨秀霞, 等. 异构无人集群分组编队自适应跟踪-合围控制[J]. 系统工程与电子技术, 2023, 45 (10): 3274- 3285.
	ZHANG Y, YU H, YANG X X, et al. Adaptive group formation tracking containment control for heterogeneous unmanned swarm[J]. Systems Engineering and Electronics, 2023, 45 (10): 3274- 3285.
14	田磊, 董希旺, 赵启伦, 等. 异构集群系统分布式自适应输出时变编队跟踪控制[J]. 自动化学报, 2021, 47 (10): 2386- 2401.
	TIAN L, DONG X W, ZHAO Q L, et al. Distributed adaptive time-varying output formation tracking for heterogeneous swarm systems[J]. Acta Automatica Sinica, 2021, 47 (10): 2386- 2401.
15	白嘉琪, 王彦恺, 邢昊. 无人艇与四旋翼无人机固定时间异构编队控制[J]. 系统工程与电子技术, 2023, 45 (4): 1152- 1163. doi: 10.12305/j.issn.1001-506X.2023.04.24
	BAI J Q, WANG Y K, XING H. Fixed-time heterogeneous formation control of control unmanned boats and quadrotor unmanned aerial vehicle[J]. Systems Engineering and Electronics, 2023, 45 (4): 1152- 1163. doi: 10.12305/j.issn.1001-506X.2023.04.24
16	ZHAO W B, LIU H, VALAVANIS K P, et al. Fault-tolerant formation control for heterogeneous vehicles via reinforcement learning[J]. IEEE Trans. on Aerospace and Electronic Systems, 2021, 58 (4): 2796- 2806.
17	CHENG W L, ZHANG K, JIANG B, et al. Neural network observer-based prescribed-time fault-tolerant tracking control for heterogeneous multiagent systems with a leader of unknown disturbances[J]. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (6): 9042- 9053.
18	ZUO Z Y, TIE L. A new class of finite-time nonlinear consensus protocols for multi-agent systems[J]. International Journal of Control, 2014, 87 (2): 363- 370.
19	许闯, 吴宝林. 输入饱和下多航天器分布式固定时间输出反馈姿态协同控制[J]. 航空学报, 2023, 44 (10): 226- 243.
	XU C, WU B L. Distributed fixed-time output-feedback attitude consensus control for multiple spacecraft with input saturation[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (10): 226- 243.
20	李嘉乐, 钟绮霖, 肖杰, 等. 多智能体系统自适应固定时间编队控制[J]. 系统工程与电子技术, 2025, 47 (2): 600- 607.
	LI J L, ZHONG Q L, XIAO J, et al. Adaptive fixed-time formation control for multi-agent system[J]. Systems Engineering and Electronics, 2025, 47 (2): 600- 607.
21	孙谷昊, 蔡中泽, 曾庆双. 多智能体编队加权中心点的固定时间分布式跟踪控制[J]. 系统工程与电子技术, 2024, 46 (12): 4165- 4172.
	SUN G H, CAI Z Z, ZENG Q S. Fixed-time distributed tracking and control of multi-agent formation weighted centroid[J]. Systems Engineering and Electronics, 2024, 46 (12): 4165- 4172.
22	顾镇镇, 王旭刚, 王中原, 等. 事件触发机制下多导弹固定时间编队控制[J]. 宇航学报, 2023, 44 (2): 266- 281.
	GU Z Z, WANG X G, WANG Z Y, et al. Fixed-time event-triggered formation control for multiple missiles[J]. Journal of Astronautics, 2023, 44 (2): 266- 281.
23	YANG D P, REN W, LIU X D, et al. Decentralized event-triggered consensus for linear multi-agent systems under general directed graphs[J]. Automatica, 2016, 69, 242- 249.
24	赵万兵, 夏元清, 戴荔, 等. 弱通信下无人潜航器事件触发一致性协同控制[J]. 系统工程与电子技术, 2025, 47 (2): 591- 599.
	ZHAO W B, XIA Y Q, DAI L, et al. Event-triggered consensus cooperative control of unmanned underwater vehicle under adverse communication condition[J]. Systems Engineering and Electronics, 2025, 47 (2): 591- 599.
25	DING Z, ZHANG A, YANG P. Fixed-time event-triggered consensus of second-order multi-agent systems with fully continuous communication free[J]. IET Control Theory & Applications, 2020, 14 (16): 2385- 2394.
26	ZHANG H G, DUAN J, WANG Y C, et al. Bipartite fixed-time output consensus of heterogeneous linear multiagent systems[J]. IEEE Trans. on Cybernetics, 2019, 51 (2): 548- 557.
27	MA L, WANG Y L, FEI M R, et al. Cross-dimensional formation control of second-order heterogeneous multi-agent systems[J]. ISA Transactions, 2022, 127, 188- 196.
28	ZHANG H W, LEWIS F L. Adaptive cooperative tracking control of higher-order nonlinear systems with unknown dynamics[J]. Automatica, 2012, 48 (7): 1432- 1439.
29	TIAN B L, ZUO Z, YAN X, et al. A fixed-time output feedback control scheme for double integrator systems[J]. Automatica, 2017, 80, 17- 24.
30	FU J J, WANG J Z. Finite-time consensus for multi-agent systems with globally bounded convergence time under directed communication graphs[J]. International Journal of Control, 2017, 90 (9): 1807- 1817.

序号	初始位置/m	初始速度/（m/s）
三维追踪−领航者0	[0, 0, 25]	[0, 0, 2]
无人车1	[45, −9]	[−5, 2]
无人车2	[0, −38]	[3, 0.5]
无人车3	[0, 40]	[0. 4.2]
无人车4	[−28, 22]	[3.5, −1]
无人车5	[−9, −18]	[3, −1.8]
无人车6	[5, −10]	[−6, 0.1]
无人机7	[35, 10, 45]	[2, −1, 3]
无人机8	[−10, −28, 2]	[1, 4, 5]
无人机9	[−30, 41, 10]	[0, 7, 2]
无人机10	[29, −11, 35]	[3, 1, −1]
无人机11	[−10, 17, 12]	[0, 3, 6]
无人机12	[5, 30, 32]	[3, −2, 1]

控制算法	固定时间
控制算法	T_s2	T_s1
式（40）和式（57）	3.435 3	2.108 0
式（60）和式（61）	3.705 8	2.378 4
