基于自适应变邻域搜索的火控雷达组网资源调度研究

doi:10.12305/j.issn.1001-506X.2025.02.16

摘要/Abstract

摘要：

在海上舰艇编队防空作战中, 传统火控雷达由于实行单目标对单雷达跟踪策略, 难以满足复杂的现代作战需求。针对该问题, 提出一种基于自适应变邻域搜索(adaptive variable neighborhood search, AVNS)的火控雷达组网资源调度方法。以海上舰艇编队火控雷达资源为基础, 考虑雷达剩余通道数、雷达探测范围和预测航迹跟踪覆盖率约束, 构建以资源目标距离、有效航迹覆盖率和目标威胁度为目标函数的资源调度模型, 设计基于AVNS的组网策略算法。在设置的两种海上舰艇编队模拟队形场景中, 与传统规则算法和变邻域搜索(variable neighborhood search, VNS)算法对比, 验证所提方法的合理性和有效性。

关键词: 海上防空, 资源调度, 自适应变邻域搜索, 雷达组网, 火控雷达

Abstract:

In naval warship formation air defense combats, traditional fire control radars, due to its implemen- tation of a single target to single radar tracking strategy, are difficult to meet complex modern combat needs. To address this issue, a fire control radar networking resource scheduling method based on adaptive variable neighborhood search (AVNS) is proposed. Based on the fire control radar resources of naval warship forma-tions, considering the constraints of remaining radar channels, radar detection range, and predicted trajectory tracking coverage rate, a resource scheduling model is constructed with the objective functions of resource target distance, effective trajectory coverage rate, and target threat degree. A networking strategy algorithm based on AVNS is designed. The rationality and effectiveness of the proposed method is verified by comparing it with traditional rule algorithms and variable neighborhood search (VNS) algorithms in two naval warship formation simulated formation scenarios.

Key words: naval air defense, resource scheduling, adaptive variable neighborhood search (AVNS), radar networking, fire control radar

中图分类号:

E955

汪达旺, 陆志沣, 伍国华. 基于自适应变邻域搜索的火控雷达组网资源调度研究[J]. 系统工程与电子技术, 2025, 47(2): 496-507.

Dawang WANG, Zhifeng LU, Guohua WU. Research on resource scheduling of fire control radar networking based on adaptive variable neighborhood search[J]. Systems Engineering and Electronics, 2025, 47(2): 496-507.

图/表 17

图1

图2

图3

图4

图5

图6

表1

表2

图7

图8

图9

图10

表3

图11

表4

图12

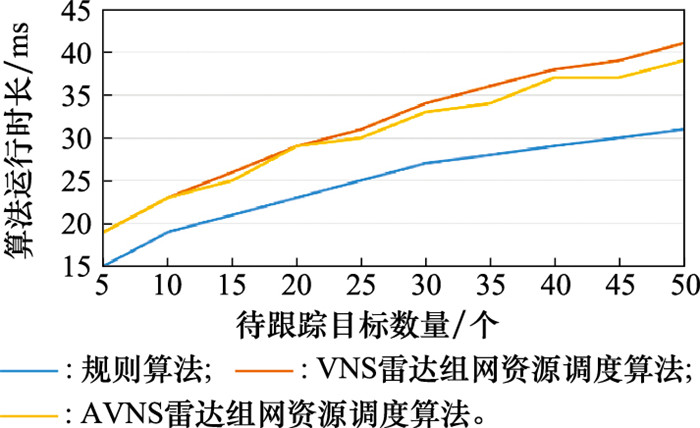

图13

参考文献 31

1	XIAO B S. The development review of airborne fire control radar technology[C]//Proc. of the China Automation Congress, 2021: 4502-4507.
2	JAMES J . A maritime conversation with America[J]. Orbis, 2022, 66 (2): 166- 183. doi: 10.1016/j.orbis.2022.02.006
3	LIN D. Software and hardware implementation of signal processing for shipborne fire control radar[D]. Xi'an: Xidian University, 2019.
4	LIEF L. Design considerations for a modern naval fire control radar[C]//Proc. of the IEEE Radar Conference, 2010: 615-619.
5	DAI X R , SHI C G , WANG Z W , et al. Coalition game theore-tic power allocation strategy for multi-target detection in distribu- ted radar networks[J]. Remote Sensing, 2023, 15 (15): 3804. doi: 10.3390/rs15153804
6	Assistant Secretary of the Navy for Research. Updated responsibilities for management of naval integrated fire control-counter air (NIFC-CA)[R]. Washington, DC: Joint Memorandum, 2002.
7	YAN J K . Resource allocation for search and track application in phased array radar based on Pareto bi-objective optimization[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (4): 3487- 3499. doi: 10.1109/TVT.2019.2894960
8	LIU D . Adaptive scheduling algorithm based on CPI and impact of tasks for multifunction radar[J]. IEEE Sensors Journal, 2019, 19 (23): 11205- 11212. doi: 10.1109/JSEN.2019.2936659
9	王岩松, 韩星, 陈春, 等. 综合优先级下相控阵火控雷达自适应调度算法[J]. 火控雷达技术, 2023, 52 (1): 100- 109.
	WANG Y S , HAN X , CHEN C , et al. A comprehensive priority- based adaptive scheduling algorithm for phased-array fire control radar[J]. Fire Control Radar Technology, 2023, 52 (1): 100- 109.
10	周克强, 王海川. 基于相控阵雷达的舰炮联合反导技术[J]. 火力与指挥控制, 2019, 44 (6): 159- 163.
	ZHOU K Q , WANG H C . The anti-missile research of combined naval gun system based on phased array radar[J]. Fire Control & Command Control, 2019, 44 (6): 159- 163.
11	闫明松, 魏旭鸿. 海上编队舰载雷达协同探测技术研究[J]. 舰船电子对抗, 2021, 44 (4): 7-11, 120.
	YAN M S , WEI X H . Research into the cooperative detection technology of shipborne radar for sea formation[J]. Shipboard Electronic Countermeasure, 2021, 44 (4): 7-11, 120.
12	JIANG W, QI Z X, YE Z, et al. Research on cooperative detection technology of networked radar based on data fusion[C]// Proc. of the 2nd China International SAR Symposium, 2021.
13	ZHOU S H, ZENG D X, LI H B, et al. Maneuvering target tracking in multi-radar cooperative detection data fusion[C]//Proc. of the 7th International Symposium on Advances in Electrical, Electronics, and Computer Engineering, 2022.
14	LI Z Q. Design and reliability evaluation of simulation system for fire control radar network[C]//Proc. of the International Conference on Quality, Reliability, Risk, Maintenance, and Safety Engineering, 2012: 1314-1317.
15	GARCIA N , HAIMOVICH M A , COULON M , et al. Resource allocation in MIMO radar with multiple targets for non-coherent localization[J]. IEEE Trans.on Signal Processing, 2014, 62 (10): 2656- 2666. doi: 10.1109/TSP.2014.2315169
16	WANG K L. Research and implementation of shipboard phased array radar target tracking algorithm[D]. Xi'an: Xidian university, 2021.
17	LUO H , SHANG C X , HAN Z Z . HLA-based anti-reconnaissance fire-control radar network data fusion and control simulation system development[J]. Advanced Materials Research, 2014, 3181 (926-930): 2486- 2489.
18	SHI C G , WANG Y J , SANA S . Joint transmit resource mana-gement and waveform selection strategy for target tracking in distributed phased array radar network[J]. IEEE Trans.on Aerospace and Electronic Systems, 2022, 58 (4): 2762- 2778. doi: 10.1109/TAES.2021.3138869
19	LI T T , MENG T K , MENG G L , et al. Formation optimization of airborne radar coordinated detection system using an improved artificial fish swarm algorithm[J]. Scientific Reports, 2024, 14 (1): 248. doi: 10.1038/s41598-023-50521-6
20	GRANT C J . Air and missile defense: transformations for 21st-century warfighting[J]. Johns Hopkins APL Technical Digest, 2020, 35 (2): 83- 89.
21	YING Z. Research on dynamic anti-jamming strategy of shipboard fire control radar[C]//Proc. of the International Conference on Computer, Artificial Intelligence, and Control Engineering, 2022.
22	NICHOLAS A O. Distributed kill chain-drawing insight for mosaic from the immune system and navy[R]. Santa Monica: Library of Congress Cataloging-in-Publication, 2021.
23	张财生, 司沈闯. 美军预警机与舰载雷达协同预警探测[J]. 指挥控制与仿真, 2020, 42 (3): 39- 41.
	ZHANG C S , SI S C . Research on cooperative early warning detection of early warning aircraft and shipborne radar[J]. Command Control & Simulation, 2020, 42 (3): 39- 41.
24	CHENG Z L. Adaptive resource optimization management of phased array radar[D]. Chengdu: University of Electronic Science and Technology of China, 2022.
25	MOO P W , DING Z . Coordinated radar resource management for networked phased array radars[J]. IET Radar, Sonar & Navigation, 2015, 9 (8): 1009- 1020.
26	TUNCER O , CIRPAN H A . A networked radar resource mana- gement approach utilizing target priority and maneuver for cooperative air defense fire control radars[J]. IEEE Access, 2023, 11 (1): 136279- 136291.
27	TANG J C. Research on resource scheduling method of multifunctional radar network[D]. Chengdu: University of Electronic Science and Technology of China, 2021.
28	宋晓程, 李陟, 任海伟, 等. 目标动态威胁度驱动的分布式组网相控阵雷达资源优化分配算法[J]. 雷达学报, 2023, 12 (3): 629- 641.
	SONG X C , LI Z , REN H W , et al. Threat-driven resource allocation algorithm for distributed netted phased array radars[J]. Journal of Radars, 2023, 12 (3): 629- 641.
29	SHI C , JING D , SALOUS S , et al. Collaborative trajectory planning and resource allocation for multi-target tracking in airborne radar networks under spectral coexistence[J]. Remote Sensing, 2023, 15 (13): 3386.
30	WANG F J, DING X Y, KONG M. Application of multi-sensor track fusion technology in fire control radar network[C]//Proc. of the IEEE 11th International Conference on Electronic Measurement & Instruments, 2013: 563-567.
31	HE J, ZHU S R, SUN X Q. Research on flight scheduling of UAV in cooperation with passive radar for detection based on improved PSO algorithm[C]//Proc. of the 4th International Conference on Computer Science and Communication Technology, 2023.

案例	模拟场景	案例	模拟场景	来袭目标数量	H
E1	场景1	E2	场景2	5	20
E3	场景1	E4	场景2	10	20
E5	场景1	E6	场景2	15	30
E7	场景1	E8	场景2	20	00
E9	场景1	E10	场景2	25	40
E11	场景1	E12	场景2	30	40
E13	场景1	E14	场景2	35	50
E15	场景1	E16	场景2	40	50
E17	场景1	E18	场景2	45	60
E19	场景1	E20	场景2	50	60

编号	待跟踪目标数量/个	可拦跟踪覆盖率/%
编号	待跟踪目标数量/个	规则算法	VNS雷达组网资源调度算法	AVNS雷达组网资源调度算法	较规则算法提升比	较VNS提升比
1	5	100.00	100.00	100.00	0.00	0.00
2	10	89.34	92.34	94.49	5.15	2.15
3	15	79.52	85.07	88.16	8.64	3.09
4	20	65.40	75.19	79.02	13.62	3.83
5	25	55.83	68.21	72.33	16.50	4.12
6	30	45.09	60.53	65.43	20.34	4.90
7	35	39.58	55.33	60.07	20.49	4.74
8	40	34.29	49.74	52.79	18.50	3.05
9	45	29.61	44.31	48.43	18.82	4.12
10	50	26.88	41.06	45.39	18.51	4.33

编号	可拦跟踪时长/s	跟踪时长/s			可拦跟踪覆盖率/%
编号	可拦跟踪时长/s	规则算法	VNS雷达组网资源调度算法	AVNS雷达组网资源调度算法	规则算法	VNS雷达组网资源调度算法	AVNS雷达组网资源调度算法
1	320	320	320	320	100.00	100.00	100.00
2	318	318	318	318	100.00	100.00	100.00
3	316	200	200	316	63.29	63.29	100.00
4	314	200	200	314	63.69	63.69	100.00
5	772	772	772	700	100.00	100.00	90.67
6	770	770	770	700	100.00	100.00	90.91
7	768	0	396	495	0.00	51.56	64.45
8	766	0	0	0	0.00	0.00	0.00
9	330	330	330	330	100.00	100.00	100.00
10	328	328	328	328	100.00	100.00	100.00
11	326	326	326	326	100.00	100.00	100.00
12	754	754	654	754	100.00	86.74	100.00
13	752	652	752	680	86.70	100.00	90.43
14	750	0	0	0	0.00	0.00	0.00
15	370	180	180	370	48.65	48.65	100.00
16	368	368	368	368	100.00	100.00	100.00
17	366	366	366	366	100.00	100.00	100.00
18	784	684	784	784	87.24	100.00	100.00
19	782	682	782	782	87.21	100.00	100.00
20	780	680	780	780	87.18	100.00	100.00

编号	待跟踪目标数量/个	目标可拦跟踪覆盖率/%
编号	待跟踪目标数量/个	规则算法	VNS雷达组网资源调度算法	AVNS雷达组网资源调度算法	较规则算法提升比	较VNS提升比
1	5	100.00	100.00	100.00	0.00	0.00
2	10	94.42	94.92	96.17	1.75	1.25
3	15	85.71	90.33	92.27	6.56	1.94
4	20	74.95	82.51	85.06	10.11	2.55
5	25	62.79	76.36	79.30	16.51	2.94
6	30	51.92	68.79	71.22	19.30	2.43
7	35	45.09	62.30	66.08	20.99	3.78
8	40	39.41	55.77	59.76	20.35	3.99
9	45	35.07	49.19	53.38	18.31	4.19
10	50	30.58	45.26	48.53	17.95	3.27
