基于单基地雷达的进动锥柱体目标三维微动参数估计

doi:10.12305/j.issn.1001-506X.2026.07.12

摘要/Abstract

摘要：

针对现有基于多基雷达观测的空间目标三维微动特征方法存在部署成本高、数据处理难度大等问题，提出一种基于单基雷达的进动锥柱体目标三维微动参数估计方法。在分析进动锥柱体上固定散射点与滑动散射点回波微多普勒效应的基础上，首先基于固定散射点模型提取目标进动角、底面半径等微动参数，然后利用锥柱接合面的滑动散射特性进一步提取锥柱体目标的锥体高度、柱体高度及半锥角等三维微动参数。所提方法能够准确提取出目标微动参数以及几何信息，仿真实验验证了其有效性及在不同信噪比下的性能。

关键词: 三维微动特征, 进动锥柱体, 单基地雷达, 微多普勒效应

Abstract:

Existing methods for three-dimensional micro-motion characteristics of space targets based on multi-base radar observations have problems such as high deployment costs and high difficulty in data processing. To address this problem, a method for three-dimensional micro-motion parameters estimation of precession cone-cylinder targets based on monostatic radar is proposed. On the basis of analyzing the micro-Doppler effect of the echo from fixed scatterers and sliding scatterers on the precession cone-cylinder, first, the micro-motion parameters such as the precession angle and the bottom radius of the target are extracted based on the fixed scatterer model. Then, the three-dimensional micro-motion parameters such as the height of the cone, the height of the cylinder, and the semi-cone angle of the cone-cylinder target are further extracted by utilizing the sliding scattering characteristics of the joint surface of cone and cylinder. The proposed method accurately extracts the micro-motion parameters and geometric information of cone-cylinder targets. Simulation experiments verify the effectiveness of the proposed method and its performance under different signal-to-noise ratios.

Key words: three-dimensional micro-motion characteristics, precession cone-cylinder, monostatic radar, micro-Doppler effect

中图分类号:

TN 958

徐富龙, 袁航, 罗迎, 李开明. 基于单基地雷达的进动锥柱体目标三维微动参数估计[J]. 系统工程与电子技术, 2026, 48(7): 2251-2263.

Fulong XU, Hang YUAN, Ying LUO, Kaiming LI. Three-dimensional micro-motion parameters estimation of precession cone-cylinder targets based on monostatic radar[J]. Systems Engineering and Electronics, 2026, 48(7): 2251-2263.

图/表 42

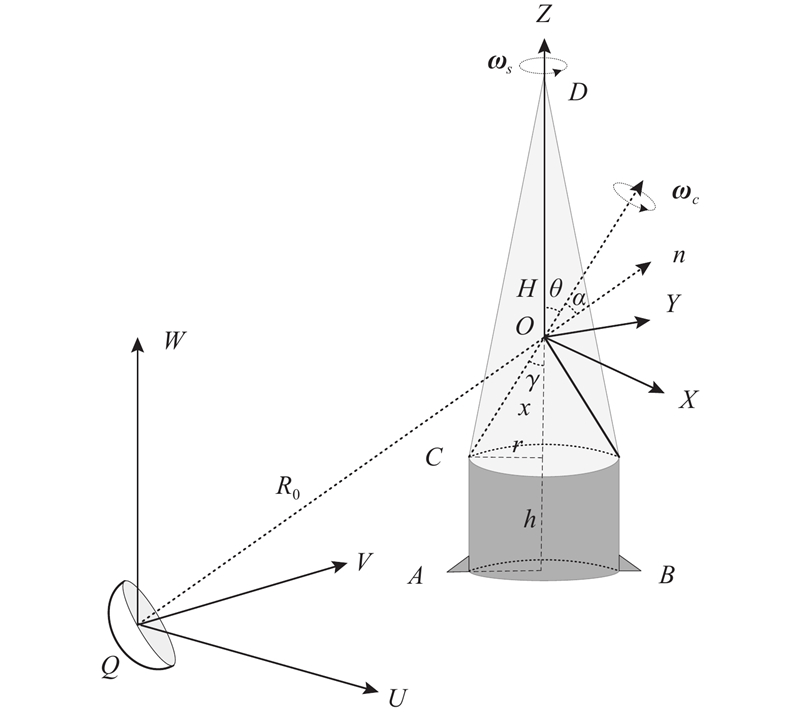

图1

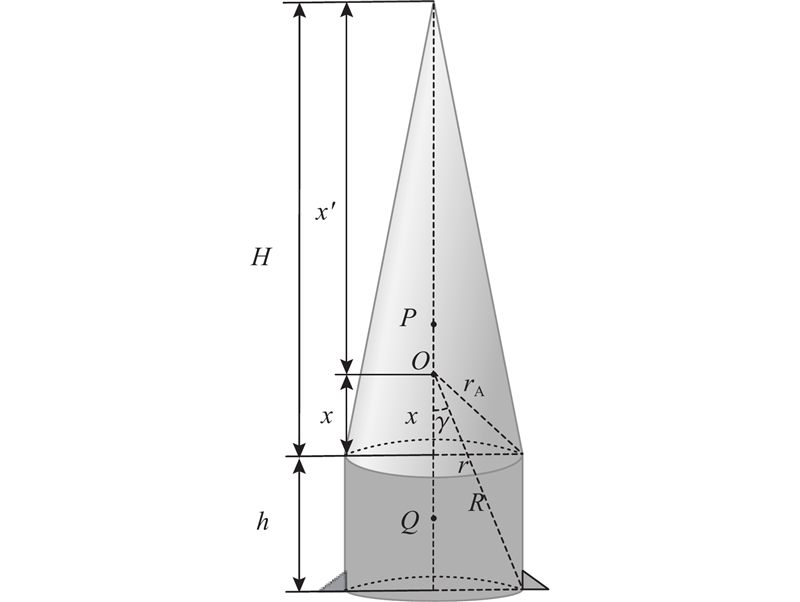

图2

图3

表1

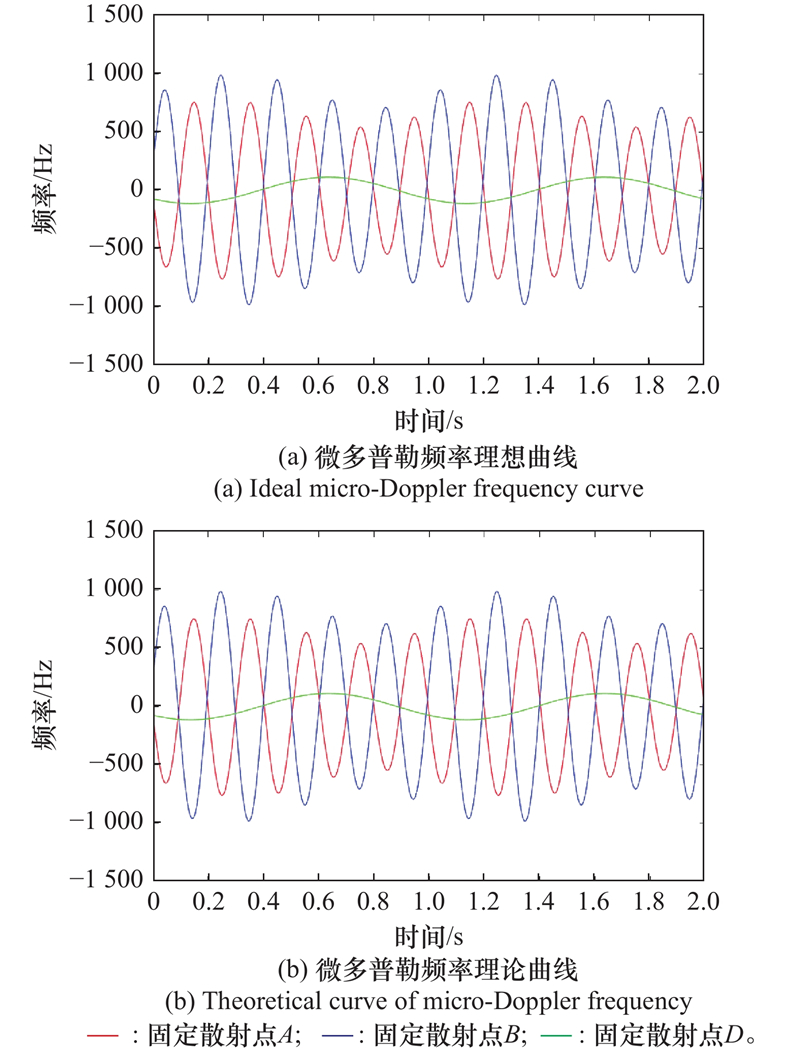

图4

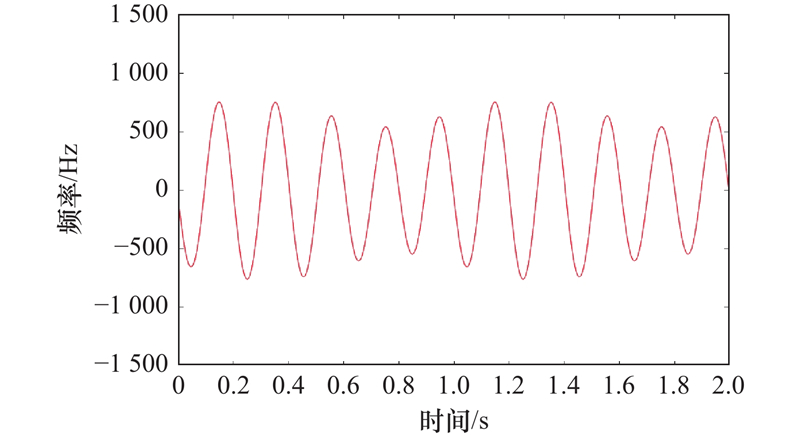

图5

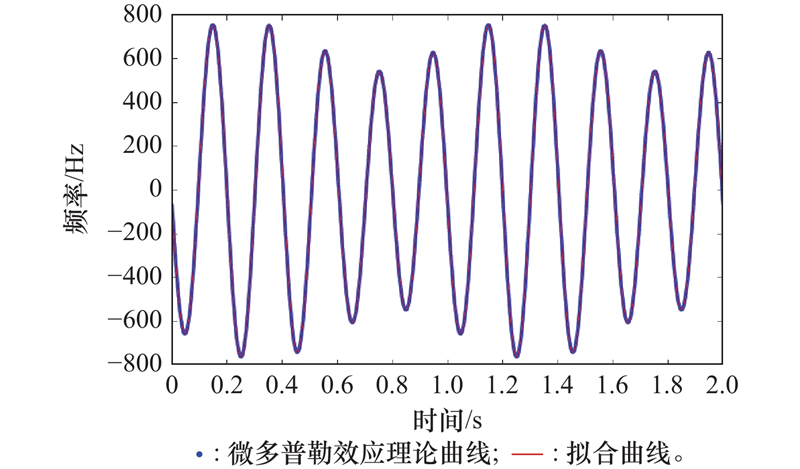

图6

表2

表3

表4

图7

表5

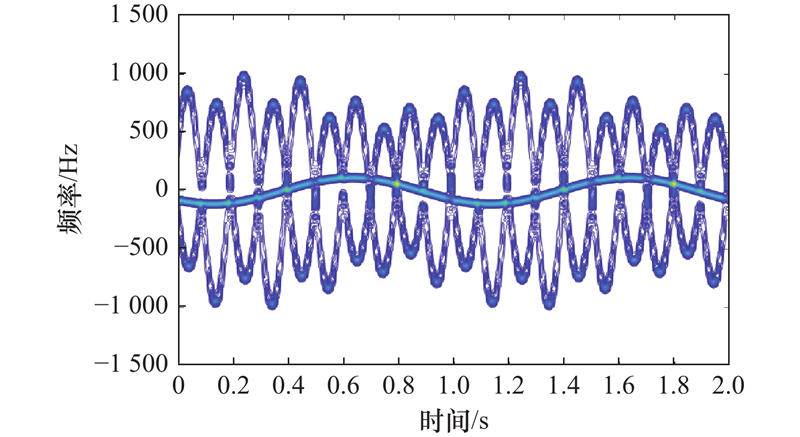

图8

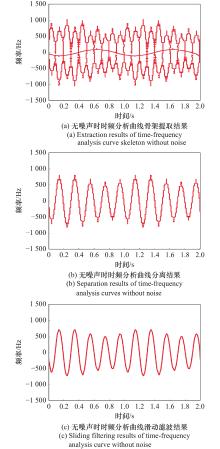

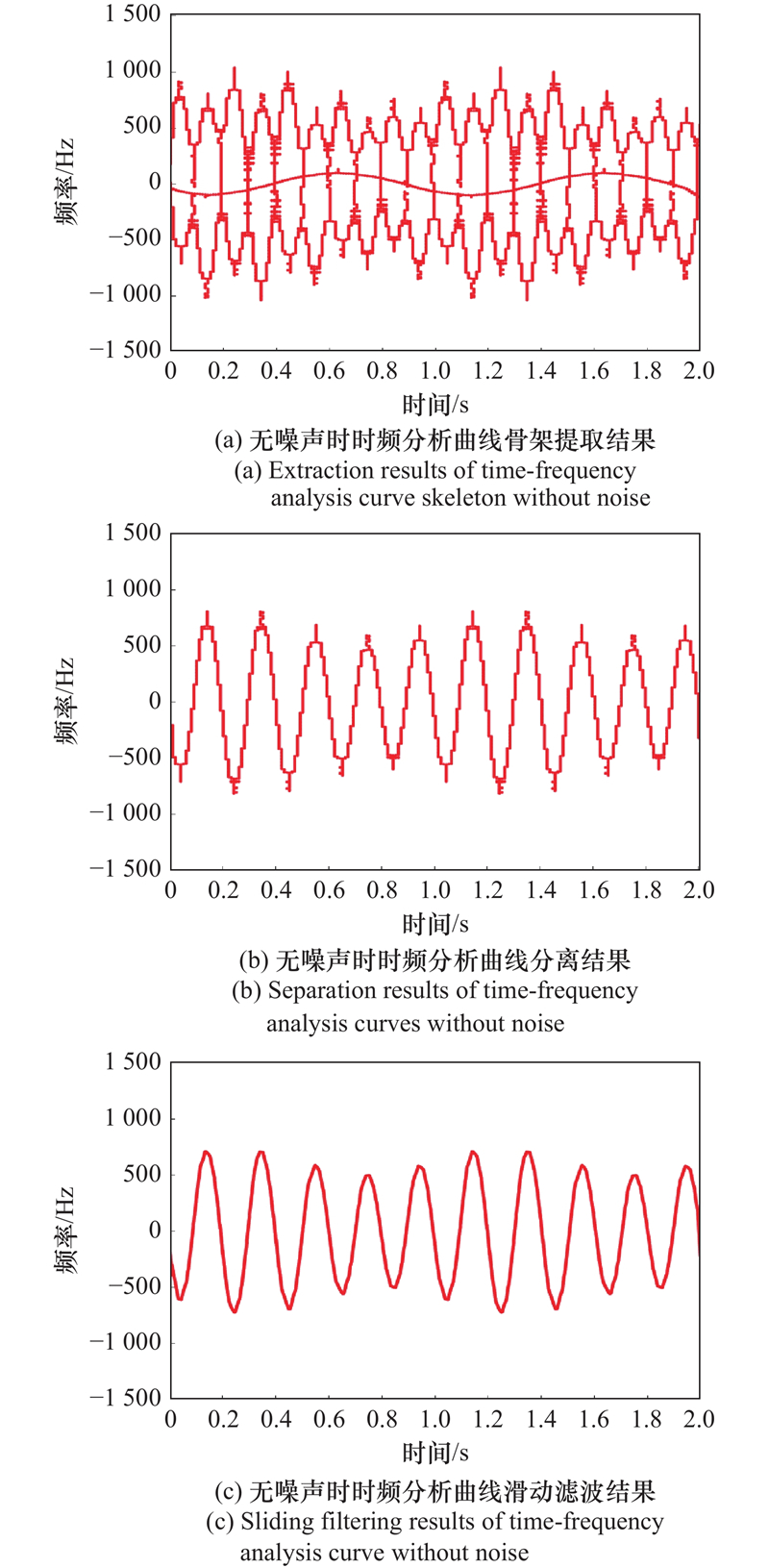

图9

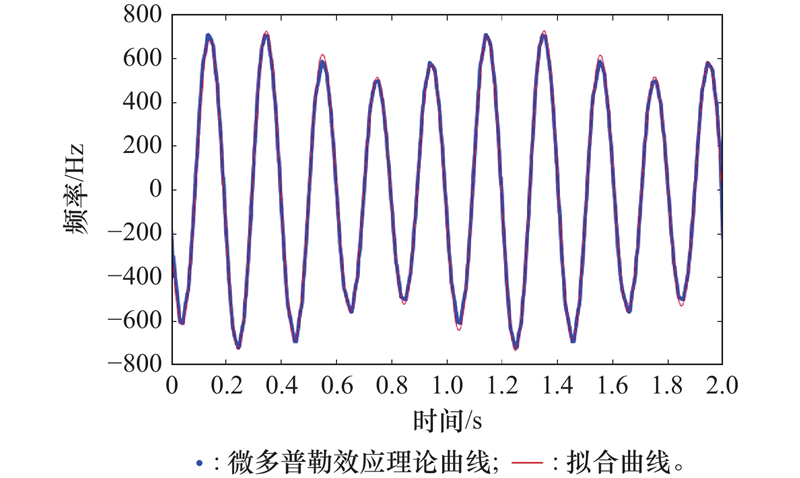

图10

表6

表7

表8

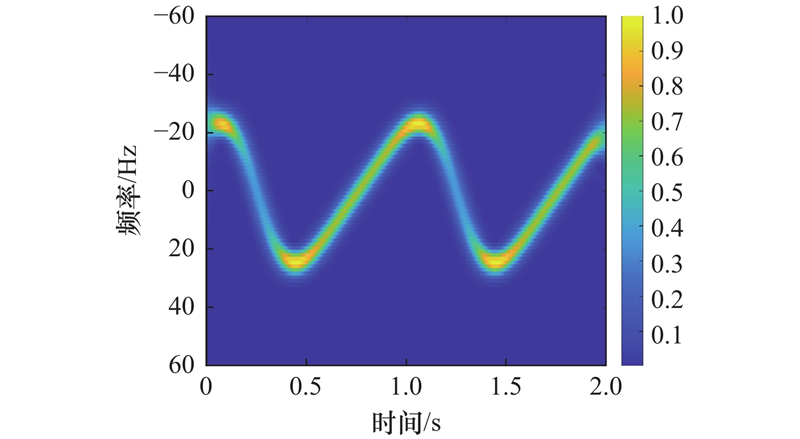

图11

图12

表9

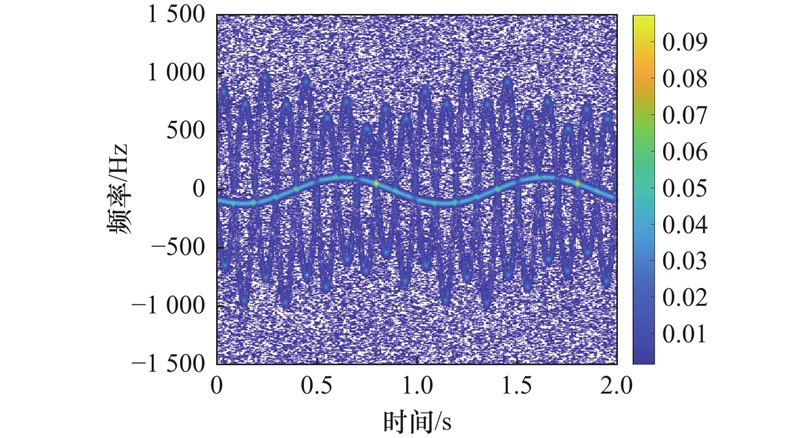

图13

图14

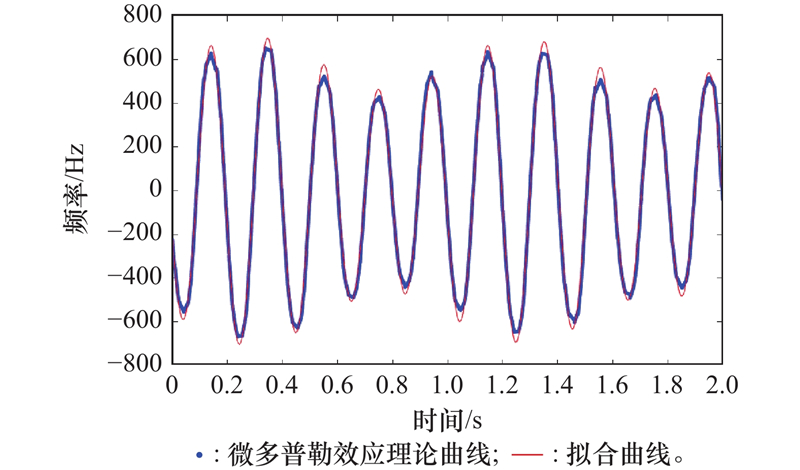

图15

表10

表11

表12

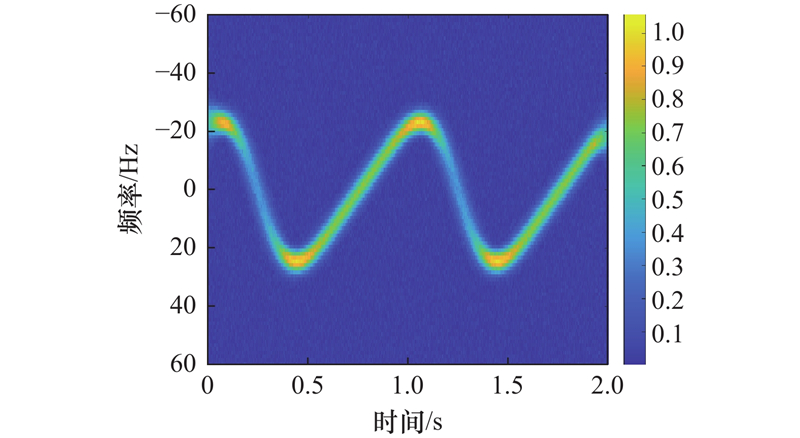

图16

图17

表13

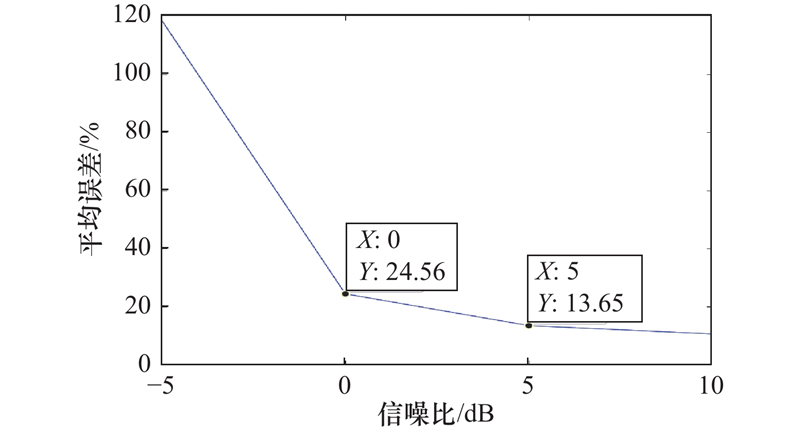

图18

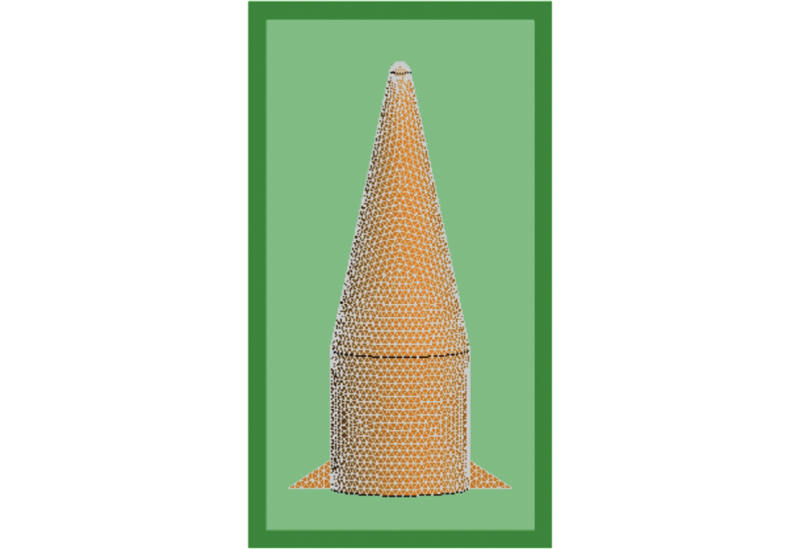

图19

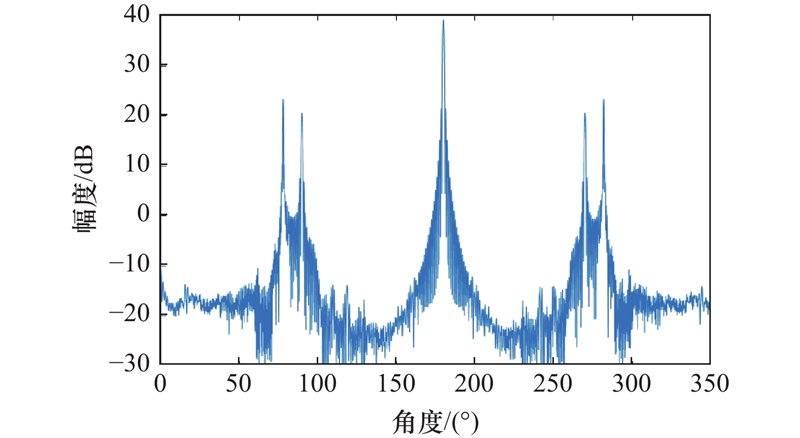

图20

表14

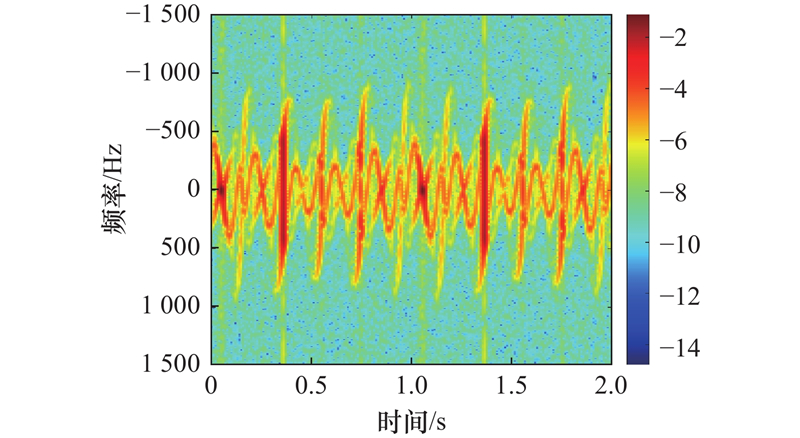

图21

图22

表15

表16

表17

图23

图24

表18

参考文献 30

1	CHEN V C, LI F, HO S S, WECHSLER H. Micro-Doppler effect in radar phenomenon, model, and simulation study[J]. IEEE Trans. on Aerospace and Electronic Systems, 2006, 42 (1): 2- 21.
2	CHOI I O, PARK S H, KIM S H, et al. Estimation of the micro-motion parameters of a missile warhead using a micro-Doppler profile [C]//Proc. of the IEEE Radar Conference, 2016.
3	ZHAO S Y, ZHANG Y P, LUO Y, et al. Dynamically self-training open set domain adaptation classification method for heterogeneous SAR image[J]. IEEE Geoscience and Remote Sensing Letters, 2024, 21, 4003705.
4	XU X G, FENG C Q, HE S S. A method for the micro-motion signal separation and micro-Doppler extraction for the space precession target[J]. IEEE Access, 2020, 8, 130392- 130403. doi: 10.1109/ACCESS.2020.3008480
5	CHEN S, ZHANG H Y, WANG L, et al. Micro-motion characteristics of multi-feature targets on the double pulse coherent system[J]. Heliyon, 2024, 10, e24479. doi: 10.1016/j.heliyon.2024.e24479
6	WANG Z H, SUN F L, ZHAO X C, et al. 3D micro-motion parameter extraction of spinning targets based on rotating antenna[C]//Proc. of the IEEE 5th International Conference on Electronic Information and Communication Technology, 2022: 624−629.
7	CHEN Y J, WANG S Y. Micro-motion feature extraction of space target based on parametric sparse representation with incoherence signals[C]//Proc. of the IEEE 5th International Conference on Electronic Information and Communication Technology, 2022: 636−641.
8	LONG M, YANG J, LV M J, et al. Micro-motion signal time-frequency results inversion of rotor targets under low signal-to-noise ratios [J]. IET Radar, Sonar & Navigation, 2024, 18(6): 904−914.
9	ZHANG H L, ZHANG W P, LIU Y X, et al. Scatterer-level time-frequency-frequency rate representation for micro-motion identification[J]. Remote Sensing, 2023, 15 (20): 4917. doi: 10.3390/rs15204917
10	YANG Z, YANG Y F, LIU M G, et al. Decoupling and parameter extraction methods for conical micro-motion object based on FMCW lidar[J]. Sensors, 2024, 24 (6): 1832. doi: 10.3390/s24061832
11	YUAN H, ZHAO S Y, CHEN Y J, et al. Micromotion parameters estimation of precession cone based on monostatic radars[J]. IEEE Trans. on Antennas and Propagation, 2024, 72 (3): 2811- 2824.
12	YUAN H, LUO Y, CHEN Y J, et al. Three-dimensional micromotion parameter extraction of smooth-symmetrical cone in monostatic radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2025, 61 (2): 5272- 5283. doi: 10.1109/TAES.2024.3521930
13	AI X F, XU Z M, WU Q H, et al. Parametric representation and application of micro-Doppler characteristics for cone-shaped space targets[J]. IEEE Sensors Journal, 2019, 19 (24): 11839- 11849. doi: 10.1109/JSEN.2019.2937995
14	XU X G, FENG C Q. Micro-Doppler extraction for cone-shaped target using constrained nonnegative matrix factorization[J]. IEEE Geoscience and Remote Sensing Letters, 2023, 20, 3502405.
15	ZHAO M M, ZHANG Q, LUO Y, et al. Micromotion feature extraction and distinguishing of space group targets[J]. IEEE Geoscience and Remote Sensing Letters, 2017, 14 (2): 174- 177. doi: 10.1109/LGRS.2016.2633426
16	ZHANG Y P, ZHANG Q, KANG L, et al. End-to-end recognition of similar space cone-cylinder targets based on complex-valued coordinate attention networks[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5106214.
17	GIRARD M, FERGUI O, ESQUIEU S. Fast RCS evaluation of cone-cylinder-flare shape using a machine learning model[C]//Proc. of the IEEE International Symposium on Antennas and Propagation and INC/USNC-URSI Radio Science Meeting, 2024: 1911−1912.
18	LONG M, YANG J, XIA S Q, et al. Spectral de-aliasing method of micro-motion signals based on a complex-valued U-Net network[J]. Remote Sensing, 2023, 15 (17): 4299. doi: 10.3390/rs15174299
19	HAN L X, TIAN B, FENG C Q, et al. Extraction micro-Doppler feature of precession targets in orthogonal frequence division multiplexing linear frequence modulation multiple input multiple output radar[C]//Proc. of the 5th International Conference on Systems and Informatics, 2018: 883−888.
20	XU Z M, ZHU Y Q, AI X F, et al. Low scattering performance and scattering center characteristics of streamlined space target[J]. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (2): 1824- 1834. doi: 10.1109/TAES.2023.3341873
21	CHEN X B, YE C M, DONG C Z, et al. Parameter estimation for space precession targets with intermittent observation[J]. IEEE Geoscience and Remote Sensing Letters, 2022, 19, 4027405.
22	LIU Y L, WEI X Z, PENG B, et al. Dimensions estimation for cone-cylinder target based on sliding-type scatterers analysis[J]. Journal of Systems Engineering and Electronics, 2017, 28 (1): 10- 18. doi: 10.21629/JSEE.2017.01.02
23	许旭光, 冯存前, 陈蓉, 等. 锥柱体弹道目标遮挡效应分析[J]. 空军工程大学学报（自然科学版）, 2018, 19 (3): 36- 41.
	XU X G, FENG C Q, CHEN R, et al. Analysis of the occlusion effect of cone-cylinder ballistic targets[J]. Journal of Air Force Engineering University （Natural Science Edition）, 2018, 19 (3): 36- 41.
24	马梁, 刘进, 王涛, 等. 旋转对称目标滑动型散射中心的微Doppler特性[J]. 中国科学: 信息科学, 2011, 41 (5): 605- 616.
	MA L, LIU J, WANG T, et al. Micro-Doppler characteristics of the sliding-type scattering centers of rotationally symmetric targets[J]. Scientia Sinica, 2011, 41 (5): 605- 616.
25	季明阳, 童创明, 孙佳佳, 等. 基于单站一维距离像序列的进动锥柱体目标特征提取[J]. 信号处理, 2015, 31 (2): 238- 243. doi: 10.3969/j.issn.1003-0530.2015.02.016
	JI M Y, TONG C M, SUN J J, et al. Feature extraction of precession cone-cylinder targets based on monostatic one-dimensional range profile sequences[J]. Journal of Signal Processing, 2015, 31 (2): 238- 243. doi: 10.3969/j.issn.1003-0530.2015.02.016
26	姚汉英, 孙文峰, 马晓岩. 基于高分辨距离像序列的锥柱体目标进动和结构参数估计[J]. 电子与信息学报, 2013, 35 (3): 537- 544.
	YAO H Y, SUN W F, MA X Y. Estimation of precession and structural parameters of cone-cylinder targets based on high-resolution range profile sequences[J]. Journal of Electronics and Information Technology, 2013, 35 (3): 537- 544.
27	徐志明, 艾小锋, 刘晓斌, 等. 基于散射中心滑动特性的双基地雷达锥体目标微动特征提取方法[J]. 电子学报, 2021, 49 (3): 461- 469. doi: 10.12263/DZXB.20191261
	XU Z M, AI X F, LIU X B, et al. A method for extracting micro-motion features of cone targets in bistatic radar based on the sliding characteristics of scattering centers[J]. Acta Electronica Sinica, 2021, 49 (3): 461- 469. doi: 10.12263/DZXB.20191261
28	ZHANG L L, ZHU Y Z, CHEN Y J, et al. Three-dimensional micro-Doppler parameter estimation of rotor target based on VEMW radar[J]. IEEE Sensors Journal, 2025, 25 (6): 10155- 10162. doi: 10.1109/JSEN.2025.3533009
29	YUAN H, LUO Y, CHEN Y J, et al. Micromotion parameter extraction of precession cone based on analytical solution in monostatic radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2025, 61 (2): 3121- 3136. doi: 10.1109/TAES.2024.3485033
30	ZHOU H P, PENG C, GUO K, et al. Estimating parameters of ballistic target by single hybrid radar based on vortex and wideband electromagnetic waves[J]. IEEE Sensors Journal, 2023, 23 (21): 26423- 26429. doi: 10.1109/JSEN.2023.3312442

参数	值
载频/GHz	10
质心位置/km	（300，100，600）
自旋角频率/rad	25.13
锥旋角频率/rad	6.28
r/m	0.5
H/m	1.383 1
h/m	0.386 8
$\theta $/rad	0.174 5
$\gamma $/rad	2.342 5
$\alpha $/rad	0.687 3
${{\boldsymbol{\omega }}_s''}$	（0.350，−0.494，0.796）
${{\boldsymbol{\omega }}_c''}$	（0.500, −0.500, 0.707）
尾翼矢量${\boldsymbol{R}}^{'}_{A} $	（−0.118, 0.673, −0.141）
尾翼矢量${\boldsymbol{R}}^{'}_{B} $	（0.118, −0.673, −0.141）

参数	估计值	理想值
$ \left(a_{1}, \;b_{1},\; c_1\right) $	（659.28, 31.41, 3.11）	（659.62, 31.40, 3.14）
$ \left(a_{2}, \;b_{2}, \;c_{2}\right) $	（112.44, 25.13, −1.38）	（112.15, 25.12, −1.52）
$ \left(a_{3},\; b_{3}, \;c_{3}\right) $	（22.45, 6.28, 1.35）	（22.43, 6.28, 1.35）
$ \left(a_{4}, \;b_{4},\; c_{4}\right) $	（3.02, 18.85, −2.73）	（3.02, 18.84, −2.75）

参数	估计值	理想值
${{\boldsymbol{\omega }}_s''}$	（0.329, −0.491, 0.807）	（0.350, −0.494, 0.796）
${{\boldsymbol{\omega }}_c''}$	（0.479, −0.503, 0.719）	（0.500, −0.500, 0.707）
${\boldsymbol{R'}}$	（−0.096, 0.676, −0.156）	（−0.118, 0.673, −0.141）

参数	估计值	理想值	误差/%
$\theta $/rad	0.174 0	0.174 5	0.28
$\gamma $/rad	2.344 8	2.342 5	0.09
$h'$/m	0.489 2	0.486 5	0.55
r/m	0.500 9	0.500 0	0.18
$\alpha $/rad	0.685 9	0.687 3	0.20

参数	估计值	理想值	误差/%
x/m	0.101 3	0.100 0	1.30
$\psi $/rad	0.345 0	0.346 9	0.54
H/m	1.393 6	1.383 1	0.76
h/m	0.387 9	0.386 8	0.28
