导弹集群切换拓扑去中心化微分博弈协同制导

doi:10.12305/j.issn.1001-506X.2026.03.29

摘要/Abstract

摘要：

考虑作战过程中导弹集群通信拓扑结构变化问题，开展导弹集群切换拓扑下去中心化协同制导律研究。结合虚拟领弹-从弹架构，构建虚拟领弹群产生虚拟共识状态轨迹，实现去中心化；基于虚拟共识状态轨迹误差跟踪系统，采用微分博弈理论，结合自适应动态规划技术在线求解最优制导策略，并提出基于求解线性矩阵不等式（linear matrix inequality，LMI）的评价网络权值更新律参数动态更新方法以适应拓扑结构切换，并放宽切换信号平均驻留时间限制；使用多Lyapunov函数，证明了系统的稳定性。最后，通过仿真验证了所提方法的有效性。

关键词: 导弹集群, 分布式协同, 微分博弈, 去中心化, 切换拓扑

Abstract:

In view of the communication topology switch problem in missile clusters during combats, a decentralized cooperative guidance law for missile cluster under switching topologies is developed. A virtual leader group is designed based on virtual leader-follower framework, and decentralization is achieved by the virtual leader cluster generating a virtual consensus state trajectory. Based on the error tracking system of virtual consensus state trajectory, differential game theory is applied. And the critic network is utilized to derive the optimal guidance strategy online by using adaptive dynamic programming technique. Then, a method for dynamically updating the parameters of the critic network’s weight update law based on solving linear matrix inequality （LMI） is proposed, which is designed to accommodate topology switching and relax the average dwell time constraints on switching signals. System stability is proven by using multiple Lyapunov functions. Finally, simulations are conducted to substantiate the validity of the proposed scheme.

Key words: missile cluster, distributed cooperation, differential game, decentralized, switching topologies

中图分类号:

TP 273

王浩宇, 姜斌, 张绍杰, 杨知沐, 李莹雪. 导弹集群切换拓扑去中心化微分博弈协同制导[J]. 系统工程与电子技术, 2026, 48(3): 1050-1060.

Haoyu WANG, Bin JIANG, Shaojie ZHANG, Zhimu YANG, Yingxue LI. Differential game-based decentralized cooperative guidance for missile cluster under switching topologies[J]. Systems Engineering and Electronics, 2026, 48(3): 1050-1060.

图/表 20

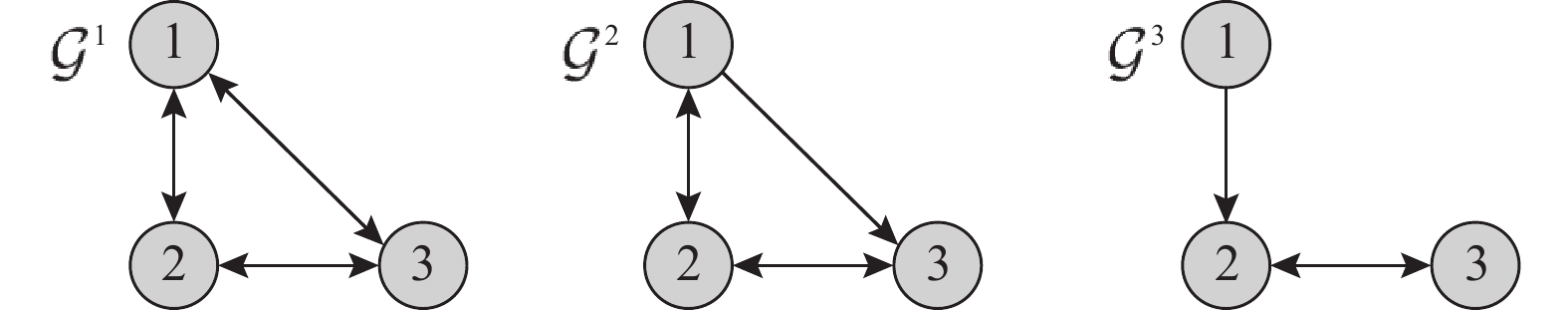

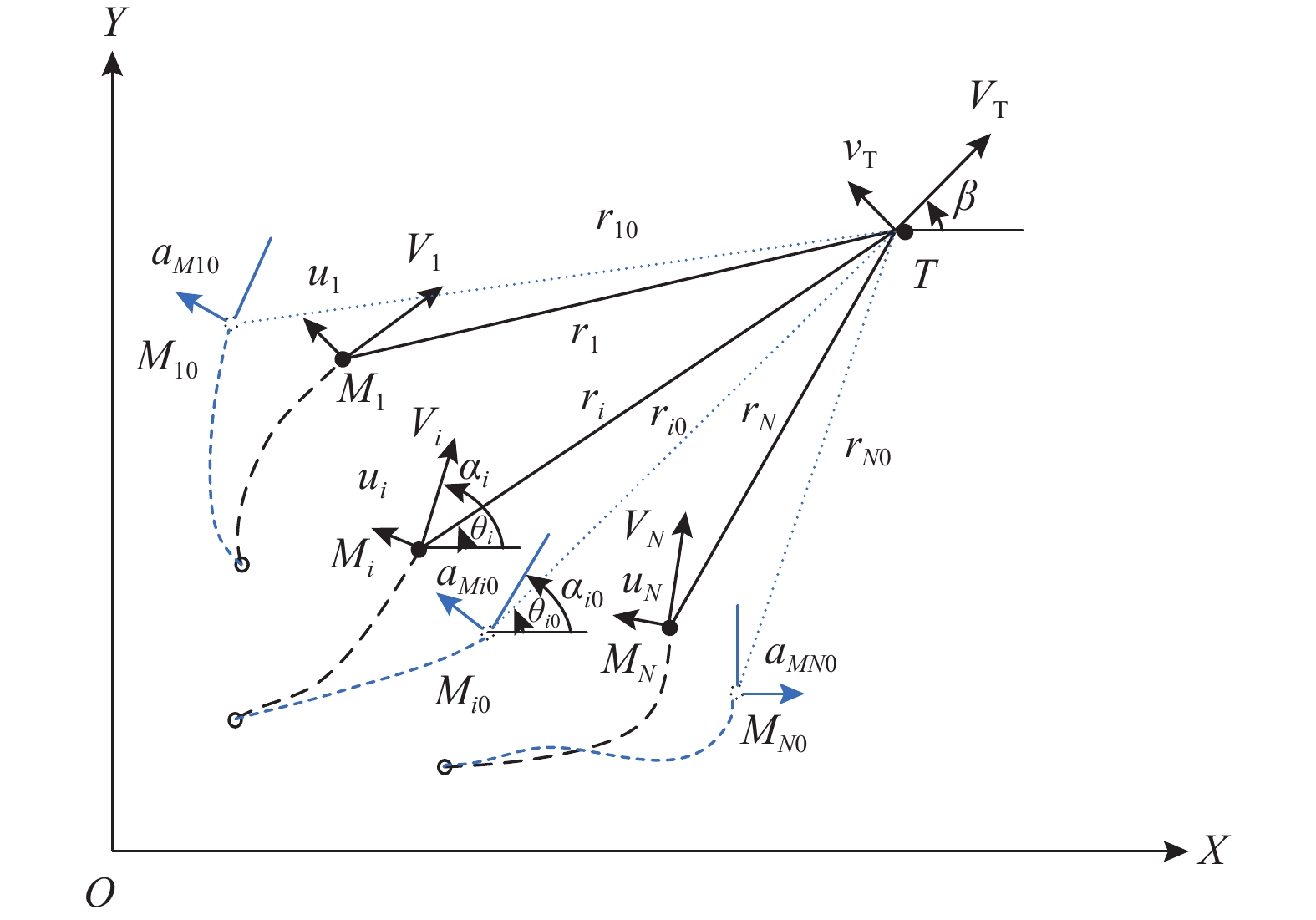

图1

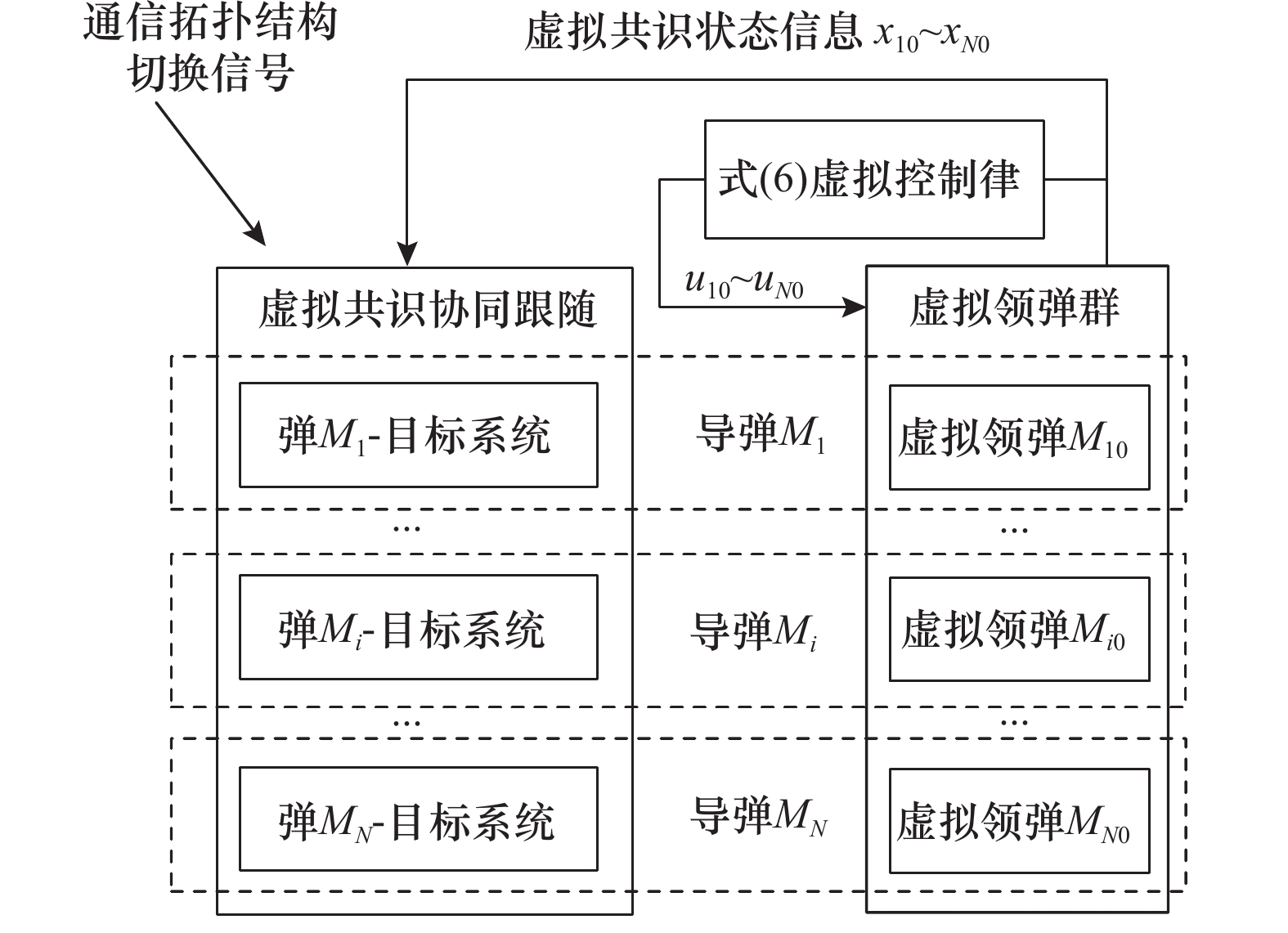

图2

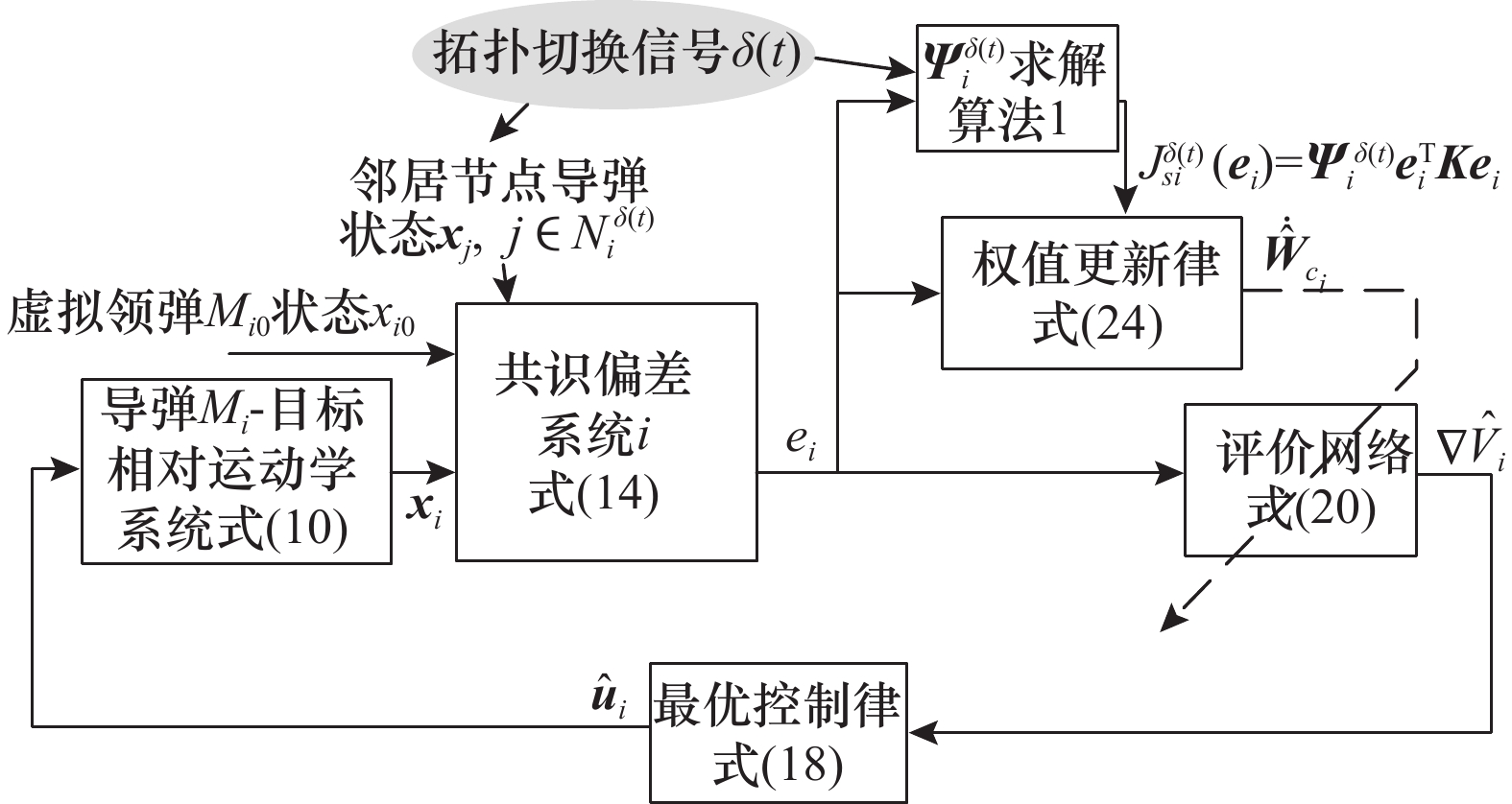

图3

图4

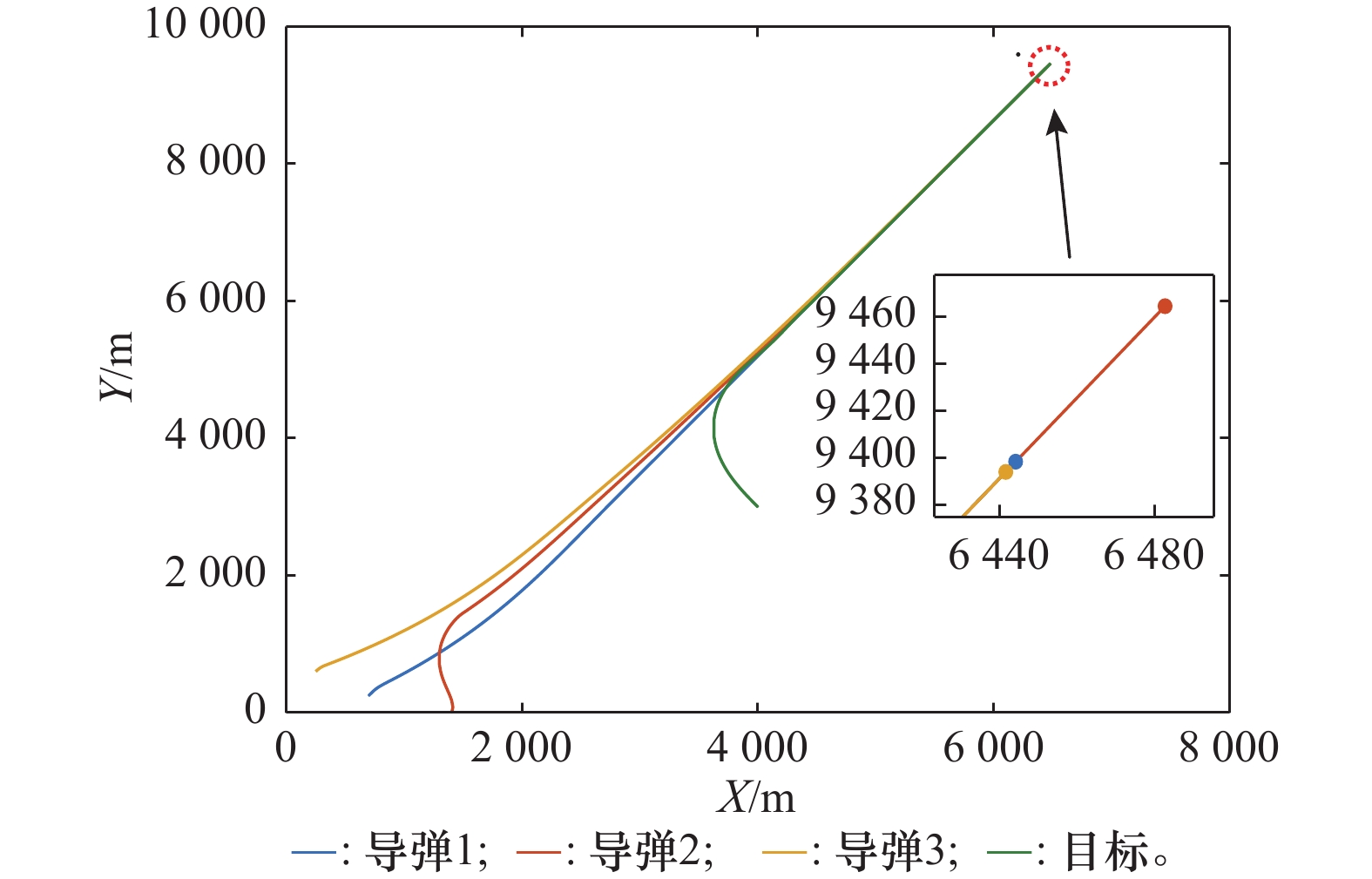

图5

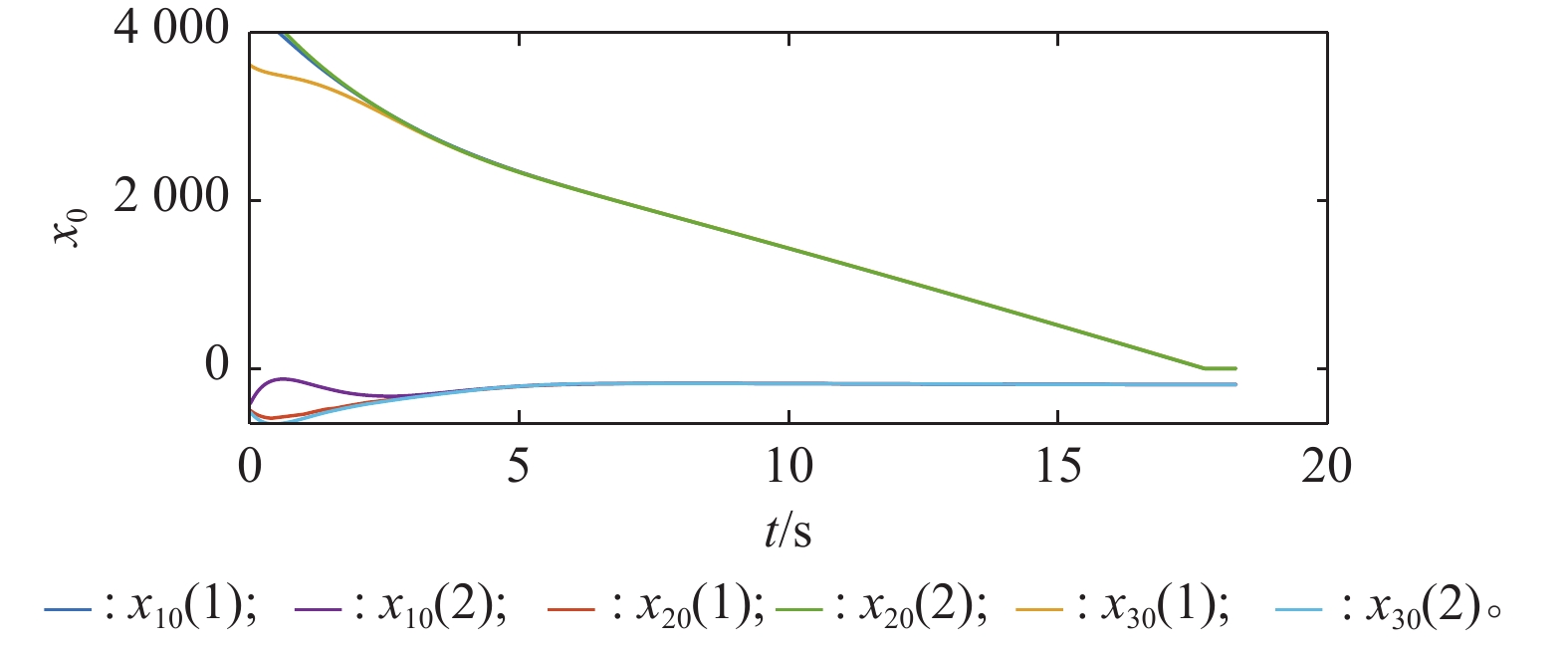

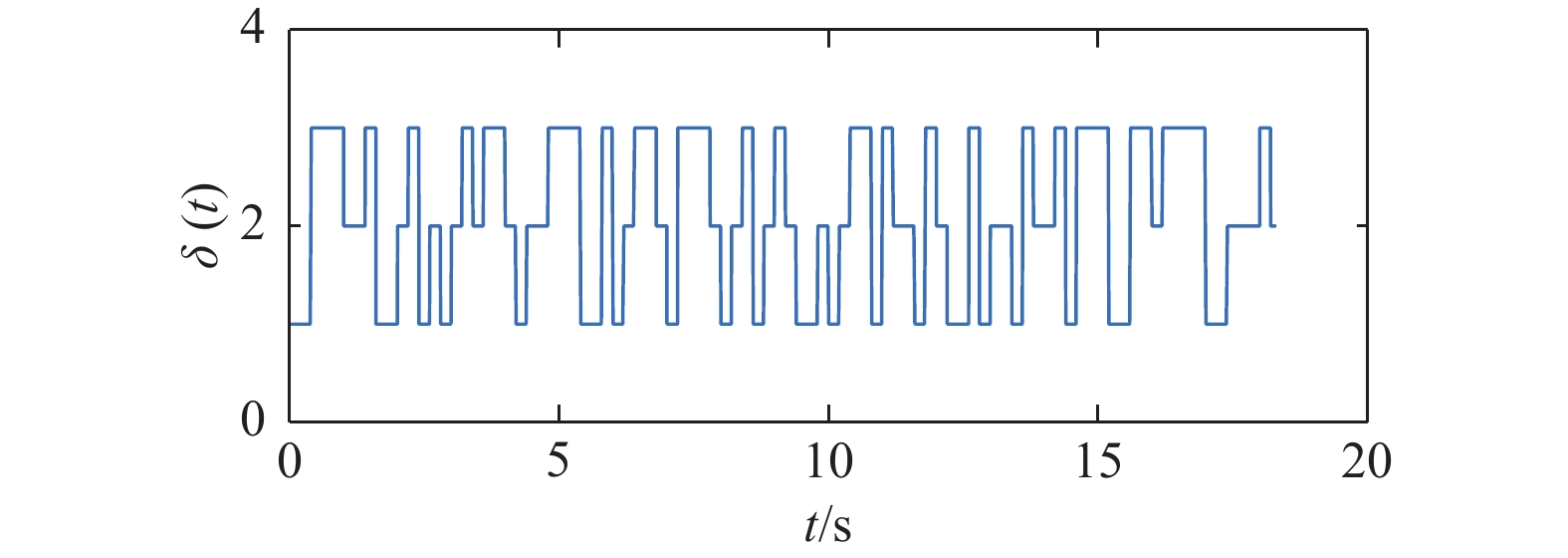

图6

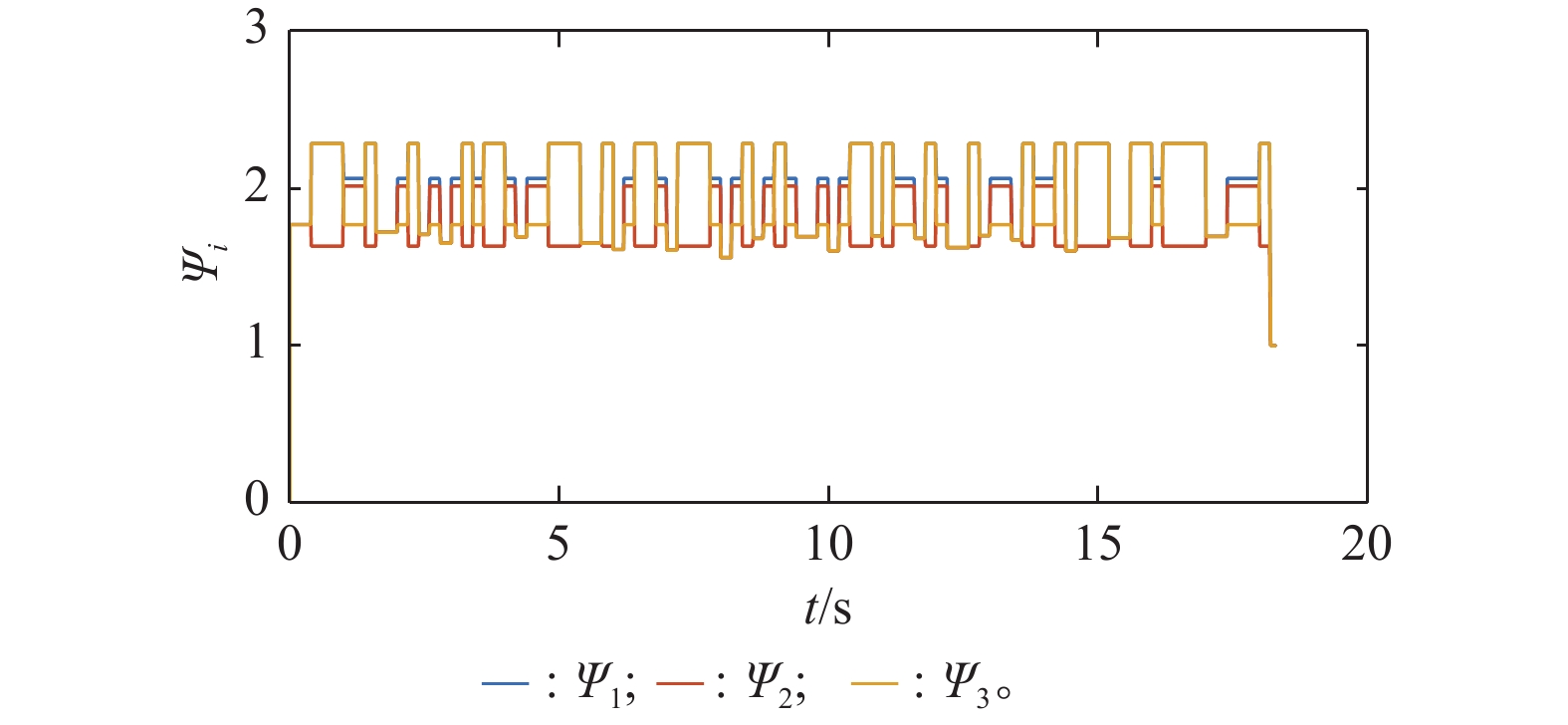

图7

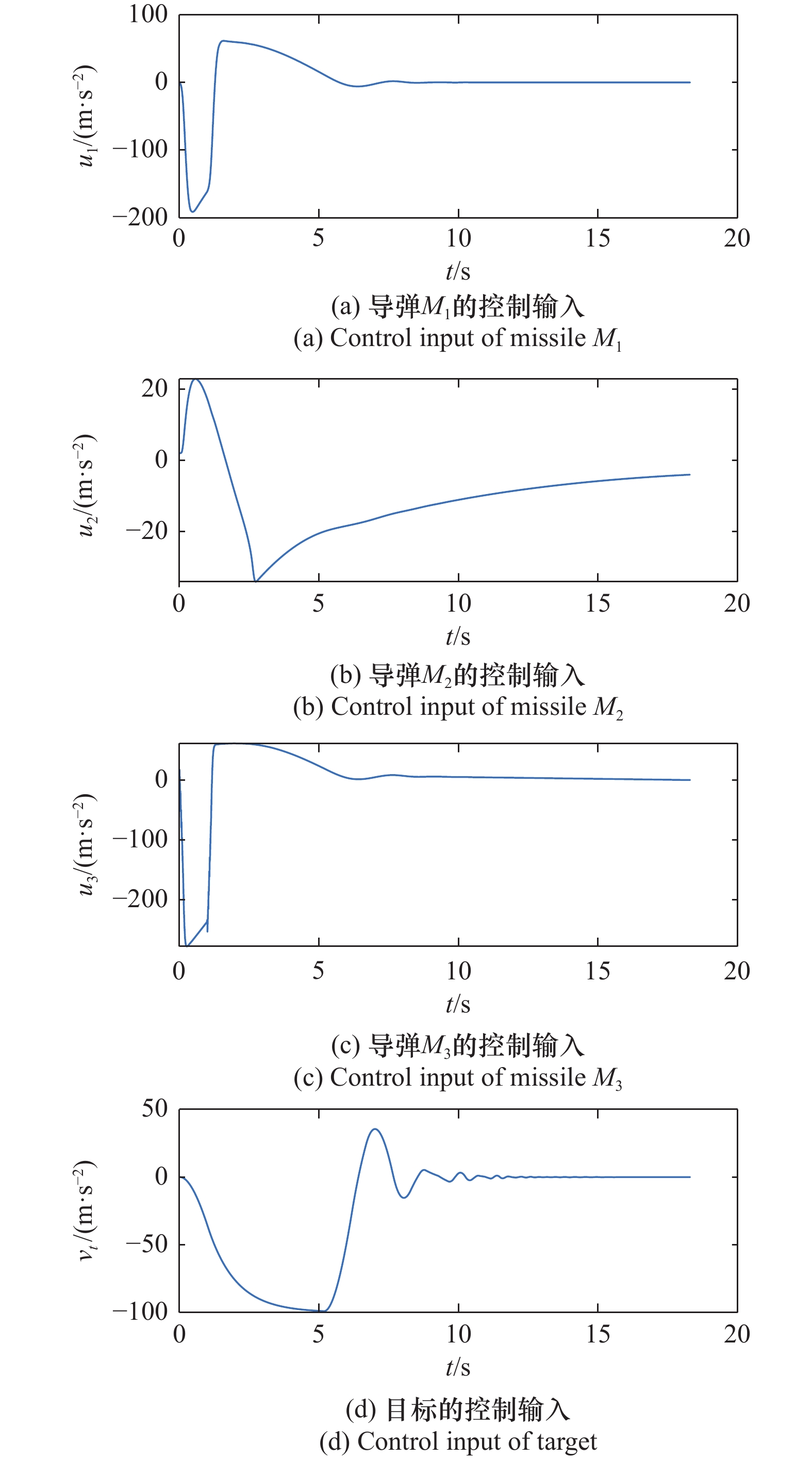

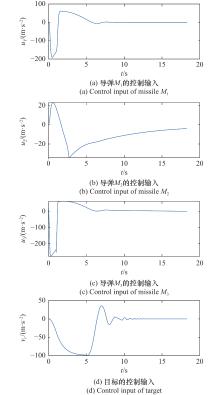

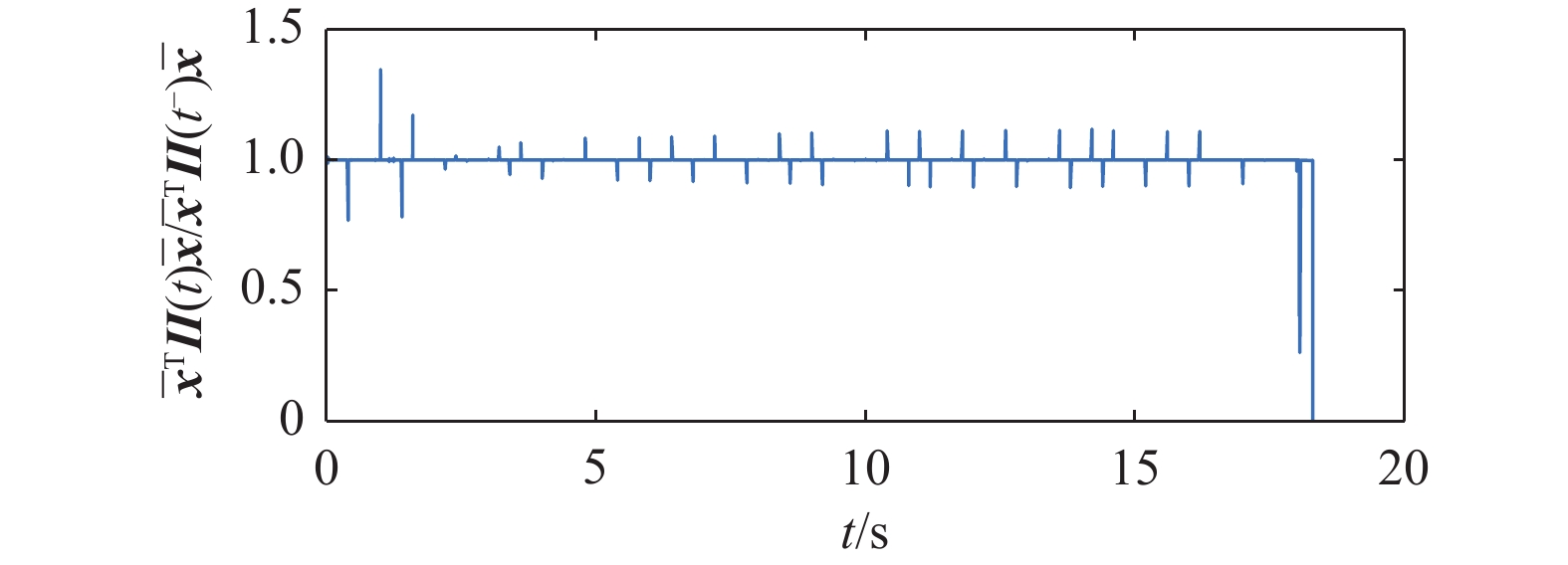

图8

图9

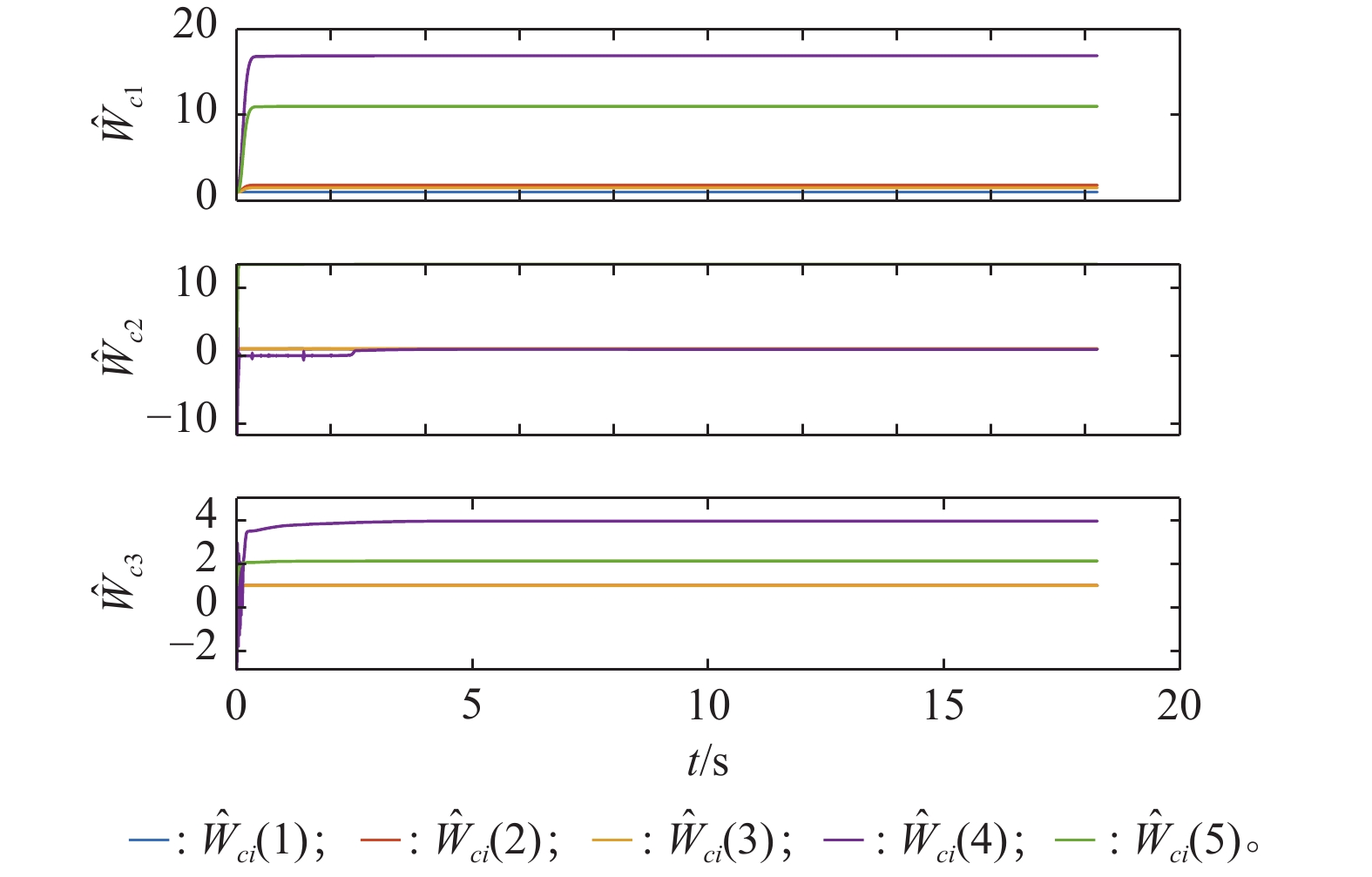

图10

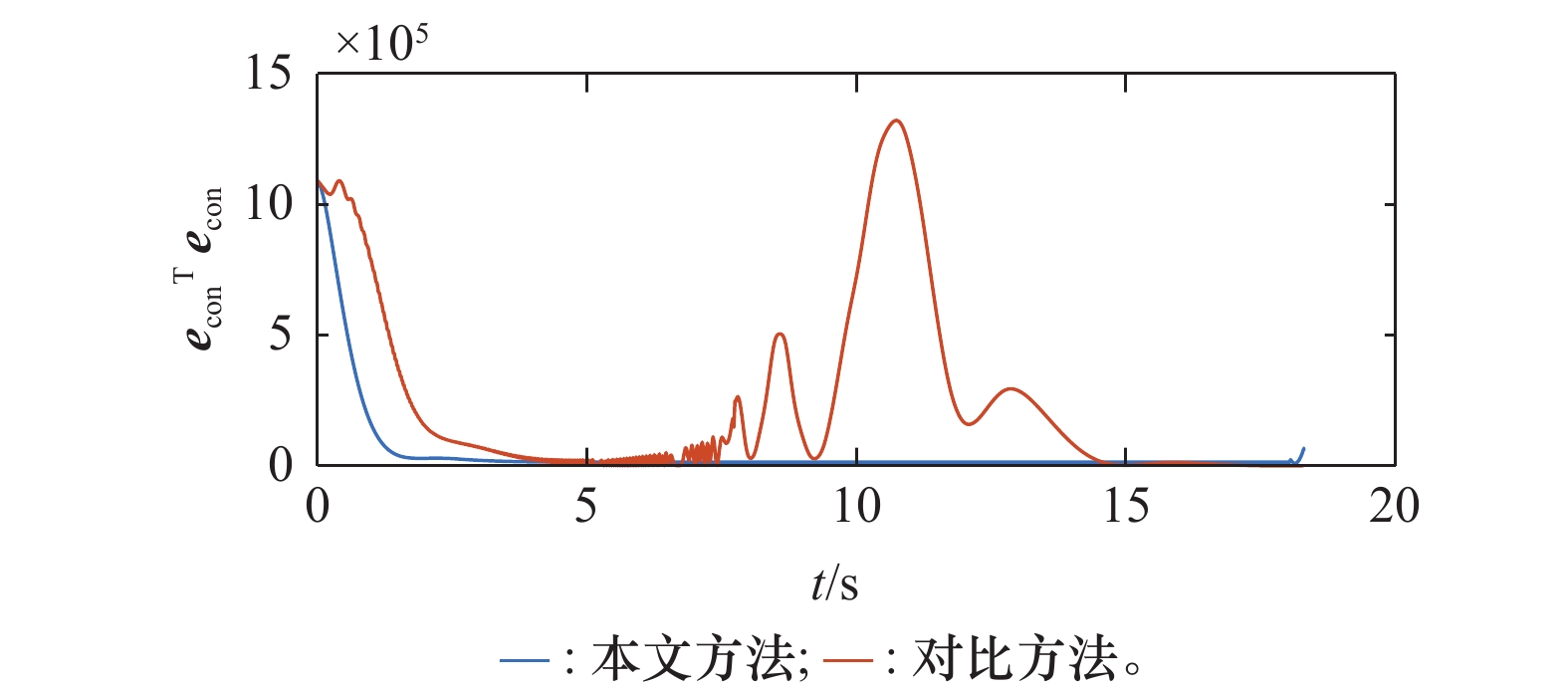

图11

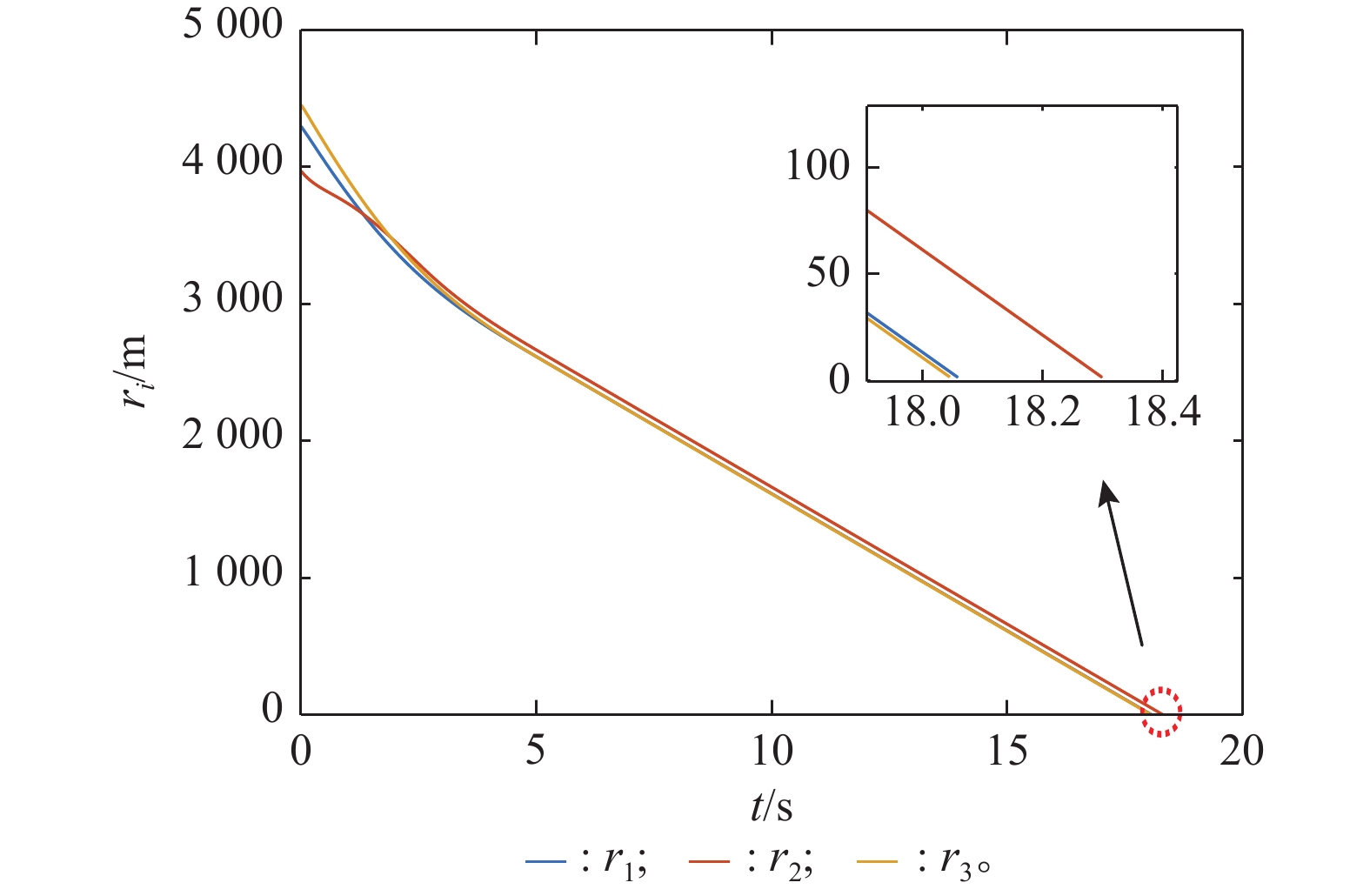

图12

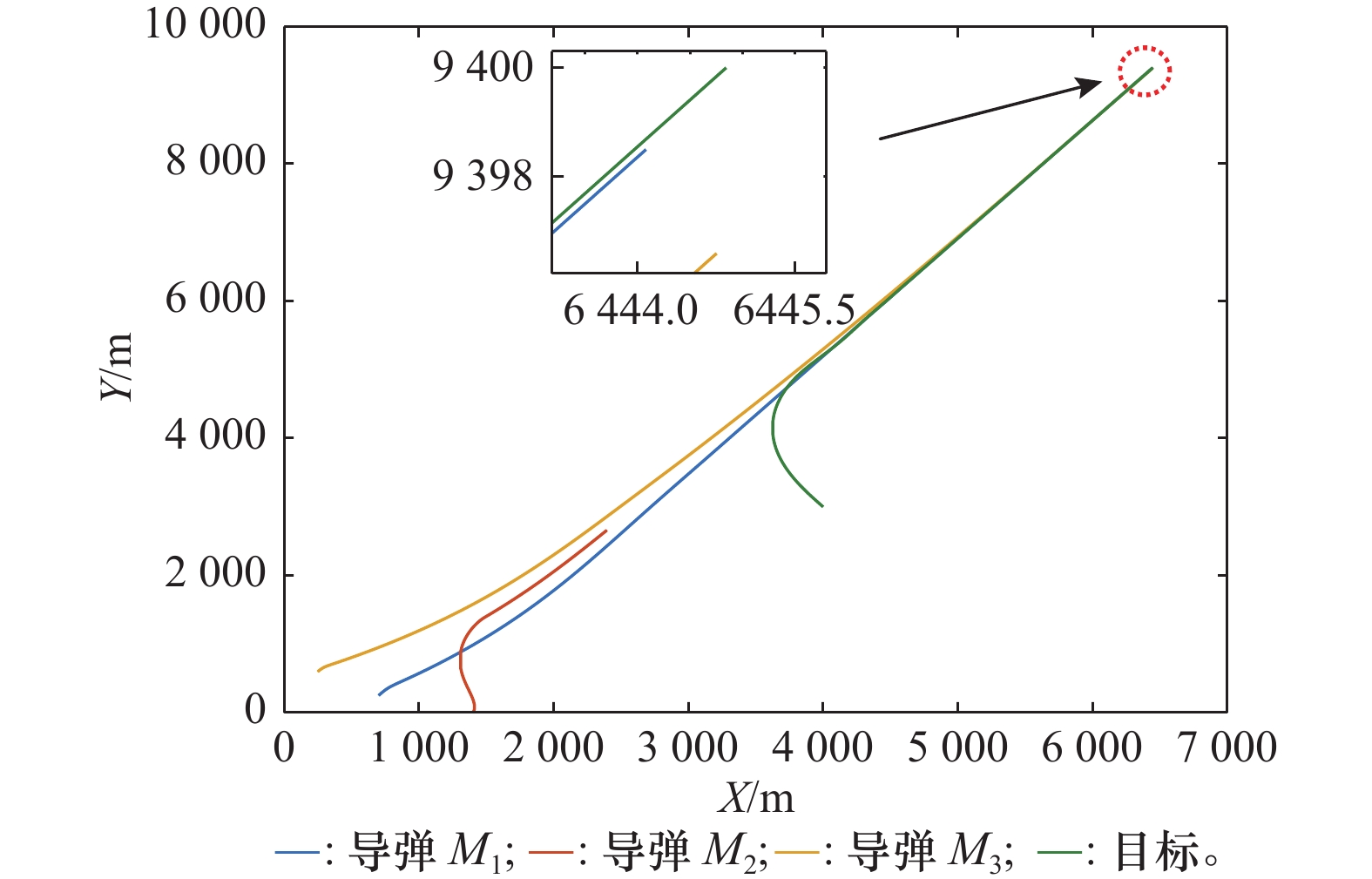

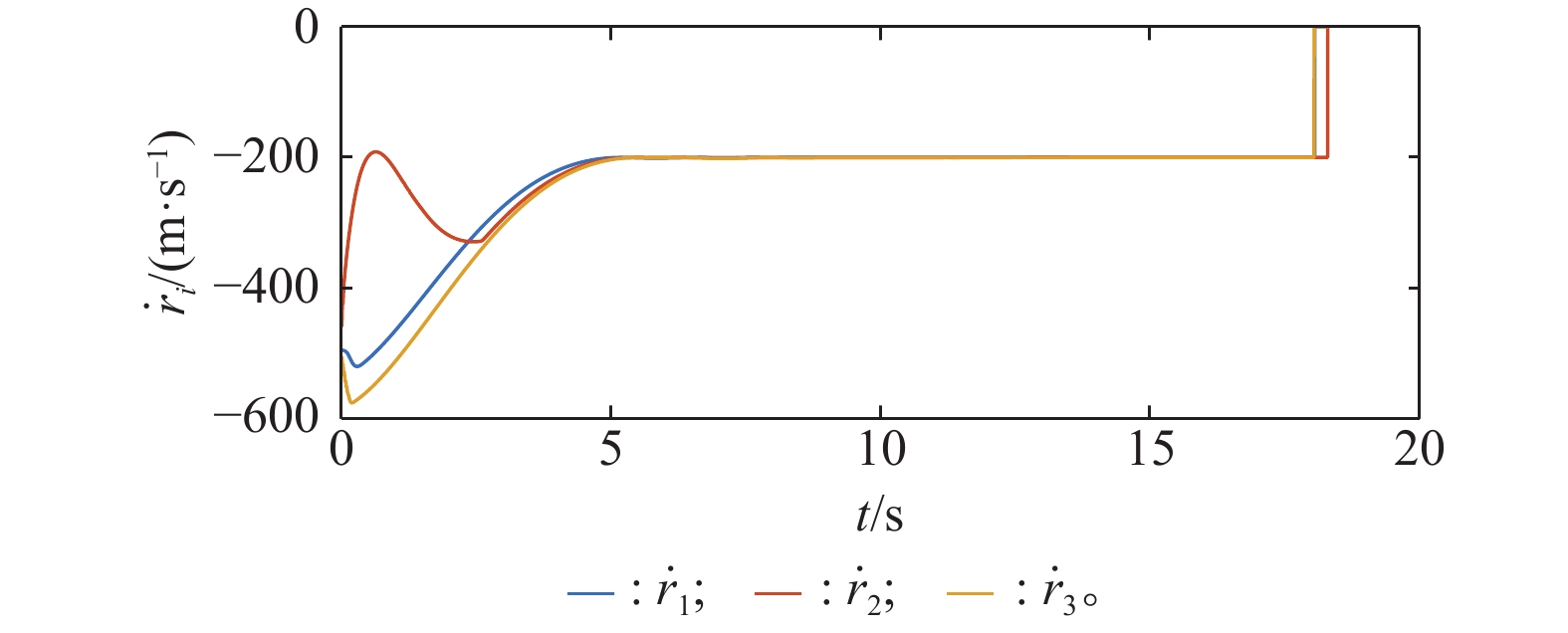

图13

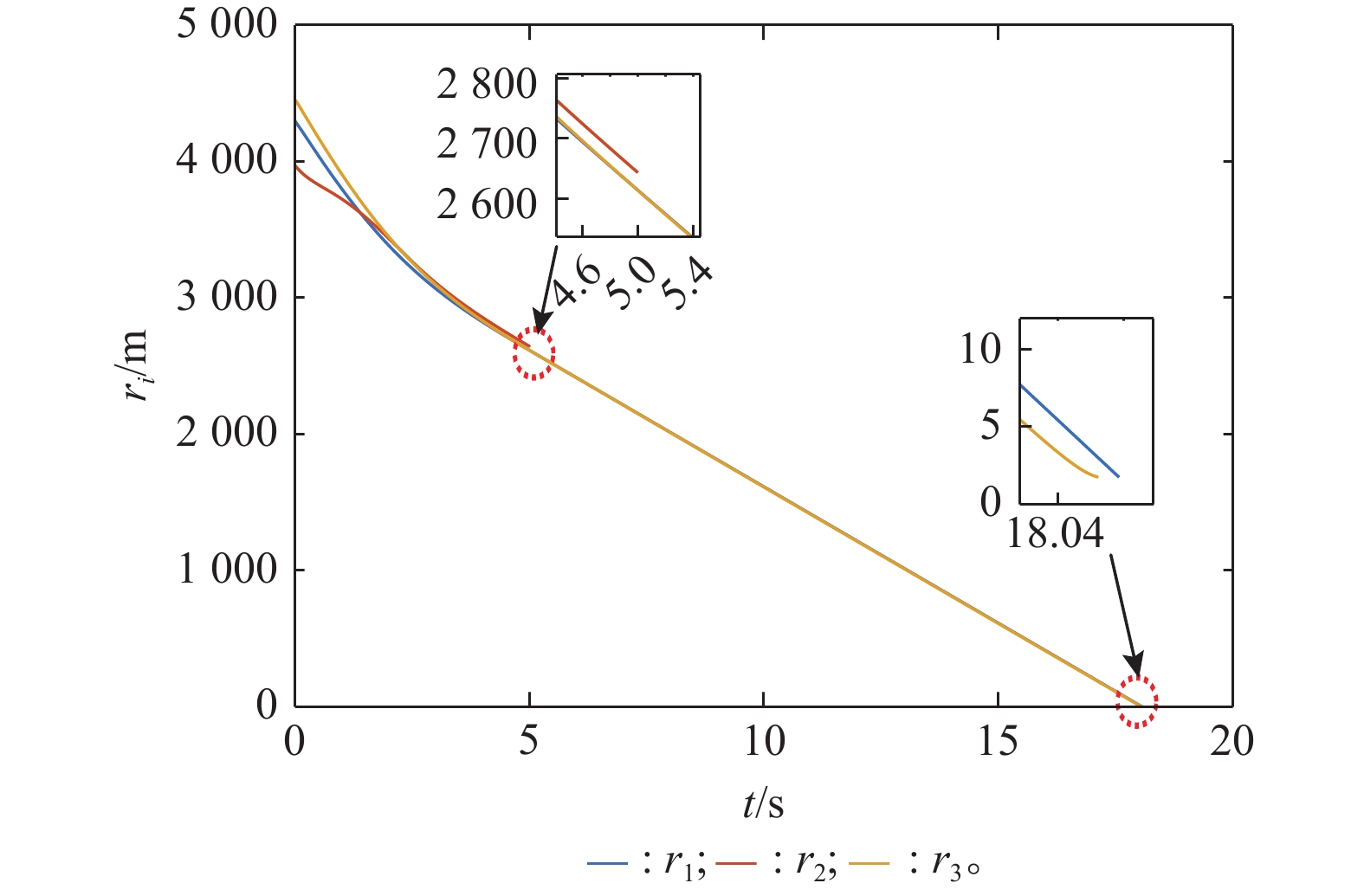

图14

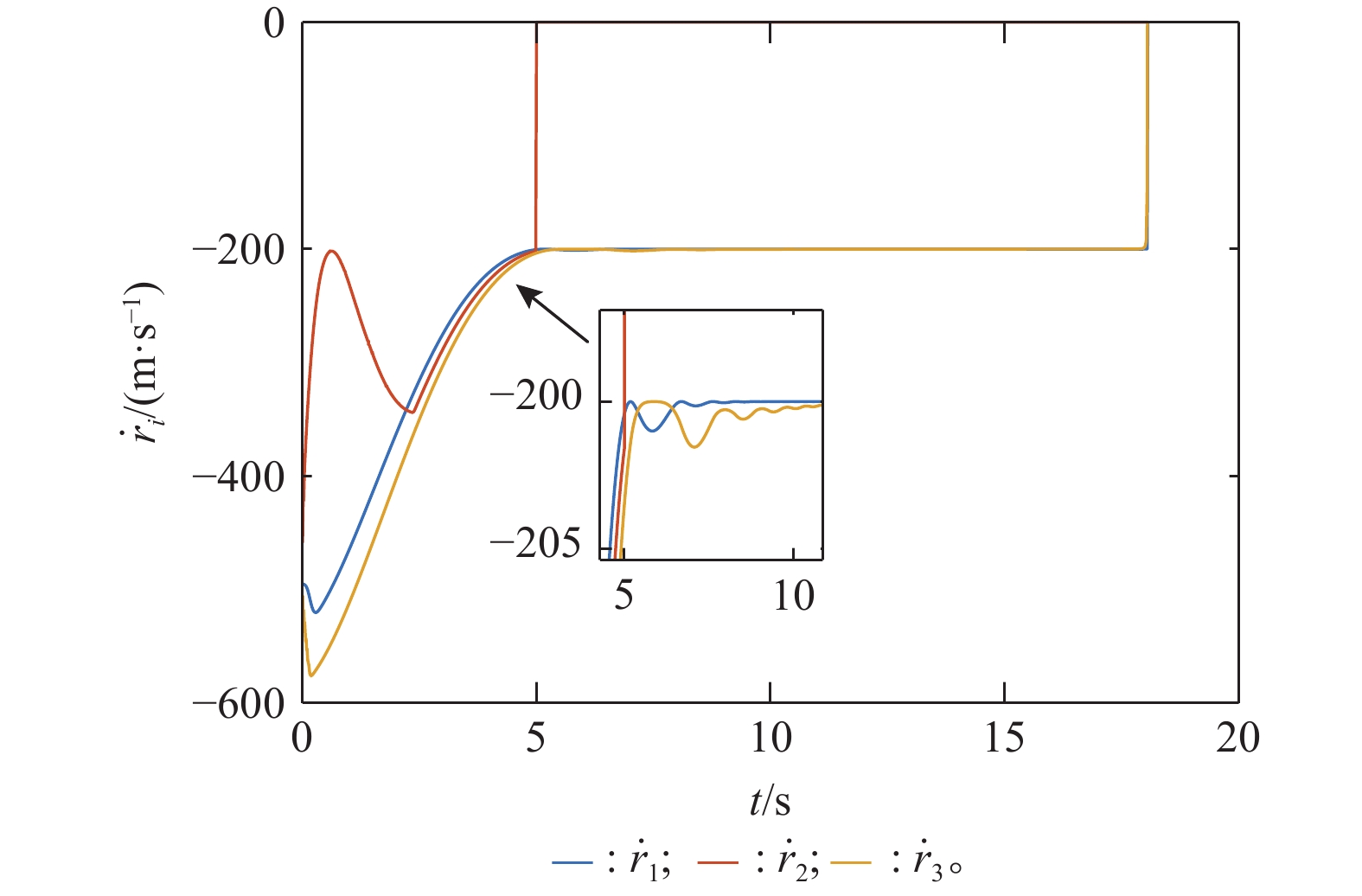

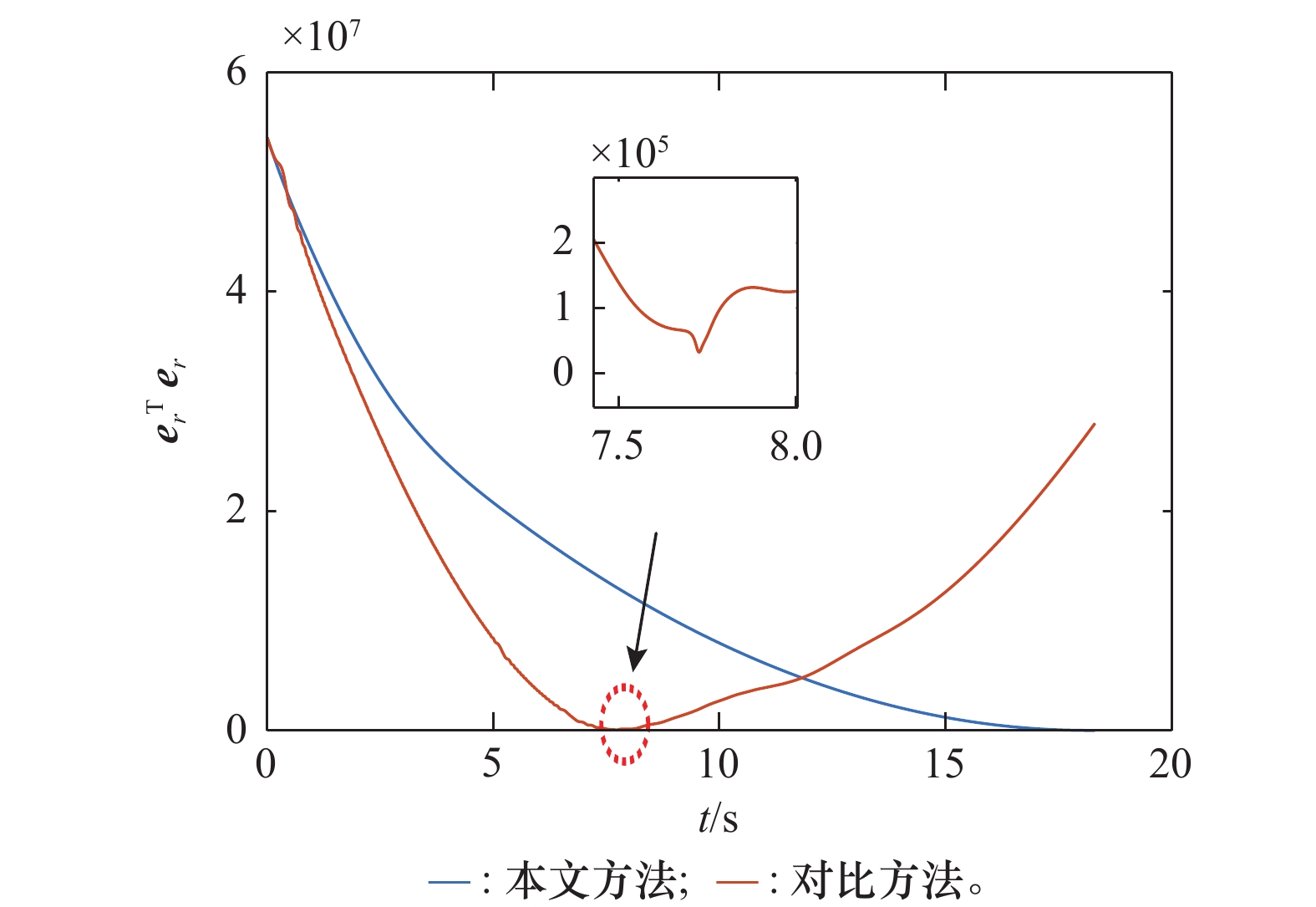

图15

表1

图16

图17

图18

表2

参考文献 30

1	温广辉, 周佳玲, 吕跃祖, 等. 多导弹协同作战中的分布式协调控制问题[J]. 指挥与控制学报, 2021, 7 (2): 137- 145. doi: 10.3969/j.issn.2096-0204.2021.02.0137
	WEN G H, ZHOU J L, LYU Y Z, et al. Distributed coordination control in multi-missile cooperative tasks[J]. Journal of Command and Control, 2021, 7 (2): 137- 145. doi: 10.3969/j.issn.2096-0204.2021.02.0137
2	林德福, 何绍溟, 王江, 等. 基于虚拟领弹-从弹的集群分布式协同制导技术研究[J]. 中国科学: 技术科学, 2020, 50 (5): 506- 515. doi: 10.1360/SST-2019-0265
	LIN D F, HE S M, WANG J, et al. On virtual leader-follower-based distributed cooperative swarm guidance strategy[J]. Scientia Sinica （Technologica）, 2020, 50 (5): 506- 515. doi: 10.1360/SST-2019-0265
3	CUI G Z, XU S Y, LEWIS F L, et al. Distributed consensus tracking for non-linear multi-agent systems with input saturation: a command filtered backstepping approach[J]. IET Control Theory & Applications, 2016, 10 (5): 509- 516.
4	SUN J L, LIU C S. Distributed fuzzy adaptive backstepping optimal control for nonlinear multimissile guidance systems with input saturation[J]. IEEE Trans. on Fuzzy Systems, 2018, 27 (3): 447- 461.
5	LI G F, LU J H, ZHU G L, et al. Distributed observer-based cooperative guidance with appointed impact time and collision avoidance[J]. Journal of the Franklin Institute, 2021, 358 (14): 6976- 6993. doi: 10.1016/j.jfranklin.2021.06.030
6	ZHAO W B, LIU H, LEWIS F L. Data-driven fault-tolerant control for attitude synchro-nization of nonlinear quadrotors[J]. IEEE Trans. on Automatic control, 2021, 66 (11): 5584- 5591. doi: 10.1109/TAC.2021.3053194
7	DUAN D D, LIU C S , ZHANG S J. Robust optimal control for finite-horizon zero-sum differential games via a plug-n-play event-triggered scheme[J]. Journal of the Franklin Institute, 2020, 357(10): 5989−6017.
8	倪炜霖, 王永海, 徐聪, 等. 基于强化学习的高超飞行器协同博弈制导方法[J]. 航空学报, 2023, 44 (S2): 55- 66.
	NI W L, WANG Y H, XU C, et al. Cooperative game guidance method for hypersonic vehicles based on reinforcement learning[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (S2): 55- 66.
9	高煜欣, 刘春生. 基于微分对策的非仿射导弹学习滑模制导[J]. 系统工程与电子技术, 2023, 45 (11): 3616- 3623.
	GAO Y X, LIU C S. Differential game-based learning sliding mode guidance for non-affine missile system[J]. Systems Engineering and Electronics, 2023, 45 (11): 3616- 3623.
10	陈燕妮, 刘春生, 孙景亮. 基于自适应最优控制的有限时间微分对策制导律[J]. 控制理论与应用, 2019, 36 (6): 877- 884.
	CHEN Y N, LIU C S, SUN J L. Finite-time differential guidance law based on adaptive optimal control[J]. Control Theory & Applications, 2019, 36 (6): 877- 884.
11	HASSAN Z, TRAVIS D, SARANGAPANI J. Optimal control of nonlinear continuous-time systems in strict-feedback form[J]. IEEE Trans. on Neural Networks and Learning Systems, 2015, 26 (10): 2535- 2549. doi: 10.1109/TNNLS.2015.2441712
12	ZHANG W G, YI W J. Composite adaptive dynamic programming for missile interception systems with multiple constraints and less sensor requirement[J]. ISA Transactions, 2021, 117, 40- 53. doi: 10.1016/j.isatra.2021.01.040
13	WEN G H, DUAN Z S, CHEN G R, et al. Consensus tracking of multi-agent systems with Lipschitz-type node dynamics and switching topologies[J]. IEEE Trans. on Neural Networks and Learning Systems, 2014, 61 (2): 499- 511.
14	PRISCOLI F D, ISIDORI A, MARCONI L, et al. Leader-following coordination of nonlinear agents under time-varying communication topologies[J]. IEEE Trans. on Neural Networks and Learning Systems, 2015, 2 (4): 393- 405.
15	CHEVALIER P Y, HENDRICKX J M, JUNGERS R M. A switched system approach to the decidability of consensus[C]// Proc. of the 21st International Symposium Mathematical Theory of Networks and Systems, 2014: 103–109.
16	MIAO G Y, XU S Y, ZHANG B Y, et al. Mean square consensus of second-order multi-agent systems under Markov switching topologies[J]. IMA Journal of Mathematical Control and Information, 2014, 31 (2): 151- 164. doi: 10.1093/imamci/dns036
17	SAKTHIVEL R, SAKTHIVEL R, KAVIARASAN B, et al. Leader-following exponential consensus of input saturated stochastic multi-agent systems with Markov jump parameters[J]. Neurocomputing, 2018, 287, 84- 92. doi: 10.1016/j.neucom.2018.01.075
18	LEE T H, MA Q, XU S Y, et al. Pinning control for cluster synchronisation of complex dynamical networks with semi-Markovian jump topology[J]. International Journal of Control, 2015, 88 (6): 1123- 1135. doi: 10.1080/00207179.2014.994039
19	DAI J T, GUO G. Exponential consensus of non-linear multi-agent systems with semi- Markov switching topologies[J]. IET Control Theory & Applications, 2017, 11 (8): 3363- 3371.
20	DAI J T, GUO G. Event-triggered leader- following consensus for multi-agent systems with semiMarkov switching topologies[J]. Information Sciences, 2018, 459, 290- 301. doi: 10.1016/j.ins.2018.04.054
21	WEN G H, ZHENG W X. On constructing multiple Lyapunov functions for tracking control of multiple agents with switching topologies[J]. IEEE Trans. on Automatic Control, 2019, 64 (9): 3796- 3803. doi: 10.1109/TAC.2018.2885079
22	WANG P J, WEN G H, YU W W, et al. Asymptotical consensus of MIMO linear multi-agent systems with a non-autonomous leader and directed switching topology: a continuous approach[J]. IEEE Trans. on Control of Network Systems, 2022, 10 (3): 1326- 1337.
23	YANG T, MENG Z Y, REN W, et al. Synchronization of coupled nonlinear dynamical systems: interplay between times of connectivity and integral of Lipschitz Gain[J]. IEEE Trans. on Circuits and Systems II. Express Briefs, 2016, 63 (4): 391- 395. doi: 10.1109/TCSII.2015.2504011
24	WEN G H, WANG P J, HUANG T W, et al. Distributed consensus of layered multi-agent systems subject to attacks on edges[J]. IEEE Trans. on Circuits and Systems, I: Regular Papers, 2020, 67 (9): 3152- 3162. doi: 10.1109/TCSI.2020.2986953
25	ZHANG C J, JI L H, YANG S S. et al. Time-varying formation optimization tracking of multi-agent systems with semi-Markov switching topology[J]. Nonlinear Dynamics, 2024, 112 (12): 10095- 10108. doi: 10.1007/s11071-024-09599-4
26	HESPANHA J P, MORSE A S. Stability of switched systems with average dwell-time[C] // Proc. of the IEEE 38th Conference on Decision and Control, 1999: 2655–2660.
27	LI K, WANG J N, LEE C H, et al. Distributed cooperative guidance for multivehicle simultaneous arrival without numerical singularities[J]. Journal of Guidance Control and Dynamics, 2020, 43 (7): 1365- 1373. doi: 10.2514/1.G005010
28	HE S M, WANG W, LIN D F, et al. Consensus-based two-stage salvo attack guidance[J]. IEEE Trans. on Aerospace and Electronic Systems, 2018, 54 (3): 1555- 1566. doi: 10.1109/TAES.2017.2773272
29	LONG T, CAO Y, SUN J L, et al. Adaptive event-triggered distributed optimal guidance design via adaptive dynamic programming[J]. Chinese Journal of Aeronautics, 2022, 35 (7): 113- 127. doi: 10.1016/j.cja.2021.08.005
30	GAO Y X, LIU C S, DUAN D D, et al. Distributed optimal event-triggered cooperative control for nonlinear multi-missile guidance systems with partially unknown dynamics[J]. International Journal of Robust and Nonlinear Control, 2022, 32 (15): 8369- 8396. doi: 10.1002/rnc.6285

方法	导弹	拦截时间/s	脱靶量/m
本文方法	导弹${M_1}$	18.06	0.15
	导弹${M_2}$	18.30	0.49
	导弹${M_3}$	18.05	0.19
对比方法	导弹${M_1}$	未命中	9.76
	导弹${M_2}$	未命中	27.67
	导弹${M_3}$	未命中	162.65

框架	导弹	拦截时间/s	脱靶量/m
虚拟领-从去中心化框架	导弹${M_1}$	18.06	0.09
	导弹${M_2}$	损毁	损毁
	导弹${M_3}$	18.05	1.64
领弹-从弹框架	导弹${M_1}$	失效	失效
	导弹${M_2}$	损毁	损毁
	导弹${M_3}$	失效	失效
