基于频域滤波的无人机载预警雷达抗主瓣无意干扰方法

doi:10.12305/j.issn.1001-506X.2026.03.10

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (3): 826-834.doi: 10.12305/j.issn.1001-506X.2026.03.10

• 传感器与信号处理 • 上一篇

基于频域滤波的无人机载预警雷达抗主瓣无意干扰方法

高晨然¹^,*, 张西川², 熊元燚¹, 陈威¹, 谢文冲¹

1. 空军预警学院雷达兵器运用工程军队重点实验室，湖北武汉 430019
2. 中国人民解放军 93128部队，北京 100000

收稿日期:2024-12-06 出版日期:2026-03-25 发布日期:2026-04-13
通讯作者: 高晨然
作者简介:张西川（1984—），男，高级工程师，博士，主要研究方向为雷达信号处理、空时自适应信号处理
熊元燚（1990—），男，讲师，博士研究生，主要研究方向为机载雷达信号处理、空时自适应信号处理
陈　威（1993—），男，讲师，博士，主要研究方向为机载雷达信号处理、空时自适应信号处理
谢文冲（1978—），男，教授，博士研究生导师，博士，主要研究方向为机载雷达信号处理、空时自适应信号处理
基金资助:
国家自然科学基金青年科学基金(62401622)；湖北省自然科学基金(2024AFB524)资助课题

Anti-mainlobe unintentional jamming method for UAV-borne early warning radar based on frequency-domain filtering

Chenran GAO¹^,*, Xichuan ZHANG², Yuanyi XIONG¹, Wei CHEN¹, Wenchong XIE¹

1. Radar Weapon Application Engineering Key Research Laboratory，Air Force Early Warning Academy，Wuhan 430019，China
2. Unit 93128 of the PLA，Beijing 100000，China

Received:2024-12-06 Online:2026-03-25 Published:2026-04-13
Contact: Chenran GAO

摘要/Abstract

摘要：

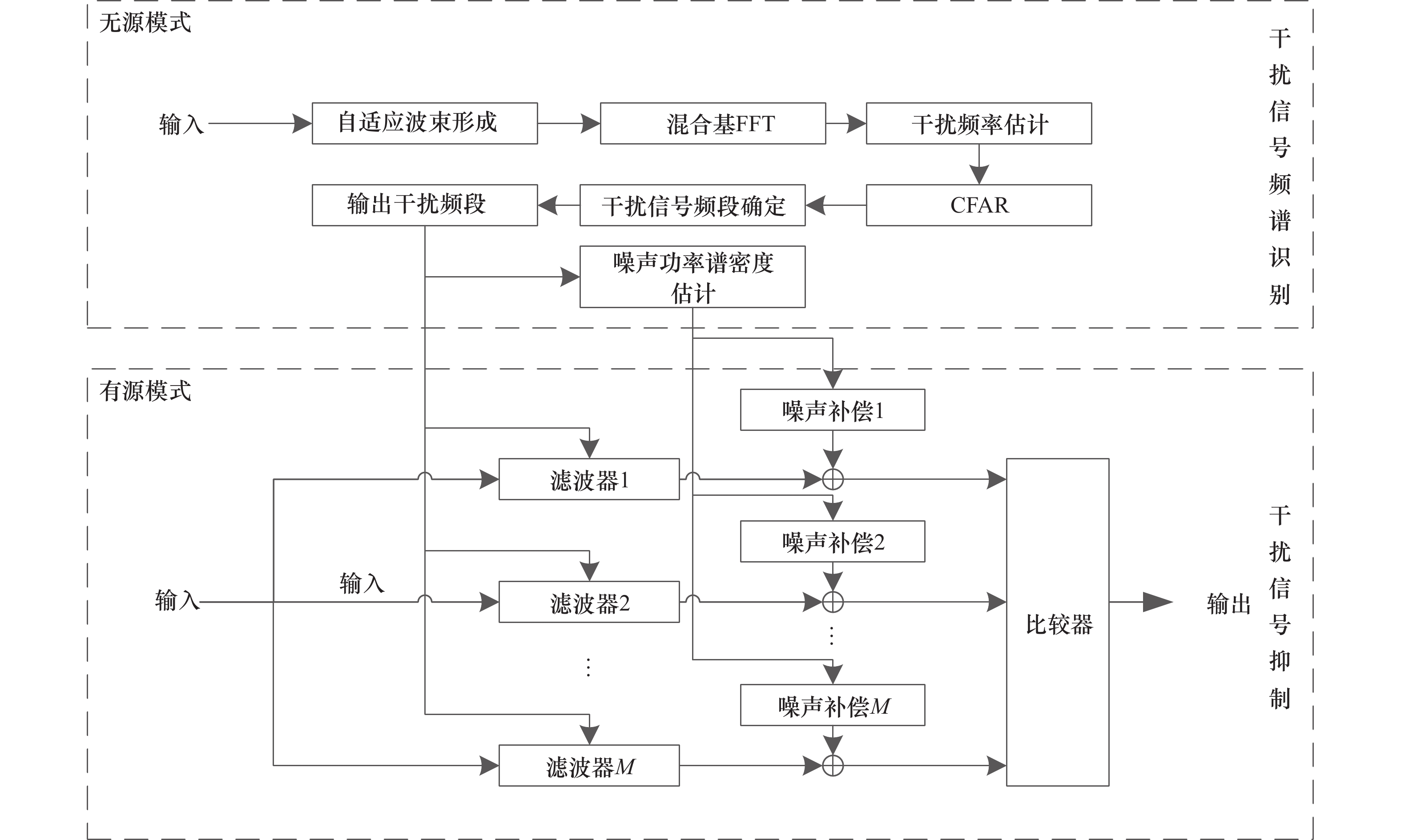

由于机载预警雷达的工作频段不断向低频段拓展，更多的无线通信设备与雷达系统共用频段，导致无人机载雷达在工作时受到大量的无意干扰，严重影响其目标探测性能。针对上述问题，在保持机载雷达系统参数不变的前提下，提出一种基于无源/有源双模协同的主瓣无意干扰抑制架构和方法。首先，在无源模式下通过自适应波束形成技术和恒虚警率检测准则估计每个波位主瓣干扰信号的频率和带宽。然后，在有源模式下通过频域滤波实现主瓣无意干扰的抑制。同时，通过噪声补偿将滤波后的色噪声白化为白噪声，在实现干扰抑制的同时进一步提升了目标检测性能。最后，通过仿真实验验证了所提方法的有效性。

关键词: 机载雷达, 主瓣无意干扰, 频率谱估计, 频域滤波, 噪声补偿

Abstract:

For the operating frequency bands of airborne early warning radars are continuously expanding towards lower frequency ranges, more wireless communication devices share the same frequency bands with radar systems, causing significant unintentional jamming to unmanned aerial vehicle (UAV)-borne radars during operation and severely affecting its target detection performance. To address these issues, a mainlobe unintentional jamming suppression architecture and method based on passive/active dual-mode coordination are proposed while keeping the parameters of the airborne radar system unchanged. Firstly, in passive mode, the frequency and bandwidth of each mainlobe jamming signal are estimated using adaptive beamforming techniques and constant false alarm rate detection criteria. Then, in active mode, the suppression of mainlobe unintentional jamming is achieved through frequency domain filtering. At the same time, the filtered color noise is whitened to white noise through noise compensation, which further improves the target detection performance while achieving jamming suppression. Finally, the effectiveness of the proposed method is verified through simulation experiments.

Key words: airborne radar, mainlobe unintentional jamming, frequency spectrum estimation, frequency-domain filtering, noise compensation

中图分类号:

TN 957

高晨然, 张西川, 熊元燚, 陈威, 谢文冲. 基于频域滤波的无人机载预警雷达抗主瓣无意干扰方法[J]. 系统工程与电子技术, 2026, 48(3): 826-834.

Chenran GAO, Xichuan ZHANG, Yuanyi XIONG, Wei CHEN, Wenchong XIE. Anti-mainlobe unintentional jamming method for UAV-borne early warning radar based on frequency-domain filtering[J]. Systems Engineering and Electronics, 2026, 48(3): 826-834.

图/表 10

图1

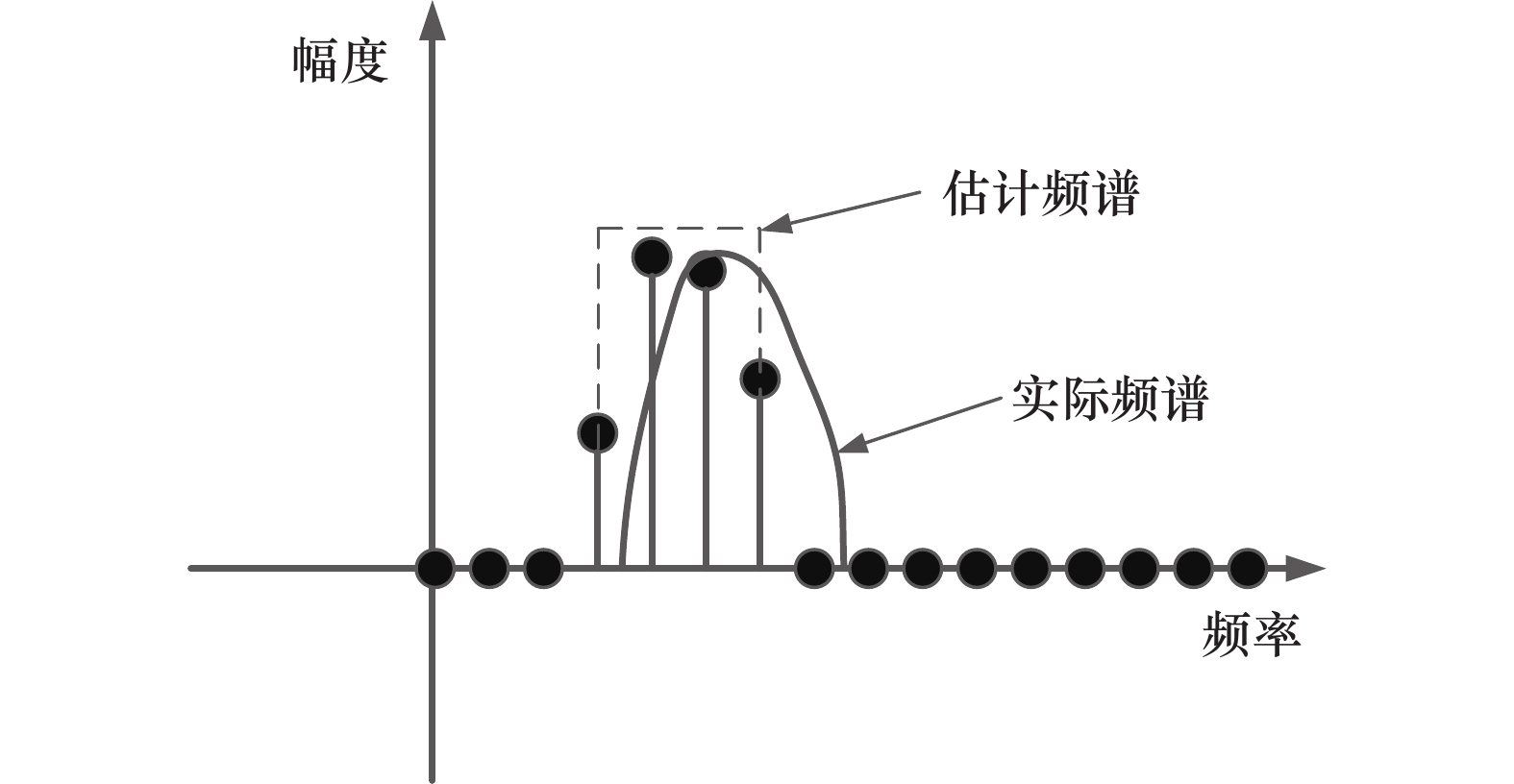

图2

表1

表2

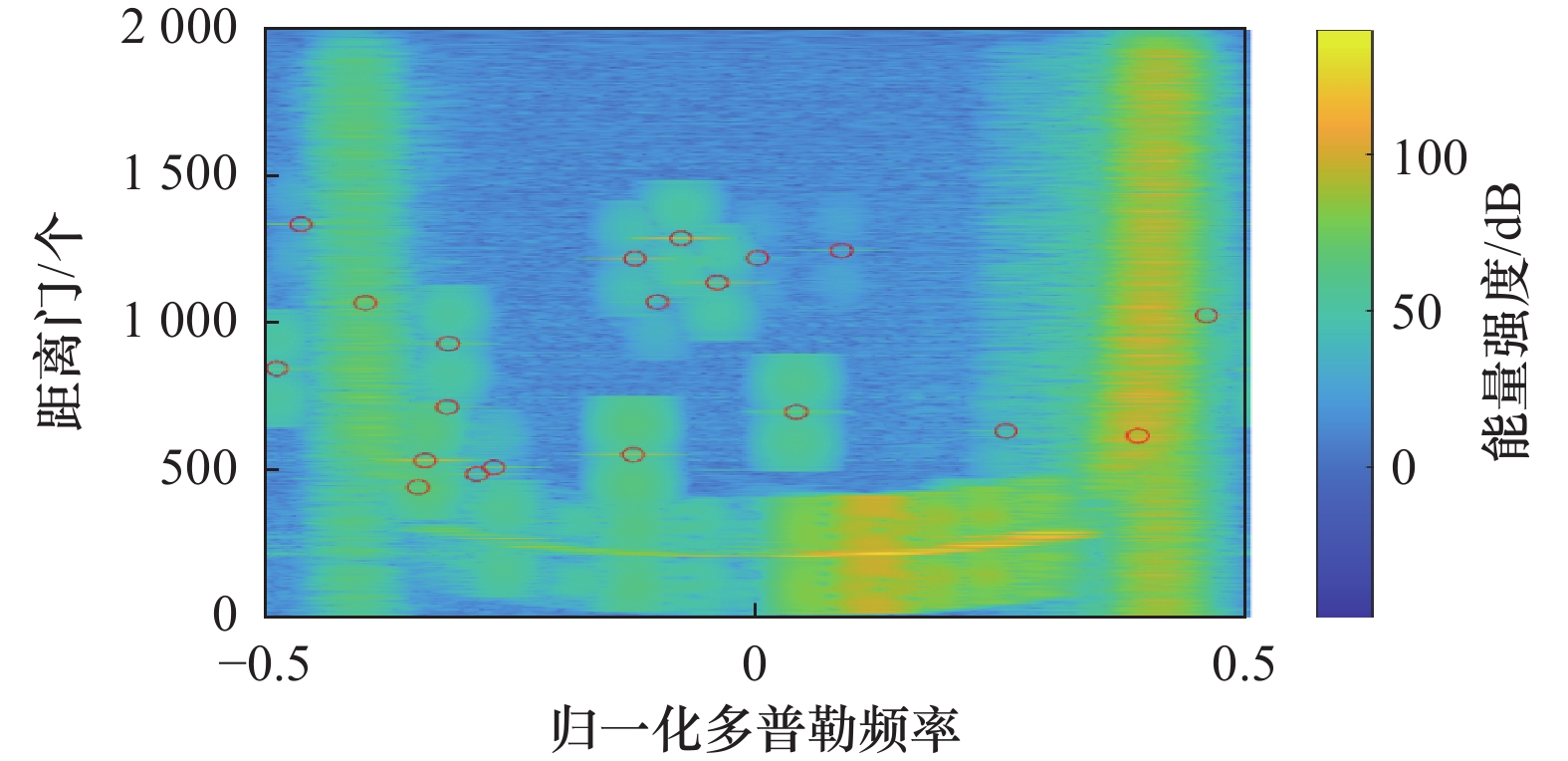

图3

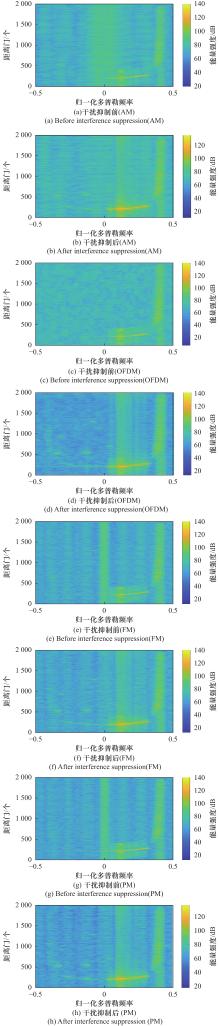

图4

表3

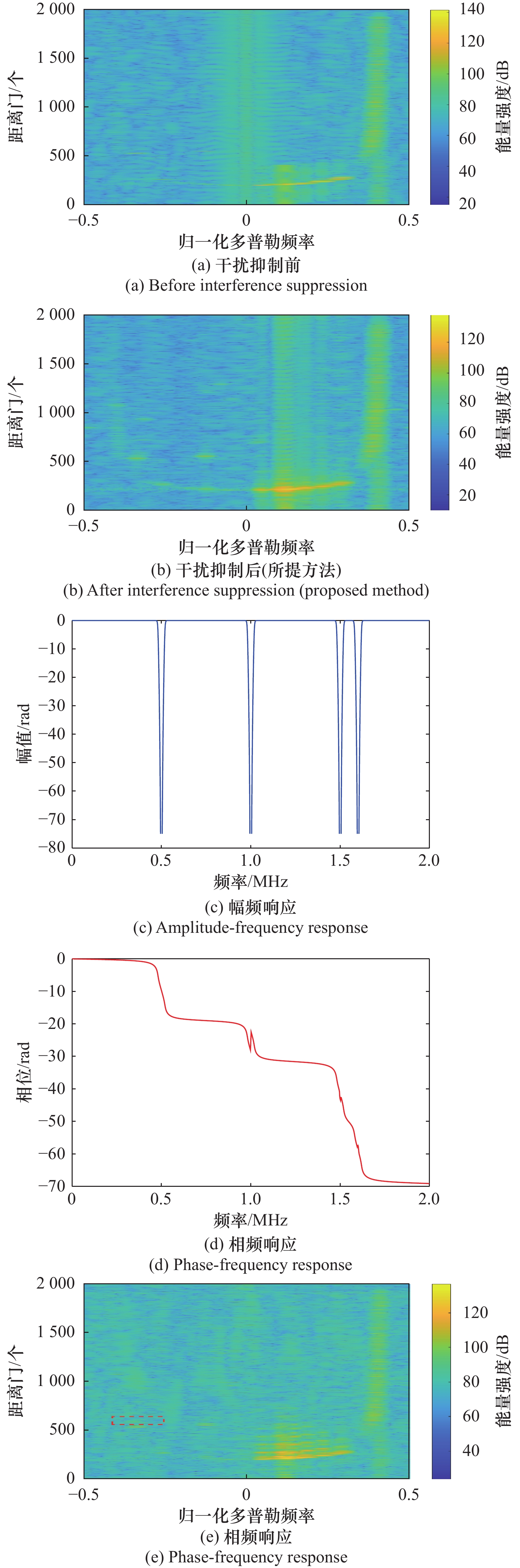

图5

表4

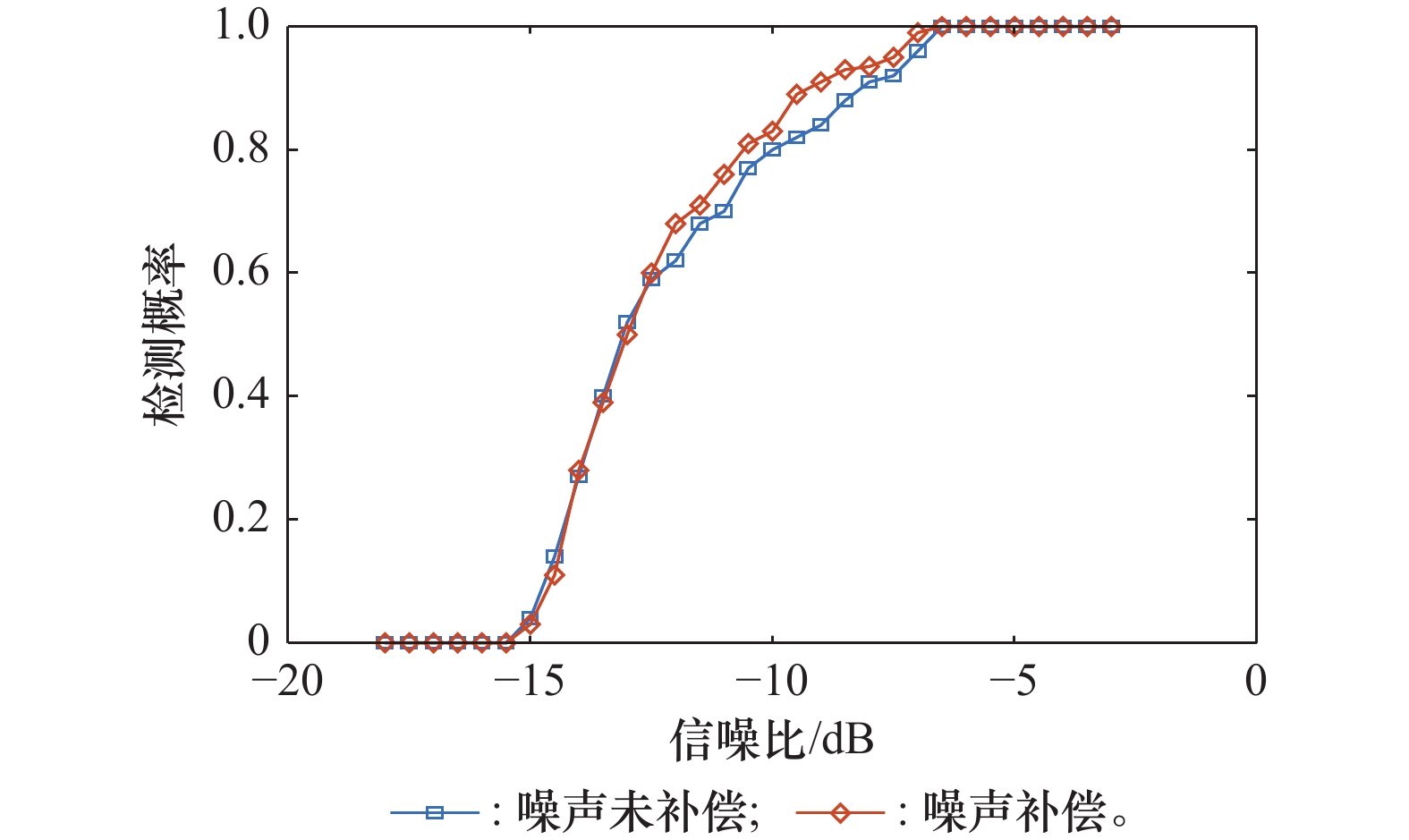

图6

参考文献 33

1	LIU D, WANG B N, WANG H, et al. Simulation of ultrashort wave communication scenario based on digital twin technology[C]//Proc. of the 6th International Conference on Communications, Information System and Computer Engineering, 2024: 203−211.
2	DANDEKAR P, DANDEKAR M, PHUTANE P. A comprehensive review on wireless communication and networking advances[C]//Proc. of the IEEE 3rd International Conference on Electrical Power and Energy Systems, 2024.
3	YAN Y F, CHEN H, SU J H. Overview on anti-jamming technology in main lobe of radar[C]//Proc. of the IEEE 4th International Conference on Automation, Electronics and Electrical Engineering, 2021: 67−71.
4	周长霖, 王春阳, 陈赓, 等. 雷达主瓣反干扰研究进展及展望[J]. 信息对抗技术, 2024, 3 (4): 1- 16. doi: 10.12399/j.issn.2097-163x.2024.04.001
	ZHOU C L, WANG C Y, CHEN G, et al. Research progress and prospects of radar mainlobe anti-jamming[J]. Information Countermeasure Technology, 2024, 3 (4): 1- 16. doi: 10.12399/j.issn.2097-163x.2024.04.001
5	FANG J H, SONG B J, ZHU M Z. Anti-main lobe slicing reconstruction jamming based on improved blind source separation algorithm[C]//Proc. of the IEEE International Conference on Signal Processing, Communications and Computing, 2022.
6	LU Z, CUI Z M, CHEN W D. Research on a sparse blind source separation method for anti main lobe active interference[C]//Proc. of the 5th International Conference on Frontiers Technology of Information and Computer, 2023: 1164−1168.
7	YAO Y, ZHANG M M, YANG X, et al. Adaptive beam pattern optimization of planar array under main lobe interference condition[C]//Proc. of the International Conference on Electronic & Mechanical Engineering and Information Technology, 2011: 3341−3344.
8	ZHAO Y J, TIAN B, LI H W, et al. An improved TSMVDV algorithm based on FDA-MIMO[C]//Proc. of the 6th International Symposium on Computer and Information Processing Technology, 2021: 223−228.
9	LUO F Y, ZHANG J H, MENG J. A space hopping inspired mainlobe interference cancellation method[C]//Proc. of the International Conference on Microwave and Millimeter Wave Technology, 2022.
10	ZHOU K, QUAN S N, LI D X, et al. Waveform and filter joint design method for pulse compression sidelobe reduction[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5107615. doi: 10.1109/tgrs.2021.3131590
11	ZHANG K, DUAN M, YU J, et al. Research on complex waveform agile anti-main lobe interference method based on time-frequency interference analysis[C]//Proc. of the IEEE 7th Information Technology, Networking, Electronic and Automation Control Conference, 2024: 721−725.
12	刘江, 李健聪, 蔡伯根, 等. 基于自适应陷波滤波的列车卫星定位窄带干扰防护[J]. 铁道学报, 2022, 44 (5): 49- 59. doi: 10.3969/j.issn.1001-8360.2022.05.007
	LIU J, LI J C, CAI B G, et al. Narrowband interference protection for train satellite positioning based on adaptive notch filtering[J]. Journal of the China Railway Society, 2022, 44 (5): 49- 59. doi: 10.3969/j.issn.1001-8360.2022.05.007
13	王安安, 谢文冲, 陈威, 等. 双基地机载雷达杂波和主瓣压制干扰抑制方法[J]. 系统工程与电子技术, 2023, 45 (3): 699- 707. doi: 10.12305/j.issn.1001-506X.2023.03.10
	WANG A A, XIE W C, CHEN W, et al. Clutter and main-lobe suppression jamming suppression method for bistatic airborne radar[J]. Systems Engineering and Electronics, 2023, 45 (3): 699- 707. doi: 10.12305/j.issn.1001-506X.2023.03.10
14	郭巍, 潘申富, 陈敬乔. 基于选择性陷波的窄带干扰抑制策略研究[J]. 无线电工程, 2020, 50 (6): 437- 441. doi: 10.3969/j.issn.1003-3106.2020.06.002
	GUO W, PAN S F, CHEN J Q. Research on narrowband interference suppression strategies based on selective notching[J]. Radio Engineering, 2020, 50 (6): 437- 441. doi: 10.3969/j.issn.1003-3106.2020.06.002
15	韩博文, 兰天, 杨小鹏. 分布式阵列雷达波束-极化域联合主瓣干扰抑制方法[J]. 现代雷达, 2021, 43 (10): 21- 26.
	HAN B W, LAN T, YANG X P. Joint mainlobe interference suppression method in the beam-polarization domain for distributed array radar[J]. Modern Radar, 2021, 43 (10): 21- 26.
16	LIU X, XU Y H, JIA L L, et al. Anti-jamming communications using spectrum waterfall: a deep reinforcement learning approach[J]. IEEE Communications Letters, 2018, 22 (5): 998- 1001. doi: 10.1109/LCOMM.2018.2815018
17	LI H H, SUI T, LIU H C, et al. Design and implementation of software simulation for air-ground data link communication[C]// Proc. of the 8th International Symposium on Computational Intelligence and Design, 2015: 379−382.
18	SUN L L. Research on construction and simulation of communication system model based on ODFM technology[C]//Proc. of the IEEE International Conference on Sensors, Electronics and Computer Engineering, 2023: 1361−1365.
19	熊元燚, 谢文冲, 王永良, 等. 基于空时采样矩阵的机载MIMO雷达杂波抑制方法[J]. 信号处理, 2023, 39 (5): 774- 785. doi: 10.16798/j.issn.1003-0530.2023.05.002
	XIONG Y Y, XIE W C, WANG Y L, et al. Clutter suppression method for airborne MIMO radar based on spacetime sampling matrix[J]. Signal Processing, 2023, 39 (5): 774- 785. doi: 10.16798/j.issn.1003-0530.2023.05.002
20	ZHENG B W, LIU H, ZHAI G W, et al. Comparative study on adaptive digital beamforming techniques[C]//Proc. of the IEEE 6th Advanced Information Management, Communicates, Electronic and Automation Control Conference, 2024: 1086−1090.
21	SERBES A. Fast and efficient estimation of frequencies[J]. IEEE Trans. on Communications, 2021, 69 (6): 4054- 4066. doi: 10.1109/TCOMM.2021.3067383
22	WANG L K, ZHOU X F, SOBELMAN G E, et al. Generic mixed-radix FFT pruning[J]. IEEE Signal Processing Letters, 2012, 19 (3): 167- 170. doi: 10.1109/LSP.2012.2184283
23	ZHANG Y X, SHAO L. Design of mixed-radix FFT algorithm based on FPGA[C]//Proc. of the 7th International Conference on Communication, Image and Signal Processing, 2022: 418−422.
24	CHENG Z P, MA Q, ZHU H W. Analysis of the computational complexity of mixed basis FFT algorithm[J]. Journal of Terahertz Science and Electronic Information, 2016, 14 (6): 925- 928.
25	LIU Y Y, GAI S H, LIU P, et al. Design of a FFT processor based on the variable mixed-radix algorithm[C]//Proc. of the 19th International Conference on Natural Computation, Fuzzy Systems and Knowledge Discovery, 2023.
26	WU W M, JIN Y, LI Y, et al. Maximum-likelihood, magnitude-based, amplitude and noise variance estimation[J]. IEEE Signal Processing Letters, 2021, 28, 414- 418.
27	GAO Y L, LAU A P T, LU C, et al. Low-complexity two-stage carrier phase estimation for 16-QAM systems using QPSK partitioning and maximum likelihood detection[C]//Proc. of the Optical Fiber Communication Conference and Exposition and the National Fiber Optic Engineers Conference, 2011.
28	YANG L X, CHENG J L, HOLZMAN J F. Maximum likelihood estimation of the lognormal-rician FSO channel model[J]. IEEE Photonics Technology Letters, 2015, 27 (15): 1656- 1659. doi: 10.1109/LPT.2015.2433871
29	祝宏, 张海, 唐高弟, 等. 非高斯色噪声下的雷达波形优化方法[J]. 西安电子科技大学学报, 2017, 44 (2): 101- 106. doi: 10.3969/j.issn.1001-2400.2017.02.018
	ZHU H, ZHANG H, TANG G D, et al. Optimization method for radar waveform under non-Gaussian colored noise[J]. Journal of Xidian University, 2017, 44 (2): 101- 106. doi: 10.3969/j.issn.1001-2400.2017.02.018
30	李虎, 谢文冲, 熊元燚, 等. 基于先验知识的机载雷达自适应训练样本选取的方法[J]. 空天预警研究学报, 2023, 37 (2): 89- 93，104. doi: 10.3969/j.issn.2097-180X.2023.02.002
	LI H, XIE W C, XIONG Y Y, et al. Method for selecting adaptive training samples for airborne radar based on prior knowledge[J]. Journal of Air & Space Early Warning Research, 2023, 37 (2): 89- 93，104. doi: 10.3969/j.issn.2097-180X.2023.02.002
31	WANG Z L, TAO L, CHENG T. A fast simulation method in range-Doppler domain for airborne radar clutter[C]//Proc. of the IEEE 7th International Symposium on Electromagnetic Compatibility, 2023.
32	CHENG Y, YUE J S. Simulation approach for spatiotemporal two-dimensional ground clutter based on DEM data[C]//Proc. of the 5th International Academic Exchange Conference on Science and Technology Innovation, 2023: 404−407.
33	佟星元, 贺璐璐, 杜慧敏, 等. 针对级联型IIR滤波器群延时的均衡优化技术[J]. 电子学报, 2019, 47 (8): 1717- 1723.
	TONG X Y, HE L L, DU H M, et al. Equalization based optimization technique for group delay of cascaded IIR filter[J]. Acta Electronica Sinica, 2019, 47 (8): 1717- 1723.

参数分类	名称	取值
系统参数	峰值发射功率/kW	230
	脉冲重复频率/Hz	2 000
	载频/MHz	450
天线参数	阵元方向图	余弦方向图
天线参数	阵元增益/dB	4
载机参数	高度/km	8
载机参数	速度/（m/s）	220

参数分类	名称	取值
干扰参数	调制方式	AM、OFDM、FM、PM
	干扰信号个数	4
	干扰方位角/（°）	88、89、90、91
	干扰俯视角/（°）	1、1、1、1
	载频/MHz	451.6、451.5、451.0、450.5
目标参数	目标方位角/（°）	88≤θ≤92
	目标俯视角/（°）	0≤ψ≤2
	目标个数	20

干扰信号类型	干扰信号功率/dBm	SINR改善/dB
AM	14	7.23
	20	10.96
	26	14.32
OFDM	14	7.70
	20	11.42
	26	15.13
FM	14	7.38
	20	11.28
	26	14.68
PM	14	6.72
	20	10.68
	26	14.17

序号	噪声功率谱密度估计偏差率/%	信干噪比改善/dB
1	0	11.42
2	50	11.16
3	100	10.82
4	150	10.44
5	200	10.03
6	250	9.60
7	300	9.16
