鲁棒性非线性动力学辐射源指纹特征提取方法

doi:10.12305/j.issn.1001-506X.2025.04.03

摘要/Abstract

摘要：

辐射源系统特有的非线性可用于辐射源指纹识别(radio frequency fingerprinting, RFF)。特别地，基于非线性动力学重构相空间(reconstructed phase space, RPS)的特征对线性信道具有天然优势，且对细微差异更加敏感。然而，该方法在非理想场景中同样面临着鲁棒性不足的问题。为此, 分析非线性动力学基础与其对应的RFF机理, 结合实际非理想应用场景完善了相关理论模型; 在此基础上，构造相空间K阶状态转移矩阵, 提出通过表征K阶状态转移矩阵的特性来提取RFF特征的方法, 并通过理论证明其鲁棒性。基于多种实测和仿真数据在随机扰动、多径衰落等场景下进行细致实验, 结果表明所提方法特征机理清晰、计算简单, 在多种场景下均表现出明显的鲁棒性优势, 具有较高的应用价值。

关键词: 辐射源指纹识别, 非线性动力学, 重构相空间, 无意调制

Abstract:

The uniqe nonlinear characteristic of the emitter system can be used in the radio frequency fingerprinting (RFF) technique. Especially, the nonlinear dynamics reconstructed phase space (RPS) feature has a natural advantage over the linear channel and is more sensitive to the subtle differences. However, it is also not robust enough under non-ideal scenarios. To solve this problem, the basis of nonlinear dynamics and its corresponding mechanism for RFF are analyzed, and the relevant theoretical model related to real and non-ideal application scenarios is improved in this paper.On this basis, the phase space K-order state transfer matrix is constructed, and the method to extract the RFF feature by characterising the properties of the K-order state transfer matrix is proposed, and its robustness is theoretically analyzed.Multiple experiments are carried out with the scenarios of random turbulence and multipath fading with real test and simulation data and the results show that the proposed feature is simple to compute, clear in mechanism, and has an obvious robustness advantage in many scenarios and high application value.

Key words: radio frequency fingerprinting (RFF), nonlinear dynamics, reconstructed phase space (RPS), unintentional modulation (UM)

中图分类号:

TN97

孙丽婷, 柳征, 黄知涛. 鲁棒性非线性动力学辐射源指纹特征提取方法[J]. 系统工程与电子技术, 2025, 47(4): 1048-1056.

Liting SUN, Zheng LIU, Zhitao HUANG. Robust radio frequency fingerprinting feature extraction method based on nonlinear dynamics[J]. Systems Engineering and Electronics, 2025, 47(4): 1048-1056.

图/表 10

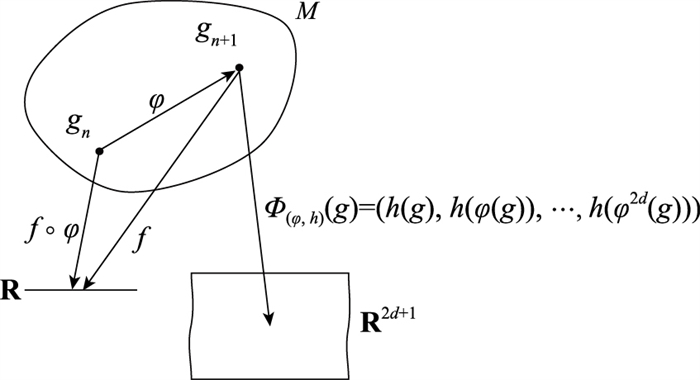

图1

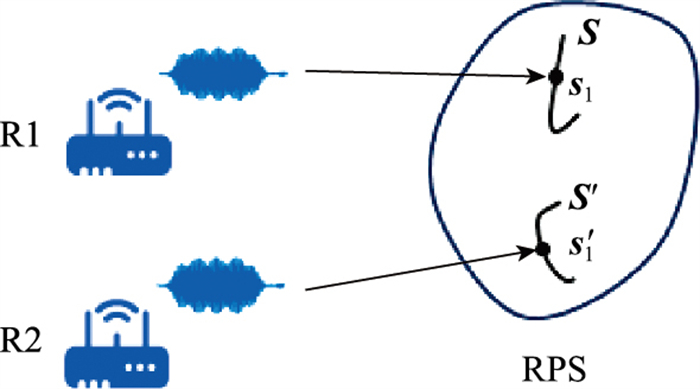

图2

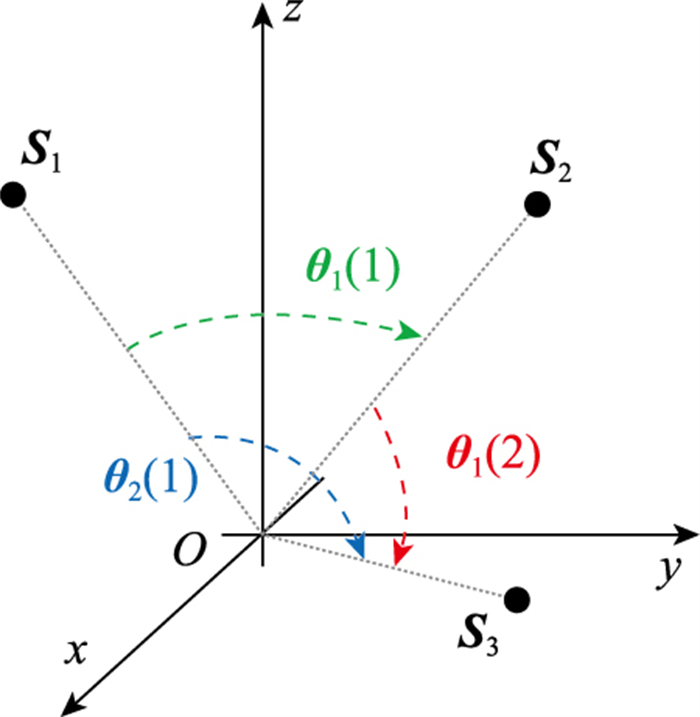

图3

表1

表2

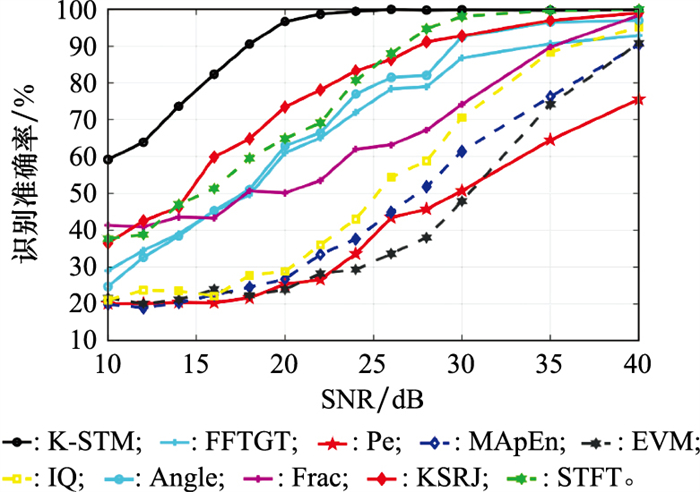

图4

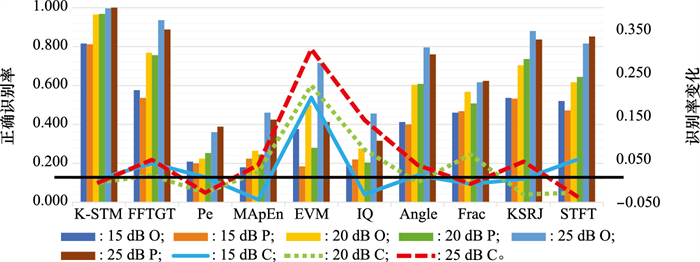

图5

表3

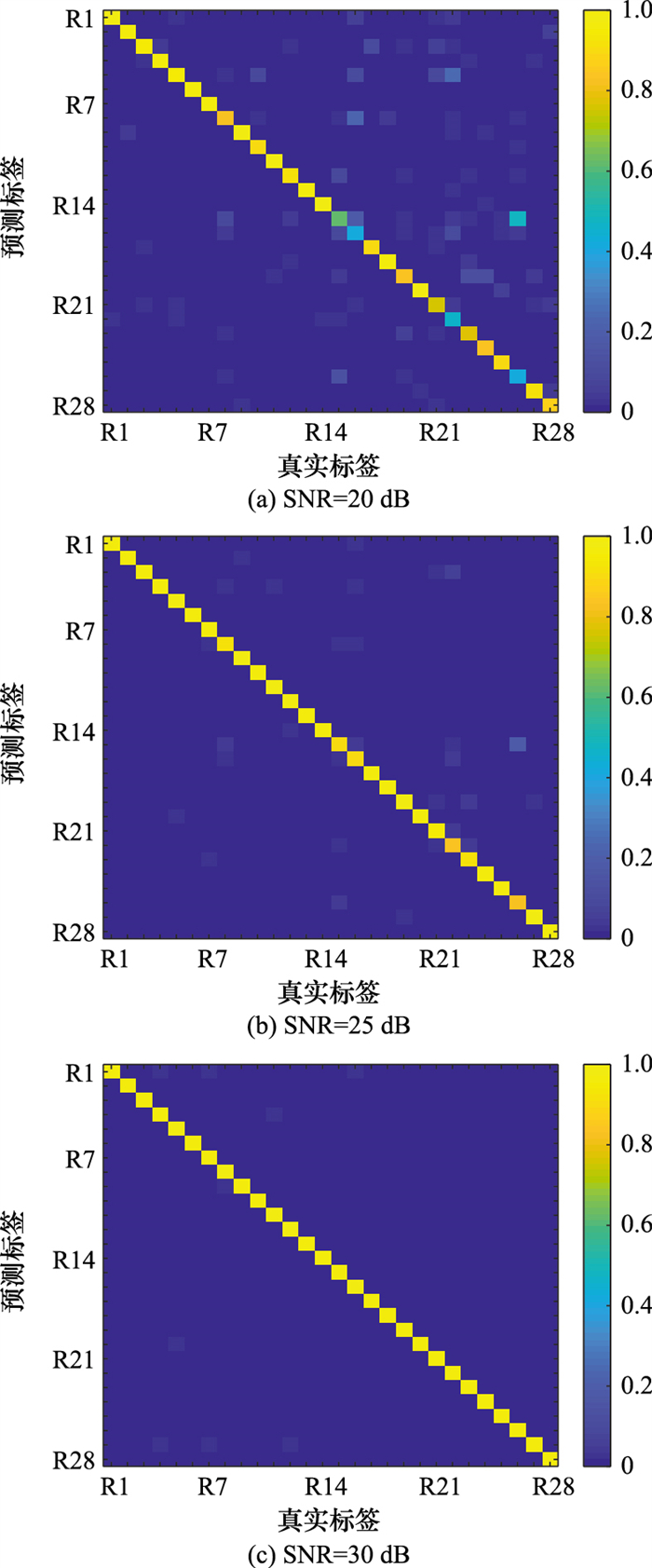

图6

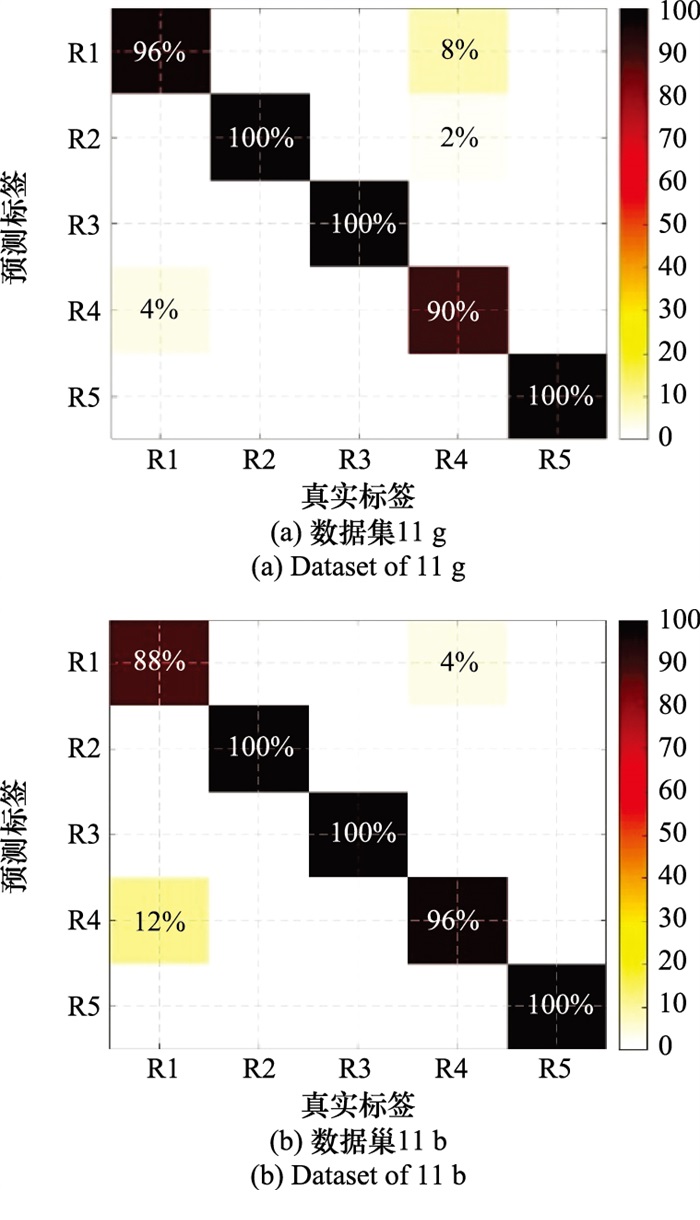

图7

参考文献 36

1	XU Z W , HAN G J , LIU L , et al. A lightweight specific emitter identification model for ⅡoT devices based on adaptive broad learning[J]. IEEE Trans. on Industrial Informatics, 2023, 19 (5): 7066- 7075. doi: 10.1109/TII.2022.3206309
2	陈翔, 汪连栋, 许雄, 等. 基于Raw I/Q和深度学习的射频指纹识别方法综述[J]. 雷达学报, 2023, 12 (1): 214- 234.
	CHEN X , WANG L D , XU X , et al. A review of radio frequen cy fingerprinting methods based on Raw I/Q and deep learning[J]. Journal of Radars, 2023, 12 (1): 214- 234.
3	FANG Y Y , WEI S , ZHAO Y , et al. Radar-specific emitter identification with only envelope power based on multidimensional complex noncentral Chi-square classifier[J]. IEEE Sensors Journal, 2023, 23 (17): 20223- 20235. doi: 10.1109/JSEN.2023.3298352
4	HE B X , WANG F G . Specific emitter identification via sparse Bayesian learning versus model-agnostic meta-learning[J]. IEEE Trans. on Information Forensics and Security, 2023, 18, 3677- 3691. doi: 10.1109/TIFS.2023.3287073
5	韦建宇, 俞璐. 通信辐射源个体识别中的特征提取方法综述[J]. 通信技术, 2022, 55 (6): 681- 687.
	WEI J Y , YU L . Overview of radio frequency fingerprint extraction in communication specific emitter identification[J]. Communications Technology, 2022, 55 (6): 681- 687.
6	TAN K W , YAN W J , ZHANG L M , et al. Semi-supervised specific emitter identification based on bispectrum feature extraction CGAN in multiple communication scenarios[J]. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (1): 292- 310. doi: 10.1109/TAES.2022.3184619
7	YING W W, DENG P F, HONG S H. Channel attention mechanism -based multi-feature fusion network for specific emitter identification[C]// Proc. of the IEEE 4th International Conference on Civil Aviation Safety and Information Technology, 2022: 1325-1328.
8	DUDCZYK J , KAWALEC A . Fractal features of specific emi-tter identification[J]. Acta Physica Polonica A, 2013, 124 (3): 406- 409. doi: 10.12693/APhysPolA.124.406
9	HUANG Y L, ZHENG H. Radio frequency fingerprinting based on the constellation errors[C]//Proc. of the 18th Asia-Pacific Conference on Communications, 2012: 900-905.
10	PAN Y W, PENG H, LI T Y, et al. High-fidelity symbol synchronization for specific emitter identification[C]//Proc. of the IEEE 3rd Information Technology, Networking, Electronic and Automation Control Conference, 2019: 393-398.
11	PENG Y , LIU P F , WANG Y , et al. Radio frequency fingerprint identification based on slice integration cooperation and heat constellation trace figure[J]. IEEE Wireless Communications Letters, 2022, 11 (3): 543- 547. doi: 10.1109/LWC.2021.3135932
12	SHEN G X , ZHANG J Q , MARSHALL A , et al. Towards scalable and channel-robust radio frequency fingerprint identification for LoRa[J]. IEEE Trans. on Information Forensics and Security, 2022, 17, 774- 787. doi: 10.1109/TIFS.2022.3152404
13	SATIJA U , TRIVEDI N , BISWAL G , et al. Specific emitter identification based on variational mode decomposition and spectral features in single hop and relaying scenarios[J]. IEEE Trans. on Information Forensics and Security, 2019, 14 (3): 581- 591. doi: 10.1109/TIFS.2018.2855665
14	HAN G J , XU Z W , ZHU H B , et al. A two-stage model based on a complex-valued separate residual network for cross-domain ⅡoT devices identification[J]. IEEE Trans. on Industrial Informatics, 2024, 20 (2): 2589- 2599. doi: 10.1109/TII.2023.3296871
15	ZHA X , CHEN H , LI T Y , et al. Specific emitter identification based on complex Fourier neural network[J]. IEEE Communications Letters, 2022, 26 (3): 592- 596. doi: 10.1109/LCOMM.2021.3135378
16	ZHA H R , WANG H H , FENG Z M , et al. LT-SEI: long-tailed specific emitter identification based on decoupled representation learning in low-resource scenarios[J]. IEEE Trans. on Intelligent Transportation Systems, 2024, 25 (1): 929- 943. doi: 10.1109/TITS.2023.3308716
17	LIU Z M . Multi-feature fusion for specific emitter identification via deep ensemble learning[J]. Digital Signal Processing, 2021, 110, 102939. doi: 10.1016/j.dsp.2020.102939
18	FAN R , SI C K , HAN Y , et al. RFFsNet-SEI: a multidimensional balanced-RFFs deep neural network framework for specific emitter identification[J]. Journal of Systems Engineering and Electronics, 2023, 35 (3): 558- 574.
19	ZHANG X L , LI T Y , GONG P , et al. Variable-modulation specific emitter identification with domain adaptation[J]. IEEE Trans. on Information Forensics and Security, 2022, 18, 380- 395.
20	ZHANG T T, REN P Y, REN Z Y. Deep radio fingerprint ResNet for reliable lightweight device identification[C]//Proc. of the IEEE 94th Vehicular Technology Conference, 2021.
21	MCGINTHY J M , WONG L J , MICHAELS A J . Groundwork for neural network-based specific emitter identification authentication for IoT[J]. IEEE Internet of Things Journal, 2019, 6 (4): 6429- 6440. doi: 10.1109/JIOT.2019.2908759
22	PEGGS C S, JACKSON T S, TITTLEBAUGH A N, et al. Preamble-based RF-DNA fingerprinting under varying temperatures[C]//Proc. of the 12th Mediterranean Conference on Embedded Computing, 2023.
23	SUN L T , WANG X , YANG A F , et al. Radio frequency fingerprint extraction based on multi-dimension approximate entropy[J]. IEEE Signal Processing Letters, 2020, 27, 471- 475. doi: 10.1109/LSP.2020.2978333
24	袁英俊. 通信辐射源个体识别关键技术研究[D]. 长沙: 国防科技大学, 2014
	YUAN Y J. Research on key technologies of communication emitter identification[D]. Changsha: National University of Defense Technology, 2014.
25	ZHANG J Q , RAJENDRAN S , SUN Z , et al. Physical layer security for the internet of things: authentication and key ge-neration[J]. IEEE Wireless Communications, 2019, 26 (5): 92- 98. doi: 10.1109/MWC.2019.1800455
26	SUN L T , WANG X , ZHAO Y R , et al. Intrinsic low-di men sional nonlinear manifold structure of radio frequency signals[J]. IEEE Communications Letters, 2022, 26 (9): 2185- 2189. doi: 10.1109/LCOMM.2022.3173990
27	DENG S Y , HUANG Z T , WANG X , et al. Radio frequency fingerprint extraction based on multidimension permutation entropy[J]. International Journal of Antennas and Propagation, 2017, 2017, 1538728.
28	朱胜利. 混沌信号处理在辐射源个体识中的应用研究[D]. 成都: 电子科技大学, 2018.
	ZHU S L. Research on applications of chaotic signal processing in specific emitter identification[D]. Chengdu: University of Electronic Science and Technology of China, 2018.
29	CARROLL T L . A nonlinear dynamics method for signal identification[J]. Chaos, 2007, 17 (2): 023109. doi: 10.1063/1.2722870
30	YUAN Y J, HUANG Z T, WANG F H, et al. Radio specific emitter identification based on nonlinear characteristics of signal[C]// Proc. of the IEEE International Black Sea Conference on Communications and Networking, 2015: 77-81.
31	POVINELLI R J , JOHNSON M T , LINDGREN A C , et al. Statistical models of reconstructed phase spaces for signal cla-ssification[J]. IEEE Trans. on Signal Processing, 2006, 54 (6): 2178- 2186. doi: 10.1109/TSP.2006.873479
32	CARROLL T L . Phase space method for identification of driven nonlinear systems[J]. Chaos: an Interdisciplinary Journal of Nonlinear Science, 2009, 19 (3): 033121. doi: 10.1063/1.3207836
33	吴龙文. 脉冲体制辐射源无意调制特征分析及个体识别[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	WU L W. Research on unintentional modulation feature analysis and identification of specific pulsed emitter[D]. Harbin: Harbin Institute of Technology, 2020.
34	SUN L T , WANG X , HUANG Z T . Unintentional modulation evaluation in time domain and frequency domain[J]. Chinese Journal of Aeronautics, 2022, 35 (4): 376- 389. doi: 10.1016/j.cja.2021.05.013
35	HE B X , WANG F G . Cooperative specific emitter identification via multiple distorted receivers[J]. IEEE Trans. on Information Forensics and Security, 2020, 15, 3791- 3806. doi: 10.1109/TIFS.2020.3001721
36	FADUL M K M , REISING D R , SARTIPI M . Identification of OFDM-based radios under Rayleigh fading using RF-DNA and deep learning[J]. IEEE Access, 2021, 9, 17100- 17113. doi: 10.1109/ACCESS.2021.3053491

辐射源	滤波器失真		I/Q不平衡		功率放大器	杂散单音与载频泄露
辐射源	(a₀, a₁, α₁)	(b₀, b₁, β₁)	G	τ	(a₁, a₂, a₃)	a_ST	f_ST	ξ(10^－3)
R1	(1, 0.030, 0.25)	(1, 0.030 2, 0.25)	0.999 8	-0.018	(1, 0.50, 0.30)	0.008 2	0.012 9	1.3+8.2j
R2	(1, 0.060, 0.25)	(1, 0.029 5, 0.25)	1.005 6	0.017 5	(1, 0.08, 0.60)	0.007 5	0.013 2	1.5+7.2j
R3	(1, 0.085, 0.25)	(1, 0.029 0, 0.25)	1.010 2	0.012	(1, 0.01, 0.01)	0.007	0.012 3	1.1+6.8j
R4	(1, 0.073, 0.25)	(1, 0.031 0, 0.25)	0.999 2	0.003	(1, 0.01, 0.40)	0.008 7	0.013 5	1.7+9.0j
R5	(1, 0.040, 0.25)	(1, 0.031 3, 0.25)	0.998 2	0.024	(1, 0.60, 0.08)	0.009	0.011 9	2.0+6.5j

场景	信道延迟系数λ	信道衰减值方差σ²
L1	[1 0 0 1 0]	[0.8, 0, 0, 0.2, 0]
L2	[1 0 1 0 1]	[0.8, 0, 0.13, 0, 0.07]
L3	[1 1 1 1 1]	[0.865, 0.117, 0.016, 0.002, 0.000 3]

方法	SNR/dB	信道
方法	SNR/dB	L1	L2	L3	均值
K-STM	25	0.956	0.956	0.960	0.957
K-STM	30	0.976	0.976	0.992	0.981
Angle	25	0.924	0.880	0.958	0.921
Angle	30	0.944	0.896	0.988	0.943
Pe	25	0.444	0.336	0.328	0.369
Pe	30	0.532	0.536	0.496	0.521
EVM	25	0.584	0.352	0.380	0.439
EVM	30	0.720	0.584	0.792	0.699
I/Q	25	0.420	0.260	0.300	0.327
I/Q	30	0.516	0.372	0.592	0.493
