多准则联合的频谱兼容波形快速优化方法

doi:10.12305/j.issn.1001-506X.2025.04.02

摘要/Abstract

摘要：

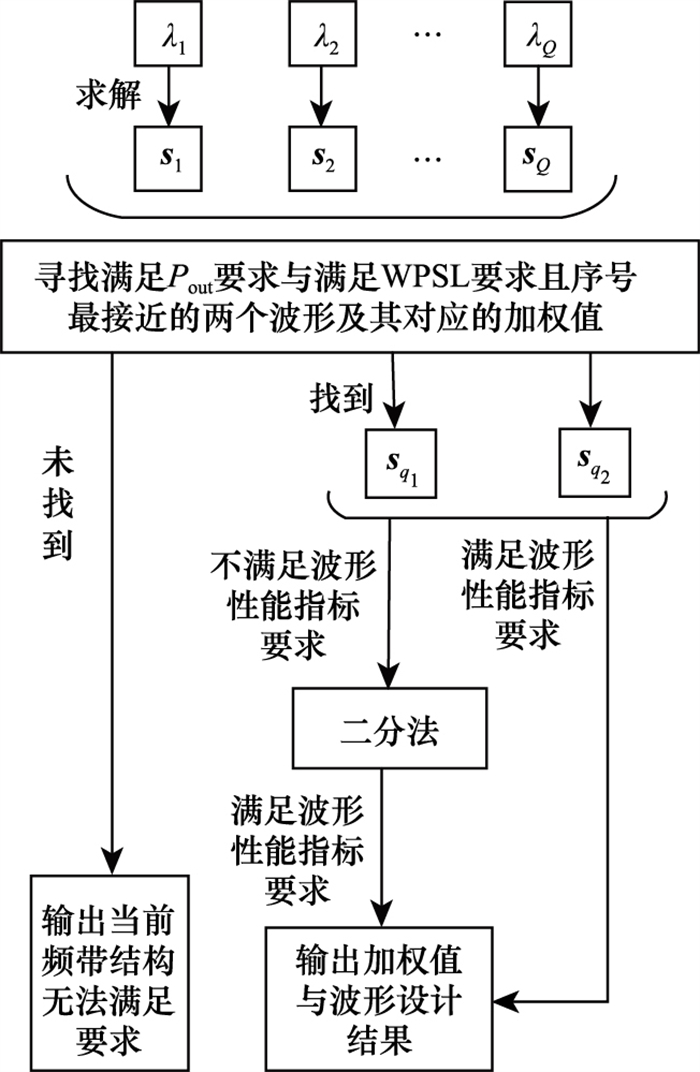

频谱兼容波形利用多段离散寂静带宽合成大带宽, 在满足带宽要求的同时有效对抗频域密集干扰。为了抑制频谱兼容波形的峰值旁瓣水平, 提出一种低峰值旁瓣频谱兼容波形设计方案。所提方案综合考虑波形的自相关峰值旁瓣性能和抗干扰性能, 构建加权目标函数。在波形恒模约束下, 该问题为非确定多项式难(non-deterministic polynomial-hard, NP-hard)问题。为此, 首先利用指数对数平滑技术逼近目标函数, 进而提出基于快速傅里叶变换的共轭梯度(conjugate gradient method based on fast Fourier transformation, CGFFT)法求解该问题。此外, 波形设计中需要根据性能指标要求选择合适的加权值, 为此提出一种加权值自适应确定方法, 最后通过数值仿真验证了所提方法的有效性。

关键词: 频谱兼容波形, 峰值旁瓣性能, 加权目标函数, 共轭梯度法

Abstract:

The spectrally compatible waveform uses multiple discrete silent bandwidths to synthesize a large bandwidth, which meets the bandwidth requirement and effectively combats dense interference in the frequency domain. In order to suppress the peak sidelobe level of the spectrally compatible waveform, a low peak sidelobe spectrally-compatible waveform design scheme is proposed. The proposed scheme comprehensively considers the autocorrelation peak sidelobe performance and anti-interference performance of the waveforms, and constructs a weighted objective function, which is an non-deterministic polynomial-hard (NP-hard) problem under the constant mode constraint of the waveforms. To this end, the objective function is first approximated using exponential logarithmic smoothing technique, and then the conjugate gradient method based on fast Fourier transformation (CGFFT) is proposed to solve the problem. In addition, the waveform design needs to select the appropriate weighting value according to the requirements of the performance index, and this paper proposes an adaptive determination method of the weighting value. Finally, the effectiveness of the proposed method is verified by numerical simulation.

Key words: spectrally compatible waveform, peak sidelobe level, weighted objective function, conjugate gradient method

中图分类号:

TN974

贾朝波, 于雷, 位寅生. 多准则联合的频谱兼容波形快速优化方法[J]. 系统工程与电子技术, 2025, 47(4): 1036-1047.

Zhaobo JIA, Lei YU, Yinsheng WEI. Fast optimization method for multi-criteria joint spectrally compatible waveform[J]. Systems Engineering and Electronics, 2025, 47(4): 1036-1047.

图/表 20

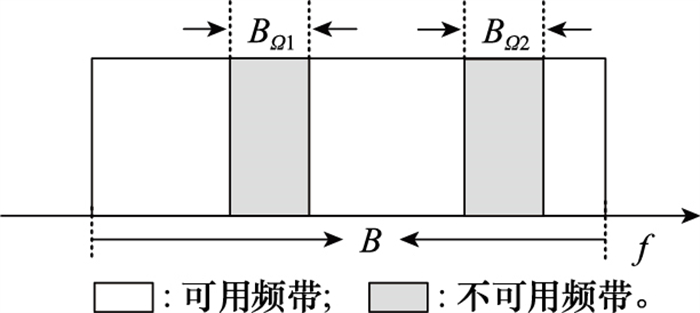

图1

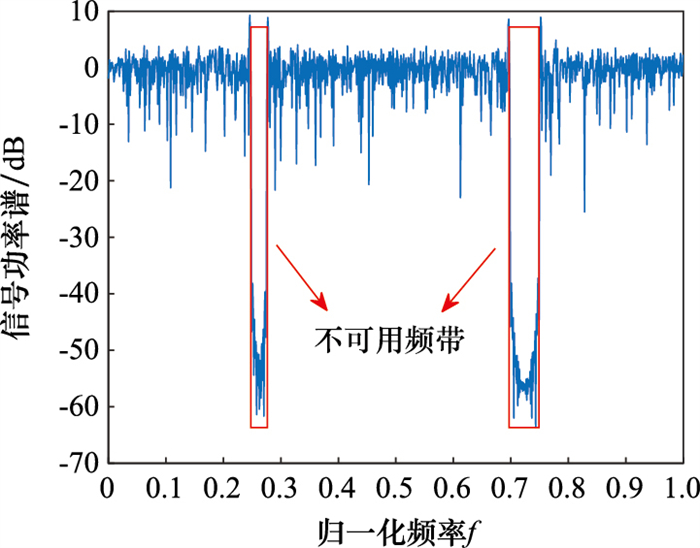

图2

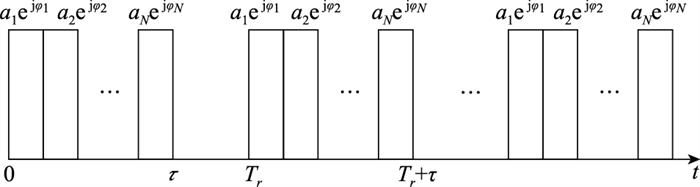

图3

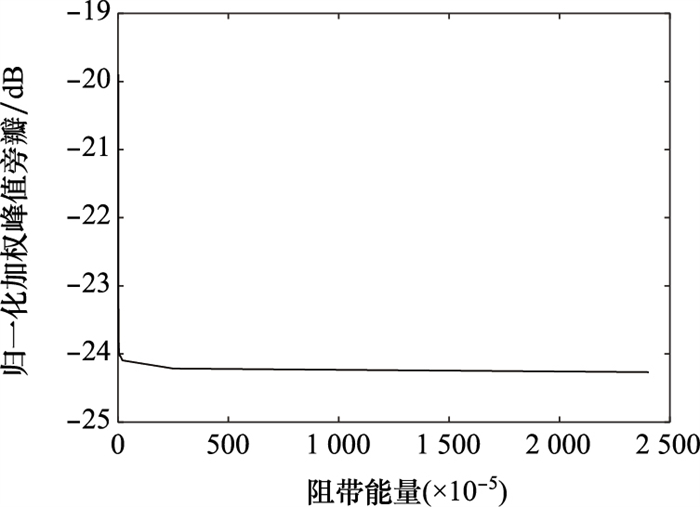

图4

图5

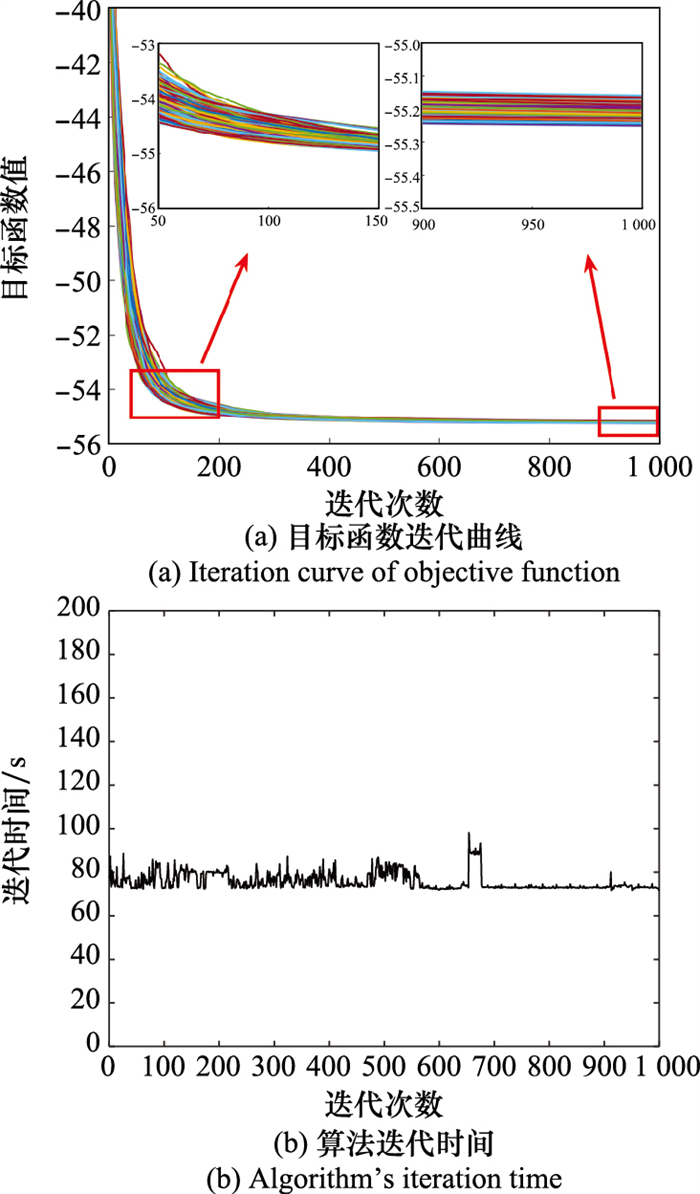

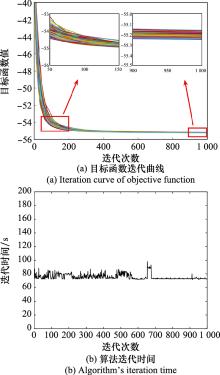

图6

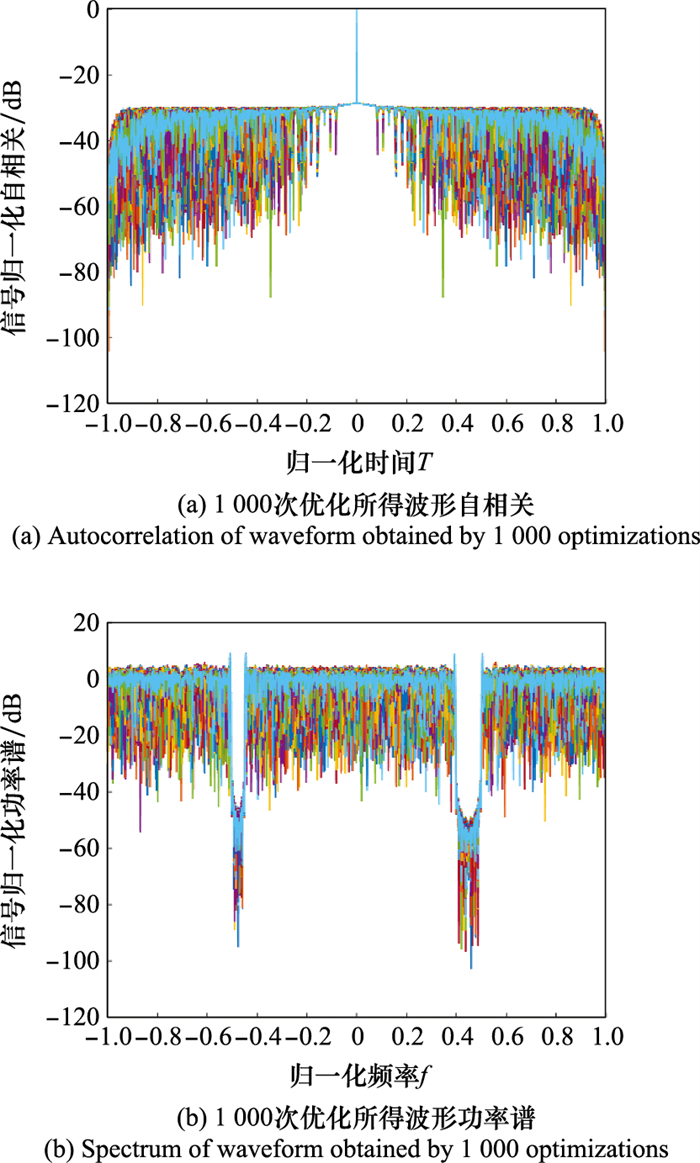

图7

图8

表1

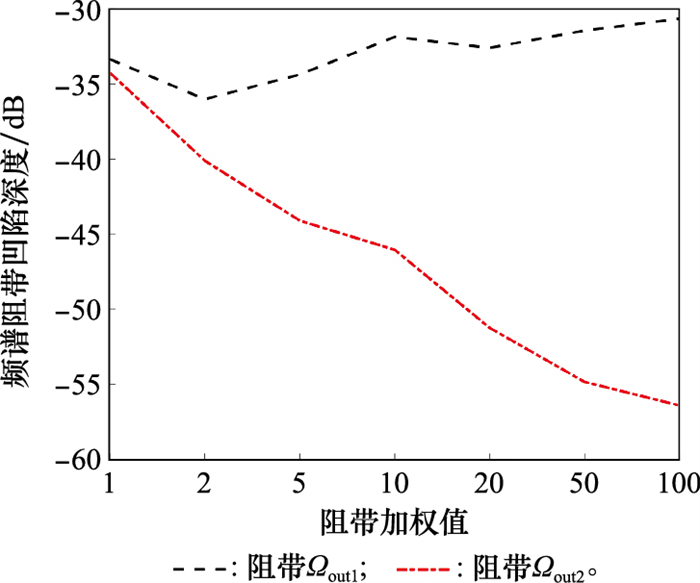

图9

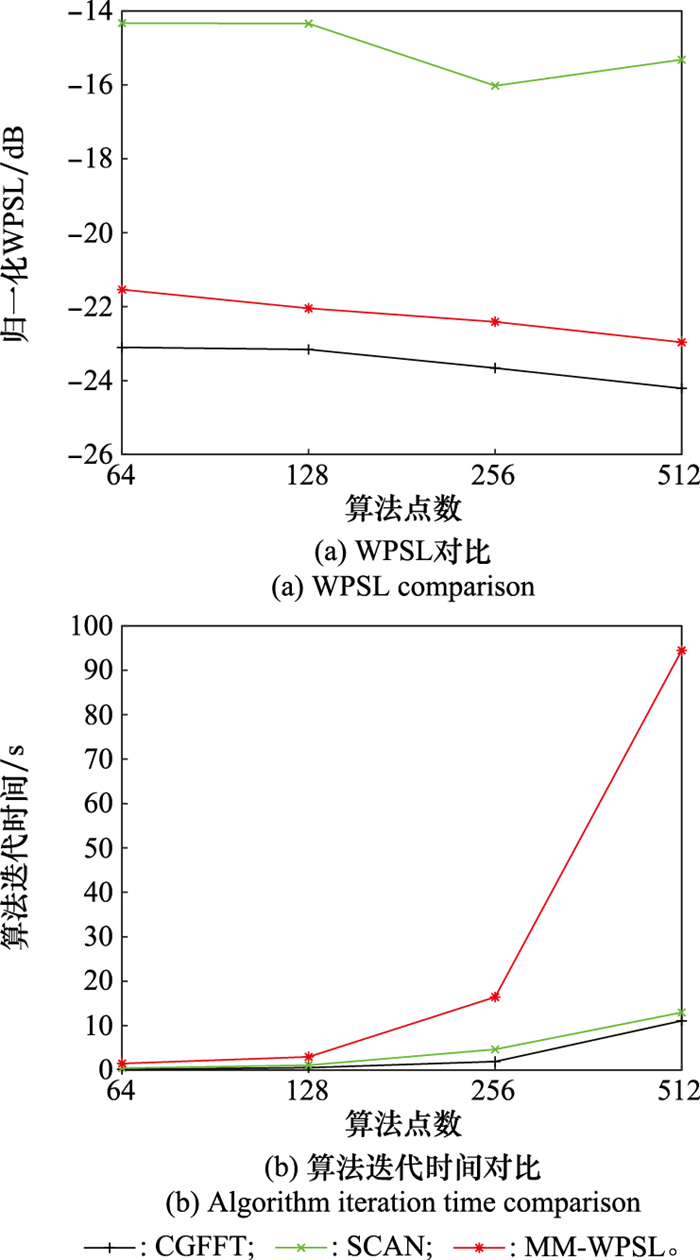

图10

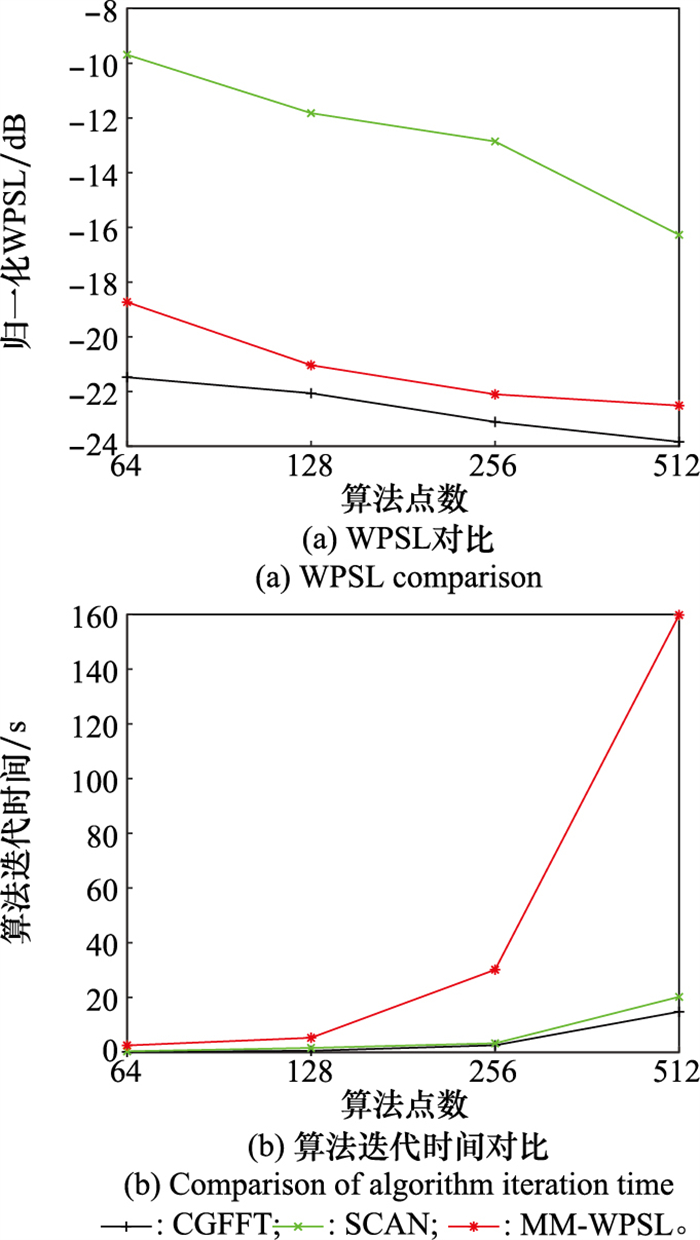

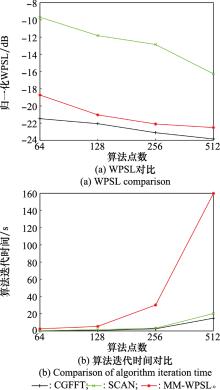

图11

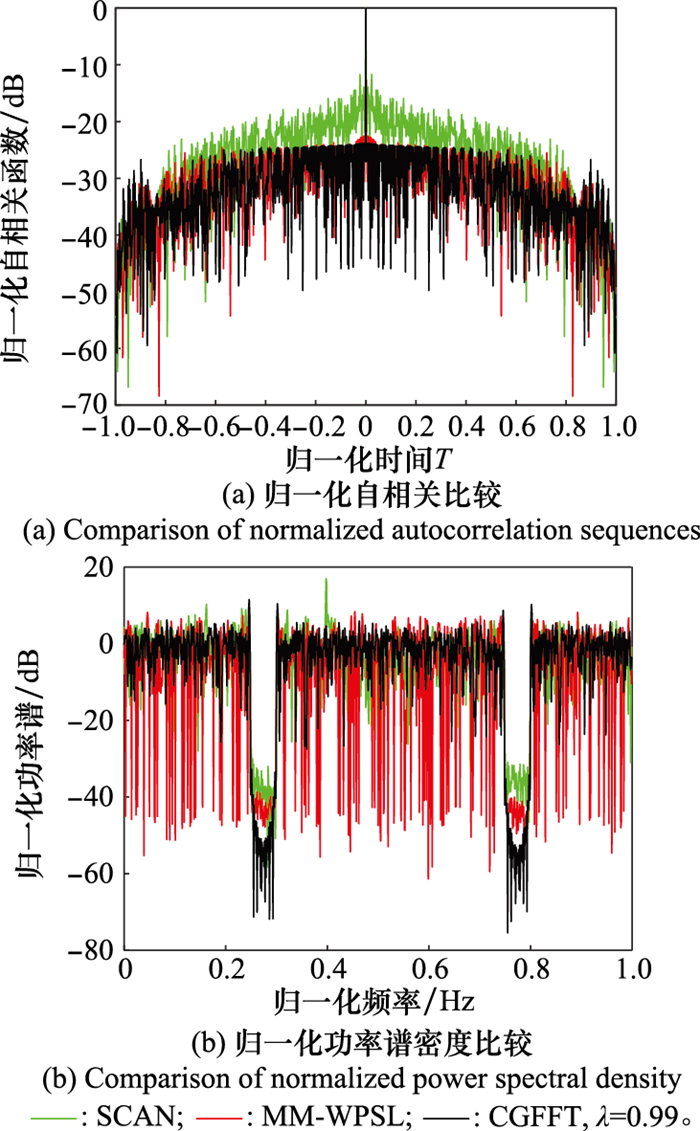

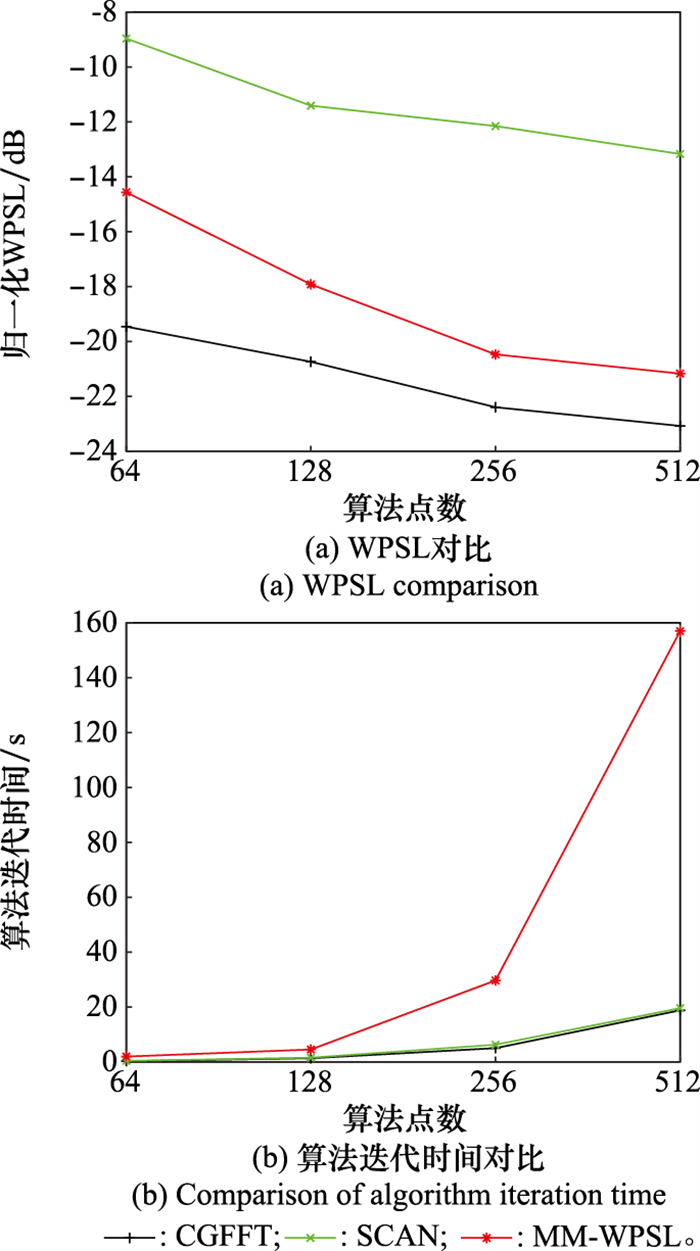

图12

表2

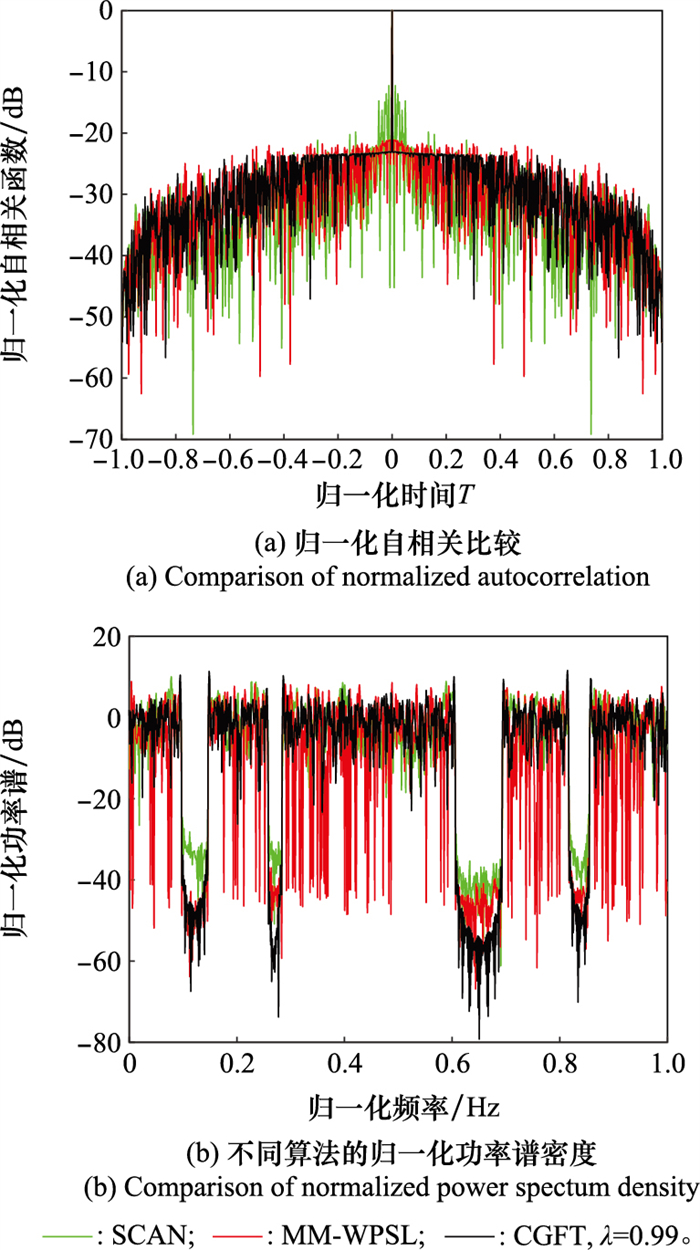

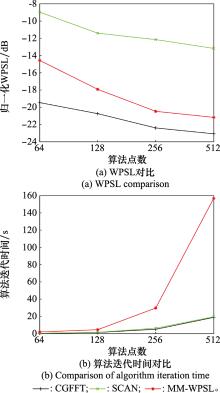

图13

图14

表3

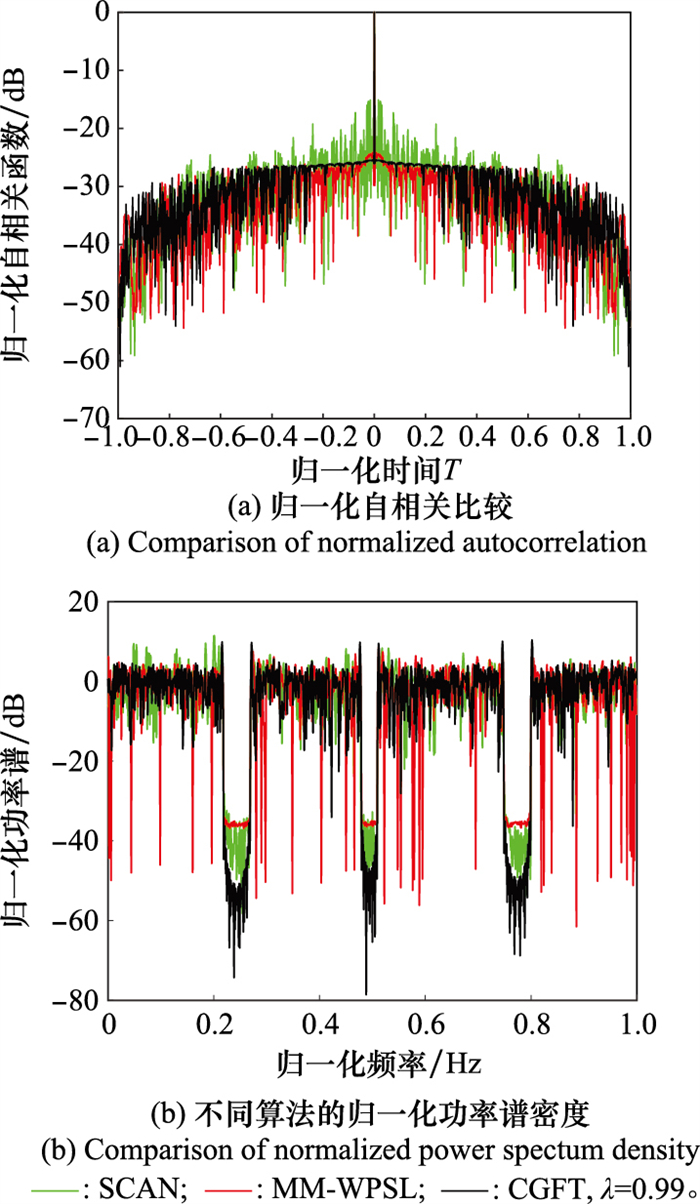

图15

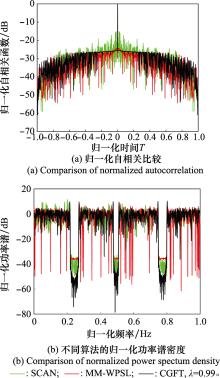

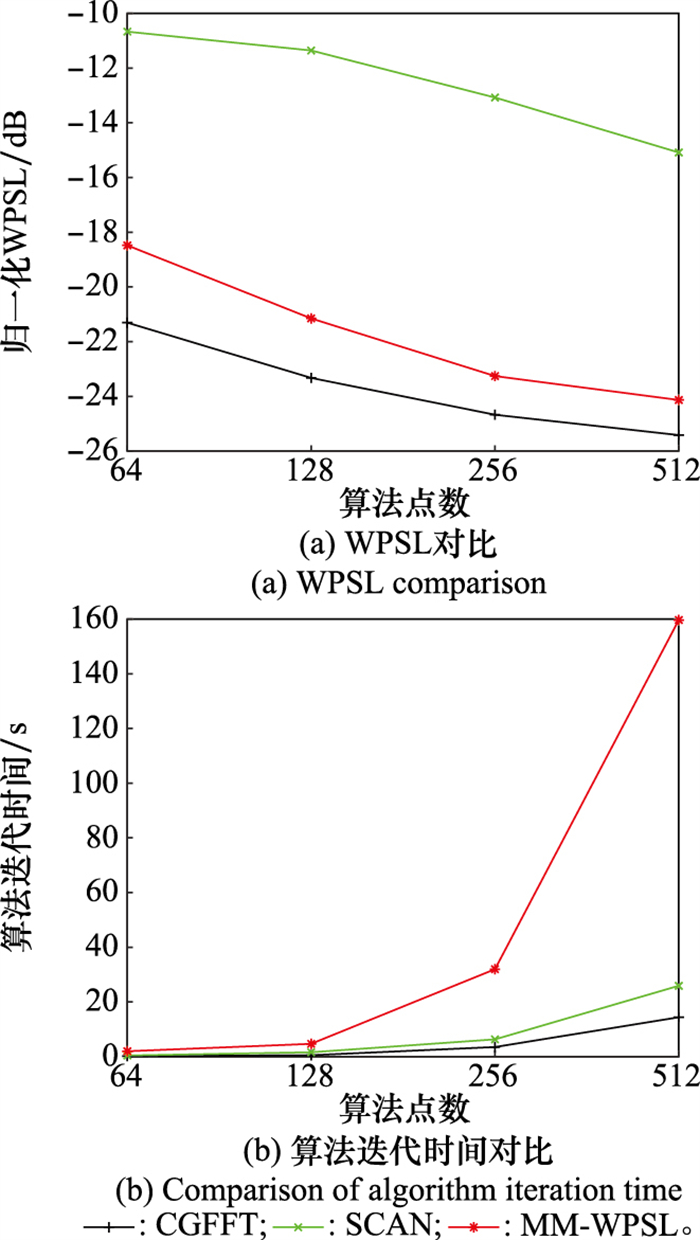

图16

表4

参考文献 31

1	BU Y , QIU H , FAN T , et al. Constant modulus sequence set design with low weighted integrated sidelobe level in spectrally crowded environments[J]. Science China: Information Sciences, 2022, 65 (5): 159303. doi: 10.1007/s11432-020-3249-1
2	位寅生, 徐朝阳. 非连续谱雷达信号设计综述[J]. 雷达学报, 2022, 11 (2): 183- 197.
	WEI Y S , XU Z Y . Review of signal design for discontinuous spectrum radar[J]. Journal of Radars, 2022, 11 (2): 183- 197.
3	ZHANG Y , WEI Y S , YU L . Anti-jamming pulse diversity phase coded waveform design based on periodic ambiguity function shaping[J]. Signal Processing, 2022, 196, 108510. doi: 10.1016/j.sigpro.2022.108510
4	WEI Y S, JIA Z B, XU Z Y. SINR and WPSL performance analysis for frequency sparse waveform[C]//Proc. of the IEEE International Radar Conference, 2023.
5	SALZMAN J, AKAMINE D, LEFEVRE R. Optimal waveforms and processing for sparse frequency UWB operation[C]//Proc. of the IEEE Radar Conference, 2001: 105-110.
6	ZHANG Y , WEI Y S , YU L . ISRJ rejection with MIMO radar using space-time complex modulation in multi-jamming scenario[J]. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (6): 8725- 8742. doi: 10.1109/TAES.2023.3308485
7	姚誉, 李泽清, 范文, 等. 基于ABSUM的MIMO雷达频谱兼容波形设计[J]. 雷达学报, 2022, 11 (4): 543- 556.
	YAO Y , LI Z Q , FAN W , et al. Spectrally compatible waveform design for MIMO radar based on ABSUM method[J]. Journal of Radars, 2022, 11 (4): 543- 556.
8	AUBRY A , CAROTENUTO V , DE M A , et al. Optimization theory-based radar waveform design for spectrally dense environments[J]. IEEE Aerospace and Electronic Systems Magazine, 2016, 31 (12): 14- 25. doi: 10.1109/MAES.2016.150216
9	TANG B , LIANG J L . Efficient algorithms for synthesizing probing waveforms with desired spectral shapes[J]. IEEE Trans. on Aerospace and Electronic Systems, 2018, 55 (3): 1174- 1189.
10	XU Z Y, WEI Y S. Waveform design of sparse frequency with limited ISL performance[C]//Proc. of the 6th International Conference on Imaging, Signal Processing and Communications, 2022: 77-81.
11	MAO Z N , WEI Y S . Interpulse-frequency-agile and intrapulse-phase-coded waveform optimisation for extend-range correlation sidelobe suppression[J]. IET Radar, Sonar & Navigation, 2017, 11 (10): 1530- 1539.
12	QUAN J H , ZHANG A L , XU P , et al. Radar and communication spectral sharing under multiple spectral compatibility constraints[J]. IEEE Wireless Communications Letters, 2022, 11 (10): 2120- 2124. doi: 10.1109/LWC.2022.3194353
13	王鑫海, 王超宇, 张宁, 等. 一种相位域低积分旁瓣雷达波形优化方法[J]. 雷达学报, 2022, 11 (2): 255- 263.
	WANG X H , WANG C Y , ZHANG N , et al. Phase-only method for designing a unimodular radar waveform with low ISL[J]. Journal of Radars, 2022, 11 (2): 255- 263.
14	WEI W Y , WEI Y S , YU L . MIMO waveforms design with good correlation properties under bound constraints[J]. Signal Processing, 2023, 212, 109168. doi: 10.1016/j.sigpro.2023.109168
15	ZHAO D H , WEI Y S , LIU Y T . Hopped-frequency waveform design for range sidelobe suppression in spectral congestion[J]. IET Radar, Sonar & Navigation, 2018, 12 (1): 87- 94.
16	LINDENFELD M J . Sparse frequency transmit-and-receive waveform design[J]. IEEE Trans. on Aerospace and Electronic Systems, 2004, 40 (3): 851- 861. doi: 10.1109/TAES.2004.1337459
17	LIANG J L , SO H C , LI J , et al. Unimodular sequence design based on alternating direction method of multipliers[J]. IEEE Trans. on Signal Processing, 2016, 64 (20): 5367- 5381. doi: 10.1109/TSP.2016.2597123
18	GREEN S D, KINGSLEY S P. Improving the range/time sidelobes of large bandwidth discontinuous spectra HF radar waveforms[C]//Proc. of the 7th International Conference on HF Radio Systems and Techniques, 1997: 246-250.
19	WEI Y S, LIU Y T. New anti-jamming waveform designing and processing for HF radar[C]//Proc. of the CIE International Conference on Radar Proceedings, 2001: 281-284.
20	ARASU K T, CLARK M R, MCMANUS T M. A new class of optimal frequency hopping sequences with applications to secure communication waveforms[C]//Proc. of the 33rd International Telecommunication Networks and Applications Conference, 2023: 19-24.
21	AUBRY A , CAROTENUTO V , DE M A . Forcing multiple spectral compatibility constraints in radar waveforms[J]. IEEE Signal Processing Letters, 2016, 23 (4): 483- 487. doi: 10.1109/LSP.2016.2532739
22	SHI S N , WANG Z Y , HE Z S , et al. Spectrally compatible waveform design for MIMO radar with ISL and PAPR constraints[J]. IEEE Sensors Journal, 2019, 20 (5): 2368- 2377.
23	ZHAO D H , WEI Y S , LIU Y T . PCFM radar waveform design with spectral and correlation considerations[J]. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (6): 2885- 2898. doi: 10.1109/TAES.2017.2719359
24	WANG Y H , WANG W , DENG Y K , et al. A 2D method based on nonlinear frequency modulation waveform and phase coding for range ambiguity suppression[J]. IEEE Geoscience and Remote Sensing Letters, 2023, 20, 4001205.
25	HE H, STOICA P, LI J. Waveform design with stopband and correlation constraints for cognitive radar[C]//Proc. of the 2nd International Workshop on Cognitive Information Processing, 2010: 344-349.
26	SHENTU X Y , LAI X P , WANG T L , et al. Efficient ADMM-based algorithm for regularized minimax approximation[J]. IEEE Signal Processing Letters, 2023, 30, 210- 214. doi: 10.1109/LSP.2023.3253053
27	ZENG S M, LI Y Z, TAO R. Two-dimensional transmit beam pattern design via majorization-minimization for MIMO radar[C]// Proc. of the 6th International Conference on Information Communication and Signal Processing, 2023: 604-608.
28	GONZÁLEZ R A , CLASSENS K , ROJAS C R , et al. Statistical analysis of block coordinate descent algorithms for linear continuous-time system identification[J]. IEEE Control Systems Letters, 2024, 8, 388- 393.
29	扈月松, 史小斌, 马兰. 一种基于遗传算法的正交波形设计方法[J]. 火控雷达技术, 2021, 50 (1): 8- 14.
	HU Y S , SHI X B , MA L . An orthogonal waveform design method based on genetic algorithm[J]. Fire Control Radar Technology, 2021, 50 (1): 8- 14.
30	薛永华, 李秀友, 关键. MIMO天波雷达非连续谱正交相位编码波形设计[J]. 信号处理, 2015, 31 (10): 1255- 1262.
	XUE Y H , LI X Y , GUAN J . MIMO skywave radar discontinuous spectra orthogonal phase coded waveform design[J]. Journal of Signal Processing, 2015, 31 (10): 1255- 1262.
31	FAN W , LIANG J L , SO H C , et al. Min-max metric for spectrally compatible waveform design via log-exponential smoot hing[J]. IEEE Trans. on Signal Processing, 2020, 68, 1075- 1090.

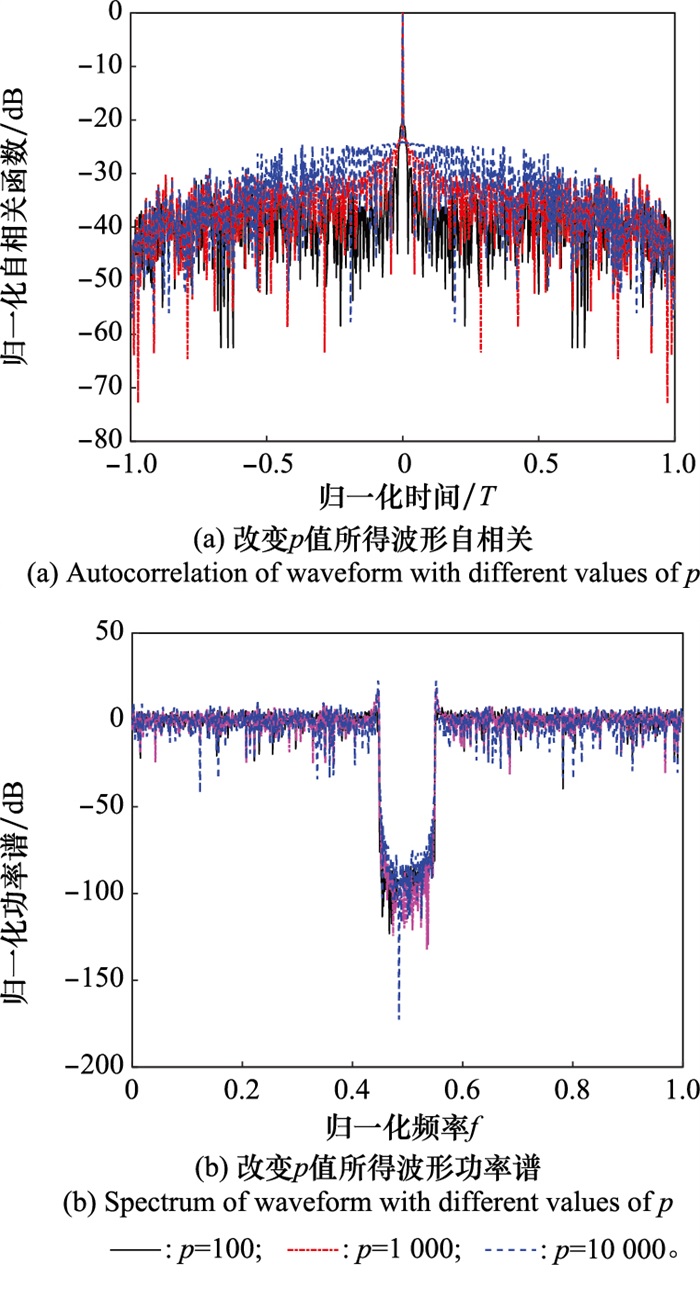

p值	WPSL/dB
100	-20.089 7
1 000	-23.330 3
10 000	-24.186 0

算法	WPSL/dB	阻带能量P_out
CGFFT, λ=0.9	-23.669 0	3.939 0×10^－4
CGFFT, λ=0.99	-23.832 2	0.005 0
CGFFT, λ=0.999	-23.975 1	0.053 2
SCAN	-11.681 0	0.031 6
MM-WPSL	-22.508 1	0.006 0

算法	WPSL/dB	阻带能量
CGFFT, λ=0.9	-22.895 8	8.157 9×10^－4
CGFFT, λ=0.99	-23.047 4	0.007 9
CGFFT, λ=0.999	-23.200 1	0.073 8
SCAN	-12.235 8	0.078 9
MM-WPSL	-21.099 6	0.009 5

λ	WPSL/dB	P_out/10^-4
0.8	-23.576 2	1.521 7
0.9	-23.618 0	2.220 8
0.95	-23.628 0	5.586 0
0.99	-23.871 5	29
0.999	-24.150 3	363
