基于GPR-UKF的天文测角/测速组合导航方法

doi:10.12305/j.issn.1001-506X.2024.12.27

摘要/Abstract

摘要：

在以太阳作为目标源的天文测速导航中，多普勒速度量测量存在较多野值误差，严重影响导航精度。对此，提出一种基于高斯过程回归与无迹卡尔曼滤波(Gaussian process regression and unscented Kalman filtering，GPR-UKF)的野值检测修复方法，建立速度量测量的动态预测模型。此外，还针对不同参数对模型精度的影响进行研究。经仿真验证，所提方法效果显著优于传统野值处理方法。

关键词: 组合导航, 高斯过程回归, 无迹卡尔曼滤波, 太阳多普勒速度, 星光角距, 野值处理

Abstract:

In astronomical velocity measurement navigation with the Sun as the target source, there are many outliers in Doppler velocity measurement, which seriously affects the accuracy of navigation. Thus, a outlier detection and repair method based on Gaussian process regression and unscented Kalman filtering (GPR-UKF) is proposed to establish a dynamic prediction model for velocity measurement. In addition, the impact of different parameters on the accuracy of the model is researched. Simulation verification test demonstrates that the proposed method has better performance than traditional outlier processing methods.

Key words: integrated navigation, Gaussian process regression (GPR), unscented Kalman filtering (UKF), solar Doppler velocity, starlight angle pitch, outlier processing

中图分类号:

V448.2

张寿健, 桂明臻. 基于GPR-UKF的天文测角/测速组合导航方法[J]. 系统工程与电子技术, 2024, 46(12): 4183-4191.

Shoujian ZHANG, Mingzhen GUI. Navigation method using angle/velocity measurement based on GPR-UKF[J]. Systems Engineering and Electronics, 2024, 46(12): 4183-4191.

图/表 17

图1

图2

图3

图4

图5

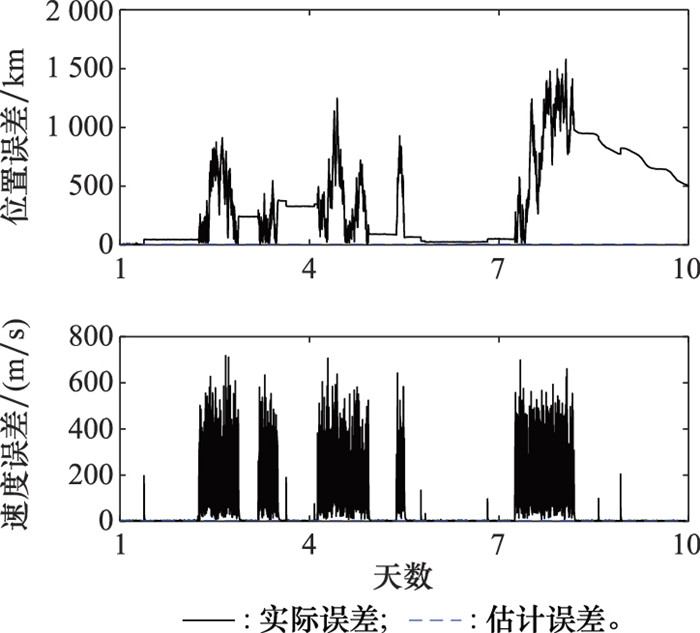

图6

图7

图8

表1

图9

图10

图11

表2

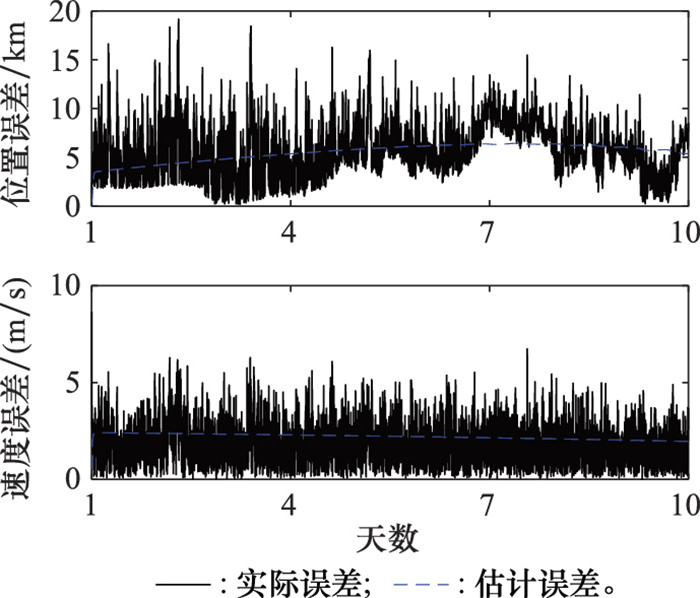

图12

图13

图14

表3

参考文献 30

1	FARAHANIFAR M , ASSADIAN N . Integrated magnetometer-horizon sensor low-Earth orbit determination using UKF[J]. Acta Astronautica, 2015, 106, 13- 23. doi: 10.1016/j.actaastro.2014.10.007
2	宁晓琳, 杨雨青, 房建成, 等. 深空探测器自主天文导航研究进展[J]. 深空探测学报(中英文), 2023, 10 (2): 99- 108.
	NING X L , YANG Y Q , FANG J C , et al. The progress of autonomous celestial navigation for deep space spacecraft[J]. Journal of Deep Space Exploration, 2023, 10 (2): 99- 108.
3	强祺昌, 林宝军, 刘迎春, 等. 深空探测自主导航技术综述[J]. 导航与控制, 2023, 22 (1): 19- 32.
	QIANG Q C , LIN B J , LIU Y C , et al. Review of autonomous navigation technology for deep space exploration[J]. Navigation and Control, 2023, 22 (1): 19- 32.
4	ZHANG W , YANG Y , YOU W , et al. Autonomous navigation method and technology implementation of high-precision solar spectral velocity measurement[J]. Science China Physics, Mechanics & Astronomy, 2022, 65 (8): 289606.
5	MITCHELL J W, HASSOUNEH M, WINTERNITZ L, et al. SEXTANT-station explorer for X-ray timing and navigation technology[C]//Proc. of the AIAA Guidance, Navigation, and Control Conference, 2015.
6	HANSON J E . Principles of X-ray navigation[M]. Palo Alto: Stanford University, 1996.
7	CHESTER T J, BUTMAN S A. Navigation using X-ray pulsars, NASA technical reports N81-27129[R]. Pasadena: Jet Propulsion Laboratory, 1981.
8	DOWNS G S. Interplanetary navigation using pulsating radio sources, NASA technical reports N74-34150[R]. Pasadena: Jet Propulsion Laboratory, 1974.
9	SHEIKH S I , PINES D J , RAY P S , et al. Spacecraft navigation using X-ray pulsars[J]. Journal of Guidance, Control, and Dynamics, 2006, 29 (1): 49- 63. doi: 10.2514/1.13331
10	SHEIKH S I , PINES D J , RAY P S , et al. The use of X-ray pulsars for spacecraft navigation[J]. Advances in the Astronautical Science, 2005, 119 (1): 105- 119.
11	SHEIKH S I . The use of variable celestial X-ray sources for spacecraft navigation[M]. Baltimore: University of Maryland, 2005.
12	GENDREAU K C, ARZOUMANIAN Z, OKAJIMA T. The Neutron star interior composition explore R(NICER): an explorer mission of opportunity for soft X-ray timing spectroscopy[C]//Proc. of the X-Ray Binary Systems (BeXRB) Workshop, 2012.
13	郑伟, 王禹淞, 姜坤, 等. X射线脉冲星导航方法研究综述[J]. 航空学报, 2023, 44 (3): 527451.
	ZHENG W , WANG Y S , JIANG K , et al. Overview of X-ray pulsarbased navigation methods[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (3): 527451.
14	LIU J , MA J , TIAN J W , et al. Pulsar navigation for interplanetary missions using CV model and ASUKF[J]. Aerospace Science and Technology, 2012, 22 (1): 19- 23. doi: 10.1016/j.ast.2011.04.010
15	朱新岩, 史忠科. 基于残差特性分析的野值检测与剔除方法[J]. 飞行力学, 2008, 26 (6): 79- 83.
	ZHU X Y , SHI Z K . Outlier detection method based on cha-racteristic analyzing of residue[J]. Flight Dynamics, 2008, 26 (6): 79- 83.
16	JULIER S J , UHLMANN J K . Unscented filtering and nonlinear estimation[J]. Proceedings of the IEEE, 2004, 92 (3): 401- 422. doi: 10.1109/JPROC.2003.823141
17	NING X L , FANG J C , LIU G , et al. A novel differential Doppler measurement-aided autonomous celestial navigation method for spacecraft during approach phase[J]. IEEE Trans.on Aerospace and Electronic Systems, 2017, 53 (2): 587- 597. doi: 10.1109/TAES.2017.2651558
18	黄舒颖. 面向深空探测的太阳光差分测速精度分析及导航光谱选择[D]. 长沙: 湖南大学, 2022.
	HUANG S Y. Solar difference velocimetry accuracy analysis and navigation spectrum selection for deep space exploration[D]. Changsha: Hunan University, 2022.
19	FANG C , HIEI E , OKAMOTO T . CaⅡ K line asymmetries in two well-observed solar flares of october 18, 1990[J]. Solar Physics, 1991, 135 (1): 89- 97. doi: 10.1007/BF00146700
20	ICHIMOTO K , KUROKAWA H . H_α red asymmetry of solar flares[J]. Solar Physics, 1984, 93 (1): 105- 121. doi: 10.1007/BF00156656
21	HUANG S Y , KANG Z W , LIU J , et al. Accuracy analysis of spectral velocimetry for the solar Doppler difference navigation[J]. IEEE Access, 2021, 9, 78075- 78082. doi: 10.1109/ACCESS.2021.3079500
22	CHEN X , SUN Z W , ZHANG W , et al. A novel autonomous celestial integrated navigation for deep space exploration based on angle and stellar spectra shift velocity measurement[J]. Sensors, 2019, 19 (11): 2555. doi: 10.3390/s19112555
23	GREC G , FOSSAT E , POMERANTZ M . Solar oscillations: full disk observations from the geographic south pole[J]. Nature, 1980, 288 (5791): 541- 544. doi: 10.1038/288541a0
24	YIM J R. Autonomous spacecraft orbit navigation[D]. Texas: Texas A&M University, 2002.
25	YE W , LIU Z C , LI C , et al. Enhanced Kalman filter using noisy input Gaussian process regression for bridging GPS outages in a POS[J]. Journal of Navigation, 2018, 71 (3): 565- 584. doi: 10.1017/S0373463317000819
26	QUAN W , FANG J C , XU F , et al. Hybrid simulation system study of SINS/CNS integrated navigation[J]. IEEE Aerospace and Electronic Systems Magazine, 2008, 23 (2): 17- 24. doi: 10.1109/MAES.2008.4460727
27	MA X , NING X L , FANG J C . Analysis of orbital dynamic equation in navigation for a Mars gravity-assist mission[J]. Journal of Navigation, 2012, 65 (3): 531- 548. doi: 10.1017/S0373463312000100
28	NING X L , LI Z , YANG Y Q , et al. Analysis of ephemeris errors in autonomous celestial navigation during Mars approach phase[J]. Journal of Navigation, 2017, 70 (3): 505- 526. doi: 10.1017/S0373463316000734
29	YIM J R, CRASSIDIS J L, JUNKINS J L. Autonomous orbit navigation of interplanetary spacecraft[C]//Proc. of the AIAA/AAS Astrodynamics Specialist Conference, 2000.
30	荆蕾, 孙炜玮, 乔玉新, 等. GNSS/SINS组合导航系统的自适应UKF算法[J]. 大地测量与地球动力学, 2023, 43 (3): 255- 258.
	JING L , SUN W W , QIAO Y X , et al. Adaptive UKF algorithm for GNSS/SINS integrated navigation system[J]. Journal of Geodesy and Geodynamics, 2023, 43 (3): 255- 258.

不同方法	导航位置误差均值/km	导航最大位置误差/km	导航速度误差均值/(m/s)	导航最大速度误差/(m/s)
不含野值	5.304 0	19.187 0	1.857 9	8.660 0
含野值不处理	362.000 0	1 580.200 0	63.706 0	718.336 6
传统野值处理	146.040 0	947.060 0	3.849 7	17.815 7
GPR野值处理	5.807 8	19.344 0	1.858 1	8.660 0

初始训练样本点数	导航位置误差均值/km	导航最大位置误差/km	导航速度误差均值/(m/s)	导航最大速度误差/(m/s)
200	11.834	75.436	1.933	8.660
300	11.123	30.121	1.861	8.660
400	6.610	19.188	1.858	8.660

动态训练样本点数	导航位置误差均值/km	导航最大位置误差/km	导航速度误差均值/(m/s)	导航最大速度误差/(m/s)
200	5.648 4	19.188	1.858 1	8.660 0
300	6.953 2	19.235	1.858 5	8.660 0
400	7.100 0	19.469	1.858 5	8.660 0
