地月空间DRO环月全球定位卫星星座设计

doi:10.12305/j.issn.1001-506X.2024.12.26

摘要/Abstract

摘要：

为了实现环月全球定位卫星星座设计，概述了月球全球定位卫星星座的研究现状，对基于远距离逆行轨道(distant retrograde orbit，DRO)的环月星座进行深入研究。首先，以圆型限制性三体模型的平面DRO为初值，以DRO初始相位角、轨道平均周期和z方向运动振幅作为参数描述三维DRO，计算双圆限制性四体模型中保持3年稳定的DRO。然后，借鉴地球轨道Walker星座概念，提出基于DRO基准轨道等相位差部署的环月星座设计方法。最后，针对卫星总数量均为16的DRO环月星座，分析单基准轨道、双基准轨道和四基准轨道星座的性能，验证了所提方法的有效性。

关键词: 月球全球定位卫星星座, 构型设计, 远距离逆行轨道, 远距离逆行轨道基准轨道

Abstract:

In order to achieve the design of a circumlunar global positioning satellite constellation, this article provides an overview of the current research on the lunar global positioning satellite constellation and conducts in-depth research on circumlunar constellation based on distant retrograde orbit(DRO). Firstly, taking the planar DRO of the circular restricted three-body model as the initial value, the three-dimensional DRO is described with the DRO's initial phase angle, orbital average period, and z-direction motion amplitude as parameters. The DRO that remains stable for three years in the bicircular restricted four-body model is calculated. Then, drawing inspiration from the concept of the Earth orbit Walker constellation, a circumlunar constellation design method based on the phase difference deployments such as DRO benchmark orbits is introduced. Finally, the performance of single-benchmark, double-benchmark, and quadruple-benchmark orbit constellations are analyzed for the DRO lunar constellation with 16 satellites in each constellation, and the effectiveness of the proposed DRO lunar constellation design method is validated.

Key words: lunar global positioning satellite constellation, configuration design, distant retrograde orbit (DRO), DRO benchmark orbit

中图分类号:

周晨光, 张仁勇, 杨驰航. 地月空间DRO环月全球定位卫星星座设计[J]. 系统工程与电子技术, 2024, 46(12): 4173-4182.

Chenguang ZHOU, Renyong ZHANG, Chihang YANG. Design of circumlunar global positioning satellite constellation on DRO in the cislunar space[J]. Systems Engineering and Electronics, 2024, 46(12): 4173-4182.

图/表 21

图1

表1

图2

图3

表2

表3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

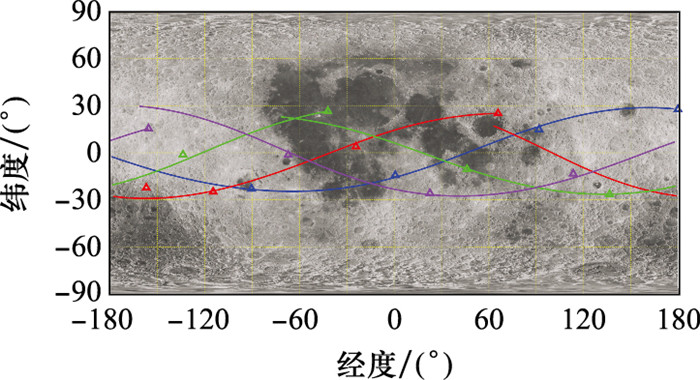

图15

图16

图17

图18

参考文献 34

1	NIE T , GURFIL P . Lunar frozen orbits revisited[J]. Celestial Mechanics and Dynamical Astronomy, 2018, 130 (10): 61. doi: 10.1007/s10569-018-9858-0
2	SIRBU G, LEONARDI M, CAROSI M, et al. Performance evaluation of a lunar navigation system exploiting four satellites in ELFO orbits[C]//Proc. of the IEEE 9th International Workshop on Metrology for AeroSpace, 2022: 146-151.
3	PEREIRA F , REED P M , SELVA D . Multi-objective design of a lunar GNSS[J]. Journal of the Institute of Navigation, 2022, 69 (1): 504. doi: 10.33012/navi.504
4	王晓伟, 詹亚锋, 谢浩然, 等. 通导一体化环月星座设计初探[J]. 系统工程与电子技术, 2023, 45 (1): 241- 249. doi: 10.12305/j.issn.1001-506X.2023.01.28
	WANG X W , ZHAN Y F , XIE H R , et al. A preliminary study on the design of constellation orbiting the moon with the communication and navigation integration[J]. Systems Engineering and Electronics, 2023, 45 (1): 241- 249. doi: 10.12305/j.issn.1001-506X.2023.01.28
5	PEREIRA F, SELVA D. Exploring the design space of lunar GNSS in frozen orbit conditions[C]//Proc. of the IEEE/ION Position, Location and Navigation Symposium, 2020: 444-451.
6	WHITLEY R, MARTINEZ R. Options for staging orbits in cislunar space[C]//Proc. of the IEEE Aerospace Conference, 2016.
7	CAROSI M, CAPOLICCHIO J, TOSTI M, et al. Comparison among orbital constellation for a global lunar satellite navigation system[C]//Proc. of the Joint 26th Ka and Broadband Communications Conference and the 38th International Communications Satellite Systems Conference, 2021.
8	MUSACCHIO D, IESS L, CAROSI M, et al. Design of earth moon Halo orbits for a global lunar PNT service[C]//Proc. of the 34th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2021: 966-980.
9	FARQUHAR R W . The control and use of libration-point sate-llites[M]. California: Stanford University, 1969.
10	CARPENTER J R, FOLTA D, MOREAU M, et al. Libration point navigation concepts supporting the vision for space exploration[C]//Proc. of the AIAA/AAS Astrodynamics Specialist Conference and Exhibit, 2004: 4747.
11	LIU L , LI J S . CHANG'E-5T1 extended mission: the first lunar libration point flight via a lunar swing-by[J]. Advances in Space Research, 2016, 58 (4): 609- 618. doi: 10.1016/j.asr.2016.05.015
12	DUAN J F , WANG Z K . Orbit determination of CE-4's relay satellite in Earth-Moon L2 libration point orbit[J]. Advances in Space Research, 2019, 64 (11): 2345- 2355. doi: 10.1016/j.asr.2019.08.012
13	CIRCI C , ROMAGNOLI D , FUMENTI F . Halo orbit dynamics and properties for a lunar global positioning system design[J]. Monthly Notices of the Royal Astronomical Society, 2014, 442 (4): 3511- 3527. doi: 10.1093/mnras/stu1085
14	REN Y , SHAN J J . Libration point orbits for lunar global positioning systems[J]. Advances in Space Research, 2013, 51 (7): 1065- 1079. doi: 10.1016/j.asr.2012.10.022
15	WANG K , LI K Z , LYU S K , et al. Multi-orbit lunar GNSS constellation design with distant retrograde orbit and Halo orbit combination[J]. Scientific Reports, 2023, 13 (1): 10158. doi: 10.1038/s41598-023-37348-x
16	GAO Z Y , HOU X Y . Coverage analysis of lunar communication/navigation constellations based on Halo orbits and distant retrograde orbits[J]. The Journal of Navigation, 2020, 73 (4): 932- 952. doi: 10.1017/S0373463320000065
17	SCHONFELDT M, GRENIER A, DELEPAUT A, et al. Across the lunar landscape: Towards a dedicated lunar PNT system[EB/OL]. [2024-01-16]. https://insidegnss.com/across-the-lunar-landscape-towards-a-dedicated-lunar-pnt-system/.
18	ZHANG R Y . A review of periodic orbits in the circular restricted three-body problem[J]. Journal of Systems Engineering and Electronics, 2022, 33 (3): 612- 646. doi: 10.23919/JSEE.2022.000059
19	BEZROUK C J, PARKER J. Long duration stability of distant retrograde orbits[C]//Proc. of the AIAA/AAS Astrodynamics Specialist Conference, 2014: 4424.
20	TURNER G . Results of long-duration simulation of distant retrograde orbits[J]. Aerospace, 2016, 3 (4): 37. doi: 10.3390/aerospace3040037
21	HILL K A. Autonomous navigation in libration point orbits[D]. Boulder: University of Colorado, 2007.
22	DAI H H , YAN Z P , WANG X C , et al. Collocation-based harmonic balance frame-work for highly accurate periodic solution of nonlinear dynamical system[J]. International Journal for Numerical Methods in Engineering, 2023, 124 (2): 458- 481. doi: 10.1002/nme.7128
23	杨驰航. 地月空间远距离逆行轨道相对运动与编队设计[D]. 北京: 中国科学院大学, 2022.
	YANG C H. Spacecraft relative motion and formation design on cislunar-space distant retrograde orbits[D]. Beijing: University of Chinese Academy of Sciences, 2022.
24	KOON W S, LO M W, MARSDEN J E, et al. Dynamical systems, the three-body problem and space mission design[D]. Berlin: World Scientific, 2000: 1167-1181.
25	BOUDAD K K. Disposal dynamics from the vicinity of near rectilinear Halo orbits in the Earth-Moon-Sun system[D]. West Lafayette: Purdue University, 2018.
26	GIL A D A , RENWICK D , CAPPELLETTI C , et al. Methodology for optimizing a constellation of a lunar global navigation system with a multi-objective optimization algorithm[J]. Acta Astronautica, 2023, 204, 348- 357. doi: 10.1016/j.actaastro.2023.01.003
27	PASQUALE A , ZANOTTI G , PRINETTO J , et al. Cislunar distributed architectures for communication and navigation ser-vices of lunar assets[J]. Acta Astronautica, 2022, 199, 345- 354. doi: 10.1016/j.actaastro.2022.06.004
28	ZHANG J Q , SANDERSON A C . JADE: adaptive differential evolution with optional external archive[J]. IEEE Trans.on Evolutionary Computation, 2009, 13 (5): 945- 958. doi: 10.1109/TEVC.2009.2014613
29	PIRES P , WINTER O C . Location and stability of distant retrograde orbits around the Moon[J]. Monthly Notices of the Royal Astronomical Society, 2020, 494 (2): 2727- 2735. doi: 10.1093/mnras/staa887
30	龚宇鹏, 张世杰. 偶数重连续覆盖的Walker星座设计方法[J]. 宇航学报, 2022, 43 (9): 1163- 1175.
	GONG Y P , ZHANG S J . Design method for even fold continuous coverage walker constellation[J]. Journal of Astronautics, 2022, 43 (9): 1163- 1175.
31	SIRBU G , LEONARDI M , STALLO C , et al. Evaluation of different satellite navigation methods for the Moon in the future exploration age[J]. Acta Astronautica, 2023, 208, 205- 218. doi: 10.1016/j.actaastro.2023.04.017
32	SHARP I , YU K , GUO Y J . GDOP analysis for positioning system design[J]. IEEE Trans.on Vehicular Technology, 2009, 58 (7): 3371- 3382. doi: 10.1109/TVT.2009.2017270
33	OKABE A , BOOTS B , SUGIHARA K , et al. Spatial tessellations: concepts and applications of Voronoi diagrams[M]. 2nd ed New Jersey: Wiley, 2000.
34	BOUWMAN A M , BOSMA J C , VONK P , et al. Which shape factor (s) best describe granules?[J]. Powder Technology, 2004, 146 (1/2): 66- 72.

物理意义	符号/单位	数值
月球-地球质量比	μ(无量纲)	1.215×10^-2
单位距离	DU/km	3.844 05×10⁵
单位时间	TU/s	3.752×10⁵
单位质量	m^*/(kg³·s^-2)	4.035×10⁵
单位速度	VU/(km·s^-1)	1.024 083 366 852
太阳质量	m_s(无量纲)	3.289 005 41×10⁵
太阳到地月质心的距离	ρ(无量纲)	3.888 111 43×10²
太阳旋转角速度	ω_s/(rad·s^-1)	2.465 9×10^-6

参数	参数含义	表达式
x	设计变量	x₀
g(x, p)	不等式约束	L_mean－L_UB
J(x, p)	目标函数	ΔT
x_LB	设计变量的下界	x₀－[ΔX_LB, ΔY_LB, ΔZ_LB, Δv_{x_LB}, Δv_{y_LB}, Δv_{z_LB}]
x_UB	设计变量的上界	x₀+[ΔX_UB, ΔY_UB, ΔZ_UB, Δv_{x_UB}, Δv_{y_UB}, Δv_{z_UB}]
p	固定参数	[N_s, L_UB]

DRO共振比	月球北极点		月球南极点
DRO共振比	最大仰角/(°)	平均仰角/(°)	最大仰角/(°)	平均仰角/(°)
2∶1	25.24	12.10	24.40	12.16
3∶1	26.80	13.93	26.48	13.91
4∶1	31.96	16.76	31.72	16.80
