基于行为树的组网服务管控架构及调度方法

doi:10.12305/j.issn.1001-506X.2024.10.31

系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (10): 3547-3556.doi: 10.12305/j.issn.1001-506X.2024.10.31

• 通信与网络 • 上一篇

基于行为树的组网服务管控架构及调度方法

宋睿涛¹, 高先明², 黄姣蕊¹, 杨春刚¹^,³^,*, 黄韬³, 李芫芫¹

1. 西安电子科技大学通信工程学院, 陕西西安 710071
2. 军事科学院系统工程研究院, 北京 100039
3. 西安电子科技大学杭州技术研究院, 浙江杭州 311200

收稿日期:2023-08-04 出版日期:2024-09-25 发布日期:2024-10-22
通讯作者: 杨春刚
作者简介:宋睿涛(2000—), 男, 硕士研究生, 主要研究方向为意图驱动网络、服务迁移
高先明(1988—), 男, 高级工程师，博士, 主要研究方向为未来网络体系结构、智能路由协议、网络安全
黄姣蕊(1995—), 女, 博士研究生, 主要研究方向为意图驱动网络、人工智能、行为树
杨春刚(1982—), 男, 教授, 博士, 主要研究方向为意图驱动智简网络、智能网络信息体系、软件定义网络自治、认知天地网络融合、网络通信博弈论
黄韬(1999—), 男, 硕士研究生, 主要研究方向为意图驱动网络、应用感知网络
李芫芫(2000—), 女, 硕士研究生, 主要研究方向为意图驱动网络、资源感知

Behavior tree based management and control architecture and scheduling method for networking service

Ruitao SONG¹, Xianming GAO², Jiaorui HUANG¹, Chungang YANG¹^,³^,*, Tao HUANG³, Yuanyuan LI¹

1. School of Telcommunication Engineering, Xidian University, Xi'an 710071, China
2. Institute of Systems Engineering, Academy of Military Sciences, Beijing 100039, China
3. Hangzhou Institute of Technology, Xidian University, Hangzhou 311200, China

Received:2023-08-04 Online:2024-09-25 Published:2024-10-22
Contact: Chungang YANG

摘要/Abstract

摘要：

传统互联网为实现端到端安全、可靠、实时的网络业务保障, 需要在网元节点部署多类组网服务。然而, 现有大多数网络设备只提供网络接入和路由等服务功能, 缺乏安全、可靠、实时的服务设计。基于开源网络操作系统(software for open networking in the cloud, SONiC)、容器技术和行为树设计一种组网服务管控架构及调度方法, 实现面向网络业务保障的组网服务部署, 将组网服务部署可编程网络设备进行统一管理和调度, 并进行仿真测试。所述组网服务管控架构及调度方法进一步增强了网络设备能力, 利用行为树高效协调管控调度过程中的状态转化, 保障组网服务的交付质量。

关键词: 行为树, 容器技术, SONiC, 组网服务调度

Abstract:

In order to achieve end-to-end security, reliability, and real-time network business support, traditional internet requires the deployment of multiple types of networking service at network element nodes. However, most existing network devices only provide network access, routing and other service functions, lacking safe, reliable, real-time and other service design. Based on the open source network operating system software for open networking in the cloud (SONiC), a management and control architecture and scheduling method for networking service based on container technology and behavior tree is designed. It realizes the deployment of networking service for network service support, which is then deploy to programmable network devices for unified management and scheduling, and simulation testing is carried out. The networking service management and control architecture and scheduling method further enhance the capability of network equipment, and use the behavior tree to efficiently coordinate and schedule the status transformation in the management, control and scheduling process to ensure the delivery quality of networking service.

Key words: behavior tree, container technology, software for open networking in the cloud (SONiC), networking service scheduling

中图分类号:

TP273

宋睿涛, 高先明, 黄姣蕊, 杨春刚, 黄韬, 李芫芫. 基于行为树的组网服务管控架构及调度方法[J]. 系统工程与电子技术, 2024, 46(10): 3547-3556.

Ruitao SONG, Xianming GAO, Jiaorui HUANG, Chungang YANG, Tao HUANG, Yuanyuan LI. Behavior tree based management and control architecture and scheduling method for networking service[J]. Systems Engineering and Electronics, 2024, 46(10): 3547-3556.

图/表 9

图1

表1

图2

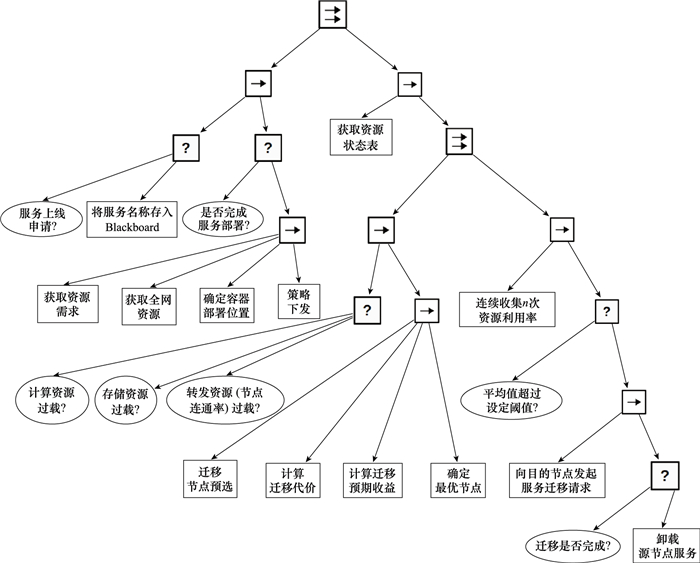

图3

图4

图5

图6

图7

图8

参考文献 15

16	POTDAR A M , NARAYAN D G , KENGOND S , et al. Perfor-mance evaluation of docker container and virtual machine[J]. Procedia Computer Science, 2020, 171, 1419- 1428. doi: 10.1016/j.procs.2020.04.152
17	AHMAD I , AIFAILAKAWI M G , AIMUTAWA A , et al. Container scheduling techniques: a survey and assessment[J]. Journal of King Saud University-Computer and Information Sciences, 2022, 34 (7): 3934- 3947. doi: 10.1016/j.jksuci.2021.03.002
18	OUYANG Y , LINZ J Q , FENGZ T , et al. Intent-driven CoX resource management for space-terrestrial networks[J]. IEEE Wireless Communications, 2023, doi: 10.1109/MWC.018.2200600
19	Mi X R , YANG C G , SONG Y B , et al. Matching game for intelligent resource management in integrated satellite-terrestrial networks[J]. IEEE Wireless Communications, 2022, 29 (6): 88- 94. doi: 10.1109/MWC.009.2100555
20	KAEWKASI C, CHUENMUNEEWONG K. Improvement of container scheduling for docker using ant colony optimization[C]// Proc. of the 9th International Conference on Knowledge and Smart Technology, 2017: 254-259.
21	MENOUER T . KCSS: Kubernetes container scheduling strategy[J]. The Journal of Supercomputing, 2021, 77 (5): 4267- 4293. doi: 10.1007/s11227-020-03427-3
22	李铭轩, 曹畅, 唐雄燕, 等. 基于可编程网络的UPF边缘调度机制研究[J]. 数据与计算发展前沿, 2022, 4 (2): 74- 86.
	LI M X , CAO C , TANG X Y , et al. Research on edge scheduling mechanism of UPF based on programmable network[J]. Frontiers of Data & Computing, 2022, 4 (2): 74- 86.
23	刘曦. 数据中心网络SONiC白盒技术的发展趋势[J]. 通信世界, 2019, (33): 42- 43.
	LIU X . The development trends of SONiC white box technology in data center networks[J]. Communication World, 2019, (33): 42- 43.
24	IOVⅡNO M , SCUKINS E , STYRUD J , et al. A survey of behavior trees in robotics and AI[J]. Robotics and Autonomous Systems, 2022, 154, 104096.
25	COLLEDANCHISE M. Behavior trees in robotics[D]. Stockholm: KTH Royal Institute of Technology, 2017.
26	PERGER A , GAMPER P , WITZMANN R . Behavior trees for smart grid control[J]. IFAC-PapersOnLine, 2022, 55 (9): 122- 127.
27	MARZINOTTO A, COLLEDANCHISE M, SMITH C, et al. Towards a unified behavior trees framework for robot control[C]// Proc. of the IEEE International Conference on Robotics and Automation, 2014: 5420-5427.
28	ROVIDA F, GROSSMANN B, KRUGER V. Extended beha-vior trees for quick definition of flexible robotic tasks[C]//Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2017: 6793-6800.
29	BIGGAR O , ZAMANI M , SHAMES I . An expressiveness hierarchy of behavior trees and related architectures[J]. IEEE Robotics and Automation Letters, 2021, 6 (3): 5397- 5404.
30	COLLEDANCHISE M, MARZINOTTO A, DIMAROGONAS D V, et al. The advantages of using behavior trees in mult-robot systems[C]//Proc. of the 47th International Symposium on Robotics, 2016.
31	STYRUD J, IOVINO M, NORRLOF M, et al. Combining planning and learning of behavior trees for robotic assembly[C]//Proc. of the International Conference on Robotics and Automation, 2022: 11511-11517.
32	WU R C, KORTIK S, SANTOS C H. Automated behavior tree error recovery framework for robotic systems[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2021: 6898-6904.
33	CAI Z X, LI M L, HUANG W R, et al. BT expansion: a sound and complete algorithm for behavior planning of intelligent robots with behavior trees[C]//Proc. of the AAAI Conference on Artificial Intelligence, 2021.
1	POP M D, PANDEY J, RAMASAMY V. Future networks 2030: challenges in intelligent transportation systems[C]//Proc. of the 8th International Conference on Reliability, Infocom Technologies and Optimization (Trends and Future Directions), 2020: 898-902.
2	BONATI L , POLESE M , D'ORO S , et al. Open, programmable, and virtualized 5G networks: state-of-the-art and the road ahead[J]. Computer Networks, 2020, 182, 107516. doi: 10.1016/j.comnet.2020.107516
3	张成林, 宋玲玲. 面向未来网络的白盒交换机体系综述[J]. 信息技术与网络安全, 2022, 41 (3): 2- 8.
	ZHANG C L , SONG L L . A review on architecture of white box switches for future networks[J]. Information Technology & Network Security, 2022, 41 (3): 2- 8.
4	BOSSHART P , DALY D , GIBB G , et al. P4: programming protocol-independent packet processors[J]. ACM SIGCOMM Computer Communication Review, 2014, 44 (3): 87- 95. doi: 10.1145/2656877.2656890
5	Open Compute Project. Switch abstraction interface(SAI): a reference switch abstraction interface for OCP[EB/OL]. [2023-07-04]. https://www.opencompute.org/.
6	Open Compute Project. SONiC: software for open net-working in the cloud website[EB/OL]. [2023-07-04]. https://github.com/sonic-net/SONiC.
7	Open Compute Project. Open network linux: a reference network operating system for OCP[EB/OL]. [2023-07-04]. http://opennetlinux.org/.
8	ALAM I , SHARIF K , LI F , et al. A survey of network virtualization techniques for Internet of things using SDN and NFV[J]. ACM Computing Surveys, 2020, 53 (2): 1- 40.
9	SHEN X M , GAO J , WU W , et al. Holistic network virtualization and pervasive network intelligence for 6G[J]. IEEE Communications Surveys & Tutorials, 2021, 24 (1): 1- 30.
10	ZHANG L L, YANG C G, OUYANG Y, et al. ISFC: intent-driven service function chaining for satellite networks[C]//Proc. of the 27th Asia Pacific Conference on Communications, 2022: 544-549.
11	张露露, 杨春刚, 王栋, 等. 意图驱动的云网融合按需编排[J]. 电信科学, 2022, 38 (10): 107- 119.
	ZHANG L L , YANG C G , WANG D , et al. Intent-driven cloud-network convergence on-demand orchestration[J]. Telecommunications Science, 2022, 38 (10): 107- 119.
12	LONG X M, LIU B H, JIANG F, et al. FPGA virtualization deployment based on docker container technology[C]//Proc. of the 5th International Conference on Mechanical, Control and Computer Engineering, 2020: 473-476.
13	SIDDIQUI T, SIDDIQUI S A, KHAN N A. Comprehensive analysis of container technology[C]//Proc. of the 4th International Conference on Information Systems and Computer Networks, 2019: 218-223.
14	MUNERMAN V, MUNERMAN D. Realization of distributed data processing on the basis of container technology[C]//Proc. of the IEEE Conference of Russian Young Researchers in Electrical and Electronic Engineering, 2019: 1740-1744.
15	MI X R , YANG C G , SONG Y B , et al. A distributed matching game for exploring resource allocation in satellite networks[J]. Peer-to-Peer Networking and Applications, 2021, 14 (5): 3360- 3371. doi: 10.1007/s12083-021-01158-7

特性	有限状态机	分层状态机	决策树	行为树
模块化	状态单元	子状态机单元	决策单元	功能子树
层次化	数据驱动, 单向传输	分层定义, 子状态机之间分层处理	递归划分、层次逻辑决策/预测、结构可视化	时钟驱动, 分层执行逻辑节点, 双向传输
可读性	一般	一般	优	较好
可重用性	差	差	一般	较好
鲁棒性	(1) 状态复杂, 并行度低, 吞吐量低(2) 当逻辑状态较多时, 容易发生状态爆炸	(1) 子状态机并行运行, 容易发生冲突(2) 子状态机之间的协同操作需要考虑跨时钟的问题	(1) 数据不稳定, 微小的变化可能导致不同的树生成(2) 较难学习抽象概念	(1) 功能模块化、去耦, 高效可读、易于扩展(2) 使用多种节点类型来描述动作执行过程
