宽带跳频TDMA辐射源网群的定位及网群划分方法

doi:10.12305/j.issn.1001-506X.2024.06.02

摘要/Abstract

摘要：

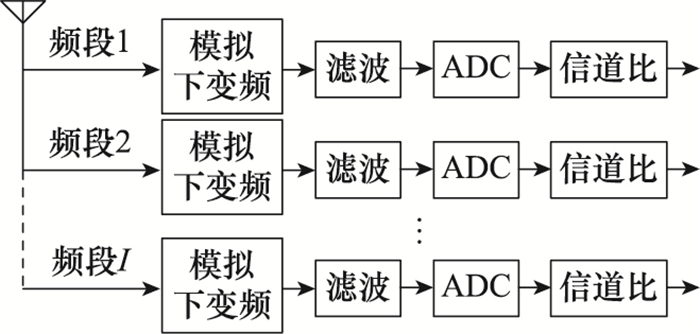

为了解决现有方法难以对宽带跳频时分多址(frequency hopping-time division multiple access, FH-TDMA)辐射源网群定位的问题, 提出一种仅利用波达方向(direction of arrival, DOA)信息的多站定位及网群划分方法。首先通过模拟滤波对各站接收到的信号进行频段划分, 通过基于多相滤波的数字信道化方法把信号输出到多个信道中; 然后通过直接定位(direct position determination, DPD)算法计算得出各时隙辐射源的位置; 最后先通过不同参数的基于密度的噪声应用空间聚类(density-based spatial clustering of applications with noise, DBSCAN)算法选择出最佳的辐射源定位结果, 再根据提出的基于先验信息的改进K-means聚类算法进行网群划分。所提方法实现了采样率和信号处理速率的降低, 且无需站间严格的时间同步。结果表明, 所提方法有效估计出了辐射源的数量、位置, 以及网群划分情况。

关键词: 辐射源定位, 网群划分, 群目标, 跳频, 时分多址

Abstract:

To solve the problem that the existing methods are difficult to locate the broadband frequency hopping-time division multiple access (FH-TDMA) emitter network groups, a multi-station localization and network group division method using only direction of arrival (DOA) information is presented. Firstly, the signal received by each station is divided into several frequency bands by analog filter, and the signal is output to multiple channels by digital channelization method based on polyphase filtering. Then, the emitter locations of each time-slot are calculated by direct position determination (DPD) algorithm. Finally, the best emitter location results are obtained by density-based spatial clustering of applications with noise (DBSCAN) algorithm with different parameters, and then the network group is divided according to the improved K-means clustering algorithm based on prior information. The proposed method reduces the sampling rate and signal processing rate, and does not require strict time synchronization between stations. The results show that the proposed method can effectively estimate the number and location of emitters and the network group division state.

Key words: emitter localization, network group division, group target, frequency hopping, time division multiple access (TDMA)

中图分类号:

TN971

张曦蒙, 马育红, 胡卫东, 王青平, 季鹏飞, 袁乃昌. 宽带跳频TDMA辐射源网群的定位及网群划分方法[J]. 系统工程与电子技术, 2024, 46(6): 1838-1846.

Ximeng ZHANG, Yuhong MA, Weidong HU, Qingping WANG, Pengfei JI, Naichang YUAN. Localization and network group division method for broadband frequency hopping-TDMA emitter network groups[J]. Systems Engineering and Electronics, 2024, 46(6): 1838-1846.

图/表 14

图1

图2

图3

图4

图5

表1

表2

图6

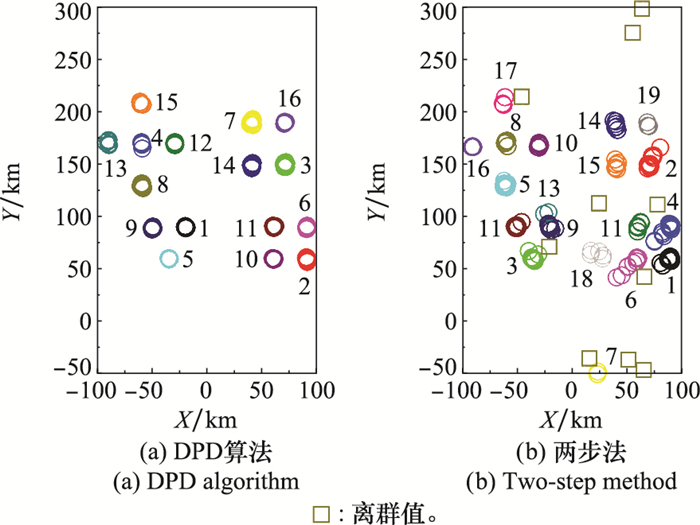

图7

图8

图9

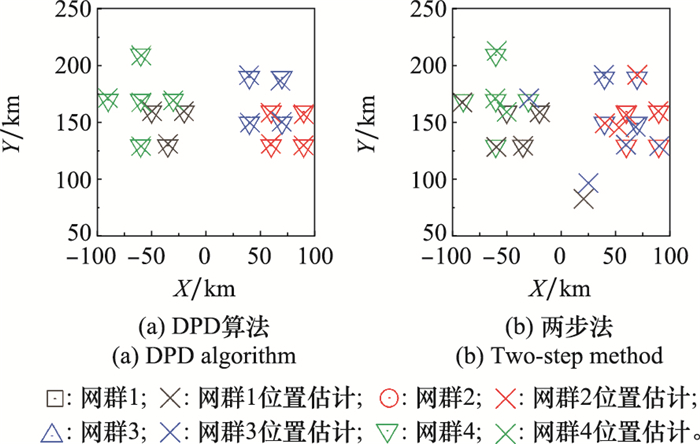

图10

图11

图12

参考文献 30

1	YU H Y , AN W , ZHU R , et al. A hypergraph matching labeled multi-bernoulli filter for group targets tracking[J]. IEEE Trans.on Information and Systems, 2019, 102 (10): 2077- 2081.
2	王聪, 王海鹏, 何友. 基于坐标映射距离差分的快速群分割算法[J]. 系统工程与电子技术, 2016, 38 (8): 1716- 1722.
	WANG C , WANG H P , HE Y . Fast algorithm of group segmentation based on coordinates transformations and distance differentiations[J]. Systems Engineering and Electronics, 2016, 38 (8): 1716- 1722.
3	MIHAYLOVA L , CARMI A Y , SEPTIER F , et al. Overview of Bayesian sequential Monte Carlo methods for group and extended object tracking[J]. Digital Signal Processing, 2014, 25, 1- 16. doi: 10.1016/j.dsp.2013.11.006
4	GUERLIN L, PANNETIER B, ROMBAUT M, et al. Study on group target tracking to counter swarms of drones[C]//Proc. of the Signal Processing, Sensor/Information Fusion, and Target Recognition Conference, 2020, 11423: 8-27.
5	卢哲俊, 胡卫东. 基于随机有限集的空间碎片群运动状态估计[J]. 航空学报, 2017, 38 (11): 254- 264.
	LU Z J , HU W D . State estimation of space debris group based on random finite set[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38 (11): 254- 264.
6	郭乾, 宫健, 陈赓, 等. 弹道群目标跟踪技术研究现状[J]. 电光与控制, 2021, 28 (8): 53- 58. doi: 10.3969/j.issn.1671-637X.2021.08.012
	GUO Q , GONG J , CHEN G , et al. Research status of ballistic group target tracking technology[J]. Electronics Optics & Control, 2021, 28 (8): 53- 58. doi: 10.3969/j.issn.1671-637X.2021.08.012
7	宋发兴, 许俊奎, 焦中科. Link-16(JTIDS终端)的TDMA体系结构分析[J]. 舰船电子工程, 2008, 28 (4): 65- 68. doi: 10.3969/j.issn.1627-9730.2008.04.019
	SONG F X , XU J K , JIAO Z K . Analysis on TDMA configuration system of Link-16(JTIDS terminal)[J]. Ship Electronic Engineering, 2008, 28 (4): 65- 68. doi: 10.3969/j.issn.1627-9730.2008.04.019
8	宁晓燕, 王影, 孙志国, 等. 多音干扰下Nakagami-m信道传输Link16数据链的性能分析[J]. 系统工程与电子技术, 2023, 45 (2): 566- 571. doi: 10.12305/j.issn.1001-506X.2023.02.29
	NING X Y , WANG Y , SUN Z G , et al. Performance analysis of Nakagamim channel transmission Link16 under multi-tone interference[J]. Systems Engineering and Electronics, 2023, 45 (2): 566- 571. doi: 10.12305/j.issn.1001-506X.2023.02.29
9	LIANG J, LI Y, LIU H. Research and analysis of anti-jamming performance on the joint tactical information distribution system[C]//Proc. of the IEEE 2nd International Conference on Information Communication and Software Engineering, 2022: 146-150.
10	CAO S , QIN H L , LI C , et al. TDMA datalink cooperative navigation algorithm based on INS/JTIDS/BA[J]. Electronics, 2021, 10 (7): 782. doi: 10.3390/electronics10070782
11	吕娜. 数据链理论与系统[M]. 北京: 电子工业出版社, 2011.
	LYU N . Theory and system of data link[M]. Beijing: Publishing House of Electronics Industry, 2011.
12	DIEKMANN L , SCHWARZ B , BAUER A , et al. Source localization and joint velocity model building using wavefront attributes[J]. Geophysical Journal International, 2019, 219 (2): 995- 1007. doi: 10.1093/gji/ggz342
13	CRUNCHANT A S , ISAACS J T , PIEL A K . Localizing wild chimpanzees with passive acoustics[J]. Ecology and Evolution, 2022, 12 (5): e8902. doi: 10.1002/ece3.8902
14	WILSON K C , SEMMENS B X , GITTINGS S R , et al. Grouper source levels and aggregation dynamics inferred from passive acoustic localization at a multispecies spawning site[J]. The Journal of the Acoustical Society of America, 2022, 151 (5): 3052- 3065. doi: 10.1121/10.0010236
15	SEDIGHI S , MISHRA K V , SHANKAR M R B , et al. Locali-zation with one-bit passive radars in narrowband internet-of-things using multivariate polynomial optimization[J]. IEEE Trans.on Signal Processing, 2021, 69, 2525- 2540. doi: 10.1109/TSP.2021.3072834
16	LIAQUAT M U , MUNAWAR H S , RAHMAN A , et al. Localization of sound sources: a systematic review[J]. Energies, 2021, 14 (13): 3910. doi: 10.3390/en14133910
17	KUSCHEL H , CRISTALLINI D , OLSEN K E . Tutorial: passive radar tutorial[J]. IEEE Aerospace and Electronic Systems Magazine, 2019, 34 (2): 2- 19.
18	GUAN H , ZHANG S , WANG W Q . Localization deception performance of FDA signals under passive bi-satellite reconnaissance[J]. Science China Information Sciences, 2021, 64 (9): 192305. doi: 10.1007/s11432-019-2773-1
19	GIFFORD W M , DARDARI D , WIN M Z . The impact of multipath information on time-of-arrival estimation[J]. IEEE Trans.on Signal Processing, 2020, 70, 31- 46.
20	PINE K C , PINE S , CHENEY M . The geometry of far-field passive source localization with TDOA and FDOA[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (6): 3782- 3790. doi: 10.1109/TAES.2021.3087804
21	ZHANG H B , HU J Z , ZHANG H L , et al. Metaradar: indoor localization by reconfigurable metamaterials[J]. IEEE Trans.on Mobile Computing, 2020, doi: 10.1109/TMC.2020.3044603
22	WEISS A J , AMAR A . Direct position determination of multiple radio signals[J]. EURASIP Journal on Advances in Signal Processing, 2005, (1): 37- 49.
23	TIRER T , WEISS A J . High resolution direct position determination of radio frequency sources[J]. IEEE Signal Processing Letters, 2015, 23 (2): 192- 196.
24	WEISS A J, AMAR A. Direct geolocation of stationary wideband radio signal based on time delays and Doppler shifts[C]//Proc. of the IEEE/SP 15th Workshop on Statistical Signal Processing, 2009: 101-104.
25	TZOREFF E , WEISS A J . Expectation-maximization algorithm for direct position determination[J]. Signal Processing, 2017, 133, 32- 39. doi: 10.1016/j.sigpro.2016.10.015
26	GUIZHOU W U , ZHANG M , CHAOXIN H E , et al. Direct position determination using single moving rotating linear array: noncoherent and coherent processing[J]. Chinese Journal of Aeronautics, 2020, 33 (2): 688- 700. doi: 10.1016/j.cja.2019.07.027
27	OISPUU M , NICKEL U . Direct detection and position determination of multiple sources with intermittent emission[J]. Signal Processing, 2010, 90 (12): 3056- 3064. doi: 10.1016/j.sigpro.2010.05.010
28	HAO K G , WAN Q . High resolution direct detection and position determination of sources with intermittent emission[J]. IEEE Access, 2019, 7, 43428- 43437. doi: 10.1109/ACCESS.2019.2907136
29	陈芳香, 易伟, 周涛, 等. 应用膨胀算法提取目标的直接定位算法[J]. 雷达科学与技术, 2019, 17 (2): 161- 167. doi: 10.3969/j.issn.1672-2337.2019.02.008
	CHEN F X , YI W , ZHOU T , et al. A direct position determination method using the image expansion algorithm to extract targets[J]. Radar Science and Technology, 2019, 17 (2): 161- 167. doi: 10.3969/j.issn.1672-2337.2019.02.008
30	王鼎, 吴志东, 尹洁昕. 信号波形已知条件下多目标直接定位性能分析及其改进算法[J]. 电子学报, 2017, 45 (12): 2881- 2889. doi: 10.3969/j.issn.0372-2112.2017.12.008
	WANG D , WU Z D , YIN J X . A performance analysis and improvement algorithm for multiple-source direct localization with known signal waveforms[J]. Acta Electonica Sinica, 2017, 45 (12): 2881- 2889. doi: 10.3969/j.issn.0372-2112.2017.12.008

频段/MHz	跳频频点/MHz	划分通道/MHz	可用信道数
967.5~1 009.5	969, 972, …, 1 008(共14个)	967.5~1 009.5	14
1 051.5~1 066.5	1 053, 1 056, …, 1 065(共5个)	1 051.5~1 066.5	5
1 111.5~1 207.5	1 113, 1 116, …, 1 205(共32个)	1 111.5~1 159.5	16
1 111.5~1 207.5	1 113, 1 116, …, 1 205(共32个)	1 159.5~1 207.5	16

网群号	辐射源数量	辐射源位置/km
1	3	[-50, 90]^T, [-20, 90]^T, [-35, 60]^T
2	4	[90, 60]^T, [60, 60]^T, [60, 90]^T, [90, 90]^T
3	4	[40, 150]^T, [70, 150]^T, [70, 190]^T, [40, 190]^T
4	5	[-90, 170]^T, [-60, 170]^T, [-60, 130]^T, [-30, 170]^T, [-60, 210]^T
