基于GPU的北斗B1宽带复合信号实时发生器设计

doi:10.12305/j.issn.1001-506X.2024.03.04

系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (3): 795-804.doi: 10.12305/j.issn.1001-506X.2024.03.04

基于GPU的北斗B1宽带复合信号实时发生器设计

王子涵¹, 巴晓辉¹^,²^,³^,*, 姜维¹^,²^,³, 蔡伯根²^,³^,⁴, 王剑¹^,²^,³, 文韬¹^,²^,³

1. 北京交通大学电子信息工程学院, 北京 100044
2. 北京交通大学轨道交通控制与安全国家重点实验室, 北京 100044
3. 北京市电磁兼容与卫星导航工程技术研究中心, 北京 100044
4. 北京交通大学计算机与信息技术学院, 北京 100044

收稿日期:2023-03-13 出版日期:2024-02-29 发布日期:2024-03-08
通讯作者: 巴晓辉
作者简介:王子涵(1999—), 男, 硕士研究生, 主要研究方向为卫星导航、控制工程
巴晓辉(1980—), 男, 教授, 博士, 主要研究方向为卫星导航、控制工程
姜维(1988—), 女, 教授, 博士, 主要研究方向为交通系统感知与大数据、人工智能
蔡伯根(1966—), 男, 教授, 博士, 主要研究方向为交通智能控制与优化、交通系统感知与大数据
王剑(1978—), 男, 教授, 博士, 主要研究方向为交通系统仿真与测试、网络与信息安全
文韬(1988—), 男, 教授, 博士, 主要研究方向为新一代电子信息技术、轨道交通系统安全与可靠性
基金资助:
国家自然科学基金(U1934222);国家自然科学基金(62027809);国家自然科学基金(U2268206);北京交通大学人才基金(2022XKRC003)

Real-time design of wideband composite signal generator for Beidou B1 based on GPU

Zihan WANG¹, Xiaohui BA¹^,²^,³^,*, Wei JIANG¹^,²^,³, Bogen CAI²^,³^,⁴, Jian WANG¹^,²^,³, Tao WEN¹^,²^,³

1. School of Electronics and Information Engineering, Beijing Jiaotong University, Beijing 100044, China
2. State Key Laboratory of Rail Traffic Control and Safety, Beijing Jiaotong University, Beijing 100044, China
3. Beijing Engineering Research Center of EMC and GNSS Technology for Rail Transportation, Beijing 100044, China
4. School of Computer and Information Technology, Beijing Jiaotong University, Beijing 100044, China

Received:2023-03-13 Online:2024-02-29 Published:2024-03-08
Contact: Xiaohui BA

摘要/Abstract

摘要：

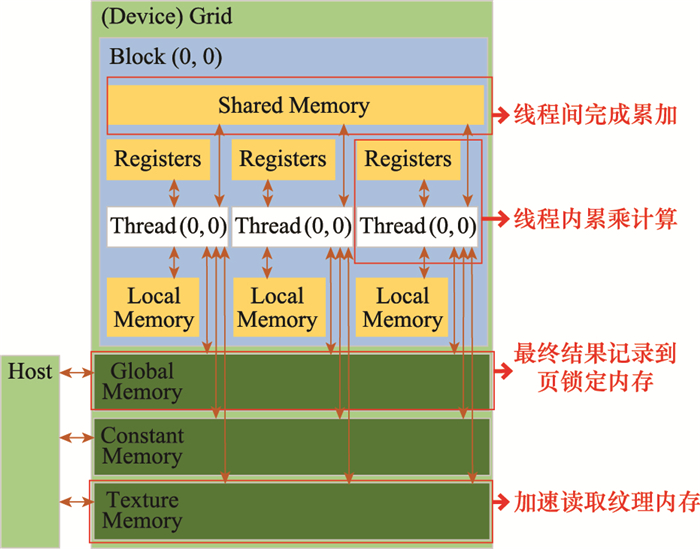

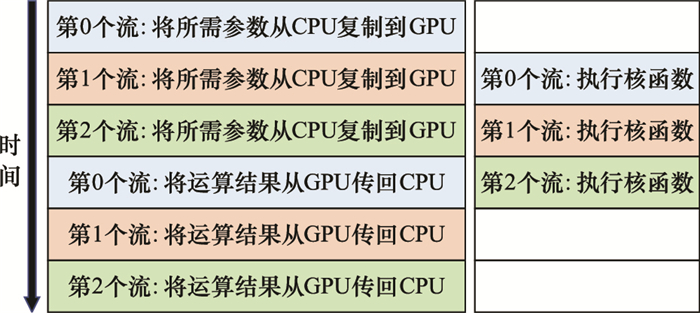

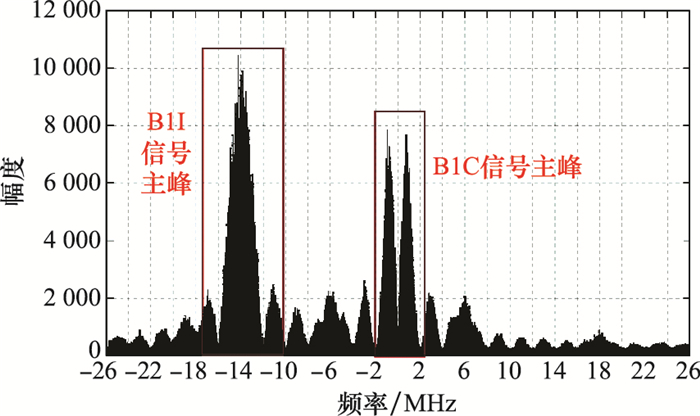

为了实现北斗B1C+B1I信号的联合生成，提出一种基于软件无线电和图形处理器(graphics processing unit, GPU)加速的北斗B1宽带复合信号的实时生成方法, 该方法针对单边带复数二进制偏移载波(single-sideband complex binary offset carrier, SCBOC)调制方式的信号体制进行设计, 系统根据用户配置的接收机运动轨迹和星历文件, 生成中频信号并通过射频端发射。为了进一步提升GPU并行运算速度, 从优化设备内存结构、设计并行线程架构和统一计算设备架构流(compute unified device architecture stream, CUDA)加速3个方面, 设计了基于异步运算的加速采样点数据计算的CUDA优化实现方案。测试结果证明, 优化后的算法可以基于SCBOC调制实时生成北斗B1I+B1C信号, 基于GTX3060的GPU平台, 信号90 M采样率下能实现8颗卫星复合信号的实时生成。

关键词: B1宽带复合信号, 软件无线电, 单边带复数二进制偏移载波调制, 统一计算设备架构流, 实时生成

Abstract:

In order to achieve joint generation of Beidou B1C+B1I signals, a real-time generation method for the Beidou B1 wideband composite signal based on software-defined radio and graphics processing unit (GPU) acceleration is proposed. The method is designed for the single-sideband complex binary offset carrier (SCBOC) modulation scheme, and generates intermediate frequency signals according to the user-defined receiver motion trajectory and ephemeris files, which are transmitted through the radio frequency terminal. To further improve the GPU parallel computing speed, a compute unified device architecture stream (CUDA) optimization implementation scheme is designed based on asynchronous computing to accelerate the sampling point data calculation, optimizing the device memory structure, designing a parallel thread architecture, and using CUDA stream acceleration. Test results demonstrate that the optimized algorithm can generate real-time Beidou B1I+B1C signals based on SCBOC modulation. Based on the GPU platform of GTX3060, it can generate signals for eight satellites in real-time with a sampling rate of 90 M.

Key words: B1 wideband composite signal, software radio, single-sideband complex binary offset carrier (SCBOC), compute unified device architecture stream (CUDA) stream, real-time generation

中图分类号:

P228.1

王子涵, 巴晓辉, 姜维, 蔡伯根, 王剑, 文韬. 基于GPU的北斗B1宽带复合信号实时发生器设计[J]. 系统工程与电子技术, 2024, 46(3): 795-804.

Zihan WANG, Xiaohui BA, Wei JIANG, Bogen CAI, Jian WANG, Tao WEN. Real-time design of wideband composite signal generator for Beidou B1 based on GPU[J]. Systems Engineering and Electronics, 2024, 46(3): 795-804.

图/表 17

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

表1

图14

图15

图16

参考文献 32

1	WANG L , TANG X M , LI J Y , et al. Acceleration method for software signal simulators of BDS navigation signals and RDSS signals based on GPGPU[J]. IEEE Access, 2019, 7, 102843- 102851. doi: 10.1109/ACCESS.2019.2926323
2	YAO Z, LU M Q. Constant envelope combination for components on different carrier frequencies with unequal power allocation[C]//Proc. of the International Technical Meeting of the Institute of Navigation, 2013: 629-637.
3	NAYAK B S , BHONGE S , NAIK K K , et al. Multi GNSS IRNSS-L5, IRNSS-S1, and GPS-L1 hybrid simulator: a recon- figurable low-cost solution for research and defence applications[J]. Defence Science Journal, 2022, 72 (4): 581- 591. doi: 10.14429/dsj.72.17873
4	LESTARQUIT L, ARTAUD G, ISSLER J L. AltBOC for dummies or everything you always wanted to know about AltBOC[C]//Proc. of the 21st International Technical Meeting of the Satellite Division of the Institute of Navigation, 2008: 961-970.
5	MIKHAYLOVA O K, KOROGODIN I V. BOC-by-BPSK signal processing algorithm for BOC and AltBOC signals[C]//Proc. of the 3rd International Youth Conference on Radio Electronics, Electrical and Power Engineering, 2021.
6	YAO Z , ZHANG J Y , LU M Q . ACE-BOC: dual-frequency constant envelope multiplexing for satellite navigation[J]. IEEE Trans. on Aerospace and Electronic Systems, 2016, 52 (1): 466- 485. doi: 10.1109/TAES.2015.140607
7	MA J G , YANG Y K , YE L Y , et al. Dual-sideband constant-envelope frequency-hopping binary offset carrier multiplexing modulation for satellite navigation[J]. Remote Sensing, 2022, 14 (16): 3871. doi: 10.3390/rs14163871
8	GAO Y, YAO Z, LU M Q. Exploring the ultra-high-precision ranging potential of BDS B1 signal[C]//Proc. of the 33rd International Technical Meeting of the Satellite Division of the Institute of Navigation, 2020: 3626-3646.
9	GAO Y , YAO Z , LU M Q . High-precision unambiguous tracking technique for BDS B1 wideband composite signal[J]. Navigation, 2020, 67 (3): 633- 650. doi: 10.1002/navi.377
10	SYMEONIDIS C, NIKOLAIDIS N. Simulation environments[M]//IOSIFIDIS A, TEFAS A, ed. Deep Learning for Robot Perception and Cognition. New York: Academic Press, 2022: 461-490.
11	ERNEST H, PANY T, SANROMA D, et al. Enhancing the capability of a COTS GNSS signal simulator via an interface to a software-based signal generator[C]//Proc. of the 35th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2022: 3283-3293.
12	ZHANG G, ICKING L, HSU L T, et al. A study on multipath spatial correlation for GNSS collaborative positioning[C]//Proc. of the 34th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2021: 2430-2444.
13	LENHART M, SPANGHERO M, PAPADIMITRATOS P. Relay/replay attacks on GNSS signals[C]//Proc. of the 14th ACM Conference on Security and Privacy in Wireless and Mobile Networks, 2021: 380-382.
14	PECHERITSA D S , BURTSEV S Y , FROLOV A A . Method for determining the fractional part of the cycle of the carrier frequency of the navigation signal of the GNSS signal simulator[J]. Measurement Techniques, 2021, 63, 891- 898. doi: 10.1007/s11018-021-01868-7
15	GUO Y , WU M P , TANG K H , et al. Covert spoofing algorithm of UAV based on GPS/INS-integrated navigation[J]. IEEE Trans. on Vehicular Technology, 2019, 68 (7): 6557- 6564. doi: 10.1109/TVT.2019.2914477
16	XIAO W. Analysis and detection of GPS spoofing attacks in cyber physical systems[D]. Singapore: National University of Singapore, 2022.
17	AKOS D, ARRIBAS J, BHUIYAN M Z H, et al. GNSS software defined radio: history, current developments, and standar-dization efforts[C]//Proc. of the 35th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2022: 3180-3209.
18	KUMARIN A A, KUDRYAVTSEV I A. SoC opportunities for boosting SDR GNSS performance[C]//Proc. of the International Conference on Information and Nanotechnology, 2019: 457-462.
19	PANY T, DÖTTERBÖCK D, GÓMEZ-MARTÍNEZ H, et al. The multi-sensor navigation analysis tool (MuSNAT)-architecture, LiDAR, GPU/CPU GNSS signal processing[C]//Proc. of the 32nd International Technical Meeting of the Satellite Division of the Institute of Navigation, 2019: 4087-4115.
20	YAO Z , LU M Q . Signal multiplexing techniques for GNSS: the principle, progress, and challenges within a uniform framework[J]. IEEE Signal Processing Magazine, 2017, 34 (5): 16- 26. doi: 10.1109/MSP.2017.2713882
21	SEMANJSKI S, MULS A, SEMANJSKI I, et al. Use and validation of supervised machine learning approach for detection of GNSS signal spoofing[C]//Proc. of the International Confe-rence on Localization and GNSS, 2019.
22	AVILA-RODRIGUEZ J A , HEIN G W , WALLNER S , et al. The MBOC modulation: the final touch to the Galileo frequency and signal plan[J]. Navigation, 2008, 55 (1): 15- 28. doi: 10.1002/j.2161-4296.2008.tb00415.x
23	LU Z K , CHEN F Q , XIE Y C , et al. High precision pseudo-range measurement in GNSS anti-jamming antenna array processing[J]. Electronics, 2020, 9 (3): 412. doi: 10.3390/electronics9030412
24	FAN G F, XU X Y, CUI X W, et al. A high-fidelity wideband signal software simulator for GNSS antenna arrays accelerated by GPU[C]//Proc. of the International Technical Meeting of the Institute of Navigation, 2019: 197-208.
25	黄文涛. 基于GPU的GNSS多模信号高效模拟技术研究[D]. 南京: 南京航空航天大学, 2020.
	HUANG W T. Research on high efficiency simulation techno-logy of GNSS multimode signal based on GPU[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020.
26	LI Q S, YAO Z, LI H, et al. A CUDA-based real-time software GNSS IF signal simulator[C]//Proc. of the China Satellite Navigation Conference, 2012: 359-369.
27	李秋实, 姚铮, 陆明泉. 改进的软件GNSS中频信号模拟器设计[J]. 计算机仿真, 2013, 30 (1): 120-123, 249.
	LI Q S , YAO Z , LU M Q . Design and optimization of GPU-based real-time software GNSS signal simulator[J]. Computer Simulation, 2013, 30 (1): 120-123, 249.
28	SHI P L , WU S X , ZENG T , et al. Satellite navigation simulation signal generation method based on GPU acceleration[J]. Signal, 2021, 20, 39- 49.
29	ZHANG B, LIU G B, LIU D, et al. Real-time software GNSS signal simulator accelerated by cuda[C]//Proc. of the 2nd International Conference on Future Computer and Communication, 2010.
30	YAO Z , GUO F , MA J J , et al. Orthogonality-based genera-lized multicarrier constant envelope multiplexing for DSSS signals[J]. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (4): 1685- 1698. doi: 10.1109/TAES.2017.2671580
31	朱亮, 姚铮, 陆明泉, 等. Compass B1信号设计中的非对称ALTBOC复用技术[J]. 清华大学学报: 自然科学版, 2012, 52 (6): 869- 873.
	ZHU L , YAO Z , LU M Q , et al. Non-symmetrical ALTBOC multiplexing for compass B1 si design[J]. Journal of Tsinghua University (Science and Technology), 2012, 52 (6): 869- 873.
32	BA X H. BDS-B1-CUDA[EB/OL]. [2023-02-16]. https://github.com/baxiaohui/BDS-B1-CUDA.

参数	CPU: I9 10850H	GPU: GTX 3060
核心数量	10	3 584
时钟频率/GHz	3.6	1.78
内存/GB	32	12
操作系统	Windows 11
CUDA版本	11.0
