基于混合本征模匹配的光刻掩膜分析方法研究

doi:10.12305/j.issn.1001-506X.2023.11.02

系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (11): 3374-3381.doi: 10.12305/j.issn.1001-506X.2023.11.02

基于混合本征模匹配的光刻掩膜分析方法研究

刘佳¹^,*, 苏珉², 徐群玉³

1. 北京航空航天大学前沿科学技术创新研究院, 北京 100191
2. 广西师范大学电子与信息工程学院, 广西桂林 541004
3. 中国民航科学技术研究院民航法规与标准化研究所, 北京 100028

收稿日期:2022-04-25 出版日期:2023-10-25 发布日期:2023-10-31
通讯作者: 刘佳
作者简介:刘佳(1985—), 男, 副研究员, 博士, 主要研究方向为雷达目标特性建模、雷达目标识别算法、计算电磁学
苏珉(1985—), 男, 讲师, 博士, 主要研究方向为目标散射特性建模与分析、雷达目标识别、计算电磁学
徐群玉(1985—), 女, 助理研究员, 博士, 主要研究方向为机场安全监视、目标检测与识别、民航标准化体系与技术研究
基金资助:
国家自然科学基金(62371018);北航卓越百人计划专项基金(KG21000501);广西自然科学基金(2020GXNSFBA297119);广西科技基地和人才专项(桂科AD20238025)

Research on hybrid eigenmode restoration and mode matching algorithm for computational lithography problems

Jia LIU¹^,*, Min SU², Qunyu XU³

1. Research Institute for Frontier Science, Beihang University, Beijing 100191, China
2. School of Electronic and Information Engineering, Guangxi Normal University, Guilin 541004, China
3. Research Institute of Civil Aviation Law, China Academy of Civil Aviation Science and Technology, Beijing 100028, China

Received:2022-04-25 Online:2023-10-25 Published:2023-10-31
Contact: Jia LIU

摘要/Abstract

摘要：

隐式模式匹配是分析波导结构电磁特性常用的数值方法。分析了现有隐式模式匹配方法在解决计算光刻问题上存在的局限性, 以该方法为基础, 提出了基于Krylov子空间理论的混合本征模重构以及显式模式匹配方法。修正了隐式模式匹配方法中采用的非严格迭代策略导致的本征模精度不足问题, 算法计算复杂度保持在O(N^1.5)。采用典型波导及周期结构对所提算法的精度及效率进行了验证。通过对高复杂度光刻掩膜结构进行仿真, 将计算结果与高频结构仿真器软件以及严格耦合波分析(rigorous coupled wave analysis, RCWA)算法结果进行了对比, 验证了本文所提方法在分析高复杂度光刻问题中的应用价值和效率优势。

关键词: 计算电磁学, 模式匹配, 计算光刻

Abstract:

Implicit mode matching is a popular analyzing method for waveguide structures in computational electromagnetic. This paper discusses the limitation of conventional implicit mode matching method for solving computational lithography problems. Based on the existing implicit mode matching method, a hybrid eigenmode restoration algorithm based on Krylov subspace theory and a explicit mode matching method are proposed. The eigenmode accuracy loss caused by Lanczos method and other problems are solved while preserving the O(N^1.5) complexity. Benchmark cases for representative waveguide and periodic structures verify the restored eigenmode accuracy and efficiency characters of the proposed method. A simulation case for highly complicated lithography mask structure is presented, and results compared with high frequency structure simulator (HFSS) software and rigorous coupled wave analysis (RCWA) method indicate the application significance of the proposed method in solving highly complicated computational lithography problems.

Key words: computational electromagnetics, mode matching, computational lithography

中图分类号:

O436.1

刘佳, 苏珉, 徐群玉. 基于混合本征模匹配的光刻掩膜分析方法研究[J]. 系统工程与电子技术, 2023, 45(11): 3374-3381.

Jia LIU, Min SU, Qunyu XU. Research on hybrid eigenmode restoration and mode matching algorithm for computational lithography problems[J]. Systems Engineering and Electronics, 2023, 45(11): 3374-3381.

图/表 14

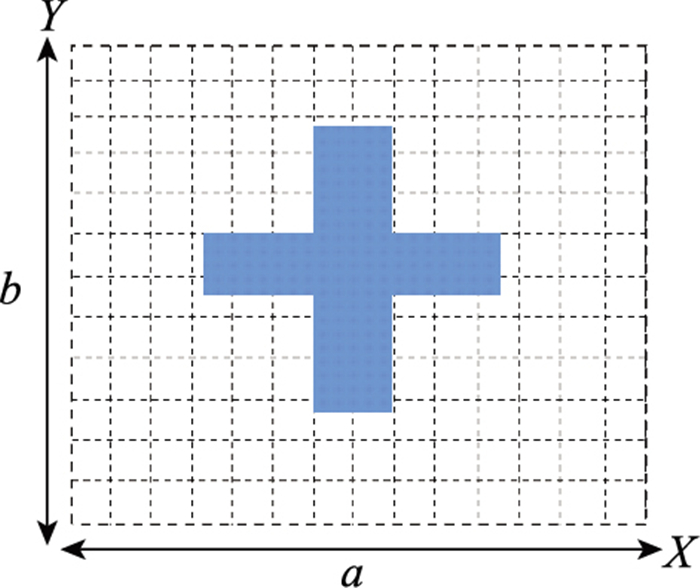

图1

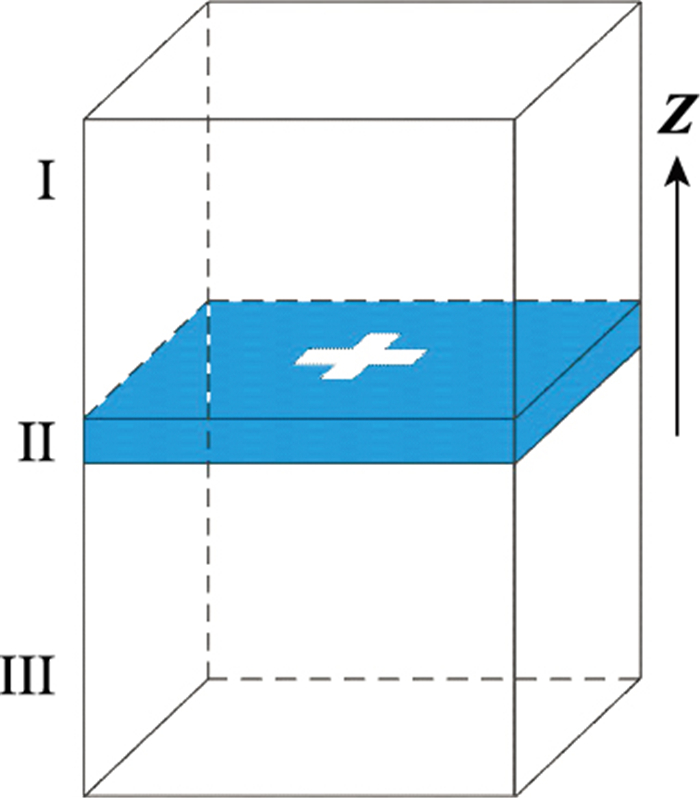

图2

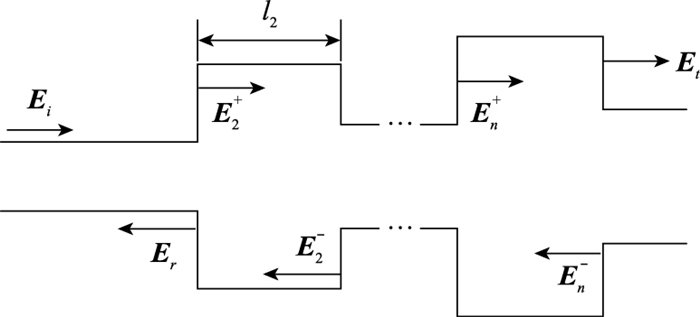

图3

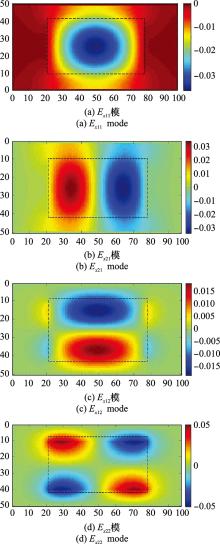

图4

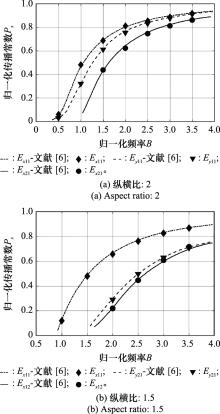

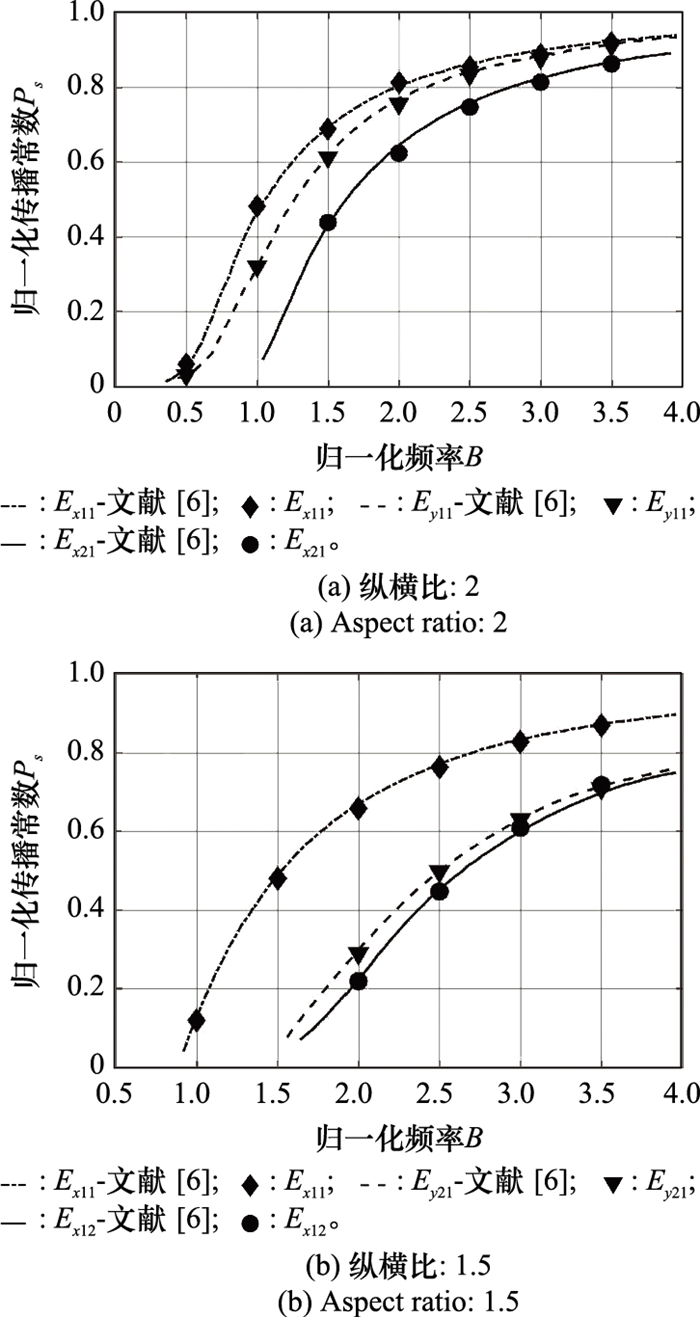

图5

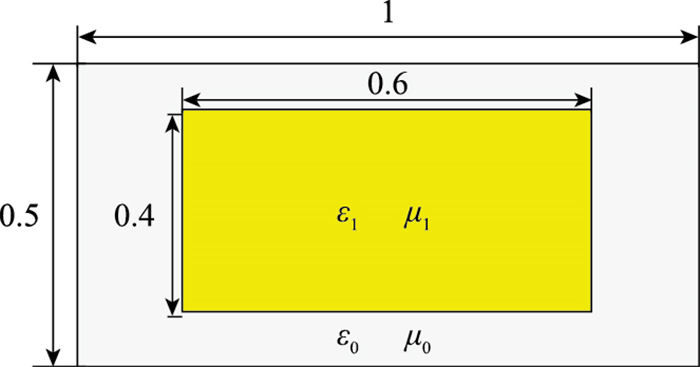

图6

图7

表1

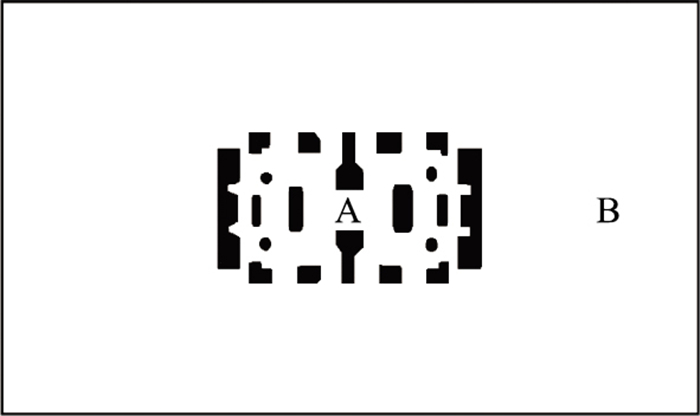

图8

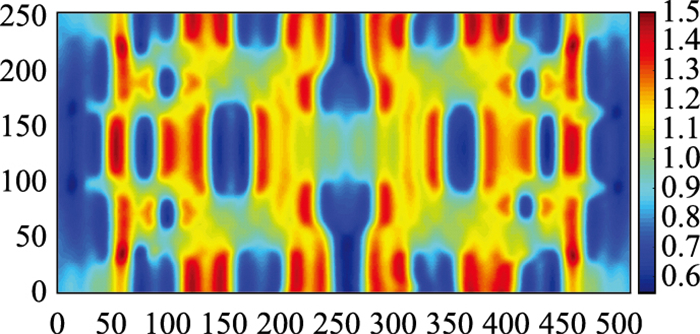

图9

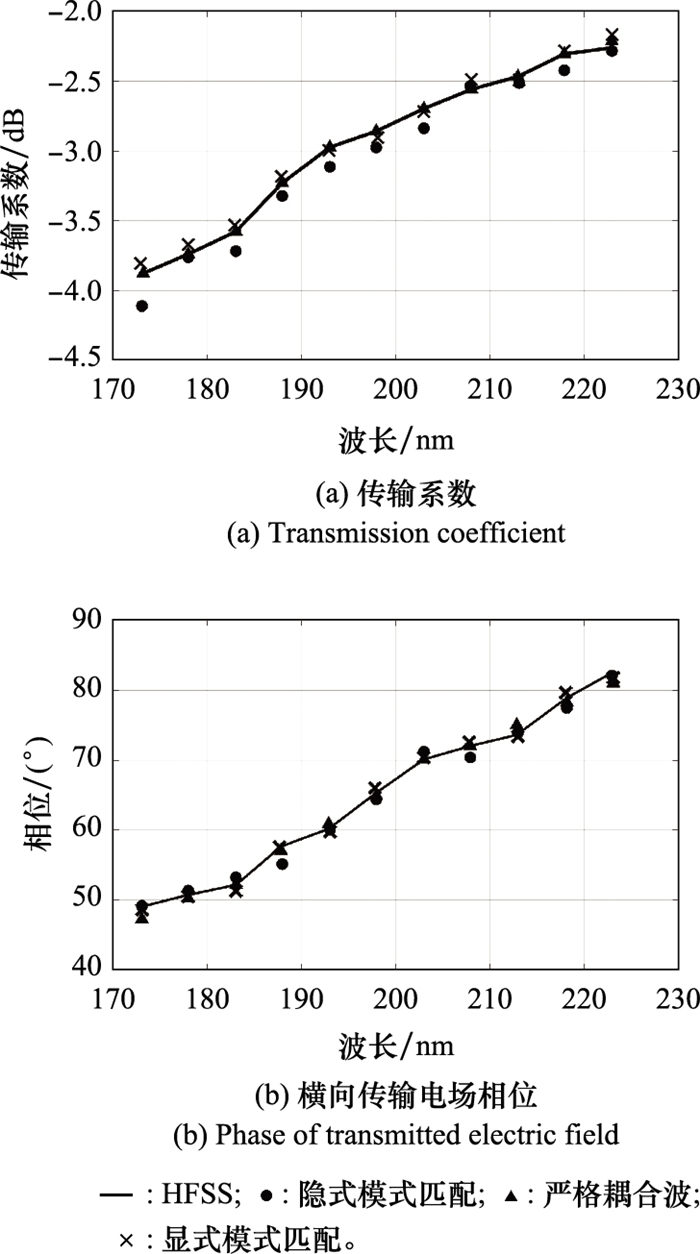

图10

表2

表3

表4

参考文献 30

1	CHROSTOWSKI L , SHOMAN H , HAMMOOD M , et al. Silicon photonic circuit design using rapid prototyping foundry process design kits[J]. IEEE Journal of Selected Topics in Quantum Electronics, 2019, 25 (5): 1- 26.
2	MA X , PAN Y H , ZHANG S E , et al. Informational lithography approach based on source and optimization[J]. IEEE Trans.on Computational Imaging, 2021, 7, 32- 42. doi: 10.1109/TCI.2020.3048271
3	LIN S , HAMMOOD M , YUN H , et al. Computational lithography for silicon photonics design[J]. IEEE Journal of Selected Topics in Quantum Electronics, 2020, 26 (2): 1- 8.
4	WOLFGANG S , UNGER H G . Partially filled waveguides and surface waveguides of rectangular cross-section[J]. Advances in Microwaves, 1966, 1, 319- 387.
5	林蔺, 焦利光, 陈博, 等. 用数值模式匹配算法高效仿真轴对称型散射体海洋可控源电磁响应[J]. 物理学报, 2017, 13, 278- 291. doi: 10.3969/j.issn.1003-3998.2017.02.007
	LIN L , JIAO L G , CHEN B , et al. Efficient simulation of marine controlled source electromagnetic responses for axisymmetric scatter by using numerical mode matching approach[J]. Acta Physica Sinica, 2017, 13, 278- 291. doi: 10.3969/j.issn.1003-3998.2017.02.007
6	GOELL J E . A circular-harmonic computer analysis of rectangular dielectric waveguides[J]. Bell Labs Technical Journal, 1969, 48 (7): 2133- 2160.
7	KUMAR V , DWIVEDI S , JAIN P K . Mode matching analysis for characterization of the sectoral waveguide mode converters[J]. Microwave and Optical Technology Letters, 2019, 61 (11): 2619- 2627. doi: 10.1002/mop.31941
8	SAAVEDRA L , ROSA G S , BERGMANN J R . A combined mode-matching technique and born approximation method to model Well-Logging sensors in non-axisymmetric boreholes[J]. IEEE Access, 2021, 9, 84364- 84374. doi: 10.1109/ACCESS.2021.3086769
9	DERZAKOWSKI K . Application of the radial mode matching method to determine the resonant frequency of a cone shaped dielectric resonator[J]. IEEE Access, 2021, 9, 156239- 156245. doi: 10.1109/ACCESS.2021.3128144
10	MANZILLO F F , SAULEAU R , CAPET N , et al. Mode matching analysis of an E-Plane 90 degrees bend with a square step in parallel-plate waveguide[J]. IEEE Antennas & Wireless Propagation Letters, 2017, 16, 2187- 2190.
11	LIU J , DAI Q , KALADHAR R , et al. Efficient implicit mode matching method for complicated periodic waveguiding structures[J]. IEEE Antennas & Wireless Propagation Letters, 2017, 16, 2651- 2654.
12	LI S , HUANG M Y , JUN D , et al. A MM-wave current-mode inverse outphasing transmitter front-end: a circuit duality of conventional voltage-mode outphasing[J]. IEEE Journal of Solid- State Circuits, 2021, 56 (6): 1732- 1744. doi: 10.1109/JSSC.2020.3038882
13	PELLEGRINI A , MONORCHIO A , MANARA G , et al. A hybrid mode matching-finite element method and spectral decomposition approach for the analysis of large finite phased arrays of waveguides[J]. IEEE Trans.on Antennas & Propagation, 2014, 62 (5): 2553- 2561.
14	RADHAKRISHNAN K , CHEW W C . An efficient Krylov-subspace-based algorithm to solve the dielectric-waveguide problem[J]. IEEE Trans.on Microwave Theory & Techniques, 2001, 49 (7): 1345- 1348.
15	RADHAKRISHNAN K, CHEW W C. An efficient iterative solver for the modes in a dielectric waveguide[C]//Proc. of the IEEE Antennas & Propagation Society International Symposium, 1998, 3: 1492-1495.
16	SORENSEN D C . Implicitly restarted arnoldi/Lanczos methods for large scale eigenvalue calculations[M]. Berlin: Springer Netherlands, 1997.
17	黄义超, 张少泓. 隐式重启的Arnoldi方法及其在高阶谐波求解中的应用[J]. 核科学与工程, 2008, 28 (2): 102- 106.
	HUANG Y C , ZHANG S H . Implicitly restarted Arnoldi method and its application to the solution of higher order harmonics[J]. Chinese Journal of Nuclear Science and Engineering, 2008, 28 (2): 102- 106.
18	ZIGA L , BENJAMIN L , MARKO T , et al. Performance analysis of rigorous coupled-wave analysis and its integration in a coupled modeling approach for optical simulation of complete heterojunction silicon solar cells[J]. Beilstein Journal of Nanotechnology, 2018, 9, 2315- 2329.
19	CIVILETTI B J , LAKHTAKIA A , MONK P B . Analysis of the rigorous coupled wave approach for p-polarized light in gratings[J]. Journal of Computational and Applied Mathematics, 2021, 386, 112478- 112483.
20	孔伟金, 云茂金, 孙欣, 等. 基于严格耦合波理论的多层介质膜光栅衍射特性分析[J]. 物理学报, 2008, 57 (8): 4904- 4910.
	KONG W J , YUN M J , SUN X , et al. Diffraction property of multi-layer dielectric gratings studied by rigorous coupled-wave analysis[J]. Acta Physica Sinica, 2008, 57 (8): 4904- 4910.
21	CHEW W C , JIN J M , MICHIELSSEN E . Fast efficient algorithms in computational electromagnetics[M]. Artech House, 2001.
22	VLADIMIR D , LEONID K . Krylov subspace approximation of eigenpairs and matrix functions in exact and computer arithmetic[J]. Numerical Linear Algebra with Applications, 1995, 2 (3): 205- 217.
23	KAPIL A. Recycling Bi-Lanczos algorithms: BiCG, CGS, and BiCGSTAB[D]. Masters Thesis. Blacksburg, Virginia, USA. Virginia Polytechnic Institute and State University, 2009.
24	SADEK E M , BENTBIB A H , SADEK L , et al. Global extended Krylov subspace methods for large-scale differential Sylvester matrix equations[J]. Journal of Applied Mathematics and Computing, 2020, 62, 157- 177.
25	CHEW W C . Waves and fields in inhomogeneous media[M]. New York: IEEE Press, 1990.
26	HAMADI M A , JBILOU K , RATNANI A . A model reduction method in large scale dynamical systems using an extended-rational block Arnoldi method[J]. Journal of Applied Mathematics and Computing, 2022, 68, 271- 293.
27	GAZZOLA S , NOSCHESE S , NOVATI P , et al. Arnoldi decomposition, GMRES, and preconditioning for linear discrete ill-posed problems[J]. Applied Numerical Mathematics, 2019, 142, 102- 121.
28	SADKANE M . Block-arnoldi and davidson methods for unsymmetric large eigenvalue problems[J]. Numerische Mathematik, 1993, 64 (1): 195- 211.
29	ZHANG Y , FENG N , WANG L X , et al. An FDTD method for fully anisotropic periodic structures impinged by obliquely incident plane waves[J]. IEEE Trans.on Antennas and Propagation, 2020, 68 (1): 366- 376.
30	SVENNING E , FAGERSTR M , LARSSON F . Computational homogenization of micro fractured continua using weakly periodic boundary conditions[J]. Computer Methods in Applied Mechanics and Engineering, 2016, 299, 1- 21.

数值算法及参数	TE极化		TM极化
迭代步数	200	300	200	300
隐式模式匹配	0.07	0.04	0.08	0.03
显式模式匹配	0.03	0.009	0.05	0.008

数值算法	传输系数	相位
RCWA	0.042	0.033
隐式模式匹配	0.056	0.029
显式模式匹配	0.040	0.031

数值算法	193 nm	217 nm
RCWA/s	0.042	0.033
隐式模式匹配/s	0.056	0.029
显式模式匹配/s	0.040	0.031

数值算法	193 nm	217 nm
RCWA/MB	1 424	1 233
隐式模式匹配/MB	470	411
显式模式匹配/MB	859	792
