传输通道相位失真对非恒包络信号质量的影响分析

doi:10.12305/j.issn.1001-506X.2023.06.02

摘要/Abstract

摘要：

全球定位系统三代首星观测结果显示其星座图具有非恒包络特性, 目前国内对非恒包络信号的研究较少, 其优势未被充分利用在卫星导航信号设计中。为研究非恒包络信号经过通道失真后的性能, 仿真生成恒包络信号和非恒包络信号, 构建传输通道相位失真模型, 将仿真信号通过失真模型后进行信号质量评估分析, 并给出实测信号结果, 以进行验证。研究结果表明，在相位失真的影响下, 非恒包络信号的测距性能优于恒包络信号。

关键词: 卫星导航信号, 非恒包络, 相位失真, 信号质量评估

Abstract:

The observation results of the first satellite of the Global Positioning System Ⅲ (GPS Ⅲ) show that its constellation diagram has the characteristic of non-constant envelope. At present, there is little research on non-constant envelope signals in China, and its advantages are not fully utilized in the design of satellite navigation signals. In order to study the performance of non-constant envelope signal after channel distortion, this paper simulates the constant envelope signal and non-constant envelope signal, and constructs the transmission channel phase distortion model, then evaluates and analyzes the signal quality after the simulated signal passes through the distortion model, and finally gives the measured signal results for verification. The research results show that the ranging performance of non-constant envelope signal is better than that of constant envelope signal under the influence of phase distortion.

Key words: satellite navigation signal, non-constant envelope, phase distortion, signal quality assessment

中图分类号:

TN911.6

杨倩倩, 贺成艳, 王鹏博, 韩子彬. 传输通道相位失真对非恒包络信号质量的影响分析[J]. 系统工程与电子技术, 2023, 45(6): 1597-1605.

Qianqian YANG, Chengyan HE, Pengbo WANG, Zibin HAN. Influence analysis of transmission channel phase distortion on the quality of non-constant envelope signal[J]. Systems Engineering and Electronics, 2023, 45(6): 1597-1605.

图/表 17

表1

图1

图2

图3

图4

表2

图5

图6

图7

表3

图8

表4

图9

表5

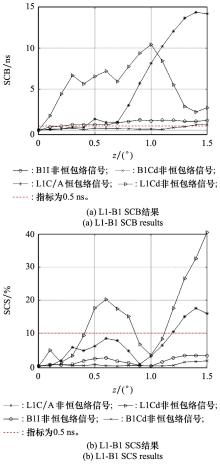

图10

表6

表7

参考文献 31

1	AI L R, YANG J, YANG B B, et al. Research on satellite navigation signal analysis and accelerate optimization algorithm[C]//Proc. of the IEEE/ACIS 17th International Conference on Computer and Information Science, 2018: 860-864.
2	姚铮, 陆明泉. 新一代卫星导航系统信号设计原理与实现技术[M]. 北京: 电子工业出版社, 2016.
	YAO Z , LU M Q . Signal design principle and implementation technology of new generation satellite navigation system[M]. Beijing: Publishing House of Electronics Industry, 2016.
3	ZHANG K , ZHOU H W , WANG F X . Multiplexing performance assessment of POCET method for compass B1/B3 signals[J]. Journal of Navigation, 2011, 64 (1): 41- 54.
4	YANG J, YANG Y K, LI X, et al. Design methodology and performance analysis for a novel constant envelope modulation signal of GNSS[C]//Proc. of the International Conference on Apperceiving Computing & Intelligence Analysis, 2010: 18-21.
5	ZHENG Y , GUO F , MA J J , et al. Orthogonality based generalized multicarrier constant envelope multiplexing for DSSS signals[J]. IEEE Trans.on Aerospace & Electronic Systems, 2017, 53 (4): 1685- 1698.
6	SALEH A A M . Frequency-independent and frequency-dependent nonlinear models of TWT amplifiers[J]. IEEE Trans.on Communications, 1981, 29 (11): 1715- 1720. doi: 10.1109/TCOM.1981.1094911
7	WEEKLEY J M , MANGUS B J . TWTA versus SSPA: a comparison of on-orbit reliability data[J]. IEEE Trans.on Communications Electronic Devices, 2005, 52 (5): 650- 652. doi: 10.1109/TED.2005.845864
8	武小坡, 吴家锋, 赵海洋, 等. 星载功率放大器相位抖动问题研究[J]. 微波学报, 2021, 37 (2): 31- 36.
	WU X P , WU J F , ZHAO H Y , et al. Research on phase jitter of spaceborne power amplifier[J]. Journal of Microwave, 2021, 37 (2): 31- 36.
9	CRESPO C C , MADERO A M J , BECERRA J A . A bivariate volterra series model for the design of power amplifier digital predistorters[J]. Sensors, 2021, 21 (17): 5897. doi: 10.3390/s21175897
10	ENGIN D, RUDD W, STORM M, et al. High power thulium fiber laser systems for airborne and spaceborne missions[C]//Proc. of the SPIE LASE, 2020.
11	WANG Y, YAN T, WANG G Y, et al. Analysis of interaction between navigation payload and constant envelope design of navigation signal[C]//Proc. of the 10th China Satellite Navigation Conference, 2019: 421-431.
12	BELABAD A R , MOTAMEDI S A , SHARIFIAN S . An adaptive digital predistortion for compensating nonlinear distortions in RF power amplifier with memory effects[J]. Integration, 2017, 57, 184- 191. doi: 10.1016/j.vlsi.2017.01.001
13	ZHAO Q , HAO L C . Study of the CASM application in E1 signal of Galileo system[J]. IEICE Electronics Express, 2009, 6 (17): 1240- 1245. doi: 10.1587/elex.6.1240
14	陈校非. 卫星导航信号多路复用理论及仿真分析[D]. 西安: 西安电子科技大学, 2013.
	CHEN X F. Theory and simulation of satellite navigation signal multiplexing[D]. Xi'an: Xidian University, 2013.
15	贺成艳. GNSS空间信号质量评估方法研究及测距性能影响分析[D]. 西安: 中国科学院研究生院(国家授时中心), 2013.
	HE C Y. Research on evaluation methods of GNSS signal quality and the influence of GNSS signal on ranging performance[D]. Xi'an: Graduate of Chinese Academy of Sciences (National Time Service Center), 2013.
16	卢晓春, 王萌, 王雪, 等. GPS Ⅲ首星信号结构及其特性分析[J]. 电子与信息学报, 2021, 43 (8): 2317- 2323.
	LU X C , WANG M , WANG X , et al. Structure and characteristic analysis of GPS Ⅲ first satellite signal[J]. Journal of Electronics and Information, 2021, 43 (8): 2317- 2323.
17	SOELLNER M , KOHL R , LUETKE W , et al. The impact of linear and non-linear signal distortions on Galileo code tracking accuracy[J]. Pacific Journal of Mathematics, 2002, 162 (1): 27- 44.
18	王森. 卫星导航信号射频通道及接收场景建模与研究[D]. 西安: 中国科学院大学(国家授时中心), 2020.
	WANG S. Modeling and research on radio frequency channel and receiving scene of satellite navigation signal[D]. Xi'an: University of Chinese Academy of Sciences (National Time Service Center), 2020.
19	China Satellite Navigation Office. BeiDou navigation satellite system signal in space interface control document open service signal B1I (version 3.0)[EB/OL]. [2022-03-16]. http://www.beidou.gov.cn.
20	China Satellite Navigation Office. BeiDou navigation satellite system signal in space interface control document open service signal B1C (version 1.0)[EB/OL]. [2022-03-16]. http://www.beidou.gov.cn.
21	IS-GPS-200-M. Global positioning systems directorate, systems engineering and integration. Interface specification, NAVSTAR GPS space segment/navigation user interfaces[EB/OL]. [2022-03-16]. https://www.gps.gov.
22	DAFESH P A, CAHN C R. Phase-optimized constant-envelope transmission (POCET) modulation method for GNSS signals[C]//Proc. of the International Technical Meeting of the Satellite Division of the Institute of Navigation, 2009: 2860-2866.
23	ZHANG K, LI Y L, ZHOU H W, et al. Analytical transmission model of POCET technique for compass B1 and B3 signals[C]//Proc. of the 25th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2012: 277-285.
24	GUO F, YAO Z, LU M Q, et al. Generalized transparent constant envelope multiplexing method[C]//Proc. of the International Technical Meeting of The Institute of Navigation, 2016: 25-28.
25	DAFESH P A, KHADGE G K. Phase optimized constant envelope transmission (POCET) and the method of phantom signals[C]//Proc. of the Institute of Navigation Pacific PNT Meeting, 2017: 100-117.
26	JOHN W B, CAHN C R, DAFESH P A, et al. LIC signal design options[C]//Proc. of the National Technical Meeting of the Institute of Navigation, 2006: 685-697.
27	HOLMES J K, RAGHAVAN S. A summary of the new GPS IIR-M and IIF modernization signals[C]//Proc. of the IEEE 60th Vehicular Technology Conference, 2004: 4116-4126.
28	FAN T, LIN V S, WANG G H, et al. Study of signal combining methodologies for GPS Ⅲ's navigation payload[C]//Proc. of the 17th International Technical Meeting of the Satellite Division of the Institude of Navigation (ION GNSS), 2004: 21-24.
29	YE H , JING X J , LIU L , et al. Analysis of the multiplexing method of new system navigation signals of GPS Ⅲ first star L1 frequency in China's Regional[J]. Sensors, 2019, 19 (24): 5360. doi: 10.3390/s19245360
30	李彩华. 现代化GNSS信号收发信道关键技术研究[D]. 长沙: 国防科学技术大学, 2015.
	LI C H. Research on the key technology of GNSS channel[D]. Changsha: National University of Defense Technology, 2015.
31	HE C Y , LU X C , GUO J , et al. Initial analysis for characterizing and mitigating the pseudorange biases of BeiDou navigation satellite system[J]. Satellite Navigation, 2020, 1 (1): 3.

信号	信息
信号	调制方式	码长	服务
B1I	BPSK(2)	2 046	公开
B1Cd	BOC(1, 1)	10 230	公开
B1Cp	QMBOC (6, 1, 4/33)	10 230	公开
B1A	-	-	授权

信号	信息
信号	调制方式	码长	服务
C/A	BPSK(1)	1 023	公开
P(Y)	BPSK(10)	6 187 104 000 000	授权
L1Cd	BOC(1, 1)	10 230	公开
L1Cp	TMBOC	1 800×10 230	公开
M	BOC(10, 5)	未公开	授权

仿真信号	支路	SCB/ns	SCS/%
B1恒包络	B1I	0.054	0.087
	B1Cd	0.017	0.128
	B1Cpa	0.014	0.149
B1非恒包络	B1I	0.018	0.029
	B1Cd	0.003	0.105
	B1Cpa	0.002	0.075
L1非恒包络	L1C/A	0.029	0.133
L1非恒包络	L1Cd	0.012	0.147

信号	支路	超标范围	随z增大的变化趋势
B1恒包络	B1I	z＞0.76	递增, z＞1.2, 快速增长
	B1Cd	z＞0.76	递增, z＞0.7, 快速增长
	B1CPa	z＞0.94	递增, z＞0.7, 快速增长
B1非恒包络	B1I	z＞0.70	相对平稳
	B1Cd	z＞0.80	相对平稳
	B1CPa	z＞1.32	相对平稳

信号	支路	超标范围	随z增大的变化趋势
B1恒包络	B1I	z＞1.28	递增, z＞0.5, 快速增长
	B1Cd	未超标	递增, z＞1.0, 快速增长
	B1Cpa	未超标	递增, z＞1.1, 快速增长
B1非恒包络	B1I	未超标	相对平稳
	B1Cd	未超标	相对平稳
	B1Cpa	未超标	相对平稳
