基于穿越时刻的前向散射雷达网目标参数估计

doi:10.12305/j.issn.1001-506X.2023.05.08

摘要/Abstract

摘要：

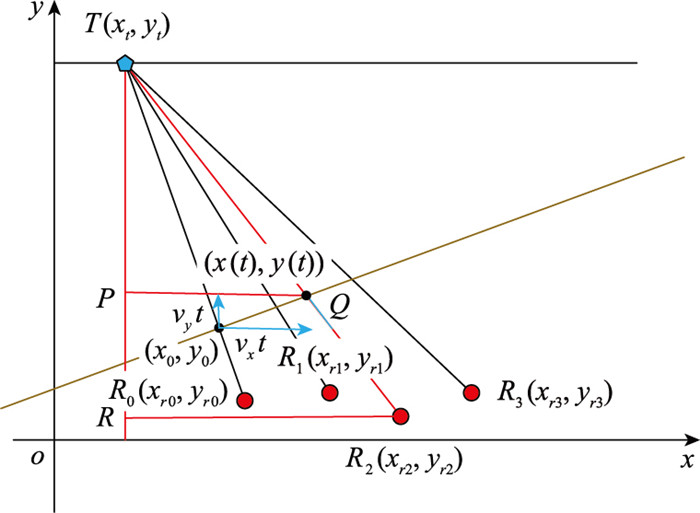

基于全球导航卫星系统(global navigation satellite system, GNSS)的外辐射源雷达是当前雷达界关注的热点。本文首先建立了以GNSS为辐射源的前向散射雷达(forward scatter radar, FSR)网模型, 实现了仅利用目标穿越多个基线时刻来估计目标运动参数, 并从理论上证明了最小组网构型; 然后推导了参数估计的精度, 并通过仿真分析了穿越时刻误差、站址误差、发射/接收站布局、目标高度等对目标参数估计精度的影响。仿真结果表明, 在考虑系统实际参数测量误差和站址误差条件下, 目标位置估计误差可达百米量级, 可以满足预警要求, 所得结论对天发地收模式下FSR网系统构建具有参考意义。

关键词: 前向散射雷达, 参数估计, 穿越时刻, 误差分析

Abstract:

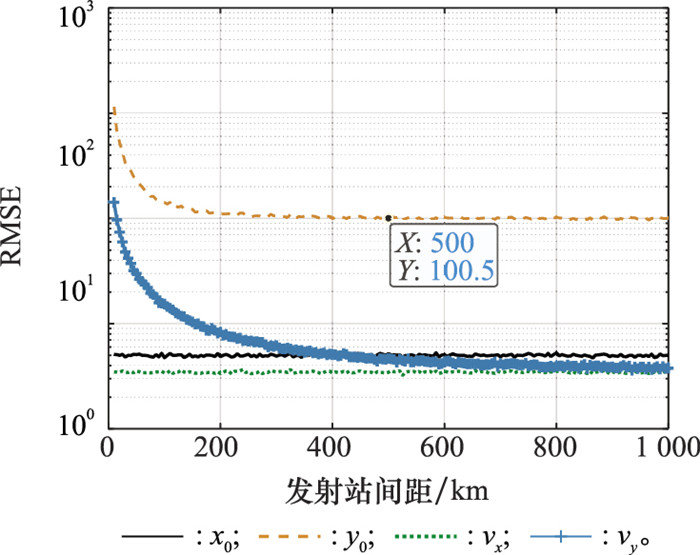

The passive radar based on global navigation satellite system (GNSS) is a hot spot in the current radar field. Firstly, a forward scatter radar (FSR) net model with GNSS as the radiation source is proposed. The estimation technique of the kinematic parameters of a moving target using only the time of target crossing baselines is realized, and the minimum network configuration is proved theoretically. Then, the accuracy of parameter estimation is derived, and the influence of crossing time error, station location error, transmitting/receiver layout, and target height on the accuracy of target parameter estimation are analyzed by simulation. The simulation results show that considering the actual parameter measurement error and station location error conditions, the target position estimation error can reach the order of 100 meters, which can meet the early warning requirements. The obtained conclusions can provide a reference for the construction of the FSR net in the mode of sky transmitting and earth receiving.

Key words: forward scatter radar (FSR), parameter estimation, crossing time, error analysis

中图分类号:

TN957

郑雨晴, 艾小锋, 徐志明, 赵锋, 杨勇. 基于穿越时刻的前向散射雷达网目标参数估计[J]. 系统工程与电子技术, 2023, 45(5): 1323-1332.

Yuqing ZHENG, Xiaofeng AI, Zhiming XU, Feng ZHAO, Yong YANG. Target parameters estimation of FSR net based on crossing times[J]. Systems Engineering and Electronics, 2023, 45(5): 1323-1332.

图/表 12

图1

图2

图3

表1

图4

图5

图6

图7

表2

图8

图9

图10

参考文献 30

1	KOCH V , WESTPHAL R . New approach to a multistatic passive radar sensor for air/space defense[J]. IEEE Aerospace and Electronic Systems Magazine, 1995, 10 (11): 24- 32. doi: 10.1109/62.473409
2	MA H , ANTONIOU M , STOVE A G , et al. Maritime moving target localization using passive GNSS-based multistatic radar[J]. IEEE Trans. on Geoscience and Remote Sensing, 2018, 56 (8): 4808- 4819. doi: 10.1109/TGRS.2018.2838682
3	ANTONIOU M, STOVE A G, TZAGKAS D, et al. Marine target localization with passive GNSS-based multistatic radar: experimental results[C]//Proc. of the International Conference on Radar, 2018.
4	MA H , ANTONIOU M , PASTINA D , et al. Maritime moving target indication using passive GNSS-based bistatic radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2018, 54 (1): 115- 130. doi: 10.1109/TAES.2017.2739900
5	CLEMENTE C , SORAGHAN J J . GNSS-based passive bistatic radar for micro-Doppler analysis of helicopter rotor blades[J]. IEEE Trans. on Aerospace and Electronic Systems, 2014, 50 (1): 491- 500. doi: 10.1109/TAES.2013.120018
6	SANTI F , PIERALICE F , PASTINA D . Joint detection and localization of vessels at sea with a GNSS-based multistatic radar[J]. IEEE Trans. on Geoscience and Remote Sensing, 2019, 57 (8): 5894- 5913. doi: 10.1109/TGRS.2019.2902938
7	SANTI F , PASTINA D , BUCCIARELLI M . Experimental demonstration of ship target detection in GNSS-based passive radar combining target motion compensation and track-before-detect strategies[J]. Sensors, 2020, 20 (3): 599. doi: 10.3390/s20030599
8	ILIOUDIS C V, CAO J L, THEODOROU I, et al. GNSS based passive radar for UAV monitoring[C]//Proc. of the IEEE Radar Conference, 2019.
9	GOMEZ-DEL-HOYO P, JARABO-AMORES M, MATA-MOYA D, et al. First approach on ground target detection with GPS based passive radar: experimental results[C]//Proc. of the Signal Processing Symposium, 2019: 71-75.
10	HU C , LIU C J , WANG R , et al. Detection and SISAR imaging of aircrafts using GNSS forward scatter radar: signal mo-deling and experimental validation[J]. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (4): 2077- 2093. doi: 10.1109/TAES.2017.2683578
11	胡程, 刘长江, 曾涛. 双基地前向散射雷达探测与成像[J]. 雷达学报, 2016, 5 (3): 229- 243.
	HU C , LIU C J , ZENG T . Bistatic forward scattering radar detection and imaging[J]. Journal of Radars, 2016, 5 (3): 229- 243.
12	ZENG T , HU C , CHERNIAKOV M , et al. Joint parameter estimation and Cramer-Rao bound analysis in ground-based forward scatter radar[J]. EURASIP Journal on Advances in Signal Processing, 2012, doi: 10.1186/1687-6180-2012-80
13	GASHINOVA M , DANIEL L , SIZOV V , et al. Phenomenology of Doppler forward scatter radar for surface targets observation[J]. IET Radar, Sonar & Navigation, 2013, 7 (4): 422- 432.
14	CONTU M , DE L A , HRISTOV S , et al. Passive multifrequency forward-scatter radar measurements of airborne targets using broadcasting signals[J]. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (3): 1067- 1087. doi: 10.1109/TAES.2017.2649198
15	DAUD N A M, RASHID N E A, OTHMAN K A, et al. Analysis on radar cross-section of different target specifications for forward scatter radar (FSR)[C]//Proc. of the 4th International Conference on Digital Information and Communication Technology and its Applications, 2014: 353-356.
16	BLYAKHMAN A B, BUROV V N, MYAKINKOV A V, et al. Detection of unmanned aerial vehicles via multi-static forward scattering radar with airborne transmit positions[C]//Proc. of the International Radar Conference, 2014.
17	MUSA S A, RSA R A, SALI A, et al. DVBS based forward scattering radar for drone detection[C]//Proc. of the 20th International Radar Symposium, 2019.
18	RADMARD M, BAYAT S, FARINA A, et al. Satellite-based forward scatter passive radar[C]//Proc. of the 17th International Radar Symposium, 2016.
19	赵晓彤, 郭琨毅, 盛新庆, 等. 前向雷达目标回波成分与特性分析[J]. 系统工程与电子技术, 2016, 38 (11): 2523- 2529. doi: 10.3969/j.issn.1001-506X.2016.11.12
	ZHAO X T , GUO K Y , SHENG X Q , et al. Characteristics analysis on forward scattering radar echoes[J]. Systems Engineering and Electronics, 2016, 38 (11): 2523- 2529. doi: 10.3969/j.issn.1001-506X.2016.11.12
20	HU C , SIZOV V , ANTONIOU M , et al. Optimal signal processing in ground-based forward scatter micro radars[J]. IEEE Trans. on Aerospace and Electronic Systems, 2012, 48 (4): 3006- 3026. doi: 10.1109/TAES.2012.6324674
21	胡程, 孙鹭怡, 曾涛, 等. 一种精确的前向散射雷达三维目标跟踪方法[J]. 北京理工大学学报, 2012, 32 (9): 942- 948. doi: 10.3969/j.issn.1001-0645.2012.09.013
	HU C , SUN L Y , ZENG T , et al. Accurate three-dimensional target tracking in forward scattering radar[J]. Transactions of Beijing Institute of Technology, 2012, 32 (9): 942- 948. doi: 10.3969/j.issn.1001-0645.2012.09.013
22	HAMDOLLAHZADEH M , AMIRI R , BEHNIA F . Moving target localization in bistatic forward scatter radars: perfor-mance study and efficient estimators[J]. IEEE Trans. on Aerospace and Electronic Systems, 2020, 56 (2): 1582- 1594. doi: 10.1109/TAES.2019.2934007
23	GAO C Q , YANG D K , WANG B , et al. Target moving trajectory estimation by multiple receivers based on GPS forward scattering radar[J]. The Journal of Engineering, 2019, 2019 (21): 7755- 7760. doi: 10.1049/joe.2019.0796
24	PASTINA D , SANTI F , PIERALICE F , et al. Passive radar imaging of ship targets with GNSS signals of opportunity[J]. IEEE Trans. on Geoscience and Remote Sensing, 2021, 59 (3): 2627- 2642.
25	HU C, WANG L, LIU C J. SISAR imaging method based on GNSS signal: theory and experimental results[C]//Proc. of the CIE International Conference on Radar, 2016.
26	PASTINA D , CONTU M , LOMBARDO P , et al. Target motion estimation via multi-node forward scatter radar system[J]. IET Radar, Sonar & Navigation, 2016, 10 (1): 3- 14.
27	LUCA A D, CONTU M, HRISTOV S, et al. FSR velocity estimation using spectrogram[C]//Proc. of the 17th International Radar Symposium, 2016.
28	HU C , LIU C J , WANG R , et al. Detection and SISAR imaging of aircrafts using GNSS forward scatter radar: signal modeling and experimental validation[J]. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (4): 2077- 2093. doi: 10.1109/TAES.2017.2683578
29	MARINA G, LAVENIA D, MIKHAIL C, et al. Multistatic forward scatter radar for accurate motion parameters estimation of low-observable targets[C]//Proc. of the International Radar Conference, 2014.
30	王顺生. 基于北斗信号外辐射源雷达目标检测与定位方法研究[D]. 西安: 西安电子科技大学, 2020.
	WANG S S. Target detection and positioning method in passive bistatic radar based on Beidou signal[D]. Xi'an: Xidian University, 2020.

对象	参数	取值
目标	飞行轨迹/km	y=0.2x+7
	初始高度/km	7
	速度/(m/s)	250
接收站	R₁/km	(0, 0.01)
	R₂/km	(0.5, 0.005)
	R₃/km	(1.0, 0.01)
	R₄/km	(1.5, 0.01)
	R₅/km	(2.0, 0.01)
发射站	T₁/km	(0, 20 200)
	T₂/km	(100, 20 200)
	T₃/km	(200, 20 200)
	T₄/km	(300, 20 200)

基线数量/条	系统结构
4	两发两收(T₁, T₂)-(R₁, R₂)
6	两发三收(T₁, T₂)-(R₁, R₂, R₃)
8	两发四收(T₁, T₂)-(R₁, R₂, R₃, R₄)
10	两发五收(T₁, T₂)-(R₁, R₂, R₃, R₄, R₅)
