系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (3): 859-868.doi: 10.12305/j.issn.1001-506X.2023.03.28

• 通信与网络 • 上一篇    下一篇

混合载波系统高阶计算分集方法

冯雨晴1,2, 房宵杰1,*, 沙学军1, 宋鸽1

  1. 1. 哈尔滨工业大学电子与信息工程学院, 黑龙江 哈尔滨 150001
    2. 中国电子科技集团公司第五十四所通信网信息传输与分发技术国家重点实验室, 河北 石家庄 050080
  • 收稿日期:2021-09-21 出版日期:2023-02-25 发布日期:2023-03-09
  • 通讯作者: 房宵杰
  • 作者简介:冯雨晴(1992—), 女, 博士研究生, 主要研究方向为宽带无线通信、分数域信号设计、分集技术
    房宵杰(1989—), 男, 讲师, 博士, 主要研究方向为物理层安全编码理论
    沙学军(1966—), 男, 教授, 博士, 主要研究方向为通信网、宽带无线接入技术
    宋鸽(1996—), 女, 博士研究生, 主要研究方向为宽带无线通信、变换域通信系统分析与设计、混合载波体制设计
  • 基金资助:
    国家自然科学基金(61901140);黑龙江省自然科学基金(YQ2021F003);中国博士后科学基金(2019M650067);通信网信息传输与分发技术国家重点实验室基金(SCX21641X003)

High-order computation diversity for hybrid carrier system

Yuqing FENG1,2, Xiaojie FANG1,*, Xuejun SHA1, Ge SONG1

  1. 1. School of Electronics and Information Engineering, Harbin Institute of Technology, Harbin 150001, China
    2. Science and Technology on Communication Networks Laboratory, China Electronics Technology Group Corporation Fifty-fourth Institute, Shijiazhuang 050080, China
  • Received:2021-09-21 Online:2023-02-25 Published:2023-03-09
  • Contact: Xiaojie FANG

摘要:

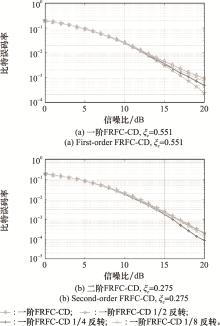

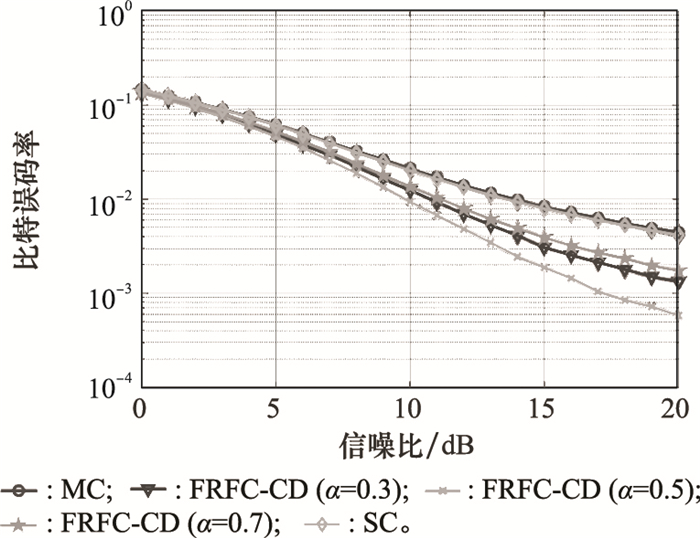

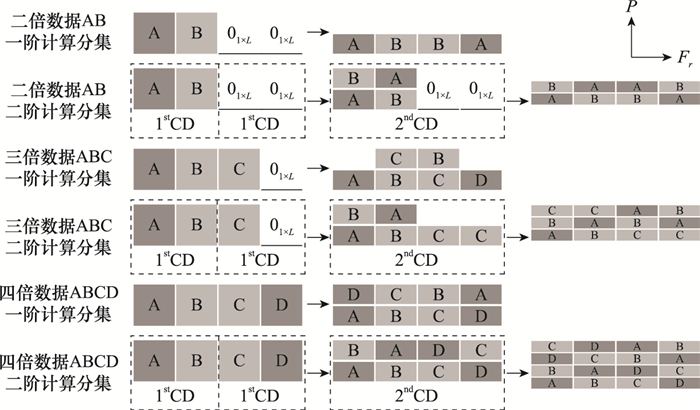

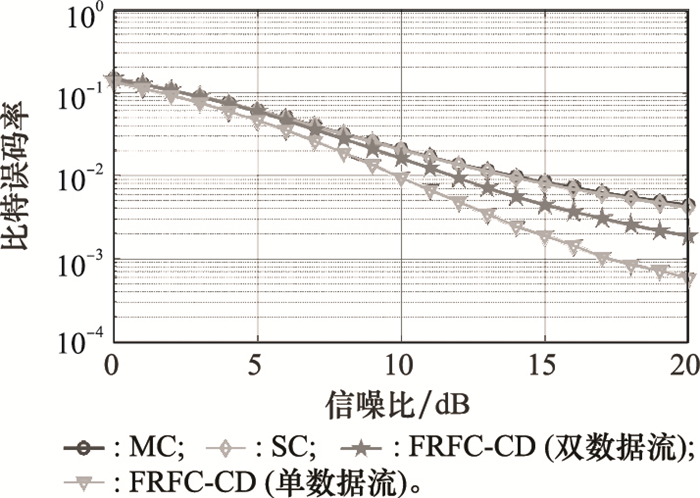

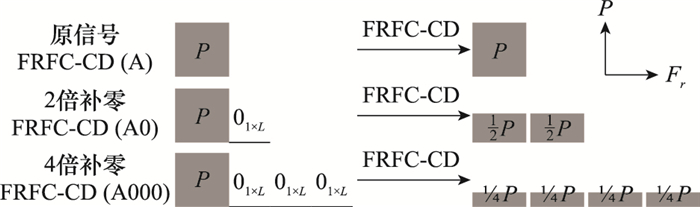

面向多载波系统的分集方案对于通信技术的发展而言至关重要,针对混合载波系统设计分数域四分量计算分集(fractional domain four-component computation diversity, FDFC-CD)方法,利用分数傅里叶信号含有多个时频分量的特点提高混合载波系统的分集性能,并基于多分量扩展的计算分集方法存在能量分布不均匀的背景, 提出高阶计算分集方法, 并进行了相应的仿真验证。针对高阶分数域四分量计算分集数据块内部部分点位相关性过高的问题, 提出了基于数据块反转的能量平均化策略。仿真结果表明, 高阶计算分集可以使系统比特误码率得以降低, 且分集阶数越高,降低效果越好, 其阶数选择受限于系统资源、链路衰减和接收机灵敏度。能量平均化策略的提出完善了高阶计算分集方法, 二者结合良好, 分集效果得到了进一步提高。

关键词: 加权分数傅里叶变换, 分数域四分量计算分集, 能量平均化, 高阶计算分集, 混合载波

Abstract:

A diversity scheme for multi-carrier systems is essential for the development of communication technology. A fractional domain four-component computational diversity(FDFC-CD) method is designed for hybrid carrier systems to improve the diversity performance of hybrid carrier systems by using the feature that fractional Fourier signals contain multiple time-frequency components. The multi-component extended computation diversity (CD) has the background of uneven energy distribution and taking this fact into consideration, a high-order computation diversity method is proposed and verified by corresponding simulations. Aiming at the problem of high correlation between some points in the high-order FRFC-CD data block, an energy averaging strategy based on data block inversion is proposed. The simulation results show that high-order computation diversity can reduce the system bit error rate, and the higher the diversity order, the better the reduction effect. The choice of order is limited by system resources, link attenuation and receiver sensitivity. The proposed energy averaging strategy improves the high-order computational diversity method and with the perfect combination of the strategy and method, the diversity effect is further improved.

Key words: weighted fractional Fourier transform, fractional domain four-component computation diversity, energy averaging, high-order computation diversity, hybrid carrier
